1- 68 FEATURES OF YOUR HYUNDAI
The accessory bax may be opened by pushing at its top edge.It is used for storing small commodi-ties.B500A01L-GAT ACCESSORY BOX
HXG111
HXG047

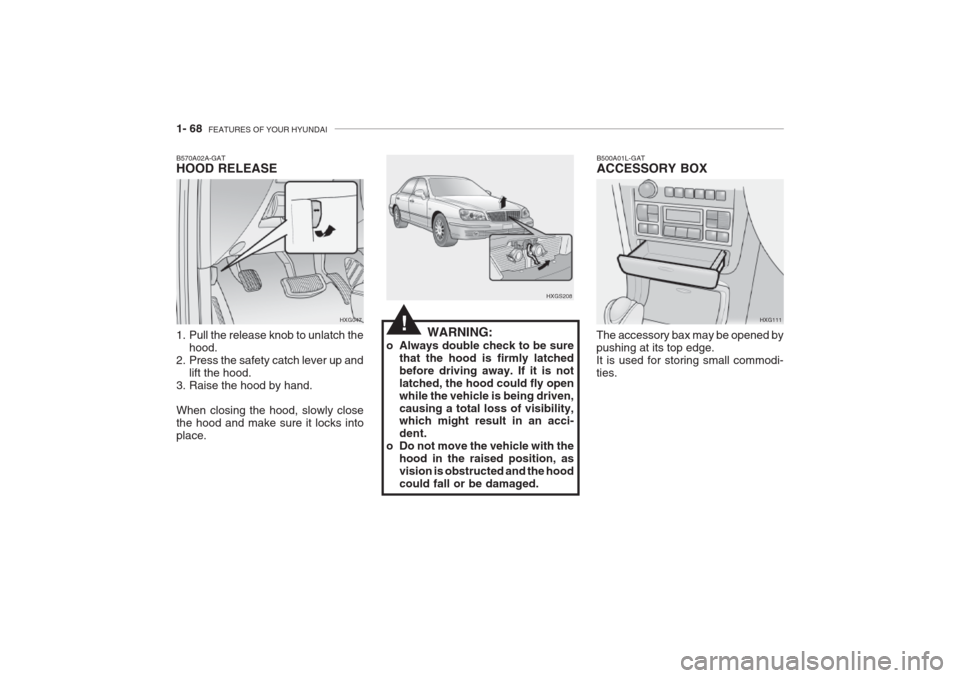

B570A02A-GAT HOOD RELEASE
1. Pull the release knob to unlatch the
hood.
2. Press the safety catch lever up and
lift the hood.
3. Raise the hood by hand. When closing the hood, slowly close the hood and make sure it locks intoplace. HXGS208
WARNING:
o Always double check to be sure that the hood is firmly latchedbefore driving away. If it is notlatched, the hood could fly openwhile the vehicle is being driven,causing a total loss of visibility, which might result in an acci- dent.
o Do not move the vehicle with the hood in the raised position, asvision is obstructed and the hoodcould fall or be damaged.!

FEATURES OF YOUR HYUNDAI 1- 69
B540D01L

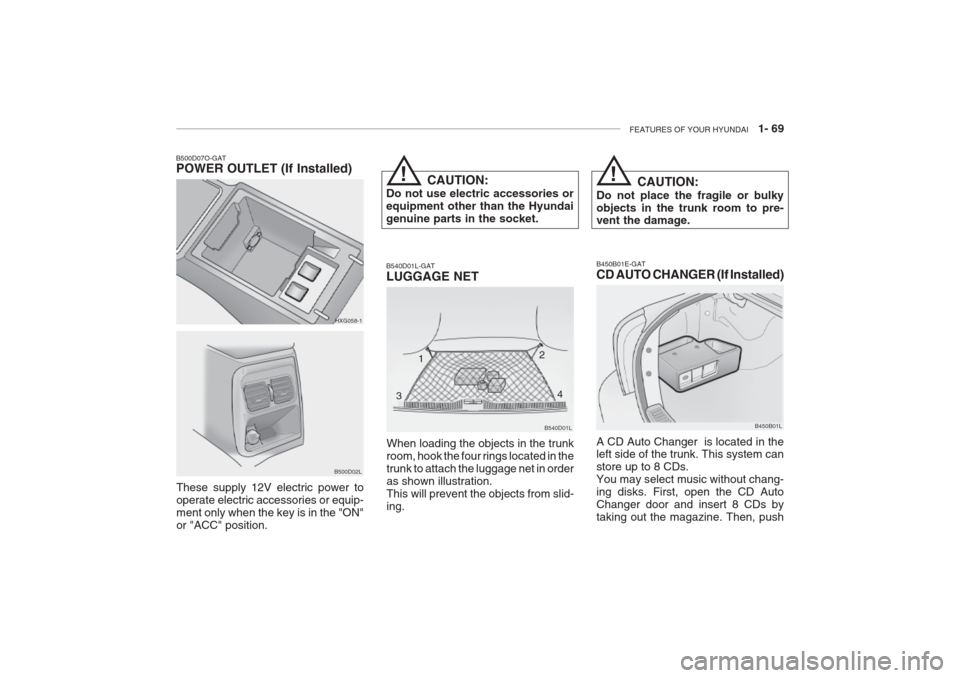

B540D01L-GAT LUGGAGE NET
When loading the objects in the trunk room, hook the four rings located in thetrunk to attach the luggage net in orderas shown illustration.This will prevent the objects from slid-ing.
HXG058-1
B500D07O-GAT
POWER OUTLET (If Installed)
These supply 12V electric power to operate electric accessories or equip-ment only when the key is in the "ON"or "ACC" position. CAUTION:
Do not use electric accessories orequipment other than the Hyundaigenuine parts in the socket.
!
1 2
3 4!
CAUTION:
Do not place the fragile or bulky objects in the trunk room to pre- vent the damage.
B500D02L
B450B01E-GAT
CD AUTO CHANGER (If Installed) A CD Auto Changer is located in the left side of the trunk. This system can store up to 8 CDs.You may select music without chang-ing disks. First, open the CD AutoChanger door and insert 8 CDs bytaking out the magazine. Then, push B450B01L

1- 70 FEATURES OF YOUR HYUNDAI

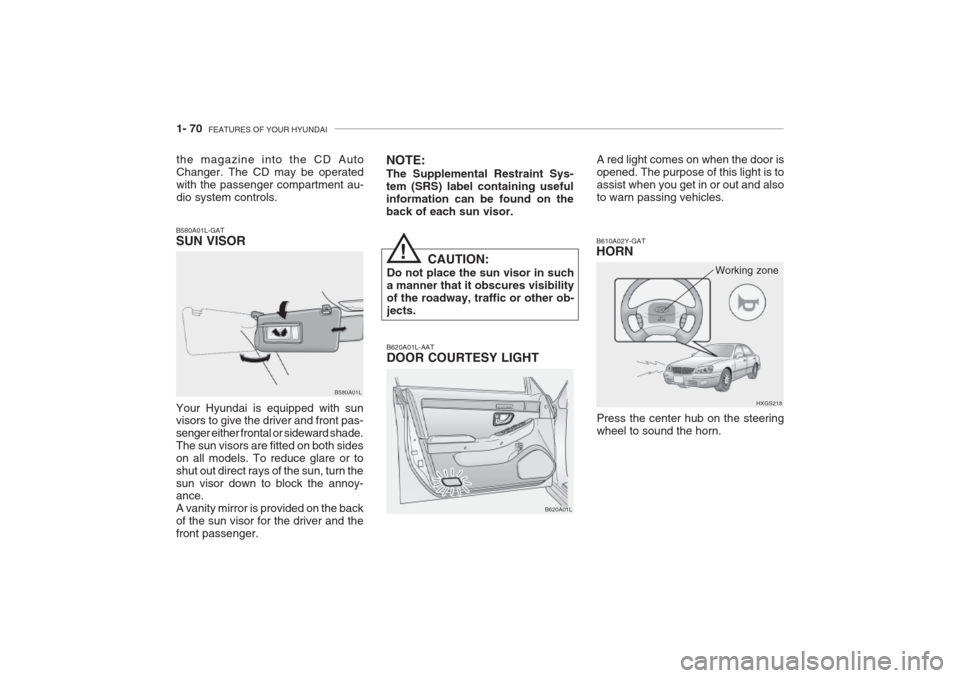

B610A02Y-GAT HORN
Press the center hub on the steering wheel to sound the horn. HXGS218
Working zone
B580A01L-GAT SUN VISOR
B580A01L
Your Hyundai is equipped with sunvisors to give the driver and front pas- senger either frontal or sideward shade.The sun visors are fitted on both sideson all models. To reduce glare or toshut out direct rays of the sun, turn thesun visor down to block the annoy- ance. A vanity mirror is provided on the backof the sun visor for the driver and thefront passenger. B620A01L
B620A01L-AAT DOOR COURTESY LIGHT A red light comes on when the door is opened. The purpose of this light is toassist when you get in or out and alsoto warn passing vehicles.
CAUTION:
Do not place the sun visor in sucha manner that it obscures visibilityof the roadway, traffic or other ob-jects.
!
the magazine into the CD Auto Changer. The CD may be operatedwith the passenger compartment au-dio system controls.
NOTE: The Supplemental Restraint Sys- tem (SRS) label containing usefulinformation can be found on theback of each sun visor.

FEATURES OF YOUR HYUNDAI 1- 71

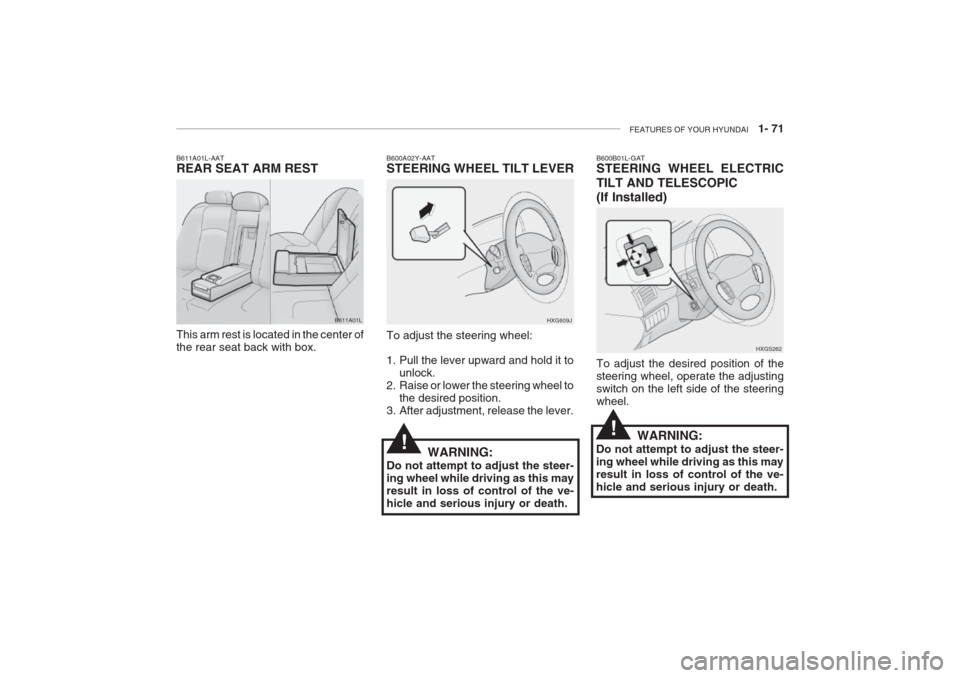

B600A02Y-AAT STEERING WHEEL TILT LEVER
HXG609J
To adjust the steering wheel:
1. Pull the lever upward and hold it to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, release the lever.
B611A01L-AAT REAR SEAT ARM REST This arm rest is located in the center of the rear seat back with box.
B611A01L
WARNING:
Do not attempt to adjust the steer-ing wheel while driving as this mayresult in loss of control of the ve-hicle and serious injury or death.
!
B600B01L-GAT STEERING WHEEL ELECTRIC TILT AND TELESCOPIC
(If Installed)
HXGS262
To adjust the desired position of the steering wheel, operate the adjustingswitch on the left side of the steeringwheel.
WARNING:
Do not attempt to adjust the steer-ing wheel while driving as this mayresult in loss of control of the ve-hicle and serious injury or death.
!

1- 72 FEATURES OF YOUR HYUNDAI

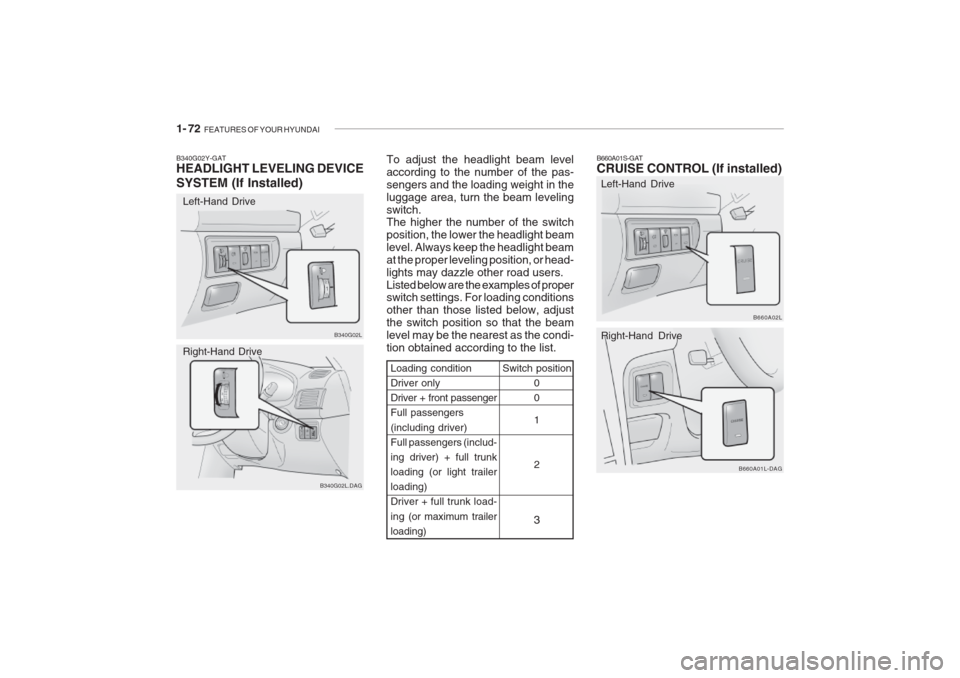

B660A01S-GAT CRUISE CONTROL (If installed)
B660A02L
B660A01L-DAG
Left-Hand Drive Right-Hand Drive
Switch position
0 0 1 2
3Loading condition Driver onlyDriver + front passengerFull passengers (including driver) Full passengers (includ-ing driver) + full trunkloading (or light trailerloading)
Driver + full trunk load- ing (or maximum trailer
loading)
B340G02L
B340G02L.DAG
B340G02Y-GAT HEADLIGHT LEVELING DEVICE
SYSTEM (If Installed)
Left-Hand Drive Right-Hand Drive
To adjust the headlight beam level according to the number of the pas-sengers and the loading weight in theluggage area, turn the beam levelingswitch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beamat the proper leveling position, or head-lights may dazzle other road users.Listed below are the examples of proper switch settings. For loading conditions other than those listed below, adjustthe switch position so that the beamlevel may be the nearest as the condi-tion obtained according to the list.

FEATURES OF YOUR HYUNDAI 1- 73

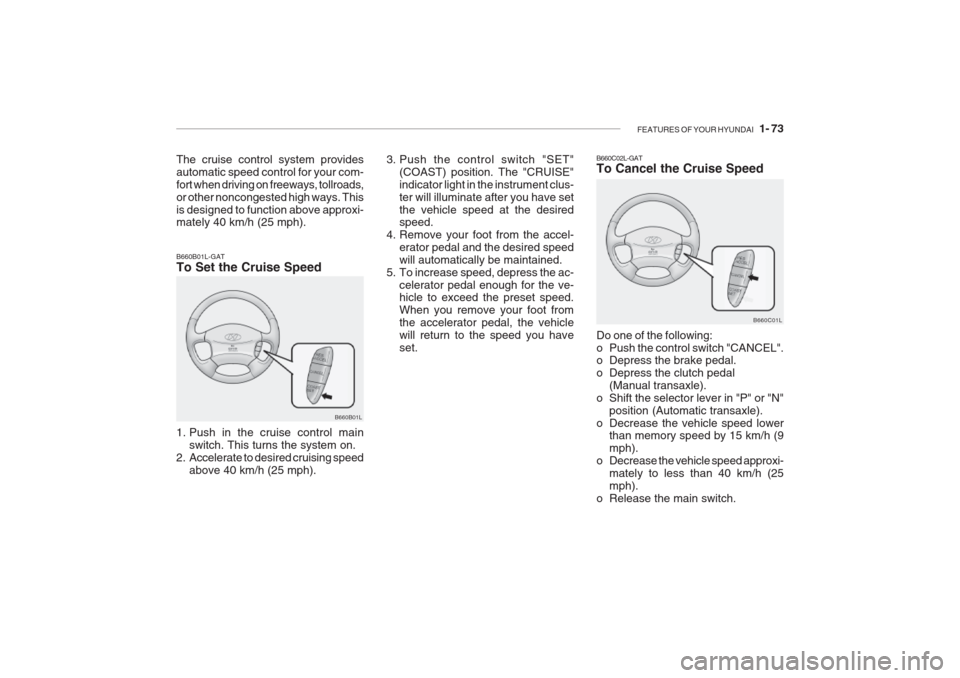

The cruise control system provides automatic speed control for your com-
fort when driving on freeways, tollroads,or other noncongested high ways. Thisis designed to function above approxi- mately 40 km/h (25 mph).
B660B01L
B660B01L-GAT To Set the Cruise Speed
1. Push in the cruise control main
switch. This turns the system on.
2. Accelerate to desired cruising speed above 40 km/h (25 mph). 3. Push the control switch "SET"
(COAST) position. The "CRUISE" indicator light in the instrument clus-ter will illuminate after you have setthe vehicle speed at the desired speed.
4. Remove your foot from the accel- erator pedal and the desired speed will automatically be maintained.
5. To increase speed, depress the ac- celerator pedal enough for the ve- hicle to exceed the preset speed. When you remove your foot fromthe accelerator pedal, the vehiclewill return to the speed you haveset.
B660C02L-GAT To Cancel the Cruise Speed Do one of the following:
o Push the control switch "CANCEL".
o Depress the brake pedal.
o Depress the clutch pedal(Manual transaxle).
o Shift the selector lever in "P" or "N" position (Automatic transaxle).
o Decrease the vehicle speed lower than memory speed by 15 km/h (9mph).
o Decrease the vehicle speed approxi- mately to less than 40 km/h (25mph).
o Release the main switch. B660C01L

1- 74 FEATURES OF YOUR HYUNDAI
NOTE:
o Keep the main switch off when
not using the cruise control.
o Do not use the cruise control
when it may not be safe to keep the car at a constant speed, forinstance, driving in heavy or vary- ing traffic, or on slippery (rainy, icy or snow-covered) or windingroads or over 6% up-hill or down-hill roads.
o Pay particular attention to the
driving conditions whenever us- ing the cruise control system.
o During cruise-speed driving with
manual transaxle vehicle, do not shift into neutral without depress-ing the clutch pedal, since theengine will be overrevved. If this happens, depress the clutch pedal or release the main switch.

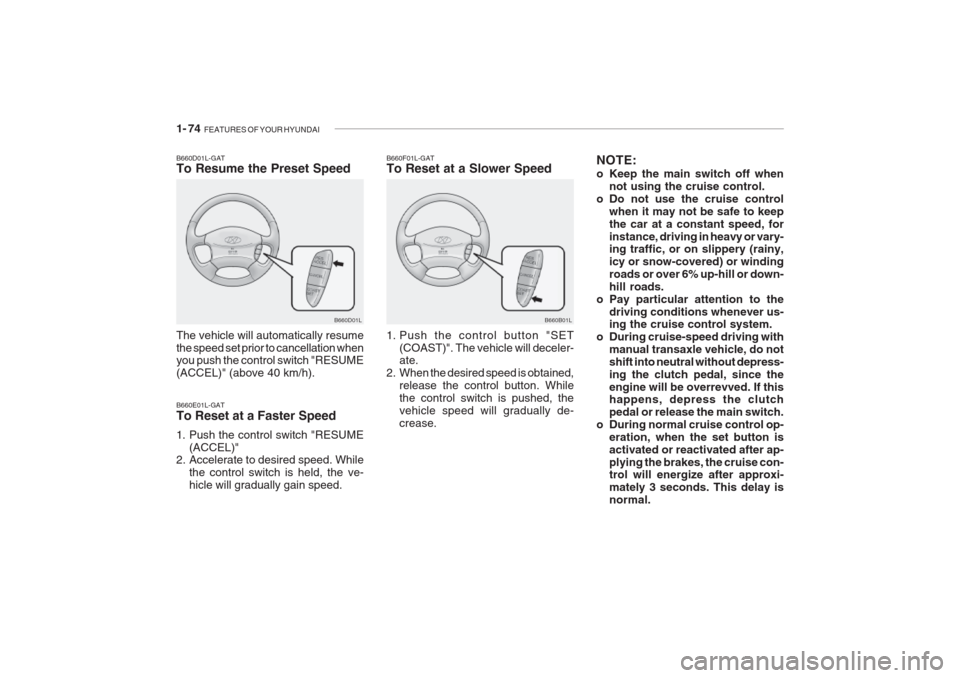

o During normal cruise control op- eration, when the set button isactivated or reactivated after ap-plying the brakes, the cruise con- trol will energize after approxi- mately 3 seconds. This delay isnormal.B660D01L-GAT To Resume the Preset Speed The vehicle will automatically resume the speed set prior to cancellation when you push the control switch "RESUME (ACCEL)" (above 40 km/h). B660D01L
B660E01L-GAT To Reset at a Faster Speed
1. Push the control switch "RESUME (ACCEL)"
2. Accelerate to desired speed. While
the control switch is held, the ve- hicle will gradually gain speed.B660F01L-GAT To Reset at a Slower Speed
1. Push the control button "SET(COAST)". The vehicle will deceler- ate.
2. When the desired speed is obtained, release the control button. While the control switch is pushed, thevehicle speed will gradually de-crease. B660B01L

FEATURES OF YOUR HYUNDAI 1- 75
SEEK ( / ) Switch Press the SEEK switch 1 sec. or more.
1. RADIO mode When the SEEK ( ) is pressed, the unit will automatically tune to the nexthigher frequency and when the SEEK( ) switch is pressed, it will automati- cally tune to the next lower frequency.
2. TAPE mode
o Pressing the SEEK ( ) will play the
beginning of the next music seg- ment.
o Pressing the SEEK ( ) will start
replay at the beginning of the musicjust listened to.
3. CD (compact disc)/CDC (compact disc changer) mode
o Press the SEEK ( ) once to skip forward to the beginning of the next track.

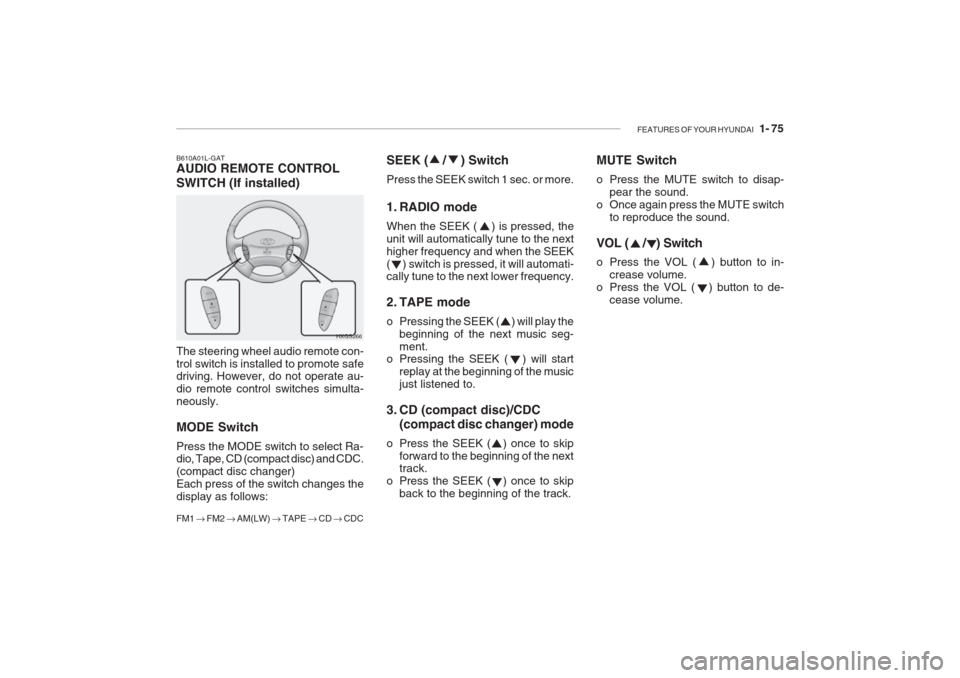

o Press the SEEK ( ) once to skip back to the beginning of the track.B610A01L-GAT AUDIO REMOTE CONTROL
SWITCH (If installed) The steering wheel audio remote con- trol switch is installed to promote safe driving. However, do not operate au- dio remote control switches simulta-neously. MODE Switch
Press the MODE switch to select Ra- dio, Tape, CD (compact disc) and CDC. (compact disc changer)Each press of the switch changes thedisplay as follows: FM1 FM2 AM(LW) TAPE CD CDC
HXGS266MUTE Switch
o Press the MUTE switch to disap-
pear the sound.
o Once again press the MUTE switch to reproduce the sound.
VOL ( / ) Switch
o Press the VOL ( ) button to in- crease volume.
o Press the VOL ( ) button to de- cease volume.

1- 76 FEATURES OF YOUR HYUNDAI

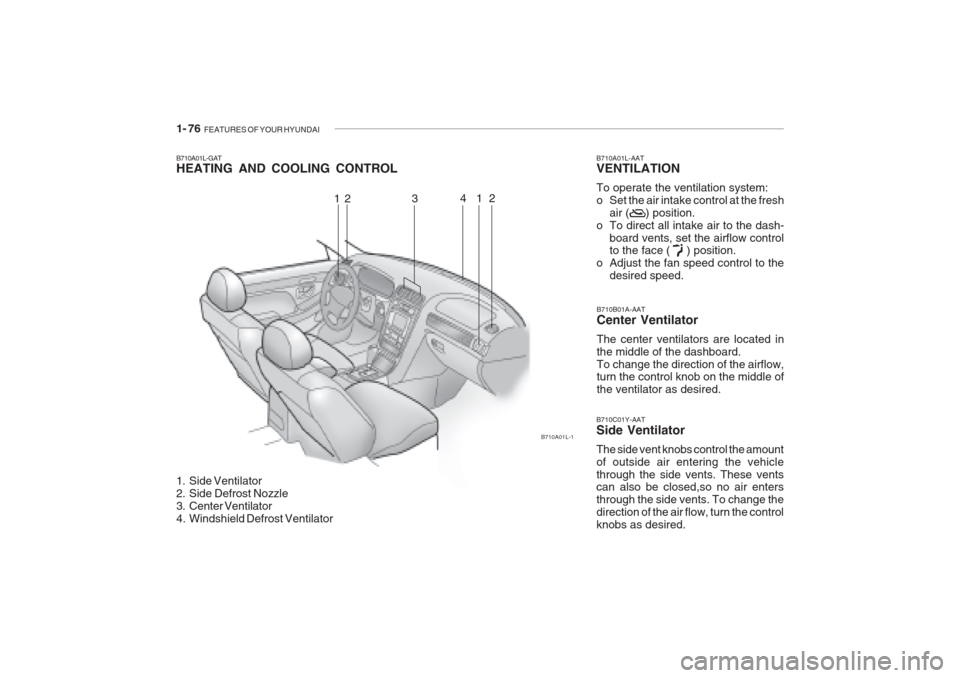

B710A01L-GAT HEATING AND COOLING CONTROL
1. Side Ventilator
2. Side Defrost Nozzle
3. Center Ventilator
4. Windshield Defrost Ventilator B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard.To change the direction of the airflow, turn the control knob on the middle of the ventilator as desired.
B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehiclethrough the side vents. These vents can also be closed,so no air enters through the side vents. To change thedirection of the air flow, turn the controlknobs as desired.
B710A01L-AAT VENTILATION To operate the ventilation system:
o Set the air intake control at the fresh
air ( ) position.
o To direct all intake air to the dash-
board vents, set the airflow control
to the face ( ) position.
o Adjust the fan speed control to the desired speed.
B710A01L-1
13 4122

FEATURES OF YOUR HYUNDAI 1- 77
1 B670B03Y-AAT Fan Speed Control (Blower Control)
HXG121
This is used to turn the blower fan on and off and to select the fan speed.The blower fan speed, and thereforethe volume of air delivered from thesystem, may be controlled manually by setting the blower control between the 1 and 4 position.
B680A02L-GAT ROTARY AND PUSH BUTTON
TYPE (If Installed) There are four controls for the heating and cooling system. They are:
1. Fan speed control
2. Air intake control
3. Air flow control
4. Temperature control
HXG1192
3
4
B670C01Y-AAT Air Intake Control This is used to select fresh outside air or recirculating of inside air. FreshRecirculation
