Hyundai Grandeur 2002 Owner's Guide
Manufacturer: HYUNDAI, Model Year: 2002, Model line: Grandeur, Model: Hyundai Grandeur 2002Pages: 230, PDF Size: 3.82 MB
Page 21 of 230
1- 8 FEATURES OF YOUR HYUNDAI
B070A01S-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated inthree stages: the first is the "Armed"stage, the second is the "Alarm" stage, and the third is the "Disarmed" stage. If triggered, the system provides anaudible alarm siren. B070B03Y-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and
trunk lid are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
o When pushing the rear portion of
the switch, all vehicle doors will unlock.
!
After completion of the steps above, the turn signal light will blink once toindicate that the system is armed. NOTE:
1) If any door, trunk lid or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system
as described above.
CAUTION:
Do not arm the system until allpassengers have left the car. If thesystem is armed while apassenger(s) remains in the car, the alarm may be activated when the remaining passenger(s) leavesthe car.HXGS123
B070C03L-AAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parkedand the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us-
ing the transmitter.
3) The engine hood is opened.The turn signal light will blink continu- ously and the siren will sound for 27seconds. (EC only/Except E.C: 3times). To turn off the system, unlockthe door or trunk lid with the transmit-ter.
Page 22 of 230

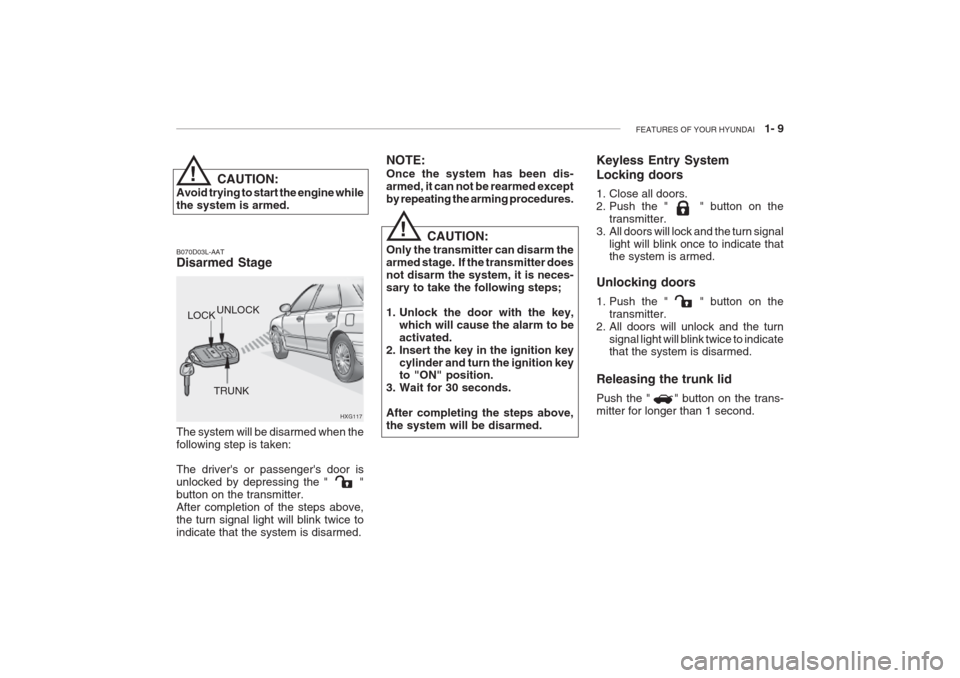

FEATURES OF YOUR HYUNDAI 1- 9
HXG117
UNLOCK
LOCK
TRUNKCAUTION:
Avoid trying to start the engine while the system is armed. B070D03L-AAT Disarmed Stage The system will be disarmed when the following step is taken: The driver's or passenger's door is unlocked by depressing the " "button on the transmitter.After completion of the steps above,the turn signal light will blink twice toindicate that the system is disarmed. NOTE: Once the system has been dis- armed, it can not be rearmed exceptby repeating the arming procedures.
Keyless Entry System Locking doors
1. Close all doors.
2. Push the " " button on the
transmitter.
3. All doors will lock and the turn signal light will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. All doors will unlock and the turn
signal light will blink twice to indicate that the system is disarmed.
Releasing the trunk lid Push the " " button on the trans- mitter for longer than 1 second.
!
CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces-sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition key to "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.
!
Page 23 of 230

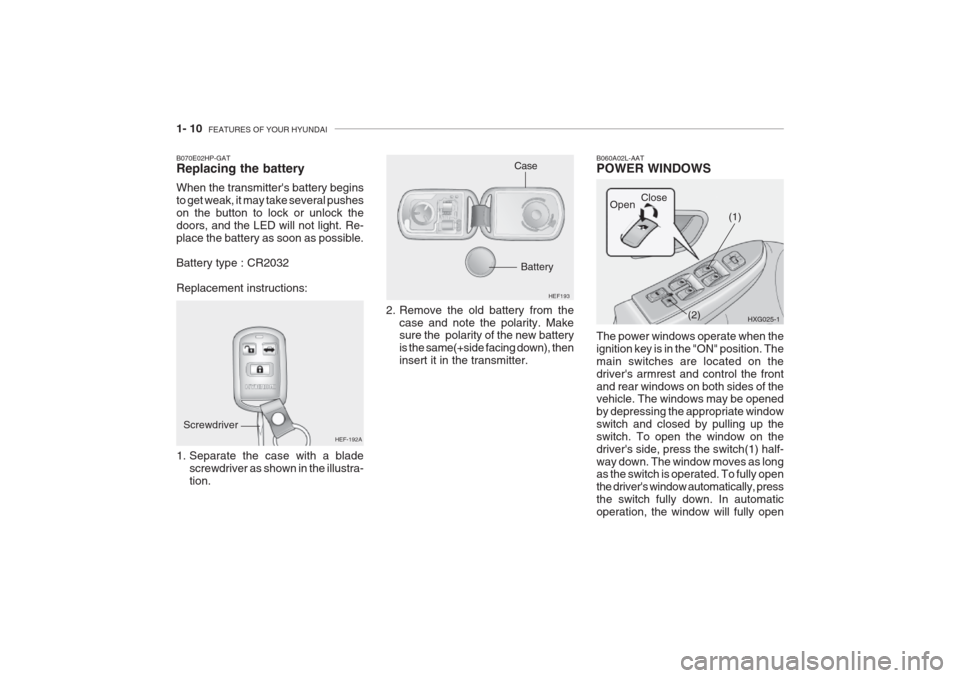

1- 10 FEATURES OF YOUR HYUNDAI
2. Remove the old battery from the
case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), theninsert it in the transmitter. HEF193
Battery
1. Separate the case with a blade screwdriver as shown in the illustra- tion. HEF-192A
Screwdriver Case
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock thedoors, and the LED will not light. Re-place the battery as soon as possible. Battery type : CR2032 Replacement instructions:B060A02L-AAT POWER WINDOWS
Open Close
The power windows operate when the ignition key is in the "ON" position. Themain switches are located on thedriver's armrest and control the frontand rear windows on both sides of the vehicle. The windows may be opened by depressing the appropriate windowswitch and closed by pulling up theswitch. To open the window on thedriver's side, press the switch(1) half-way down. The window moves as long as the switch is operated. To fully open the driver's window automatically, pressthe switch fully down. In automaticoperation, the window will fully open HXG025-1
(1)
(2)
Page 24 of 230

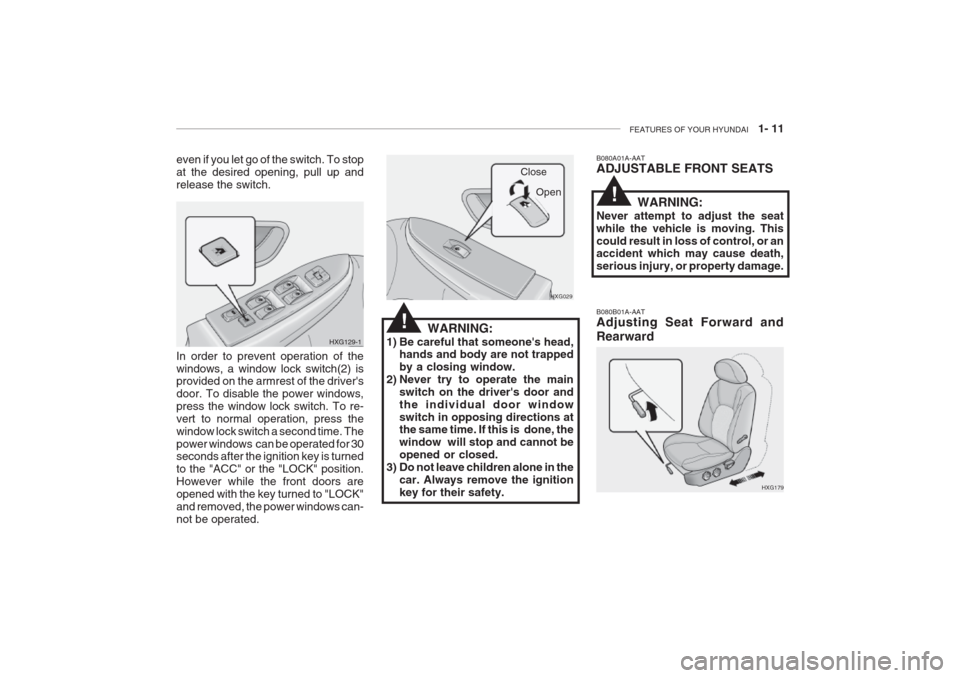

FEATURES OF YOUR HYUNDAI 1- 11
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door andthe individual door windowswitch in opposing directions at the same time. If this is done, the window will stop and cannot beopened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety. HXG029
Close
Open
HXG179
B080B01A-AAT Adjusting Seat Forward and Rearward
B080A01A-AAT ADJUSTABLE FRONT SEATS
In order to prevent operation of the windows, a window lock switch(2) is provided on the armrest of the driver's door. To disable the power windows,press the window lock switch. To re-vert to normal operation, press thewindow lock switch a second time. Thepower windows can be operated for 30 seconds after the ignition key is turned to the "ACC" or the "LOCK" position.However while the front doors areopened with the key turned to "LOCK"and removed, the power windows can-not be operated.
HXG129-1
even if you let go of the switch. To stopat the desired opening, pull up andrelease the switch.
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control, or an accident which may cause death, serious injury, or property damage.
!
Page 25 of 230

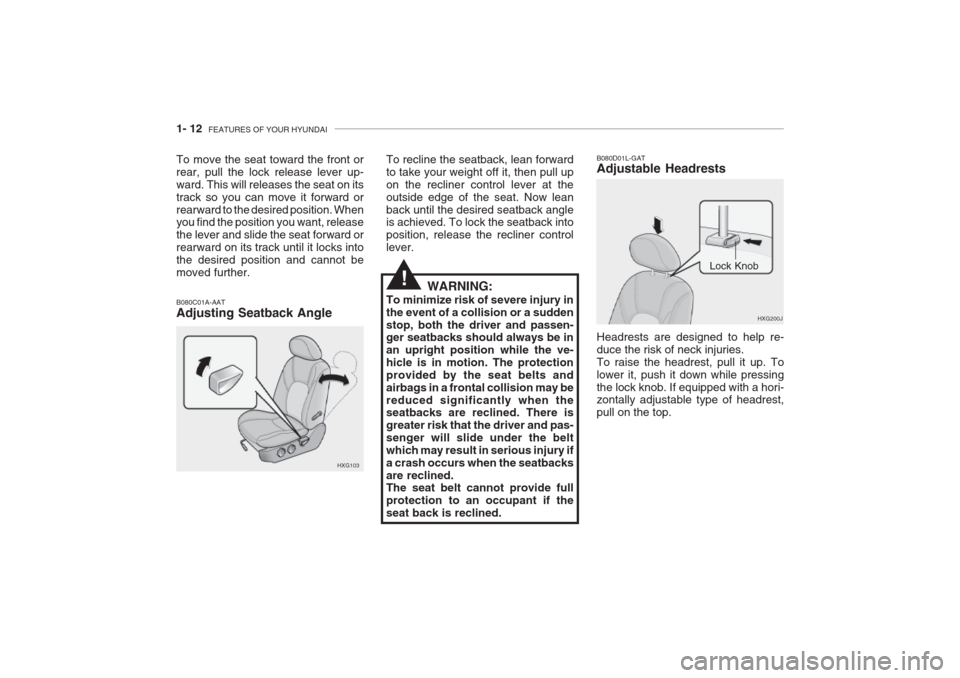

1- 12 FEATURES OF YOUR HYUNDAI
To move the seat toward the front or rear, pull the lock release lever up-ward. This will releases the seat on itstrack so you can move it forward orrearward to the desired position. When you find the position you want, release the lever and slide the seat forward orrearward on its track until it locks intothe desired position and cannot bemoved further.
HXG103
B080C01A-AAT Adjusting Seatback Angle
To recline the seatback, lean forward to take your weight off it, then pull upon the recliner control lever at theoutside edge of the seat. Now leanback until the desired seatback angle is achieved. To lock the seatback into position, release the recliner controllever.
WARNING:
To minimize risk of severe injury inthe event of a collision or a suddenstop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protectionprovided by the seat belts andairbags in a frontal collision may bereduced significantly when the seatbacks are reclined. There is greater risk that the driver and pas-senger will slide under the beltwhich may result in serious injury ifa crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occupant if theseat back is reclined.
!
HXG200J
Lock Knob
B080D01L-GAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries.To raise the headrest, pull it up. Tolower it, push it down while pressingthe lock knob. If equipped with a hori- zontally adjustable type of headrest, pull on the top.
Page 26 of 230

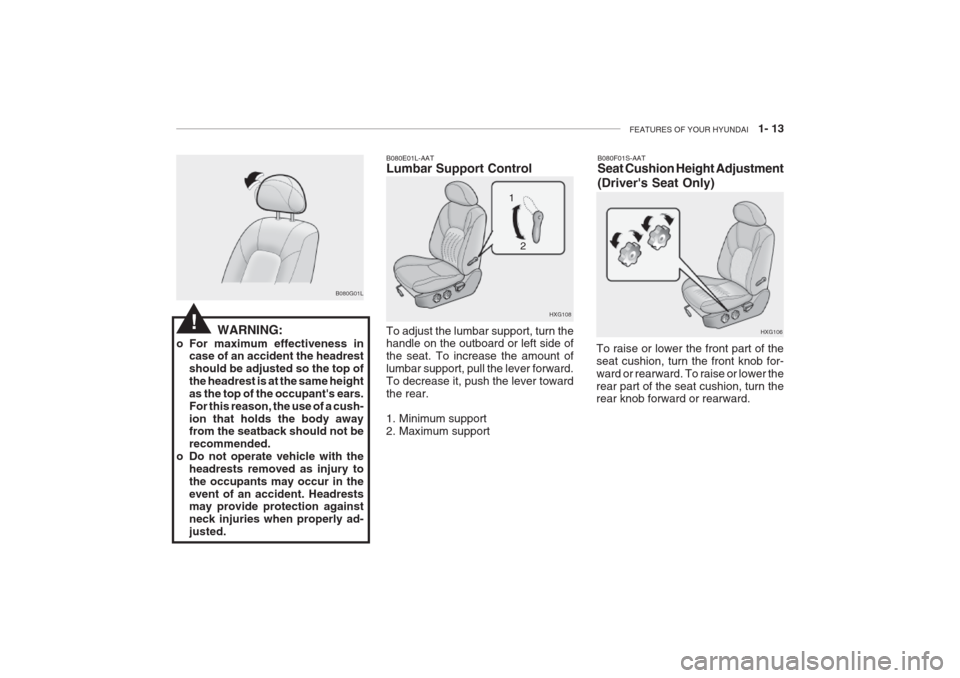

FEATURES OF YOUR HYUNDAI 1- 13
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only)
To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearward. To raise or lower therear part of the seat cushion, turn the rear knob forward or rearward. HXG106B080E01L-AAT Lumbar Support Control To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount oflumbar support, pull the lever forward.To decrease it, push the lever towardthe rear.
1. Minimum support
2. Maximum supportHXG108
2
1
B080G01L
WARNING:
o For maximum effectiveness in case of an accident the headrestshould be adjusted so the top ofthe headrest is at the same heightas the top of the occupant's ears.For this reason, the use of a cush-ion that holds the body away from the seatback should not be recommended.
o Do not operate vehicle with the headrests removed as injury tothe occupants may occur in theevent of an accident. Headrests may provide protection against neck injuries when properly ad-justed.
!
Page 27 of 230

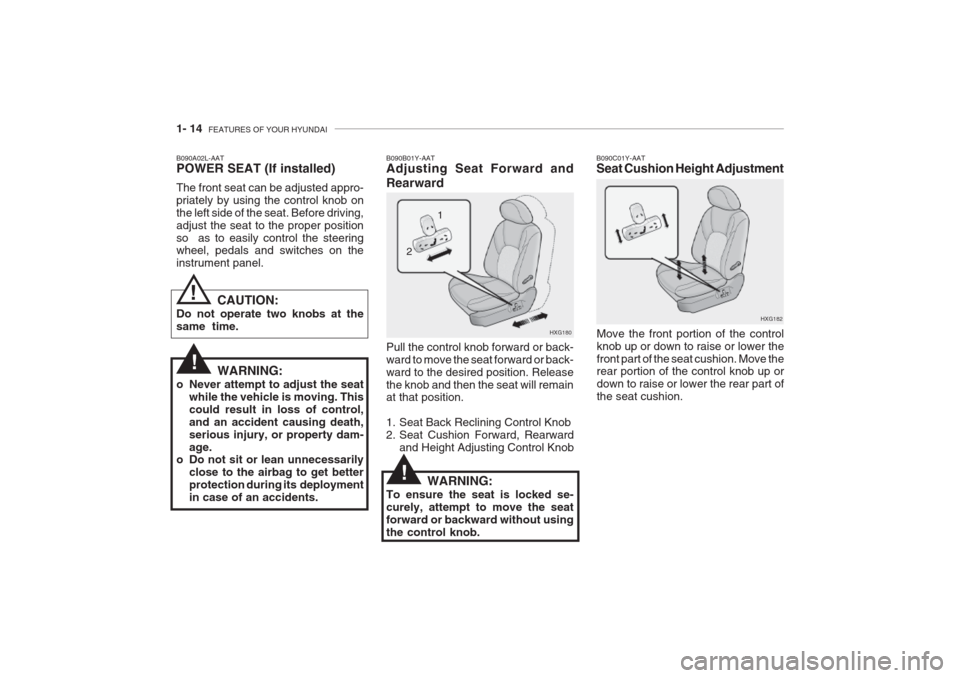

1- 14 FEATURES OF YOUR HYUNDAI
B090A02L-AAT POWER SEAT (If installed) The front seat can be adjusted appro- priately by using the control knob onthe left side of the seat. Before driving,adjust the seat to the proper positionso as to easily control the steering wheel, pedals and switches on the instrument panel.
HXG180
1
2
B090B01Y-AAT Adjusting Seat Forward and Rearward Pull the control knob forward or back- ward to move the seat forward or back-ward to the desired position. Releasethe knob and then the seat will remain at that position.
1. Seat Back Reclining Control Knob
2. Seat Cushion Forward, Rearward
and Height Adjusting Control Knob
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control,and an accident causing death,serious injury, or property dam-age.
o Do not sit or lean unnecessarily
close to the airbag to get betterprotection during its deploymentin case of an accidents.
CAUTION:
Do not operate two knobs at the same time.
WARNING:
To ensure the seat is locked se- curely, attempt to move the seatforward or backward without usingthe control knob.
B090C01Y-AAT Seat Cushion Height Adjustment
Move the front portion of the control knob up or down to raise or lower thefront part of the seat cushion. Move the rear portion of the control knob up or down to raise or lower the rear part ofthe seat cushion. HXG182
!
!
!
Page 28 of 230

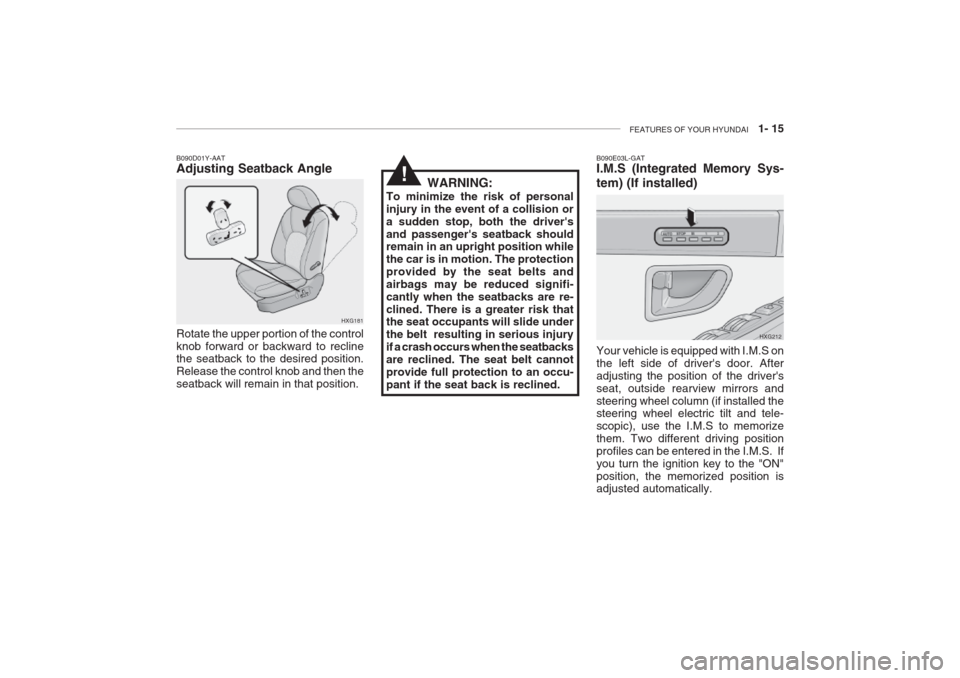

FEATURES OF YOUR HYUNDAI 1- 15
B090E03L-GAT I.M.S (Integrated Memory Sys- tem) (If installed) Your vehicle is equipped with I.M.S on the left side of driver's door. Afteradjusting the position of the driver'sseat, outside rearview mirrors andsteering wheel column (if installed the steering wheel electric tilt and tele- scopic), use the I.M.S to memorizethem. Two different driving positionprofiles can be entered in the I.M.S. Ifyou turn the ignition key to the "ON"position, the memorized position is adjusted automatically. HXG212
HXG181
B090D01Y-AAT Adjusting Seatback Angle Rotate the upper portion of the control knob forward or backward to recline the seatback to the desired position. Release the control knob and then theseatback will remain in that position. WARNING:
To minimize the risk of personalinjury in the event of a collision ora sudden stop, both the driver'sand passenger's seatback should remain in an upright position while the car is in motion. The protectionprovided by the seat belts andairbags may be reduced signifi-cantly when the seatbacks are re-clined. There is a greater risk that the seat occupants will slide under the belt resulting in serious injuryif a crash occurs when the seatbacksare reclined. The seat belt cannotprovide full protection to an occu-pant if the seat back is reclined.
!
Page 29 of 230

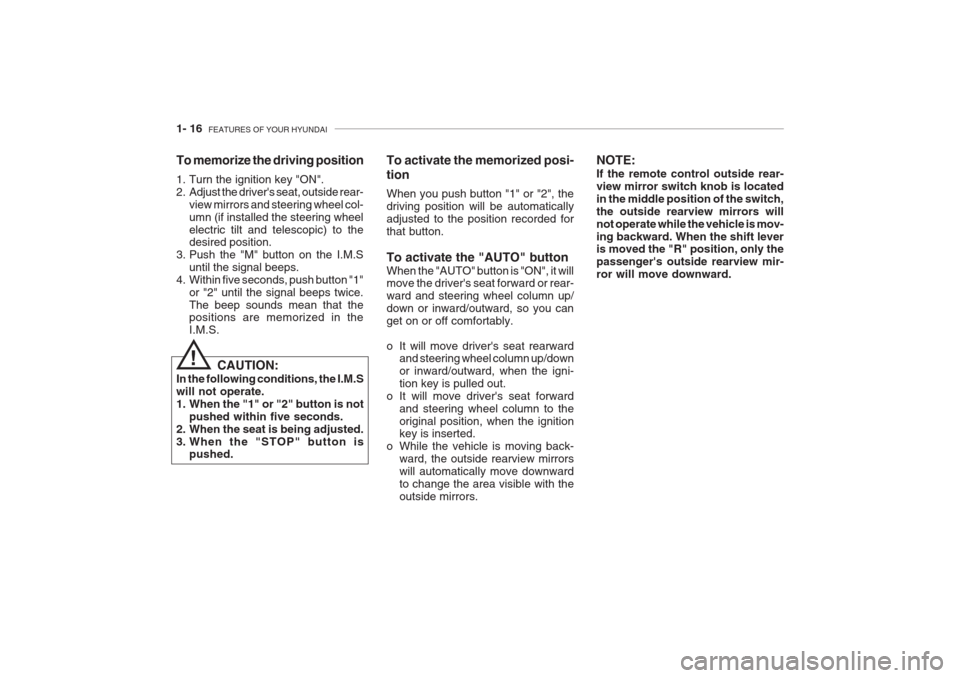

1- 16 FEATURES OF YOUR HYUNDAI
To memorize the driving position
1. Turn the ignition key "ON".
2. Adjust the driver's seat, outside rear-
view mirrors and steering wheel col-umn (if installed the steering wheelelectric tilt and telescopic) to the desired position.
3. Push the "M" button on the I.M.S until the signal beeps.
4. Within five seconds, push button "1" or "2" until the signal beeps twice. The beep sounds mean that the positions are memorized in the I.M.S. To activate the memorized posi- tion When you push button "1" or "2", the driving position will be automaticallyadjusted to the position recorded forthat button. To activate the "AUTO" button When the "AUTO" button is "ON", it will move the driver's seat forward or rear- ward and steering wheel column up/down or inward/outward, so you canget on or off comfortably.
o It will move driver's seat rearward
and steering wheel column up/down or inward/outward, when the igni-tion key is pulled out.
o It will move driver's seat forward and steering wheel column to theoriginal position, when the ignition key is inserted.
o While the vehicle is moving back- ward, the outside rearview mirrors will automatically move downwardto change the area visible with theoutside mirrors. NOTE: If the remote control outside rear- view mirror switch knob is locatedin the middle position of the switch,the outside rearview mirrors willnot operate while the vehicle is mov-ing backward. When the shift lever is moved the "R" position, only the passenger's outside rearview mir-ror will move downward.
!
CAUTION:
In the following conditions, the I.M.S will not operate.
1. When the "1" or "2" button is not pushed within five seconds.
2. When the seat is being adjusted.
3. When the "STOP" button is pushed.
Page 30 of 230

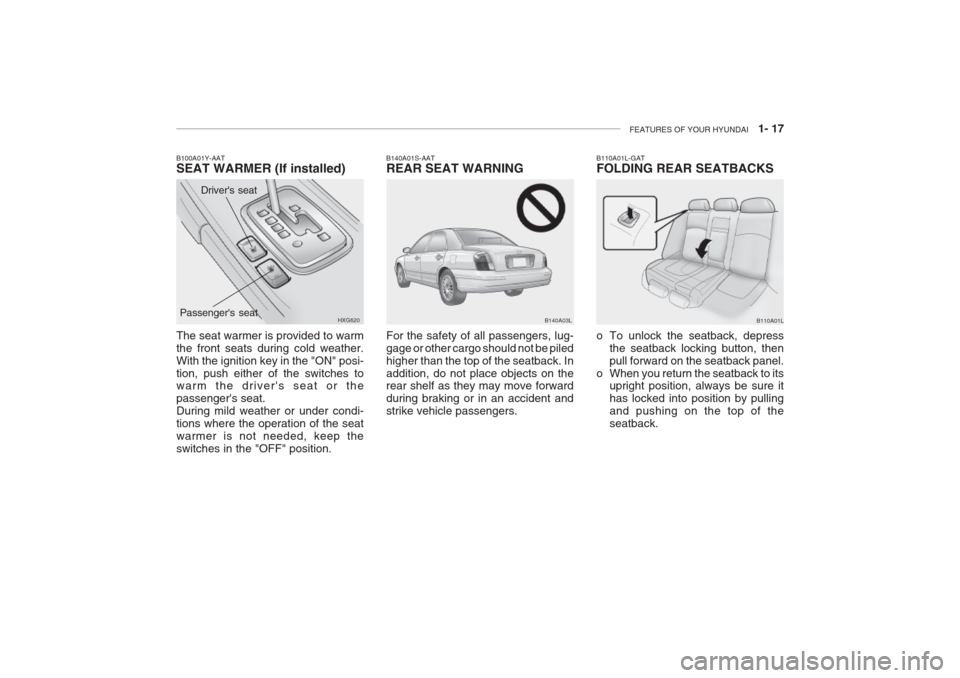

FEATURES OF YOUR HYUNDAI 1- 17
Driver's seat
B100A01Y-AAT SEAT WARMER (If installed)
HXG620
Passenger's seat
The seat warmer is provided to warm the front seats during cold weather.With the ignition key in the "ON" posi-tion, push either of the switches to warm the driver's seat or the passenger's seat.During mild weather or under condi-tions where the operation of the seatwarmer is not needed, keep theswitches in the "OFF" position.
B110A01L
B140A03L
B140A01S-AAT REAR SEAT WARNING For the safety of all passengers, lug- gage or other cargo should not be piledhigher than the top of the seatback. Inaddition, do not place objects on the rear shelf as they may move forward during braking or in an accident andstrike vehicle passengers. B110A01L-GAT FOLDING REAR SEATBACKS
o To unlock the seatback, depress
the seatback locking button, then pull forward on the seatback panel.
o When you return the seatback to its upright position, always be sure ithas locked into position by pullingand pushing on the top of theseatback.
