Hyundai Grandeur 2002 Owner's Guide
Manufacturer: HYUNDAI, Model Year: 2002, Model line: Grandeur, Model: Hyundai Grandeur 2002Pages: 230, PDF Size: 3.82 MB
Page 31 of 230

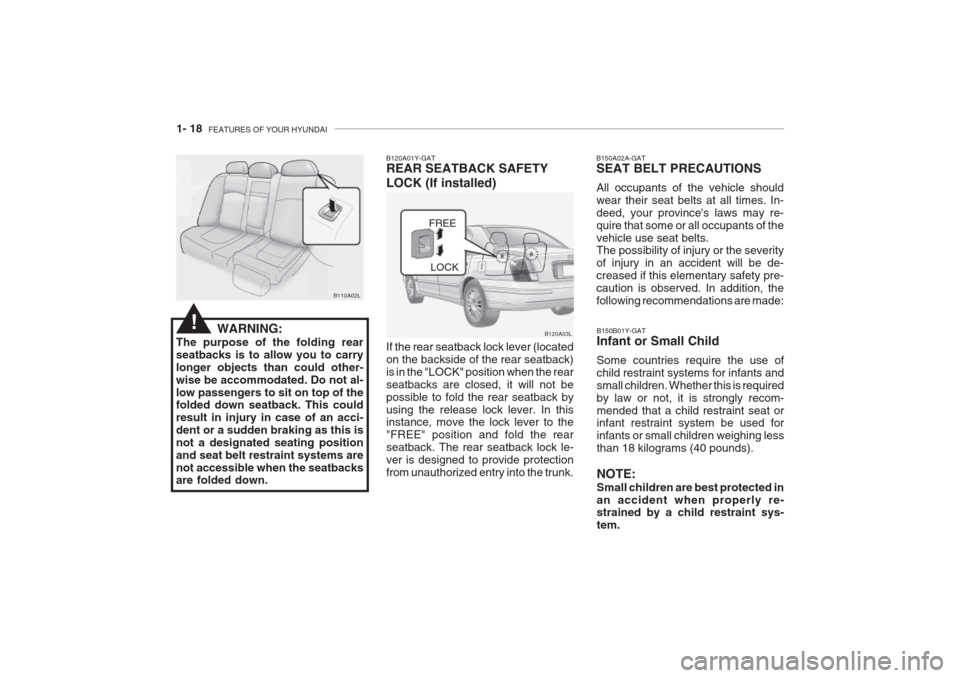

1- 18 FEATURES OF YOUR HYUNDAI
FREE
LOCK
B120A01Y-GAT REAR SEATBACK SAFETY LOCK (If installed) If the rear seatback lock lever (located on the backside of the rear seatback)is in the "LOCK" position when the rearseatbacks are closed, it will not bepossible to fold the rear seatback byusing the release lock lever. In this instance, move the lock lever to the "FREE" position and fold the rearseatback. The rear seatback lock le-ver is designed to provide protectionfrom unauthorized entry into the trunk. B150B01Y-GAT Infant or Small Child Some countries require the use of child restraint systems for infants andsmall children. Whether this is requiredby law or not, it is strongly recom-mended that a child restraint seat or infant restraint system be used for infants or small children weighing lessthan 18 kilograms (40 pounds). NOTE: Small children are best protected in an accident when properly re- strained by a child restraint sys- tem.
B120A03L
B150A02A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. In-deed, your province's laws may re-quire that some or all occupants of thevehicle use seat belts. The possibility of injury or the severity of injury in an accident will be de-creased if this elementary safety pre-caution is observed. In addition, thefollowing recommendations are made:
WARNING:
The purpose of the folding rear seatbacks is to allow you to carrylonger objects than could other-wise be accommodated. Do not al-low passengers to sit on top of the folded down seatback. This could result in injury in case of an acci-dent or a sudden braking as this isnot a designated seating positionand seat belt restraint systems arenot accessible when the seatbacks are folded down. B110A02L!
Page 32 of 230

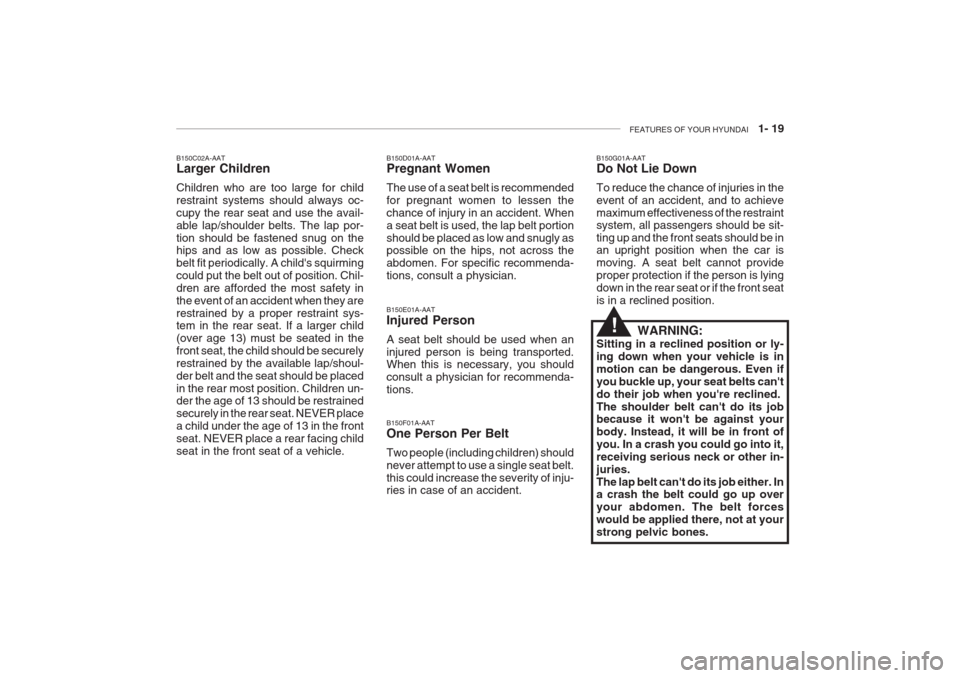

FEATURES OF YOUR HYUNDAI 1- 19
B150D01A-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen thechance of injury in an accident. Whena seat belt is used, the lap belt portionshould be placed as low and snugly as possible on the hips, not across the abdomen. For specific recommenda-tions, consult a physician.
B150C02A-AAT Larger Children Children who are too large for child restraint systems should always oc-cupy the rear seat and use the avail-able lap/shoulder belts. The lap por-tion should be fastened snug on the hips and as low as possible. Check belt fit periodically. A child's squirmingcould put the belt out of position. Chil-dren are afforded the most safety inthe event of an accident when they arerestrained by a proper restraint sys- tem in the rear seat. If a larger child (over age 13) must be seated in thefront seat, the child should be securelyrestrained by the available lap/shoul-der belt and the seat should be placedin the rear most position. Children un- der the age of 13 should be restrained securely in the rear seat. NEVER placea child under the age of 13 in the frontseat. NEVER place a rear facing childseat in the front seat of a vehicle.
B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt.this could increase the severity of inju- ries in case of an accident.B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident, and to achievemaximum effectiveness of the restraintsystem, all passengers should be sit-ting up and the front seats should be in an upright position when the car is moving. A seat belt cannot provideproper protection if the person is lyingdown in the rear seat or if the front seatis in a reclined position.
B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you should consult a physician for recommenda-tions. WARNING:
Sitting in a reclined position or ly-ing down when your vehicle is inmotion can be dangerous. Even ifyou buckle up, your seat belts can'tdo their job when you're reclined.The shoulder belt can't do its job because it won't be against your body. Instead, it will be in front ofyou. In a crash you could go into it,receiving serious neck or other in-juries.The lap belt can't do its job either. In a crash the belt could go up over your abdomen. The belt forceswould be applied there, not at yourstrong pelvic bones.
!
Page 33 of 230
1- 20 FEATURES OF YOUR HYUNDAI
You can adjust the height of the shoul- der belt anchor to one of the 4 positionsfor maximum comfort and safety. If the height of the adjusting seat belt is too near your neck, you will not begetting the most effective protection.The shoulder portion should be ad-justed so that it lies across your chestand midway over your shoulder near- est the door and not your neck. To adjust the height of the seat beltanchor, lower or raise the height ad-juster into an appropriate position. Toraise the height adjuster, pull it up. Tolower it, push it down while pressing the height adjuster button. B170A01L
B170A01L-GAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solutionand warm water. Bleach, dye, strongdetergents or abrasives should not be used because they may damage and weaken the fabric. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if the vehicle has been involved in an acci- dent. This should be done even if nodamage is visible. Additional ques-tions concerning seat belt operationshould be directed to your HyundaiDealer.
B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition,care should be taken to assure thatseat belts and belt hardware are notdamaged by seat hinges, doors orother abuse.
This could cause serious internalinjuries. For proper protection when the ve- hicle is in motion, have the seatbackupright. Then sit back in the seatand wear your seat belt properly.See page 1-21
B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys-tem that are damaged should be re-placed as soon as possible.
WARNING:
When you return the rear seatback to its upright position after the rear seatback was folded down, be care- ful not to damage the seat belt web-bing or buckle. Be sure that thewebbing or buckle does not getcaught or pinched in the rear seat.!
Page 34 of 230

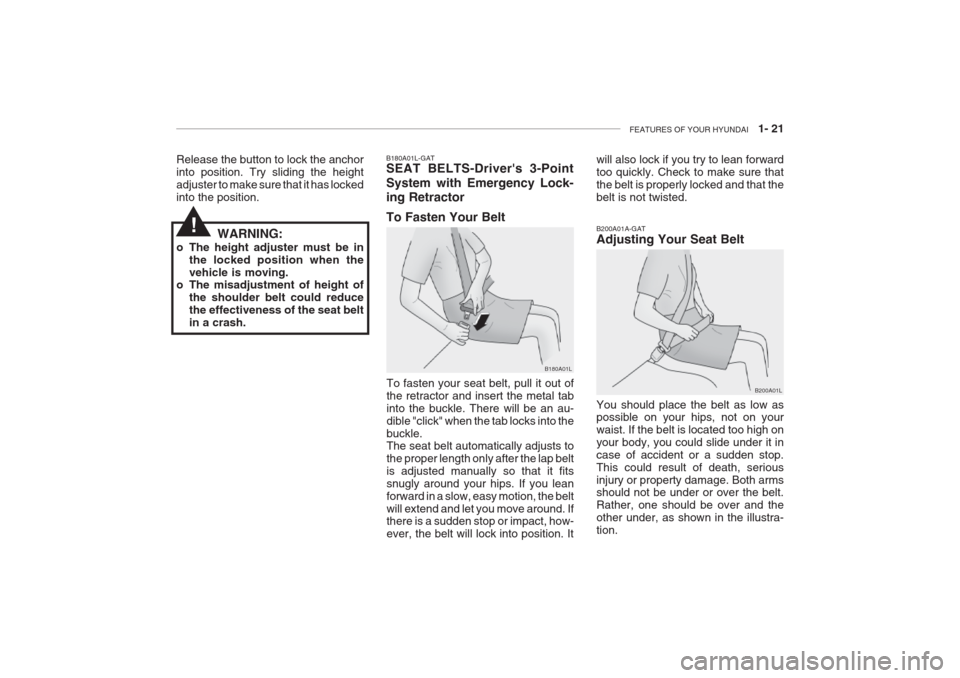

FEATURES OF YOUR HYUNDAI 1- 21
B180A01L-GAT SEAT BELTS-Driver's 3-Point System with Emergency Lock- ing Retractor To Fasten Your Belt
To fasten your seat belt, pull it out of the retractor and insert the metal tabinto the buckle. There will be an au-dible "click" when the tab locks into thebuckle. The seat belt automatically adjusts to the proper length only after the lap beltis adjusted manually so that it fitssnugly around your hips. If you leanforward in a slow, easy motion, the beltwill extend and let you move around. If there is a sudden stop or impact, how-
ever, the belt will lock into position. It
Release the button to lock the anchorinto position. Try sliding the heightadjuster to make sure that it has lockedinto the position.
B180A01L
B200A01A-GAT Adjusting Your Seat Belt You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high onyour body, you could slide under it incase of accident or a sudden stop.This could result of death, seriousinjury or property damage. Both arms should not be under or over the belt. Rather, one should be over and theother under, as shown in the illustra-tion. B200A01L
will also lock if you try to lean forwardtoo quickly. Check to make sure thatthe belt is properly locked and that thebelt is not twisted.
!WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reducethe effectiveness of the seat beltin a crash.
Page 35 of 230

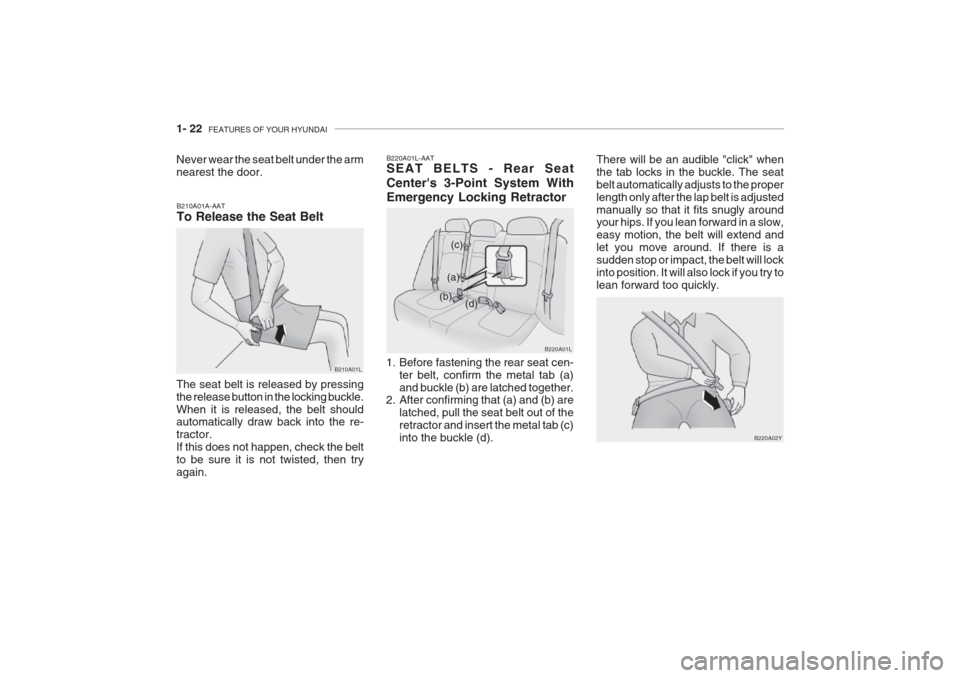

1- 22 FEATURES OF YOUR HYUNDAI
Never wear the seat belt under the arm nearest the door.
B220A01L
(a)
(c)
(b) (d)
1. Before fastening the rear seat cen- ter belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are
latched, pull the seat belt out of theretractor and insert the metal tab (c)into the buckle (d).
B220A01L-AAT SEAT BELTS - Rear Seat Center's 3-Point System With Emergency Locking Retractor
B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle.When it is released, the belt should automatically draw back into the re- tractor.If this does not happen, check the beltto be sure it is not twisted, then tryagain. B210A01L
B220A02Y
There will be an audible "click" whenthe tab locks in the buckle. The seatbelt automatically adjusts to the properlength only after the lap belt is adjustedmanually so that it fits snugly around your hips. If you lean forward in a slow, easy motion, the belt will extend andlet you move around. If there is asudden stop or impact, the belt will lockinto position. It will also lock if you try tolean forward too quickly.
Page 36 of 230

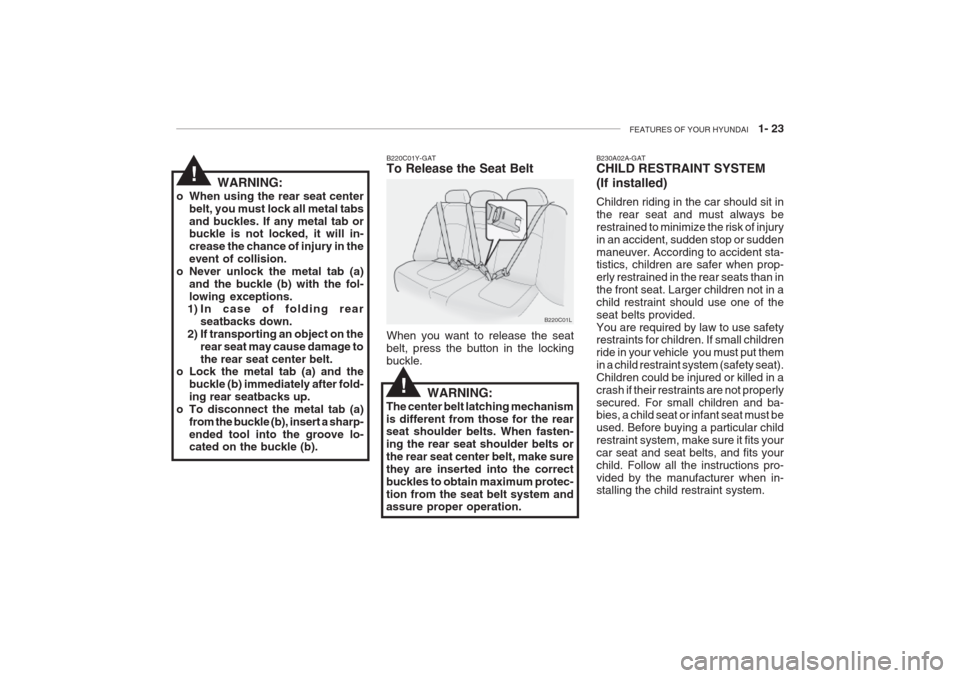

FEATURES OF YOUR HYUNDAI 1- 23
WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab or buckle is not locked, it will in- crease the chance of injury in theevent of collision.
o Never unlock the metal tab (a)
and the buckle (b) with the fol-lowing exceptions.
1) In case of folding rear
seatbacks down.
2) If transporting an object on the rear seat may cause damage tothe rear seat center belt.
o Lock the metal tab (a) and the
buckle (b) immediately after fold-ing rear seatbacks up.
o To disconnect the metal tab (a) from the buckle (b), insert a sharp-ended tool into the groove lo- cated on the buckle (b).!
B220C01L
B220C01Y-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the lockingbuckle.
WARNING:
The center belt latching mechanismis different from those for the rear seat shoulder belts. When fasten- ing the rear seat shoulder belts orthe rear seat center belt, make surethey are inserted into the correctbuckles to obtain maximum protec-tion from the seat belt system and assure proper operation.
!
B230A02A-GAT CHILD RESTRAINT SYSTEM (If installed) Children riding in the car should sit in the rear seat and must always berestrained to minimize the risk of injuryin an accident, sudden stop or suddenmaneuver. According to accident sta- tistics, children are safer when prop- erly restrained in the rear seats than inthe front seat. Larger children not in achild restraint should use one of theseat belts provided.You are required by law to use safety restraints for children. If small children ride in your vehicle you must put themin a child restraint system (safety seat).Children could be injured or killed in acrash if their restraints are not properlysecured. For small children and ba- bies, a child seat or infant seat must be used. Before buying a particular childrestraint system, make sure it fits yourcar seat and seat belts, and fits yourchild. Follow all the instructions pro-vided by the manufacturer when in- stalling the child restraint system.
Page 37 of 230

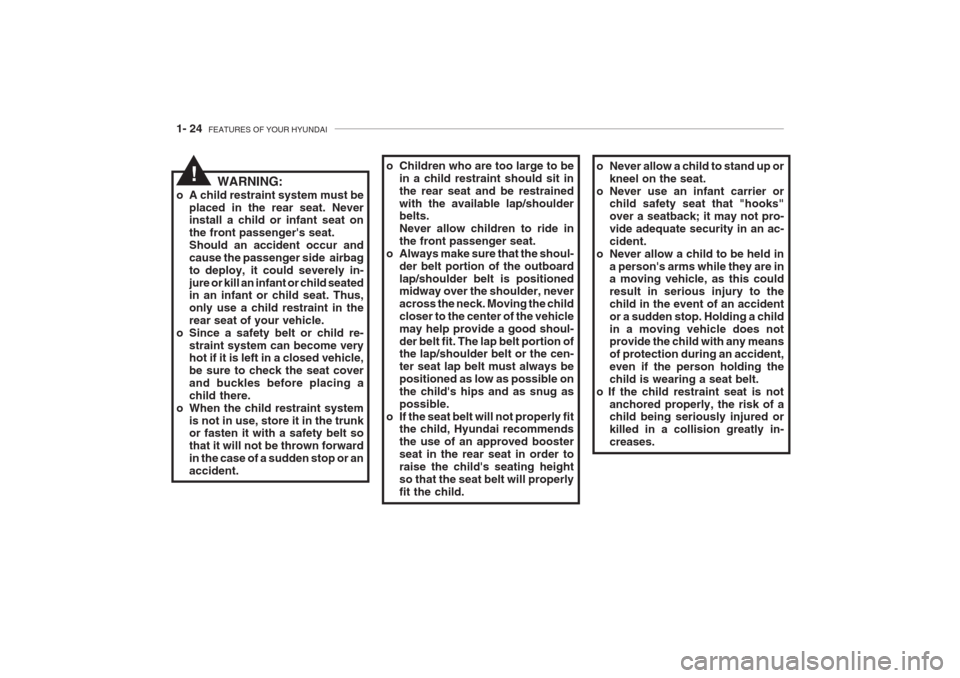

1- 24 FEATURES OF YOUR HYUNDAI
o Children who are too large to be
in a child restraint should sit in the rear seat and be restrainedwith the available lap/shoulder belts. Never allow children to ride inthe front passenger seat.
o Always make sure that the shoul-
der belt portion of the outboardlap/shoulder belt is positioned midway over the shoulder, never across the neck. Moving the childcloser to the center of the vehiclemay help provide a good shoul-der belt fit. The lap belt portion of the lap/shoulder belt or the cen- ter seat lap belt must always bepositioned as low as possible onthe child's hips and as snug aspossible.
o If the seat belt will not properly fit the child, Hyundai recommendsthe use of an approved boosterseat in the rear seat in order toraise the child's seating heightso that the seat belt will properlyfit the child.
WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat.Should an accident occur andcause the passenger side airbagto deploy, it could severely in-jure or kill an infant or child seated in an infant or child seat. Thus, only use a child restraint in therear seat of your vehicle.
o Since a safety belt or child re-
straint system can become very hot if it is left in a closed vehicle, be sure to check the seat coverand buckles before placing achild there.
o When the child restraint system
is not in use, store it in the trunk or fasten it with a safety belt so that it will not be thrown forwardin the case of a sudden stop or anaccident. o Never allow a child to stand up or
kneel on the seat.
o Never use an infant carrier or child safety seat that "hooks"over a seatback; it may not pro-vide adequate security in an ac-cident.
o Never allow a child to be held in a person's arms while they are in a moving vehicle, as this could result in serious injury to thechild in the event of an accidentor a sudden stop. Holding a childin a moving vehicle does not provide the child with any means of protection during an accident,even if the person holding thechild is wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of a child being seriously injured or killed in a collision greatly in-creases.
!
Page 38 of 230

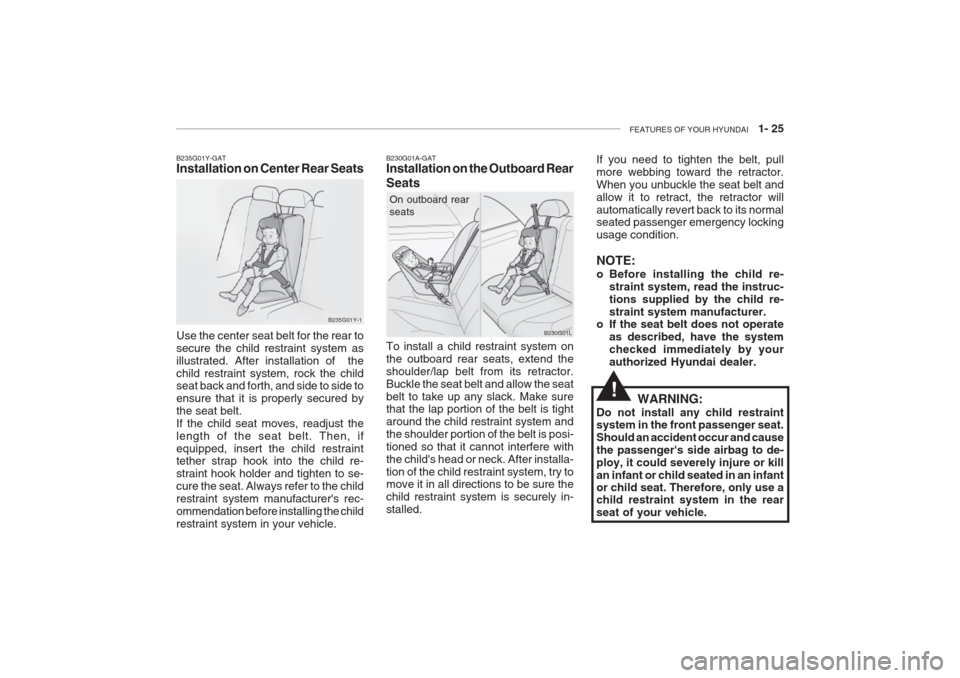

FEATURES OF YOUR HYUNDAI 1- 25
B235G01Y-GAT Installation on Center Rear Seats
B235G01Y-1
Use the center seat belt for the rear to secure the child restraint system asillustrated. After installation of thechild restraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured bythe seat belt.If the child seat moves, readjust thelength of the seat belt. Then, ifequipped, insert the child restraint tether strap hook into the child re- straint hook holder and tighten to se-cure the seat. Always refer to the childrestraint system manufacturer's rec-ommendation before installing the childrestraint system in your vehicle.
On outboard rear seats
B230G01A-GAT Installation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend theshoulder/lap belt from its retractor.Buckle the seat belt and allow the seatbelt to take up any slack. Make sure that the lap portion of the belt is tight around the child restraint system andthe shoulder portion of the belt is posi-tioned so that it cannot interfere withthe child's head or neck. After installa-tion of the child restraint system, try to move it in all directions to be sure the child restraint system is securely in-stalled. B230G01L
If you need to tighten the belt, pullmore webbing toward the retractor.When you unbuckle the seat belt andallow it to retract, the retractor willautomatically revert back to its normal seated passenger emergency locking usage condition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re-straint system manufacturer.
o If the seat belt does not operate
as described, have the systemchecked immediately by yourauthorized Hyundai dealer.
WARNING:
Do not install any child restraint system in the front passenger seat. Should an accident occur and causethe passenger's side airbag to de-ploy, it could severely injure or killan infant or child seated in an infantor child seat. Therefore, only use a child restraint system in the rear seat of your vehicle.
!
Page 39 of 230

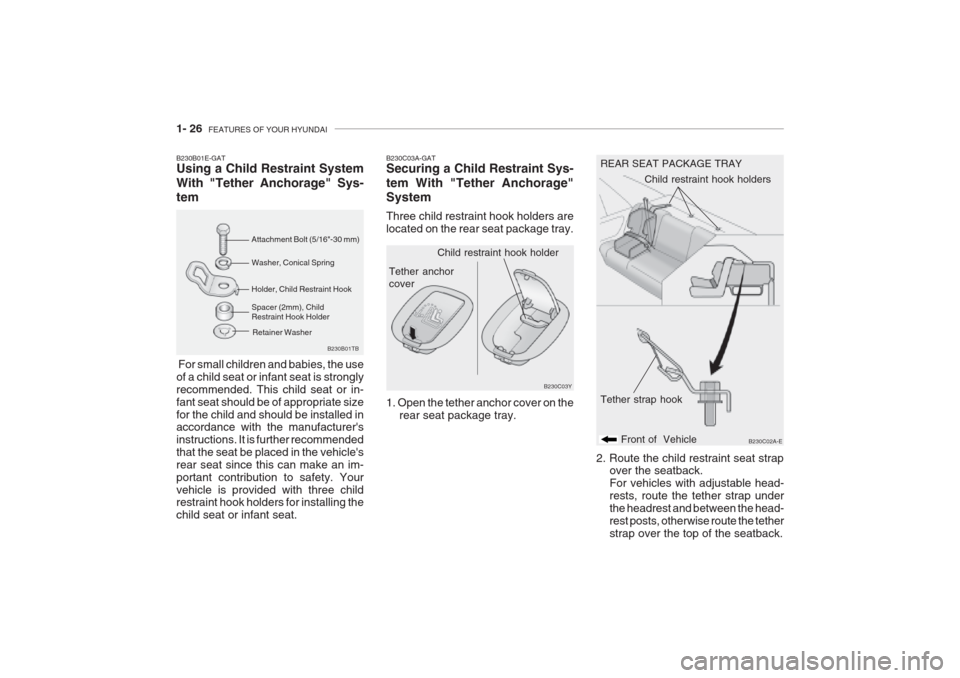

1- 26 FEATURES OF YOUR HYUNDAI
Tether anchor cover
B230C03Y
Child restraint hook holder
REAR SEAT PACKAGE TRAY
B230C02A-E
Front of Vehicle Child restraint hook holders
Tether strap hook
Spacer (2mm), Child Restraint Hook Holder
B230B01TB
Attachment Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
B230B01E-GAT Using a Child Restraint System With "Tether Anchorage" Sys- tem For small children and babies, the use of a child seat or infant seat is stronglyrecommended. This child seat or in-fant seat should be of appropriate sizefor the child and should be installed in accordance with the manufacturer's instructions. It is further recommendedthat the seat be placed in the vehicle'srear seat since this can make an im-portant contribution to safety. Yourvehicle is provided with three child restraint hook holders for installing the child seat or infant seat. B230C03A-GAT Securing a Child Restraint Sys- tem With "Tether Anchorage" System Three child restraint hook holders are located on the rear seat package tray.
2. Route the child restraint seat strapover the seatback.For vehicles with adjustable head-rests, route the tether strap underthe headrest and between the head-rest posts, otherwise route the tetherstrap over the top of the seatback.
1. Open the tether anchor cover on the
rear seat package tray.
Retainer Washer
Page 40 of 230

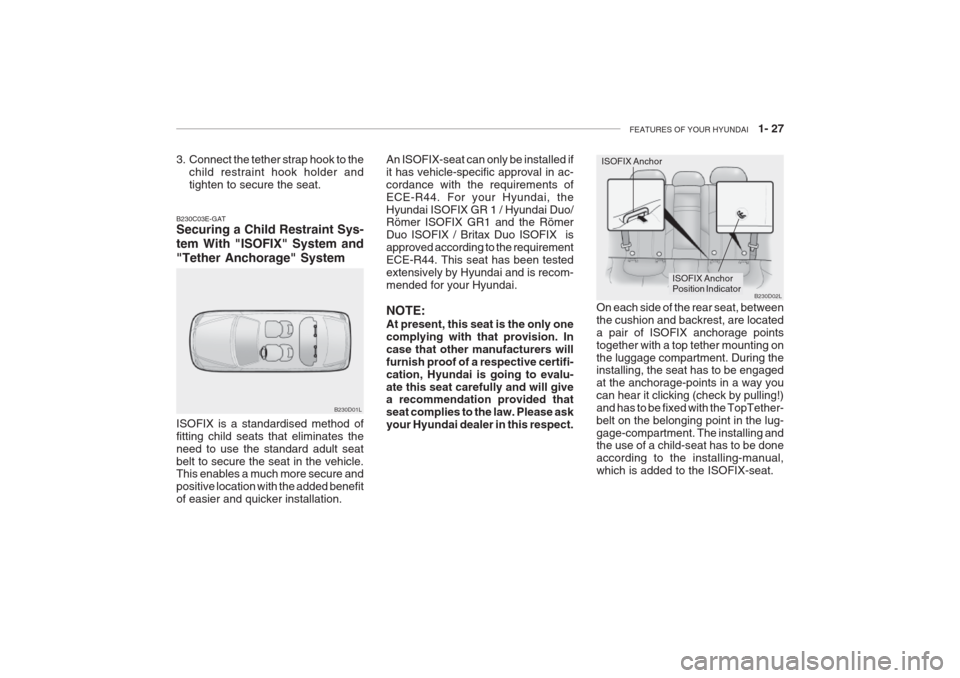

FEATURES OF YOUR HYUNDAI 1- 27
ISOFIX Anchor
B230C03E-GAT Securing a Child Restraint Sys- tem With "ISOFIX" System and"Tether Anchorage" System B230D02L
ISOFIX Anchor Position Indicator
On each side of the rear seat, between the cushion and backrest, are locateda pair of ISOFIX anchorage pointstogether with a top tether mounting onthe luggage compartment. During the installing, the seat has to be engaged at the anchorage-points in a way youcan hear it clicking (check by pulling!)and has to be fixed with the TopTether-belt on the belonging point in the lug-gage-compartment. The installing and the use of a child-seat has to be done according to the installing-manual,which is added to the ISOFIX-seat.
An ISOFIX-seat can only be installed ifit has vehicle-specific approval in ac-cordance with the requirements ofECE-R44. For your Hyundai, theHyundai ISOFIX GR 1 / Hyundai Duo/ Römer ISOFIX GR1 and the Römer Duo ISOFIX / Britax Duo ISOFIX isapproved according to the requirementECE-R44. This seat has been testedextensively by Hyundai and is recom-mended for your Hyundai. NOTE: At present, this seat is the only one complying with that provision. Incase that other manufacturers willfurnish proof of a respective certifi-cation, Hyundai is going to evalu-ate this seat carefully and will give a recommendation provided that seat complies to the law. Please askyour Hyundai dealer in this respect.
3. Connect the tether strap hook to the
child restraint hook holder andtighten to secure the seat.
ISOFIX is a standardised method offitting child seats that eliminates theneed to use the standard adult seatbelt to secure the seat in the vehicle. This enables a much more secure and positive location with the added benefitof easier and quicker installation.
B230D01L
