FEATURES OF YOUR HYUNDAI 1- 7
o To protect against theft, always
remove the ignition key, close all windows, and lock all doors andthe trunk lid when leaving your vehicle unattended.
Your Hyundai is equipped with a "child- protector" rear door lock assembly. When the lock mechanism is engaged, the rear door cannot be opened fromthe inside. Its use is recommended whenever there are small children in the rear seat. To engage the child-protector feature so the door cannot be opened from theinside, move the child-protector lever to the " " position and close the door. Move the lever to the opposite direc-tion of the " " position when normal door operation is desired.

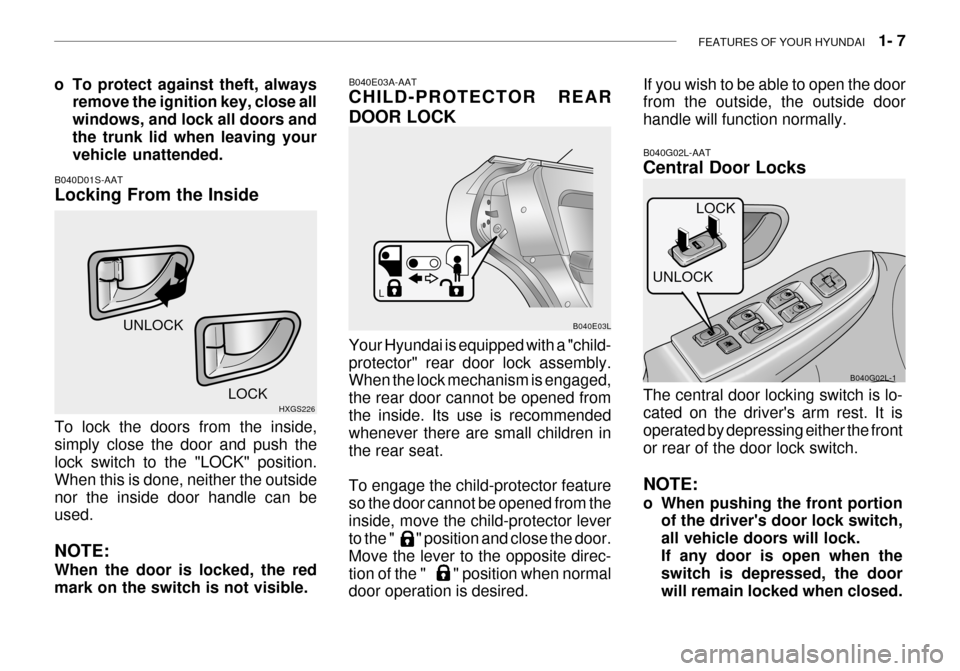

B040D01S-AAT Locking From the Inside To lock the doors from the inside, simply close the door and push the lock switch to the "LOCK" position. When this is done, neither the outsidenor the inside door handle can be used. NOTE: When the door is locked, the red mark on the switch is not visible.
HXGS226
LOCK
UNLOCK
B040E03L
B040E03A-AAT CHILD-PROTECTOR REAR DOOR LOCKIf you wish to be able to open the door from the outside, the outside door handle will function normally.
B040G02L-AAT Central Door Locks The central door locking switch is lo- cated on the driver's arm rest. It isoperated by depressing either the front or rear of the door lock switch. NOTE:
o When pushing the front portion
of the driver's door lock switch, all vehicle doors will lock.If any door is open when the switch is depressed, the door will remain locked when closed. B040G02L-1
LOCK
UNLOCK
Page 22 of 235
1- 8 FEATURES OF YOUR HYUNDAI
B070A01S-AAT THEFT-ALARM SYSTEM (If installed) This system is designed to provide protection from unauthorized entry intothe car. This system is operated in three stages: the first is the "Armed" stage, the second is the "Alarm" stage,and the third is the "Disarmed" stage. If triggered, the system provides an audible alarm siren. B070B03Y-AAT Armed Stage Park the car and stop the engine. Arm the system as described below.
1) Remove the ignition key from the
ignition switch.
2) Make sure that the engine hood and trunk lid are locked.
3) Lock the doors using the transmitter
of the keyless entry system.
o When pushing the rear portion of
the switch, all vehicle doors will unlock.
!
After completion of the steps above, the turn signal light will blink once to indicate that the system is armed. NOTE:
1) If any door, trunk lid or engine
hood remains open, the system will not be armed.
2) If this happens, rearm the system as described above.
CAUTION:
Do not arm the system until all passengers have left the car. If thesystem is armed while a passenger(s) remains in the car, the alarm may be activated whenthe remaining passenger(s) leaves the car.HXGS123

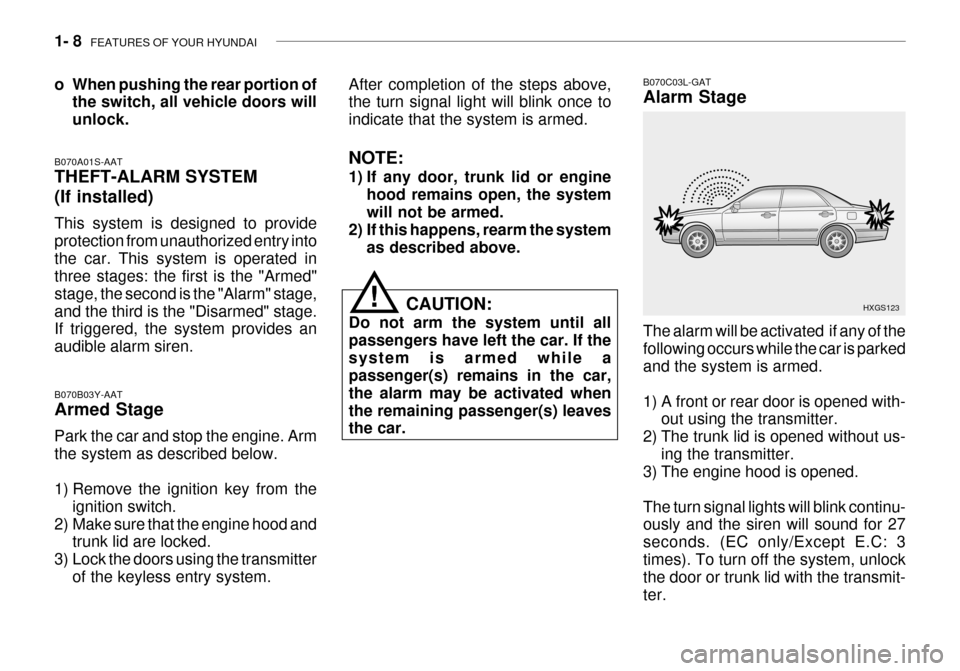

B070C03L-GAT Alarm Stage The alarm will be activated if any of the following occurs while the car is parked and the system is armed.
1) A front or rear door is opened with-
out using the transmitter.
2) The trunk lid is opened without us-
ing the transmitter.
3) The engine hood is opened.The turn signal lights will blink continu- ously and the siren will sound for 27 seconds. (EC only/Except E.C: 3times). To turn off the system, unlock the door or trunk lid with the transmit- ter.
Page 23 of 235
FEATURES OF YOUR HYUNDAI 1- 9

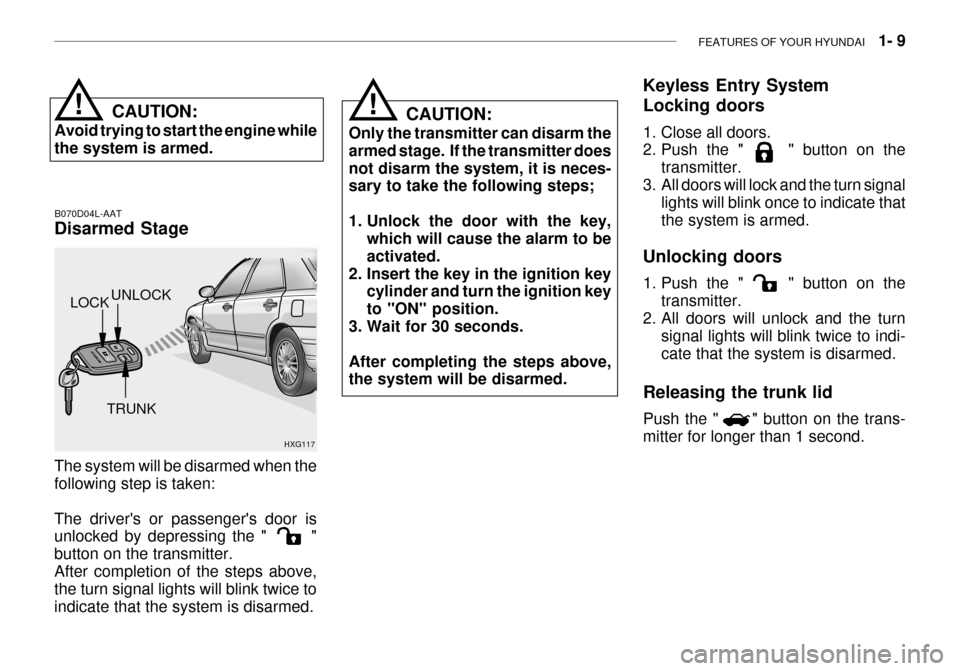

HXG117
UNLOCK
LOCK
TRUNKCAUTION:
Avoid trying to start the engine while the system is armed. B070D04L-AAT Disarmed Stage
The system will be disarmed when the following step is taken: The driver's or passenger's door is unlocked by depressing the " " button on the transmitter.After completion of the steps above, the turn signal lights will blink twice to indicate that the system is disarmed. Keyless Entry System Locking doors
1. Close all doors.
2. Push the " " button on the
transmitter.
3. All doors will lock and the turn signal lights will blink once to indicate that the system is armed.
Unlocking doors
1. Push the " " button on the transmitter.
2. All doors will unlock and the turn
signal lights will blink twice to indi- cate that the system is disarmed.
Releasing the trunk lid Push the " " button on the trans- mitter for longer than 1 second.
! CAUTION:
Only the transmitter can disarm the armed stage. If the transmitter doesnot disarm the system, it is neces- sary to take the following steps;
1. Unlock the door with the key, which will cause the alarm to be activated.
2. Insert the key in the ignition key cylinder and turn the ignition keyto "ON" position.
3. Wait for 30 seconds. After completing the steps above, the system will be disarmed.!
Page 24 of 235
1- 10 FEATURES OF YOUR HYUNDAI
2. Remove the old battery from the

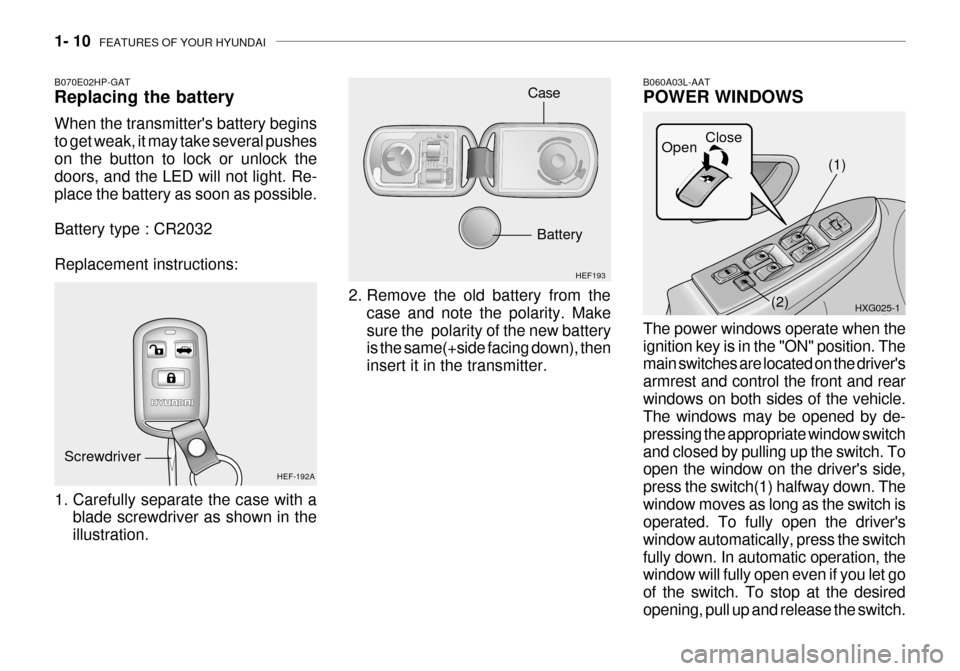

case and note the polarity. Make sure the polarity of the new battery is the same(+side facing down), then insert it in the transmitter. HEF193
Battery
1. Carefully separate the case with a blade screwdriver as shown in the illustration. HEF-192A
Screwdriver Case
B070E02HP-GAT Replacing the battery When the transmitter's battery begins to get weak, it may take several pusheson the button to lock or unlock the doors, and the LED will not light. Re- place the battery as soon as possible. Battery type : CR2032 Replacement instructions:B060A03L-AAT POWER WINDOWS
Open Close
The power windows operate when the ignition key is in the "ON" position. The main switches are located on the driver's armrest and control the front and rearwindows on both sides of the vehicle. The windows may be opened by de- pressing the appropriate window switchand closed by pulling up the switch. To open the window on the driver's side, press the switch(1) halfway down. Thewindow moves as long as the switch is operated. To fully open the driver's window automatically, press the switchfully down. In automatic operation, the window will fully open even if you let go of the switch. To stop at the desiredopening, pull up and release the switch. HXG025-1
(1)
(2)
Page 25 of 235
FEATURES OF YOUR HYUNDAI 1- 11
WARNING:
1) Be careful that someone's head, hands and body are not trapped by a closing window.
2) Never try to operate the main
switch on the driver's door andthe individual door window switch in opposing directions atthe same time. If this is done, the window will stop and cannot be opened or closed.
3) Do not leave children alone in the car. Always remove the ignitionkey for their safety. HXG029
Close
Open
HXG179
B080B01L-AAT Adjusting Seat Forward and Rearward
B080A01A-AAT ADJUSTABLE FRONT SEATS

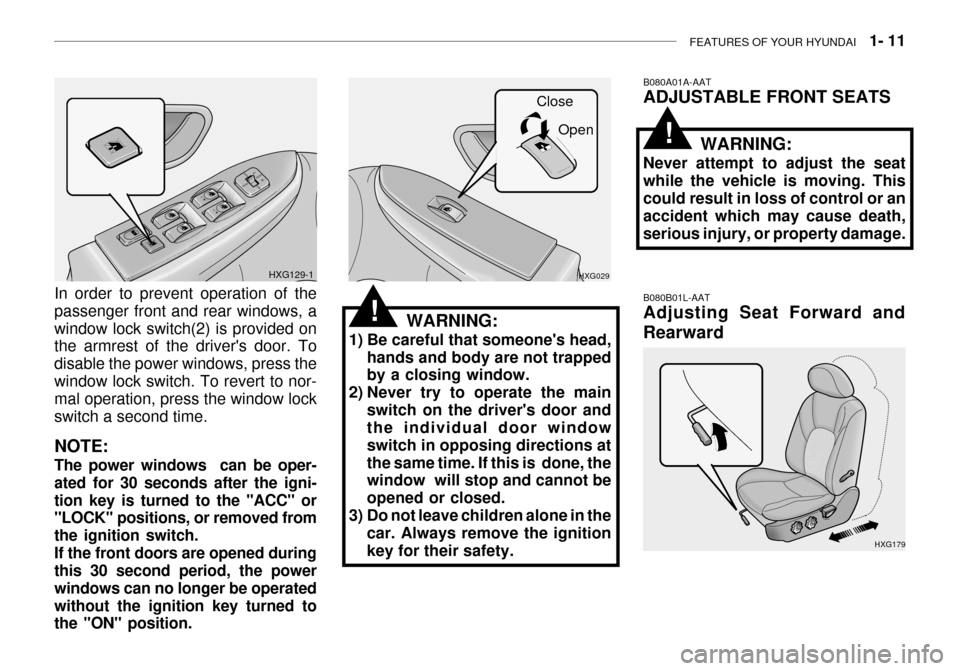

In order to prevent operation of the passenger front and rear windows, awindow lock switch(2) is provided on the armrest of the driver's door. To disable the power windows, press thewindow lock switch. To revert to nor- mal operation, press the window lock switch a second time. NOTE:
The power windows can be oper- ated for 30 seconds after the igni-tion key is turned to the "ACC" or "LOCK" positions, or removed from the ignition switch.If the front doors are opened during this 30 second period, the power windows can no longer be operatedwithout the ignition key turned to the "ON" position.
HXG129-1
!WARNING:
Never attempt to adjust the seat while the vehicle is moving. This could result in loss of control or an accident which may cause death,serious injury, or property damage.
!
Page 26 of 235
1- 12 FEATURES OF YOUR HYUNDAI

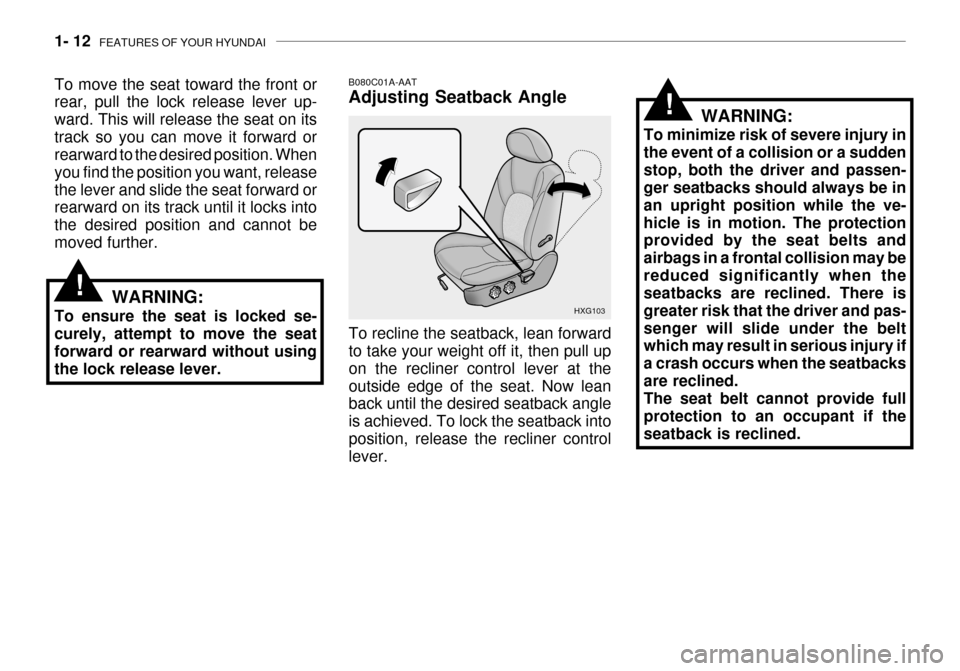

To move the seat toward the front or rear, pull the lock release lever up- ward. This will release the seat on itstrack so you can move it forward or rearward to the desired position. When you find the position you want, releasethe lever and slide the seat forward or rearward on its track until it locks into the desired position and cannot bemoved further.
HXG103
B080C01A-AAT Adjusting Seatback Angle
To recline the seatback, lean forward to take your weight off it, then pull up on the recliner control lever at theoutside edge of the seat. Now lean back until the desired seatback angle is achieved. To lock the seatback intoposition, release the recliner control lever. WARNING:
To minimize risk of severe injury in the event of a collision or a suddenstop, both the driver and passen- ger seatbacks should always be in an upright position while the ve-hicle is in motion. The protection provided by the seat belts and airbags in a frontal collision may bereduced significantly when the seatbacks are reclined. There is greater risk that the driver and pas-senger will slide under the belt which may result in serious injury if a crash occurs when the seatbacksare reclined. The seat belt cannot provide full protection to an occupant if theseatback is reclined.
!
WARNING:
To ensure the seat is locked se- curely, attempt to move the seat forward or rearward without usingthe lock release lever.!
Page 27 of 235
FEATURES OF YOUR HYUNDAI 1- 13
B080E01L-AAT Lumbar Support Control To adjust the lumbar support, turn the handle on the outboard or left side of the seat. To increase the amount of lumbar support, pull the lever forward.To decrease it, push the lever toward the rear.
1. Minimum support
2. Maximum support HXG108
2
1
B080G01L
WARNING:
o For maximum effectiveness in case of an accident the headrestshould be adjusted so the top of the headrest is at the same heightas the top of the occupant's ears. For this reason, the use of a cush- ion that holds the body awayfrom the seatback should not be recommended.
o Do not operate vehicle with the headrests removed as injury tothe occupants may occur in the event of an accident. Headrestsmay provide protection against neck injuries when properly ad- justed.
!HXG200J
Lock Knob

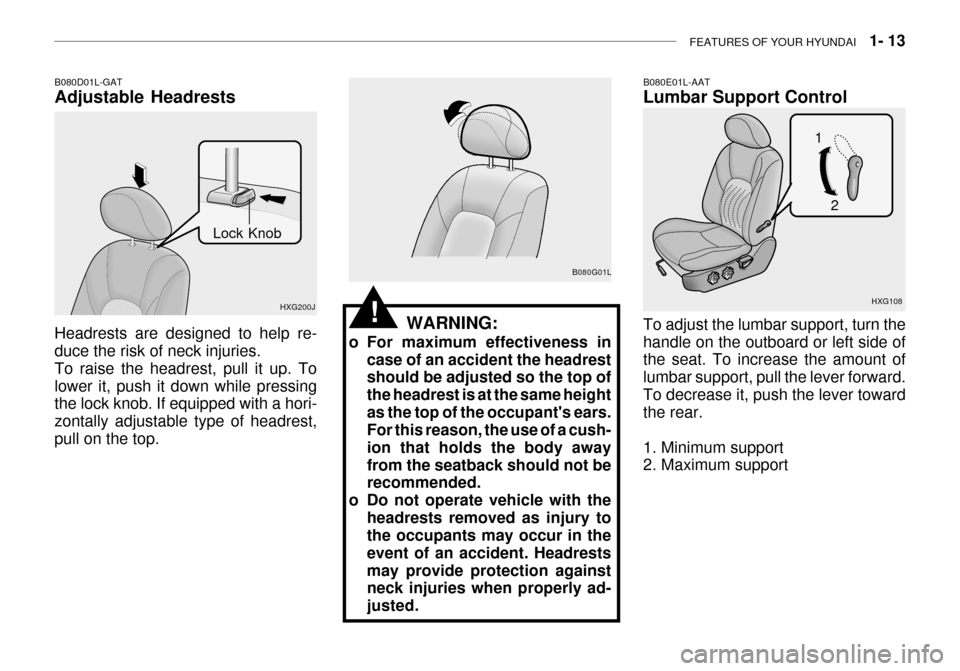

B080D01L-GAT Adjustable Headrests Headrests are designed to help re- duce the risk of neck injuries. To raise the headrest, pull it up. Tolower it, push it down while pressing the lock knob. If equipped with a hori- zontally adjustable type of headrest,pull on the top.
Page 28 of 235
1- 14 FEATURES OF YOUR HYUNDAI
B090A03L-AAT POWER SEAT (If installed) The front seat can be adjusted appro- priately by using the control knobs onthe left side of the seat. Before driving, adjust the seat to the proper position so as to easily control the steeringwheel, pedals and switches on the instrument panel.
HXG180
1
2

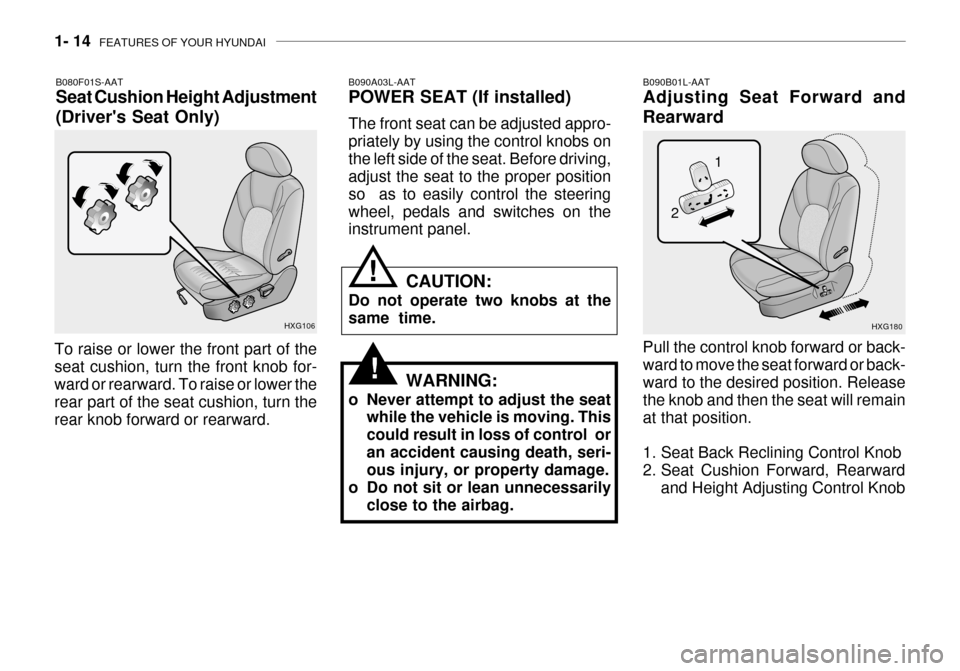

B090B01L-AAT Adjusting Seat Forward and Rearward Pull the control knob forward or back- ward to move the seat forward or back-ward to the desired position. Release the knob and then the seat will remain at that position.
1. Seat Back Reclining Control Knob
2. Seat Cushion Forward, Rearward
and Height Adjusting Control Knob
WARNING:
o Never attempt to adjust the seat while the vehicle is moving. Thiscould result in loss of control oran accident causing death, seri- ous injury, or property damage.
o Do not sit or lean unnecessarily
close to the airbag.
CAUTION:
Do not operate two knobs at the same time.
!
!
B080F01S-AAT Seat Cushion Height Adjustment (Driver's Seat Only)
To raise or lower the front part of the seat cushion, turn the front knob for-ward or rearward. To raise or lower the rear part of the seat cushion, turn the rear knob forward or rearward. HXG106
Page 29 of 235
FEATURES OF YOUR HYUNDAI 1- 15
HXG181

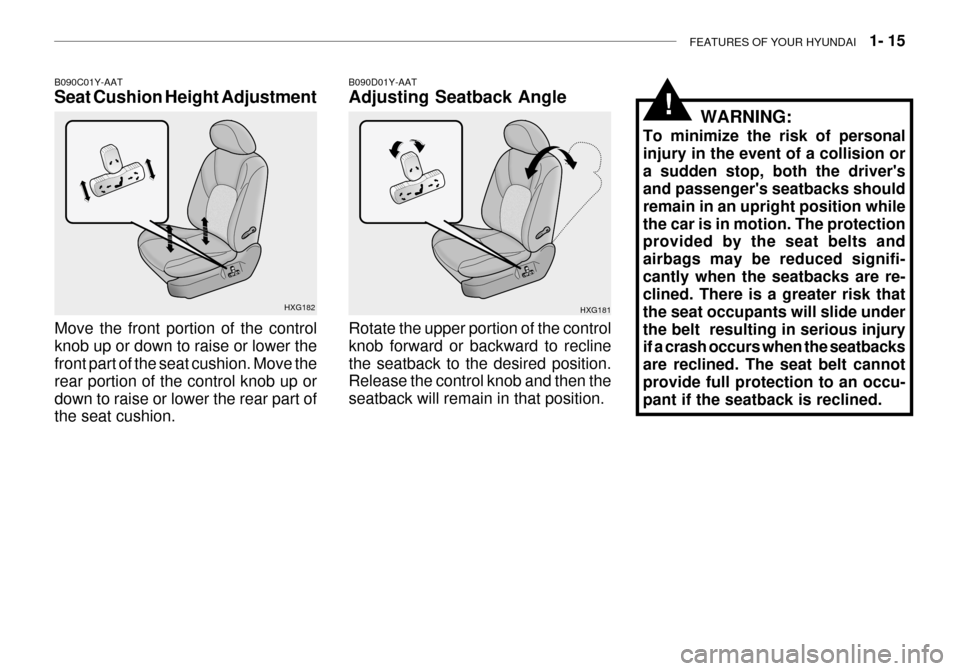

B090D01Y-AAT Adjusting Seatback Angle
Rotate the upper portion of the control knob forward or backward to recline the seatback to the desired position. Release the control knob and then the seatback will remain in that position. WARNING:
To minimize the risk of personalinjury in the event of a collision ora sudden stop, both the driver's and passenger's seatbacks should remain in an upright position whilethe car is in motion. The protection provided by the seat belts and airbags may be reduced signifi-cantly when the seatbacks are re- clined. There is a greater risk that the seat occupants will slide underthe belt resulting in serious injury if a crash occurs when the seatbacks are reclined. The seat belt cannot provide full protection to an occu- pant if the seatback is reclined.
!
B090C01Y-AAT Seat Cushion Height Adjustment
Move the front portion of the control knob up or down to raise or lower the front part of the seat cushion. Move the rear portion of the control knob up ordown to raise or lower the rear part of the seat cushion. HXG182
Page 30 of 235
1- 16 FEATURES OF YOUR HYUNDAI
To memorize driving position
1. Turn the ignition key "ON".
2. Adjust the driver's seat, outside rear-
view mirrors and steering wheel col- umn (if installed the steering wheel electric tilt and telescopic) to thedesired position.
3. Push the "M" button on the I.M.S
until the signal beeps.
4. Within five seconds, push button "1" or "2" until the signal beeps twice.The beep sounds mean that thepositions are memorized in the I.M.S. To activate the memorized posi- tion When you push button "1" or "2", the driving position will be automatically adjusted to the position recorded forthat button. "AUTO" button function When the "AUTO" button is "ON", the system will move the driver's seat for- ward or rearward and steering wheelcolumn up/down or inward/outward, so you can comfortably enter and exit the vehicle.
o It will move driver's seat rearward
and steering wheel column up/down or inward/outward, when the igni- tion key is pulled out.
o It will move driver's seat forward
and steering wheel column to theoriginal position, when the ignition key is inserted.
o While the vehicle is moving back- ward, the outside rearview mirrorswill automatically move downwardto change the area visible with the outside mirrors.
! CAUTION:
In the following conditions, the I.M.S will not operate.
1. When the "1" or "2" button is not pushed within five seconds.
2. When the seat is being adjusted.
3. When the "STOP" button is
pushed.

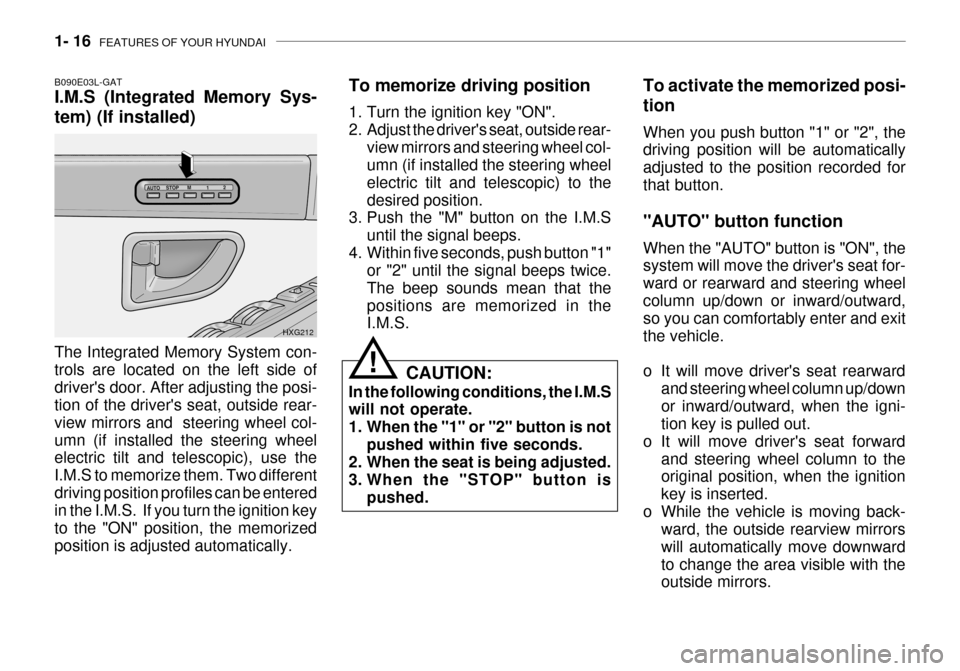

B090E03L-GAT I.M.S (Integrated Memory Sys- tem) (If installed) The Integrated Memory System con- trols are located on the left side ofdriver's door. After adjusting the posi- tion of the driver's seat, outside rear- view mirrors and steering wheel col-umn (if installed the steering wheel electric tilt and telescopic), use the I.M.S to memorize them. Two differentdriving position profiles can be entered in the I.M.S. If you turn the ignition key to the "ON" position, the memorizedposition is adjusted automatically. HXG212
