Hyundai Grandeur 2003 Owner's Guide

FEATURES OF YOUR HYUNDAI 1- 17

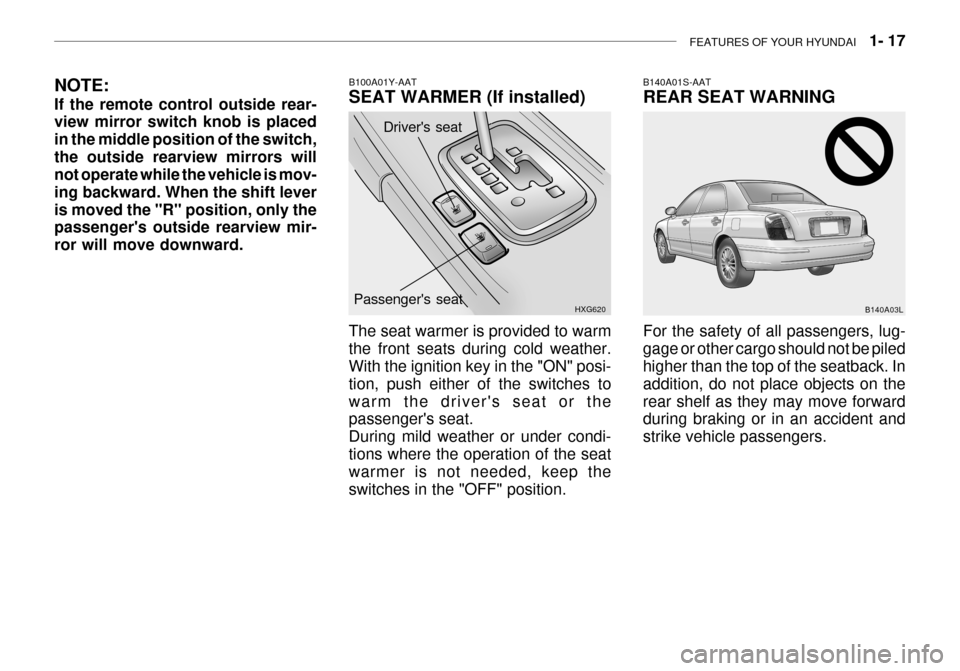

Driver's seat
B100A01Y-AAT SEAT WARMER (If installed)
HXG620
Passenger's seat
The seat warmer is provided to warm the front seats during cold weather. With the ignition key in the "ON" posi- tion, push either of the switches towarm the driver's seat or the passenger's seat. During mild weather or under condi-tions where the operation of the seat warmer is not needed, keep the switches in the "OFF" position.
B140A03L
B140A01S-AAT REAR SEAT WARNING For the safety of all passengers, lug- gage or other cargo should not be piled higher than the top of the seatback. In addition, do not place objects on therear shelf as they may move forward during braking or in an accident and strike vehicle passengers.
NOTE: If the remote control outside rear- view mirror switch knob is placed in the middle position of the switch,the outside rearview mirrors will not operate while the vehicle is mov- ing backward. When the shift leveris moved the "R" position, only the passenger's outside rearview mir- ror will move downward.

1- 18 FEATURES OF YOUR HYUNDAI
FREE
LOCK
B120A01Y-GAT REAR SEATBACK SAFETY LOCK (If installed) If the rear seatback lock lever (located on the backside of the rear seatback) is in the "LOCK" position when the rear seatbacks are closed, it will not bepossible to fold the rear seatback by using the release lock lever. In this instance, move the lock lever to the"FREE" position and fold the rear seatback. The rear seatback lock le- ver is designed to provide protectionfrom unauthorized entry into the trunk. B120A03L
WARNING:
The purpose of the folding rear seatbacks is to allow you to carrylonger objects than could other- wise be accommodated. Never al- low passengers to sit on top of thefolded down seatback. This could result in injury in case of an acci- dent or a sudden braking as this isnot a designated seating position and seat belt restraint systems are not accessible when the seatbacksare folded down. B110A02L!B110A01L
B110A01L-GAT FOLDING REAR SEATBACKS
o To unlock the seatback, depress
the seatback locking button, then pull forward on the seatback panel.
o When you return the seatback to its
upright position, always be sure ithas locked into position by pulling and pushing on the top of theseatback.

FEATURES OF YOUR HYUNDAI 1- 19
B150D01A-AAT Pregnant Women The use of a seat belt is recommended for pregnant women to lessen thechance of injury in an accident. When a seat belt is used, the lap belt portion should be placed as low and snugly aspossible on the hips, not across the abdomen. For specific recommenda- tions, consult a physician.
B150C02A-AAT Larger Children Children who are too large for child restraint systems should always oc-cupy the rear seat and use the avail- able lap/shoulder belts. The lap por- tion should be fastened snug on thehips and as low as possible. Check belt fit periodically. A child's squirming could put the belt out of position. Chil-dren are afforded the most safety in the event of an accident when they are restrained by a proper restraint sys-tem in the rear seat. If a larger child (over age 13) must be seated in the front seat, the child should be securelyrestrained by the available lap/shoul- der belt and the seat should be placed in the rear most position. Children un-der the age of 13 should be restrained securely in the rear seat. NEVER place a child under the age of 13 in the frontseat. NEVER place a rear facing child seat in the front seat of a vehicle.
B150F01A-AAT One Person Per Belt Two people (including children) should never attempt to use a single seat belt. This could increase the severity of injuries in case of an accident.
B150E01A-AAT Injured Person A seat belt should be used when an injured person is being transported. When this is necessary, you shouldconsult a physician for recommenda- tions.
B150B01Y-GAT Infant or Small Child Some countries require the use of child restraint systems for infants andsmall children. Whether this is required by law or not, it is strongly recom- mended that a child restraint seat orinfant restraint system be used for infants or small children weighing less than 18 kilograms (40 pounds). NOTE: Small children are best protected in an accident when properly re- strained by a child restraint sys-tem.
B150A02A-GAT SEAT BELT PRECAUTIONS All occupants of the vehicle should wear their seat belts at all times. In-deed, your province's laws may re- quire that some or all occupants of the vehicle use seat belts.The possibility of injury or the severity of injury in an accident will be de- creased if this elementary safety pre-caution is observed. In addition, the following recommendations are made:

1- 20 FEATURES OF YOUR HYUNDAI
B160C01A-AAT Keep Belts Clean and Dry Seat belts should be kept clean and dry. If belts become dirty, they can becleaned by using a mild soap solution and warm water. Bleach, dye, strong detergents or abrasives should not beused because they may damage and weaken the fabric. B160D01A-AAT When to Replace Seat Belts Entire in-use seat belt assembly or assemblies should be replaced if thevehicle has been involved in an acci- dent. This should be done even if no damage is visible. Additional ques-tions concerning seat belt operation should be directed to your Hyundai Dealer.
B160A01A-AAT CARE OF SEAT BELTS Seat belt systems should never be disassembled or modified. In addition, care should be taken to assure that seat belts and belt hardware are not damaged by seat hinges, doors or other abuse.
This could cause serious internal injuries. For proper protection when the ve-hicle is in motion, have the seatback upright. Then sit back in the seat and wear your seat belt properly.See page 1-21.
B160B01A-AAT Periodic Inspection It is recommended that all seat belts be inspected periodically for wear ordamage of any kind. Parts of the sys- tem that are damaged should be re- placed as soon as possible.
WARNING:
When you return the rear seatback to its upright position after the rearseatback was folded down, be care- ful not to damage the seat belt web- bing or buckle. Be sure that thewebbing or buckle does not get caught or pinched in the rear seat.!
B150G01A-AAT Do Not Lie Down To reduce the chance of injuries in the event of an accident and to achievemaximum effectiveness of the restraint system, all passengers should be sit- ting up and the front seats should be inan upright position when the car is moving. A seat belt cannot provide proper protection if the person is lyingdown in the rear seat or if the front seat is in a reclined position.
WARNING:
Sitting in a reclined position or ly- ing down when your vehicle is in motion can be dangerous. Even if you buckle up, your seat belts can'tdo their job when you're reclined. The shoulder belt can't do its job because it won't be against yourbody. Instead, it will be in front of you. In a crash you could go into it, receiving serious neck or other in-juries. The lap belt can't do its job either. In a crash the belt could go up overyour abdomen. The belt forces would be applied there, not at your strong pelvic bones.
!

FEATURES OF YOUR HYUNDAI 1- 21
B180A01L-GAT SEAT BELTS-Driver's 3-Point System with Emergency Lock-ing Retractor To Fasten Your Belt
To fasten your seat belt, pull it out of the retractor and insert the metal tabinto the buckle. There will be an au- dible "click" when the tab locks into the buckle.The seat belt automatically adjusts to the proper length only after the lap belt is adjusted manually so that it fitssnugly around your hips. If you lean forward in a slow, easy motion, the belt will extend and let you move around. Ifthere is a sudden stop or impact, how- ever, the belt will lock into position. It
Release the button to lock the anchorinto position. Try sliding the height adjuster to make sure that it has lockedinto the position.
B180A01L
!WARNING:
o The height adjuster must be in the locked position when the vehicle is moving.
o The misadjustment of height of
the shoulder belt could reducethe effectiveness of the seat belt in a crash.

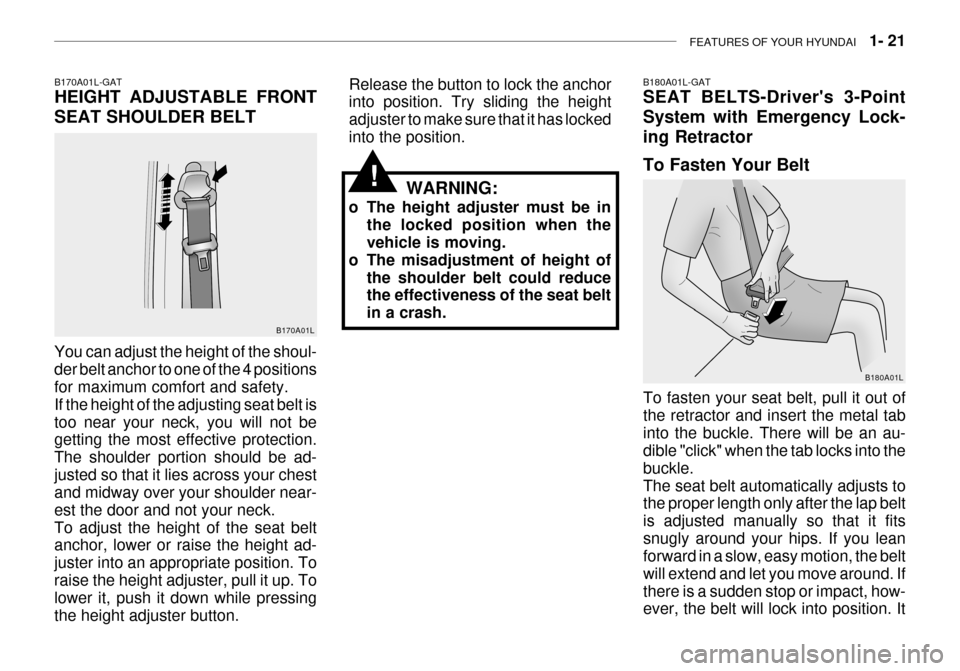

You can adjust the height of the shoul- der belt anchor to one of the 4 positions for maximum comfort and safety. If the height of the adjusting seat belt istoo near your neck, you will not be getting the most effective protection. The shoulder portion should be ad-justed so that it lies across your chest and midway over your shoulder near- est the door and not your neck.To adjust the height of the seat belt anchor, lower or raise the height ad- juster into an appropriate position. Toraise the height adjuster, pull it up. To lower it, push it down while pressing the height adjuster button. B170A01L
B170A01L-GAT HEIGHT ADJUSTABLE FRONT SEAT SHOULDER BELT

1- 22 FEATURES OF YOUR HYUNDAI
Never wear the seat belt under the arm nearest the door.
B220A01L
(a)
(c)
(b) (d)

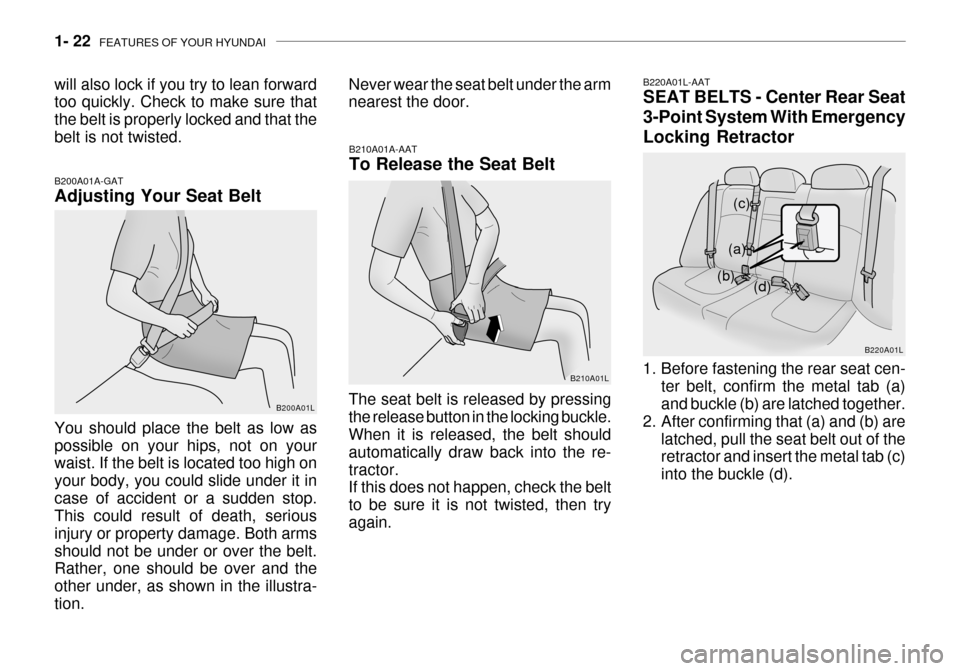

1. Before fastening the rear seat cen- ter belt, confirm the metal tab (a) and buckle (b) are latched together.
2. After confirming that (a) and (b) are latched, pull the seat belt out of theretractor and insert the metal tab (c) into the buckle (d).
B220A01L-AAT SEAT BELTS - Center Rear Seat 3-Point System With EmergencyLocking Retractor
B210A01A-AAT To Release the Seat Belt
The seat belt is released by pressing the release button in the locking buckle. When it is released, the belt should automatically draw back into the re-tractor. If this does not happen, check the belt to be sure it is not twisted, then tryagain. B210A01L
B200A01A-GAT Adjusting Your Seat Belt You should place the belt as low as possible on your hips, not on your waist. If the belt is located too high on your body, you could slide under it incase of accident or a sudden stop. This could result of death, serious injury or property damage. Both armsshould not be under or over the belt. Rather, one should be over and the other under, as shown in the illustra-tion.B200A01L
will also lock if you try to lean forward too quickly. Check to make sure that the belt is properly locked and that thebelt is not twisted.

FEATURES OF YOUR HYUNDAI 1- 23
WARNING:
o When using the rear seat center belt, you must lock all metal tabs and buckles. If any metal tab orbuckle is not locked, it will in- crease the chance of injury in the event of collision.
o Never unlock the metal tab (a) and the buckle (b) with the fol-lowing exceptions.
1) In case of folding rear seatbacks down.
2) If transporting an object on the rear seat may cause damage to the rear seat center belt.
o Lock the metal tab (a) and the buckle (b) immediately after fold-ing rear seatbacks up.
o To disconnect the metal tab (a) from the buckle (b), insert a sharp-ended tool into the groove lo- cated on the buckle (b).!
B220C01L

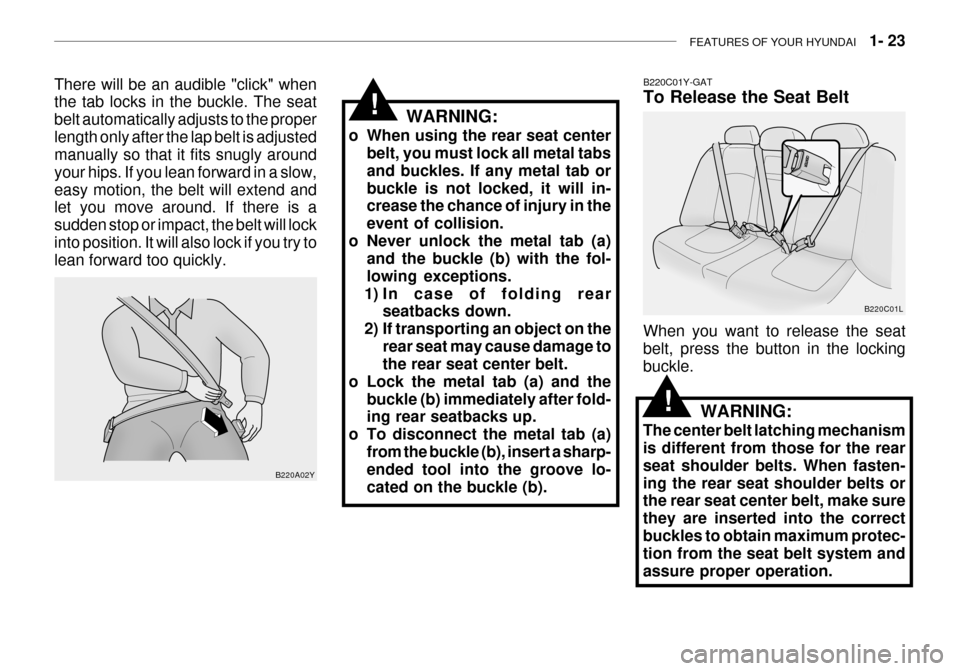

B220C01Y-GAT To Release the Seat Belt When you want to release the seat belt, press the button in the locking buckle.
WARNING:
The center belt latching mechanismis different from those for the rear seat shoulder belts. When fasten-ing the rear seat shoulder belts or the rear seat center belt, make sure they are inserted into the correctbuckles to obtain maximum protec- tion from the seat belt system and assure proper operation.
!
B220A02Y
There will be an audible "click" when the tab locks in the buckle. The seat belt automatically adjusts to the properlength only after the lap belt is adjusted manually so that it fits snugly around your hips. If you lean forward in a slow,easy motion, the belt will extend and let you move around. If there is a sudden stop or impact, the belt will lockinto position. It will also lock if you try to lean forward too quickly.

1- 24 FEATURES OF YOUR HYUNDAI
o Children who are too large to be
in a child restraint should sit in the rear seat and be restrained with the available lap/shoulderbelts. Never allow children to ride in the front passenger seat.
o Always make sure that the shoul- der belt portion of the outboardlap/shoulder belt is positionedmidway over the shoulder, never across the neck. Moving the child closer to the center of the vehiclemay help provide a good shoul- der belt fit. The lap belt portion of the lap/shoulder belt or the cen-ter seat lap belt must always be positioned as low as possible on the child's hips and as snug aspossible.
o If the seat belt will not properly fit
the child, Hyundai recommendsthe use of an approved booster seat in the rear seat in order to raise the child's seating heightso that the seat belt will properly fit the child.
WARNING:
o A child restraint system must be placed in the rear seat. Never install a child or infant seat on the front passenger's seat. Should an accident occur andcause the passenger side airbag to deploy, it could severely in- jure or kill an infant or child seatedin an infant or child seat. Thus, only use a child restraint in the rear seat of your vehicle.
o Since a safety belt or child re- straint system can become veryhot if it is left in a closed vehicle,be sure to check the seat cover and buckles before placing a child there.
o When the child restraint system is not in use, store it in the trunkor fasten it with a safety belt sothat it will not be thrown forward in the case of a sudden stop or an accident.
!
B230A03A-GAT CHILD RESTRAINT SYSTEM (If installed) Children riding in the car should sit in the rear seat and must always be restrained to minimize the risk of injuryin an accident, sudden stop or sudden maneuver. According to accident sta- tistics, children are safer when prop-erly restrained in the rear seats than in the front seat. Larger children not in a child restraint should use one of theseat belts provided. You are required by law to use safety restraints for children. If small childrenride in your vehicle you must put them in a child restraint system (safety seat). Children could be injured or killed in acrash if their restraints are not properly secured. For small children and ba- bies, a child seat or infant seat must beused. Before buying a particular child restraint system, make sure it fits your car seat and seat belts, and fits yourchild. Follow all the instructions pro- vided by the manufacturer when in- stalling the child restraint system.

FEATURES OF YOUR HYUNDAI 1- 25
o Never allow a child to stand up or
kneel on the seat.
o Never use an infant carrier or child safety seat that "hooks" over a seatback; it may not pro- vide adequate security in an ac-cident.
o Never allow a child to be held in
a person's arms while they are ina moving vehicle, as this could result in serious injury to the child in the event of an accidentor a sudden stop. Holding a child in a moving vehicle does not provide the child with any meansof protection during an accident, even if the person holding the child is wearing a seat belt.
o If the child restraint seat is not anchored properly, the risk of achild being seriously injured orkilled in a collision greatly in- creases.B230F01A-AAT Installation on Rear Seat Center Position
B235G01Y-1

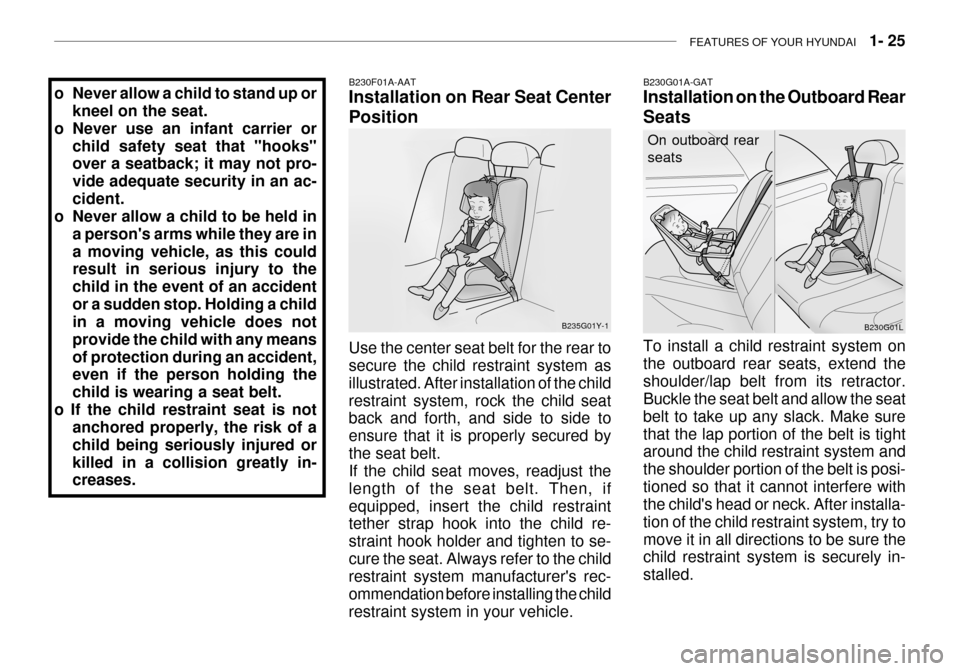

Use the center seat belt for the rear to secure the child restraint system as illustrated. After installation of the childrestraint system, rock the child seat back and forth, and side to side to ensure that it is properly secured bythe seat belt. If the child seat moves, readjust the length of the seat belt. Then, ifequipped, insert the child restraint tether strap hook into the child re- straint hook holder and tighten to se-cure the seat. Always refer to the child restraint system manufacturer's rec- ommendation before installing the childrestraint system in your vehicle.
On outboard rear seats
B230G01A-GATInstallation on the Outboard Rear Seats To install a child restraint system on the outboard rear seats, extend theshoulder/lap belt from its retractor. Buckle the seat belt and allow the seat belt to take up any slack. Make surethat the lap portion of the belt is tight around the child restraint system and the shoulder portion of the belt is posi-tioned so that it cannot interfere with the child's head or neck. After installa- tion of the child restraint system, try tomove it in all directions to be sure the child restraint system is securely in- stalled. B230G01L

1- 26 FEATURES OF YOUR HYUNDAI

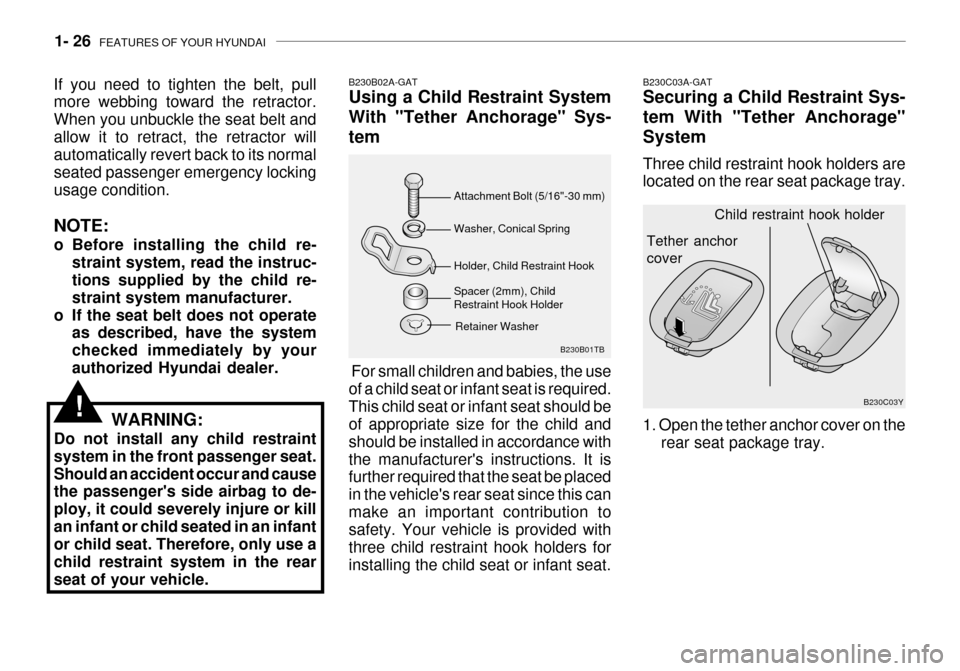

Tether anchor cover
B230C03Y
Child restraint hook holder
Spacer (2mm), Child Restraint Hook HolderB230B01TB
Attachment Bolt (5/16"-30 mm) Washer, Conical Spring Holder, Child Restraint Hook
B230B02A-GAT Using a Child Restraint System With "Tether Anchorage" Sys-tem For small children and babies, the use of a child seat or infant seat is required.This child seat or infant seat should be of appropriate size for the child and should be installed in accordance withthe manufacturer's instructions. It is further required that the seat be placed in the vehicle's rear seat since this canmake an important contribution to safety. Your vehicle is provided with three child restraint hook holders forinstalling the child seat or infant seat. B230C03A-GAT Securing a Child Restraint Sys- tem With "Tether Anchorage"System Three child restraint hook holders are located on the rear seat package tray. 1. Open the tether anchor cover on the
rear seat package tray.
Retainer Washer
If you need to tighten the belt, pull more webbing toward the retractor. When you unbuckle the seat belt andallow it to retract, the retractor will automatically revert back to its normal seated passenger emergency lockingusage condition. NOTE:
o Before installing the child re-
straint system, read the instruc- tions supplied by the child re- straint system manufacturer.
o If the seat belt does not operate as described, have the systemchecked immediately by yourauthorized Hyundai dealer.
WARNING:
Do not install any child restraintsystem in the front passenger seat.Should an accident occur and cause the passenger's side airbag to de- ploy, it could severely injure or killan infant or child seated in an infant or child seat. Therefore, only use a child restraint system in the rearseat of your vehicle.
!
