2 INSTRUMENTS AND CONTROLS
66
H290D02O-GAT

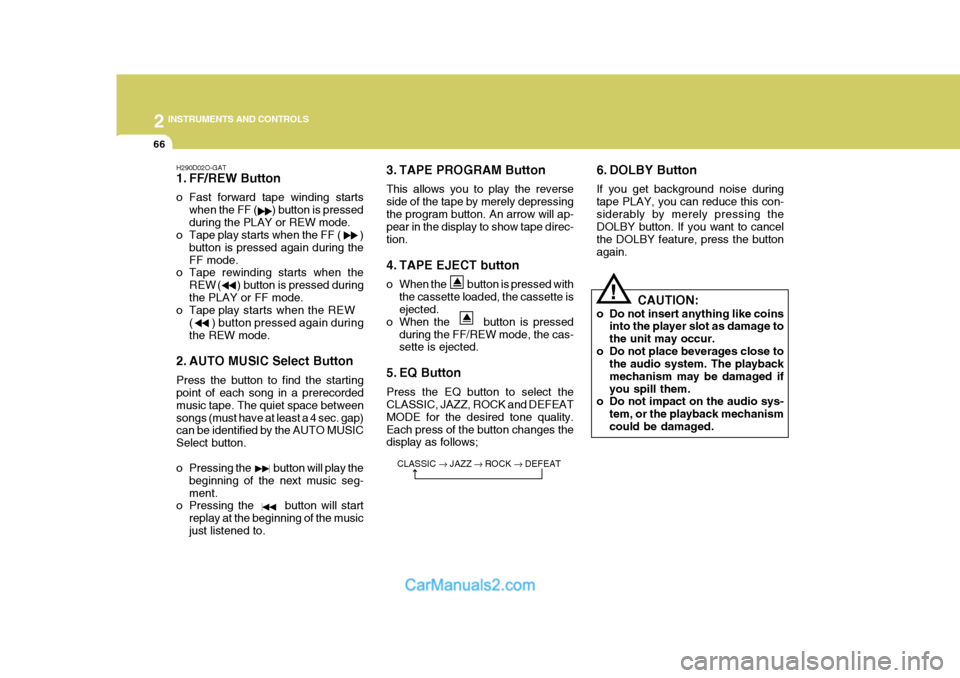

1. FF/REW Button
o Fast forward tape winding startswhen the FF ( ) button is pressed during the PLAY or REW mode.
o Tape play starts when the FF ( )
button is pressed again during theFF mode.
o Tape rewinding starts when the
REW ( ) button is pressed duringthe PLAY or FF mode.
o Tape play starts when the REW
( ) button pressed again duringthe REW mode.
2. AUTO MUSIC Select Button Press the button to find the starting point of each song in a prerecorded music tape. The quiet space betweensongs (must have at least a 4 sec. gap) can be identified by the AUTO MUSIC Select button.
o Pressing the button will play the beginning of the next music seg- ment.
o Pressing the button will start
replay at the beginning of the musicjust listened to. 3. TAPE PROGRAM Button This allows you to play the reverse side of the tape by merely depressingthe program button. An arrow will ap- pear in the display to show tape direc- tion.
4. TAPE EJECT button
o When the button is pressed with
the cassette loaded, the cassette is ejected.
o When the button is pressed
during the FF/REW mode, the cas-sette is ejected.
5. EQ Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the desired tone quality.Each press of the button changes the display as follows; 6. DOLBY Button If you get background noise during tape PLAY, you can reduce this con-siderably by merely pressing the DOLBY button. If you want to cancel the DOLBY feature, press the buttonagain.
CLASSIC JAZZ ROCK DEFEAT
!
CAUTION:
o Do not insert anything like coins into the player slot as damage to the unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged ifyou spill them.
o Do not impact on the audio sys-
tem, or the playback mechanismcould be damaged.

2
INSTRUMENTS AND CONTROLS
67
7. SCAN Button
(If installed)

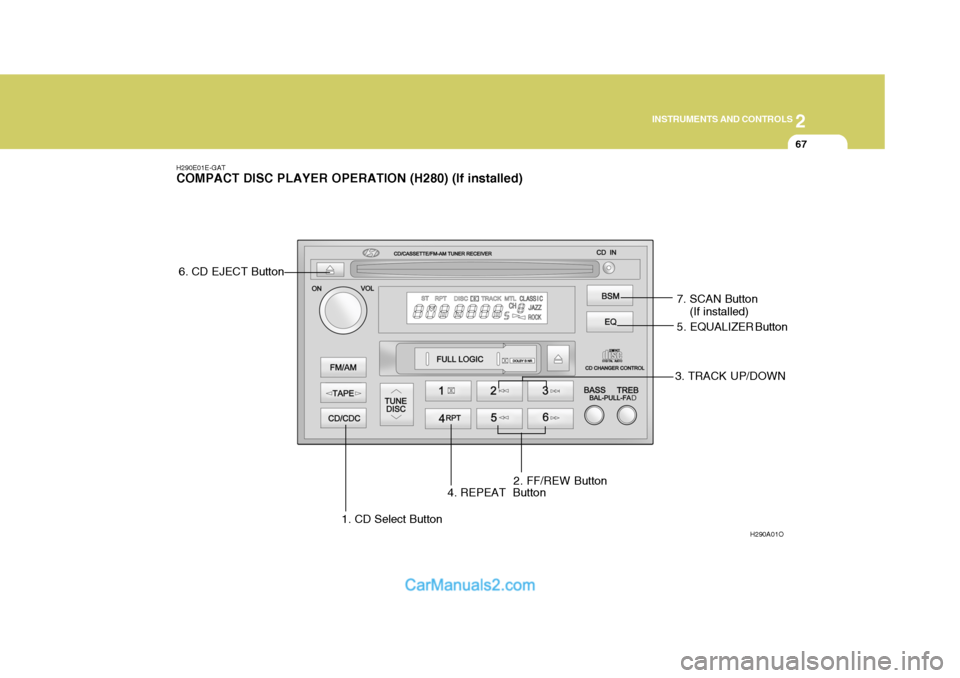

H290E01E-GAT COMPACT DISC PLAYER OPERATION (H280) (If installed)
1. CD Select Button H290A01O
2. FF/REW Button3. TRACK UP/DOWN
4. REPEAT Button 5. EQUALIZER Button
6. CD EJECT Button

2 INSTRUMENTS AND CONTROLS
68
H290F02O-GAT

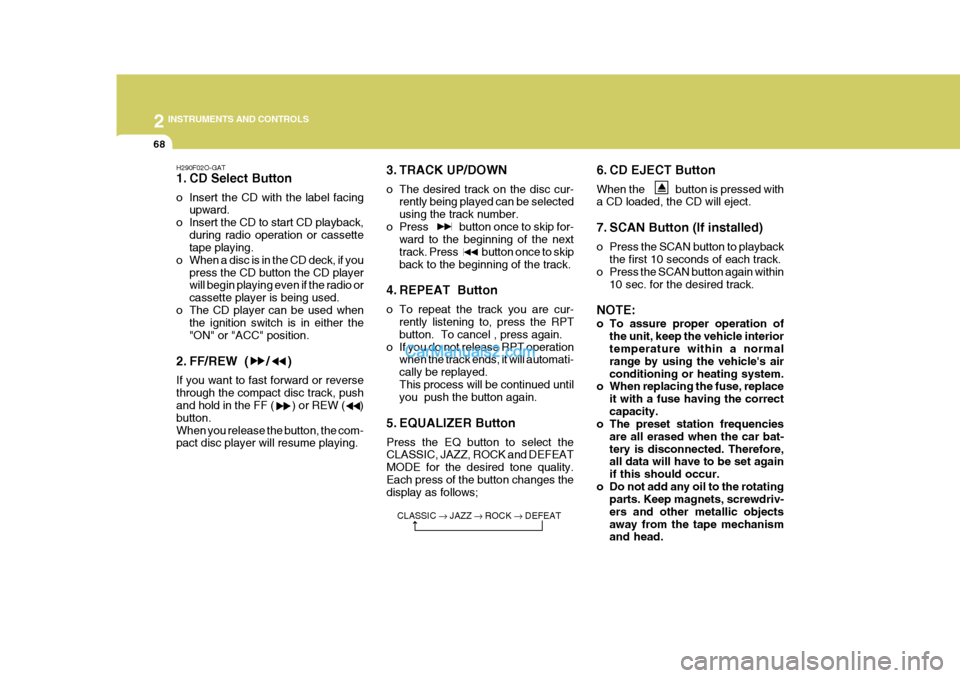

1. CD Select Button
o Insert the CD with the label facingupward.
o Insert the CD to start CD playback, during radio operation or cassette tape playing.
o When a disc is in the CD deck, if you
press the CD button the CD playerwill begin playing even if the radio or cassette player is being used.
o The CD player can be used when the ignition switch is in either the"ON" or "ACC" position.
2. FF/REW ( / ) If you want to fast forward or reverse through the compact disc track, push and hold in the FF ( ) or REW ( ) button.When you release the button, the com- pact disc player will resume playing. 3. TRACK UP/DOWN
o The desired track on the disc cur-
rently being played can be selected using the track number.
o Press button once to skip for- ward to the beginning of the nexttrack. Press button once to skipback to the beginning of the track.
4. REPEAT Button
o To repeat the track you are cur- rently listening to, press the RPT button. To cancel , press again.
o If you do not release RPT operation when the track ends, it will automati- cally be replayed.This process will be continued until you push the button again.
5. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the desired tone quality.Each press of the button changes the display as follows; 6. CD EJECT Button When the button is pressed with a CD loaded, the CD will eject.
7. SCAN Button (If installed)
o Press the SCAN button to playback
the first 10 seconds of each track.
o Press the SCAN button again within
10 sec. for the desired track.
NOTE:
o To assure proper operation of the unit, keep the vehicle interior temperature within a normal range by using the vehicle's airconditioning or heating system.
o When replacing the fuse, replace
it with a fuse having the correctcapacity.
o The preset station frequencies
are all erased when the car bat-tery is disconnected. Therefore, all data will have to be set again if this should occur.
o Do not add any oil to the rotating parts. Keep magnets, screwdriv-ers and other metallic objectsaway from the tape mechanism and head.
CLASSIC
JAZZ ROCK DEFEAT

2
INSTRUMENTS AND CONTROLS
69
o This equipment is designed to be used only in a 12 volt DC battery system with negative ground.
o This unit is made of precision
parts. Do not attempt to disas-semble or adjust any parts.
o When driving your vehicle, be sure to keep the volume of theunit set low enough to allow you to hear sounds coming from theoutside.
o Do not expose this equipment
(including the speakers and tape)to water or excessive moisture.

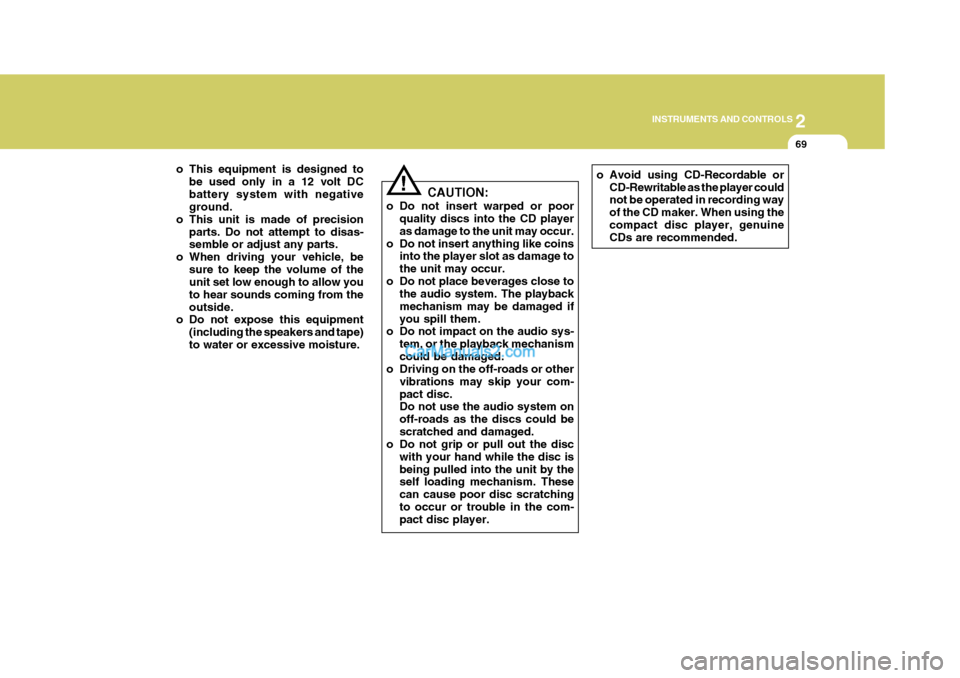

! CAUTION:
o Do not insert warped or poor quality discs into the CD player as damage to the unit may occur.
o Do not insert anything like coins into the player slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged ifyou spill them.
o Do not impact on the audio sys-
tem, or the playback mechanismcould be damaged.
o Driving on the off-roads or other
vibrations may skip your com-pact disc. Do not use the audio system on off-roads as the discs could bescratched and damaged.
o Do not grip or pull out the disc
with your hand while the disc isbeing pulled into the unit by the self loading mechanism. These can cause poor disc scratchingto occur or trouble in the com- pact disc player. o Avoid using CD-Recordable or
CD-Rewritable as the player couldnot be operated in recording way of the CD maker. When using thecompact disc player, genuine CDs are recommended.

2 INSTRUMENTS AND CONTROLS
70AUDIO FAULT CODE

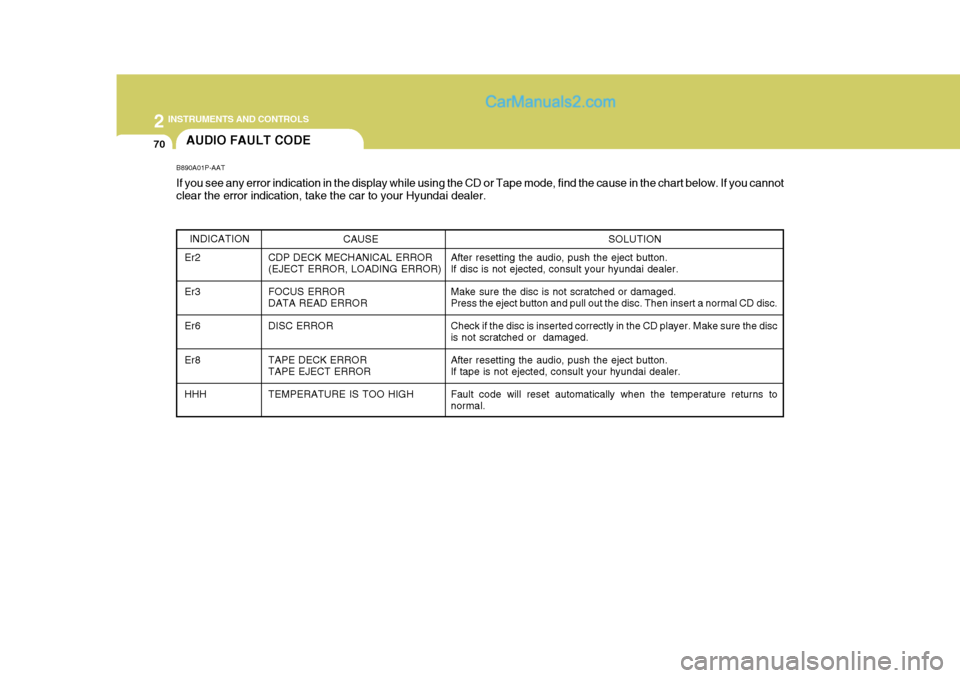

B890A01P-AAT If you see any error indication in the display while using the CD or Tape mode, find the cause in the chart below. If you canno t
clear the error indication, take the car to your Hyundai dealer.
INDICATION
Er2 Er3Er6Er8HHH CDP DECK MECHANICAL ERROR (EJECT ERROR, LOADING ERROR) FOCUS ERROR DATA READ ERROR DISC ERROR TAPE DECK ERROR TAPE EJECT ERROR TEMPERATURE IS TOO HIGH After resetting the audio, push the eject button. If disc is not ejected, consult your hyundai dealer. Make sure the disc is not scratched or damaged. Press the eject button and pull out the disc. Then insert a normal CD disc. Check if the disc is inserted correctly in the CD player. Make sure the disc is not scratched or damaged. After resetting the audio, push the eject button. If tape is not ejected, consult your hyundai dealer. Fault code will reset automatically when the temperature returns to normal.SOLUTION
CAUSE

2
INSTRUMENTS AND CONTROLS
71

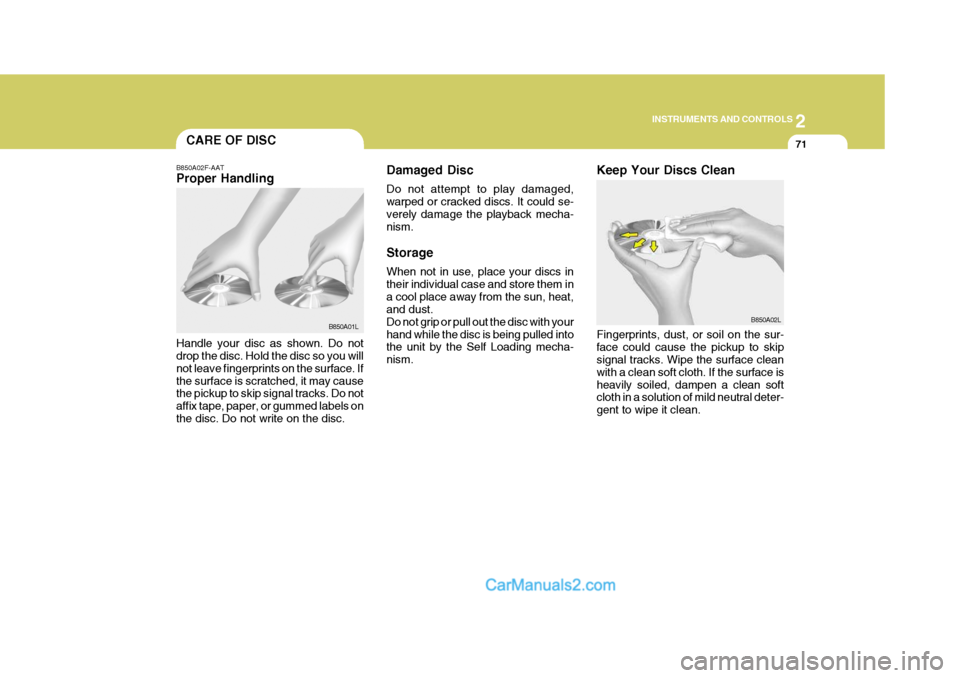

B850A02F-AAT Proper Handling Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave fingerprints on the surface. Ifthe surface is scratched, it may cause the pickup to skip signal tracks. Do not affix tape, paper, or gummed labels onthe disc. Do not write on the disc. Damaged Disc Do not attempt to play damaged, warped or cracked discs. It could se-verely damage the playback mecha- nism. Storage When not in use, place your discs in their individual case and store them ina cool place away from the sun, heat, and dust. Do not grip or pull out the disc with yourhand while the disc is being pulled into the unit by the Self Loading mecha- nism.
CARE OF DISC
B850A01L B850A02L
Keep Your Discs Clean Fingerprints, dust, or soil on the sur- face could cause the pickup to skip signal tracks. Wipe the surface clean with a clean soft cloth. If the surface isheavily soiled, dampen a clean soft cloth in a solution of mild neutral deter- gent to wipe it clean.

2 INSTRUMENTS AND CONTROLS
72CARE OF CASSETTE TAPES
HSRFL860

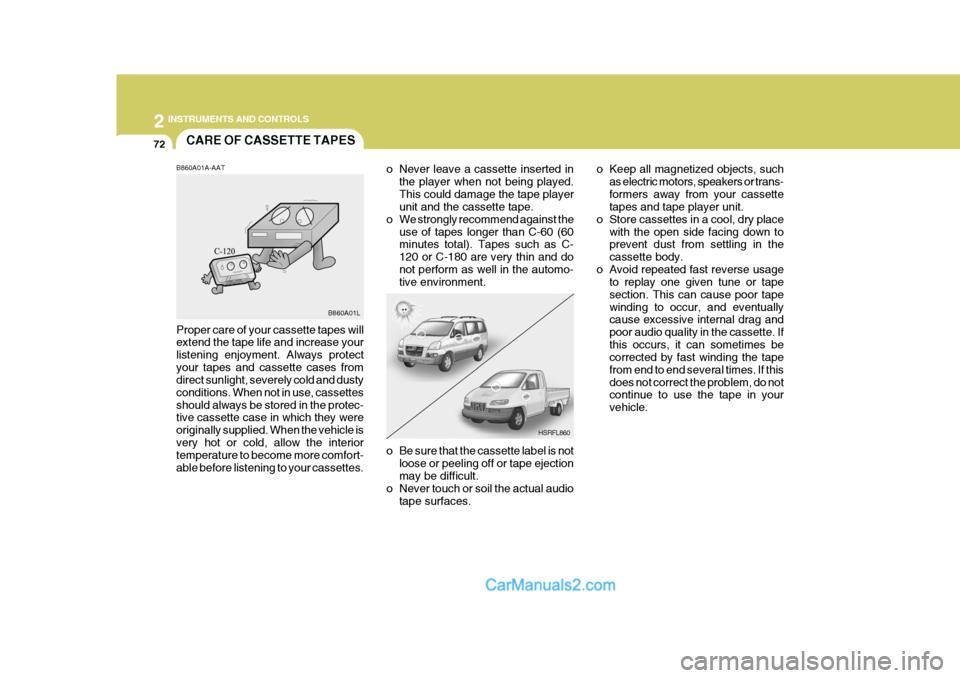

B860A01A-AAT Proper care of your cassette tapes will extend the tape life and increase your listening enjoyment. Always protectyour tapes and cassette cases from direct sunlight, severely cold and dusty conditions. When not in use, cassettesshould always be stored in the protec- tive cassette case in which they were originally supplied. When the vehicle isvery hot or cold, allow the interior temperature to become more comfort- able before listening to your cassettes. o Never leave a cassette inserted in
the player when not being played.This could damage the tape player unit and the cassette tape.
o We strongly recommend against the use of tapes longer than C-60 (60minutes total). Tapes such as C- 120 or C-180 are very thin and donot perform as well in the automo- tive environment.
o Be sure that the cassette label is not loose or peeling off or tape ejection may be difficult.
o Never touch or soil the actual audio
tape surfaces. o Keep all magnetized objects, such
as electric motors, speakers or trans-formers away from your cassette tapes and tape player unit.
o Store cassettes in a cool, dry place with the open side facing down toprevent dust from settling in the cassette body.
o Avoid repeated fast reverse usage to replay one given tune or tapesection. This can cause poor tapewinding to occur, and eventually cause excessive internal drag and poor audio quality in the cassette. Ifthis occurs, it can sometimes be corrected by fast winding the tape from end to end several times. If thisdoes not correct the problem, do not continue to use the tape in your vehicle.
B860A01L

2
INSTRUMENTS AND CONTROLS

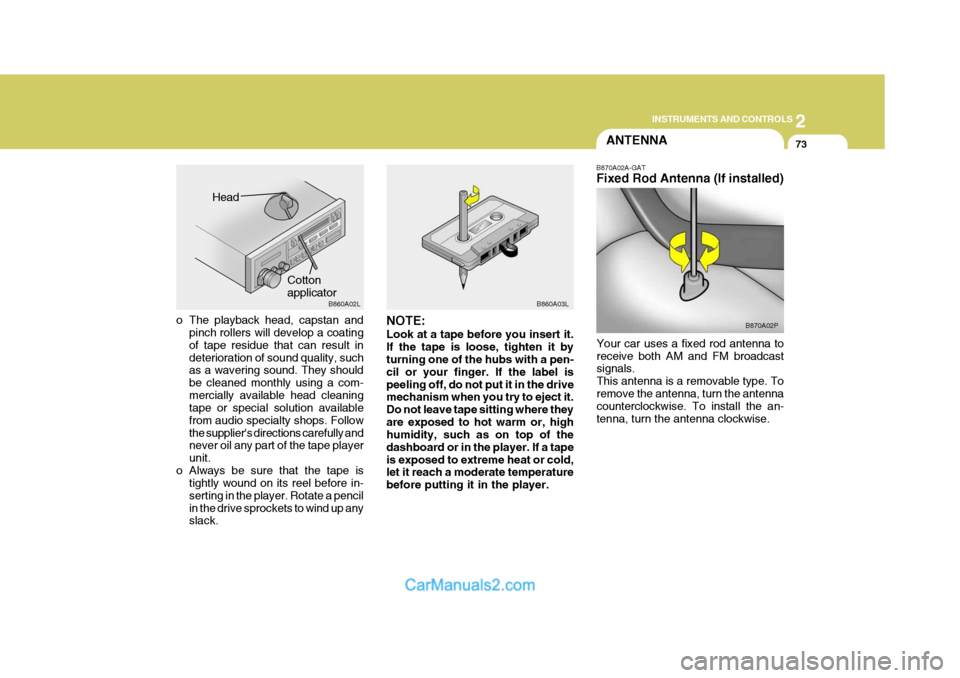

73ANTENNA
o The playback head, capstan and pinch rollers will develop a coating of tape residue that can result indeterioration of sound quality, such as a wavering sound. They should be cleaned monthly using a com-mercially available head cleaning tape or special solution available from audio specialty shops. Followthe supplier's directions carefully and never oil any part of the tape player unit.
o Always be sure that the tape is tightly wound on its reel before in-serting in the player. Rotate a pencilin the drive sprockets to wind up any slack. NOTE: Look at a tape before you insert it. If the tape is loose, tighten it by turning one of the hubs with a pen- cil or your finger. If the label ispeeling off, do not put it in the drive mechanism when you try to eject it. Do not leave tape sitting where theyare exposed to hot warm or, high humidity, such as on top of the dashboard or in the player. If a tapeis exposed to extreme heat or cold, let it reach a moderate temperature before putting it in the player. B870A02A-GAT Fixed Rod Antenna (If installed)
Your car uses a fixed rod antenna to receive both AM and FM broadcast signals. This antenna is a removable type. Toremove the antenna, turn the antenna counterclockwise. To install the an- tenna, turn the antenna clockwise. B870A02P
Head
CottonapplicatorB860A02L
B860A03L

2 INSTRUMENTS AND CONTROLS
74

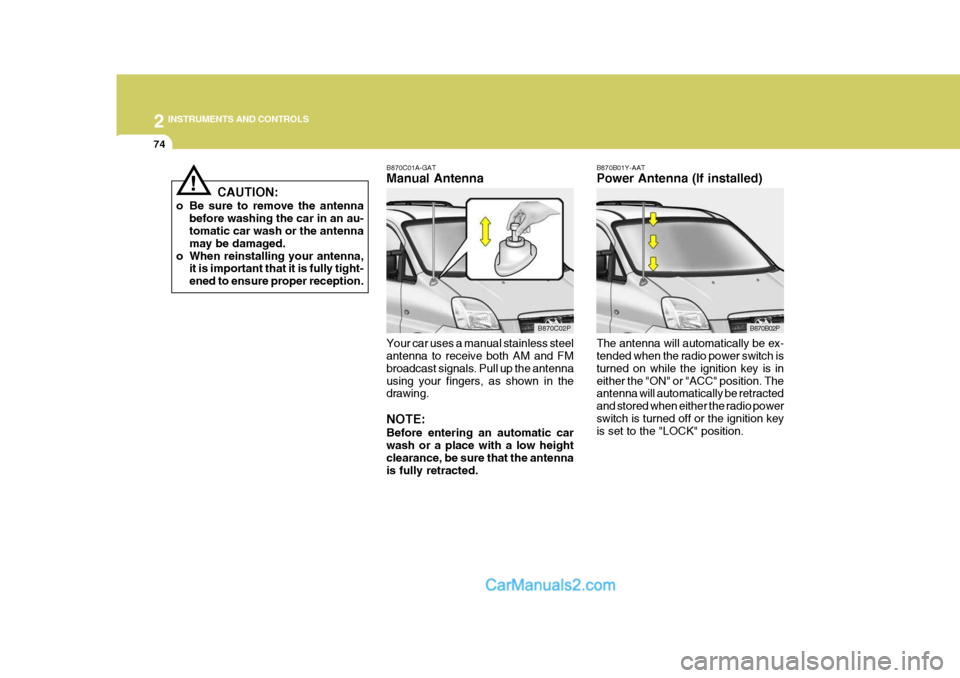

B870C01A-GAT Manual Antenna
Your car uses a manual stainless steel antenna to receive both AM and FM broadcast signals. Pull up the antennausing your fingers, as shown in the drawing. NOTE: Before entering an automatic car wash or a place with a low height clearance, be sure that the antenna is fully retracted. B870B01Y-AAT Power Antenna (If installed) The antenna will automatically be ex- tended when the radio power switch is turned on while the ignition key is ineither the "ON" or "ACC" position. The antenna will automatically be retracted and stored when either the radio powerswitch is turned off or the ignition key is set to the "LOCK" position.
CAUTION:
o Be sure to remove the antenna before washing the car in an au-tomatic car wash or the antenna may be damaged.
o When reinstalling your antenna, it is important that it is fully tight-ened to ensure proper reception.
!
B870C02PB870B02P

2
INSTRUMENTS AND CONTROLS
75
!

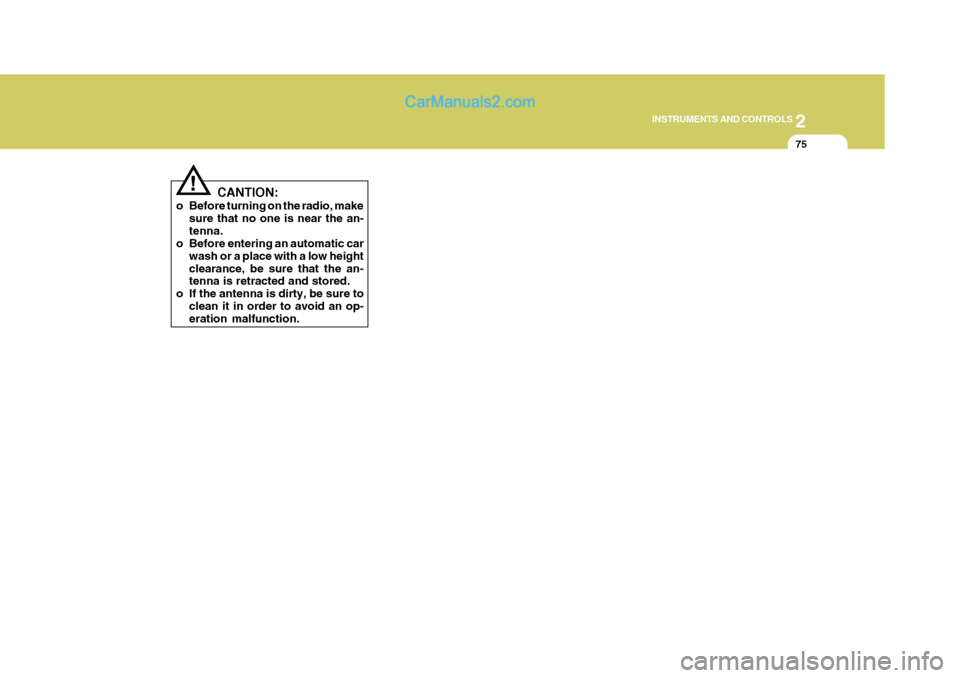

CANTION:
o Before turning on the radio, make sure that no one is near the an- tenna.
o Before entering an automatic car
wash or a place with a low heightclearance, be sure that the an- tenna is retracted and stored.
o If the antenna is dirty, be sure to
clean it in order to avoid an op-eration malfunction.
