Hyundai H-1 (Grand Starex) 2004 Owner's Manual

2 INSTRUMENTS AND CONTROLS
36
HSRFL2317
!WARNING:
o Use caution when using the drink holders. A spilled beverage that is very hot can injure you or yourpassengers. Spilled liquids can damage interior trim and electri- cal components.
o Do not place anything except drinks in the drink holder. Suchobjects can be thrown out, pos-sibly injuring persons in the ve- hicle during sudden braking or in the event of an accident.

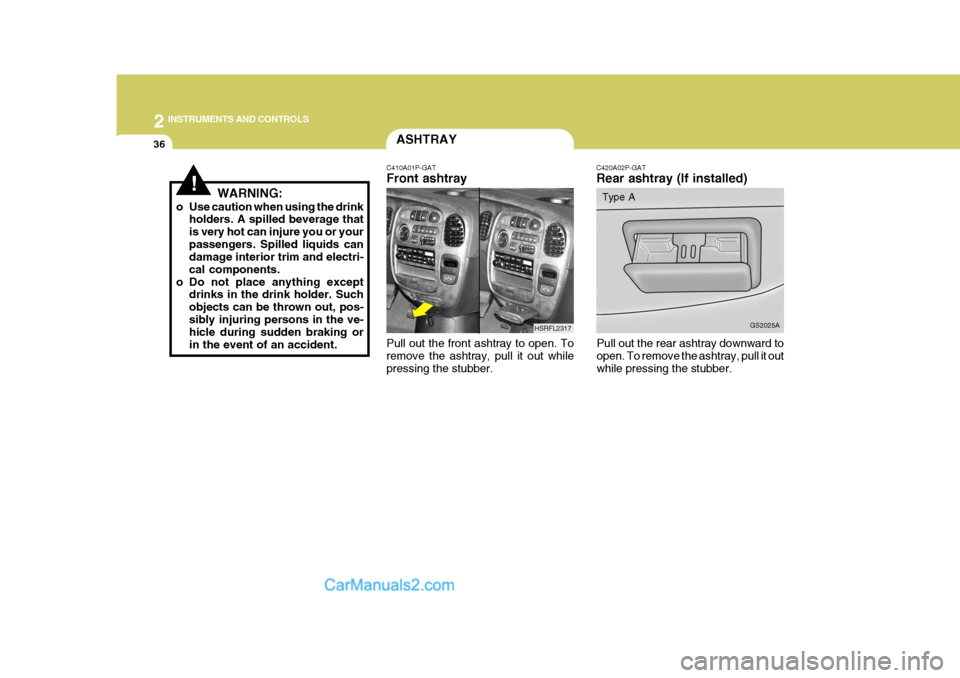

ASHTRAY
C410A01P-GAT Front ashtray Pull out the front ashtray to open. To remove the ashtray, pull it out while pressing the stubber. C420A02P-GAT Rear ashtray (If installed)
Pull out the rear ashtray downward to open. To remove the ashtray, pull it out while pressing the stubber. GS2025A
Type A

2
INSTRUMENTS AND CONTROLS

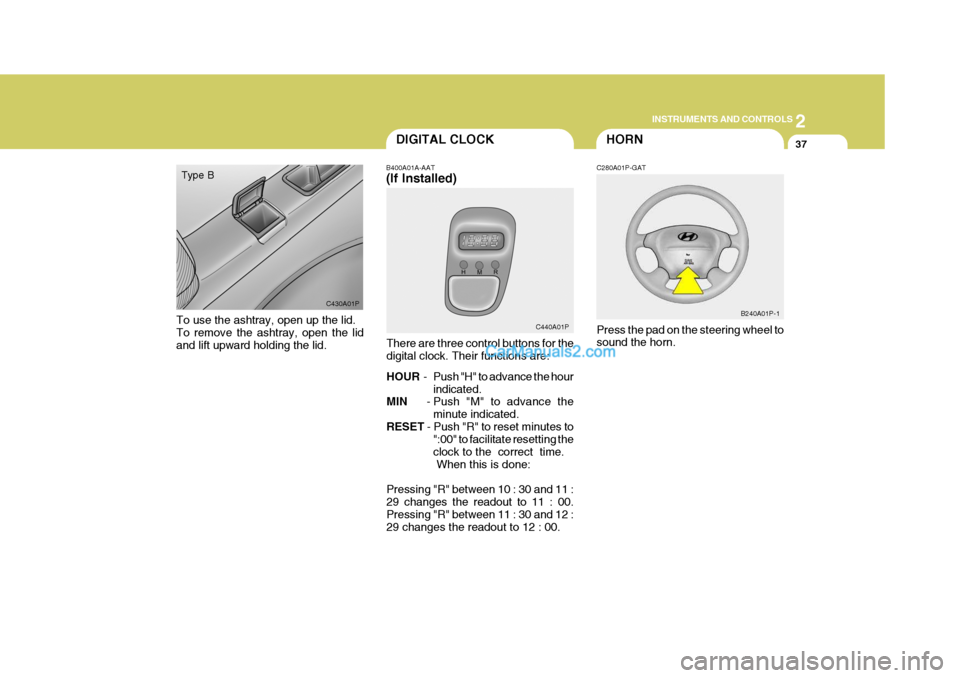

37DIGITAL CLOCK
B400A01A-AAT (If Installed)
There are three control buttons for the digital clock. Their functions are: HOUR - Push "H" to advance the hour
indicated.
MIN - Push "M" to advance the
minute indicated.
RESET - Push "R" to reset minutes to
":00" to facilitate resetting the clock to the correct time. When this is done:
Pressing "R" between 10 : 30 and 11 :29 changes the readout to 11 : 00. Pressing "R" between 11 : 30 and 12 : 29 changes the readout to 12 : 00. C440A01PHORN
C280A01P-GAT Press the pad on the steering wheel to sound the horn. B240A01P-1
C430A01P
Type B
To use the ashtray, open up the lid.To remove the ashtray, open the lid and lift upward holding the lid.

2 INSTRUMENTS AND CONTROLS

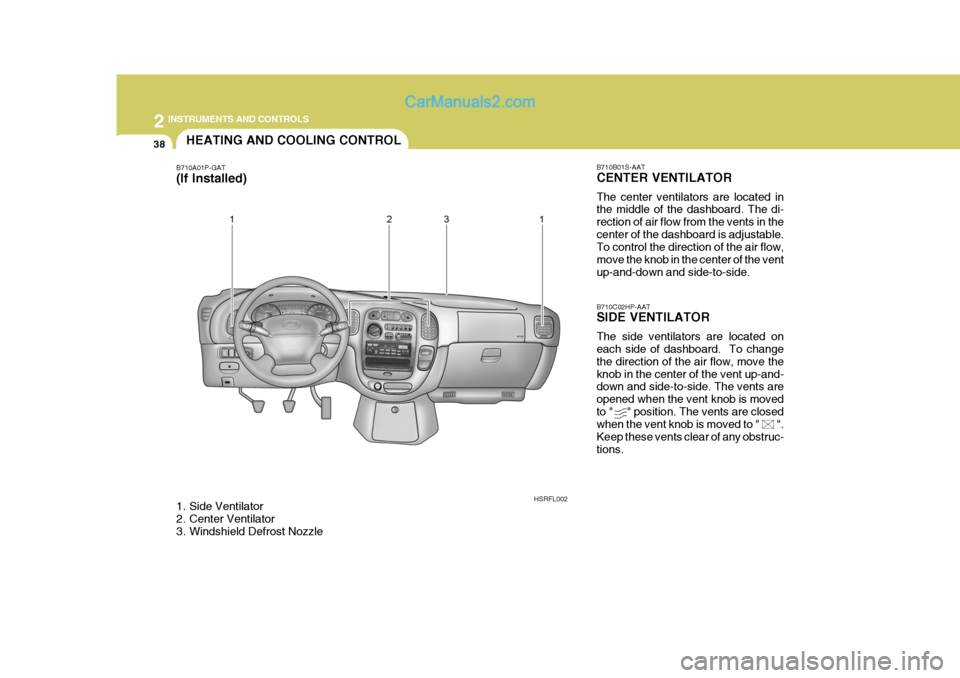

38HEATING AND COOLING CONTROL
B710A01P-GAT
(If Installed)
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Nozzle B710B01S-AAT CENTER VENTILATOR The center ventilators are located in the middle of the dashboard. The di- rection of air flow from the vents in thecenter of the dashboard is adjustable. To control the direction of the air flow, move the knob in the center of the ventup-and-down and side-to-side. B710C02HP-AAT SIDE VENTILATOR The side ventilators are located on each side of dashboard. To change the direction of the air flow, move theknob in the center of the vent up-and- down and side-to-side. The vents are opened when the vent knob is movedto " " position. The vents are closed when the vent knob is moved to " ". Keep these vents clear of any obstruc-tions.
HSRFL002

2
INSTRUMENTS AND CONTROLS
39
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents. HSRFL670

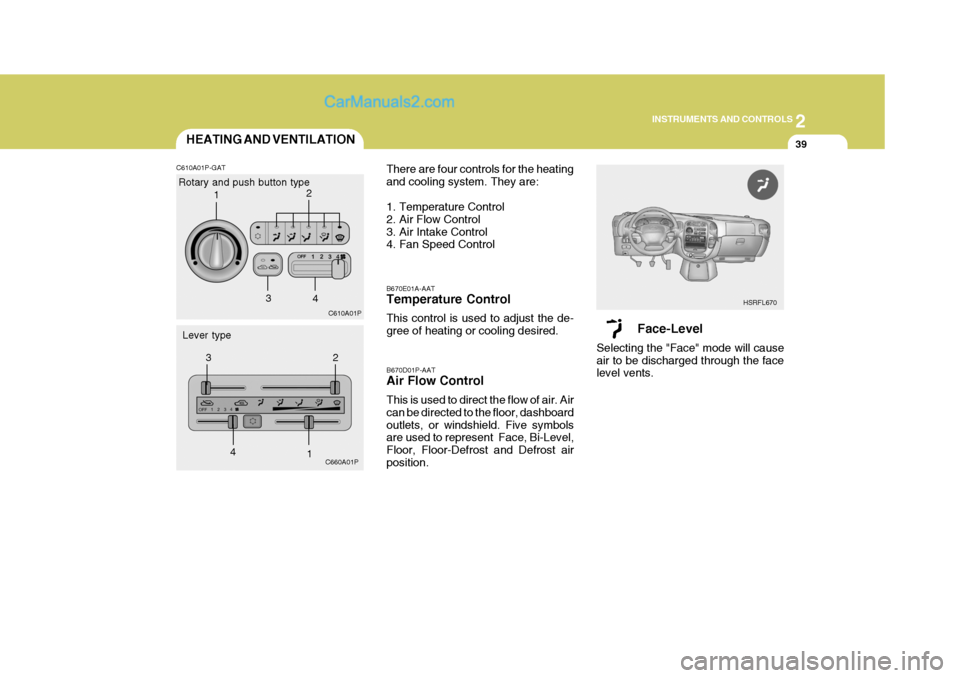

HEATING AND VENTILATION
C610A01P-GAT Rotary and push button type
Lever type C610A01P
C660A01P B670D01P-AAT Air Flow Control This is used to direct the flow of air. Air can be directed to the floor, dashboardoutlets, or windshield. Five symbols are used to represent Face, Bi-Level, Floor, Floor-Defrost and Defrost airposition.
B670E01A-AAT Temperature Control This control is used to adjust the de- gree of heating or cooling desired.
There are four controls for the heatingand cooling system. They are:
1. Temperature Control
2. Air Flow Control
3. Air Intake Control
4. Fan Speed Control
1
2
3 4
12
3
4

2 INSTRUMENTS AND CONTROLS
40
HSRFL672

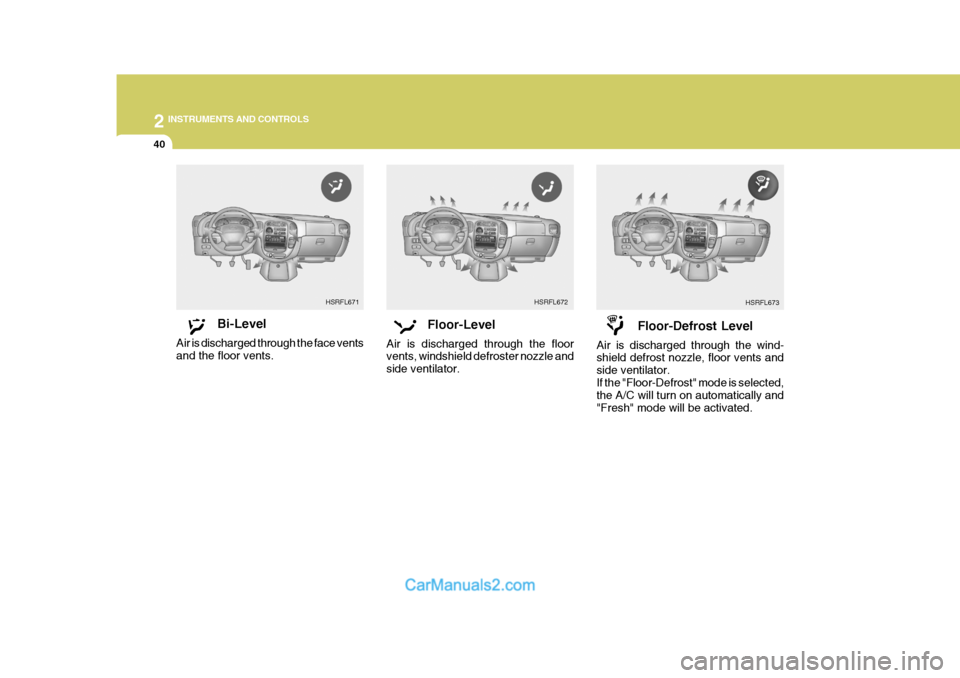

Bi-Level
Air is discharged through the face vents and the floor vents. Floor-Level
Air is discharged through the floor vents, windshield defroster nozzle and side ventilator.HSRFL671
Floor-Defrost Level
Air is discharged through the wind- shield defrost nozzle, floor vents and side ventilator.If the "Floor-Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated.HSRFL673

2
INSTRUMENTS AND CONTROLS
41
B670B01A-AAT Fan Speed Control (Blower Control) This is used to turn the blower fan on or off and to select the fan speed.This blower fan speed, and therefore the volume of air delivered from the system, may be controlled manuallyby setting the blower control between the "1" and "4" positions.
Defrost-Level
Air is discharged through the wind-shield defroster nozzle and side venti- lator.If the "Defrost" mode is selected, the A/C will turn on automatically and "Fresh" mode will be activated to im-prove windshield defrosting. HSRFL674B670C01A-AAT AIR INTAKE CONTROL This is used to select fresh outside air or recirculating inside air.
Fresh Recirculation
With the mode selected, air enters the vehicle from outside and is heatedor cooled according to the other func- tions selected. With the mode selected, air fromwithin the passenger compartment is drawn through the heating system and heated or cooled according to the otherfunctions selected. NOTE: It should be noted that prolonged operation of the heating system in mode will give rise to misting
of the windshield and side win-dows and the air within the passen- ger compartment will become stale. In addition prolonged use of the airconditioning with the mode se- lected may result in the air within the passenger compartment becom-ing excessively dry.

2 INSTRUMENTS AND CONTROLS

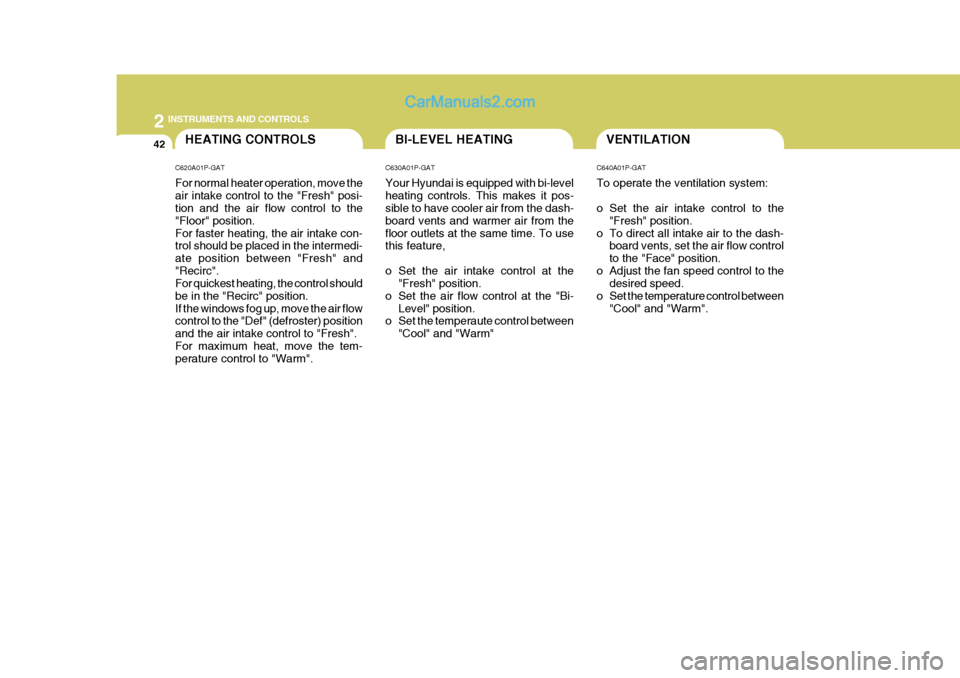

42VENTILATIONBI-LEVEL HEATINGHEATING CONTROLS
C620A01P-GAT For normal heater operation, move the air intake control to the "Fresh" posi- tion and the air flow control to the "Floor" position.For faster heating, the air intake con- trol should be placed in the intermedi- ate position between "Fresh" and"Recirc". For quickest heating, the control should be in the "Recirc" position.If the windows fog up, move the air flow control to the "Def" (defroster) position and the air intake control to "Fresh".For maximum heat, move the tem- perature control to "Warm". C630A01P-GAT Your Hyundai is equipped with bi-level heating controls. This makes it pos- sible to have cooler air from the dash- board vents and warmer air from thefloor outlets at the same time. To use this feature,
o Set the air intake control at the
"Fresh" position.
o Set the air flow control at the "Bi- Level" position.
o Set the temperaute control between
"Cool" and "Warm" C640A01P-GAT To operate the ventilation system:
o Set the air intake control to the
"Fresh" position.
o To direct all intake air to the dash- board vents, set the air flow control to the "Face" position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".

2
INSTRUMENTS AND CONTROLS
43

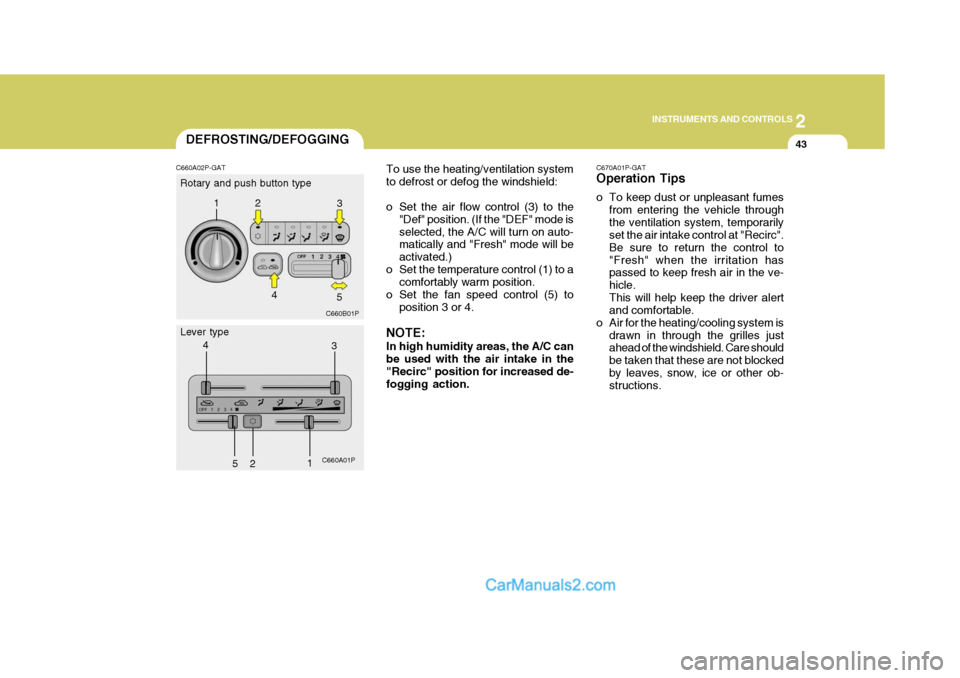

To use the heating/ventilation system to defrost or defog the windshield:
o Set the air flow control (3) to the
"Def" position. (If the "DEF" mode is selected, the A/C will turn on auto- matically and "Fresh" mode will be activated.)
o Set the temperature control (1) to a comfortably warm position.
o Set the fan speed control (5) to position 3 or 4.
NOTE: In high humidity areas, the A/C can be used with the air intake in the"Recirc" position for increased de- fogging action. C670A01P-GAT Operation Tips
o To keep dust or unpleasant fumes
from entering the vehicle through the ventilation system, temporarily set the air intake control at "Recirc". Be sure to return the control to"Fresh" when the irritation has passed to keep fresh air in the ve- hicle.This will help keep the driver alert and comfortable.
o Air for the heating/cooling system is drawn in through the grilles justahead of the windshield. Care should be taken that these are not blockedby leaves, snow, ice or other ob- structions.
DEFROSTING/DEFOGGING
C660A02P-GAT
C660B01P
C660A01P
Rotary and push button type
Lever type 1
23
4
5
12
3
4 5

2 INSTRUMENTS AND CONTROLS

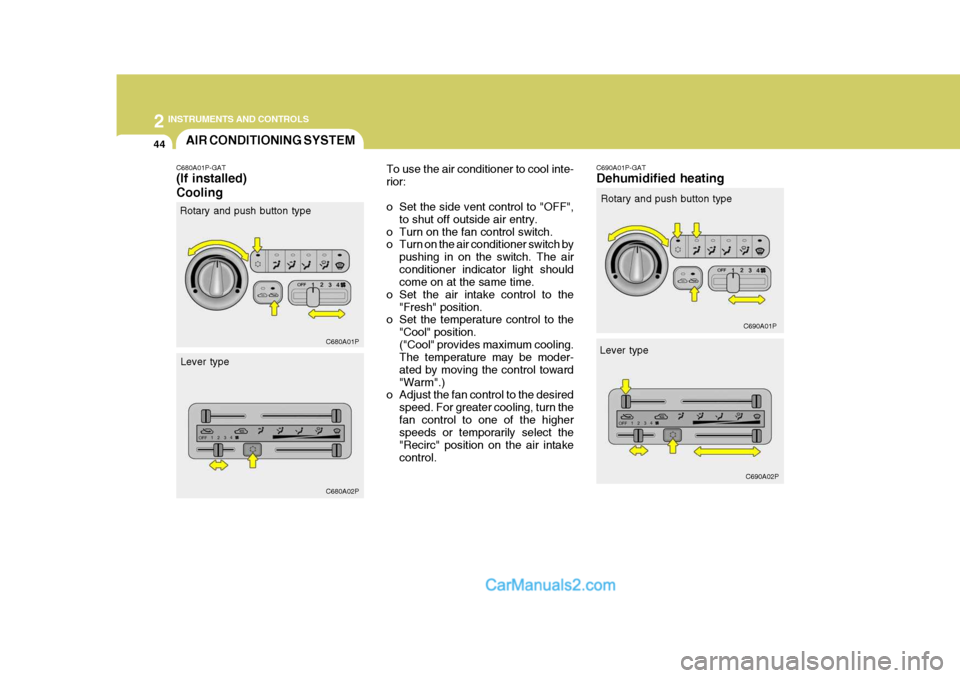

44AIR CONDITIONING SYSTEM
C680A01P-GAT (If installed) Cooling To use the air conditioner to cool inte- rior:
o Set the side vent control to "OFF",
to shut off outside air entry.
o Turn on the fan control switch.
o Turn on the air conditioner switch by pushing in on the switch. The air conditioner indicator light should come on at the same time.
o Set the air intake control to the "Fresh" position.
o Set the temperature control to the
"Cool" position. ("Cool" provides maximum cooling. The temperature may be moder- ated by moving the control toward"Warm".)
o Adjust the fan control to the desired
speed. For greater cooling, turn thefan control to one of the higher speeds or temporarily select the "Recirc" position on the air intakecontrol.
C680A01P C680A02P
Rotary and push button type
Lever type Rotary and push button type
Lever type
C690A01P-GAT Dehumidified heating
C690A01P
C690A02P

2
INSTRUMENTS AND CONTROLS

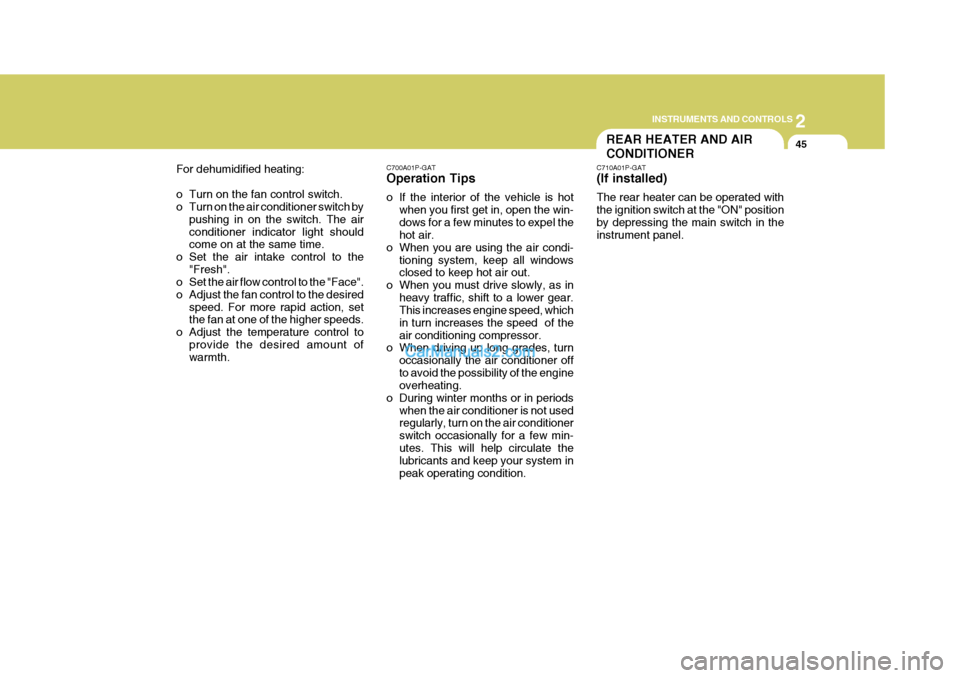

45REAR HEATER AND AIR CONDITIONER
C710A01P-GAT (If installed) The rear heater can be operated with the ignition switch at the "ON" positionby depressing the main switch in the instrument panel.
C700A01P-GAT Operation Tips
o If the interior of the vehicle is hot
when you first get in, open the win- dows for a few minutes to expel the hot air.
o When you are using the air condi- tioning system, keep all windowsclosed to keep hot air out.
o When you must drive slowly, as in heavy traffic, shift to a lower gear.This increases engine speed, which in turn increases the speed of theair conditioning compressor.
o When driving up long grades, turn
occasionally the air conditioner offto avoid the possibility of the engine overheating.
o During winter months or in periods when the air conditioner is not usedregularly, turn on the air conditioner switch occasionally for a few min-utes. This will help circulate the lubricants and keep your system in peak operating condition.
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioner switch by
pushing in on the switch. The air conditioner indicator light should come on at the same time.
o Set the air intake control to the "Fresh".
o Set the air flow control to the "Face".
o Adjust the fan control to the desired
speed. For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount ofwarmth.
