2 INSTRUMENTS AND CONTROLS
16MULTIMETER
C031A01P-GAT (Minibus) (If installed)
1. Inclinometer 2. Thermometer 3. Altimeter C031A01P
1
2
3

2
INSTRUMENTS AND CONTROLS
17
C100A01P-GAT
1. Inclinometer (If installed) This meter indicates the inclination angle of the vehicle, both front-to-rear and side to side.
1. Side-to-side inclination (Right incli-
nation of 15°) 2. Front-to-rear inclination (Rear incli-
nation of 20°)
NOTE: The inclinometer indicates the cor- rect inclination when the vehicle is stationary, but a slight reading er- ror may be given when driving thevehicle. C110A01P-GAT
2. Thermometer (If installed) The thermometer displays the tem- peratures inside and outside the ve- hicle when the ignition switch is at"ACC" or "ON".
1. Temperature out side the vehicle
2. Temperature inside vehicle
C100A02P
C110A01P
C100A01P
1
2

2 INSTRUMENTS AND CONTROLS
18
NOTE:
o The external temperature dis-
played may differ from the actual temperature on account of sur-rounding conditions, driving conditions, etc.
o Temperature inside or outside the vehicle that are below -30°Cor over 70°C will result in error message being displayed (-E°C,E°C). C120A01P-GAT
3. Altimeter (If installed) Before driving the vehicle, set the pointer to 0 on the dial by turning the adjusting knob. The meter will indicatethe height at the destination.
C120A01P

2
INSTRUMENTS AND CONTROLS

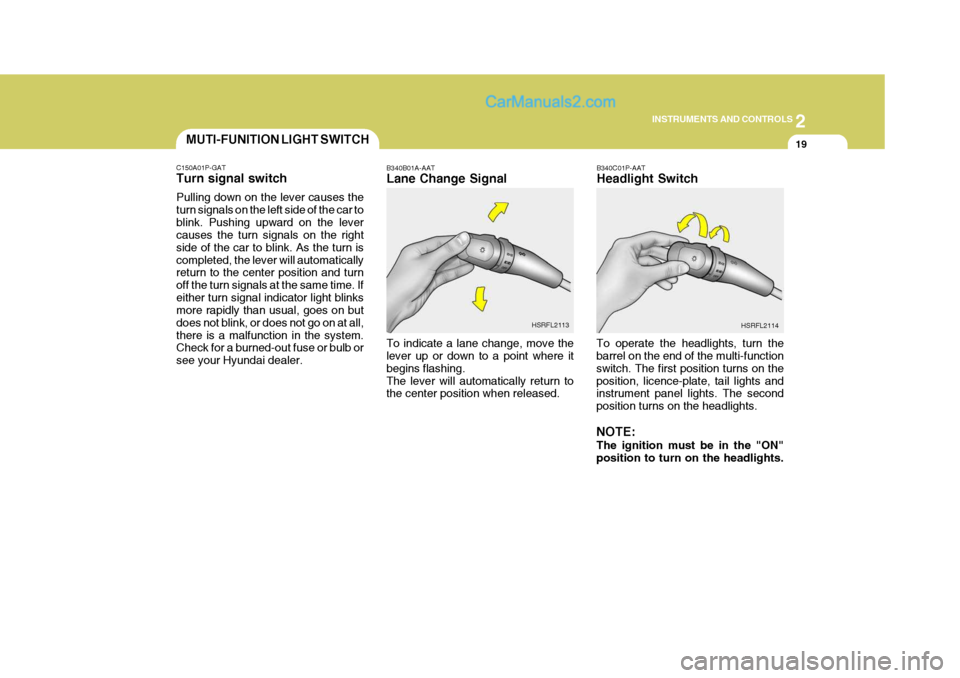

19MUTI-FUNITION LIGHT SWITCH
B340C01P-AAT Headlight Switch
To operate the headlights, turn the barrel on the end of the multi-function switch. The first position turns on theposition, licence-plate, tail lights and instrument panel lights. The second position turns on the headlights. NOTE: The ignition must be in the "ON" position to turn on the headlights.
B340B01A-AAT Lane Change Signal To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the center position when released.
HSRFL2113
HSRFL2114
C150A01P-GAT Turn signal switch Pulling down on the lever causes the turn signals on the left side of the car toblink. Pushing upward on the lever causes the turn signals on the right side of the car to blink. As the turn iscompleted, the lever will automatically return to the center position and turn off the turn signals at the same time. Ifeither turn signal indicator light blinks more rapidly than usual, goes on but does not blink, or does not go on at all,there is a malfunction in the system. Check for a burned-out fuse or bulb or see your Hyundai dealer.

2 INSTRUMENTS AND CONTROLS
20
C160A01P-GAT High-beam switch To turn on the headlight high beams, push the lever forward (away fromyou). The High Beam Indicator Light will come on at the same time. For low beams, pull the lever back toward you. C170A01P-GAT Headlight Flasher
The headlights will go on when the lever is pulled toward you and will go off when it is released.The headlights can be flashed even though the headlight switch is in the "OFF" position.
B340F01A-GAT Daytime Running Lights (If installed) Your Hyundai is equipped with day- time running lights. The daytime run-ning lights are used to improve visibil- ity for oncoming traffic. Your vehicle daytime running lights are designed toremain on continuously when the en- gine is operating even though the head- light switch is in the "OFF" position.However, the daytime running lights will be off while the parking brake is applied.
HSRFL2115
Parking light auto cut (If installed) If you do not turn the parking lights "OFF" after driving, the parking lightwill automatically shut "OFF" when the driver's door is opened. To turn them "ON" again you mustsimply turn the ignition key to the "ON" position.

2
INSTRUMENTS AND CONTROLS
21
B350B01A-AAT Windshield Washer Operation To use the windshield washer, pull the wiper/washer lever toward the steer- ing wheel. When the washer lever isoperated, the wipers automatically make two passes across the wind- shield. The washer continues to oper-ate until the lever is released. NOTE:
o Do not operate the washer more
than 15 seconds at a time or when the fluid reservoir is empty.
o In icy or freezing weather, be
sure the wiper blades are notfrozen to the glass prior to oper- ating the wipers. HSRFL2116
4.LOW :
Speed operation the interval adjuster switch.
5.HIGH: Speed operation the interval
adjuster switch.
NOTE:
o Before operating the wipers in cold weather, check to be sure that the wiper blades are not fro- zen to the windshield. Attempt-ing to operate the wipers while the blades are frozen to the wind- shield could cause the motor toburn out.
o If the wipers stop during opera-
tion because of ice or some otherobstruction on the windshield, the wiper motor could burn out even if the wiper switch is turnedoff. If this occurs, promptly stop the vehicle, turn off the ignition switch, and clean the windshieldto allow proper wiper operation.
o Do not use the wipers when the
windshield is dry:doing so couldscratch the windshield and wear the blades prematurely.
WINDSHIELD WIPER AND WASHER SWITCH
C180A02P-GAT The windshield wiper and washer switch can be operated with the igni- tion switch at the "ON" or "START"position. Move the switch to operate the windshield wipers or spray the washer fluid. Windshield wipers
1. : The rear window wiper starts to operate three times after the washer fluid sprays onto the rear window.
2.OFF
3.INT: The interval between wipers
can be varied from 2 to 10 seconds by turning. HSRFL2111

2 INSTRUMENTS AND CONTROLS
22
B350C01O-AAT Adjustable Intermittent Wiper Operation (If installed) To use the intermittent wiper feature, place the wiper switch in the "INT" position. With the switch in this posi- tion, the interval between wipes can bevaried from approximately 1 to 18 sec- onds by turning the interval adjuster barrel. HSRFL2117
o In areas where water freezes in
winter, use windshield washerantifreeze.
Mist Wiper Operation If a single wipe is desired in mist, push the windshield wiper and washer con- trol lever upwards. HSRFL2119 C190A02P-GAT Tail gate window wiper and washer switch (Minibus/Van)
1. : The rear window wiper starts
to operate three times after the washer fluid sprays onto the rear window.
2.OFF
3.INT: The interval between wipes op-
erates every 1.5 seconds inter- mittently.
4.ON : The rear window wiper starts
to operate continuously.
5. : The washer fluid will be sprayed onto the rear window and thewiper operates while the rearwindow wiper barrel is placed in this position. HSRFL2118

2
INSTRUMENTS AND CONTROLS
23HEADLIGHT LEVELING DEVICE SYSTEM
C210A04P-GAT (If installed) To adjust the headlight beam level according to the number of the pas- sengers and the loading weight in thecargo, turn the beam leveling switch. The higher the number of the switch position, the lower the headlight beamlevel. Always keep the headlight beam at the proper leveling position, or headlightsmay dazzle other road users. Listed chart is the examples of proper switch settings. HSRFL210
Do not operate the washer continu-ously for more than 15 seconds orwhen the fluid reservoir is empty; this could damage the system. Do not op- erate the wiper when the window isdry; this can result in scratching as well as premature wiper blade wear. For the reason stated above,do notoperate the washer when the washer fluid reservoir is empty. NOTE:
o Before operating the wiper in cold
weather, check to be sure that the wiper blade is not frozen to the rear window. Attempting tooperate the wiper while the blade is frozen to the rear window could cause the motor to burn out.
o If the wiper stops during opera- tion because of ice or some otherobstruction on the rear window,the wiper motor could burn out even if the wiper switch is turned off. If this occurs, promptly stopthe vehicle, turn off the ignition switch, and clean the rear win- dow to allow proper wiper opera-tion. o Do not use the wiper when the
rear window is dry; doing socould scratch the rear window and wear the blade prematurely.

2 INSTRUMENTS AND CONTROLS
24INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
C220A01P-GAT (Minibus/Van) (If installed)
HSRFL220
The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.
For loading conditions other than thoselisted, adjust the switch position sothat the beam level may be the nearest as the condition obtained according to the list.
MINIBUS2WD4WD 2WD
7/9
0 0 1 1 2 3 3 0
- - - -
1 6 0 0 0 0 1 2
7 0 0 1 1 2 3
LOADING
CONDITION
Driver only Driver + Frontpassenger Driver, front pas- senger + FarthestRear Seat Full Full passengers Full passengers +Maximum Permis- sible loading Driver+MaximumPermissible loading12 0
- - - -
1
LOADING CONDITION Driver onlyDriver + PermissibleRear axle load
TRUCK 0 1
VAN
ENGINE RPM ADJUSTMENT KNOB
C230A01P-GAT (Diesel) (If installed)
When the outside air temperature is very low, or when it is necessary to warm up the engine, then turn the knobclockwise to that point at which the engine runs smoothly, and then, once the warming up is completed, fully turnthe knob counterclockwise. CAUTION:
Never attempt to adjust the vehicleduring driving by using the control knob.
! HSRFL230

2
INSTRUMENTS AND CONTROLS

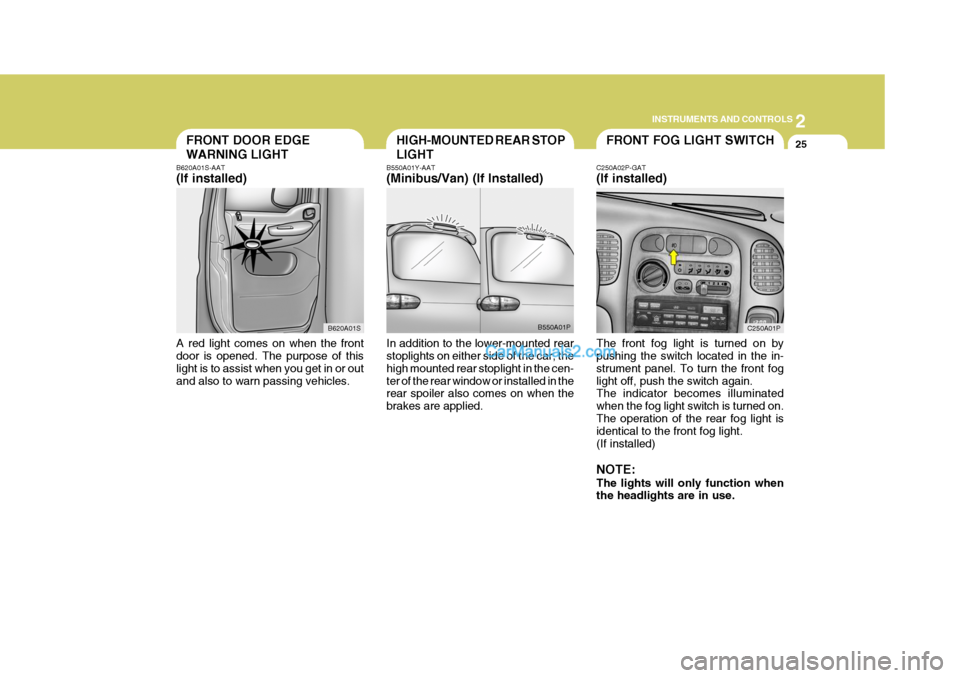

25FRONT FOG LIGHT SWITCH
C250A02P-GAT (If installed) The front fog light is turned on by pushing the switch located in the in- strument panel. To turn the front foglight off, push the switch again. The indicator becomes illuminated when the fog light switch is turned on.The operation of the rear fog light is identical to the front fog light. (If installed) NOTE: The lights will only function when the headlights are in use. C250A01PFRONT DOOR EDGE WARNING LIGHT
B620A01S-AAT (If installed) A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or outand also to warn passing vehicles. B620A01SHIGH-MOUNTED REAR STOP LIGHT
B550A01Y-AAT (Minibus/Van) (If Installed) In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rear stoplight in the cen-ter of the rear window or installed in the rear spoiler also comes on when the brakes are applied. B550A01P
