Hyundai H-1 (Grand Starex) 2005 Owner's Manual

44IN CASE OF EMERGENCY
30

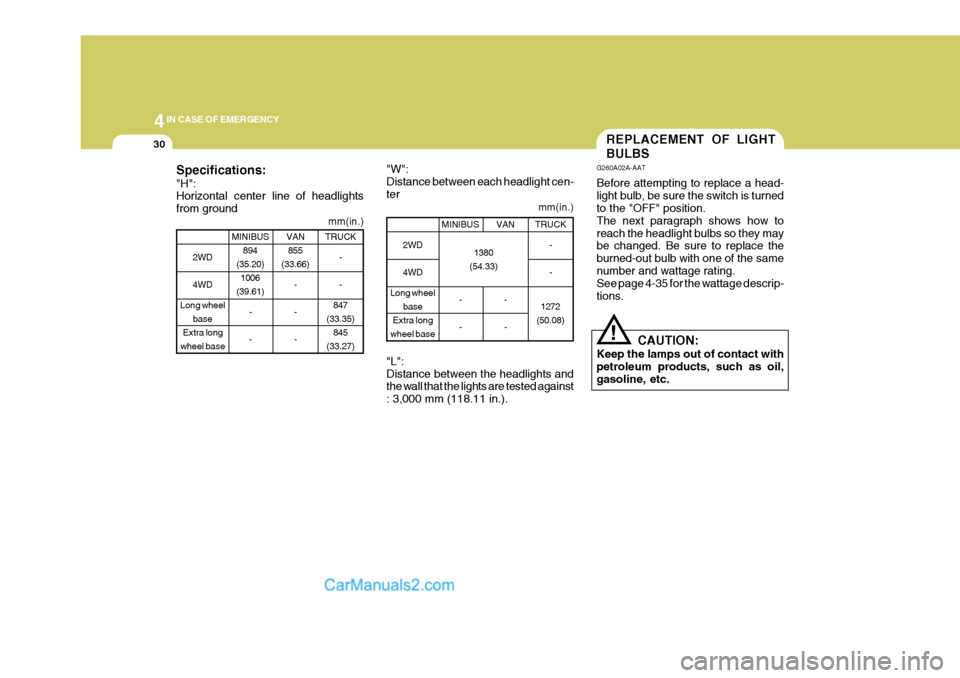

Specifications: "H": Horizontal center line of headlights from ground "W":Distance between each headlight cen-ter "L": Distance between the headlights and the wall that the lights are tested against : 3,000 mm (118.11 in.).
2WD 4WD
Long wheel base
Extra long
wheel base
MINIBUS 894
(35.20) 1006
(39.61)
- - VAN
855
(33.66)
--- TRUCK
--
847
(33.35) 845
(33.27)2WD 4WD
Long wheel base
Extra long
wheel base
MINIBUS
- - VAN
-- TRUCK
--
1272
(50.08)
1380
(54.33)
REPLACEMENT OF LIGHT BULBS
G260A02A-AAT Before attempting to replace a head- light bulb, be sure the switch is turned to the "OFF" position. The next paragraph shows how toreach the headlight bulbs so they may be changed. Be sure to replace the burned-out bulb with one of the samenumber and wattage rating. See page 4-35 for the wattage descrip- tions.
CAUTION:
Keep the lamps out of contact withpetroleum products, such as oil,gasoline, etc.
!
mm(in.)
mm(in.)

4
CORROSION PREVENTION AND APPEARANCE CARE
31
4
IN CASE OF EMERGENCY
31
HSRFL274
7. Push the bulb spring to remove the headlight bulb. HSRFL273
6. Turn the plastic cover counterclock- wise and remove it.
4. Using a spanner of the correct size,
remove the headlight assembly mounting bolts.
HSRFL272
5. Disconnect the power cord from the back of the headlight.
Replacement instructions:
1. Allow the bulb to cool. Wear eye
protection.
2. Open the engine hood.
3. Always grasp the bulb by its plastic base, avoid touching the glass. HSRFL270

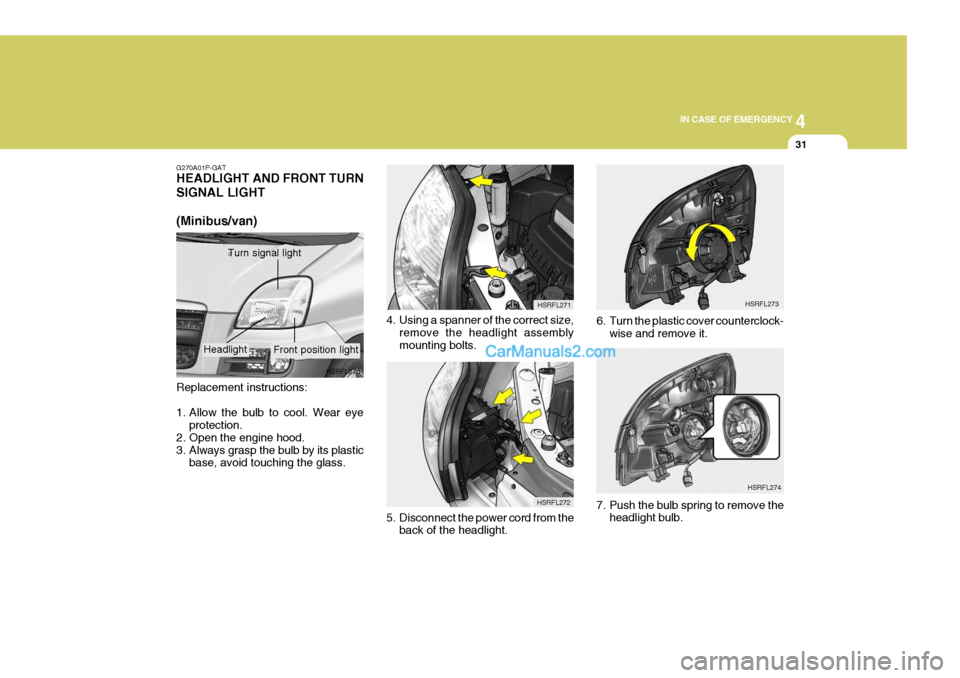

G270A01P-GAT HEADLIGHT AND FRONT TURN SIGNAL LIGHT (Minibus/van)
Turn signal light
HSRFL271
Front position light
Headlight

44IN CASE OF EMERGENCY
32

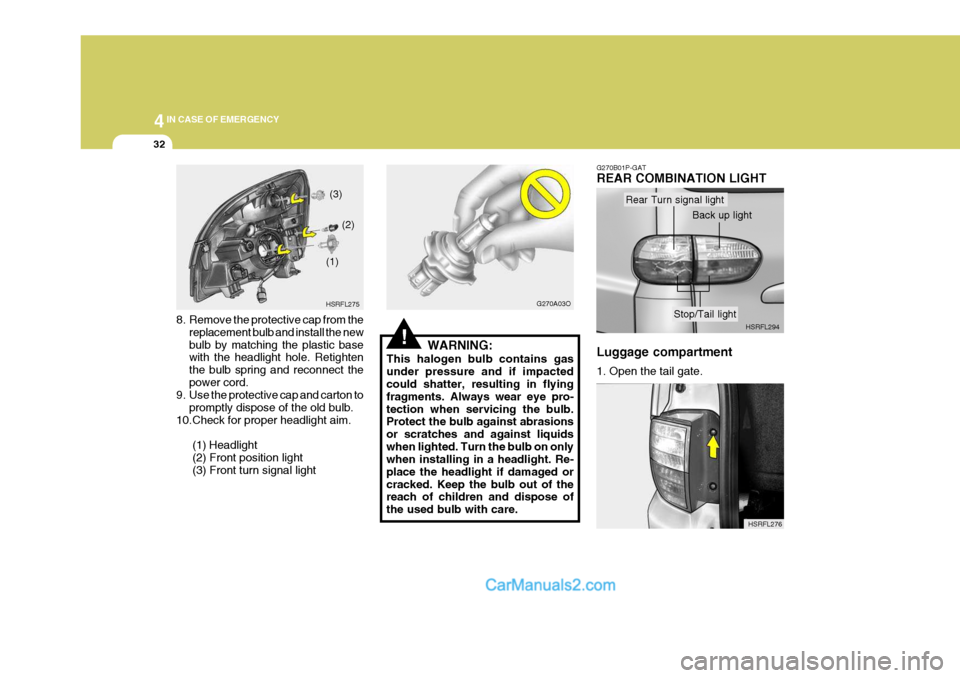

8. Remove the protective cap from the
replacement bulb and install the new bulb by matching the plastic base with the headlight hole. Retighten the bulb spring and reconnect thepower cord.
9. Use the protective cap and carton to
promptly dispose of the old bulb.
10.Check for proper headlight aim.
(1) Headlight(2) Front position light (3) Front turn signal light HSRFL275
(1)
(2)
(3)
!
G270A03O
WARNING:
This halogen bulb contains gas under pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro-tection when servicing the bulb. Protect the bulb against abrasions or scratches and against liquidswhen lighted. Turn the bulb on only when installing in a headlight. Re- place the headlight if damaged orcracked. Keep the bulb out of the reach of children and dispose of the used bulb with care.
HSRFL276
G270B01P-GAT REAR COMBINATION LIGHT Luggage compartment 1. Open the tail gate.
HSRFL294
Rear Turn signal light
Back up light
Stop/Tail light

4
CORROSION PREVENTION AND APPEARANCE CARE
33
4
IN CASE OF EMERGENCY
33

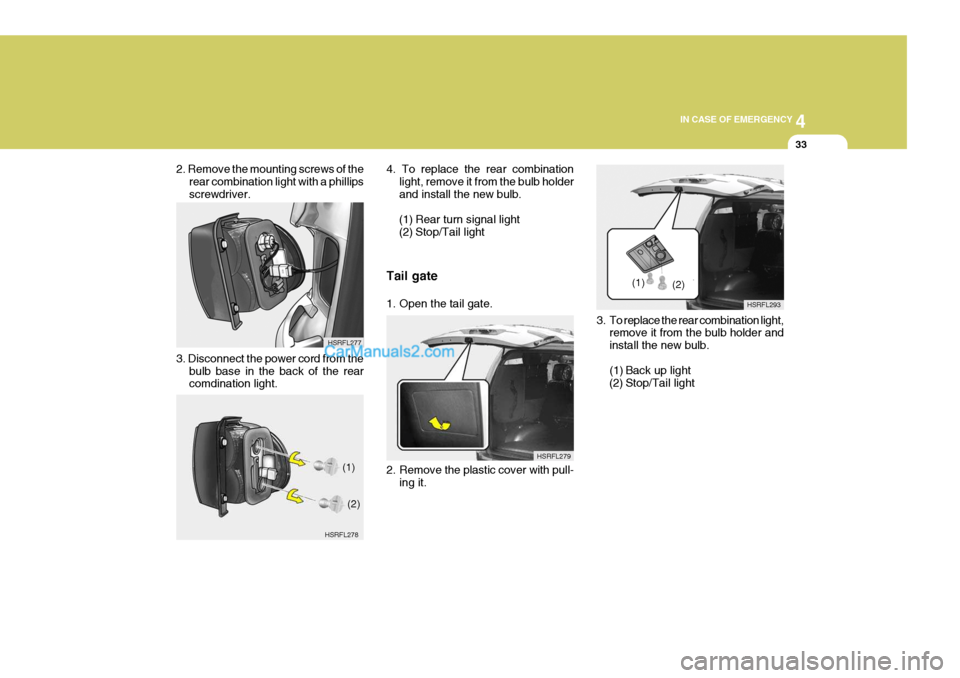

3. To replace the rear combination light,
remove it from the bulb holder and install the new bulb.
(1) Back up light
(2) Stop/Tail light HSRFL293
(1)
(2)
2. Remove the mounting screws of the
rear combination light with a phillips screwdriver. 4. To replace the rear combination
light, remove it from the bulb holderand install the new bulb.
(1) Rear turn signal light
(2) Stop/Tail light
HSRFL277 Tail gate
1. Open the tail gate.
2. Remove the plastic cover with pull-
ing it. HSRFL279
3. Disconnect the power cord from the
bulb base in the back of the rear comdination light.
HSRFL278(1)
(2)

44IN CASE OF EMERGENCY
34
HSRFL283

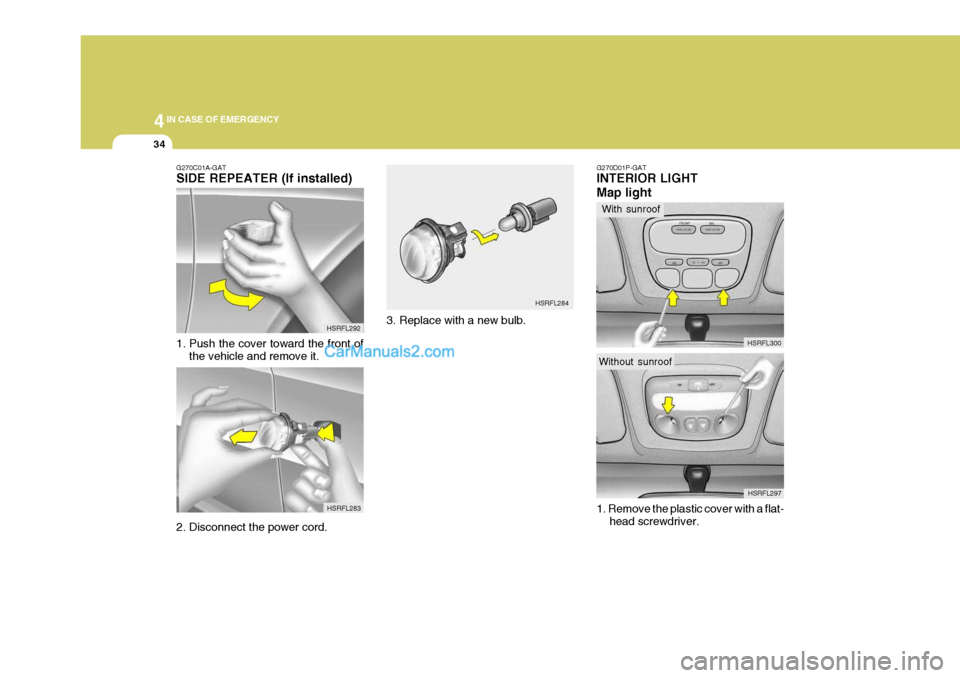

G270C01A-GAT SIDE REPEATER (If installed)
1. Push the cover toward the front of
the vehicle and remove it. HSRFL292
3. Replace with a new bulb. HSRFL284
2. Disconnect the power cord. G270D01P-GAT INTERIOR LIGHT Map light 1. Remove the plastic cover with a flat-
head screwdriver. HSRFL300
HSRFL297
With sunroof
Without sunroof

4
CORROSION PREVENTION AND APPEARANCE CARE
35
4
IN CASE OF EMERGENCY
35
Without sunroof
HSRFL2902. Replace with a new bulb. HSRFL301
With sunroof

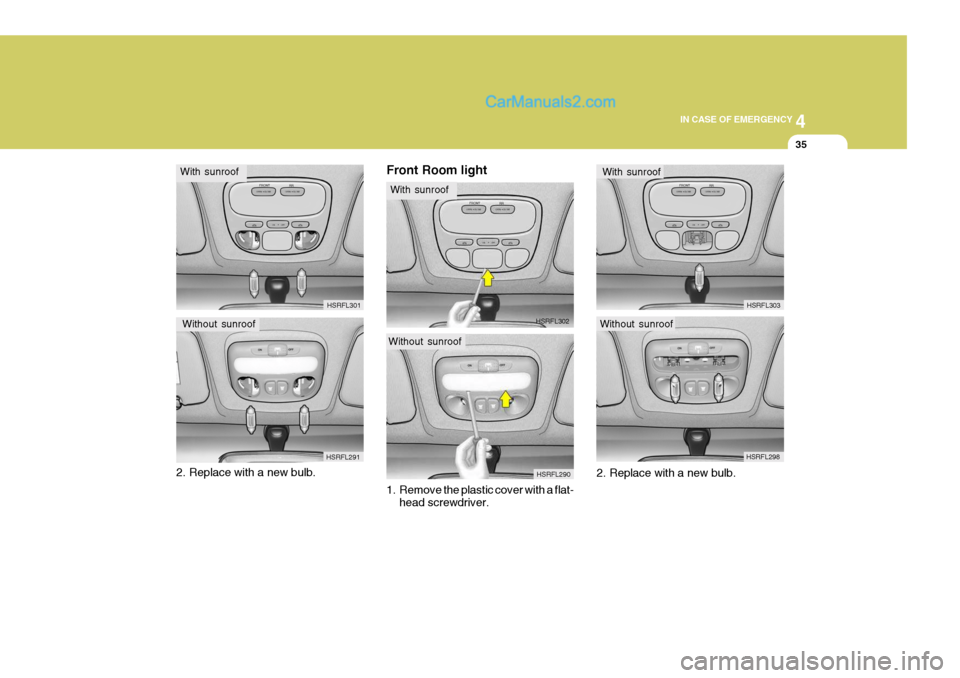

Without sunroof HSRFL291Front Room light
1. Remove the plastic cover with a flat-
head screwdriver. HSRFL298
2. Replace with a new bulb.
HSRFL302
With sunroof
Without sunroof HSRFL303
With sunroof

44IN CASE OF EMERGENCY
36
HSRFL285

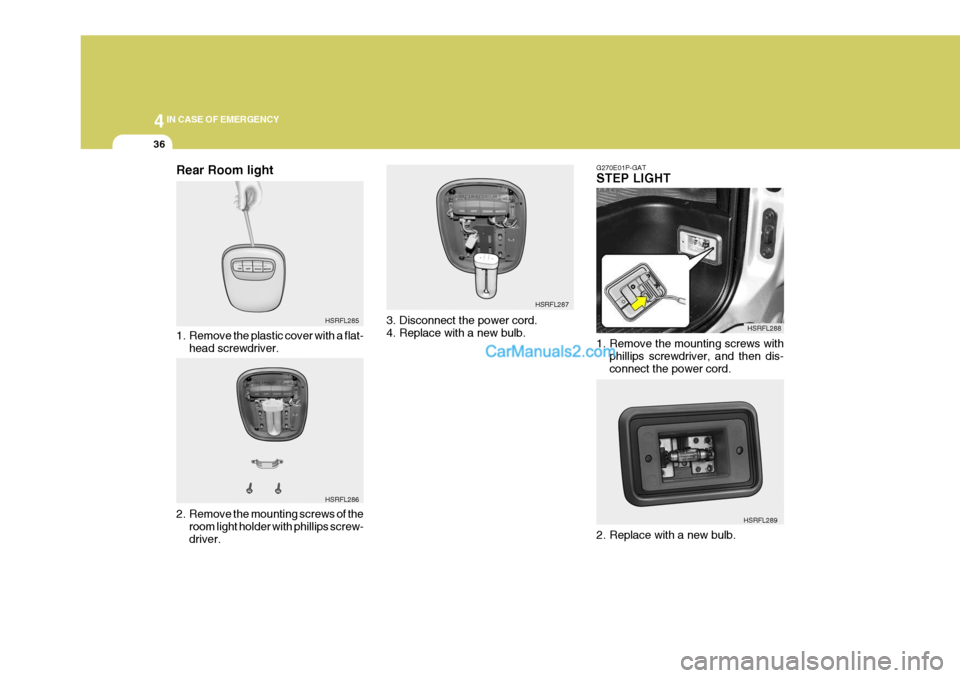

Rear Room light
1. Remove the plastic cover with a flat-
head screwdriver.
HSRFL286
2. Remove the mounting screws of the room light holder with phillips screw- driver. HSRFL287
G270E01P-GAT STEP LIGHT
1. Remove the mounting screws with
phillips screwdriver, and then dis- connect the power cord. HSRFL288
2. Replace with a new bulb. HSRFL289
3. Disconnect the power cord.
4. Replace with a new bulb.

4
CORROSION PREVENTION AND APPEARANCE CARE
37
4
IN CASE OF EMERGENCY
37

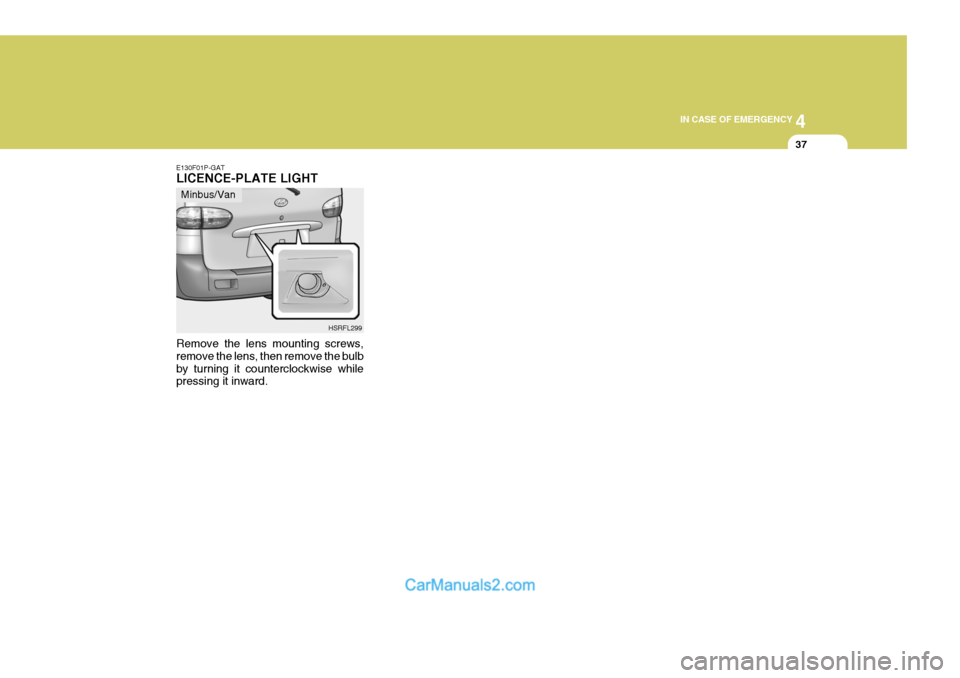

E130F01P-GAT LICENCE-PLATE LIGHT
HSRFL299
Remove the lens mounting screws, remove the lens, then remove the bulbby turning it counterclockwise while pressing it inward. Minbus/Van

44IN CASE OF EMERGENCY
38
7
96

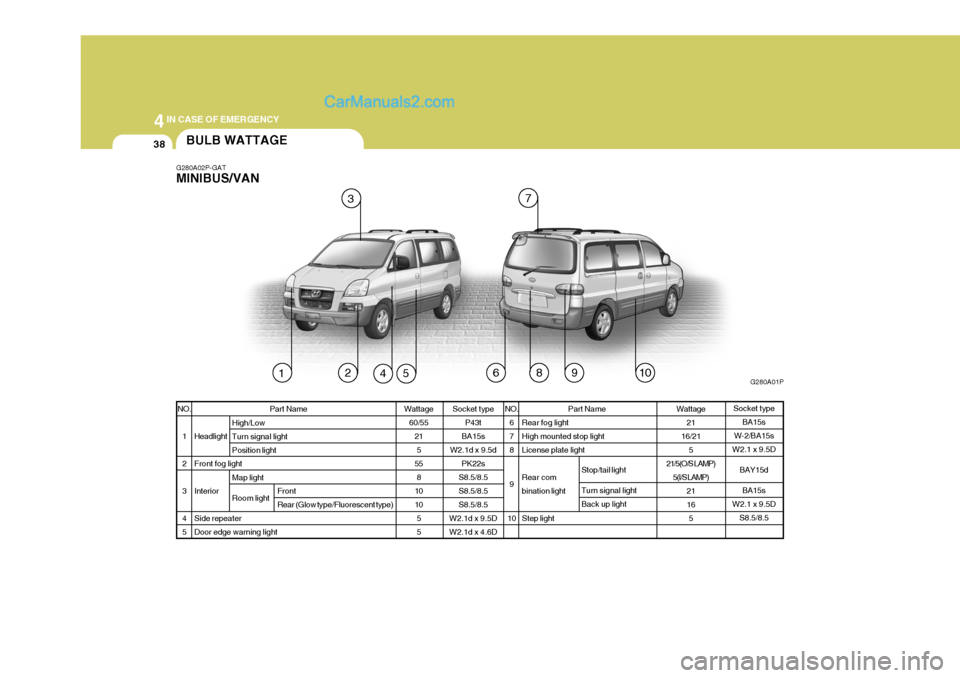

BULB WATTAGE
G280A02P-GAT MINIBUS/VAN
G280A01P
123
45810
Socket typeBA15s
W-2/BA15s
W2.1 x 9.5D
BAY15dBA15s
W2.1 x 9.5D S8.5/8.5
Socket type
P43t
BA15s
W2.1d x 9.5d PK22s
S8.5/8.5 S8.5/8.5S8.5/8.5
W2.1d x 9.5DW2.1d x 4.6D Part Name
Rear fog lightHigh mounted stop lightLicense plate light Rear com bination light Step light Stop/tail light Turn signal light Back up light
Part Name
Headlight Front fog lightInteriorSide repeater Door edge warning light High/LowTurn signal lightPosition light Map light Room light
Wattage
21
16/21 5
21/5(O/S LAMP) 5(I/S LAMP) 21 165
NO.
678 9
10NO. 1 234 5 Wattage
60/55 215
55 8
1010 55
Front Rear (Glow type/Fluorescent type)

4
CORROSION PREVENTION AND APPEARANCE CARE
39
4
IN CASE OF EMERGENCY
39
Part Name
Side repeater Rear combination light License plate light Stop/tail light Turn signal lightBack up light

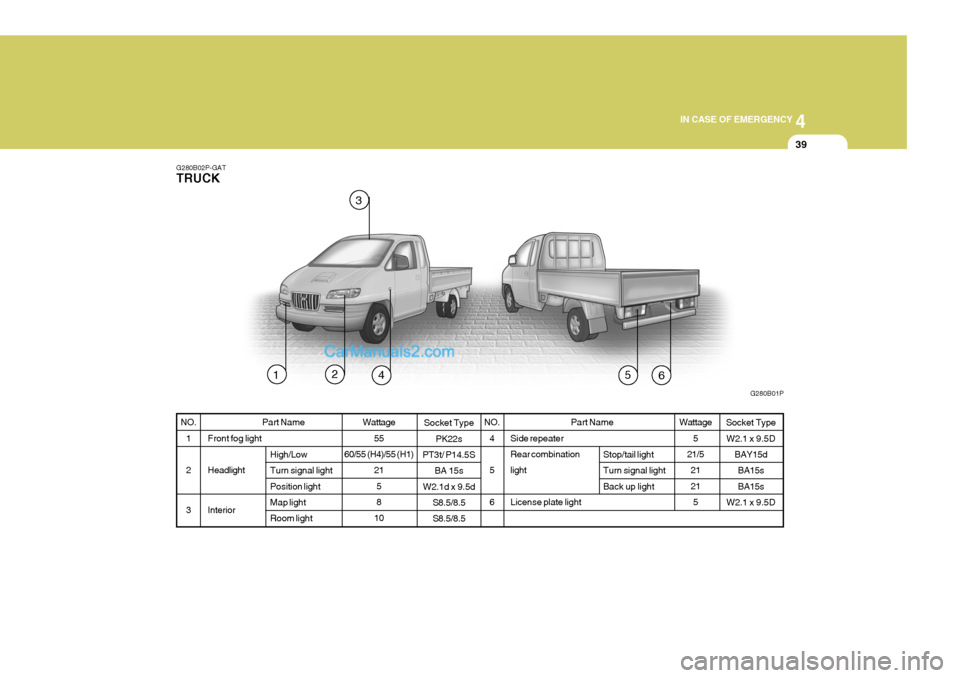

G280B02P-GAT TRUCK
G280B01P
Socket Type PK22s
PT3t/ P14.5S
BA 15s
W2.1d x 9.5d S8.5/8.5 S8.5/8.5
1 23
4 65
NO.
4 5 6 Wattage
5
21/5 21 21
5NO.
1 2 3 Part Name
Front fog light Headlight Interior Wattage
55
60/55 (H4)/55 (H1) 21
5 8
10
High/Low Turn signal light Position lightMap light Room light
Socket Type
W2.1 x 9.5D BAY15d
BA15s BA15s
W2.1 x 9.5D
