DO-IT YOURSELF MAINTENANCE
15AIR CONDITIONING CARE

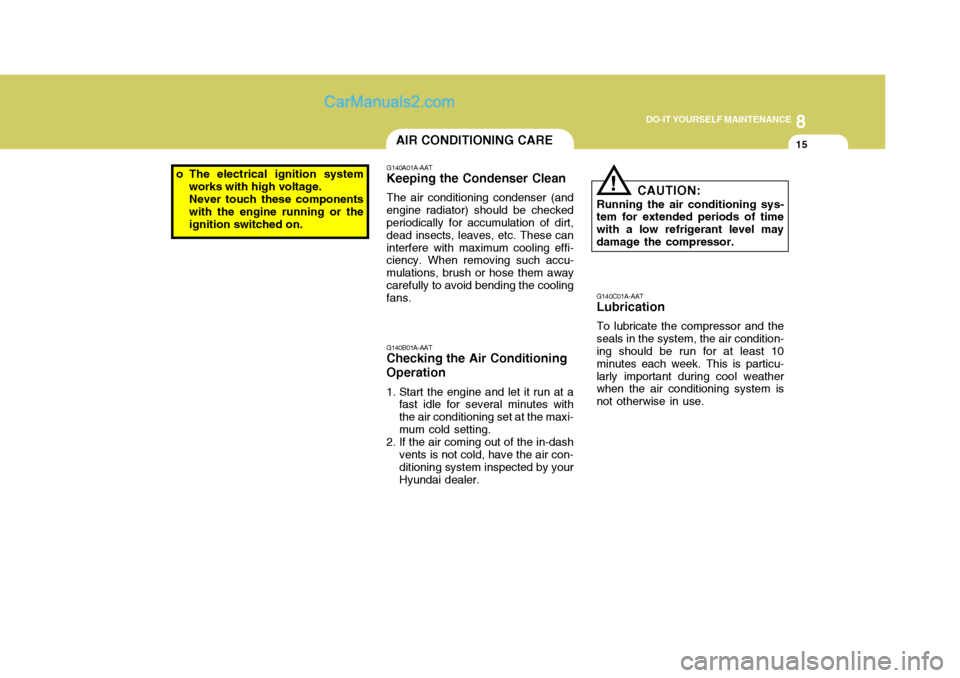

G140A01A-AAT Keeping the Condenser Clean The air conditioning condenser (and engine radiator) should be checked periodically for accumulation of dirt, dead insects, leaves, etc. These caninterfere with maximum cooling effi- ciency. When removing such accu- mulations, brush or hose them awaycarefully to avoid bending the cooling fans.
G140B01A-AAT Checking the Air Conditioning Operation
1. Start the engine and let it run at a fast idle for several minutes with the air conditioning set at the maxi-mum cold setting.
2. If the air coming out of the in-dash
vents is not cold, have the air con-ditioning system inspected by your Hyundai dealer. G140C01A-AAT Lubrication To lubricate the compressor and the seals in the system, the air condition- ing should be run for at least 10 minutes each week. This is particu-larly important during cool weather when the air conditioning system is not otherwise in use.CAUTION:
Running the air conditioning sys- tem for extended periods of time with a low refrigerant level maydamage the compressor.
!
o The electrical ignition system
works with high voltage. Never touch these componentswith the engine running or the ignition switched on.

8DO-IT YOURSELF MAINTENANCE
16
G140D01HP-GAT Checking the Compressor Drive Belt When the air conditioning is being used regularly, the compressor drivebelt tension should be checked at least once a month. To check the drive belt tension, press down on the belt halfway between the engine crankshaft and compressorpulleys. Pressing with your finger, you should not be able to deflect this belt anymore than 8.0 mm. If you havethe instruments to check it with a force of 98N (22 lb.), the deflection should be approx. 8.0 mm (0.315 in.).If the belt is too loose, have it ad- justed by your Hyundai dealer. NOTE: The compressor drive belt tension for diesel engine (2.5 CRDi only) isadjusted automatically.
HSM396-1
Gasoline
CHANGING THE CLIMATE CONTROL AIR FILTER
B140E02P-AAT
(For Evaporator and Blower Unit)(Minibus/Van)
The climate control air filter is located
in the air intake duct behind the wind- shield washer reservoir.
It helps to decrease pollutants from
entering the car.
Auto tensionerpulley
COMP. pulley
Engine pulley
Generator pulley
G190D01P
Diesel (2.5 TCI)
Crankshaft pulley
COMP.pulley
Tension pulley
COMP. pulley
Autotensioner Crankshaftpulley
Diesel (2.5 CRDi)

8
DO-IT YOURSELF MAINTENANCE
17CHECKING THE BRAKE FLUID

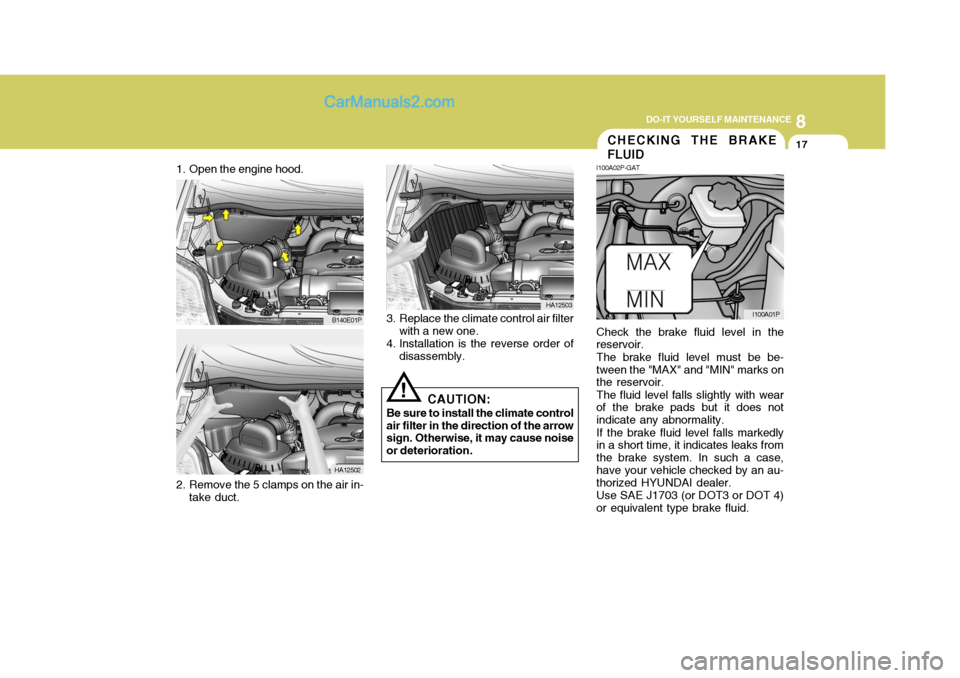

I100A02P-GAT Check the brake fluid level in the reservoir. The brake fluid level must be be- tween the "MAX" and "MIN" marks on the reservoir. The fluid level falls slightly with wear of the brake pads but it does not indicate any abnormality. If the brake fluid level falls markedly in a short time, it indicates leaks from the brake system. In such a case,have your vehicle checked by an au- thorized HYUNDAI dealer. Use SAE J1703 (or DOT3 or DOT 4) or equivalent type brake fluid.
CAUTION:
Be sure to install the climate control air filter in the direction of the arrow sign. Otherwise, it may cause noise or deterioration.
!
HA12502
2. Remove the 5 clamps on the air in- take duct. HA12503
3. Replace the climate control air filter with a new one.
4. Installation is the reverse order of disassembly. I100A01P
B140E01P
1. Open the engine hood.

8DO-IT YOURSELF MAINTENANCE
18
!

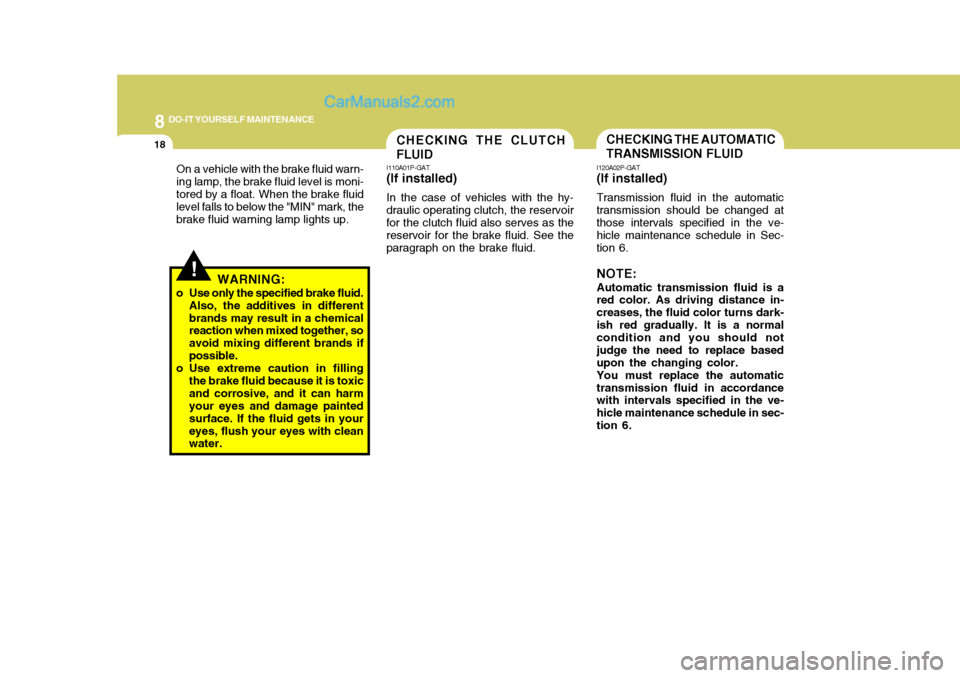

On a vehicle with the brake fluid warn- ing lamp, the brake fluid level is moni-tored by a float. When the brake fluid level falls to below the "MIN" mark, the brake fluid warning lamp lights up.
WARNING:
o Use only the specified brake fluid. Also, the additives in differentbrands may result in a chemical reaction when mixed together, so avoid mixing different brands ifpossible.
o Use extreme caution in filling
the brake fluid because it is toxicand corrosive, and it can harm your eyes and damage painted surface. If the fluid gets in youreyes, flush your eyes with clean water.
CHECKING THE AUTOMATIC TRANSMISSION FLUID
I120A02P-GAT (If installed) Transmission fluid in the automatic transmission should be changed at those intervals specified in the ve- hicle maintenance schedule in Sec-tion 6. NOTE: Automatic transmission fluid is a red color. As driving distance in- creases, the fluid color turns dark-ish red gradually. It is a normal condition and you should not judge the need to replace basedupon the changing color.You must replace the automatictransmission fluid in accordance with intervals specified in the ve- hicle maintenance schedule in sec-tion 6.CHECKING THE CLUTCH FLUID
I110A01P-GAT (If installed) In the case of vehicles with the hy- draulic operating clutch, the reservoir for the clutch fluid also serves as the reservoir for the brake fluid. See theparagraph on the brake fluid.

8
DO-IT YOURSELF MAINTENANCE
19
1. Open the hood, being careful to
keep hands, long hair and clothing clear of any moving parts.
2. Remove the transmission dipstick, wipe it clean, reinsert the dipstickas far as it will go, then remove it again. Now check the fluid level on the dipstick. It should be in the"HOT" range on the dipstick.
3. If the transmission fluid level is
low, use a funnel to add transmis-sion fluid through the dipstick tube until the level reaches the "HOT" range. Do not overfill, otherwisethe transmission could be dam- aged. Full mark
I120D03P-GAT

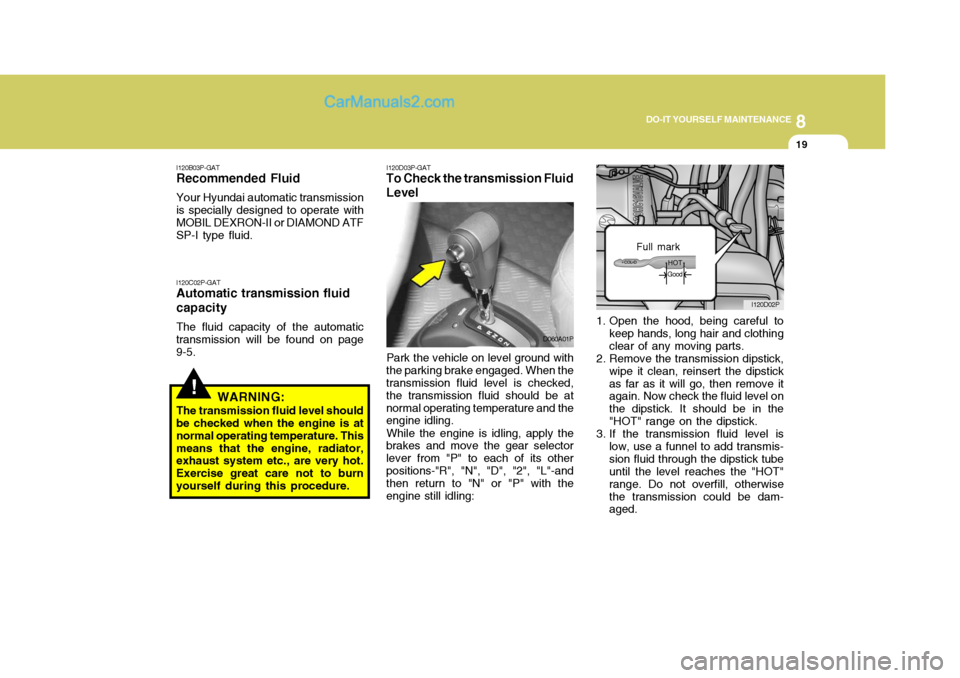

To Check the transmission Fluid Level
Park the vehicle on level ground with
the parking brake engaged. When the transmission fluid level is checked, the transmission fluid should be atnormal operating temperature and the engine idling.
While the engine is idling, apply the
brakes and move the gear selector lever from "P" to each of its otherpositions-"R", "N", "D", "2", "L"-and then return to "N" or "P" with the engine still idling: D060A01P
I120D02P
!
I120B03P-GAT Recommended Fluid Your Hyundai automatic transmission is specially designed to operate with MOBIL DEXRON-II or DIAMOND ATF SP-I type fluid. I120C02P-GAT Automatic transmission fluid capacity The fluid capacity of the automatic transmission will be found on page9-5.
WARNING:
The transmission fluid level should be checked when the engine is at normal operating temperature. Thismeans that the engine, radiator, exhaust system etc., are very hot. Exercise great care not to burnyourself during this procedure.
Good

8DO-IT YOURSELF MAINTENANCE
20
!WARNING:
The cooling fan is controlled by engine coolant temperature and may sometimes operate even whenthe engine is not running. Use extreme caution when working near the blades of the cooling fan, sothat you are not injured by a rotat- ing fan blade. As the engine cool- ant temperature decreases, the fanwill automatically shut off. This is a normal condition.
FILLING THE WASHER RESERVOIR

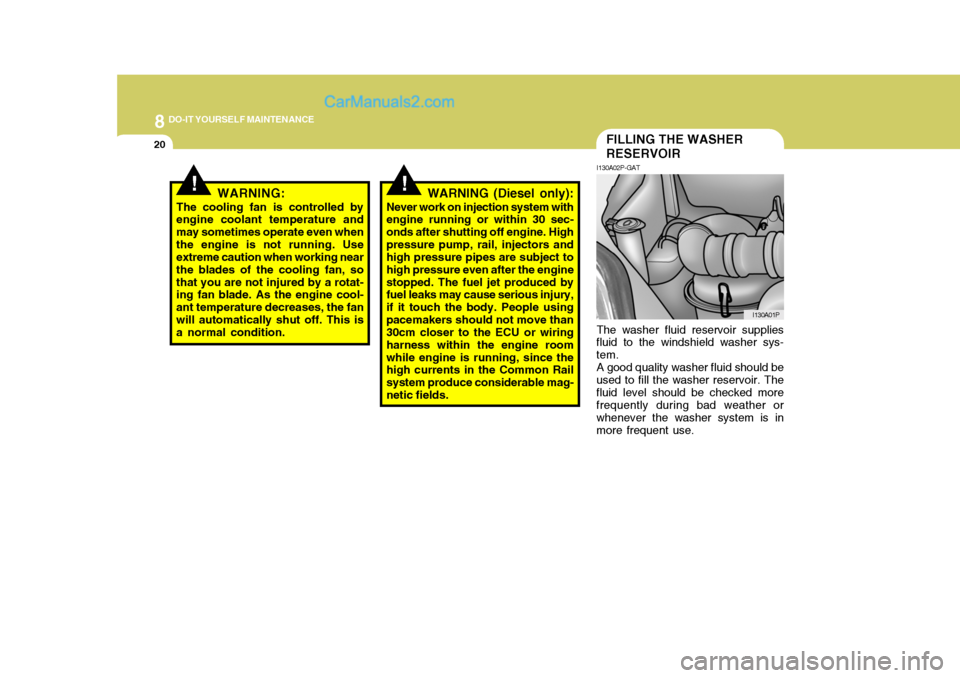

I130A02P-GAT The washer fluid reservoir supplies
fluid to the windshield washer sys- tem.
A good quality washer fluid should be
used to fill the washer reservoir. Thefluid level should be checked more frequently during bad weather or whenever the washer system is inmore frequent use.
!WARNING (Diesel only):
Never work on injection system with engine running or within 30 sec- onds after shutting off engine. Highpressure pump, rail, injectors and high pressure pipes are subject to high pressure even after the enginestopped. The fuel jet produced by fuel leaks may cause serious injury, if it touch the body. People usingpacemakers should not move than 30cm closer to the ECU or wiring harness within the engine roomwhile engine is running, since the high currents in the Common Rail system produce considerable mag-netic fields. I130A01P

8
DO-IT YOURSELF MAINTENANCE
21
!
WINDSHIELD WIPER BLADES
CAUTION:
o Do not operate the wipers on dry glass. This can result in more rapid wear of the wiper blades and may scratch the glass.
o Keep the blade rubber out of contact with petroleum productssuch as engine oil, gasoline, etc.

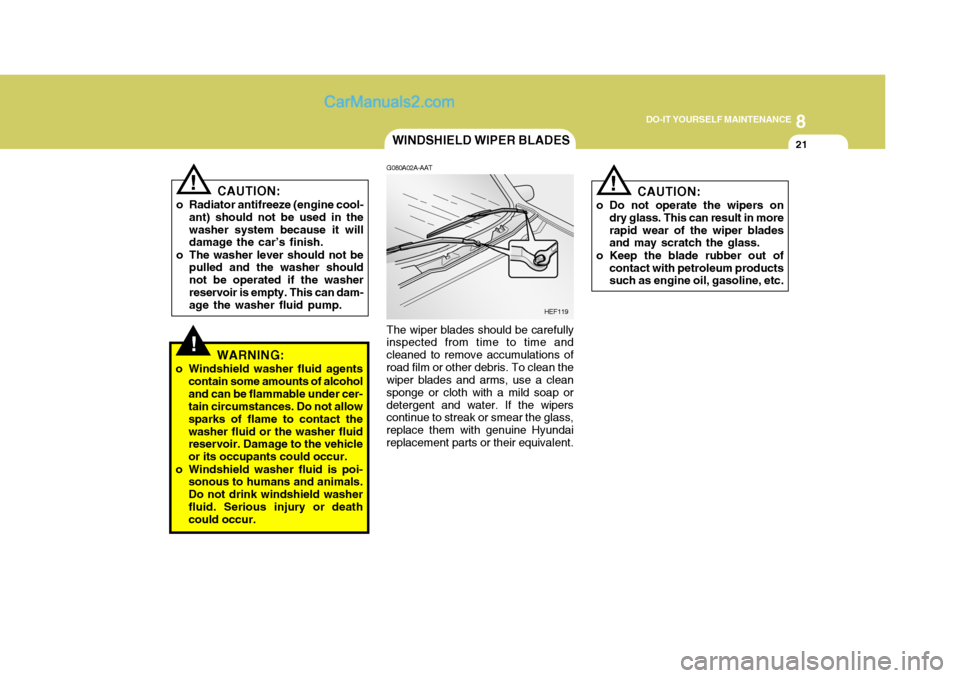

G080A02A-AAT The wiper blades should be carefully
inspected from time to time and cleaned to remove accumulations ofroad film or other debris. To clean the wiper blades and arms, use a clean sponge or cloth with a mild soap ordetergent and water. If the wipers continue to streak or smear the glass, replace them with genuine Hyundaireplacement parts or their equivalent. HEF119
CAUTION:
o Radiator antifreeze (engine cool- ant) should not be used in thewasher system because it will damage the car’s finish.
o The washer lever should not be pulled and the washer should not be operated if the washerreservoir is empty. This can dam- age the washer fluid pump.
!
!WARNING:
o Windshield washer fluid agents contain some amounts of alcohol and can be flammable under cer- tain circumstances. Do not allow sparks of flame to contact thewasher fluid or the washer fluid reservoir. Damage to the vehicle or its occupants could occur.
o Windshield washer fluid is poi- sonous to humans and animals.Do not drink windshield washerfluid. Serious injury or death could occur.

8DO-IT YOURSELF MAINTENANCE
22
1. Put a new wiper blade onto the
wiper arm and lower the wiper blade at the level of the wiper arm as shown in the drawing.
2. Pull up the wiper blade until you hear an audible "click" to engage in the end of the wiper arm.
NOTE: Do not allow the wiper arm to fall

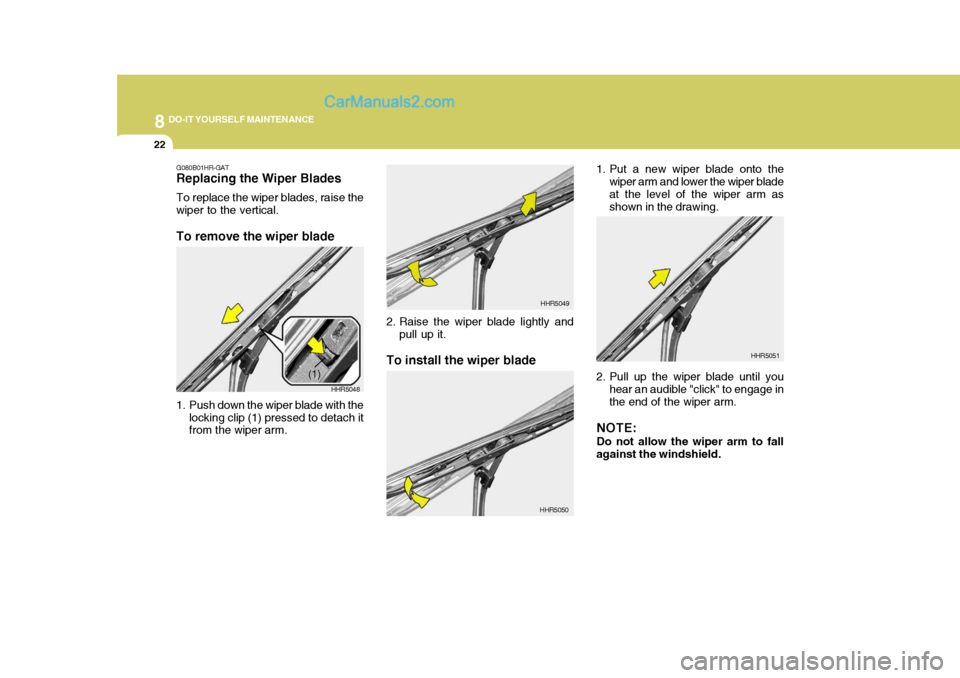

against the windshield. HHR5051G080B01HR-GAT Replacing the Wiper Blades To replace the wiper blades, raise the wiper to the vertical. To remove the wiper blade
1. Push down the wiper blade with the
locking clip (1) pressed to detach it from the wiper arm. HHR5048
(1)2. Raise the wiper blade lightly and
pull up it.
To install the wiper blade HHR5049
HHR5050

8
DO-IT YOURSELF MAINTENANCE
23TAIL GATE WINDOW WASHER FLUID
I140A02P-GAT (Minibus/Van) (If installed) After opening the cover of quarter trim panel which is located on the left side of quarter trim, check the fluid level. If the fluid level is low, refill the washerfluid. HSRFL140CHECKING THE FREEPLAY

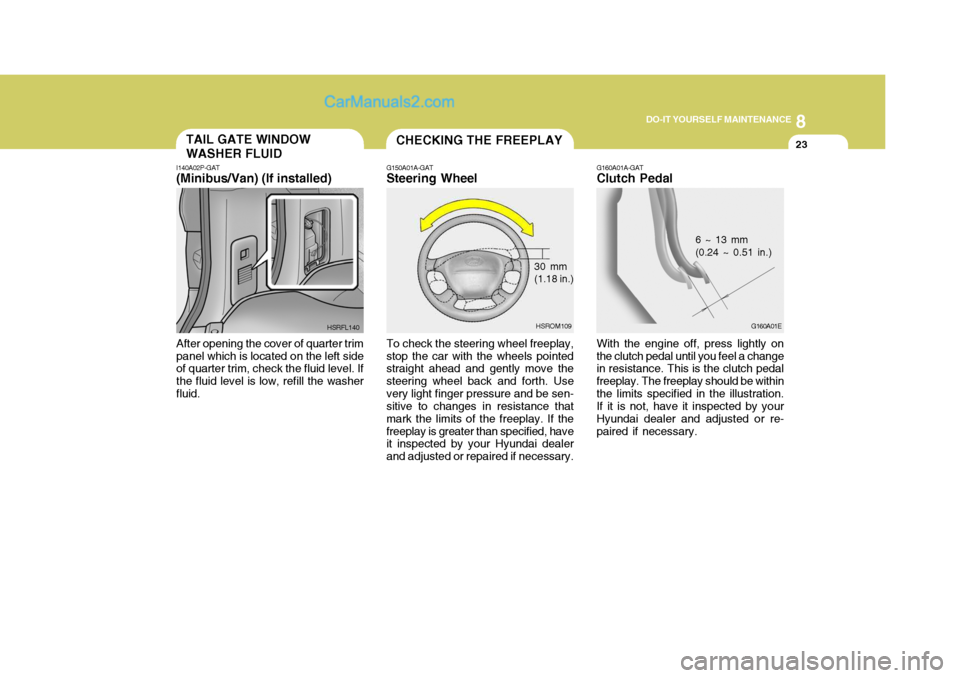

G150A01A-GAT Steering Wheel To check the steering wheel freeplay, stop the car with the wheels pointed straight ahead and gently move the steering wheel back and forth. Usevery light finger pressure and be sen- sitive to changes in resistance that mark the limits of the freeplay. If thefreeplay is greater than specified, have it inspected by your Hyundai dealer and adjusted or repaired if necessary. 30 mm (1.18 in.)
G160A01A-GAT Clutch Pedal With the engine off, press lightly on the clutch pedal until you feel a change in resistance. This is the clutch pedal freeplay. The freeplay should be withinthe limits specified in the illustration. If it is not, have it inspected by your Hyundai dealer and adjusted or re-paired if necessary. 6 ~ 13 mm (0.24 ~ 0.51 in.)
HSROM109 G160A01E

8DO-IT YOURSELF MAINTENANCE

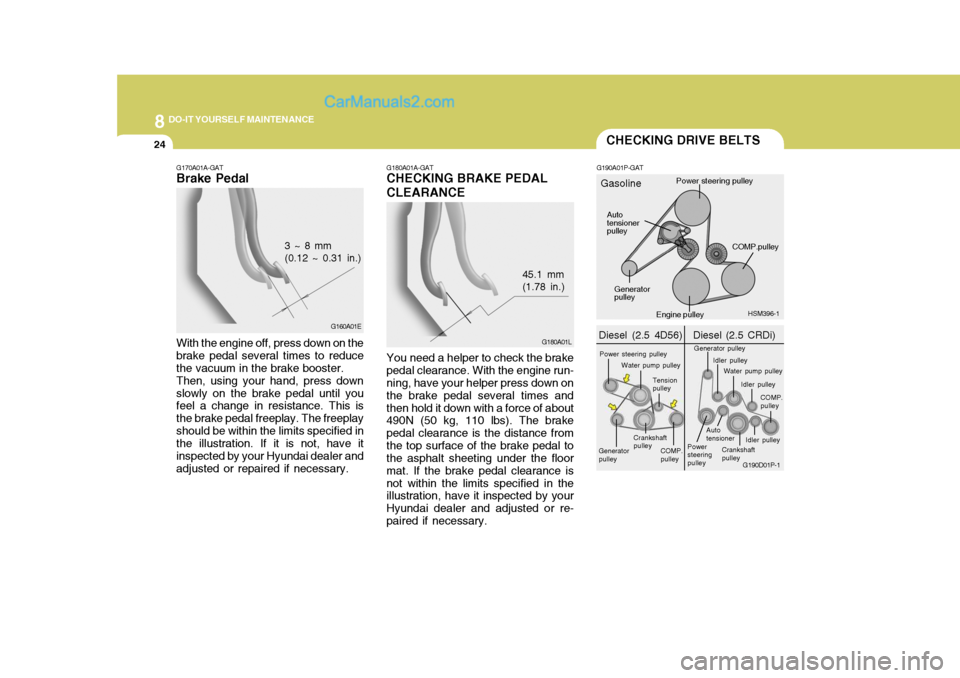

24CHECKING DRIVE BELTS
G180A01A-GAT CHECKING BRAKE PEDAL CLEARANCE
G180A01L
45.1 mm (1.78 in.)
You need a helper to check the brake pedal clearance. With the engine run- ning, have your helper press down on the brake pedal several times andthen hold it down with a force of about 490N (50 kg, 110 lbs). The brake pedal clearance is the distance fromthe top surface of the brake pedal to the asphalt sheeting under the floor mat. If the brake pedal clearance isnot within the limits specified in the illustration, have it inspected by your Hyundai dealer and adjusted or re-paired if necessary.
G170A01A-GAT Brake Pedal With the engine off, press down on the brake pedal several times to reducethe vacuum in the brake booster.Then, using your hand, press downslowly on the brake pedal until you feel a change in resistance. This is the brake pedal freeplay. The freeplayshould be within the limits specified in the illustration. If it is not, have it inspected by your Hyundai dealer andadjusted or repaired if necessary.
3 ~ 8 mm (0.12 ~ 0.31 in.)
G160A01E G190A01P-GAT
G190D01P-1
Diesel (2.5 CRDi)
Diesel (2.5 4D56)
HSM396-1
Gasoline
Auto tensioner pulley COMP.pulley
Engine pulley
Power steering pulley
Generator pulley
Generator pulley Crankshaftpulley
COMP.pulley
Tensionpulley
Water pump pulley
Power steering pulley
Generator pulley
Idler pulleyWater pump pulley
Idler pulley COMP.pulley
Powersteeringpulley Autotensioner
Crankshaft pulley Idler pulley
