Hyundai H-1 (Grand Starex) 2007 Owners Manual

2 INSTRUMENTS AND CONTROLS

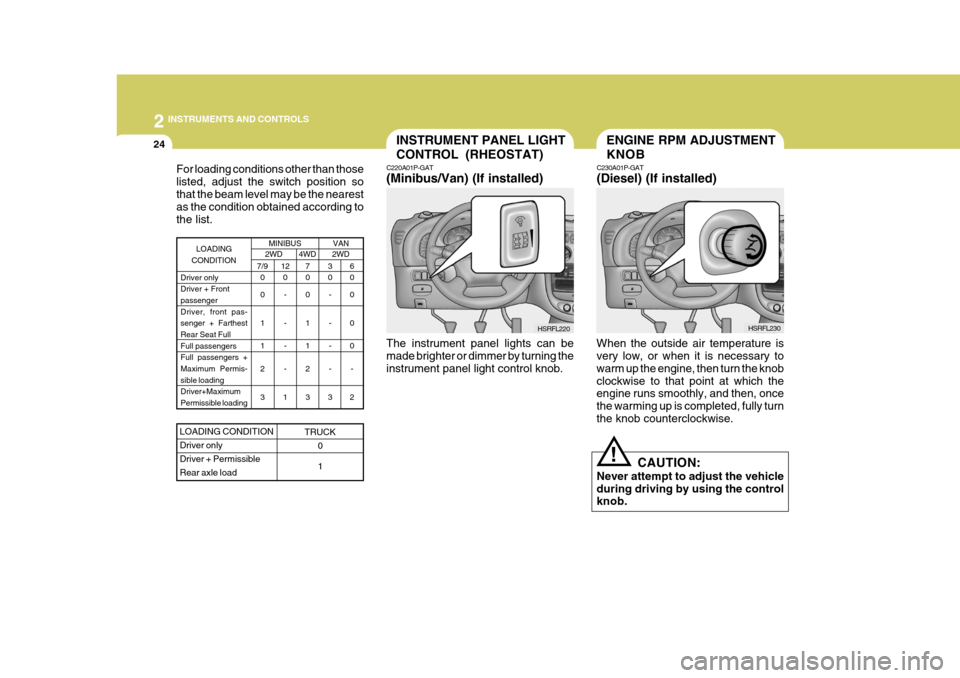

24INSTRUMENT PANEL LIGHT CONTROL (RHEOSTAT)
C220A01P-GAT (Minibus/Van) (If installed)
HSRFL220
The instrument panel lights can be made brighter or dimmer by turning the instrument panel light control knob.
For loading conditions other than thoselisted, adjust the switch position sothat the beam level may be the nearest as the condition obtained according to the list.
MINIBUS2WD4WD 2WD
7/9
0 0 1 1 2 3 3 0
- - - -
3 6 0 0 0 0
-
2
7 0 0 1 1 2 3
LOADING
CONDITION
Driver only Driver + Frontpassenger Driver, front pas- senger + FarthestRear Seat Full Full passengers Full passengers +Maximum Permis- sible loading Driver+MaximumPermissible loading12 0
- - - -
1
LOADING CONDITION Driver onlyDriver + PermissibleRear axle load
TRUCK 0 1
VAN
ENGINE RPM ADJUSTMENT KNOB
C230A01P-GAT (Diesel) (If installed)
When the outside air temperature is very low, or when it is necessary to warm up the engine, then turn the knobclockwise to that point at which the engine runs smoothly, and then, once the warming up is completed, fully turnthe knob counterclockwise. CAUTION:
Never attempt to adjust the vehicleduring driving by using the control knob.
! HSRFL230

2
INSTRUMENTS AND CONTROLS
25FRONT FOG LIGHT SWITCH
C250A02P-GAT (If installed) The front fog light is turned on by pushing the switch located in the in- strument panel. To turn the front foglight off, push the switch again. The indicator becomes illuminated when the fog light switch is turned on.The operation of the rear fog light is identical to the front fog light. (If installed) NOTE: The lights will only function when the headlights are in use. C250A01PFRONT DOOR EDGE WARNING LIGHT
B620A01S-AAT (If installed) A red light comes on when the front door is opened. The purpose of this light is to assist when you get in or out and alsoto warn passing vehicles. B620A01SHIGH-MOUNTED REAR STOP LIGHT
B550A01Y-AAT (Minibus/Van) (If Installed) In addition to the lower-mounted rear stoplights on either side of the car, the high mounted rear stoplight in the cen-ter of the rear window or installed in the rear spoiler also comes on when the brakes are applied. B550A01P

2 INSTRUMENTS AND CONTROLS

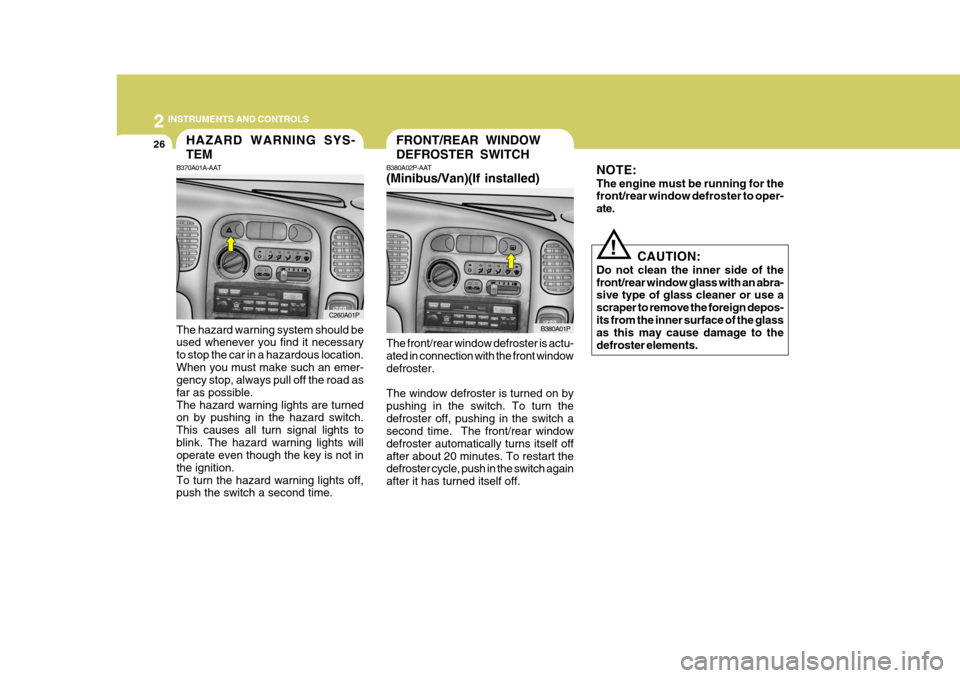

26FRONT/REAR WINDOW DEFROSTER SWITCHHAZARD WARNING SYS- TEM
B370A01A-AAT The hazard warning system should be used whenever you find it necessary to stop the car in a hazardous location.When you must make such an emer- gency stop, always pull off the road as far as possible.The hazard warning lights are turned on by pushing in the hazard switch. This causes all turn signal lights toblink. The hazard warning lights will operate even though the key is not in the ignition.To turn the hazard warning lights off, push the switch a second time. B380A02P-AAT (Minibus/Van)(If installed)
C260A01P B380A01P
The front/rear window defroster is actu- ated in connection with the front window defroster. The window defroster is turned on by pushing in the switch. To turn thedefroster off, pushing in the switch a second time. The front/rear window defroster automatically turns itself offafter about 20 minutes. To restart the defroster cycle, push in the switch again after it has turned itself off. CAUTION:
Do not clean the inner side of thefront/rear window glass with an abra- sive type of glass cleaner or use a scraper to remove the foreign depos-its from the inner surface of the glass as this may cause damage to the defroster elements.
!
NOTE: The engine must be running for the front/rear window defroster to oper- ate.

2
INSTRUMENTS AND CONTROLS

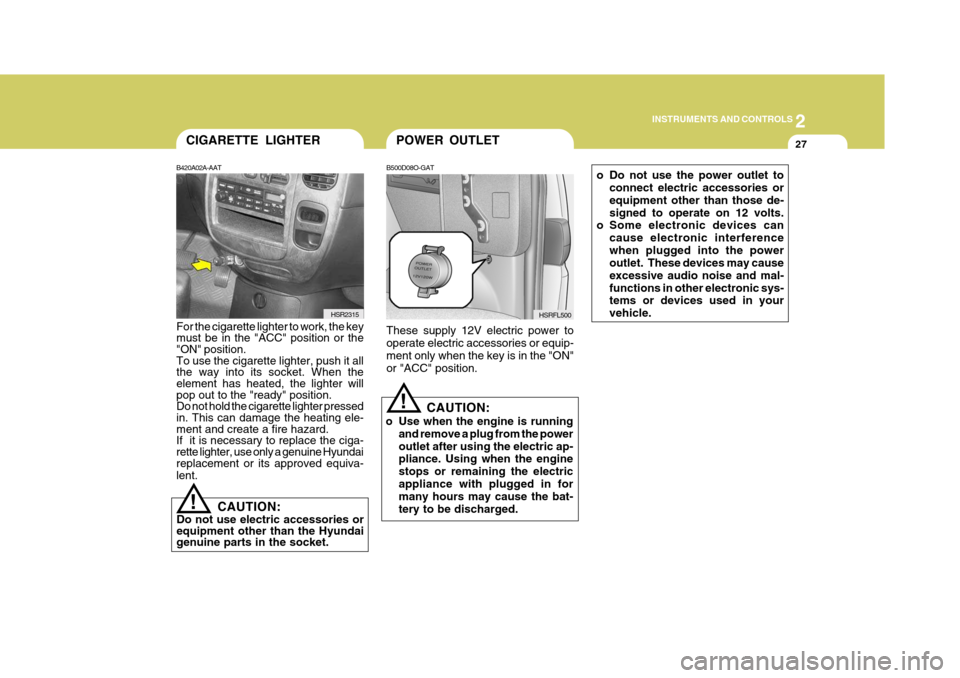

27POWER OUTLET
!
B500D08O-GAT These supply 12V electric power to operate electric accessories or equip- ment only when the key is in the "ON"or "ACC" position.
CAUTION:
o Use when the engine is running and remove a plug from the poweroutlet after using the electric ap- pliance. Using when the engine stops or remaining the electricappliance with plugged in for many hours may cause the bat- tery to be discharged. HSRFL500
B420A02A-AAT For the cigarette lighter to work, the key must be in the "ACC" position or the"ON" position. To use the cigarette lighter, push it all the way into its socket. When theelement has heated, the lighter will pop out to the "ready" position. Do not hold the cigarette lighter pressedin. This can damage the heating ele- ment and create a fire hazard. If it is necessary to replace the ciga-rette lighter, use only a genuine Hyundai replacement or its approved equiva- lent.
HSR2315
CIGARETTE LIGHTER
!
CAUTION:
Do not use electric accessories or equipment other than the Hyundaigenuine parts in the socket. o Do not use the power outlet to
connect electric accessories or equipment other than those de-signed to operate on 12 volts.
o Some electronic devices can
cause electronic interferencewhen plugged into the power outlet. These devices may cause excessive audio noise and mal-functions in other electronic sys- tems or devices used in your vehicle.

2 INSTRUMENTS AND CONTROLS

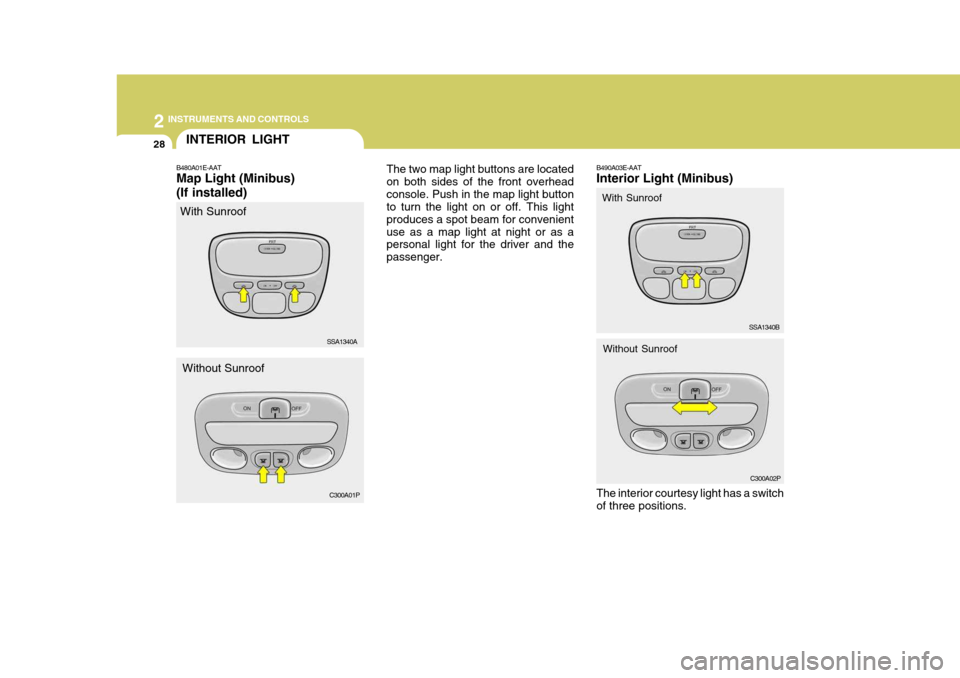

28INTERIOR LIGHT
B480A01E-AAT Map Light (Minibus) (If installed) The two map light buttons are located on both sides of the front overheadconsole. Push in the map light button to turn the light on or off. This light produces a spot beam for convenientuse as a map light at night or as a personal light for the driver and the passenger.
SSA1340A
With Sunroof
Without Sunroof B490A03E-AAT Interior Light (Minibus)
With Sunroof
Without Sunroof
The interior courtesy light has a switch of three positions. SSA1340B
C300A02P
C300A01P

2
INSTRUMENTS AND CONTROLS
29

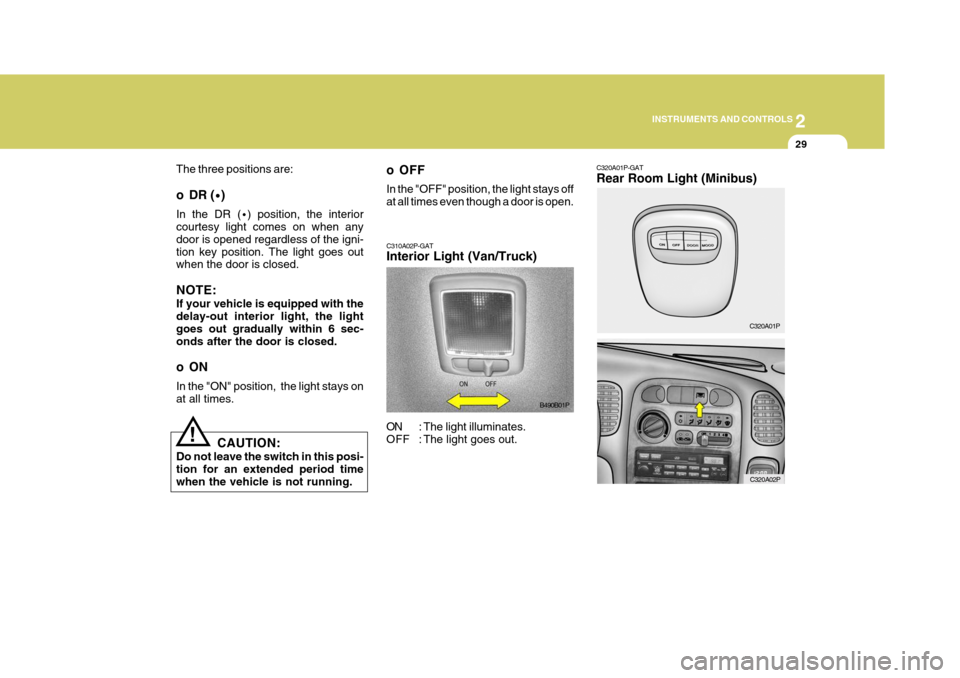

C320A01P-GAT Rear Room Light (Minibus)
C320A01P
C320A02P
The three positions are:
o DR (
·)
In the DR ( ·) position, the interior
courtesy light comes on when any door is opened regardless of the igni-tion key position. The light goes out when the door is closed. NOTE: If your vehicle is equipped with the delay-out interior light, the light goes out gradually within 6 sec-onds after the door is closed.
oON In the "ON" position, the light stays on at all times.
CAUTION:
Do not leave the switch in this posi- tion for an extended period time when the vehicle is not running. o OFF In the "OFF" position, the light stays off at all times even though a door is open.
!
C310A02P-GAT Interior Light (Van/Truck)
ON : The light illuminates.
OFF : The light goes out.
B490B01P

2 INSTRUMENTS AND CONTROLS
30

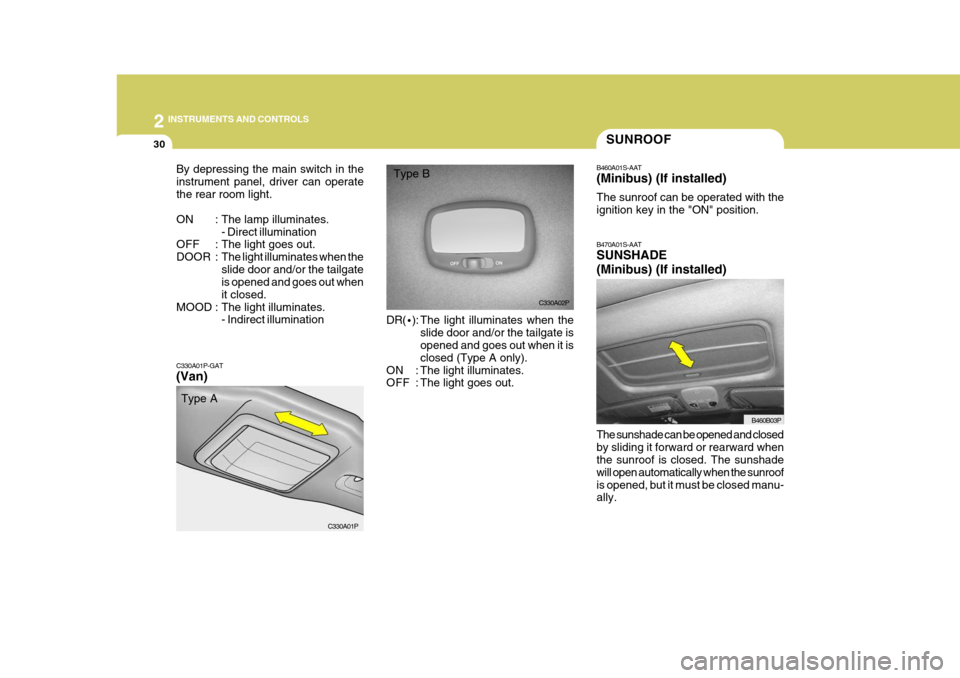

C330A01P-GAT (Van) DR(
·): The light illuminates when the
slide door and/or the tailgate is opened and goes out when it is closed (Type A only).
ON : The light illuminates.
OFF : The light goes out.
By depressing the main switch in the instrument panel, driver can operatethe rear room light.
ON : The lamp illuminates.
- Direct illumination
OFF : The light goes out.
DOOR : The light illuminates when theslide door and/or the tailgate is opened and goes out when it closed.
MOOD : The light illuminates. - Indirect illumination
C330A01P
SUNROOF
B470A01S-AAT SUNSHADE (Minibus) (If installed) The sunshade can be opened and closed by sliding it forward or rearward when the sunroof is closed. The sunshade will open automatically when the sunroofis opened, but it must be closed manu- ally.
B460A01S-AAT (Minibus) (If installed) The sunroof can be operated with the ignition key in the "ON" position.
B460B03P
B460B03P
C330A02P
Type A Type B

2
INSTRUMENTS AND CONTROLS
31
!
!

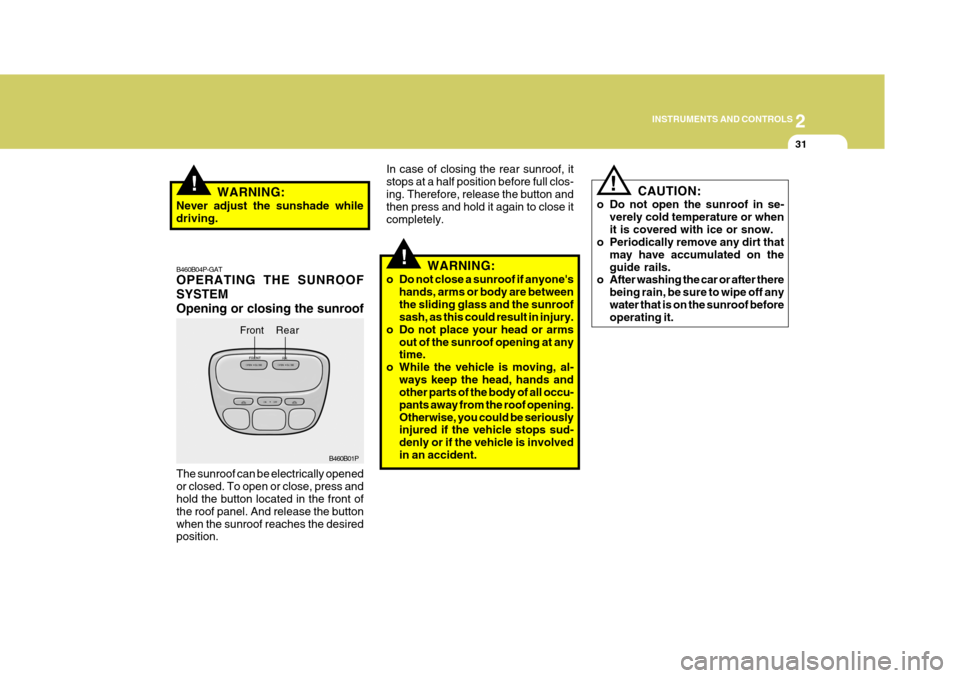

WARNING:
o Do not close a sunroof if anyone's hands, arms or body are between the sliding glass and the sunroof sash, as this could result in injury.
o Do not place your head or arms out of the sunroof opening at anytime.
o While the vehicle is moving, al- ways keep the head, hands andother parts of the body of all occu- pants away from the roof opening.Otherwise, you could be seriously injured if the vehicle stops sud- denly or if the vehicle is involvedin an accident. CAUTION:
o Do not open the sunroof in se- verely cold temperature or whenit is covered with ice or snow.
o Periodically remove any dirt that
may have accumulated on theguide rails.
o After washing the car or after there
being rain, be sure to wipe off anywater that is on the sunroof before operating it.
B460B04P-GAT OPERATING THE SUNROOF SYSTEMOpening or closing the sunroof The sunroof can be electrically opened or closed. To open or close, press and hold the button located in the front of the roof panel. And release the buttonwhen the sunroof reaches the desired position. Front
B460B01P
Rear
!WARNING:
Never adjust the sunshade while driving. In case of closing the rear sunroof, itstops at a half position before full clos-ing. Therefore, release the button and then press and hold it again to close it completely.

2 INSTRUMENTS AND CONTROLS
32
B460E01P-GAT REAR SUNROOF The rear sunroof can be electrically opened or closed. To open or to close, press and hold the button located onthe center of the roof panel. Release the button when the sunroof reaches the desired position. As a precautionwhen closing , it stops at a half position before fully closing. Therefore, release the button and then press it again toclose it completely. B460E01PManual Operation of Sunroof If the sunroof does not electrically op- erate:
1. Remove the plastic cover in the roof
panel.
2. Insert the hexagonal head wrench in to the socket. This wrench can be founded in the tool bag at the rightcorner of the vehicle.
3. Turn the wrench clockwise to open
or counter clockwise to close.B460D01P-GAT Manual Operation of Sunroof If the sunroof does not electrically oper- ate:
1. Remove the rectangular plasticcover in the front of the roof panel.
2. Insert the hexagonal head wrench
into the socket. This wrench can be found in the tool bag at the right corner of the vehicle.
3. Turn the wrench clockwise to open
or counterclockwise to close. B460D01P

2
INSTRUMENTS AND CONTROLS
33SUNVISOR
B580A01L-AAT Your Hyundai is equipped with sunvisors to give the driver and front passenger either frontal or sideward shade.The sunvisors are installed on both sides. To reduce glare or to shut out direct rays of the sun, turn the sunvisordown to block the annoyance. A vanity mirror is provided on the back of the sunvisor for the front passenger.(If installed) Vanity Mirror
C340A01PROOF RACK
B630A03P-GAT (Minibus) (If installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails and fixing components toadapt roof rack on your vehicle may be obtained from an authorized Hyundai dealer.Hyundai dealers are prepared to pro- vide high quality service that may be required. C630A01P
!
NOTE: The Supplemental Restraint System (SRS) label containing useful infor- mation can be found on the back ofeach sunvisor.
WARNING:
Do not place the sunvisor in such amanner that it obscures visibility of the roadway, traffic or other ob- jects.
