Hyundai H-1 (Grand Starex) 2011 Owner's Manual - RHD (UK, Australia)

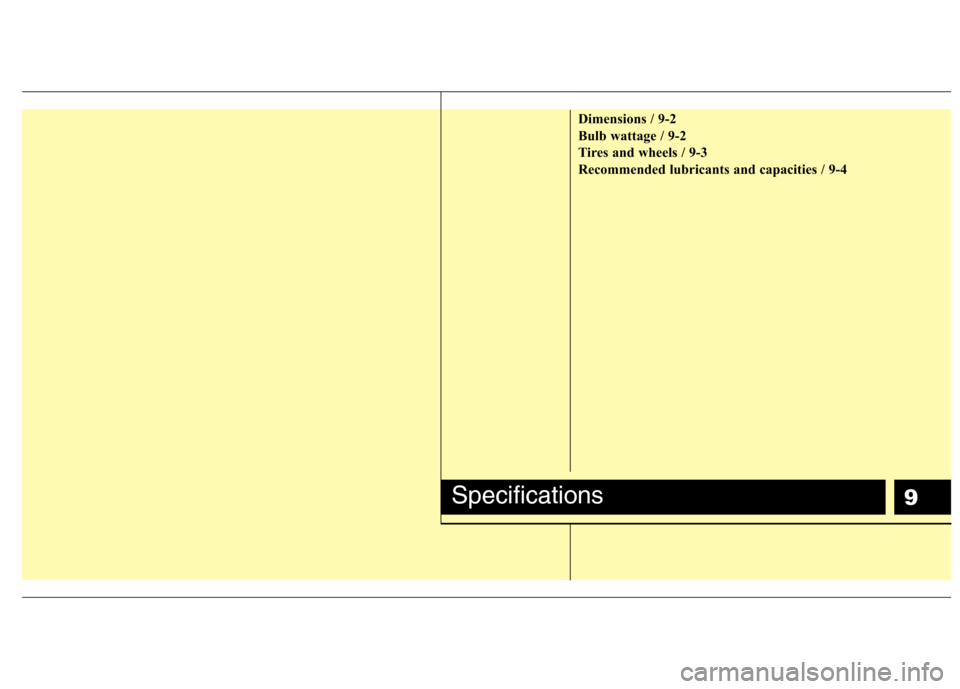

9
Dimensions / 9-2
Bulb wattage / 9-2
Tires and wheels / 9-3
Recommended lubricants and capacities / 9-4
Specifications

Specifications
2
9
Item mm (in)
Overall length 5125 (201.8)
Overall width 1920 (75.6)
Overall height 1925 (75.8)
Front tread 1685 (66.3)
Rear tread 1660 (65.4)
Wheelbase 3200 (126.0)

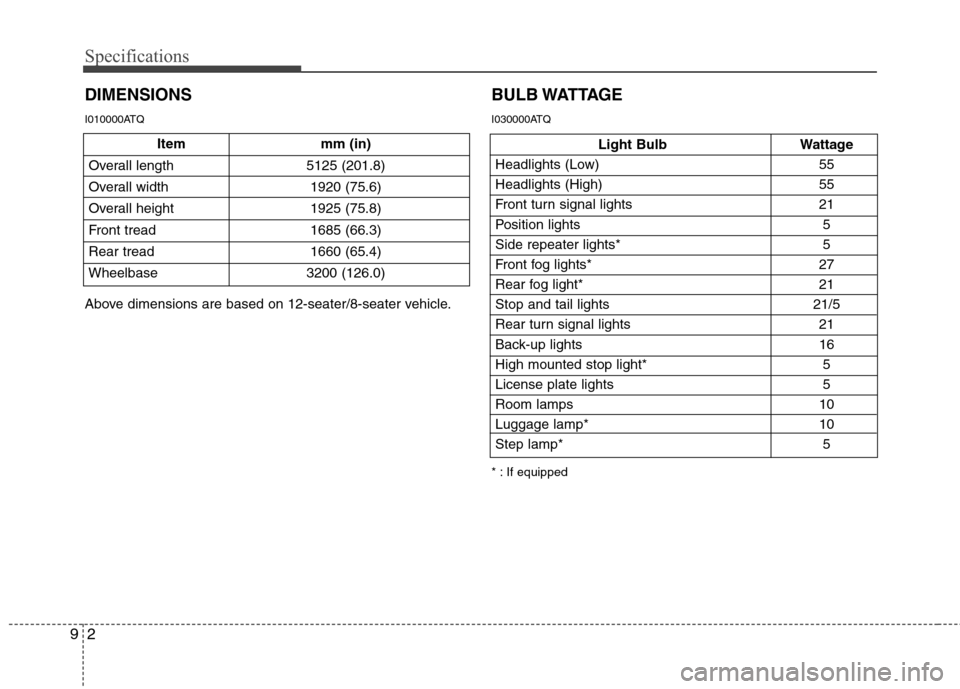

DIMENSIONS
Light Bulb Wattage
Headlights (Low) 55
Headlights (High) 55
Front turn signal lights 21
Position lights 5
Side repeater lights* 5
Front fog lights* 27
Rear fog light* 21
Stop and tail lights 21/5
Rear turn signal lights 21
Back-up lights 16
High mounted stop light* 5
License plate lights 5Room lamps 10
Luggage lamp* 10
Step lamp* 5
BULB WATTAGE
* : If equipped
Above dimensions are based on 12-seater/8-seater vehicle.
I010000ATQ
I030000ATQ

93
Specifications

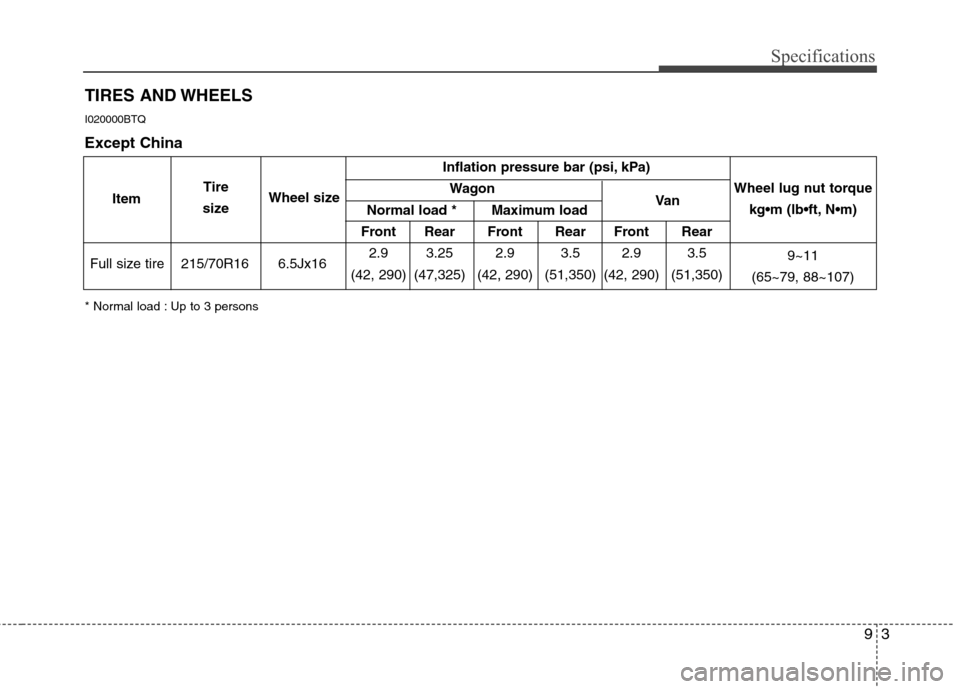

TIRES AND WHEELS
* Normal load : Up to 3 persons
I020000BTQ
Inflation pressure bar (psi, kPa)
Wagon
Front Rear Front Rear Front Rear
215/70R16 6.5Jx16 2.9 3.25 2.9 3.5 2.9 3.5
(42, 290) (47,325) (42, 290) (51,350) (42, 290) (51,350)
Full size tire Wheel lug nut torque
kg•m (lb N
9~11
(65~79, 88~107)
Item
Tire
size Wheel size
Normal load * Maximum load Va n
Except China

Specifications
4
9

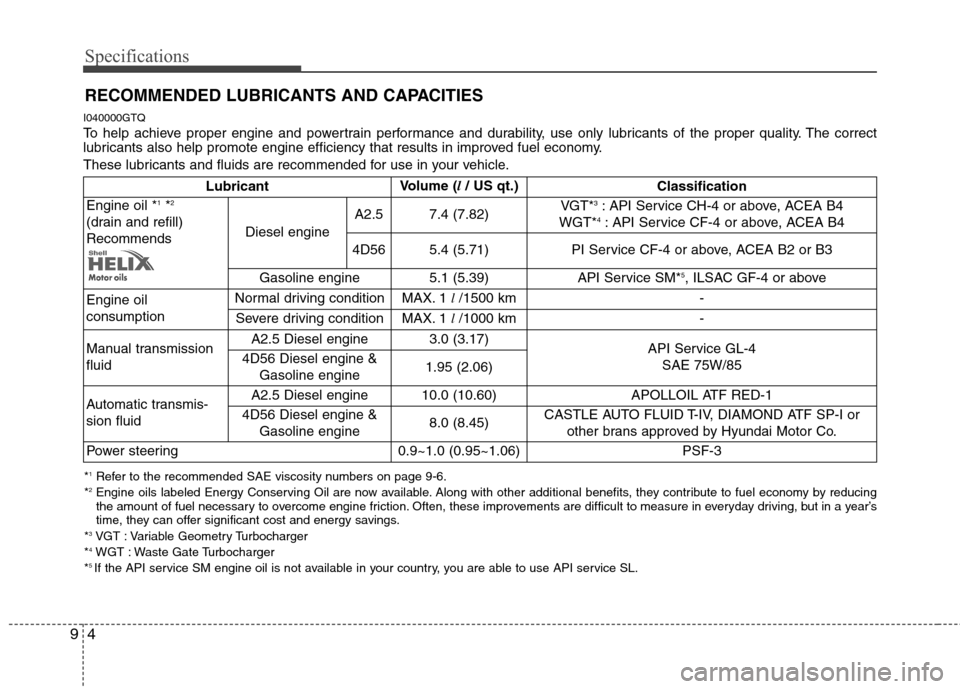

RECOMMENDED LUBRICANTS AND CAPACITIES
I040000GTQ
To help achieve proper engine and powertrain performance and durability, use only lubricants of the proper quality. The correct
lubricants also help promote engine efficiency that results in improved fuel economy.
These lubricants and fluids are recommended for use in your vehicle.
* 1
Refer to the recommended SAE viscosity numbers on page 9-6.
* 2
Engine oils labeled Energy Conserving Oil are now available. Along with other additional benefits, they contribute to fuel econo my by reducing
the amount of fuel necessary to overcome engine friction. Often, these improvements are difficult to measure in everyday driving, but in a year’s
time, they can offer significant cost and energy savings.
* 3
VGT : Variable Geometry Turbocharger
* 4
WGT : Waste Gate Turbocharger
* 5
If the API service SM engine oil is not available in your country, you are able to use API service SL. Lubricant
Volume (
l/ US qt.)
Classification
Engine oil * 1
*2
(drain and refill) Recommends Diesel engineA2.5 7.4 (7.82)
VGT*
3
: API Service CH-4 or above, ACEA B4
WGT* 4
: API Service CF-4 or above, ACEA B4
4D56 5.4 (5.71) PI Service CF-4 or above, ACEA B2 or B3
Gasoline engine 5.1 (5.39) API Service SM* 5
, ILSAC GF-4 or above
Engine oil consumption Normal driving condition
MAX. 1
l/1500 km
-
Severe driving condition MAX. 1
l/1000 km
-
Manual transmissionfluid A2.5 Diesel engine 3.0 (3.17)
API Service GL-4
SAE 75W/85
4D56 Diesel engine &
Gasoline engine 1.95 (2.06)
Automatic transmis-sion fluid A2.5 Diesel engine 10.0 (10.60) APOLLOIL ATF RED-1
4D56 Diesel engine & Gasoline engine 8.0 (8.45)CASTLE AUTO FLUID T-IV, DIAMOND ATF SP-I or
other brans approved by Hyundai Motor Co.
Power steering 0.9~1.0 (0.95~1.06) PSF-3

95
Specifications

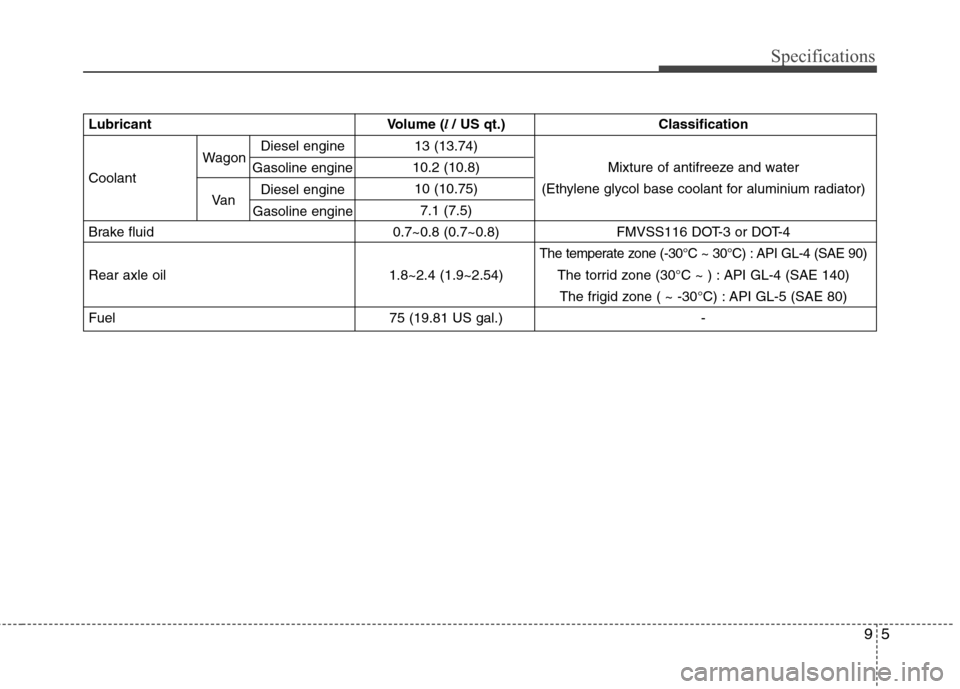

LubricantVolume (l / US qt.) Classification
13 (13.74)
Coolant 10.2 (10.8) Mixture of antifreeze and water
10 (10.75) (Ethylene glycol base coolant for aluminium radiator) 7.1 (7.5)
Brake fluid 0.7~0.8 (0.7~0.8) FMVSS116 DOT-3 or DOT-4
The temperate zone (-30°C ~ 30°C) : API GL-4 (SAE 90)
Rear axle oil 1.8~2.4 (1.9~2.54) The torrid zone (30°C ~ ) : API GL-4 (SAE 140)
The frigid zone ( ~ -30°C) : API GL-5 (SAE 80)
Fuel 75 (19.81 US gal.) -
Diesel engine
Gasoline engine
Diesel engine
Gasoline engineWagon
Va n

Specifications
6
9

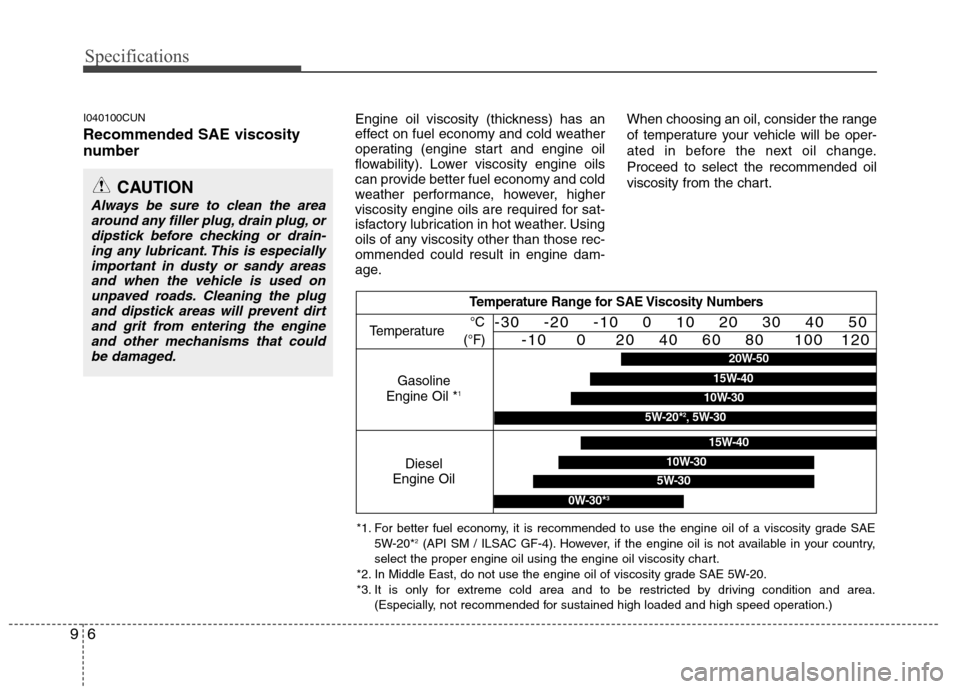

I040100CUN Recommended SAE viscosity
number Engine oil viscosity (thickness) has an
effect on fuel economy and cold weather
operating (engine start and engine oil
flowability). Lower viscosity engine oils
can provide better fuel economy and cold
weather performance, however, higher
viscosity engine oils are required for sat-
isfactory lubrication in hot weather. Using
oils of any viscosity other than those rec-ommended could result in engine dam-
age.When choosing an oil, consider the range
of temperature your vehicle will be oper-
ated in before the next oil change.Proceed to select the recommended oil
viscosity from the chart.
CAUTION
Always be sure to clean the area
around any filler plug, drain plug, or
dipstick before checking or drain-ing any lubricant. This is especiallyimportant in dusty or sandy areas
and when the vehicle is used on unpaved roads. Cleaning the plugand dipstick areas will prevent dirt and grit from entering the engine and other mechanisms that could
be damaged.
Temperature Range for SAE Viscosity Numbers
Temperature
Gasoline
Engine Oil * 1°C
(°F)-30 -20 -10 0 10 20 30 40 50 -10 0 20 40 60 80 100 120
Diesel
Engine Oil
5W-30
15W-40
10W-30
0W-30* 3
*1. For better fuel economy, it is recommended to use the engine oil of a viscosity grade SAE
5W-20* 2
(API SM / ILSAC GF-4). However, if the engine oil is not available in your country,
select the proper engine oil using the engine oil viscosity chart.
*2. In Middle East, do not use the engine oil of viscosity grade SAE 5W-20.
*3. It is only for extreme cold area and to be restricted by driving condition and area. (Especially, not recommended for sustained high loaded and high speed operation.)
20W-50
10W-30
15W-40
5W-20* 2
, 5W-30

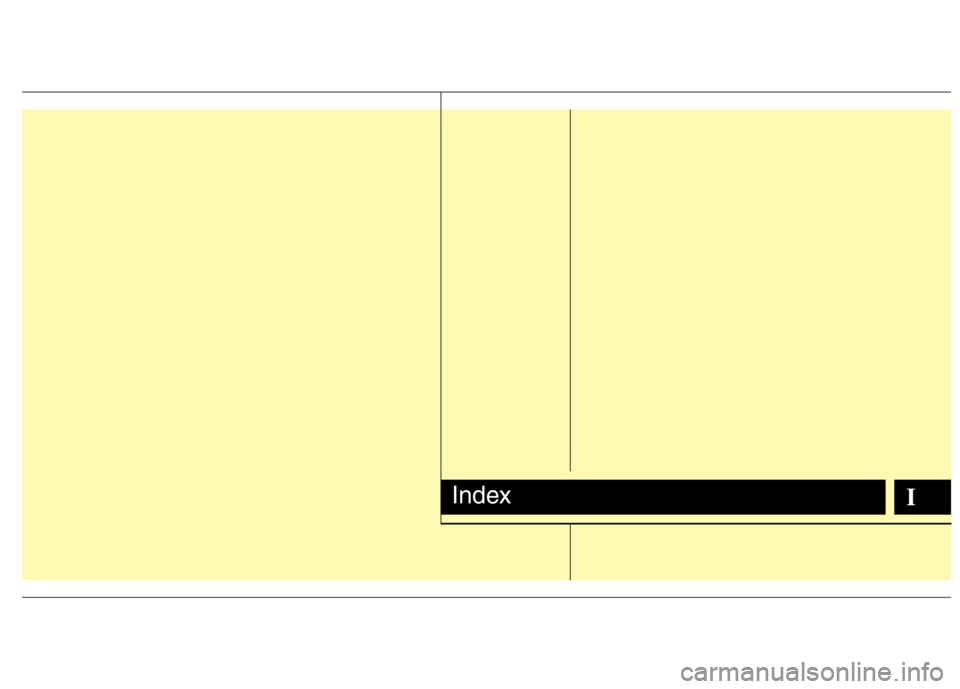

IIndex

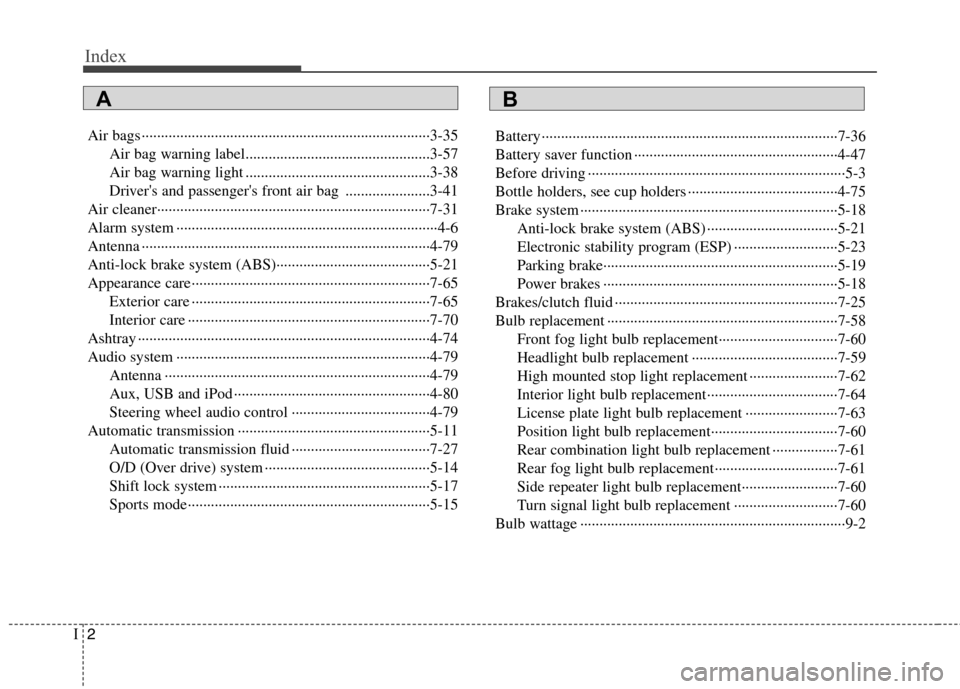

Index
2
I
Air bags ···········································································3-35
Air bag warning label................................................3-57
Air bag warning light ................................................3-38
Driver's and passenger's front air bag ......................3-41
Air cleaner·······································································7-31
Alarm system ····································································4-6
Antenna ···········································································4-79
Anti-lock brake system (ABS)········································5-21
Appearance care······························································7-65 Exterior care ······························································7-65
Interior care ·······························································7-70
Ashtray ············································································4-74
Audio system ··································································4-79 Antenna ·····································································4-79
Aux, USB and iPod ···················································4-80
Steering wheel audio control ····································4-79
Automatic transmission ··················································5-11 Automatic transmission fluid ····································7-27
O/D (Over drive) system ···········································5-14
Shift lock system ·······················································5-17
Sports mode·······························································5-15 Battery ·············································································7-36
Battery saver function ·····················································4-47
Before driving ···································································5-3
Bottle holders, see cup holders ·······································4-75
Brake system ···································································5-18
Anti-lock brake system (ABS) ··································5-21
Electronic stability program (ESP) ···························5-23
Parking brake·····························································5-19
Power brakes ·····························································5-18
Brakes/clutch fluid ··························································7-25
Bulb replacement ····························································7-58 Front fog light bulb replacement·······························7-60
Headlight bulb replacement ······································7-59
High mounted stop light replacement ·······················7-62
Interior light bulb replacement··································7-64
License plate light bulb replacement ························7-63
Position light bulb replacement·································7-60
Rear combination light bulb replacement ·················7-61
Rear fog light bulb replacement································7-61
Side repeater light bulb replacement·························7-60
Turn signal light bulb replacement ···························7-60
Bulb wattage ·····································································9-2
AB

I3

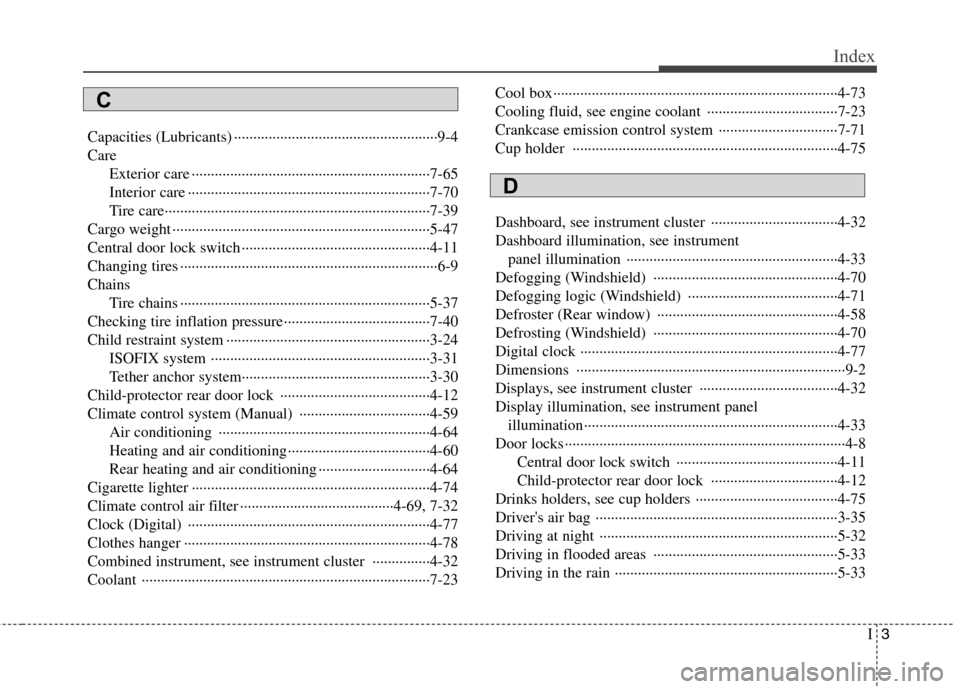

Index
Capacities (Lubricants) ·····················································9-4 Care
Exterior care ······························································7-65
Interior care ·······························································7-70
Tire care·····································································7-39
Cargo weight ···································································5-47
Central door lock switch ·················································4-11
Changing tires ···································································6-9Chains Tire chains ·································································5-37
Checking tire inflation pressure ······································7-40
Child restraint system ·····················································3-24 ISOFIX system ·························································3-31
Tether anchor system·················································3-30
Child-protector rear door lock ·······································4-12
Climate control system (Manual) ··································4-59 Air conditioning ·······················································4-64
Heating and air conditioning ·····································4-60
Rear heating and air conditioning ·····························4-64
Cigarette lighter ······························································4-74
Climate control air filter ········································4-69, 7-32
Clock (Digital) ·······························································4-77
Clothes hanger ································································4-78
Combined instrument, see instrument cluster ···············4-32Coolant ···········································································7-23 Cool box··········································································4-73
Cooling fluid, see engine coolant ··································7-23
Crankcase emission control system ·······························7-71
Cup holder ·····································································4-75
Dashboard, see instrument cluster ·································4-32
Dashboard illumination, see instrument
panel illumination ·······················································4-33
Defogging (Windshield) ················································4-70
Defogging logic (Windshield) ·······································4-71
Defroster (Rear window) ···············································4-58
Defrosting (Windshield) ················································4-70
Digital clock ···································································4-77Dimensions ······································································9-2
Displays, see instrument cluster ····································4-32
Display illumination, see instrument panel illumination··································································4-33
Door locks ·········································································4-8 Central door lock switch ··········································4-11
Child-protector rear door lock ·································4-12
Drinks holders, see cup holders ·····································4-75
Driver's air bag ·······························································3-35
Driving at night ······························································5-32
Driving in flooded areas ················································5-33
Driving in the rain ··························································5-33
C
D

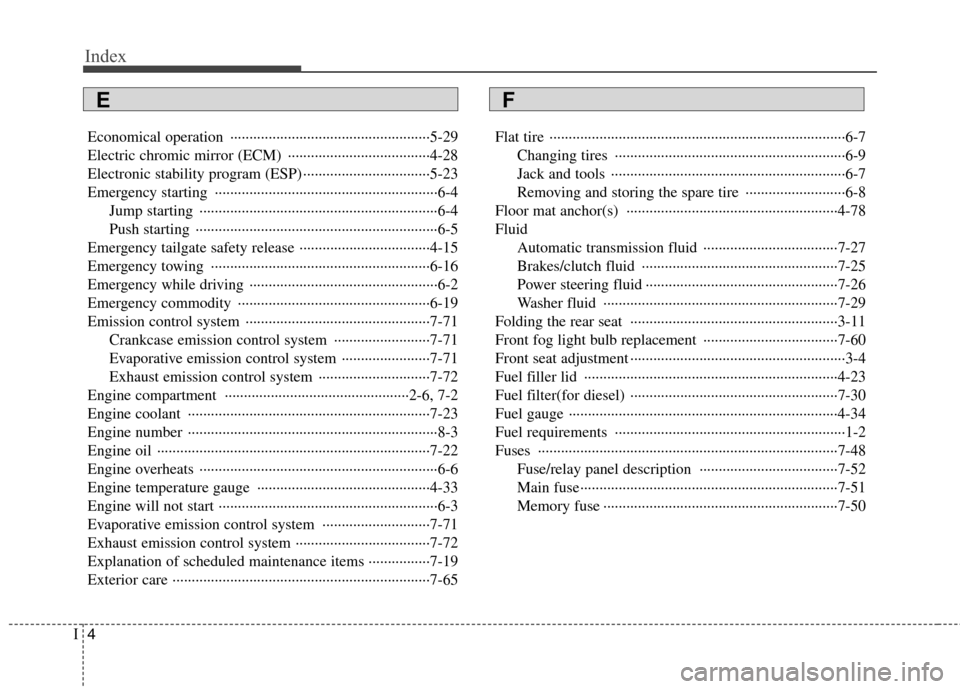

Index
4
I
Economical operation ····················································5-29
Electric chromic mirror (ECM) ·····································4-28
Electronic stability program (ESP) ·································5-23
Emergency starting ··························································6-4
Jump starting ······························································6-4
Push starting ·······························································6-5
Emergency tailgate safety release ··································4-15
Emergency towing ·························································6-16
Emergency while driving ·················································6-2
Emergency commodity ··················································6-19
Emission control system ················································7-71 Crankcase emission control system ·························7-71
Evaporative emission control system ·······················7-71
Exhaust emission control system ·····························7-72
Engine compartment ················································2-6, 7-2
Engine coolant ·······························································7-23
Engine number ·································································8-3
Engine oil ·······································································7-22
Engine overheats ······························································6-6
Engine temperature gauge ·············································4-33
Engine will not start ·························································6-3
Evaporative emission control system ····························7-71
Exhaust emission control system ···································7-72Explanation of scheduled maintenance items ················7-19
Exterior care ···································································7-65 Flat tire ·············································································6-7
Changing tires ····························································6-9
Jack and tools ·····························································6-7
Removing and storing the spare tire ··························6-8
Floor mat anchor(s) ·······················································4-78Fluid Automatic transmission fluid ···································7-27
Brakes/clutch fluid ···················································7-25
Power steering fluid ··················································7-26
Washer fluid ·····························································7-29
Folding the rear seat ······················································3-11
Front fog light bulb replacement ···································7-60
Front seat adjustment ························································3-4
Fuel filler lid ··································································4-23
Fuel filter(for diesel) ······················································7-30
Fuel gauge ······································································4-34
Fuel requirements ····························································1-2Fuses ··············································································7-48 Fuse/relay panel description ····································7-52
Main fuse···································································7-51
Memory fuse ·····························································7-50
EF
