Page 121 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual 451
Features of your vehicle

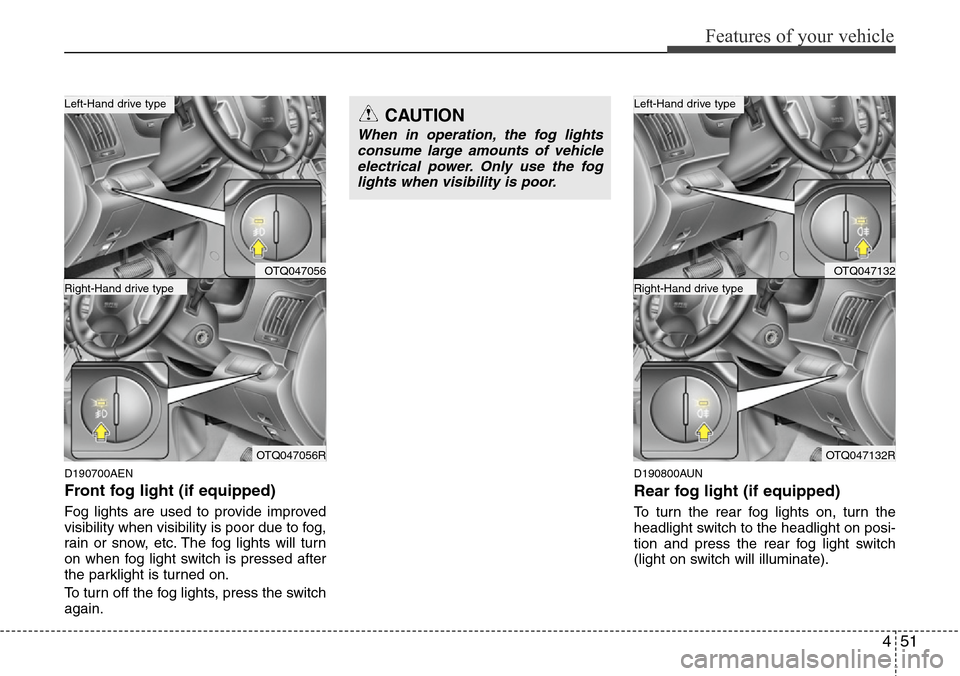

D190700AEN
Front fog light (if equipped)
Fog lights are used to provide improved
visibility when visibility is poor due to fog,
rain or snow, etc. The fog lights will tu

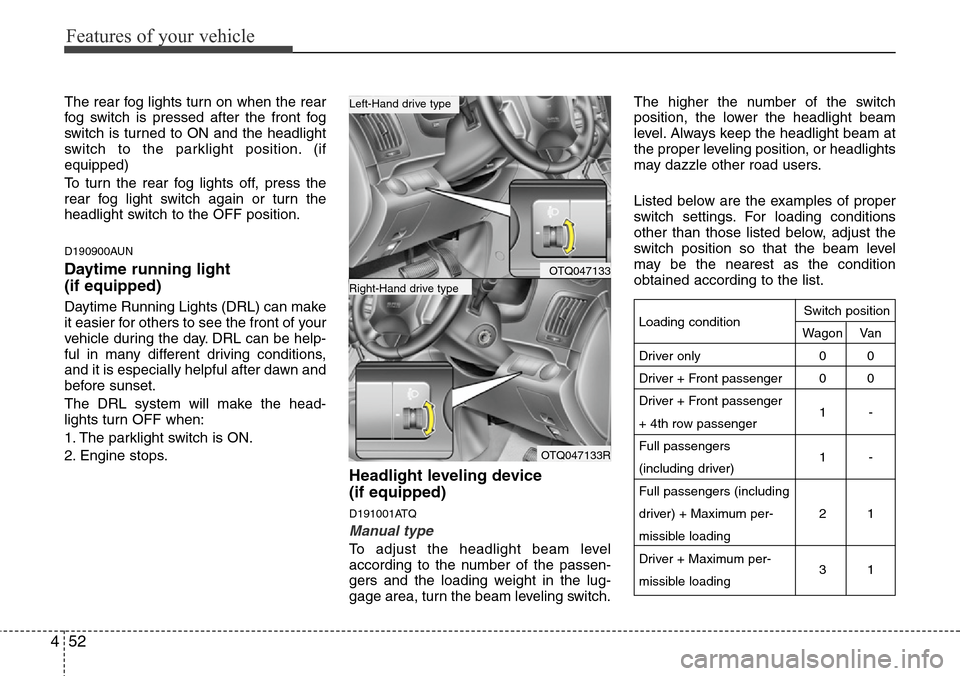

Page 122 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual Features of your vehicle
52 4
The rear fog lights turn on when the rear
fog switch is pressed after the front fog
switch is turned to ON and the headlight
switch to the parklight position. (if
equippe

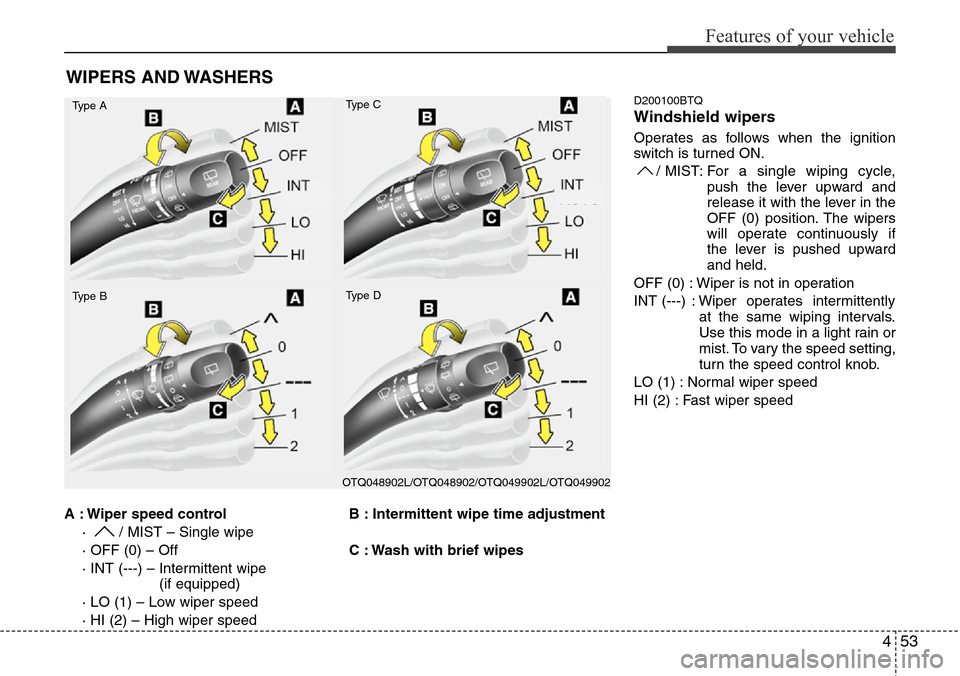

Page 123 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual 453
Features of your vehicle
A : Wiper speed control
·  / MIST – Single wipe
· OFF (0) – Off
· INT (---) – Intermittent wipe
(if equipped)
· LO (1) – Low wiper speed
· HI (2) – High wi

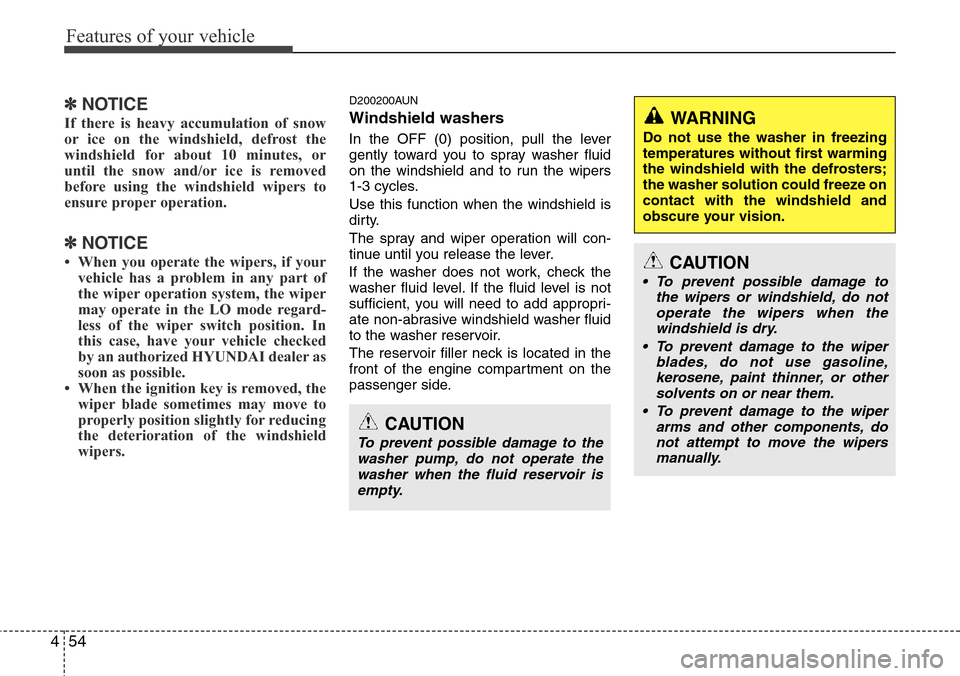

Page 124 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual Features of your vehicle
54 4
✽NOTICE
If there is heavy accumulation of snow
or ice on the windshield, defrost the
windshield for about 10 minutes, or
until the snow and/or ice is removed
before usi

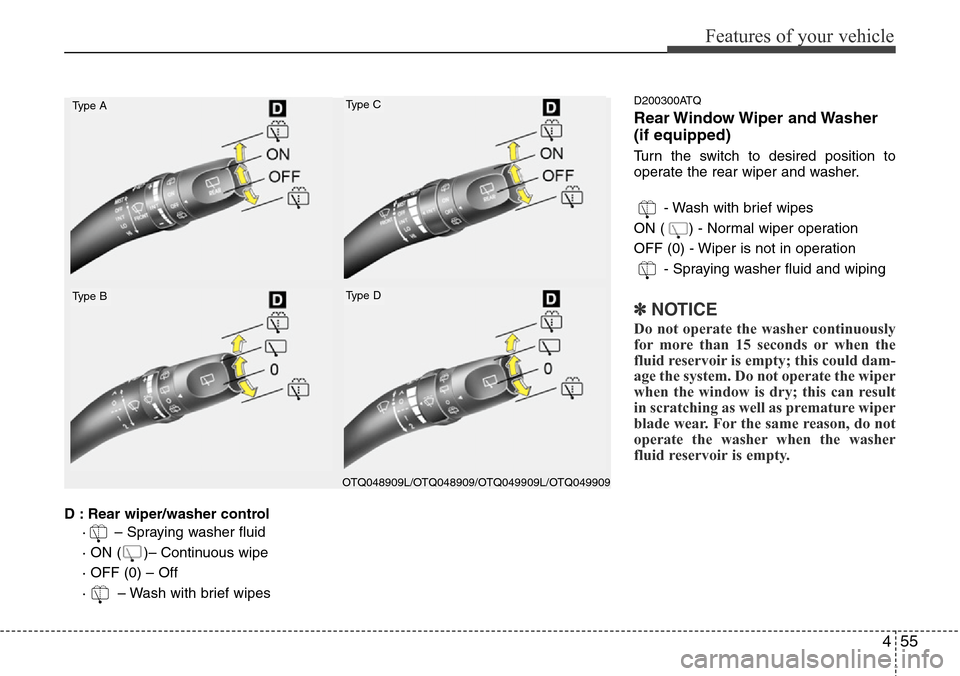

Page 125 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual 455
Features of your vehicle
D : Rear wiper/washer control
·   – Spraying washer fluid
· ON ( )– Continuous wipe
· OFF (0) – Off
·   – Wash with brief wipes
D200300ATQ
Rear Window Wiper  a

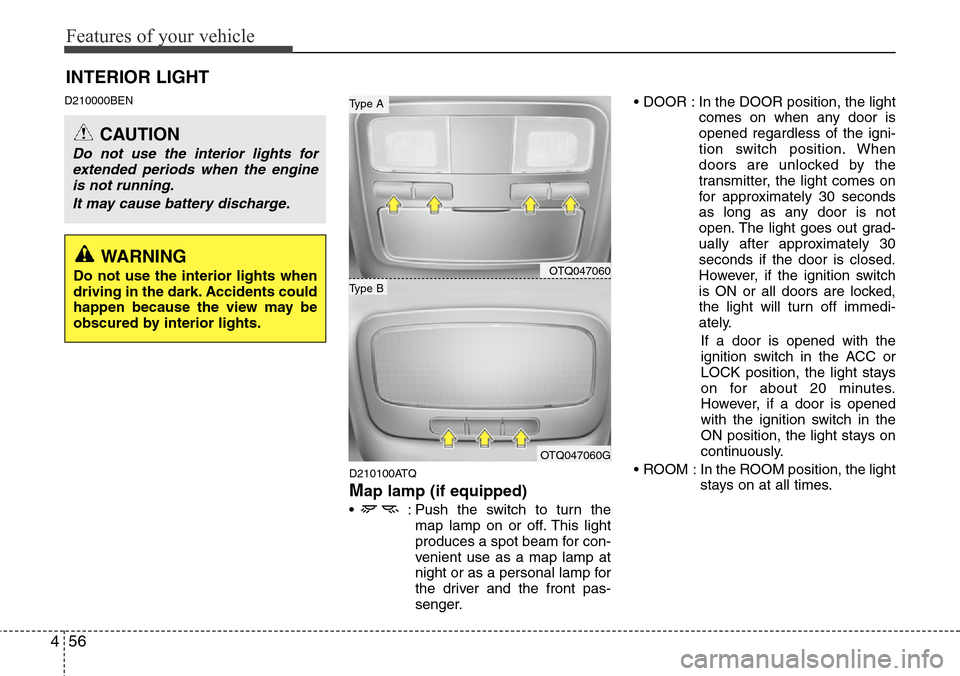

Page 126 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual Features of your vehicle
56 4
D210000BEN
D210100ATQ
Map lamp (if equipped)
•  : Push the switch to turn the
map lamp on or off. This light
produces a spot beam for con-
venient use as a map lamp at

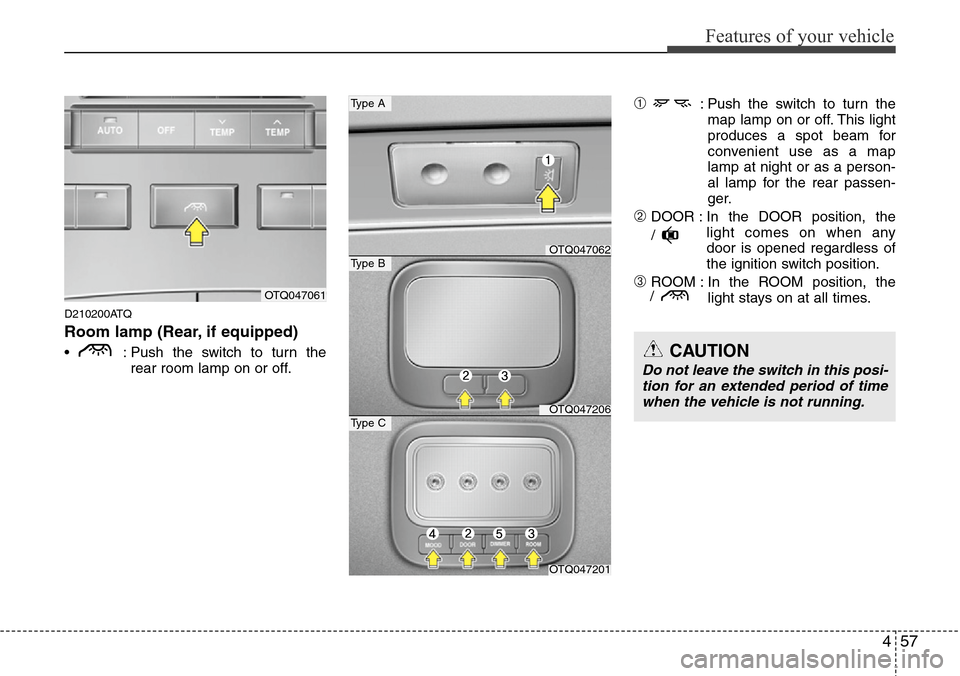

Page 127 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual 457
Features of your vehicle
D210200ATQ
Room lamp (Rear, if equipped)
•  : Push the switch to turn the
rear room lamp on or off.
➀: Push the switch to turn the
map lamp on or off. This light
produ

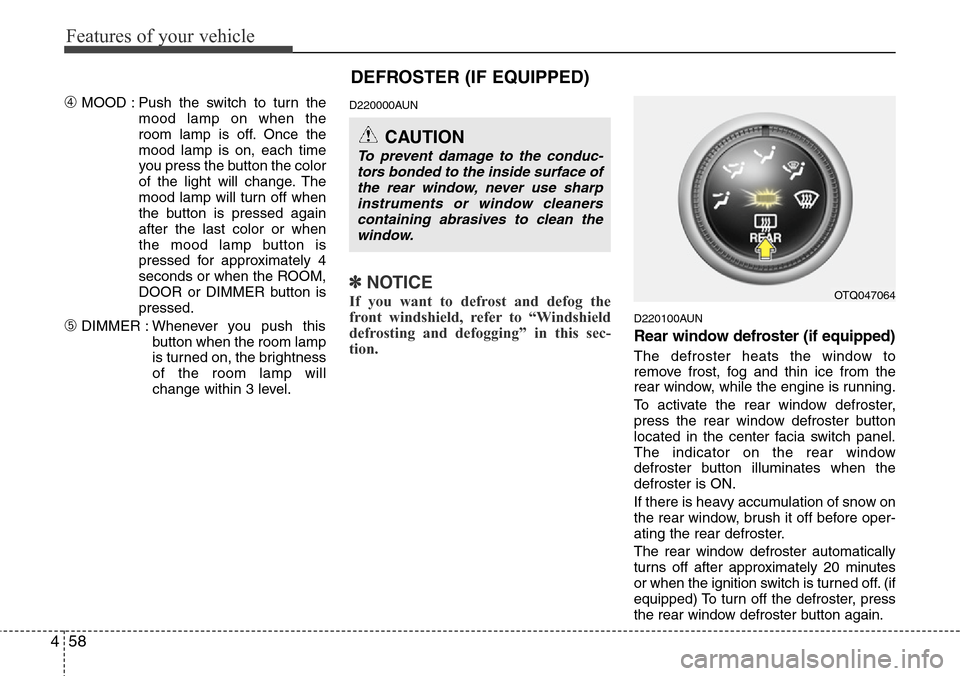

Page 128 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual Features of your vehicle
58 4
DEFROSTER (IF EQUIPPED)
➃MOOD : Push the switch to turn the
mood lamp on when the
room lamp is off. Once the
mood lamp is on, each time
you press the button the color
o

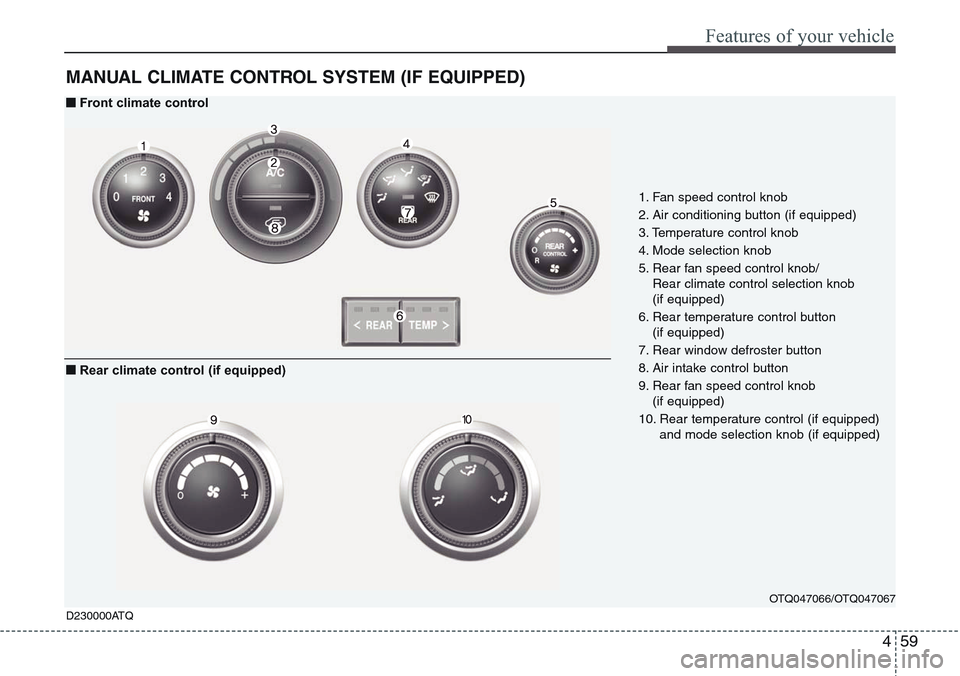

Page 129 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual 459
Features of your vehicle
MANUAL CLIMATE CONTROL SYSTEM (IF EQUIPPED)
OTQ047066/OTQ047067
1. Fan speed control knob
2. Air conditioning button (if equipped)
3. Temperature control knob
4. Mode sele

Page 130 of 338

Hyundai H-1 (Grand Starex) 2011  Owners Manual Features of your vehicle
60 4

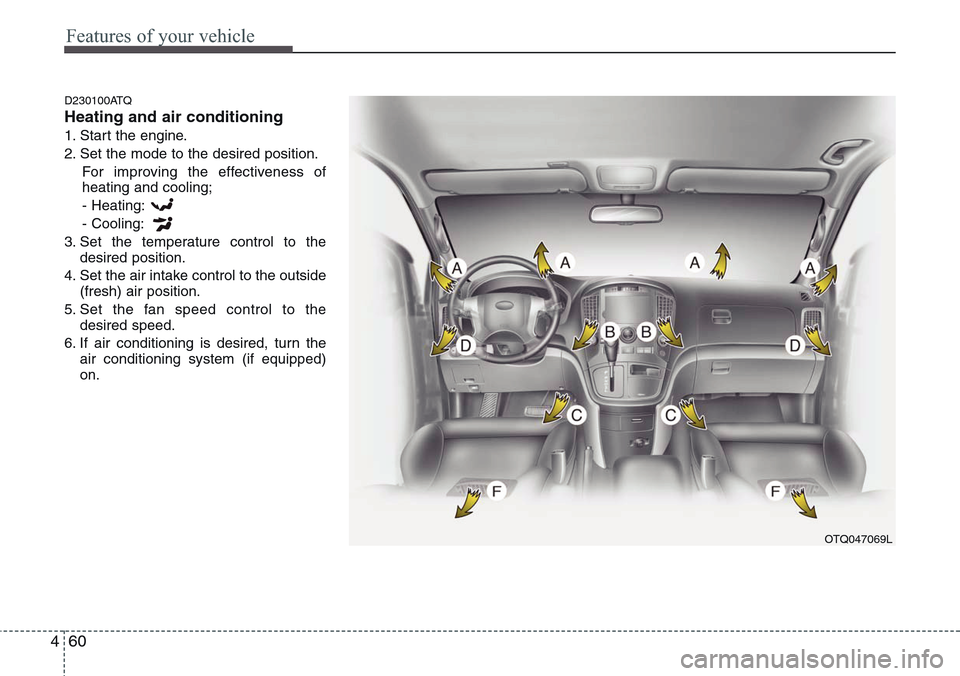

D230100ATQ
Heating and air conditioning
1. Start the engine.
2. Set the mode to the desired position.
For improving the effectiveness of
heating and cooling;
- Heating:
-
