Page 311 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual What to do in an emergency
14 6

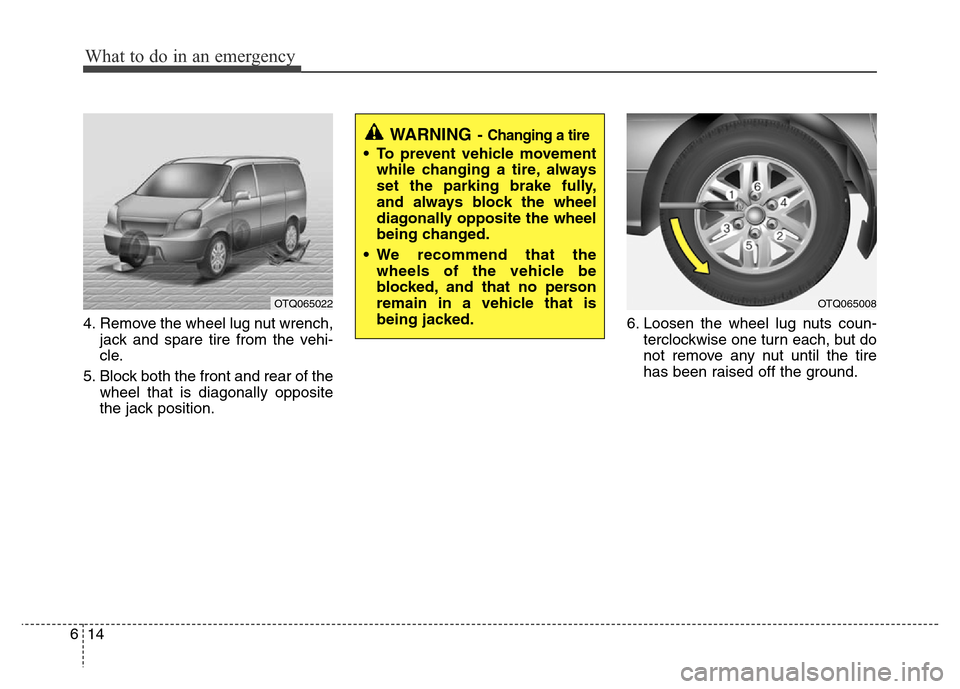

4. Remove the wheel lug nut wrench,
jack and spare tire from the vehi-
cle.
5. Block both the front and rear of the
wheel that is diagonally opposite
the jack position.

Page 312 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual 615
What to do in an emergency

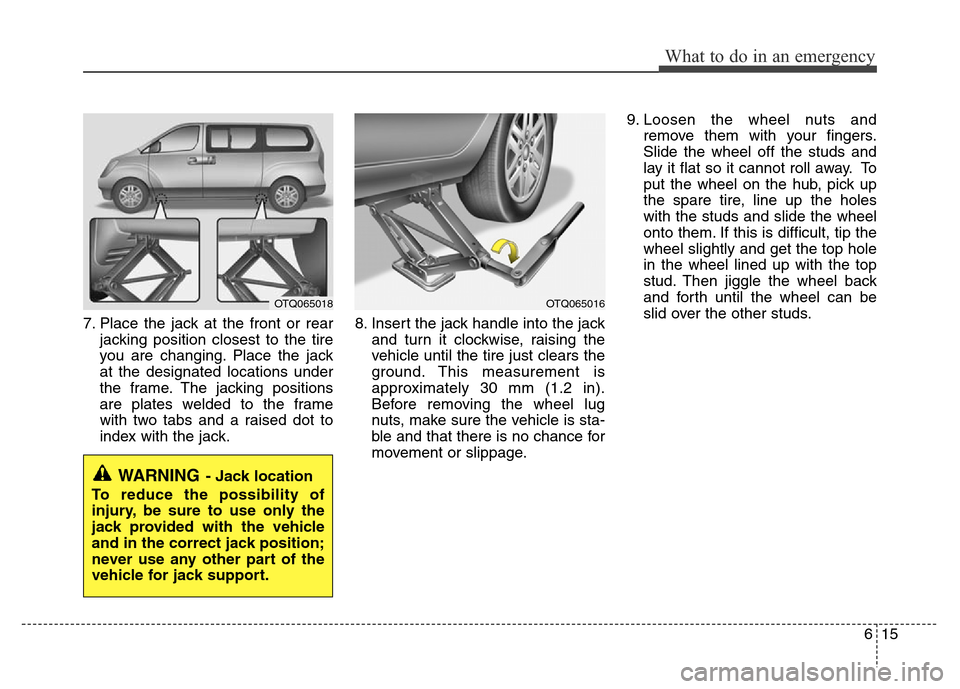

7. Place the jack at the front or rear
jacking position closest to the tire
you are changing. Place the jack
at the designated locations under
the frame. The jacking pos

Page 313 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual What to do in an emergency
16 6

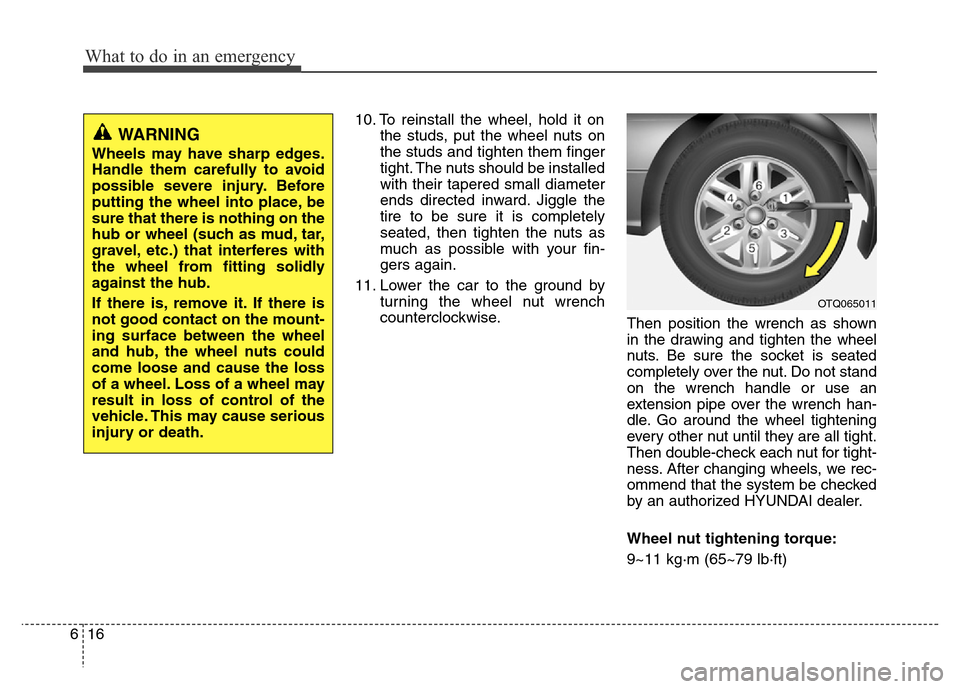

10. To reinstall the wheel, hold it on
the studs, put the wheel nuts on
the studs and tighten them finger
tight. The nuts should be installed
with their tapered small d

Page 314 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual 617
What to do in an emergency

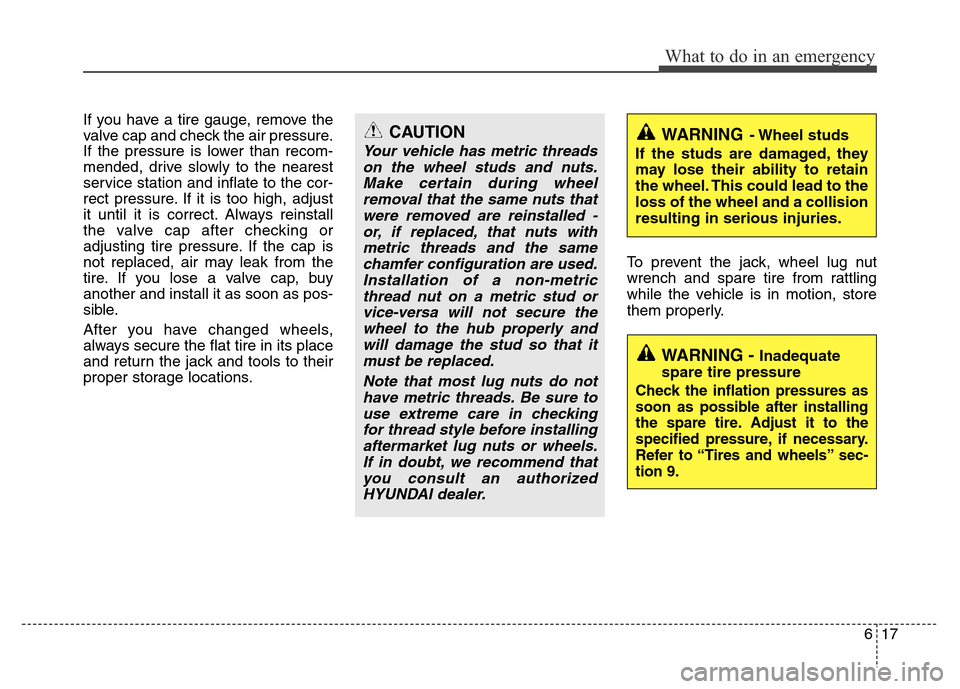

If you have a tire gauge, remove the
valve cap and check the air pressure.
If the pressure is lower than recom-
mended, drive slowly to the nearest
service station and i

Page 315 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual What to do in an emergency
18 6

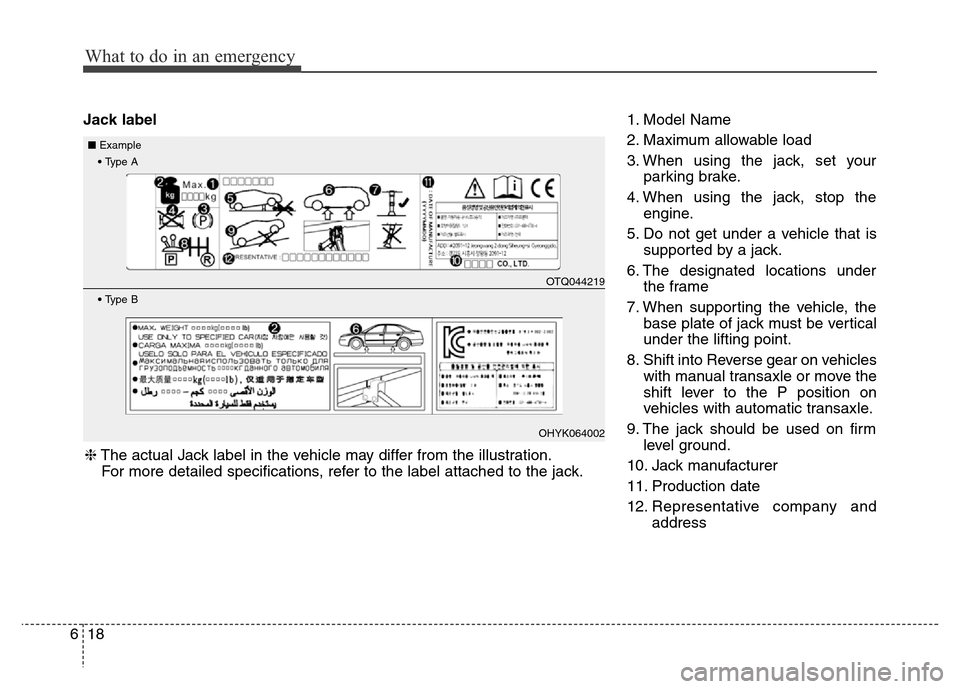

Jack label1. Model Name
2. Maximum allowable load
3. When using the jack, set your
parking brake.
4. When using the jack, stop the
engine.
5. Do not get under a vehicle

Page 316 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual 619
What to do in an emergency

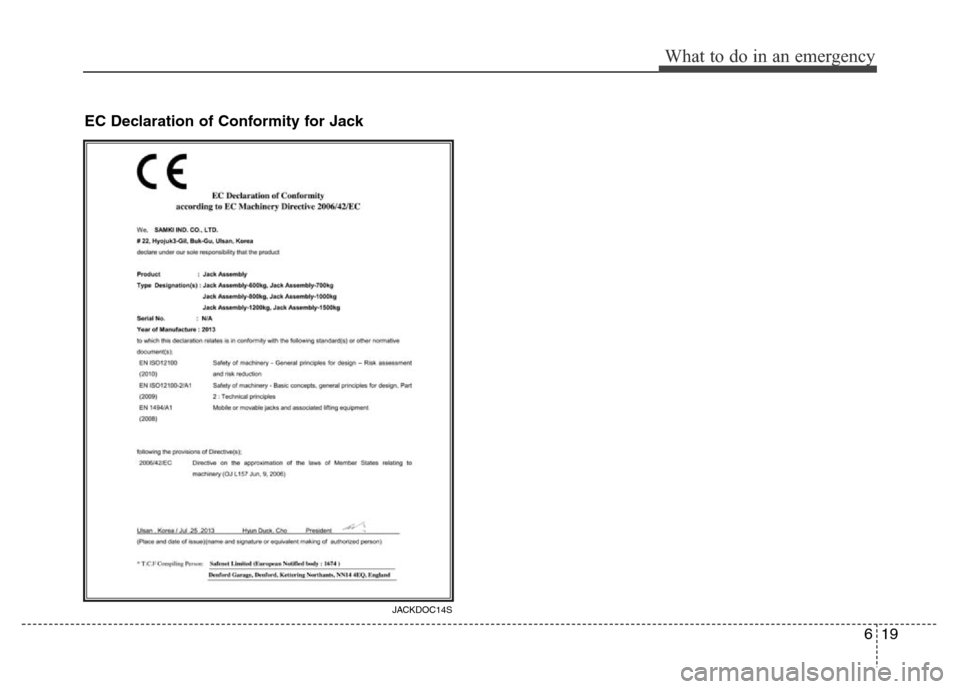

EC Declaration of Conformity for Jack
JACKDOC14S

Page 317 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual What to do in an emergency
20 6

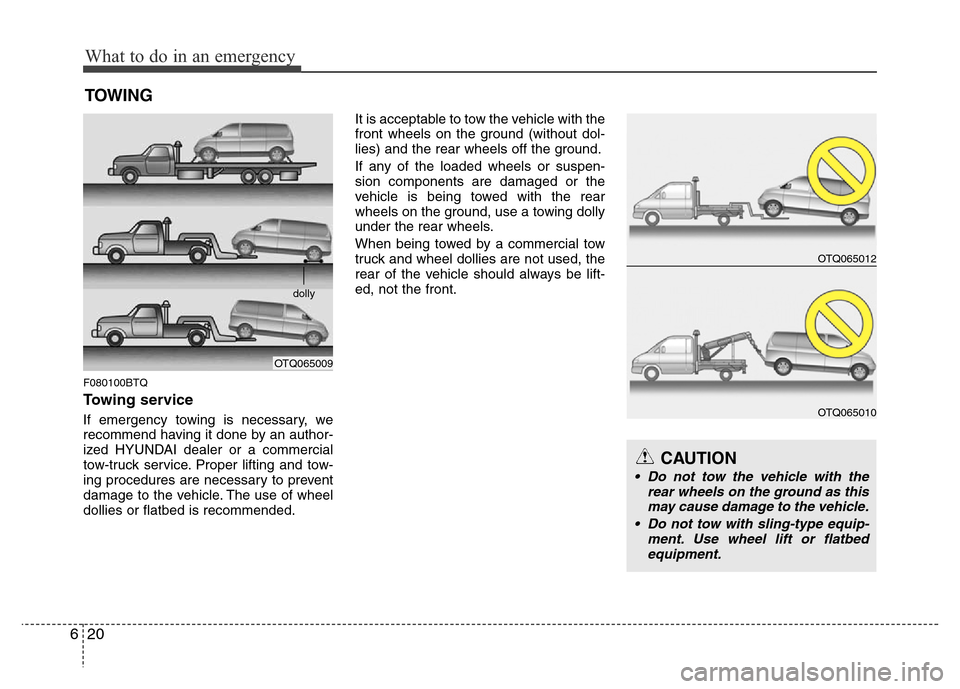

TOWING
F080100BTQ
Towing service
If emergency towing is necessary, we
recommend having it done by an author-
ized HYUNDAI dealer or a commercial
tow-truck service. Prop

Page 318 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual 621
What to do in an emergency

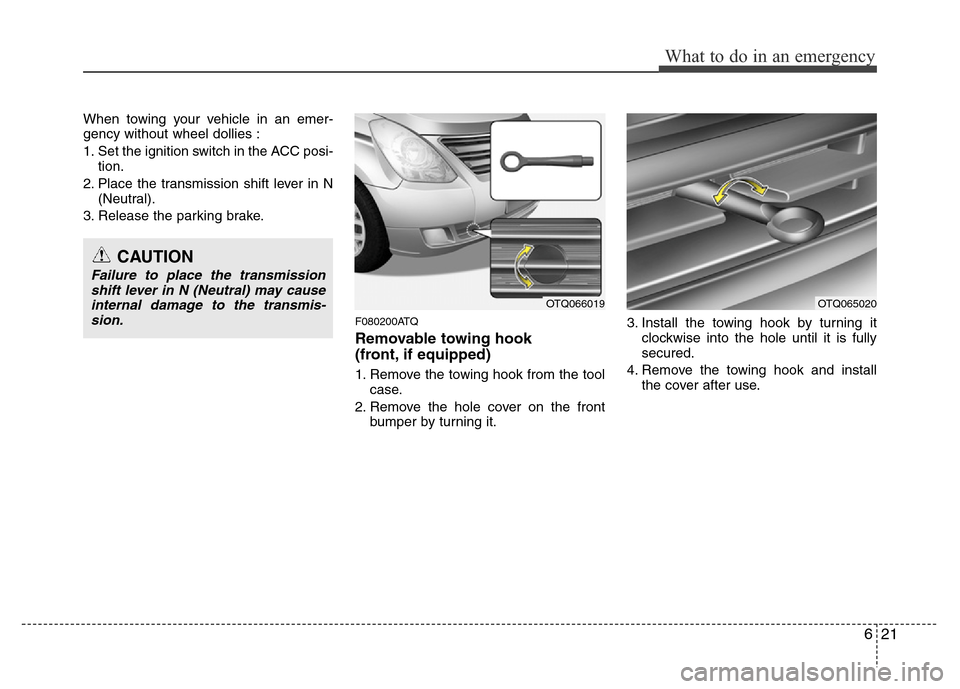

When towing your vehicle in an emer-
gency without wheel dollies :
1. Set the ignition switch in the ACC posi-
tion.
2. Place the transmission shift lever in N
(Neutral)

Page 319 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual What to do in an emergency
22 6
F080300AEN
Emergency towing
If towing is necessary, we recommend
you to have it done by an authorized
HYUNDAI dealer or a commercial tow
truck service.If towing service

Page 320 of 417

Hyundai H-1 (Grand Starex) 2016  Owners Manual 623
What to do in an emergency
• Use a towing strap less than 5 m (16
feet) long. Attach a white or red cloth
(about 30 cm (12 inches) wide) in the
middle of the strap for easy visibility.
• Drive
