4-16
Instrument cluster
Exhaust System (GPF)
Warning Light
(Petrol Engine,
if equipped)
7 K L V Z D U Q L Q J O L J K W L O O X P L Q D W H V
[ This warning light illuminates, when
accumulated soot reaches a certain
amount.
[ When this warning light illuminates, it
may turn off after driving the vehicle
at more than 50 mph (80 km/h) for
about 30 minutes (above 3rd gear with
1500 ~ 4000 engine RPM).
If this warning light blinks in spite
of the procedure (at this time LCD
warning message will be displayed),
we recommend that you have the
GPF system checked by a HYUNDAI
authorised repairer.
NOTICE
If you continue to drive with the GPF
warning light blinking for a long time,
the GPF system can be damaged and
fuel consumption can worsen.
Electronic Stability
Control (ESC) indicator
light
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The Electronic Stability Control
indicator light illuminates for about 3
seconds and then goes off.
[ Whenever there is a malfunction with
ESC system.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
7 K L V L Q G L F D W R U O L J K W E O L Q N V
[ Whilst the ESC is operating.
For more details, refer to “Electronic
Stability Control (ESC)” section in
chapter 6.
Electronic Stability
Control (ESC) OFF
Indicator Light
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
the Engine Start/Stop button to the
ON position.
- The ESC OFF indicator light illuminates
for approximately 3 seconds and then
goes off.
[ When you deactivate the ESC system
by pressing the ESC OFF button.
For more details, refer to “Electronic
Stability Control (ESC)” section in
chapter 6.
Page 112 of 649
4-17
04

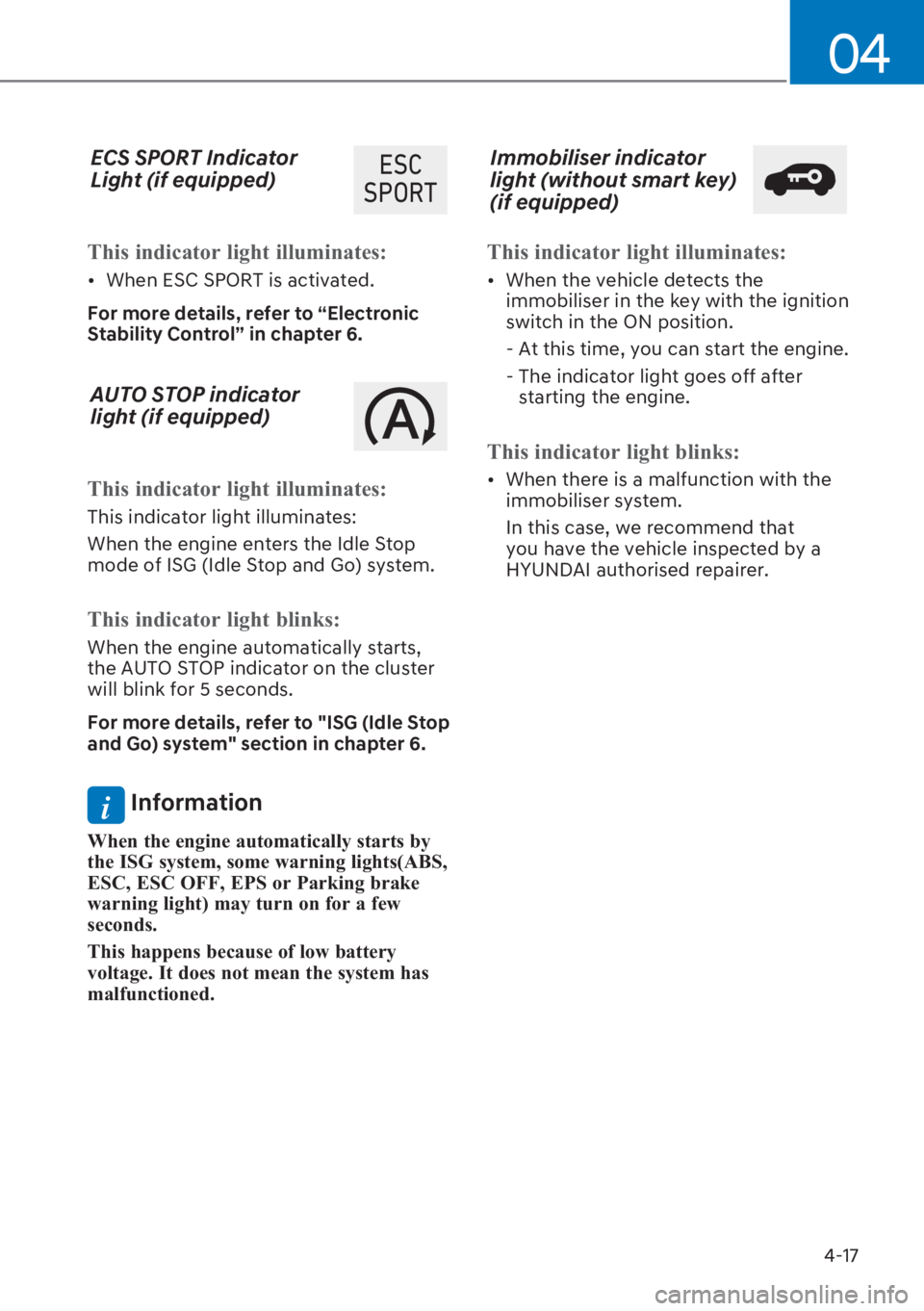

ECS SPORT Indicator
Light (if equipped) ( 6 &
6 3 2 5 7
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When ESC SPORT is activated.
For more details, refer to “Electronic
Stability Control” in chapter 6.
AUTO STOP indicator
light (if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
This indicator light illuminates:
When the engine enters the Idle Stop
mode of ISG (Idle Stop and Go) system.
7 K L V L Q G L F D W R U O L J K W E O L Q N V
When the engine automatically starts,
the AUTO STOP indicator on the cluster
will blink for 5 seconds.
For more details, refer to "ISG (Idle Stop
and Go) system" section in chapter 6.
i Information
: K H Q W K H H Q J L Q H D X W R P D W L F D O O \ V W D U W V E \
W K H , 6 * V \ V W H P V R P H Z D U Q L Q J O L J K W V $ % 6
( 6 & ( 6 & 2 ) ) ( 3 6 R U 3 D U N L Q J E U D N H
Z D U Q L Q J O L J K W P D \ W X U Q R Q I R U D I H Z
V H F R Q G V
7 K L V K D S S H Q V E H F D X V H R I O R Z E D W W H U \
Y R O W D J H , W G R H V Q R W P H D Q W K H V \ V W H P K D V
P D O I X Q F W L R Q H G
Immobiliser indicator
light (without smart key)
(if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When the vehicle detects the
immobiliser in the key with the ignition
switch in the ON position.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.
7 K L V L Q G L F D W R U O L J K W E O L Q N V
[ When there is a malfunction with the
immobiliser system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Page 113 of 649
4-18
Instrument cluster
Immobiliser indicator
light (with smart key)
(if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V I R U X S
W R V H F R Q G V
[ When the vehicle detects the smart
key in the vehicle with the Engine
Start/Stop button in the ACC or ON
position.
- At this time, you can start the engine.
- The indicator light goes off after
starting the engine.
7 K L V L Q G L F D W R U O L J K W E O L Q N V I R U D I H Z
V H F R Q G V
[ When the smart key is not in the
vehicle.
- At this time, you cannot start the
engine.
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V I R U
V H F R Q G V D Q G J R H V R I I
[ If the smart key is in the vehicle and
the Engine Start/Stop button is ON,
but the vehicle cannot detect the
smart key.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
7 K L V L Q G L F D W R U O L J K W E O L Q N V
[ When there is a malfunction with the
immobiliser system.
In this case, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
Turn signal indicator
light
7 K L V L Q G L F D W R U O L J K W E O L Q N V
[ When you operate the turn signals.
If any of the following occur, there may
be a malfunction with the turn signal
system.
- The turn signal indicator light
illuminates but does not blink
- The turn signal indicator light blinks
rapidly
- The turn signal indicator light does not
illuminate at all
If any of these conditions occur, we
recommend that you have your vehicle
inspected by a HYUNDAI authorised
repairer.
Low beam indicator light
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
When the headlamps are on.
High beam indicator light
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When the headlamps are on and in the
high beam position.
[ When the turn signal lever is pulled
into the Flash-to-Pass position.
Page 114 of 649
4-19
04

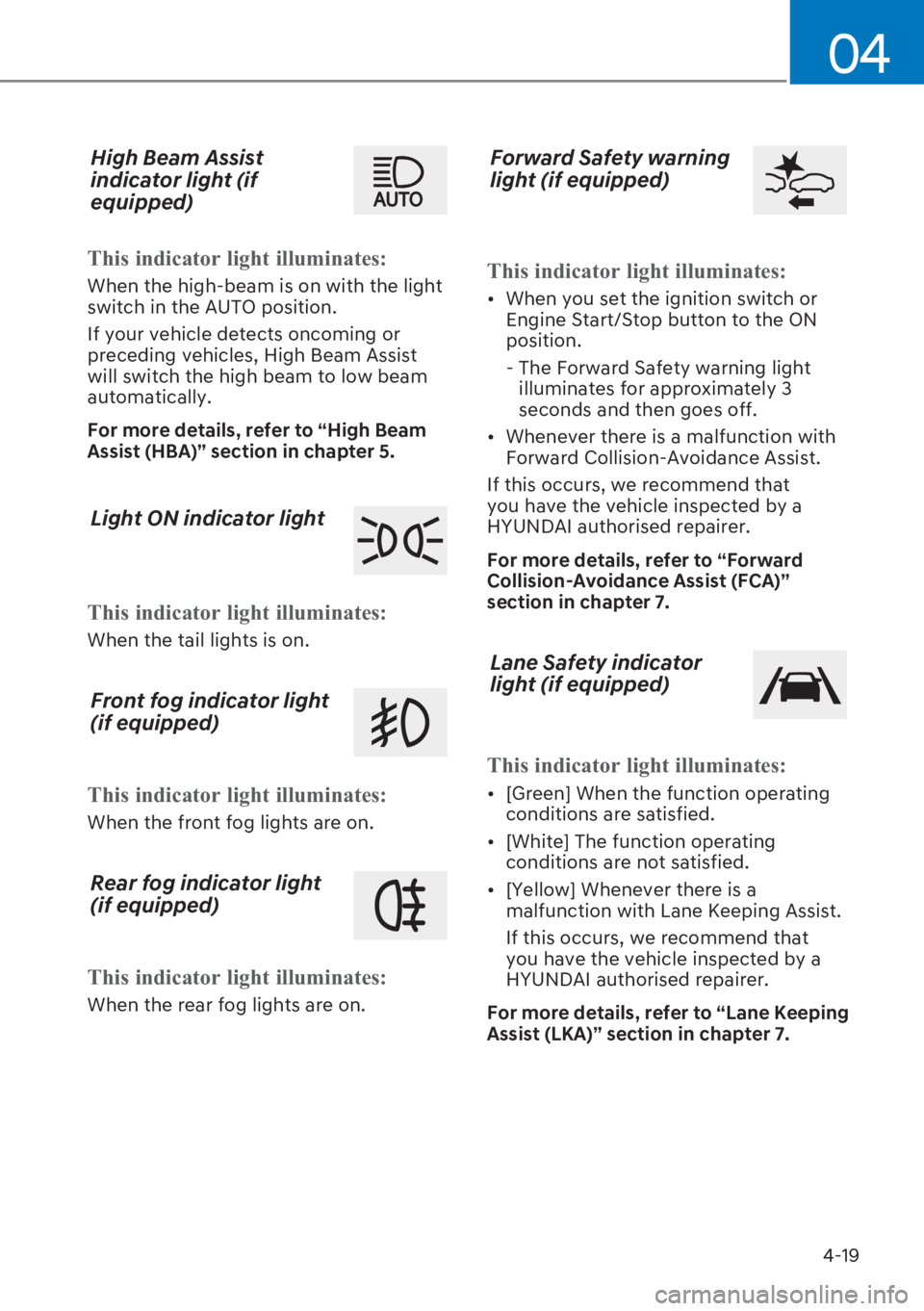

High Beam Assist
indicator light (if
equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
When the high-beam is on with the light
switch in the AUTO position.
If your vehicle detects oncoming or
preceding vehicles, High Beam Assist
will switch the high beam to low beam
automatically.
For more details, refer to “High Beam
Assist (HBA)” section in chapter 5.
Light ON indicator light
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
When the tail lights is on.
Front fog indicator light
(if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
When the front fog lights are on.
Rear fog indicator light
(if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
When the rear fog lights are on.
Forward Safety warning
light (if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you set the ignition switch or
Engine Start/Stop button to the ON
position.
- The Forward Safety warning light
illuminates for approximately 3
seconds and then goes off.
[ Whenever there is a malfunction with
Forward Collision-Avoidance Assist.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to “Forward
Collision-Avoidance Assist (FCA)”
section in chapter 7.
Lane Safety indicator
light (if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ [Green] When the function operating
conditions are satisfied.
[ [White] The function operating
conditions are not satisfied.
[ [Yellow] Whenever there is a
malfunction with Lane Keeping Assist.
If this occurs, we recommend that
you have the vehicle inspected by a
HYUNDAI authorised repairer.
For more details, refer to “Lane Keeping
Assist (LKA)” section in chapter 7.
Page 115 of 649
4-20
Instrument cluster

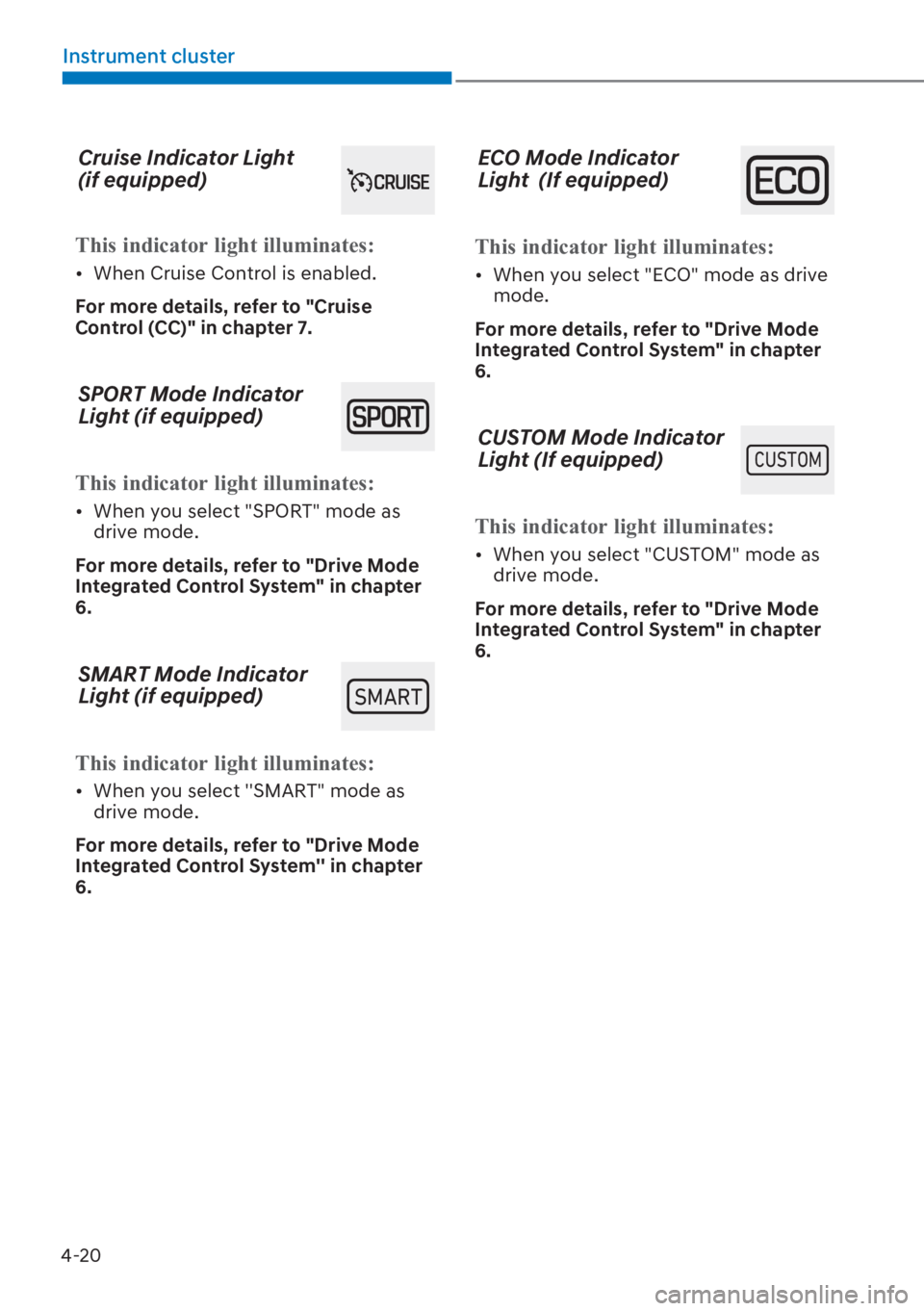

Cruise Indicator Light
(if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When Cruise Control is enabled.
For more details, refer to "Cruise
Control (CC)" in chapter 7.
SPORT Mode Indicator
Light (if equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you select "SPORT" mode as
drive mode.
For more details, refer to "Drive Mode
Integrated Control System" in chapter
6.
SMART Mode Indicator
Light (if equipped)
6 0 $ 5 7
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you select ''SMART" mode as
drive mode.
For more details, refer to "Drive Mode
Integrated Control System'' in chapter
6.
ECO Mode Indicator
Light (If equipped)
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you select "ECO" mode as drive
mode.
For more details, refer to "Drive Mode
Integrated Control System" in chapter
6.
CUSTOM Mode Indicator
Light (If equipped) & 8 6 7 2 0
7 K L V L Q G L F D W R U O L J K W L O O X P L Q D W H V
[ When you select "CUSTOM" mode as
drive mode.
For more details, refer to "Drive Mode
Integrated Control System" in chapter
6.
Page 116 of 649
4-21
04

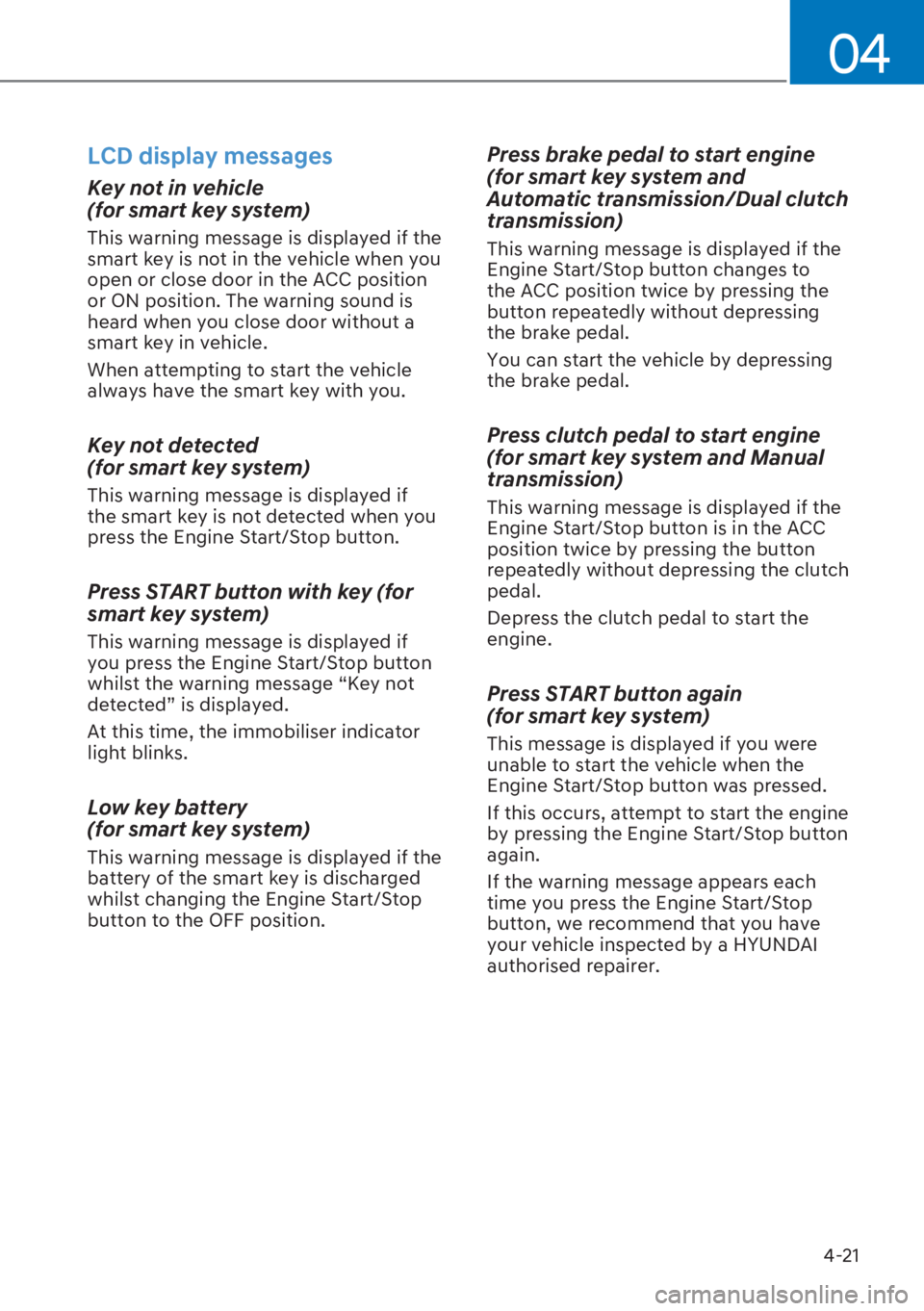

LCD display messages
Key not in vehicle
(for smart key system)
This warning message is displayed if the
smart key is not in the vehicle when you
open or close door in the ACC position
or ON position. The warning sound is
heard when you close door without a
smart key in vehicle.
When attempting to start the vehicle
always have the smart key with you.
Key not detected
(for smart key system)
This warning message is displayed if
the smart key is not detected when you
press the Engine Start/Stop button.
Press START button with key (for
smart key system)
This warning message is displayed if
you press the Engine Start/Stop button
whilst the warning message “Key not
detected” is displayed.
At this time, the immobiliser indicator
light blinks.
Low key battery
(for smart key system)
This warning message is displayed if the
battery of the smart key is discharged
whilst changing the Engine Start/Stop
button to the OFF position.
Press brake pedal to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission)
This warning message is displayed if the
Engine Start/Stop button changes to
the ACC position twice by pressing the
button repeatedly without depressing
the brake pedal.
You can start the vehicle by depressing
the brake pedal.
Press clutch pedal to start engine
(for smart key system and Manual
transmission)
This warning message is displayed if the
Engine Start/Stop button is in the ACC
position twice by pressing the button
repeatedly without depressing the clutch
pedal.
Depress the clutch pedal to start the
engine.
Press START button again
(for smart key system)
This message is displayed if you were
unable to start the vehicle when the
Engine Start/Stop button was pressed.
If this occurs, attempt to start the engine
by pressing the Engine Start/Stop button
again.
If the warning message appears each
time you press the Engine Start/Stop
button, we recommend that you have
your vehicle inspected by a HYUNDAI
authorised repairer.
Page 117 of 649
4-22
Instrument cluster
Shift to N to start engine
(for smart key system and
Automatic transmission/Dual clutch
transmission)
This warning message is displayed if
you try to start the engine with the shift
button not in the N (Neutral) position.
i Information
< R X F D Q V W D U W W K H H Q J L Q H Z L W K W K H V K L I W
O H Y H U L Q W K H 1 1 H X W U D O S R V L W L R Q
Check BRAKE SWITCH fuse (for
smart key system and Automatic
transmission/Dual clutch
transmission)
This warning message is displayed if the
brake switch fuse is disconnected.
You need to replace the fuse with a new
one. If that is not possible, you can start
the engine by pressing the Engine Start/
Stop button for 10 seconds in the ACC
position.
Door, Bonnet, Tailgate open
indicator
OBC3040012
This warning is displayed if any door
or bonnet or tailgate is left open. The
warning will indicate which door is open
in the display.
CAUTION
Before driving the vehicle, you should
confirm that the door/bonnet/tailgate
is fully closed. Also, check there is no
door/bonnet/tailgate open warning
light or message displayed on the
instrument cluster.
Page 118 of 649
4-23
04
Lights mode
OIK047163L

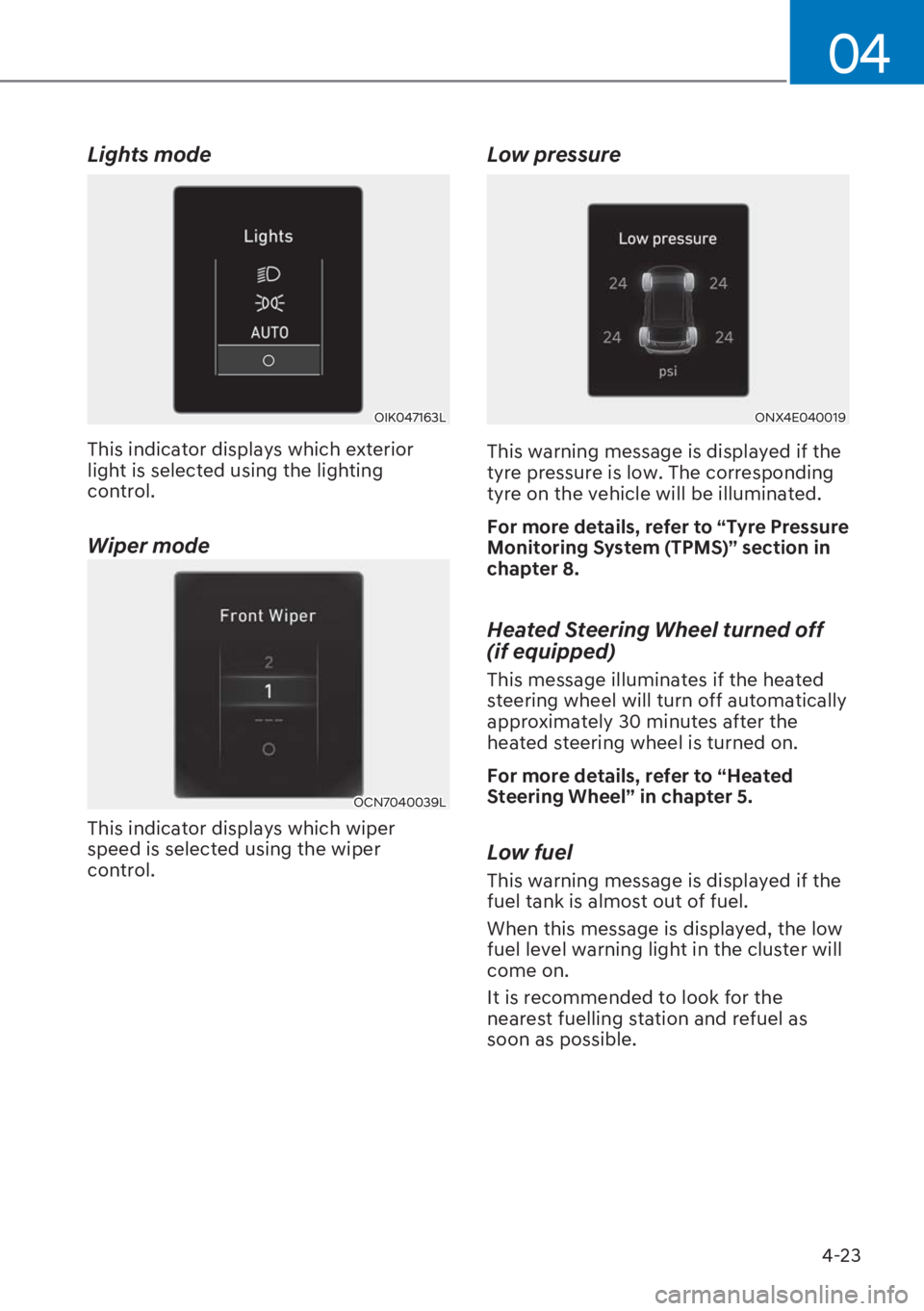

This indicator displays which exterior
light is selected using the lighting
control.
Wiper mode
OCN7040039L
This indicator displays which wiper
speed is selected using the wiper
control.
Low pressure
ONX4E040019
This warning message is displayed if the
tyre pressure is low. The corresponding
tyre on the vehicle will be illuminated.
For more details, refer to “Tyre Pressure
Monitoring System (TPMS)” section in
chapter 8.
Heated Steering Wheel turned off
(if equipped)
This message illuminates if the heated
steering wheel will turn off automatically
approximately 30 minutes after the
heated steering wheel is turned on.
For more details, refer to “Heated
Steering Wheel” in chapter 5.
Low fuel
This warning message is displayed if the
fuel tank is almost out of fuel.
When this message is displayed, the low
fuel level warning light in the cluster will
come on.
It is recommended to look for the
nearest fuelling station and refuel as
soon as possible.
Page 119 of 649
4-24
Instrument cluster
Low engine oil (if equipped)
This warning message is displayed when
the engine oil level should be checked.
If this warning message is displayed,
check the engine oil level as soon as
possible and add engine oil as required.
Slowly pour the recommended oil little
by little into a funnel.
Use only the specified engine oil. (Refer
to "Recommended lubricants and
capacities" section in chapter 2.)
Do not overfill the engine oil. Make sure
the oil level is not above F (Full) mark on
the dipstick.
NOTICE
If the message is displayed
continuously after adding the engine
oil and travelling approximately 31~
62 mile (50~100 km) after the engine
warms up, we recommend that the
system be checked by a HYUNDAI
authorised repairer.
Engine has overheated
(if equipped)
This warning message is displayed
when the engine coolant temperature
is above 120°C (248°F). This means that
the engine is overheated and may be
damaged.
If your vehicle is overheated, refer to
“Overheating” section in chapter 8.
Check headlight (if equipped)
This warning message is displayed if the
headlamps are not operating properly.
In addition, if a specific lamp(turn signal
lamp etc.) is not operating properly, the
warning message according to a specific
lamp (turn signal lamp etc.) is displayed.
A corresponding bulb may need to be
replaced.
Make sure to replace the burned out
bulb with a new one of the same
wattage rating.
Check brake light (if equipped)
This warning message is displayed if the
stop lamps are not operating properly. A
lamp may need to be replaced.
Make sure to replace the burned out
bulb with a new one of the same
wattage rating.
Check Active Air Flap system (if
equipped)
This message is displayed in the
following situations:
- There is a malfunction with the
actuator flap
- There is a malfunction with the
actuator air flap controller
- The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Page 120 of 649
4-25
04

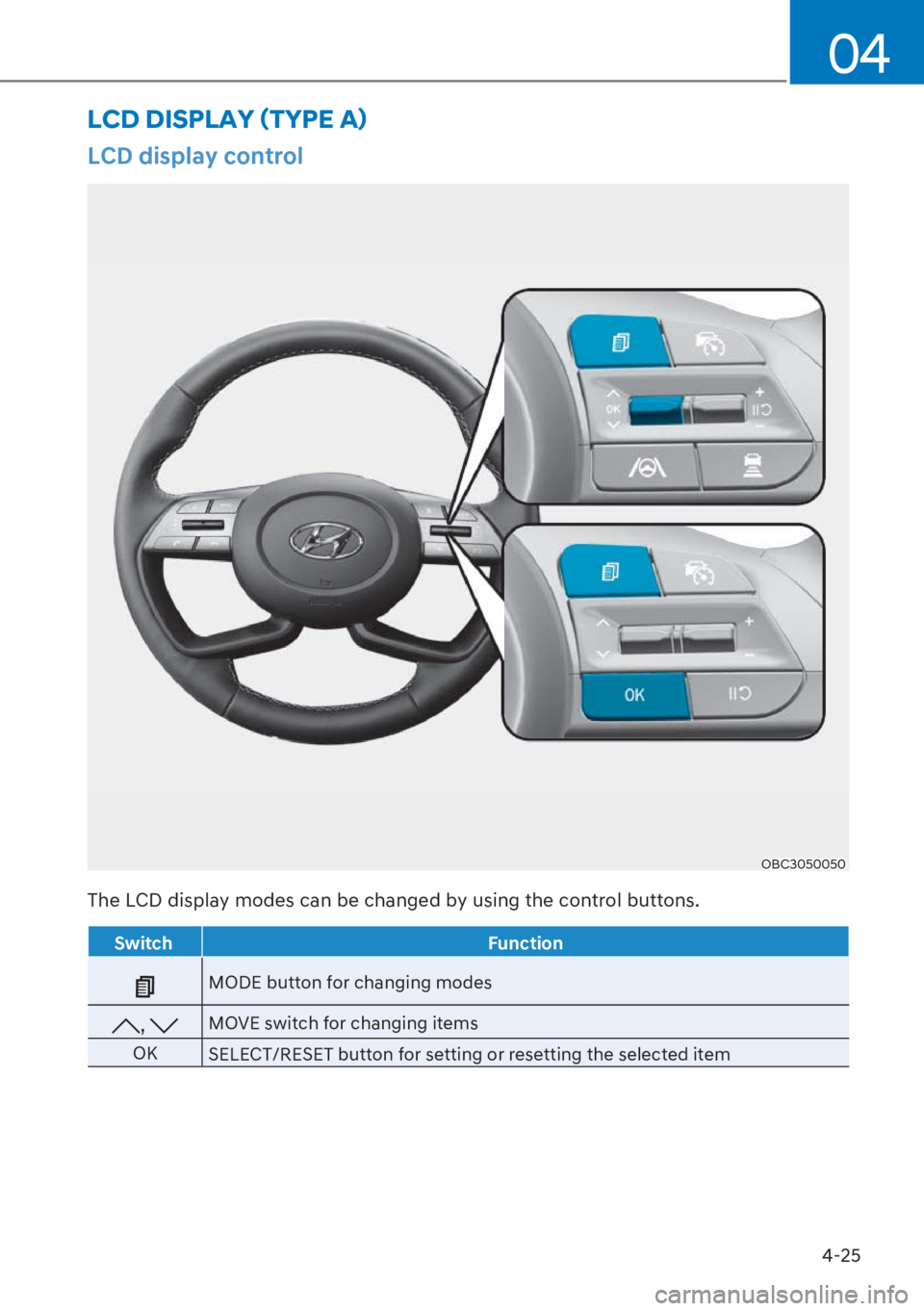

/ & ' ' , 6 3 / $ <
