4-36
Instrument cluster
Trip computer

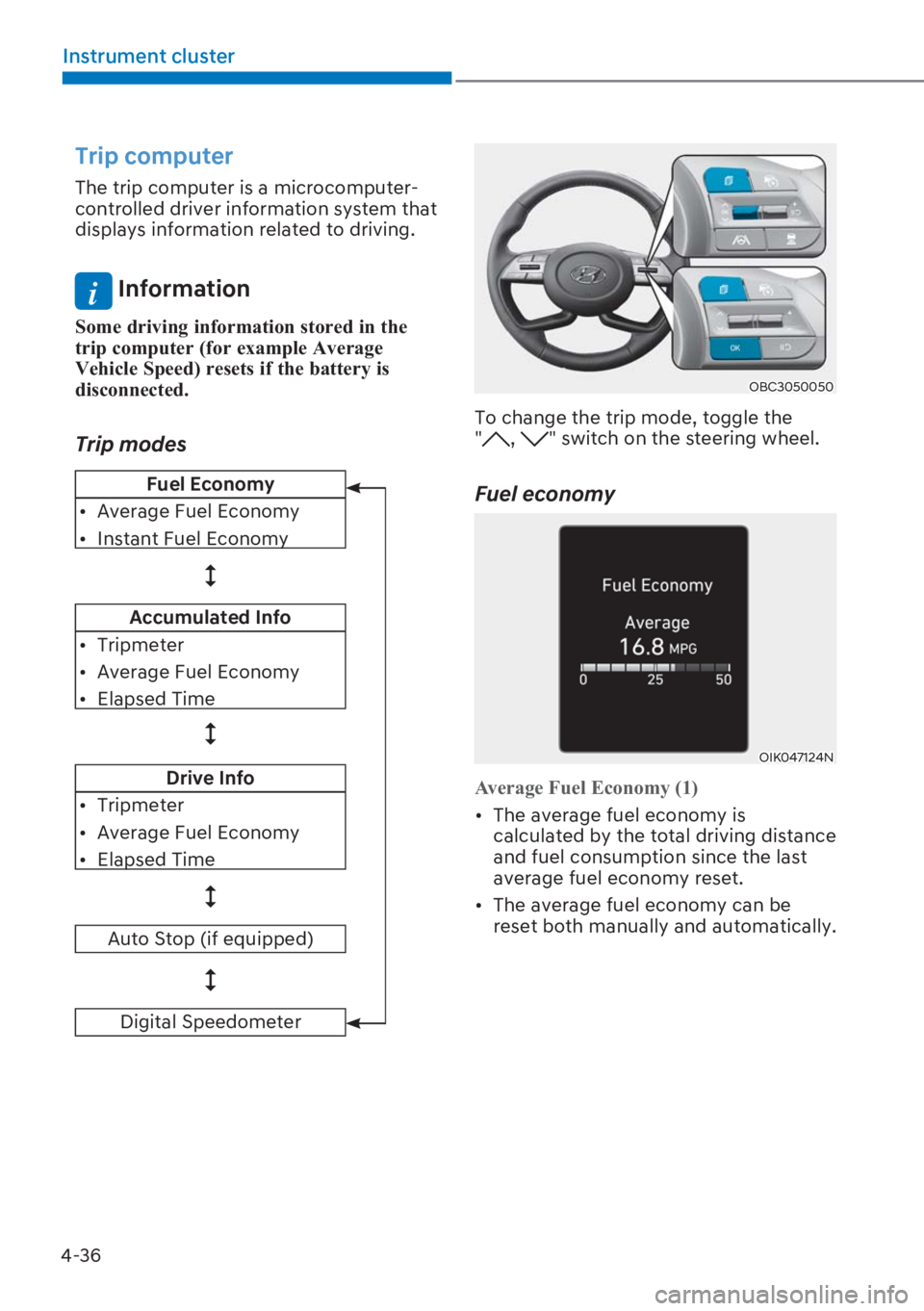

The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
i Information
6 R P H G U L Y L Q J L Q I R U P D W L R Q V W R U H G L Q W K H
W U L S F R P S X W H U I R U H [ D P S O H $ Y H U D J H
9 H K L F O H 6 S H H G U H V H W V L I W K H E D W W H U \ L V
G L V F R Q Q H F W H G
Trip modes
Fuel Economy
[ Average Fuel Economy
[ Instant Fuel Economy
Accumulated Info
[ Tripmeter
[ Average Fuel Economy
[ Elapsed Time
Drive Info
[ Tripmeter
[ Average Fuel Economy
[ Elapsed Time
Auto Stop (if equipped)
Digital Speedometer
OBC3050050
To change the trip mode, toggle the
", " switch on the steering wheel.
Fuel economy
OIK047124N
$ Y H U D J H ) X H O ( F R Q R P \
[ The average fuel economy is
calculated by the total driving distance
and fuel consumption since the last
average fuel economy reset.
[ The average fuel economy can be
reset both manually and automatically.
Page 132 of 649
![HYUNDAI I20 2023 Owners Manual 4-37
04
Manual reset
To clear the average fuel economy
manually, press the [OK] button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To a](/img/35/56129/w960_56129-131.png "HYUNDAI I20 2023 Owners Manual 4-37
04
Manual reset
To clear the average fuel economy
manually, press the [OK] button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To a")
4-37
04
Manual reset
To clear the average fuel economy
manually, press the [OK] button on the
steering wheel for more than 1 second
when the average fuel economy is
displayed.
Automatic reset
To automatically reset the average fuel
economy after refuelling, select the
"Fuel Econ. Reset" mode in the User
Settings menu on the LCD display.
- After ignition: the average fuel
economy will reset automatically
whenever it has passed 4 hours after
turning OFF the engine.
- After refuelling: the average fuel
economy will reset automatically
when driving speed exceeds 1 mph
(1 km/h), after adding 6 litres (1.6
gallons) of fuel or more.
i Information
7 K H D Y H U D J H I X H O H F R Q R P \ P D \ E H
L Q D F F X U D W H Z K H Q W K H Y H K L F O H G U L Y H V
V K R U W H U W K D Q P L O H V P H W H U V D I W H U
W X U Q L Q J 2 1 W K H ( Q J L Q H 6 W D U W 6 W R S E X W W R Q
Instant Fuel Economy (2)
[ This mode displays the instant fuel
economy during the last few seconds
when the vehicle speed is more than
6.2 mph (10 km/h).

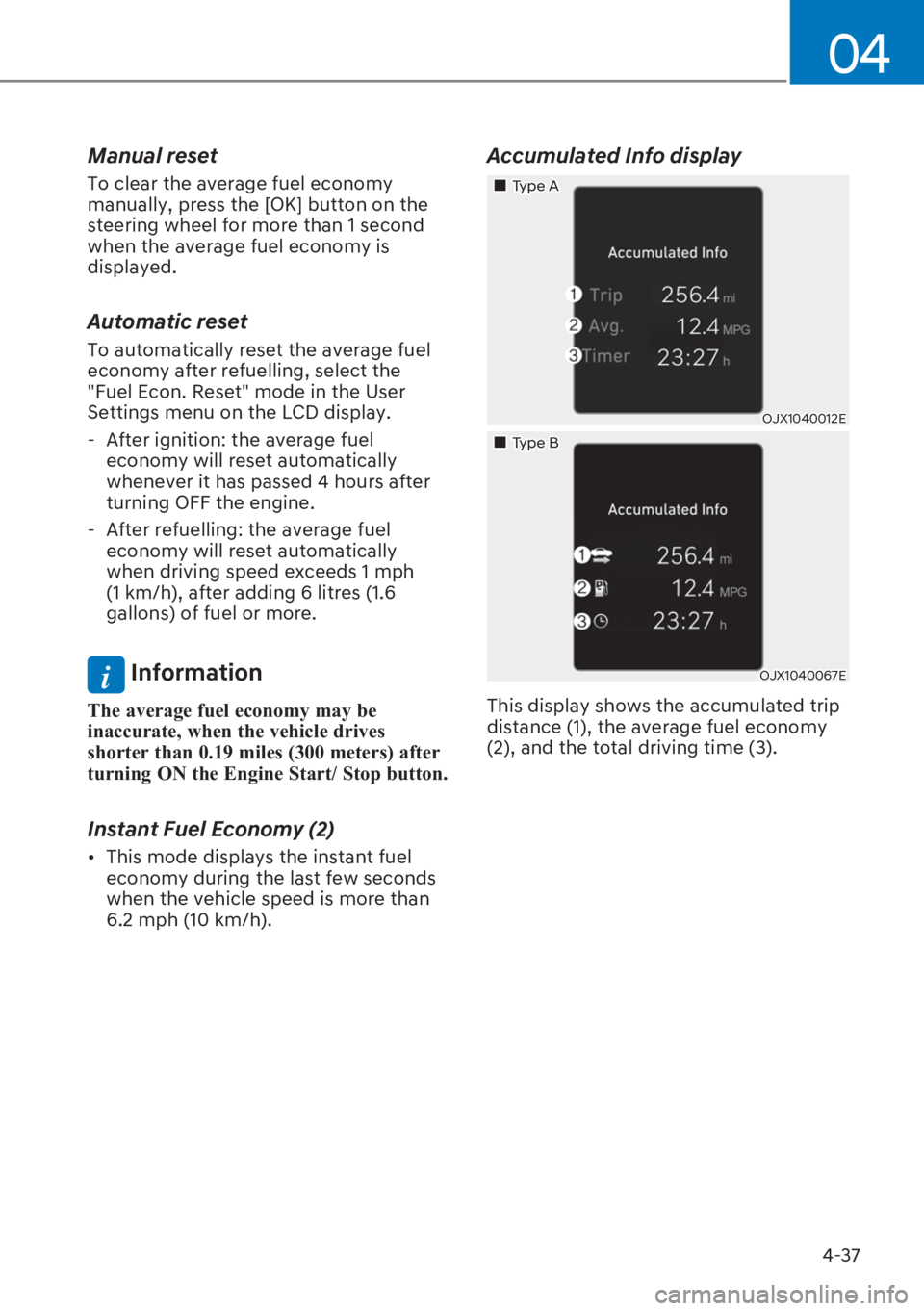

Accumulated Info display
„Type A
OJX1040012E
„Type B
OJX1040067E
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).
Page 133 of 649
4-38
Instrument cluster
The information is accumulated starting
from the last reset.
To manually reset the information, press
and hold the OK button when viewing
the accumulated driving info. The trip
distance, the average fuel economy,
and total driving time will reset
simultaneously.
The accumulated driving information
will continue to be counted whilst the
engine is still running (for example,
when the vehicle is in traffic or stopped
at a stop light).
i Information
7 K H Y H K L F O H P X V W E H G U L Y H Q I R U D
P L Q L P X P R I P H W H U V P L O H V
V L Q F H W K H O D V W L J Q L W L R Q N H \ F \ F O H Z L O O E H
U H F D O F X O D W H G

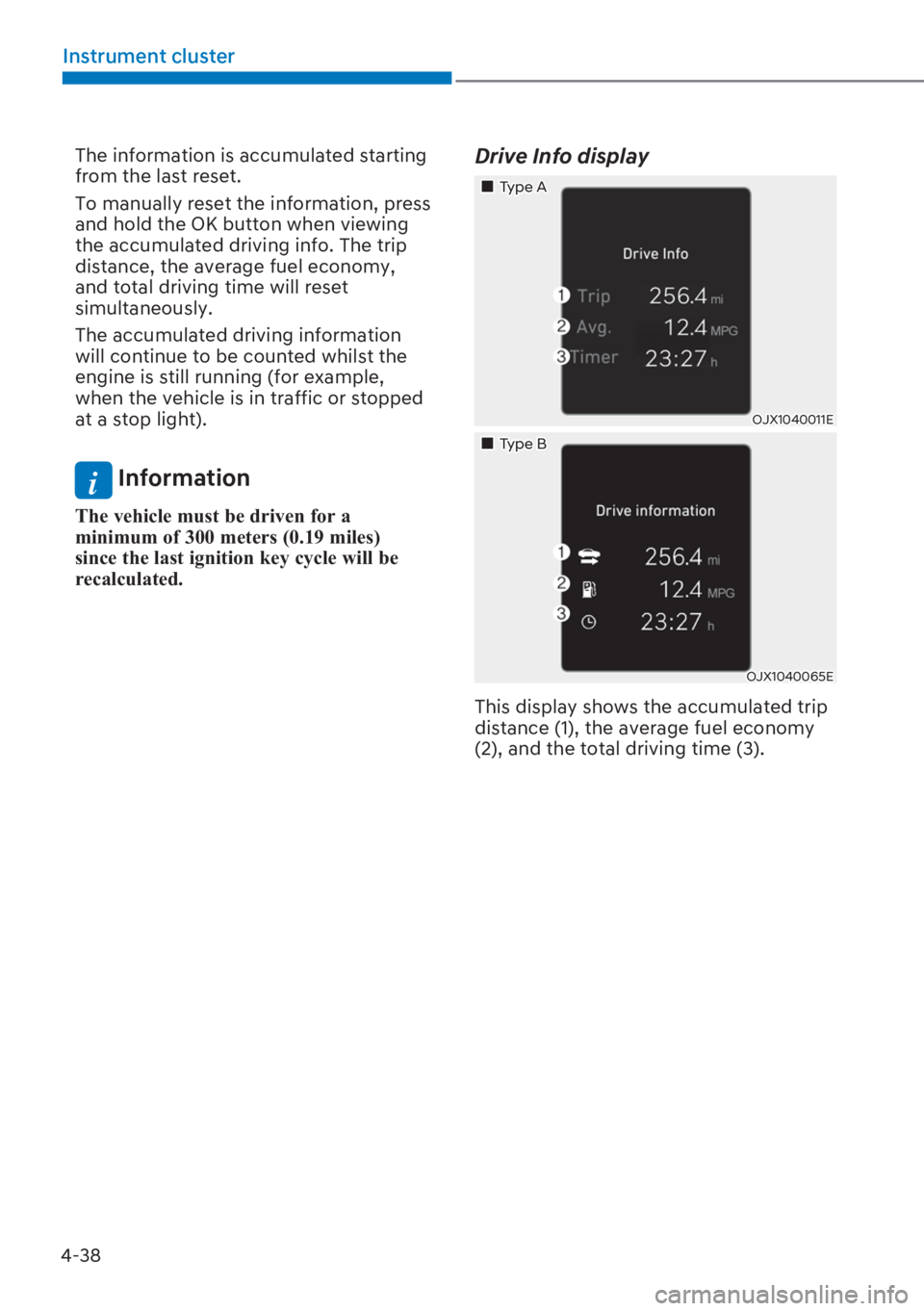

Drive Info display
„Type A
OJX1040011E
„Type B
OJX1040065E
This display shows the accumulated trip
distance (1), the average fuel economy
(2), and the total driving time (3).
Page 134 of 649
4-39
04
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To manually reset the information, press
and hold the OK button when viewing
the Drive Info. The trip distance, the
average fuel economy, and total driving
time will reset simultaneously.
The driving information will continue
to be counted whilst the engine is still
running (for example, when the vehicle
is in traffic or stopped at a stop light.)
i Information
7 K H Y H K L F O H P X V W E H G U L Y H Q I R U D
P L Q L P X P R I P H W H U V P L O H V
V L Q F H W K H O D V W L J Q L W L R Q N H \ F \ F O H Z L O O E H
U H F D O F X O D W H G

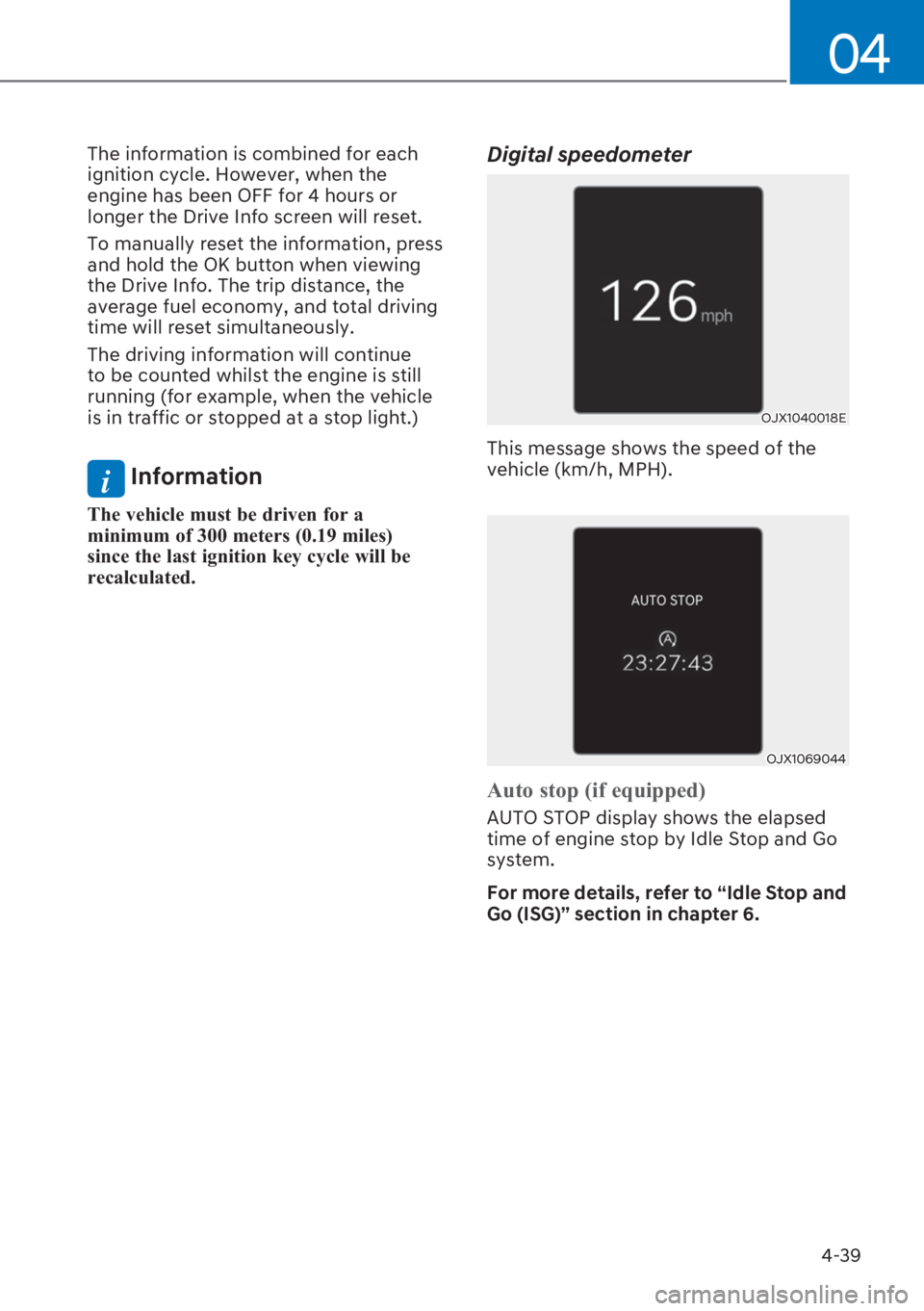

Digital speedometer
OJX1040018E
This message shows the speed of the
vehicle (km/h, MPH).
OJX1069044
$ X W R V W R S L I H T X L S S H G
AUTO STOP display shows the elapsed
time of engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
Page 135 of 649

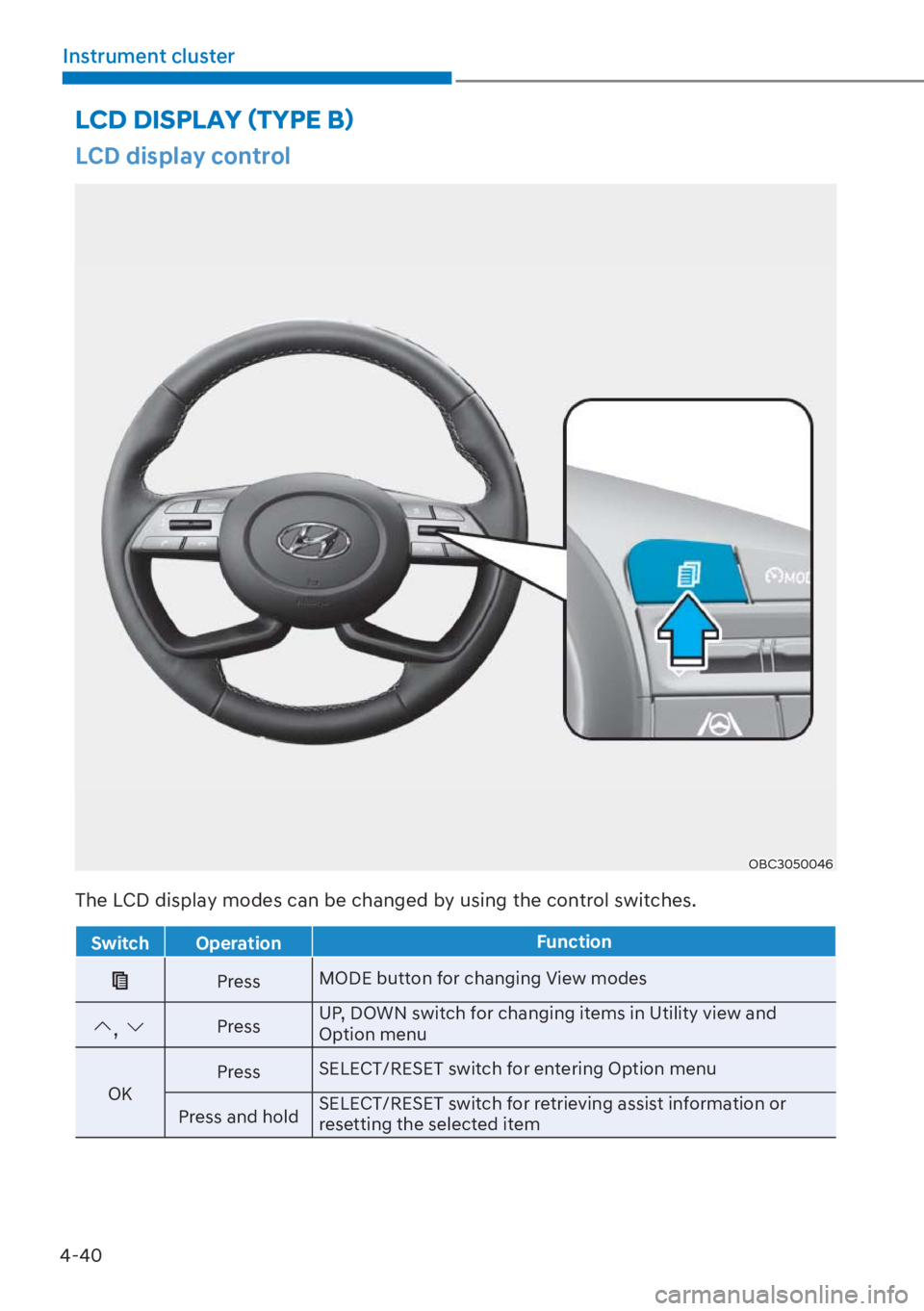

4-40
Instrument cluster
/ & ' ' , 6 3 / $ <
Page 136 of 649
4-41
04

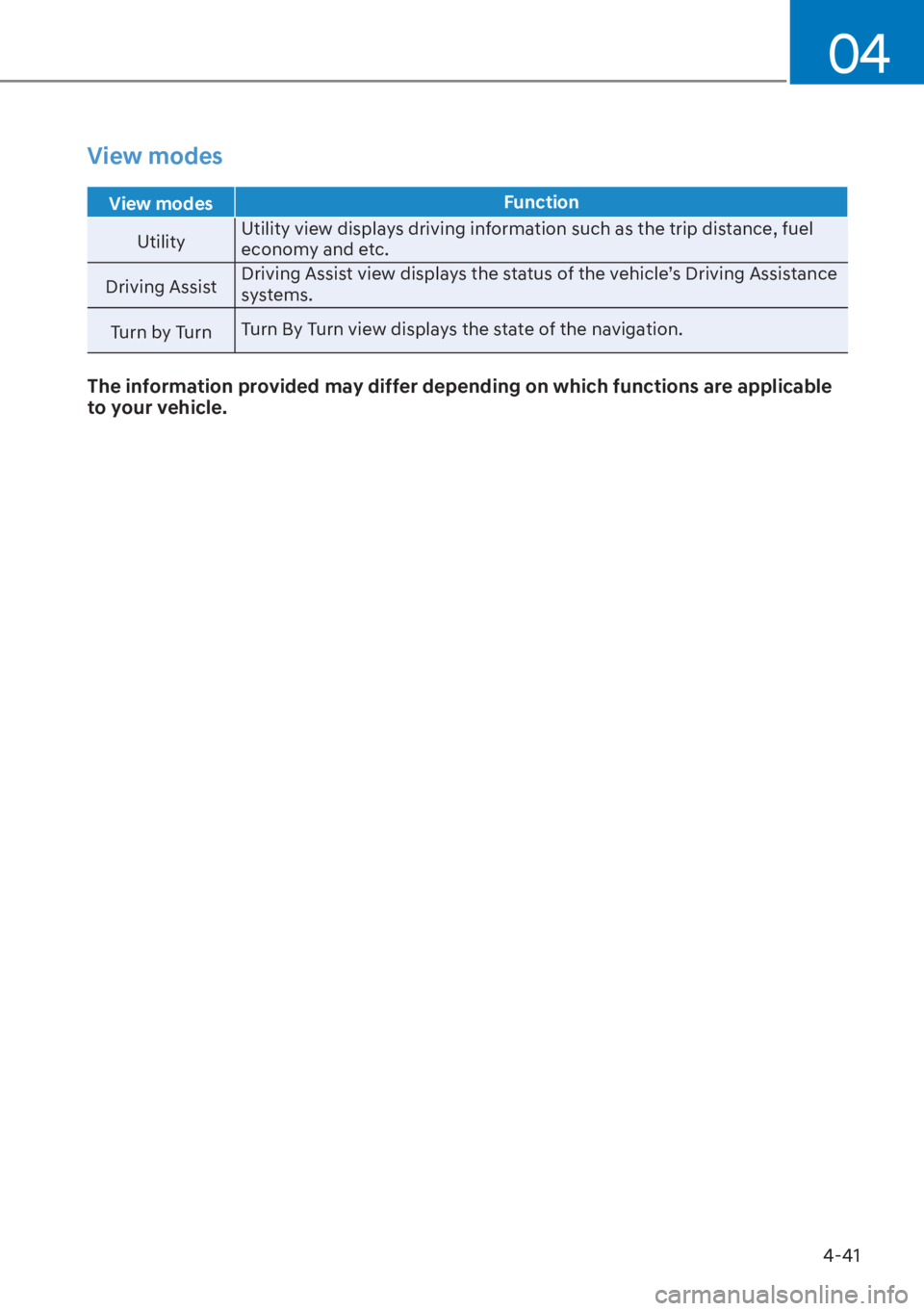

View modes
View modesFunction
UtilityUtility view displays driving information such as the trip distance, fuel
economy and etc.
Driving AssistDriving Assist view displays the status of the vehicle’s Driving Assistance
systems.
Turn by TurnTurn By Turn view displays the state of the navigation.
The information provided may differ depending on which functions are applicable
to your vehicle.
Page 137 of 649
![HYUNDAI I20 2023 Owners Manual 4-42
Instrument cluster
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
OBC3040035R
) X H O H F R Q R P \
Average fuel eco](/img/35/56129/w960_56129-136.png "HYUNDAI I20 2023 Owners Manual 4-42
Instrument cluster
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
OBC3040035R
) X H O H F R Q R P \
Average fuel eco")
4-42
Instrument cluster
Utility view
In the Utility view, using the , (UP,
DOWN) switch, you may change through
items in the following order.
OBC3040035R
) X H O H F R Q R P \
Average fuel economy (1) and instant
fuel economy (2) are displayed.
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refuelling’ from the
Settings menu in the infotainment
system.
- After Ignition: when the engine has
been OFF for 4 hours or longer the
average fuel economy will reset
automatically.
- After Refuelling: the average fuel
economy will reset automatically
after adding 6 litres (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 mph (1 km/h).
„Type A
OJX1040012E/OJX1040067E
„Type B
' U L Y H L Q I R
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the
engine has been OFF for 4 hours or
longer the Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A
OJX1040013E/OJX1040066E
„Type B
6 L Q F H U H I X H O O L Q J
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refuelling’ is
displayed.
Page 138 of 649
4-43
04
„Type A
OJX1040012E/OJX1040067E
„Type B

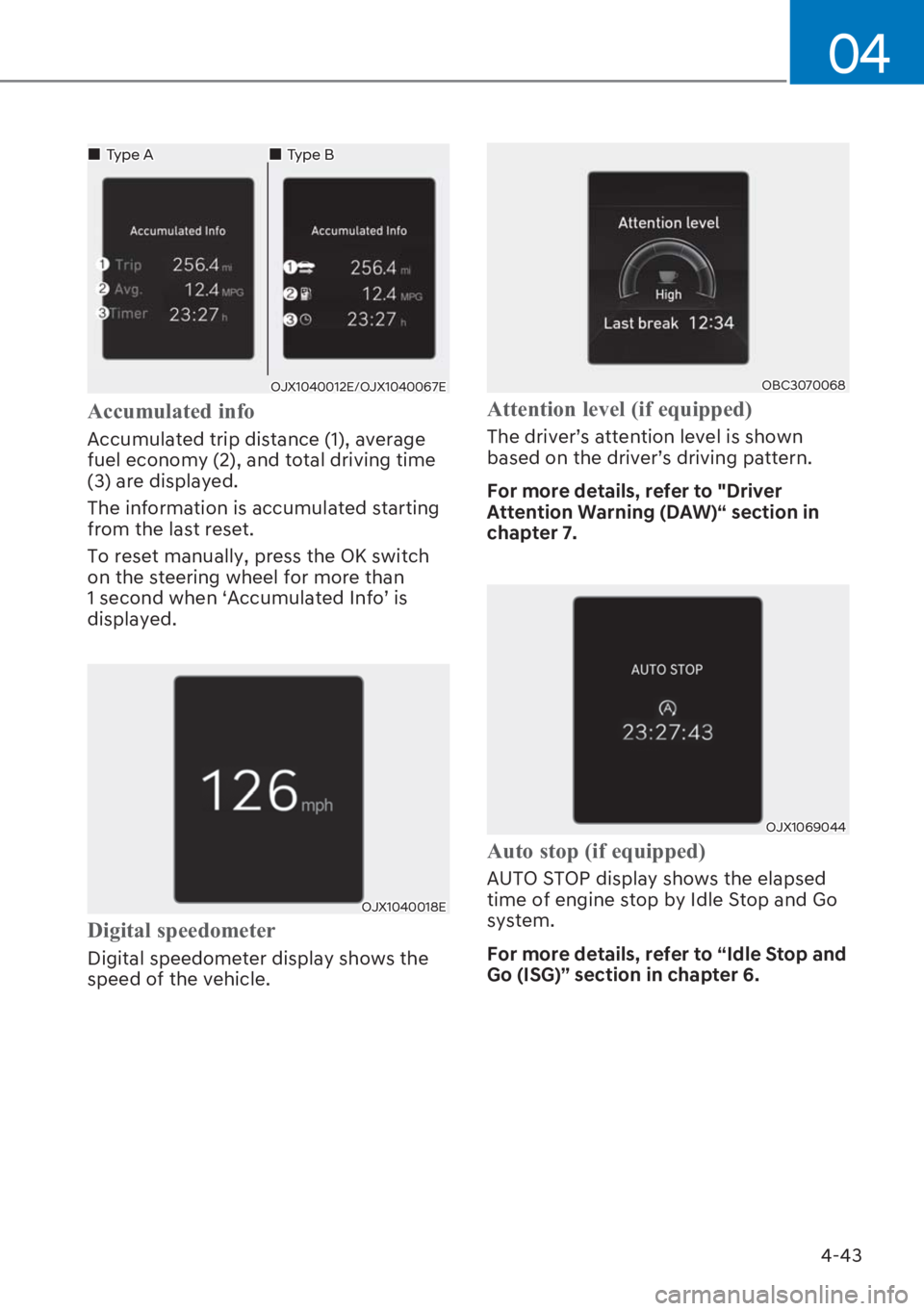

$ F F X P X O D W H G L Q I R
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OJX1040018E
' L J L W D O V S H H G R P H W H U
Digital speedometer display shows the
speed of the vehicle.
OBC3070068
$ W W H Q W L R Q O H Y H O L I H T X L S S H G
The driver’s attention level is shown
based on the driver’s driving pattern.
For more details, refer to "Driver
Attention Warning (DAW)“ section in
chapter 7.
OJX1069044
$ X W R V W R S L I H T X L S S H G
AUTO STOP display shows the elapsed
time of engine stop by Idle Stop and Go
system.
For more details, refer to “Idle Stop and
Go (ISG)” section in chapter 6.
Page 139 of 649
4-44
Instrument cluster
OJX1079237L
6 S H H G O L P L W Z D U Q L Q J L I H T X L S S H G
The driver can monitor the information
provided from Intelligent Speed Limit
Assist.
For more details, refer to "Intelligent
Speed Limit Assist (ISLA)" section in
chapter 7.
OTMH040007
( Q J L Q H W H P S H U D W X U H
Engine coolant temperature gauge
display shows the temperature of the
engine coolant when the engine is
running.

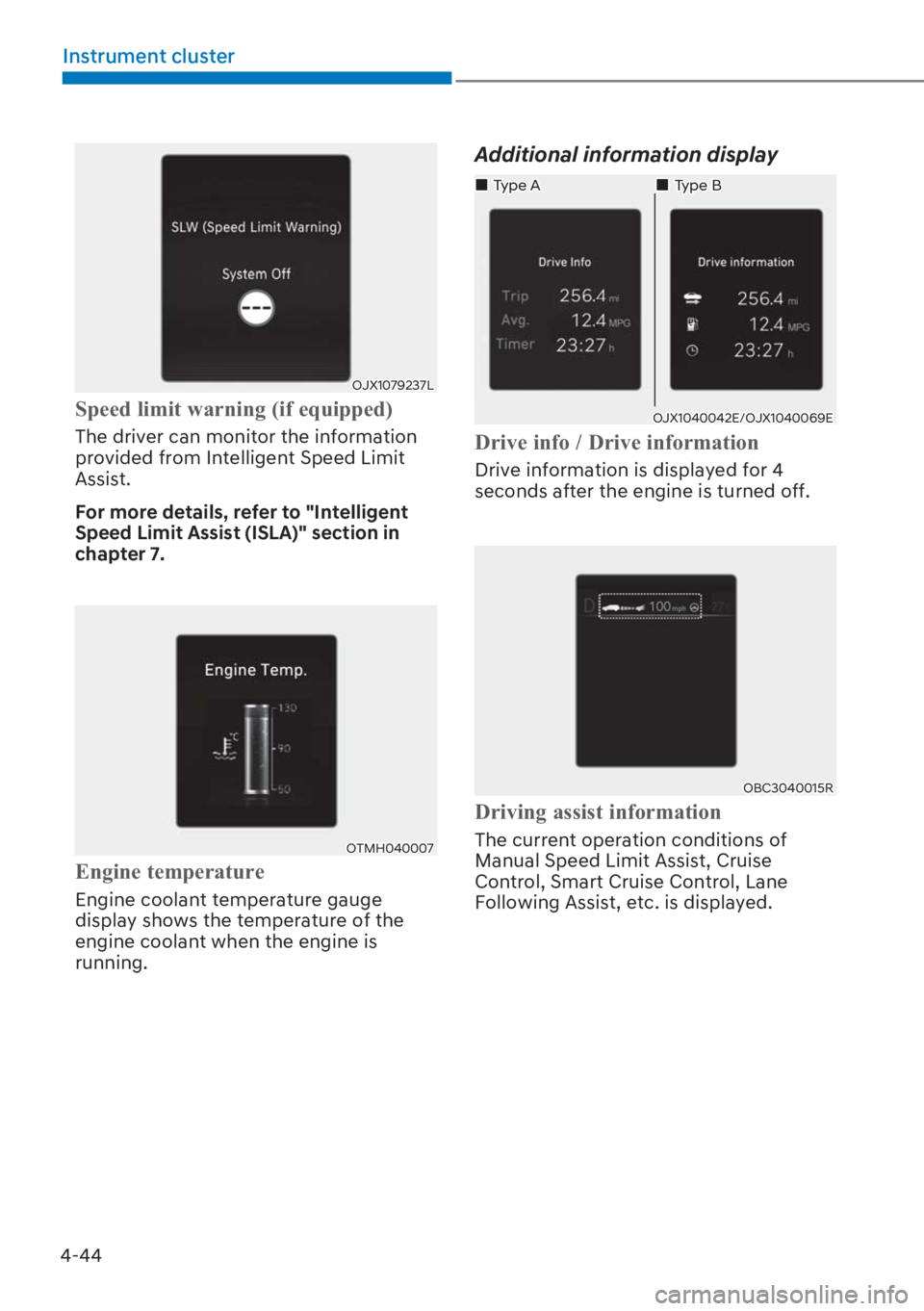

Additional information display
„Type A
OJX1040042E/OJX1040069E
„Type B
' U L Y H L Q I R ' U L Y H L Q I R U P D W L R Q
Drive information is displayed for 4
seconds after the engine is turned off.
OBC3040015R
' U L Y L Q J D V V L V W L Q I R U P D W L R Q
The current operation conditions of
Manual Speed Limit Assist, Cruise
Control, Smart Cruise Control, Lane
Following Assist, etc. is displayed.
Page 140 of 649
4-45
04

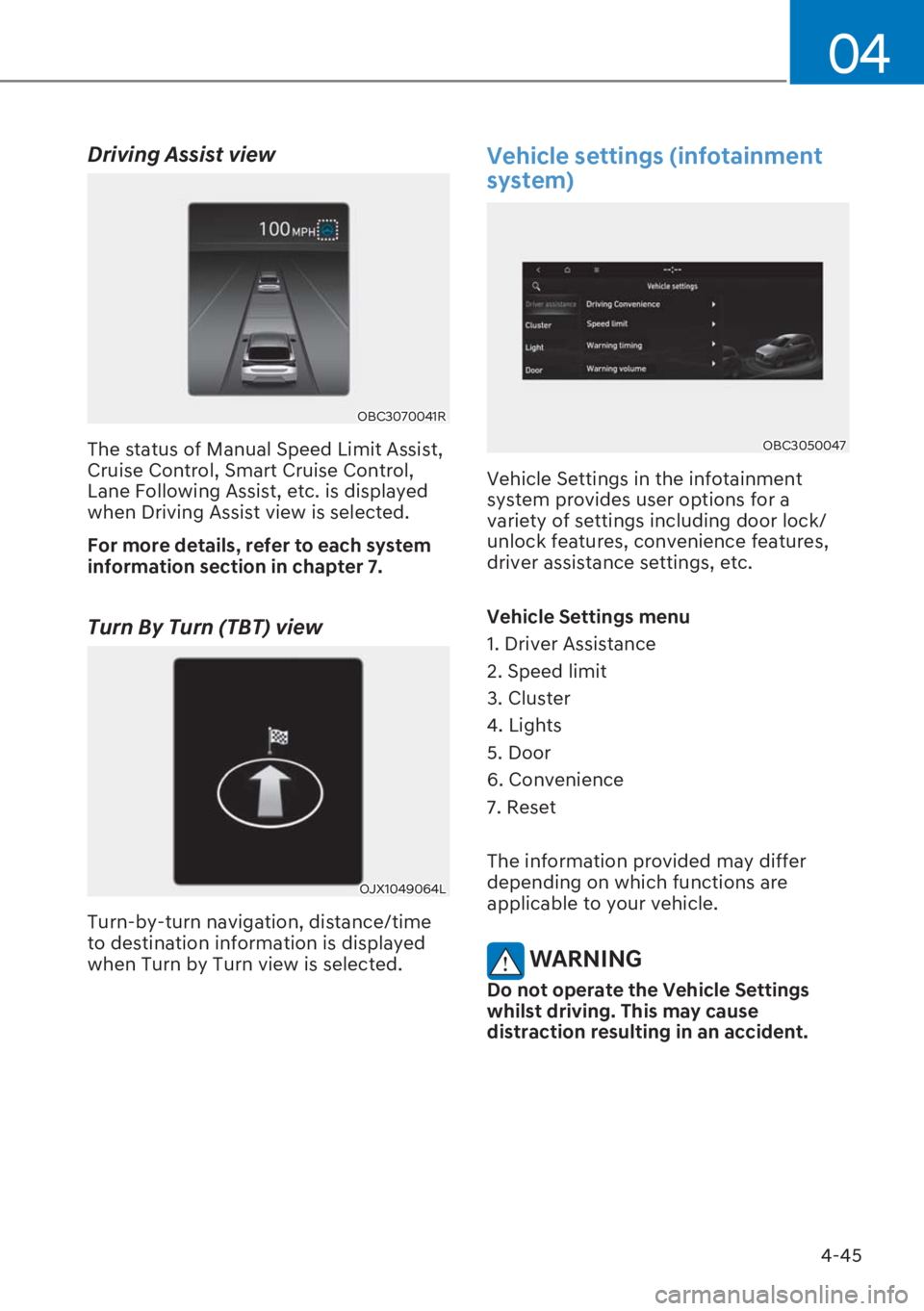

Driving Assist view
OBC3070041R
The status of Manual Speed Limit Assist,
Cruise Control, Smart Cruise Control,
Lane Following Assist, etc. is displayed
when Driving Assist view is selected.
For more details, refer to each system
information section in chapter 7.
Turn By Turn (TBT) view
OJX1049064L
Turn-by-turn navigation, distance/time
to destination information is displayed
when Turn by Turn view is selected.
Vehicle settings (infotainment
system)
OBC3050047
Vehicle Settings in the infotainment
system provides user options for a
variety of settings including door lock/
unlock features, convenience features,
driver assistance settings, etc.
Vehicle Settings menu
1. Driver Assistance
2. Speed limit
3. Cluster
4. Lights
5. Door
6. Convenience
7. Reset
The information provided may differ
depending on which functions are
applicable to your vehicle.
WARNING
Do not operate the Vehicle Settings
whilst driving. This may cause
distraction resulting in an accident.
