Page 141 of 649
4-46
Instrument cluster

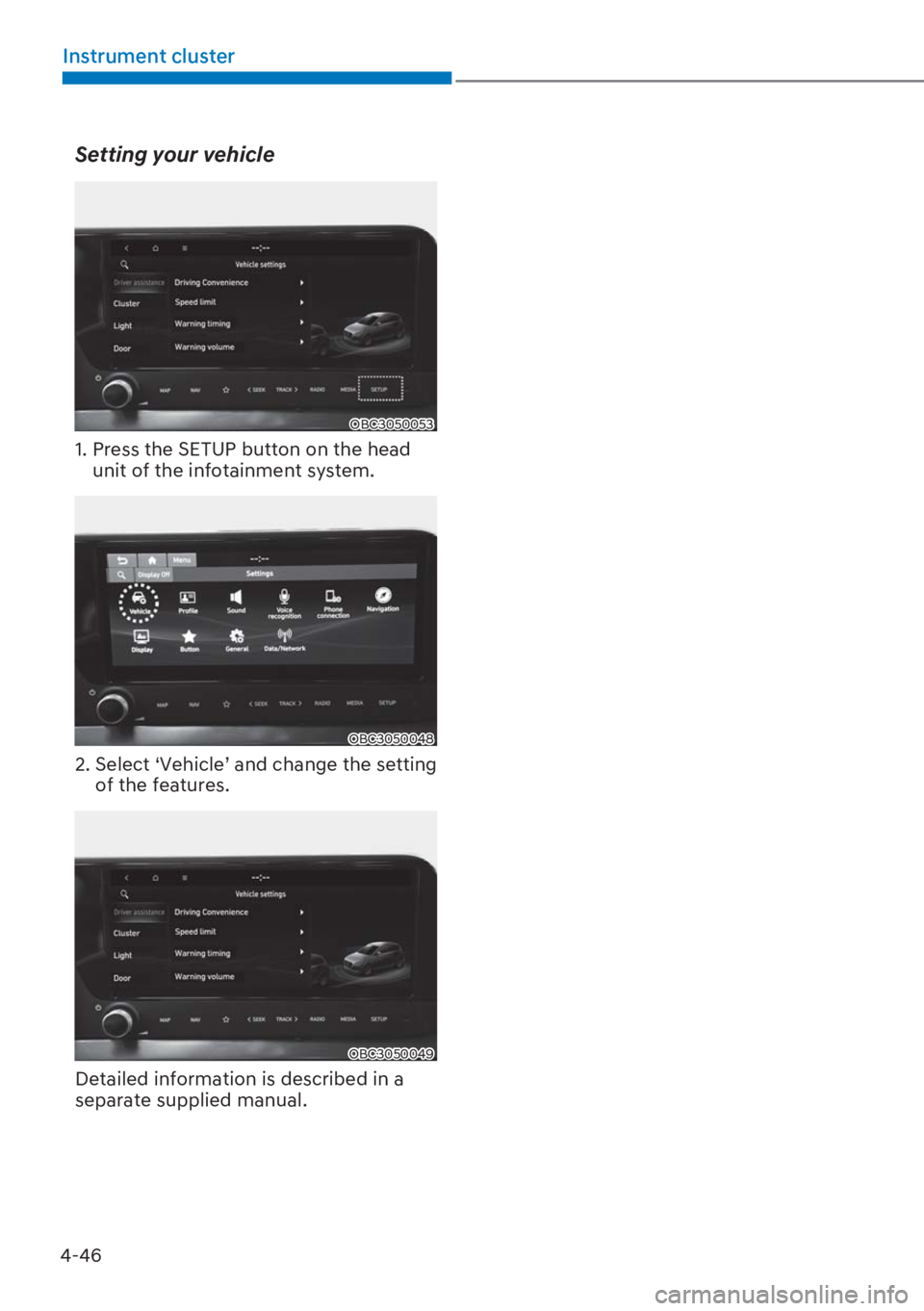

Setting your vehicle
OBC3050053
1. Press the SETUP button on the head
unit of the infotainment system.
OBC3050048
2. Select ‘Vehicle’ and change the setting
of the features.
OBC3050049
Detailed information is described in a
separate supplied manual.
Page 142 of 649

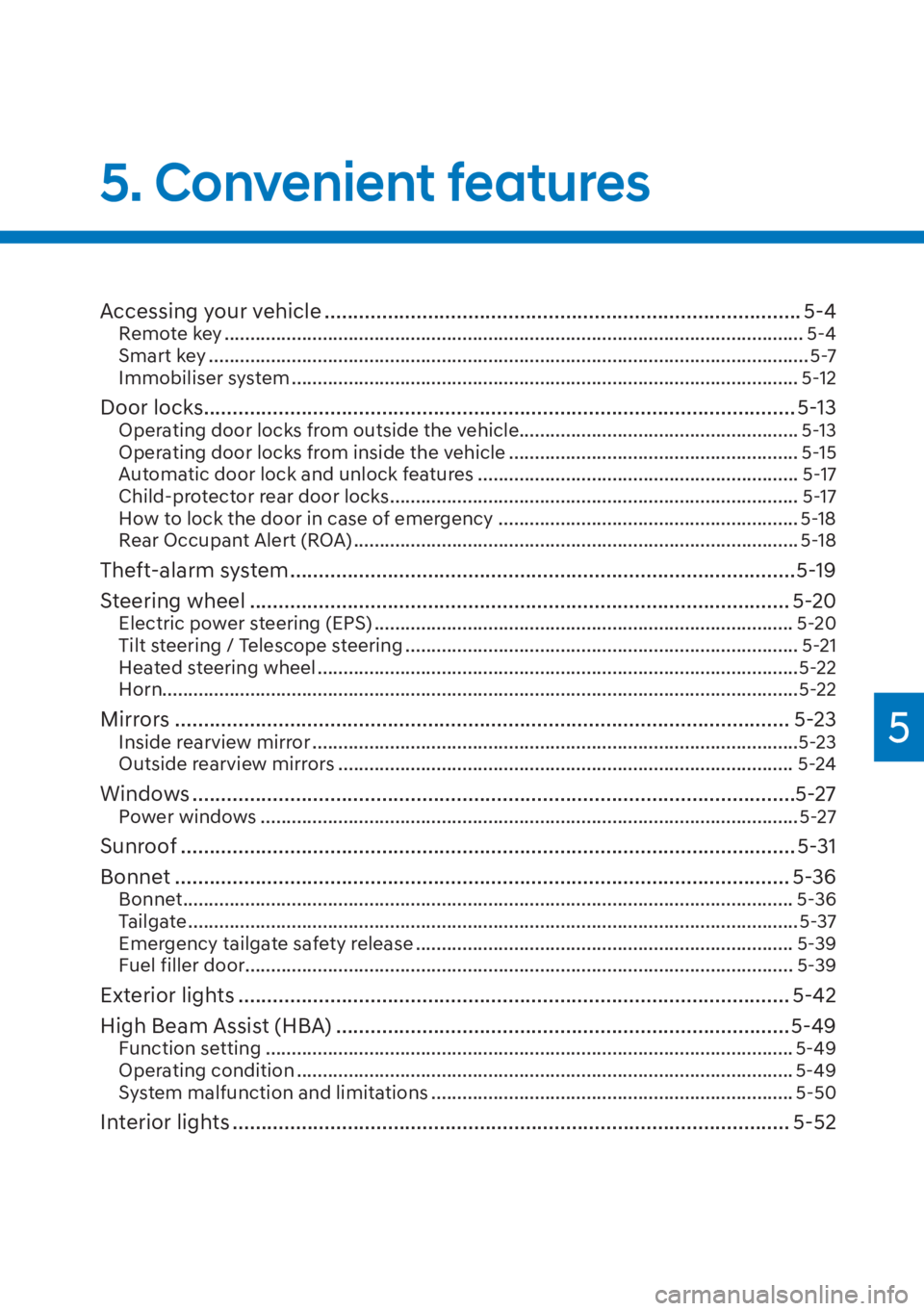

Accessing your vehicle ................................................................................... 5-4Remote key ................................................................................................................ 5-4
Smart key .................................................................................................................... 5-7
Immobiliser system .................................................................................................. 5-12
Door locks....................................................................................................... 5-13Operating door locks from outside the vehicle...................................................... 5-13
Operating door locks from inside the vehicle ........................................................ 5-15
Automatic door lock and unlock features .............................................................. 5-17
Child-protector rear door locks ............................................................................... 5-17
How to lock the door in case of emergency .......................................................... 5-18
Rear Occupant Alert (ROA) ...................................................................................... 5-18
Theft-alarm system ........................................................................................5-19
Steering wheel .............................................................................................. 5-20
Electric power steering (EPS) ................................................................................. 5-20
Tilt steering / Telescope steering ............................................................................ 5-21
Heated steering wheel .............................................................................................5-22
Horn...........................................................................................................................5-22
Mirrors ........................................................................................................... 5-23Inside rearview mirror ..............................................................................................5-23
Outside rearview mirrors ........................................................................................ 5-24
Windows .........................................................................................................5-27Power windows ........................................................................................................ 5-27
Sunroof ........................................................................................................... 5-31
Bonnet ........................................................................................................... 5-36
Bonnet ...................................................................................................................... 5-36
Tailgate ......................................................................................................................5-37
Emergency tailgate safety release ......................................................................... 5-39
Fuel filler door.......................................................................................................... 5-39
Exterior lights ................................................................................................ 5-42
High Beam Assist (HBA) ............................................................................... 5-49
Function setting ...................................................................................................... 5-49
Operating condition ................................................................................................ 5-49
System malfunction and limitations ...................................................................... 5-50
Interior lights ................................................................................................. 5-52
5. Convenient features
5
Page 143 of 649

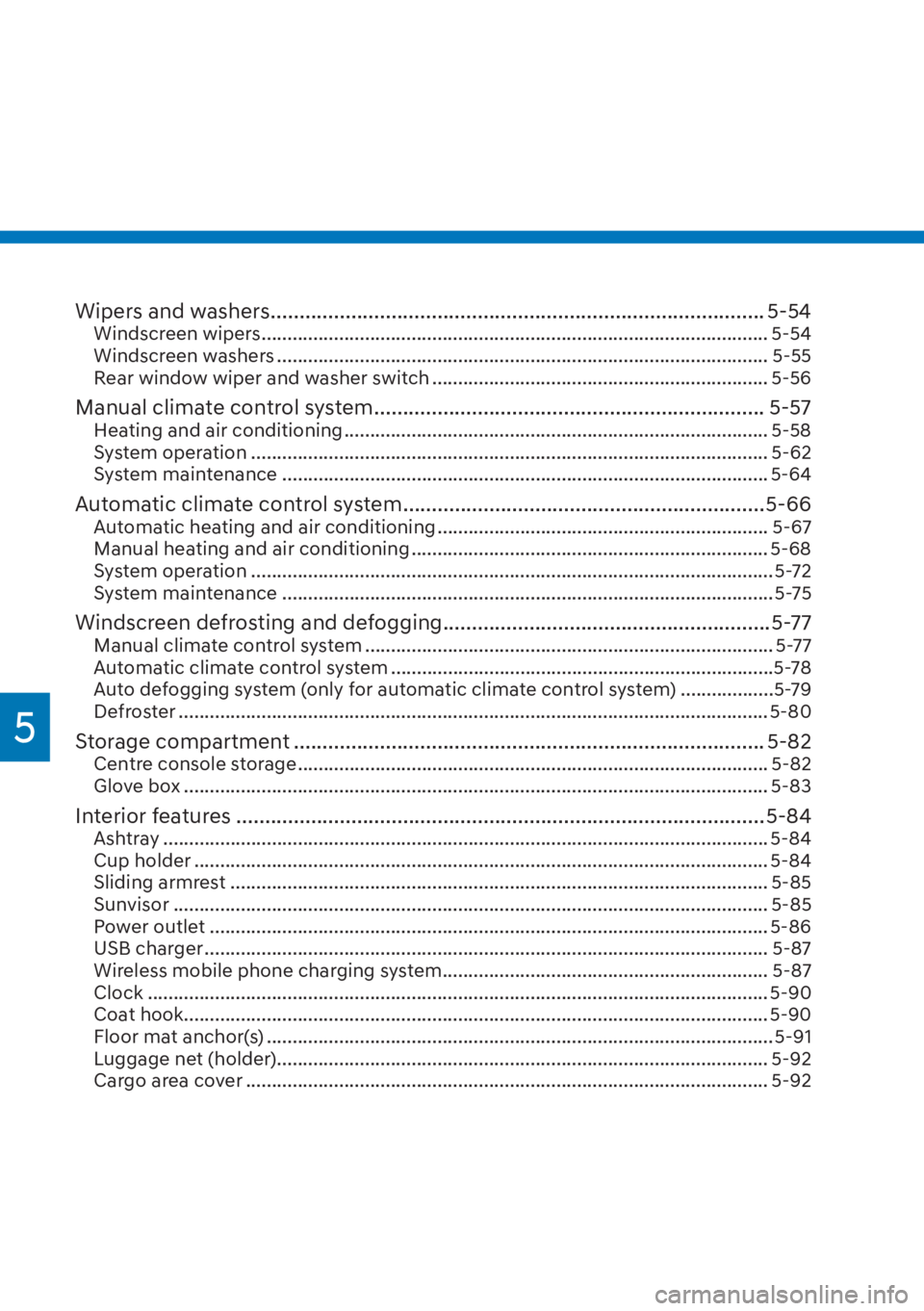

5
Wipers and washers ...................................................................................... 5-54Windscreen wipers .................................................................................................. 5-54
Windscreen washers ............................................................................................... 5-55
Rear window wiper and washer switch ................................................................. 5-56
Manual climate control system .................................................................... 5-57Heating and air conditioning .................................................................................. 5-58
System operation .................................................................................................... 5-62
System maintenance .............................................................................................. 5-64
Automatic climate control system ...............................................................5-66Automatic heating and air conditioning ................................................................ 5-67
Manual heating and air conditioning ..................................................................... 5-68
System operation ..................................................................................................... 5-72
System maintenance ............................................................................................... 5-75
Windscreen defrosting and defogging ......................................................... 5-77Manual climate control system ............................................................................... 5-77
Automatic climate control system ..........................................................................5-78
Auto defogging system (only for automatic climate control system) ..................5-79
Defroster .................................................................................................................. 5-80
Storage compartment .................................................................................. 5-82Centre console storage ........................................................................................... 5-82
Glove box ................................................................................................................. 5-83
Interior features ............................................................................................ 5-84Ashtray ..................................................................................................................... 5-84
Cup holder ............................................................................................................... 5-84
Sliding armrest ........................................................................................................ 5-85
Sunvisor ................................................................................................................... 5-85
Power outlet ............................................................................................................ 5-86
USB charger ............................................................................................................. 5-87
Wireless mobile phone charging system ............................................................... 5-87
Clock ........................................................................................................................ 5-90
Coat hook ................................................................................................................. 5-90
Floor mat anchor(s) .................................................................................................. 5-91
Luggage net (holder) ............................................................................................... 5-92
Cargo area cover ..................................................................................................... 5-92
Page 144 of 649
5

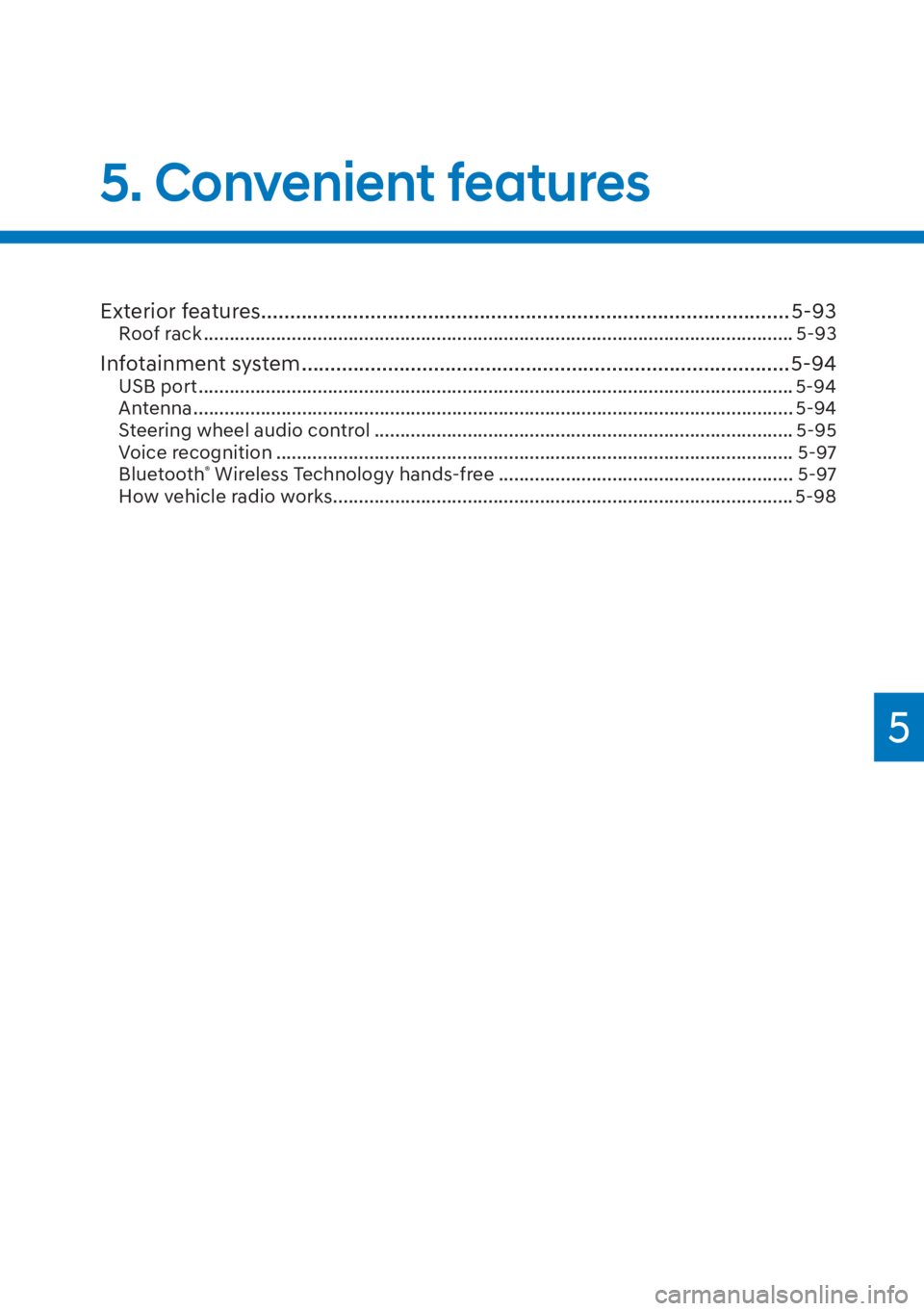

5. Convenient features
Exterior features ............................................................................................ 5-93Roof rack .................................................................................................................. 5-93
Infotainment system ..................................................................................... 5-94USB port ................................................................................................................... 5-94
Antenna .................................................................................................................... 5-94
Steering wheel audio control ................................................................................. 5-95
Voice recognition .................................................................................................... 5-97
Bluetooth
® Wireless Technology hands-free ......................................................... 5-97
How vehicle radio works ......................................................................................... 5-98
Page 145 of 649
5-4
Convenient features
ACCESSING YOUR VEHICLE
Remote key (if equipped)
OIB034040
Your HYUNDAI uses a remote key, which
you can use to lock or unlock a door
(and tailgate) and even start the engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock
Locking
To lock :
1. Close all doors, engine bonnet and
tailgate.
2. Press the Door Lock button (1) on the
remote key.
3. The doors will lock. The hazard
warning lights will blink once. Also,
the outside rearview mirror will fold,
if the User Settings mode on the LCD
display. For more details, refer to “LCD
Display” in chapter 4.
4. Make sure the doors are locked by
checking the position of the door lock
button inside the vehicle.
WARNING
Do not leave the keys in your
vehicle with unsupervised children.
Unattended children could place the
key in the ignition switch and may
operate power windows or other
controls, or even make the vehicle
move, which could result in serious
injury or death.
Unlocking
To unlock:
1. Press the Door Unlock button (2) on
the remote key.
2. The doors will unlock. The hazard
warning lights will blink two times.
Also, the outside rearview mirror will
unfold, if the User Settings mode on
the LCD display. For more details,
refer to “LCD Display” in chapter 4.
i Information
After unlocking the doors, the doors will
lock automatically after 30 seconds unless
a door is opened.
Tailgate unlocking
To unlock:
1. Press the Tailgate Unlock button (3)
on the remote key for more than one
second.
2. The hazard warning lights will blink
two times. Once the tailgate is opened
and then closed, the tailgate will lock
automatically.
i Information
Page 146 of 649
5-5
05
Start-up
For detailed information, refer to “Key
Ignition Switch” in chapter 6.
NOTICE
To prevent damaging the remote key:
[ . H H S W K H U H P R W H N H \ D Z D \ I U R P
water or any liquid and fire. If
the inside of the remote key gets
damp (due to drinks or moisture),
or is heated, internal circuit may
malfunction, excluding the car from
the warranty.
[ $ Y R L G G U R S S L Q J R U W K U R Z L Q J W K H
remote key.
[ 3 U R W H F W W K H U H P R W H N H \ I U R P H [ W U H P H
temperatures.
Mechanical key
„Type A
OED036001A
„Type B
OTLE045002
If the remote key does not operate
normally, you can lock or unlock the
door by using the mechanical key.
Type B
To unfold the key, press the release
button then the key will unfold
automatically.
To fold the key, fold the key manually
while pressing the release button.
NOTICE
Do not fold the key without pressing
the release button. This may damage
the key.
Page 147 of 649
5-6
Convenient features

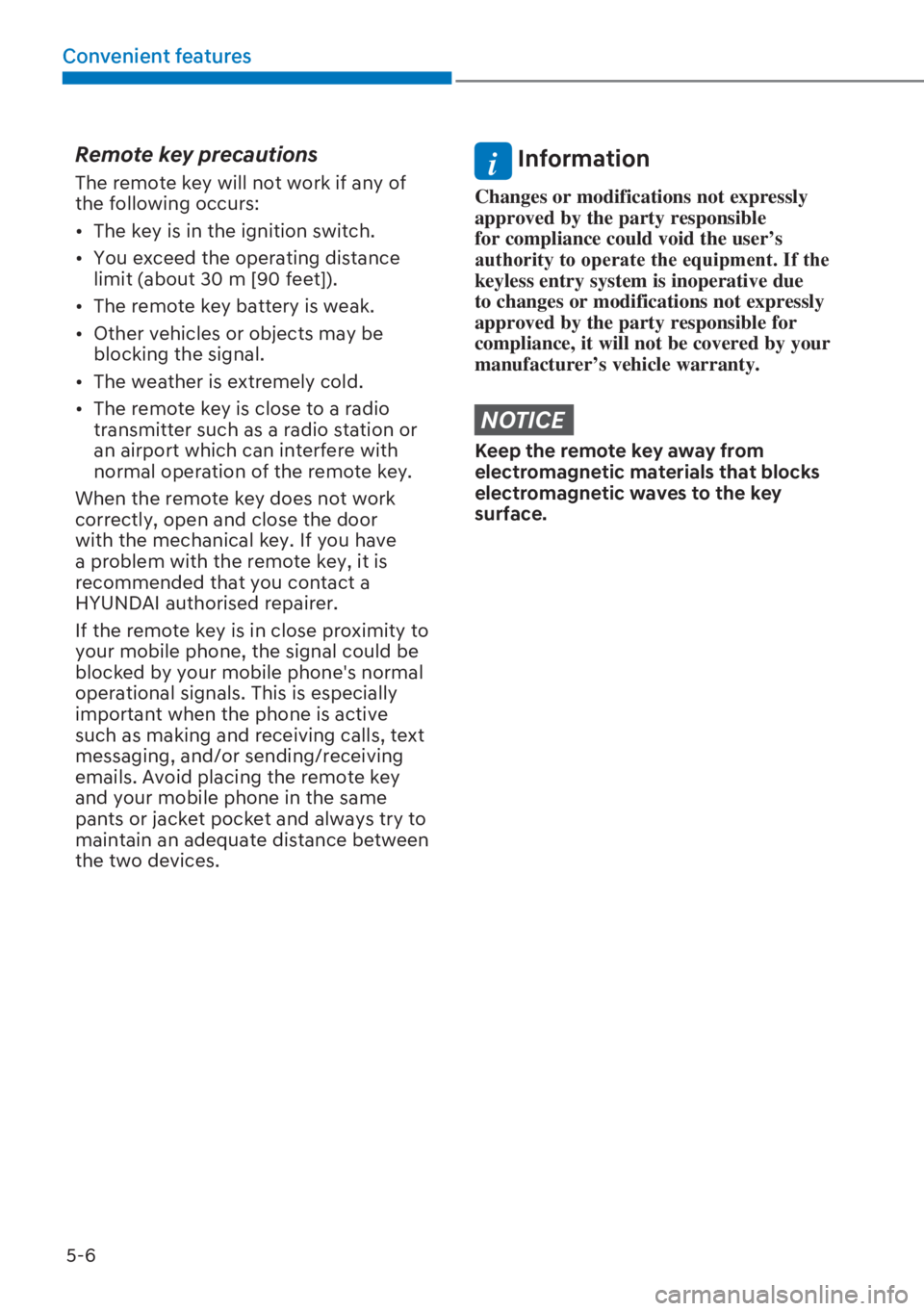

Remote key precautions
The remote key will not work if any of
the following occurs:
[ The key is in the ignition switch.
[ You exceed the operating distance
limit (about 30 m [90 feet]).
[ The remote key battery is weak.
[ Other vehicles or objects may be
blocking the signal.
[ The weather is extremely cold.
[ The remote key is close to a radio
transmitter such as a radio station or
an airport which can interfere with
normal operation of the remote key.
When the remote key does not work
correctly, open and close the door
with the mechanical key. If you have
a problem with the remote key, it is
recommended that you contact a
HYUNDAI authorised repairer.
If the remote key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone's normal
operational signals. This is especially
important when the phone is active
such as making and receiving calls, text
messaging, and/or sending/receiving
emails. Avoid placing the remote key
and your mobile phone in the same
pants or jacket pocket and always try to
maintain an adequate distance between
the two devices.i Information
Changes or modifications not expressly
approved by the party responsible
for compliance could void the user’s
D X W K R U L W \ W R R S H U D W H W K H H T X L S P H Q W , I W K H
keyless entry system is inoperative due
to changes or modifications not expressly
approved by the party responsible for
compliance, it will not be covered by your
manufacturer’s vehicle warranty.
NOTICE
. H H S W K H U H P R W H N H \ D Z D \ I U R P
electromagnetic materials that blocks
electromagnetic waves to the key
surface.
Page 148 of 649
5-7
05
Battery replacement
If the remote key is not working
properly, try replacing the battery with a
new one.
OLM042302
Battery Type: CR2032
To replace the battery:
1. Insert a slim tool into the slot and
gently pry open the cover.
2. Remove the old battery and insert the
new battery. Make sure the battery
position is correct.
3. Reinstall the rear cover of the remote
key.
If you suspect your remote key might
have sustained some damage, or you
feel your remote key is not working
correctly, it is recommended that you
contact a HYUNDAI authorised repairer.
i Information
An inappropriately disposed
battery can be harmful to the
environment and human
K H D O W K ' L V S R V H W K H E D W W H U \
according to your local law(s)
and regulation.
Smart key (if equipped)
OIB044179
Your HYUNDAI uses a Smart Key, which
you can use to lock or unlock a door
(and tailgate) and even start the engine.
(1) Door Lock
(2) Door Unlock
(3) Tailgate Unlock
Page 149 of 649
5-8
Convenient features

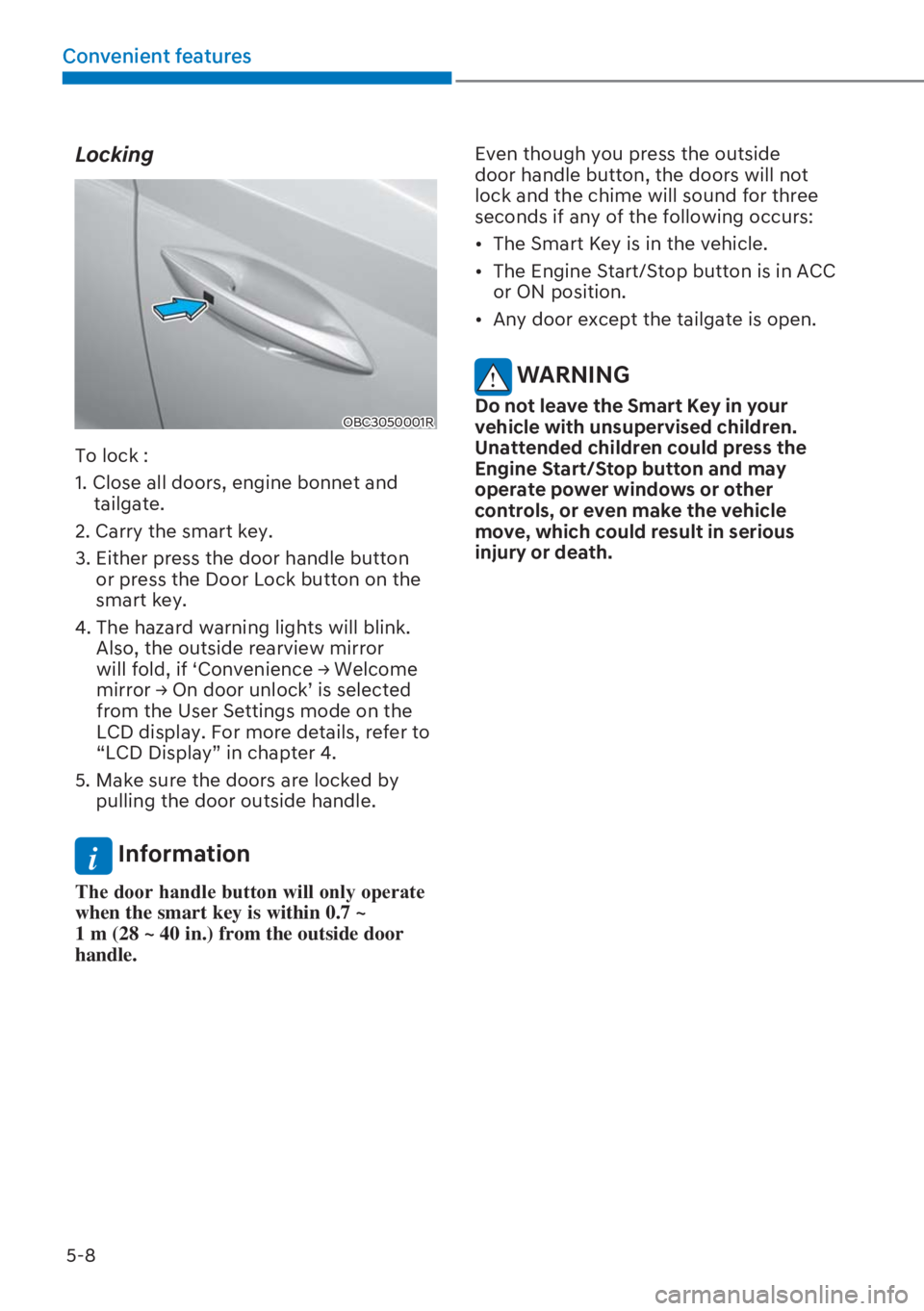

Locking
OBC3050001R
To lock :
1. Close all doors, engine bonnet and
tailgate.
2. Carry the smart key.
3. Either press the door handle button
or press the Door Lock button on the
smart key.
4. The hazard warning lights will blink.
Also, the outside rearview mirror
Z L O O I R O G L I S & R Q Y H Q L H Q F H
Page 150 of 649
5-9
05

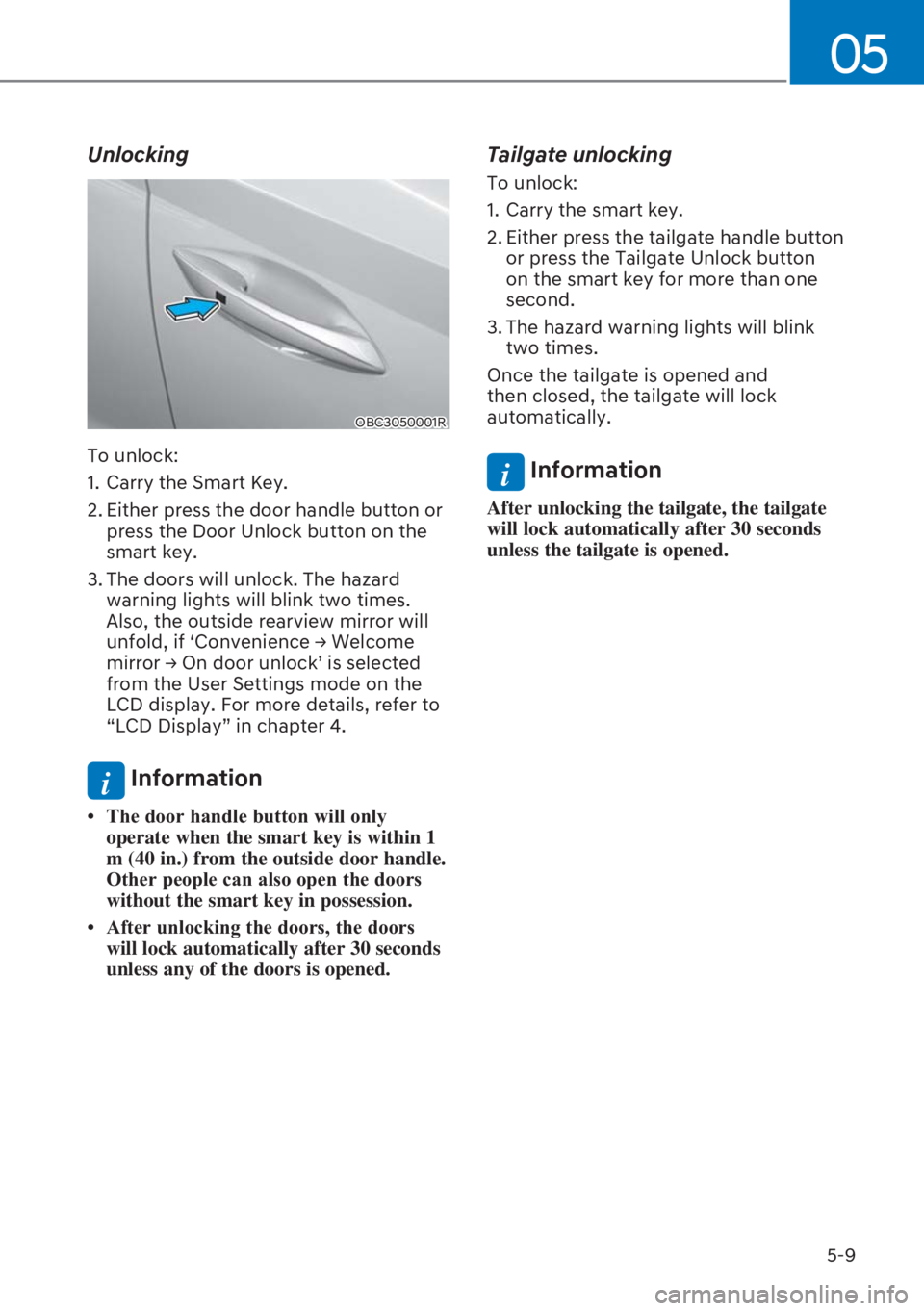

Unlocking
OBC3050001R
To unlock:
1. Carry the Smart Key.
2. Either press the door handle button or
press the Door Unlock button on the
smart key.
3. The doors will unlock. The hazard
warning lights will blink two times.
Also, the outside rearview mirror will
X Q I R O G L I S & R Q Y H Q L H Q F H
