5-30
Convenient features
NOTICE
Do not install any accessories on the
windows. The automatic reverse feature
may not operate.

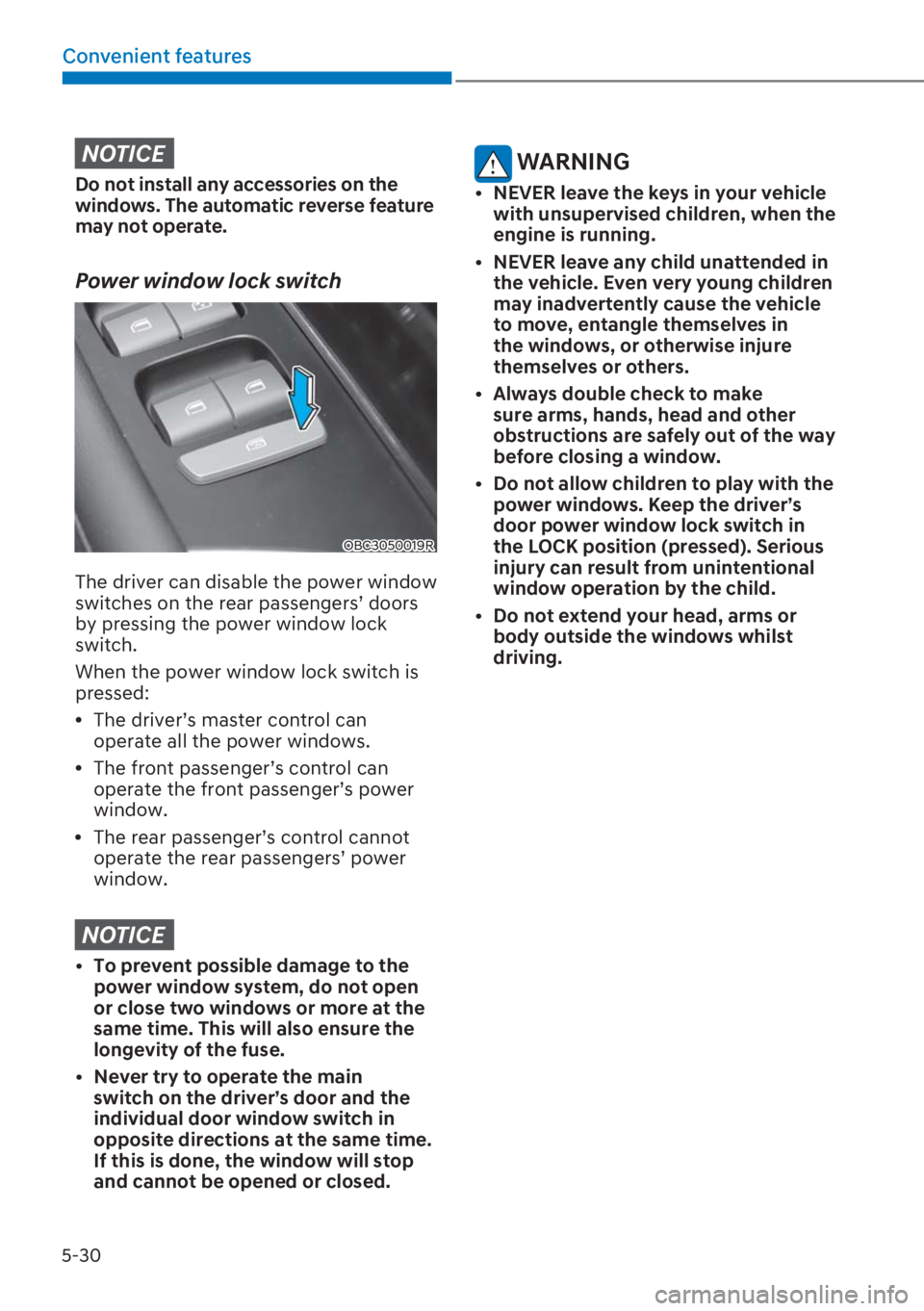

Power window lock switch
OBC3050019R
The driver can disable the power window
V Z L W F K H V R Q W K H U H D U S D V V H Q J H U VT G R R U V
by pressing the power window lock
switch.
When the power window lock switch is
pressed:
‡ 7 K H G U L Y H UT V P D V W H U F R Q W U R O F D Q
operate all the power windows.
‡ 7 K H I U R Q W S D V V H Q J H UT V F R Q W U R O F D Q
R S H U D W H W K H I U R Q W S D V V H Q J H UT V S R Z H U
window.
‡ 7 K H U H D U S D V V H Q J H UT V F R Q W U R O F D Q Q R W
R S H U D W H W K H U H D U S D V V H Q J H U VT S R Z H U
window.
NOTICE
[ 7 R S U H Y H Q W S R V V L E O H G D P D J H W R W K H
power window system, do not open
or close two windows or more at the
same time. This will also ensure the
longevity of the fuse.
[ 1 H Y H U W U \ W R R S H U D W H W K H P D L Q
switch on the driver’s door and the
individual door window switch in
opposite directions at the same time.
If this is done, the window will stop
and cannot be opened or closed.
WARNING
[ NEVER leave the keys in your vehicle
with unsupervised children, when the
engine is running.
[ NEVER leave any child unattended in
the vehicle. Even very young children
may inadvertently cause the vehicle
to move, entangle themselves in
the windows, or otherwise injure
themselves or others.
[ Always double check to make
sure arms, hands, head and other
obstructions are safely out of the way
before closing a window.
[ Do not allow children to play with the
S R Z H U Z L Q G R Z V . H H S W K H G U L Y H UT V
door power window lock switch in
W K H / 2 & . S R V L W L R Q S U H V V H G 6 H U L R X V
injury can result from unintentional
window operation by the child.
[ Do not extend your head, arms or
body outside the windows whilst
driving.
Page 172 of 649
5-31
05

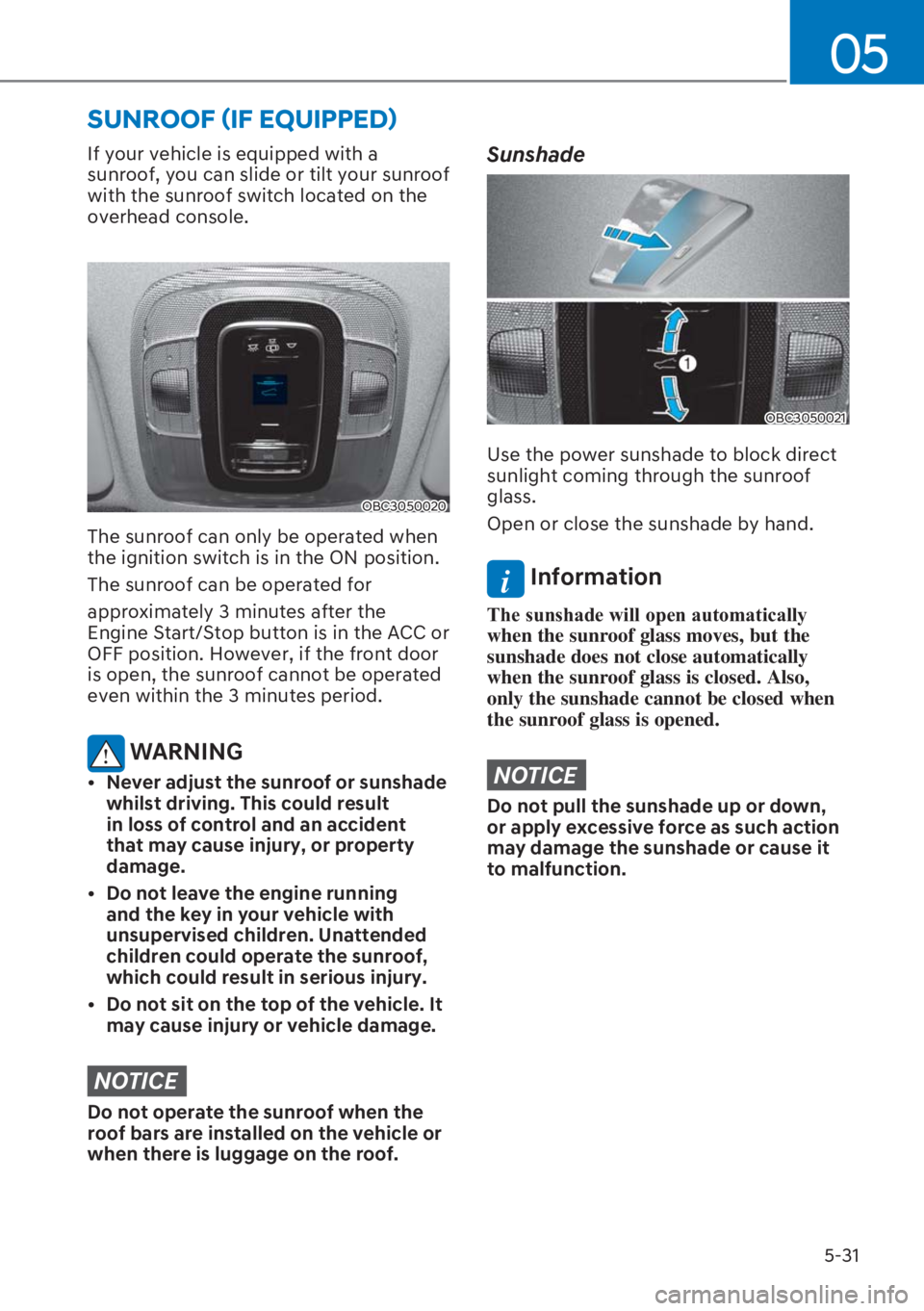

If your vehicle is equipped with a
sunroof, you can slide or tilt your sunroof
with the sunroof switch located on the
overhead console.
OBC3050020
The sunroof can only be operated when
the ignition switch is in the ON position.
The sunroof can be operated for
approximately 3 minutes after the
Engine Start/Stop button is in the ACC or
OFF position. However, if the front door
is open, the sunroof cannot be operated
even within the 3 minutes period.
WARNING
[ Never adjust the sunroof or sunshade
whilst driving. This could result
in loss of control and an accident
that may cause injury, or property
damage.
[ Do not leave the engine running
and the key in your vehicle with
unsupervised children. Unattended
children could operate the sunroof,
which could result in serious injury.
[ Do not sit on the top of the vehicle. It
may cause injury or vehicle damage.
NOTICE
Do not operate the sunroof when the
roof bars are installed on the vehicle or
when there is luggage on the roof.
Sunshade
OBC3050021
Use the power sunshade to block direct
sunlight coming through the sunroof
glass.
Open or close the sunshade by hand.
i Information
7 K H V X Q V K D G H Z L O O R S H Q D X W R P D W L F D O O \
when the sunroof glass moves, but the
sunshade does not close automatically
when the sunroof glass is closed. Also,
only the sunshade cannot be closed when
the sunroof glass is opened.
NOTICE
Do not pull the sunshade up or down,
or apply excessive force as such action
may damage the sunshade or cause it
to malfunction.
6 8 1 5 2 2 )
Page 173 of 649
5-32
Convenient features

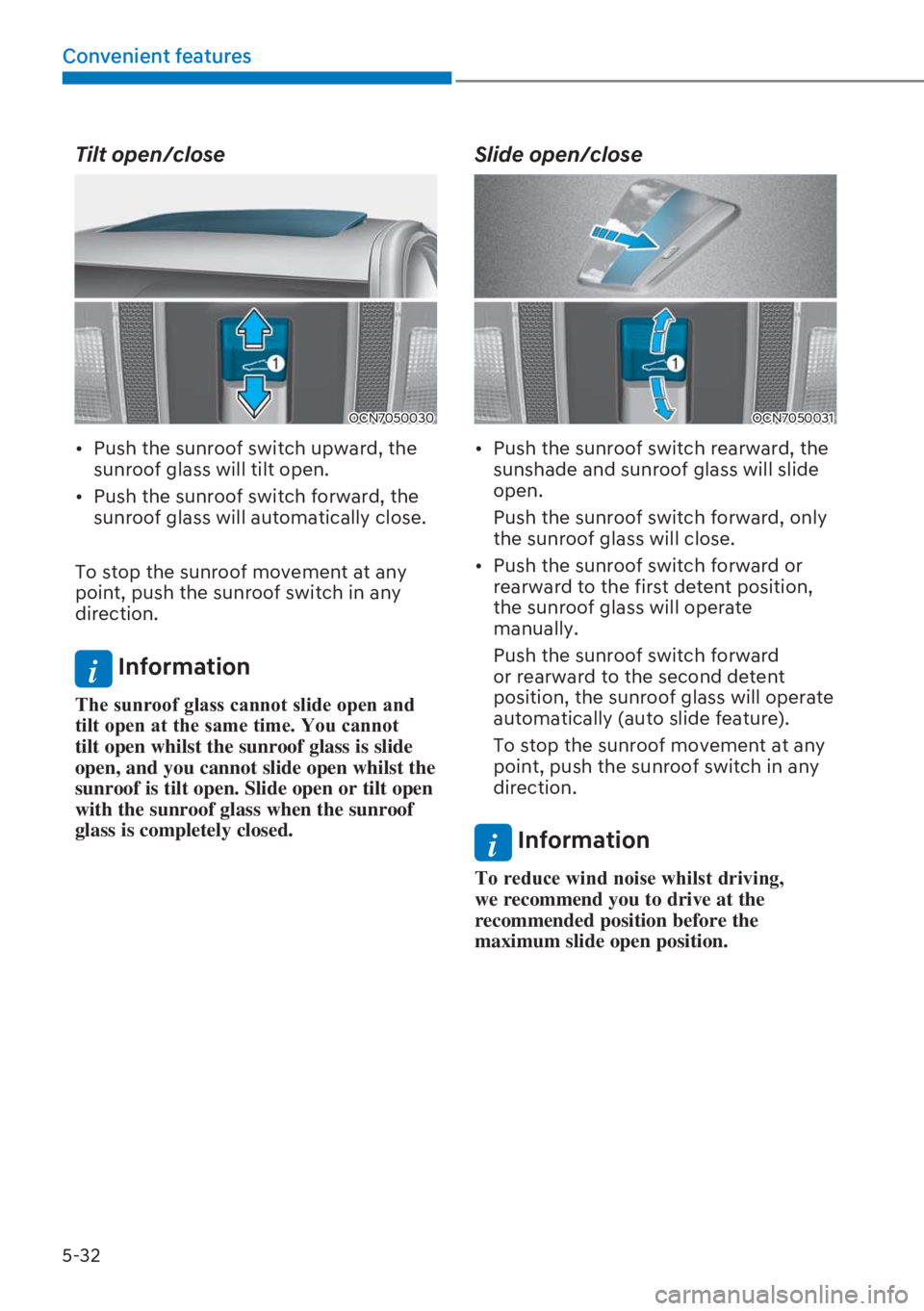

Tilt open/close
OCN7050030
[ Push the sunroof switch upward, the
sunroof glass will tilt open.
[ Push the sunroof switch forward, the
sunroof glass will automatically close.
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
i Information
7 K H V X Q U R R I J O D V V F D Q Q R W V O L G H R S H Q D Q G
W L O W R S H Q D W W K H V D P H W L P H < R X F D Q Q R W
tilt open whilst the sunroof glass is slide
open, and you cannot slide open whilst the
sunroof is tilt open. Slide open or tilt open
with the sunroof glass when the sunroof
glass is completely closed.
Slide open/close
OCN7050031
[ Push the sunroof switch rearward, the
sunshade and sunroof glass will slide
open.
Push the sunroof switch forward, only
the sunroof glass will close.
[ Push the sunroof switch forward or
rearward to the first detent position,
the sunroof glass will operate
manually.
Push the sunroof switch forward
or rearward to the second detent
position, the sunroof glass will operate
automatically (auto slide feature).
To stop the sunroof movement at any
point, push the sunroof switch in any
direction.
i Information
7 R U H G X F H Z L Q G Q R L V H Z K L O V W G U L Y L Q J
we recommend you to drive at the
recommended position before the
maximum slide open position.
Page 174 of 649
5-33
05

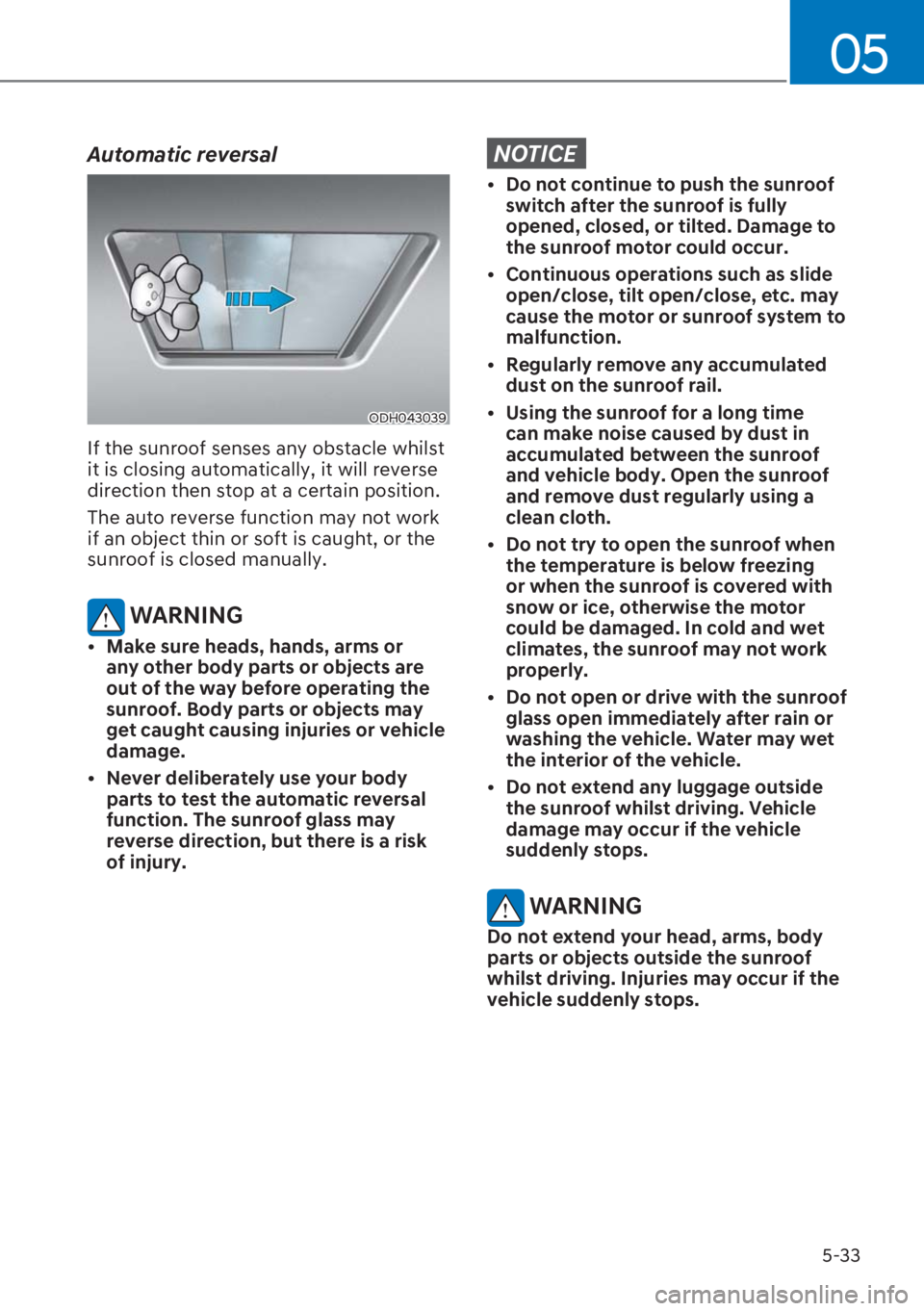

Automatic reversal
ODH043039
If the sunroof senses any obstacle whilst
it is closing automatically, it will reverse
direction then stop at a certain position.
The auto reverse function may not work
if an object thin or soft is caught, or the
sunroof is closed manually.
WARNING
[ Make sure heads, hands, arms or
any other body parts or objects are
out of the way before operating the
sunroof. Body parts or objects may
get caught causing injuries or vehicle
damage.
[ Never deliberately use your body
parts to test the automatic reversal
function. The sunroof glass may
reverse direction, but there is a risk
of injury.
NOTICE
[ Do not continue to push the sunroof
switch after the sunroof is fully
opened, closed, or tilted. Damage to
the sunroof motor could occur.
[ Continuous operations such as slide
open/close, tilt open/close, etc. may
cause the motor or sunroof system to
malfunction.
[ Regularly remove any accumulated
dust on the sunroof rail.
[ Using the sunroof for a long time
can make noise caused by dust in
accumulated between the sunroof
and vehicle body. Open the sunroof
and remove dust regularly using a
clean cloth.
[ Do not try to open the sunroof when
the temperature is below freezing
or when the sunroof is covered with
snow or ice, otherwise the motor
could be damaged. In cold and wet
climates, the sunroof may not work
properly.
[ Do not open or drive with the sunroof
glass open immediately after rain or
washing the vehicle. Water may wet
the interior of the vehicle.
[ Do not extend any luggage outside
the sunroof whilst driving. Vehicle
damage may occur if the vehicle
suddenly stops.
WARNING
Do not extend your head, arms, body
parts or objects outside the sunroof
whilst driving. Injuries may occur if the
vehicle suddenly stops.
Page 175 of 649
5-34
Convenient features

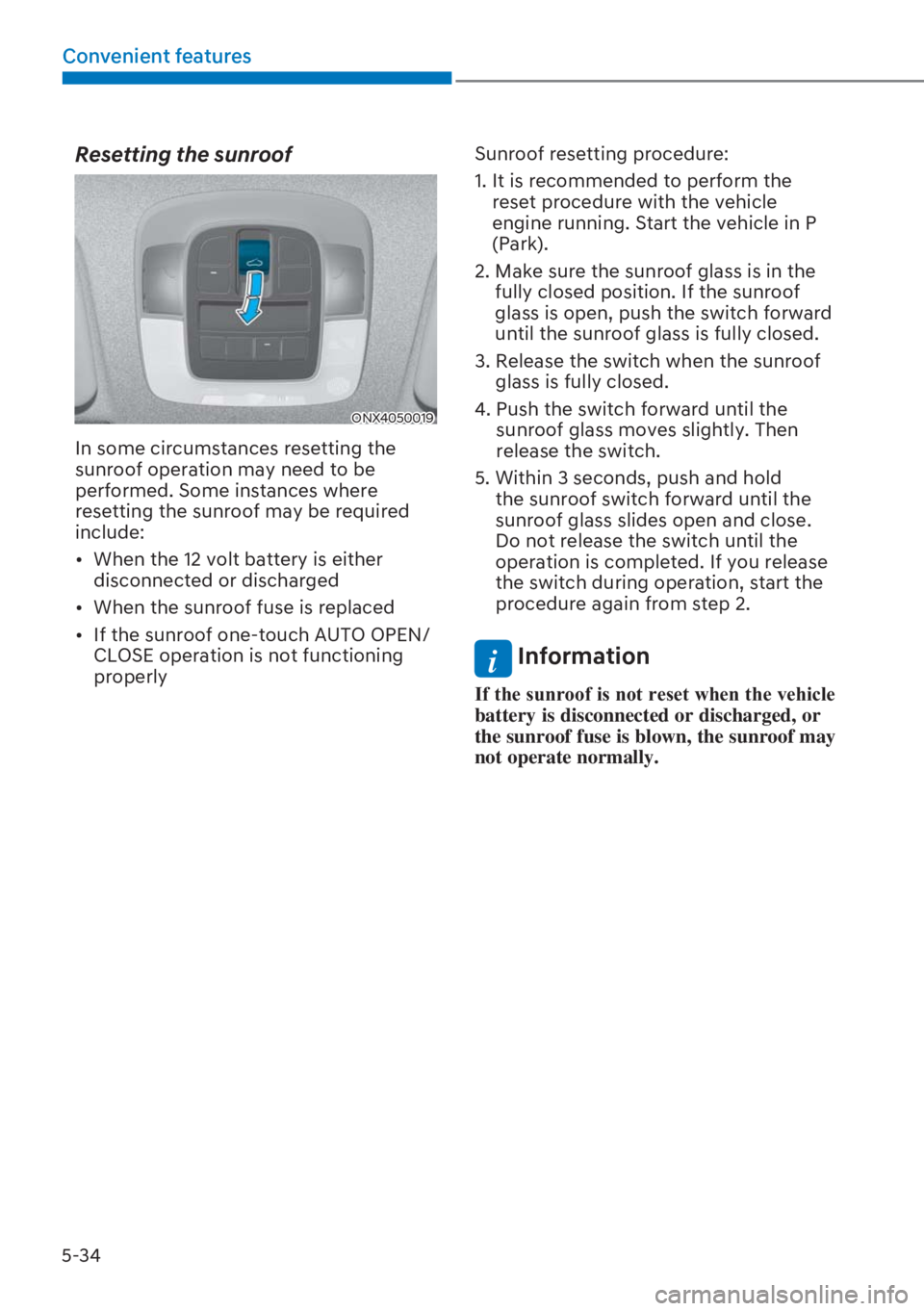

Resetting the sunroof
ONX4050019
In some circumstances resetting the
sunroof operation may need to be
performed. Some instances where
resetting the sunroof may be required
include:
[ When the 12 volt battery is either
disconnected or discharged
[ When the sunroof fuse is replaced
[ If the sunroof one-touch AUTO OPEN/
CLOSE operation is not functioning
properlySunroof resetting procedure:
1. It is recommended to perform the
reset procedure with the vehicle
engine running. Start the vehicle in P
(Park).
2. Make sure the sunroof glass is in the
fully closed position. If the sunroof
glass is open, push the switch forward
until the sunroof glass is fully closed.
3. Release the switch when the sunroof
glass is fully closed.
4. Push the switch forward until the
sunroof glass moves slightly. Then
release the switch.
5. Within 3 seconds, push and hold
the sunroof switch forward until the
sunroof glass slides open and close.
Do not release the switch until the
operation is completed. If you release
the switch during operation, start the
procedure again from step 2.
i Information
, I W K H V X Q U R R I L V Q R W U H V H W Z K H Q W K H Y H K L F O H
battery is disconnected or discharged, or
the sunroof fuse is blown, the sunroof may
not operate normally.
Page 176 of 649
5-35
05

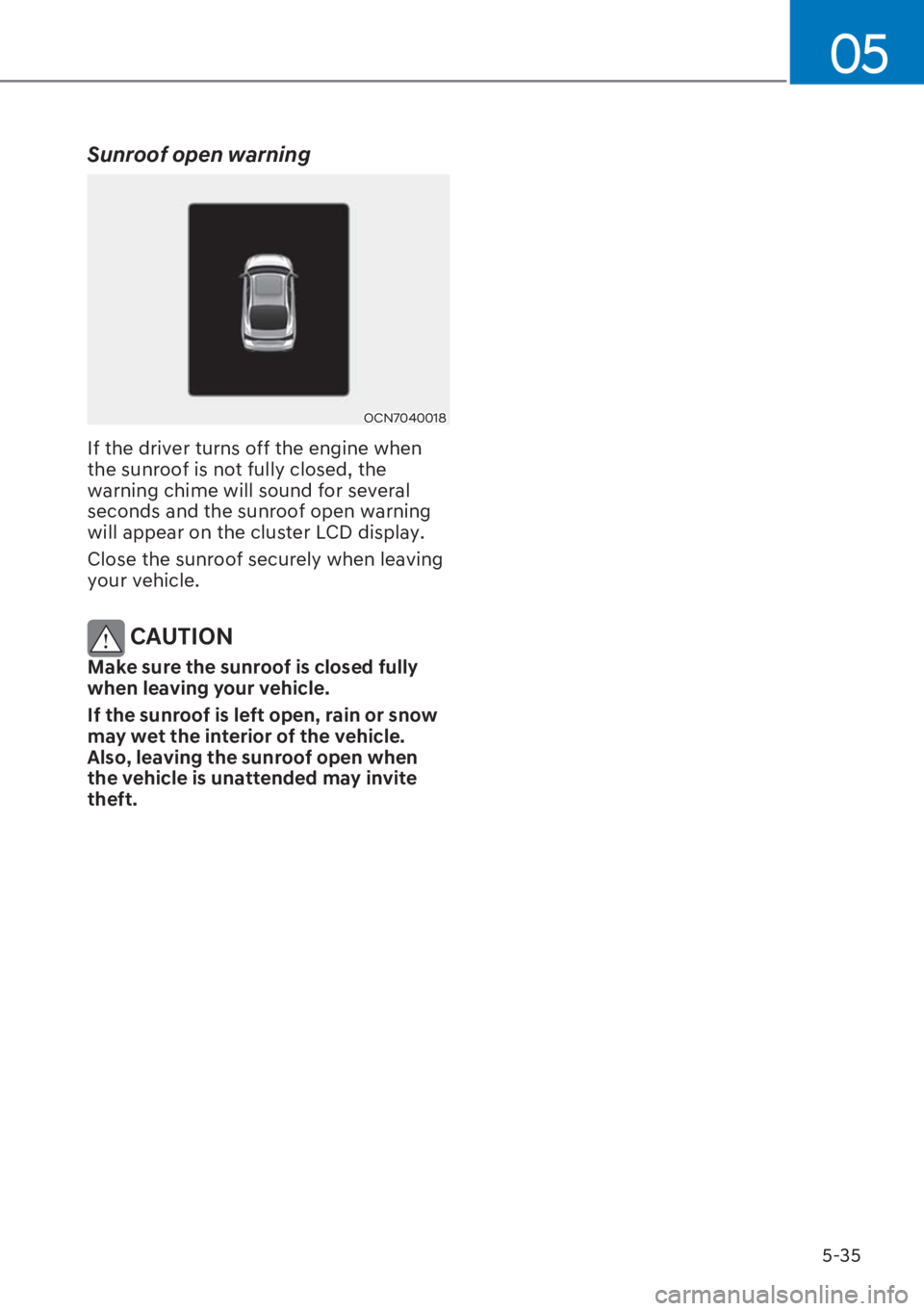

Sunroof open warning
OCN7040018
If the driver turns off the engine when
the sunroof is not fully closed, the
warning chime will sound for several
seconds and the sunroof open warning
will appear on the cluster LCD display.
Close the sunroof securely when leaving
your vehicle.
CAUTION
Make sure the sunroof is closed fully
when leaving your vehicle.
If the sunroof is left open, rain or snow
may wet the interior of the vehicle.
Also, leaving the sunroof open when
the vehicle is unattended may invite
theft.
Page 177 of 649
5-36
Convenient features

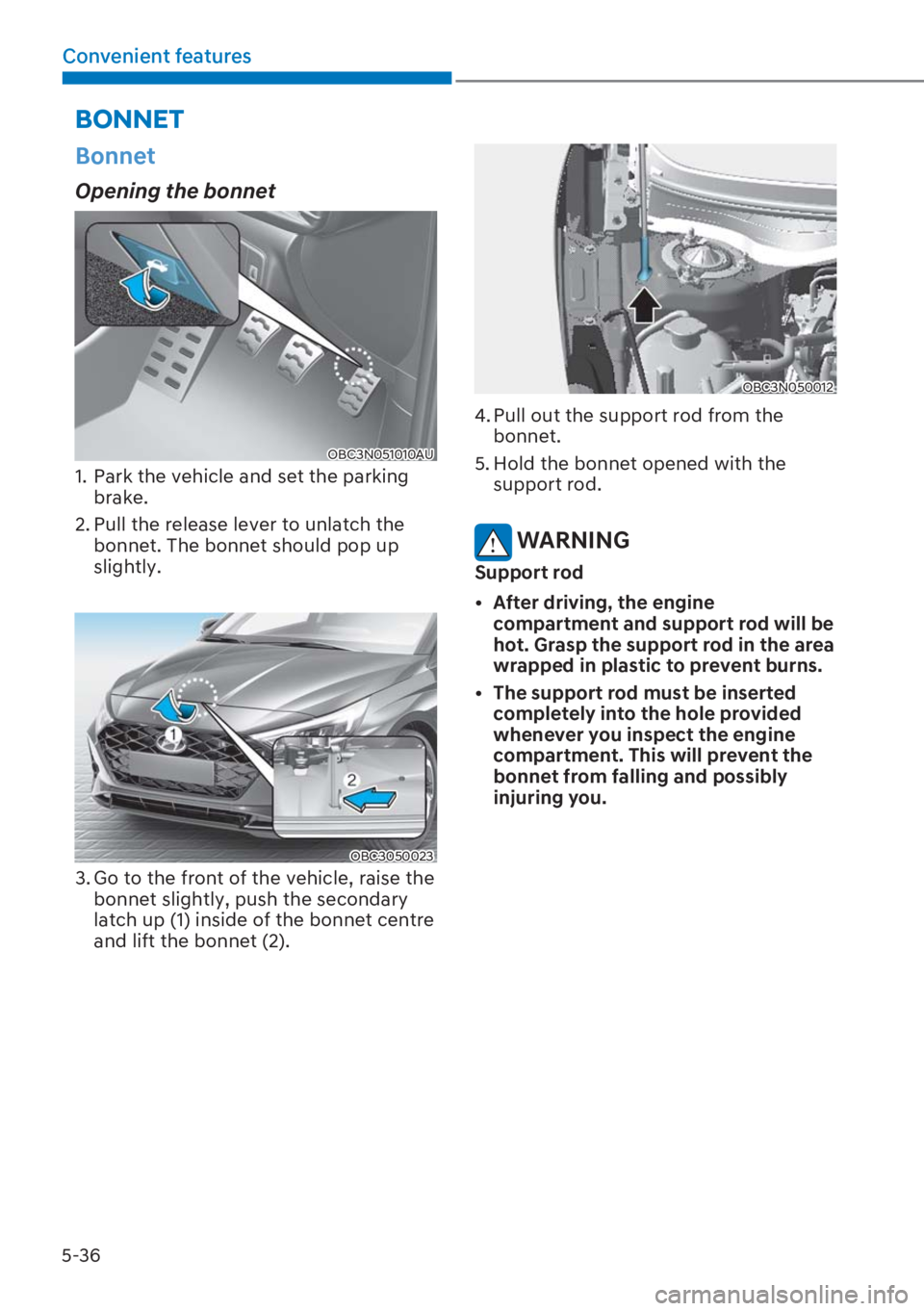

Bonnet
Opening the bonnet
OBC3N051010AU
1. Park the vehicle and set the parking
brake.
2. Pull the release lever to unlatch the
bonnet. The bonnet should pop up
slightly.
OBC3050023
3. Go to the front of the vehicle, raise the
bonnet slightly, push the secondary
latch up (1) inside of the bonnet centre
and lift the bonnet (2).
OBC3N050012
4. Pull out the support rod from the
bonnet.
5. Hold the bonnet opened with the
support rod.
WARNING
Support rod
[ After driving, the engine
compartment and support rod will be
hot. Grasp the support rod in the area
wrapped in plastic to prevent burns.
[ The support rod must be inserted
completely into the hole provided
whenever you inspect the engine
compartment. This will prevent the
bonnet from falling and possibly
injuring you.
BONNET
Page 178 of 649
5-37
05

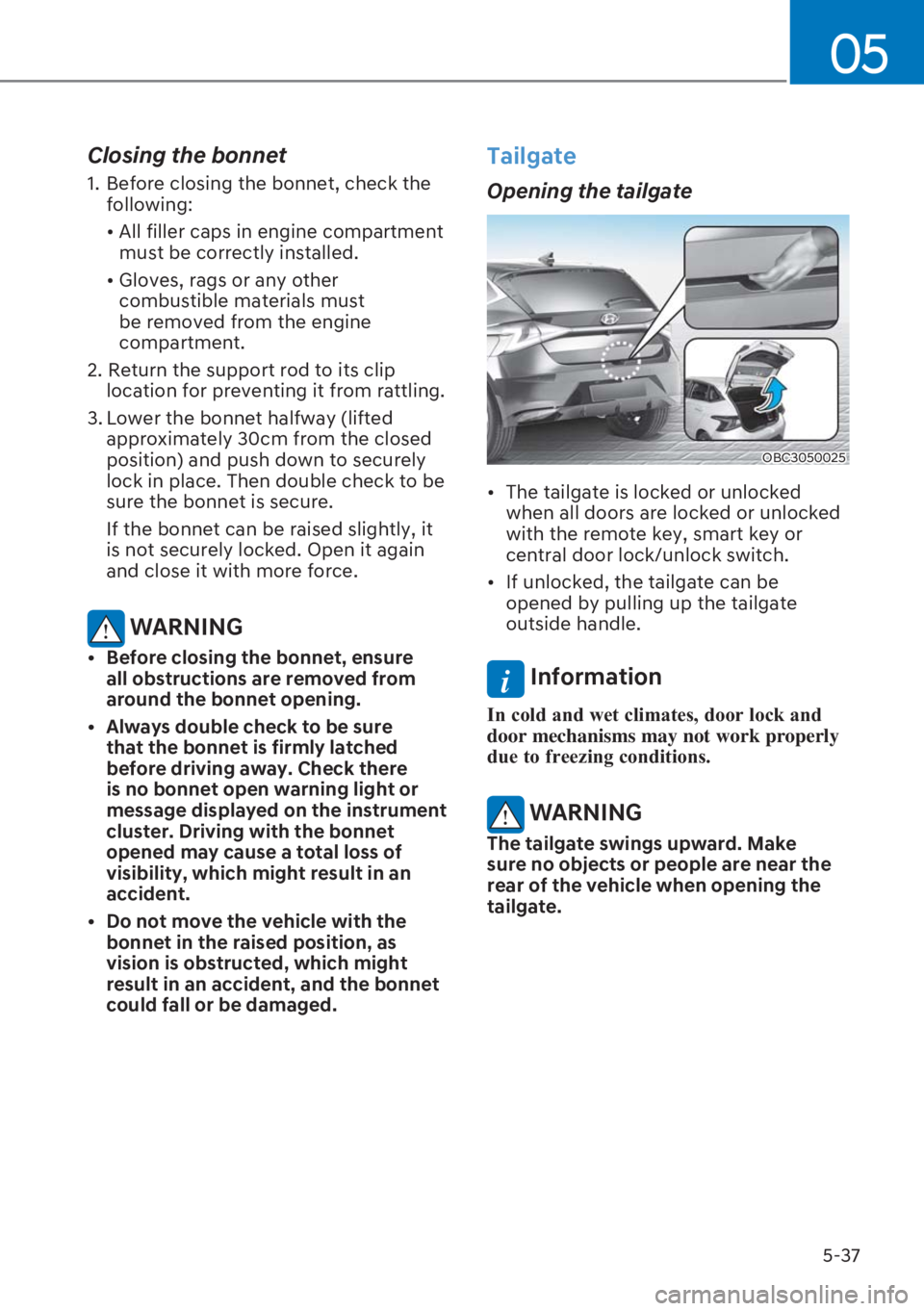

Closing the bonnet
1. Before closing the bonnet, check the
following:
[ $ O O I L O O H U F D S V L Q H Q J L Q H F R P S D U W P H Q W
must be correctly installed.
[ * O R Y H V U D J V R U D Q \ R W K H U
combustible materials must
be removed from the engine
compartment.
2. Return the support rod to its clip
location for preventing it from rattling.
3. Lower the bonnet halfway (lifted
approximately 30cm from the closed
position) and push down to securely
lock in place. Then double check to be
sure the bonnet is secure.
If the bonnet can be raised slightly, it
is not securely locked. Open it again
and close it with more force.
WARNING
[ Before closing the bonnet, ensure
all obstructions are removed from
around the bonnet opening.
[ Always double check to be sure
that the bonnet is firmly latched
before driving away. Check there
is no bonnet open warning light or
message displayed on the instrument
cluster. Driving with the bonnet
opened may cause a total loss of
visibility, which might result in an
accident.
[ Do not move the vehicle with the
bonnet in the raised position, as
vision is obstructed, which might
result in an accident, and the bonnet
could fall or be damaged.
Tailgate
Opening the tailgate
OBC3050025
[ 7 K H W D L O J D W H L V O R F N H G R U X Q O R F N H G
when all doors are locked or unlocked
with the remote key, smart key or
central door lock/unlock switch.
[ , I X Q O R F N H G W K H W D L O J D W H F D Q E H
opened by pulling up the tailgate
outside handle.
i Information
, Q F R O G D Q G Z H W F O L P D W H V G R R U O R F N D Q G
door mechanisms may not work properly
G X H W R I U H H ] L Q J F R Q G L W L R Q V
WARNING
The tailgate swings upward. Make
sure no objects or people are near the
rear of the vehicle when opening the
tailgate.
Page 179 of 649
5-38
Convenient features
NOTICE

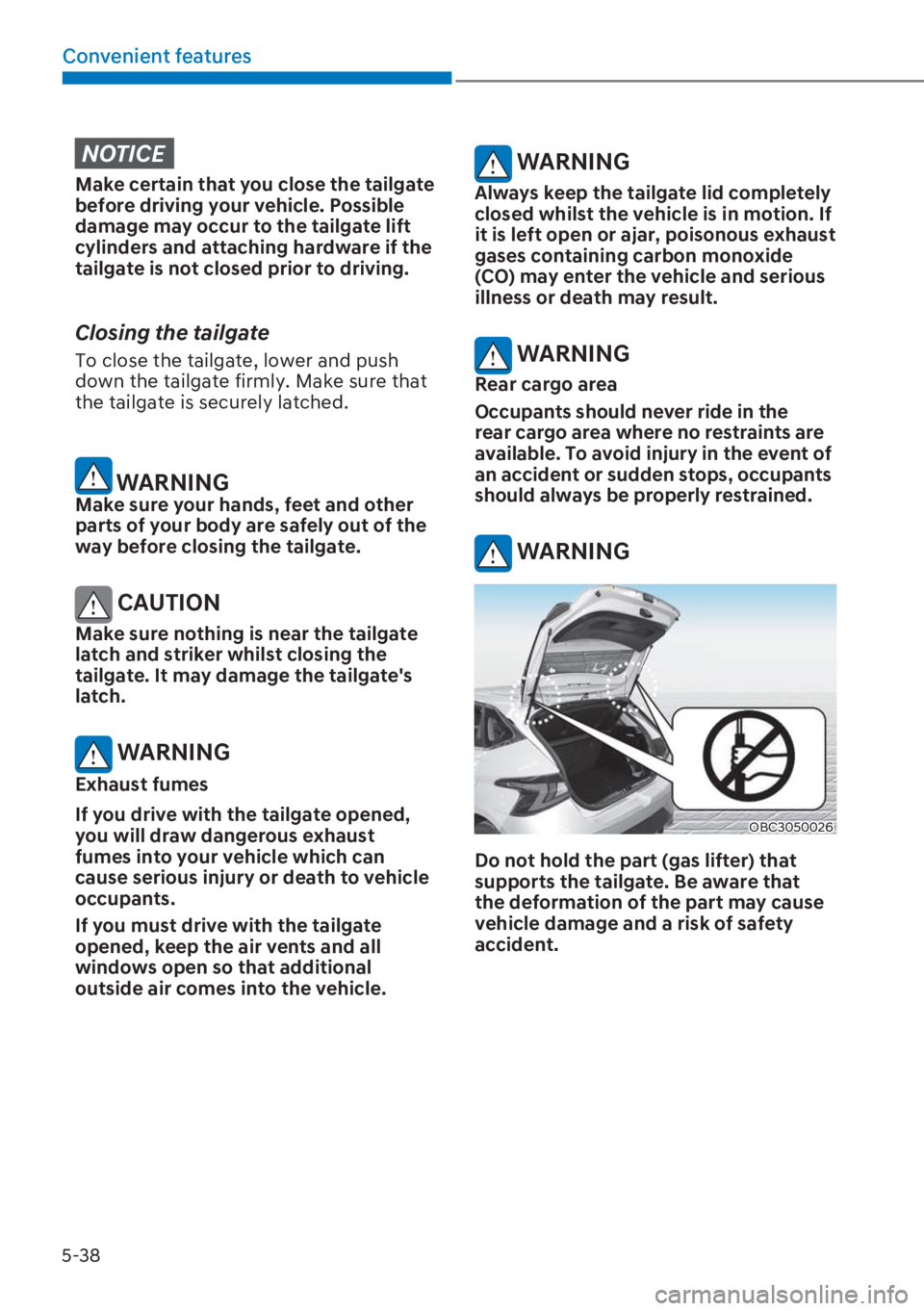

Make certain that you close the tailgate
E H I R U H G U L Y L Q J \ R X U Y H K L F O H 3 R V V L E O H
damage may occur to the tailgate lift
cylinders and attaching hardware if the
tailgate is not closed prior to driving.
Closing the tailgate
To close the tailgate, lower and push
down the tailgate firmly. Make sure that
the tailgate is securely latched.
WARNINGMake sure your hands, feet and other
parts of your body are safely out of the
way before closing the tailgate.
CAUTION
Make sure nothing is near the tailgate
latch and striker whilst closing the
tailgate. It may damage the tailgate's
latch.
WARNING
Exhaust fumes
If you drive with the tailgate opened,
you will draw dangerous exhaust
fumes into your vehicle which can
cause serious injury or death to vehicle
occupants.
If you must drive with the tailgate
opened, keep the air vents and all
windows open so that additional
outside air comes into the vehicle.
WARNING
Always keep the tailgate lid completely
closed whilst the vehicle is in motion. If
it is left open or ajar, poisonous exhaust
gases containing carbon monoxide
(CO) may enter the vehicle and serious
illness or death may result.
WARNING
Rear cargo area
Occupants should never ride in the
rear cargo area where no restraints are
available. To avoid injury in the event of
an accident or sudden stops, occupants
should always be properly restrained.
WARNING
OBC3050026
Do not hold the part (gas lifter) that
supports the tailgate. Be aware that
the deformation of the part may cause
vehicle damage and a risk of safety
accident.
Page 180 of 649
5-39
05

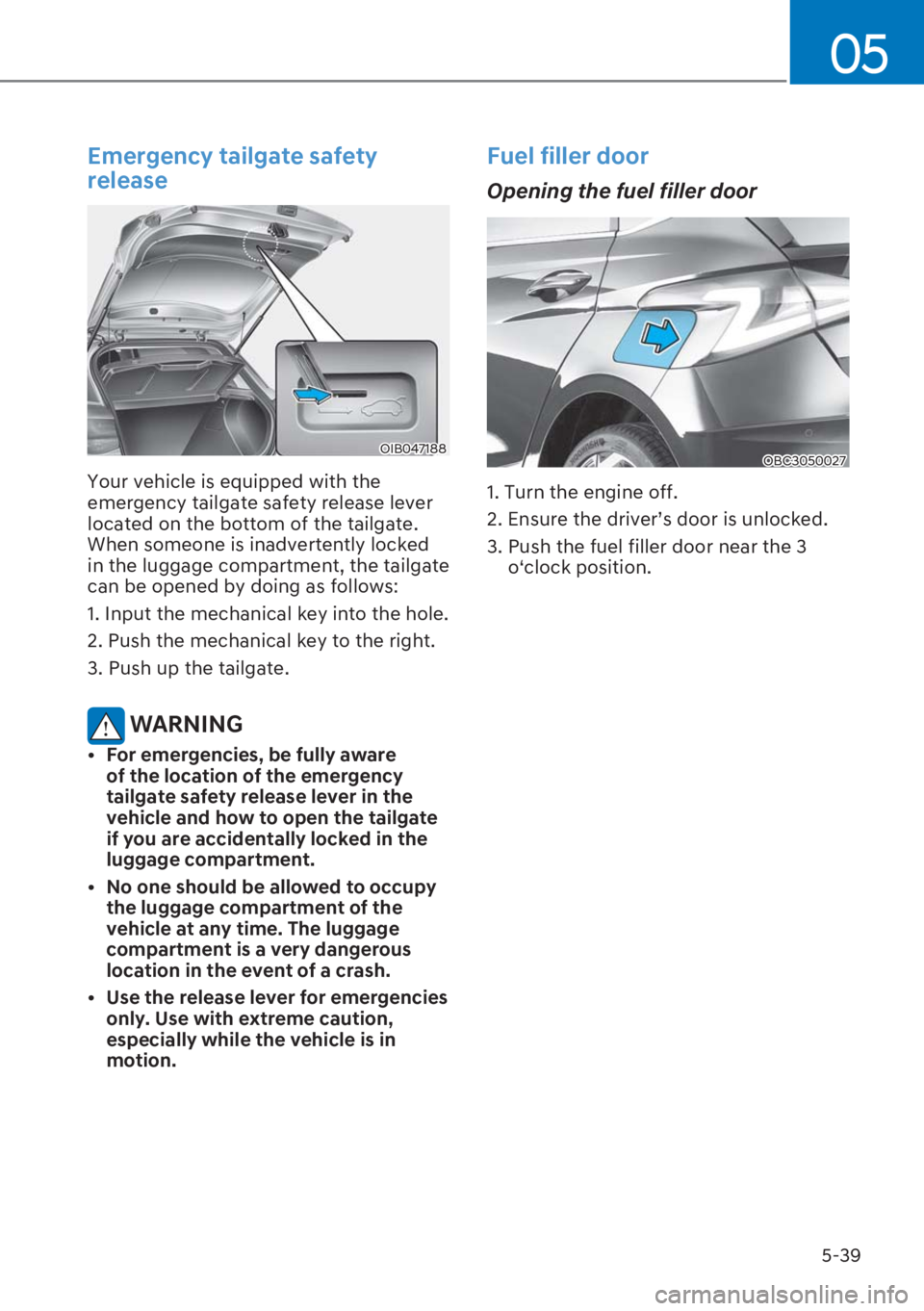

Emergency tailgate safety
release
OIB047188
Your vehicle is equipped with the
emergency tailgate safety release lever
located on the bottom of the tailgate.
When someone is inadvertently locked
in the luggage compartment, the tailgate
can be opened by doing as follows:
1. Input the mechanical key into the hole.
2. Push the mechanical key to the right.
3. Push up the tailgate.
WARNING
[ ) R U H P H U J H Q F L H V E H I X O O \ D Z D U H
of the location of the emergency
tailgate safety release lever in the
vehicle and how to open the tailgate
if you are accidentally locked in the
luggage compartment.
[ No one should be allowed to occupy
the luggage compartment of the
vehicle at any time. The luggage
compartment is a very dangerous
location in the event of a crash.
[ Use the release lever for emergencies
only. Use with extreme caution,
especially while the vehicle is in
motion.
) X H O I L O O H U G R R U
Opening the fuel filler door
OBC3050027
1. Turn the engine off.
( Q V X U H W K H G U L Y H UT V G R R U L V X Q O R F N H G
3. Push the fuel filler door near the 3
o‘clock position.
