- If the light switch is pushed away
when High Beam Assist is operating,
High Beam Assist will turn off.
- If the light switch is pulled towards
you when the high beam is off, the
high beam will turn on. When you let
go of the light switch, the lever will
move to the middle and the high beam
will turn off.
- If the light switch is pulled towards
you when the high beam is on by High
Beam Assist, and High Beam Assist
will turn off.
- If the light switch is placed to the
headlight position (
), High Beam
Assist will turn off and the low beam
will be on continuously.
When High Beam Assist is operating, the
high beam switches to low beam in the
following conditions.
- When the headlight of an on-coming
vehicle is detected.
- When the tail light of a vehicle in front
is detected.
- When the headlight or tail light of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light is
bright enough that high beams are not
required.
- When streetlights or other lights are
detected.
- When the light switch is not in the
AUTO position.
- When High Beam Assist is off.
- When the vehicle speed is below 19
mph (30 km/h).

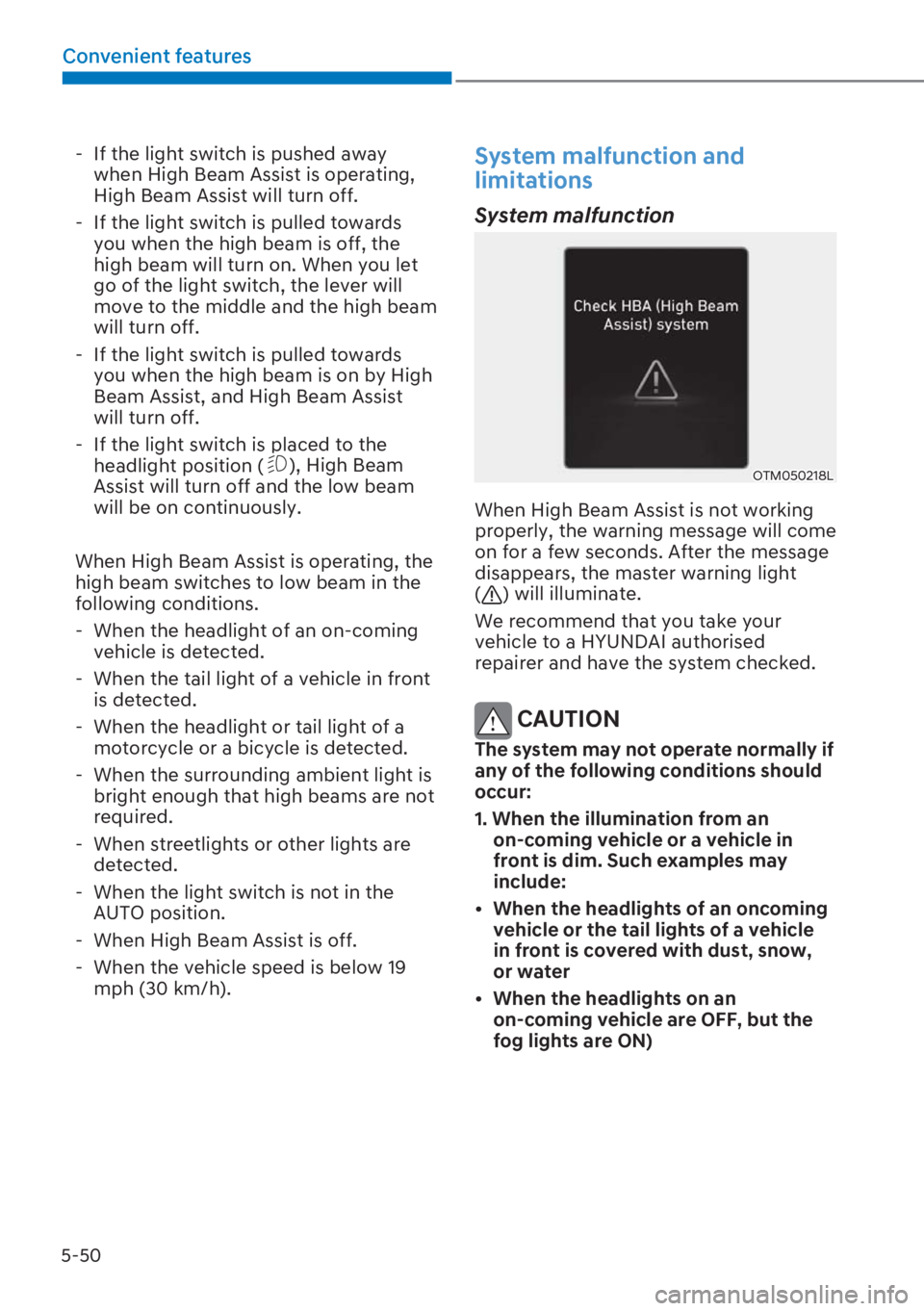

System malfunction and
limitations
System malfunction
OTM050218L
When High Beam Assist is not working
properly, the warning message will come
on for a few seconds. After the message
disappears, the master warning light
(
) will illuminate.
We recommend that you take your
vehicle to a HYUNDAI authorised
repairer and have the system checked.
CAUTION
The system may not operate normally if
any of the following conditions should
occur:
1. When the illumination from an
on-coming vehicle or a vehicle in
front is dim. Such examples may
include:

[When the headlights of an oncoming
vehicle or the tail lights of a vehicle
in front is covered with dust, snow,
or water

[When the headlights on an
RQFRPLQJYHKLFOHDUH2))EXWWKH
fog lights are ON)

5-51
05

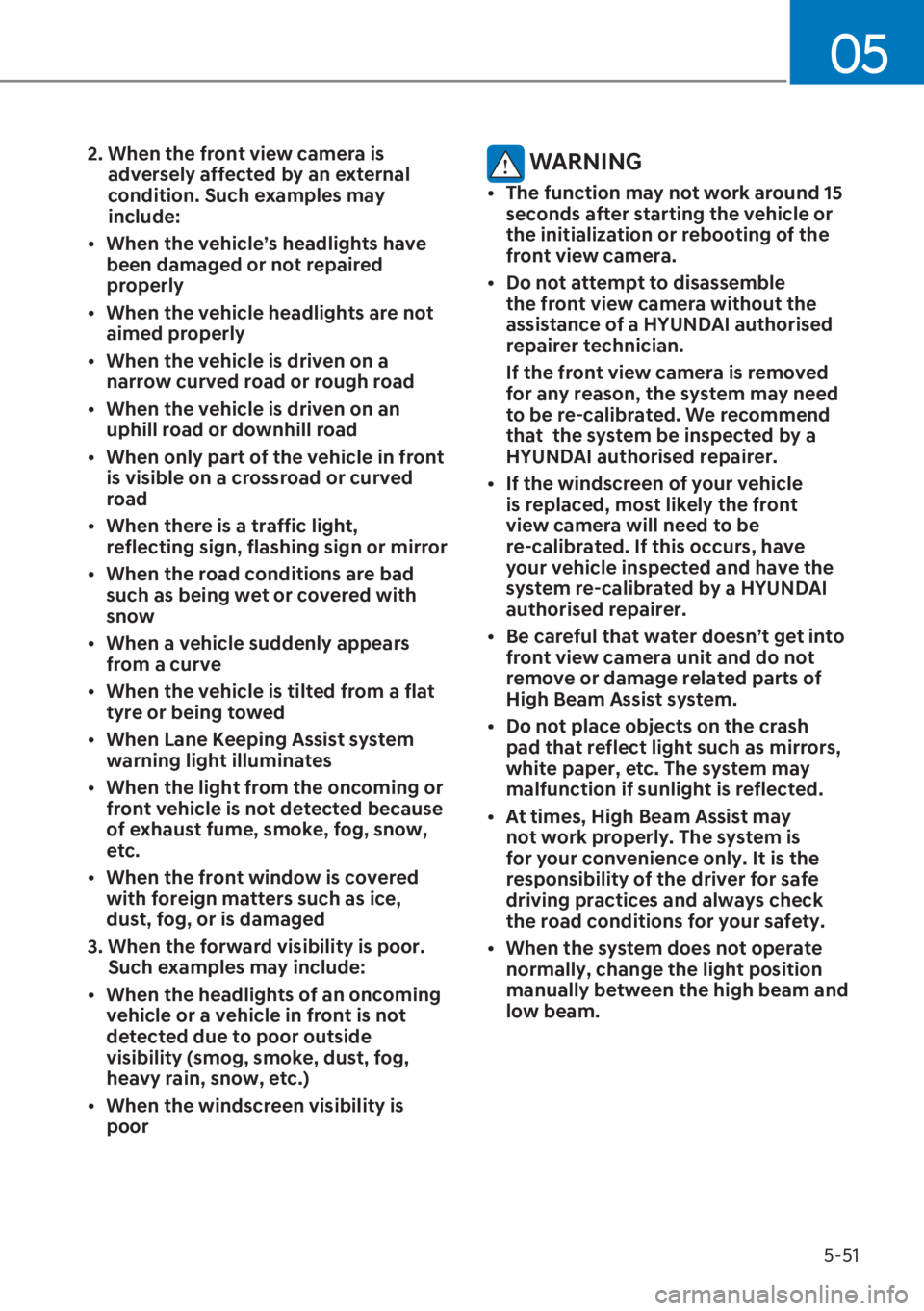

2. When the front view camera is
adversely affected by an external
condition. Such examples may
include:

[When the vehicle’s headlights have
been damaged or not repaired
properly

[When the vehicle headlights are not
aimed properly

[When the vehicle is driven on a
narrow curved road or rough road

[When the vehicle is driven on an
uphill road or downhill road

[When only part of the vehicle in front
is visible on a crossroad or curved
road

[When there is a traffic light,
reflecting sign, flashing sign or mirror

[When the road conditions are bad
such as being wet or covered with
snow

[When a vehicle suddenly appears
from a curve

[When the vehicle is tilted from a flat
tyre or being towed

[ :KHQ/DQH.HHSLQJ$VVLVWV\VWHP
warning light illuminates

[When the light from the oncoming or
front vehicle is not detected because
of exhaust fume, smoke, fog, snow,
etc.

[When the front window is covered
with foreign matters such as ice,
dust, fog, or is damaged
3. When the forward visibility is poor.
Such examples may include:

[When the headlights of an oncoming
vehicle or a vehicle in front is not
detected due to poor outside
visibility (smog, smoke, dust, fog,
heavy rain, snow, etc.)

[When the windscreen visibility is
poor WARNING

[ 7KHIXQFWLRQPD\QRWZRUNDURXQG
seconds after starting the vehicle or
the initialization or rebooting of the
front view camera.

[ 'RQRWDWWHPSWWRGLVDVVHPEOH
the front view camera without the
assistance of a HYUNDAI authorised
repairer technician.
If the front view camera is removed
for any reason, the system may need
to be re-calibrated. We recommend
that the system be inspected by a
HYUNDAI authorised repairer.

[ ,IWKHZLQGVFUHHQRI\RXUYHKLFOH
is replaced, most likely the front
view camera will need to be
re-calibrated. If this occurs, have
your vehicle inspected and have the
system re-calibrated by a HYUNDAI
authorised repairer.

[ %HFDUHIXOWKDWZDWHUGRHVQ
TWJHWLQWR
front view camera unit and do not
remove or damage related parts of
High Beam Assist system.

[ 'RQRWSODFHREMHFWVRQWKHFUDVK
pad that reflect light such as mirrors,
white paper, etc. The system may
malfunction if sunlight is reflected.

[ $WWLPHV+LJK%HDP$VVLVWPD\
not work properly. The system is
for your convenience only. It is the
responsibility of the driver for safe
driving practices and always check
the road conditions for your safety.

[ :KHQWKHV\VWHPGRHVQRWRSHUDWH
normally, change the light position
manually between the high beam and
low beam.

5-52
Convenient features

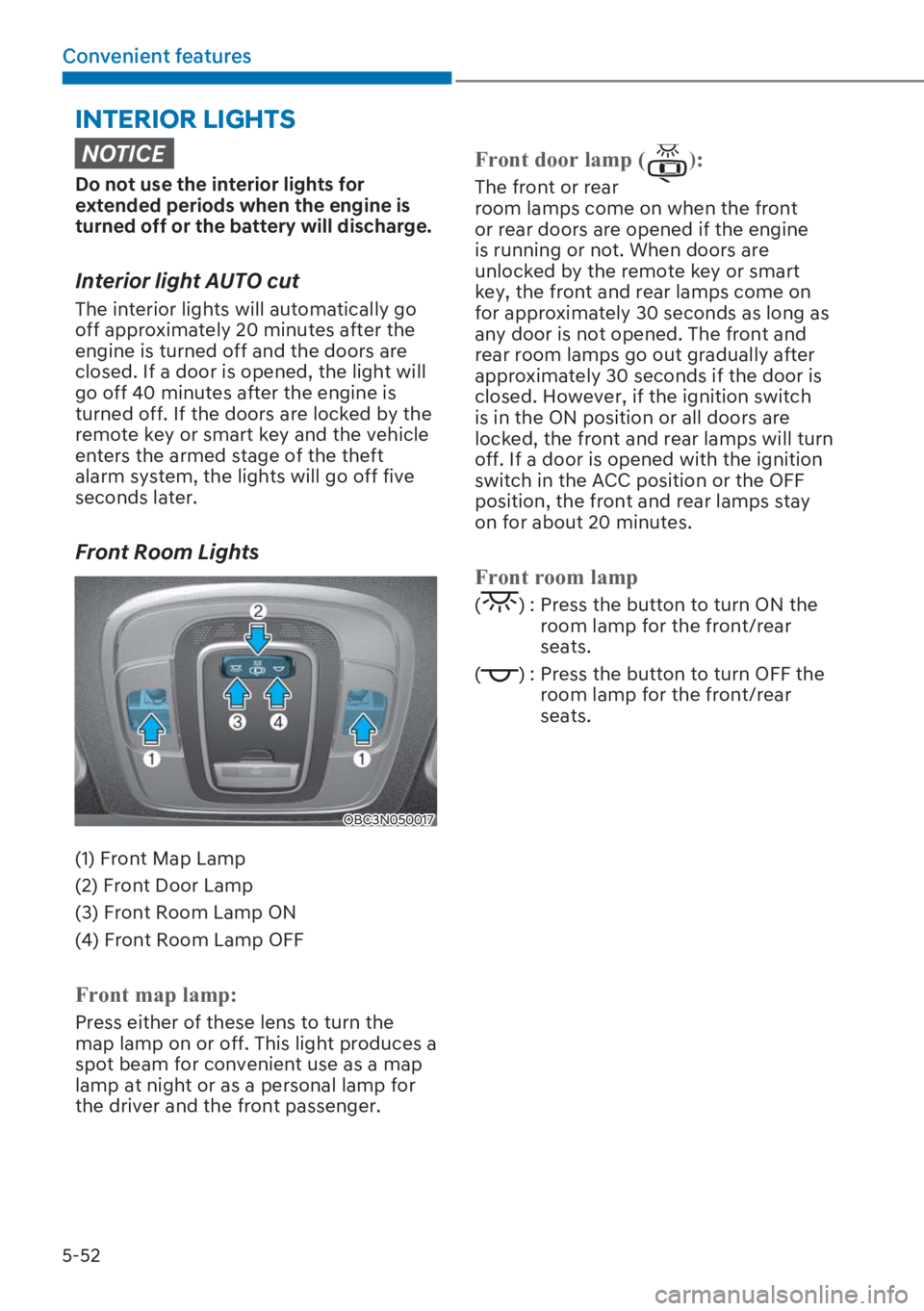

INTERIOR LIGHTS
NOTICE
Do not use the interior lights for
extended periods when the engine is
turned off or the battery will discharge.
Interior light AUTO cut
The interior lights will automatically go
off approximately 20 minutes after the
engine is turned off and the doors are
closed. If a door is opened, the light will
go off 40 minutes after the engine is
turned off. If the doors are locked by the
remote key or smart key and the vehicle
enters the armed stage of the theft
alarm system, the lights will go off five
seconds later.
Front Room Lights
OBC3N050017
(1) Front Map Lamp
(2) Front Door Lamp
(3) Front Room Lamp ON
(4) Front Room Lamp OFF
)URQWPDSODPS
Press either of these lens to turn the
map lamp on or off. This light produces a
spot beam for convenient use as a map
lamp at night or as a personal lamp for
the driver and the front passenger.
)URQWGRRUODPS):
The front or rear
room lamps come on when the front
or rear doors are opened if the engine
is running or not. When doors are
unlocked by the remote key or smart
key, the front and rear lamps come on
for approximately 30 seconds as long as
any door is not opened. The front and
rear room lamps go out gradually after
approximately 30 seconds if the door is
closed. However, if the ignition switch
is in the ON position or all doors are
locked, the front and rear lamps will turn
off. If a door is opened with the ignition
switch in the ACC position or the OFF
position, the front and rear lamps stay
on for about 20 minutes.
)URQWURRPODPS
() : Press the button to turn ON the
room lamp for the front/rear
seats.
(
) : Press the button to turn OFF the
room lamp for the front/rear
seats.

5-53
05

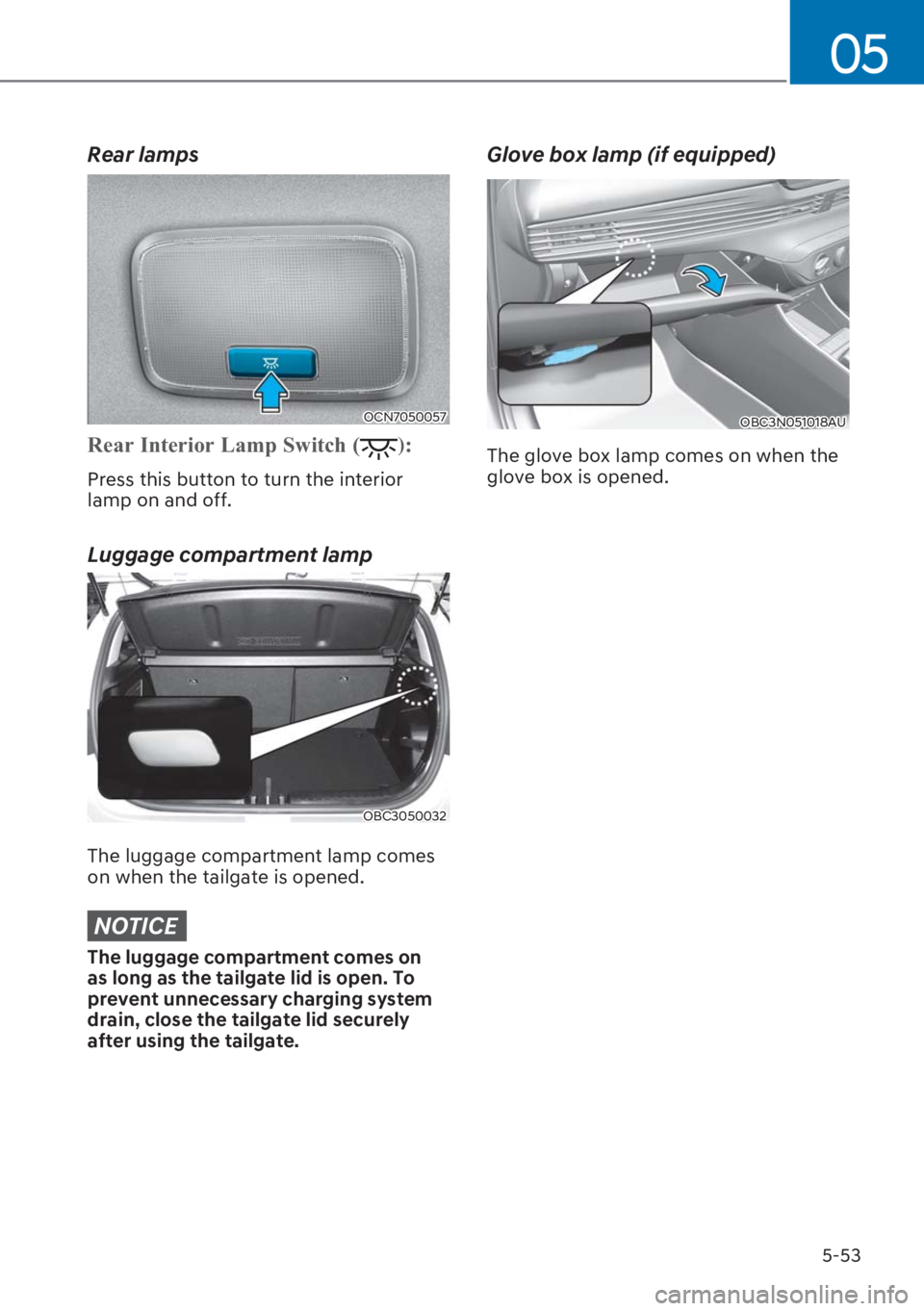

Rear lamps
OCN7050057
5HDU,QWHULRU/DPS6ZLWFK):
Press this button to turn the interior
lamp on and off.
Luggage compartment lamp
OBC3050032
The luggage compartment lamp comes
on when the tailgate is opened.
NOTICE
The luggage compartment comes on
as long as the tailgate lid is open. To
prevent unnecessary charging system
drain, close the tailgate lid securely
after using the tailgate.
Glove box lamp (if equipped)
OBC3N051018AU
The glove box lamp comes on when the
glove box is opened.

5-54
Convenient features
OPDE046058
„Front windscreen wiper/washer
„Rear windscreen wiper/washer
OPDE046060
A : Wiper speed control
· MIST (
) – Single wipe
· OFF (O) – Off
· INT (---) – Intermittent wipe
 w$872

J$XWRFRQWUROZLSH
· LO (1) – Low wiper speed
· HI (2) – High wiper speed
B : Intermittent wipe time adjustment
C : Wash with brief wipes (front)
(pull lever towards you)
D : Rear wiper control*
· 2 – High wiper speed
· 1 – Low wiper speed
· O – Off
E : Wash with brief wipes (rear)
(push lever away from you)

LIHTXLSSHG
Windscreen wipers
Operates as follows when the ignition
switch is in the ON position.
MIST (
) : For a single wiping cycle,
push the lever upward and
release. The wipers will
operate continuously if the
lever is held in this position.
OFF (O) : Wiper is not in operation.
INT (---) : Wiper operates intermittently
at the same wiping intervals.
To vary the speed setting, turn
the speed control knob (B).
AUTO : The rain sensor located on the
upper end of the windscreen
glass senses the amount of
rainfall and controls the wiping
cycle for the proper interval.
The more it rains, the faster the
wiper operates. When the rain
stops, the wiper stops. To vary
the speed setting, turn the speed
control knob.
LO (1) : The wiper runs at a lower speed.
HI (2) : The wiper runs at a higher speed.
i Information
,IWKHUHLVKHDY\DFFXPXODWLRQRIVQRZ
or ice on the windscreen, defrost the
windscreen for about 10 minutes, or until
the snow and/or ice is removed before
using the windscreen wipers to ensure
proper operation.
,I\RXGRQRWUHPRYHWKHVQRZDQGRULFH
before using the wiper and washer, it may
damage the wiper and washer system.
:,3(56$1':$6+(56

5-55
05
AUTO (Automatic) control
(if equipped)
The rain sensor located at the top of the
windscreen glass senses the amount of
rainfall and controls the wiping cycle for
the proper interval. The wiper operation
time will be automatically controlled,
depending on rainfall.
When the rain stops, the wiper stops. To
vary the speed setting, turn the speed
control knob.
If the wiper switch is set in AUTO mode
when the ignition switch is in the ON
position, the wiper will operate once to
perform a self-check of the system. Set
the wiper to the OFF position when the
wiper is not in use.
WARNING
To avoid personal injury from the
windscreen wipers, when the engine
is running and the windscreen wiper
switch is placed in the AUTO mode:
Do not touch the upper end of the
windscreen glass facing the rain sensor.
Do not wipe the top of the windscreen
glass with a damp or wet cloth.
Do not put pressure on the windscreen
glass.
NOTICE
When washing the vehicle, set the
ZLSHUVZLWFKLQWKH2))SRVLWLRQWRVWRS
the auto wiper operation. The wiper
may operate and be damaged if the
switch is set in the AUTO mode whilst
washing the vehicle.
Do not remove the sensor cover
located at the top of the passenger side
windscreen glass. Damage to system
parts could occur and may not be
covered by your vehicle warranty.
Windscreen washers
OTLE045168
In the OFF (O) position, pull the lever
gently toward you to spray washer
fluid on the windscreen and to run the
wipers 1-3 cycles. The spray and wiper
operation will continue until you release
the lever. If the washer does not work,
you may need to add washer fluid to the
washer fluid reservoir.
WARNING
When the outside temperature is
below freezing, ALWAYS warm the
windscreen using the defroster to
prevent the washer fluid from freezing
on the windscreen and obscuring your
vision which could result in an accident
and serious injury or death.

5-56
Convenient features
CAUTION

[To prevent possible damage to the
washer pump, do not operate the
washer when the fluid reservoir is
empty.

[To prevent possible damage to the
wipers or windscreen, do not operate
the wipers when the windscreen is
dry.

[To prevent damage to the wiper
arms and other components, do
not attempt to move the wipers
manually.

[To prevent possible damage to the
wipers and washer system, use anti-
freezing washer fluids in the winter
season or cold weather.

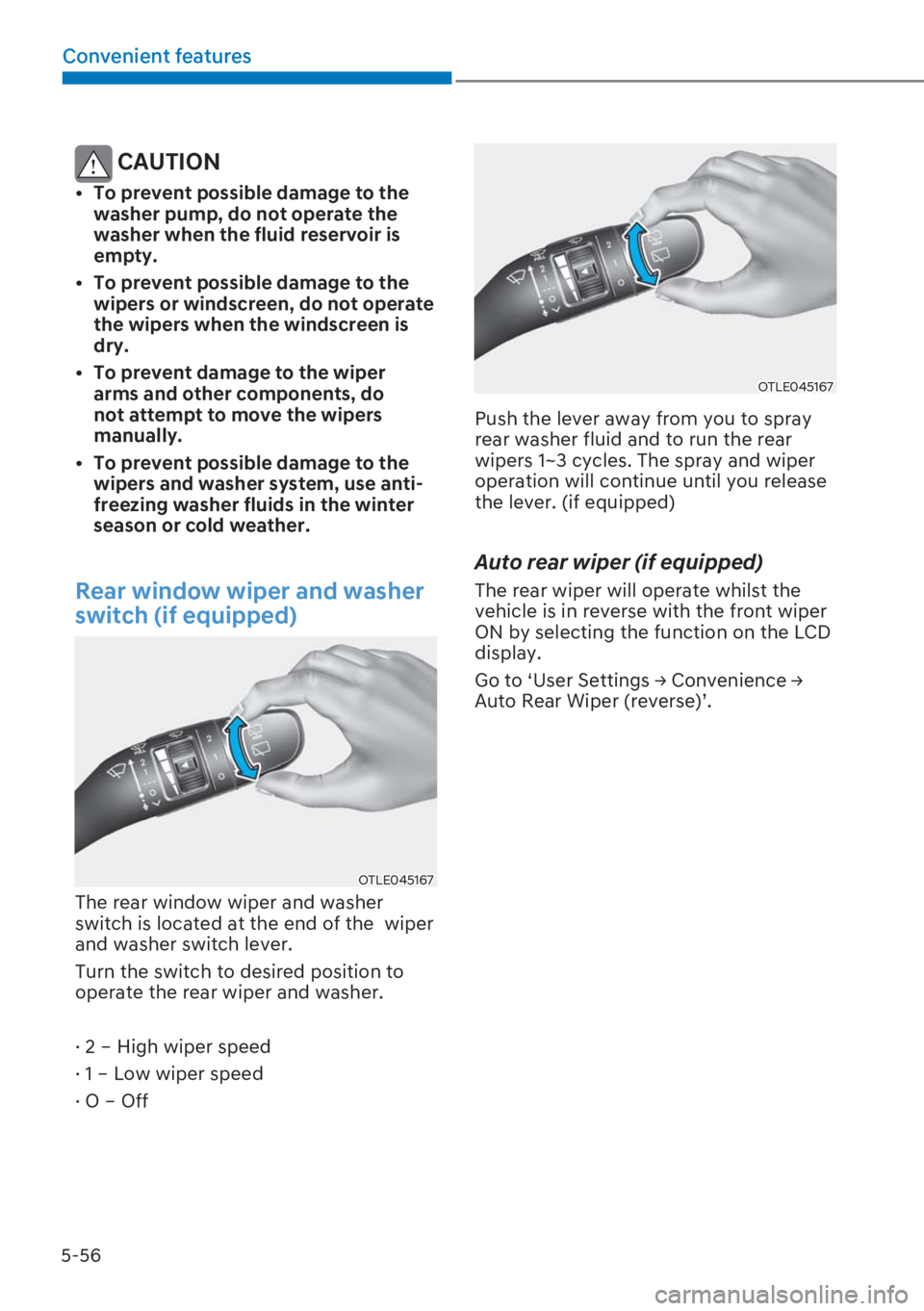

Rear window wiper and washer
switch (if equipped)
OTLE045167
The rear window wiper and washer
switch is located at the end of the wiper
and washer switch lever.
Turn the switch to desired position to
operate the rear wiper and washer.
· 2 – High wiper speed
· 1 – Low wiper speed
· O – Off
OTLE045167
Push the lever away from you to spray
rear washer fluid and to run the rear
wipers 1~3 cycles. The spray and wiper
operation will continue until you release
the lever. (if equipped)
Auto rear wiper (if equipped)
The rear wiper will operate whilst the
vehicle is in reverse with the front wiper
ON by selecting the function on the LCD
display.
*RWR
S8VHU6HWWLQJV

5-57
05
0$18$/&/,0$7(&21752/6<67(0

5-58
Convenient features
Heating and air conditioning

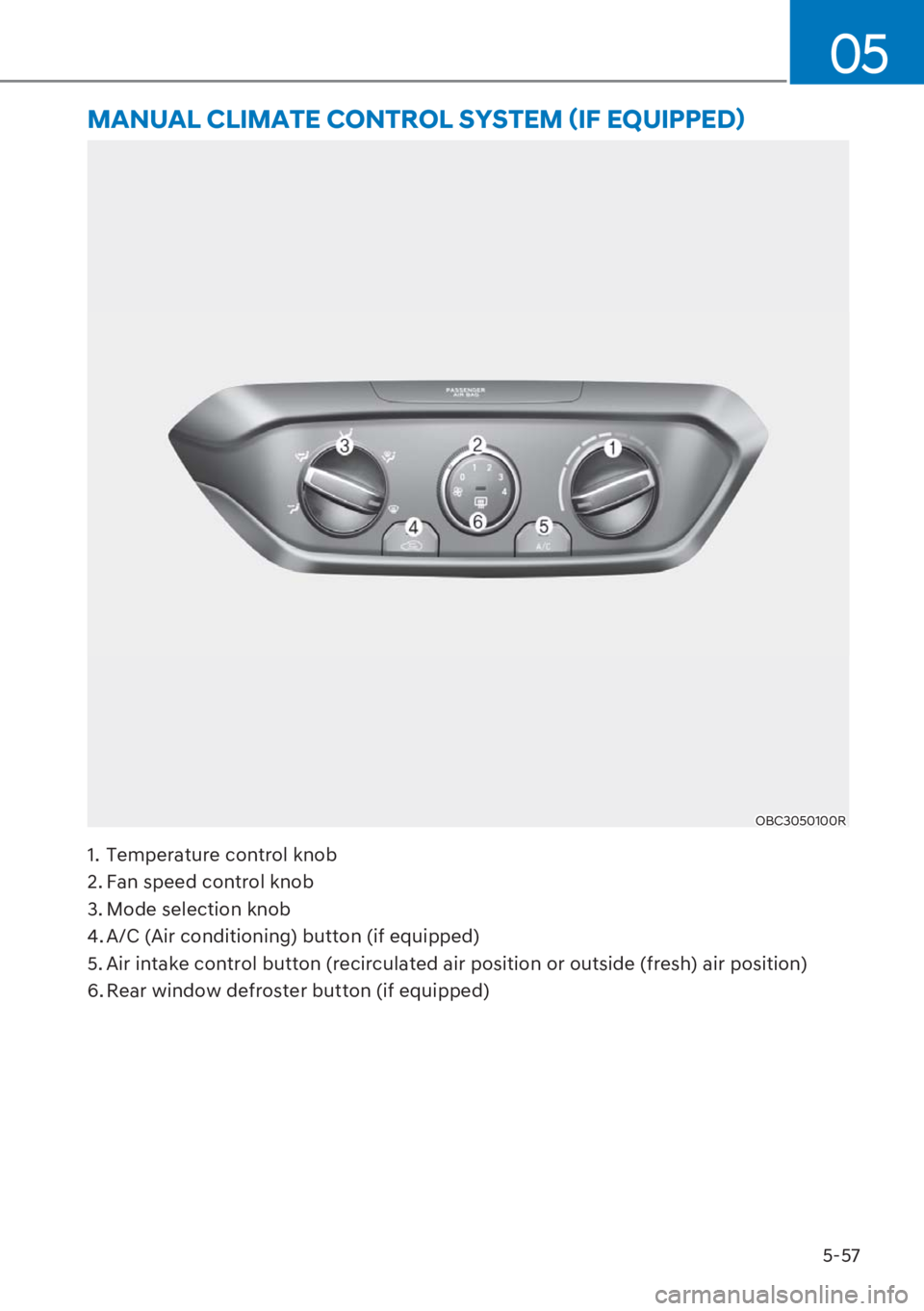

1. Start the engine.
2. Set the mode to the desired position.
To improve the effectiveness of heating and cooling :
- Heating:
- Cooling:
3. Set the temperature control to the desired position.
4. Set the air intake control to Fresh mode.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
Mode selection

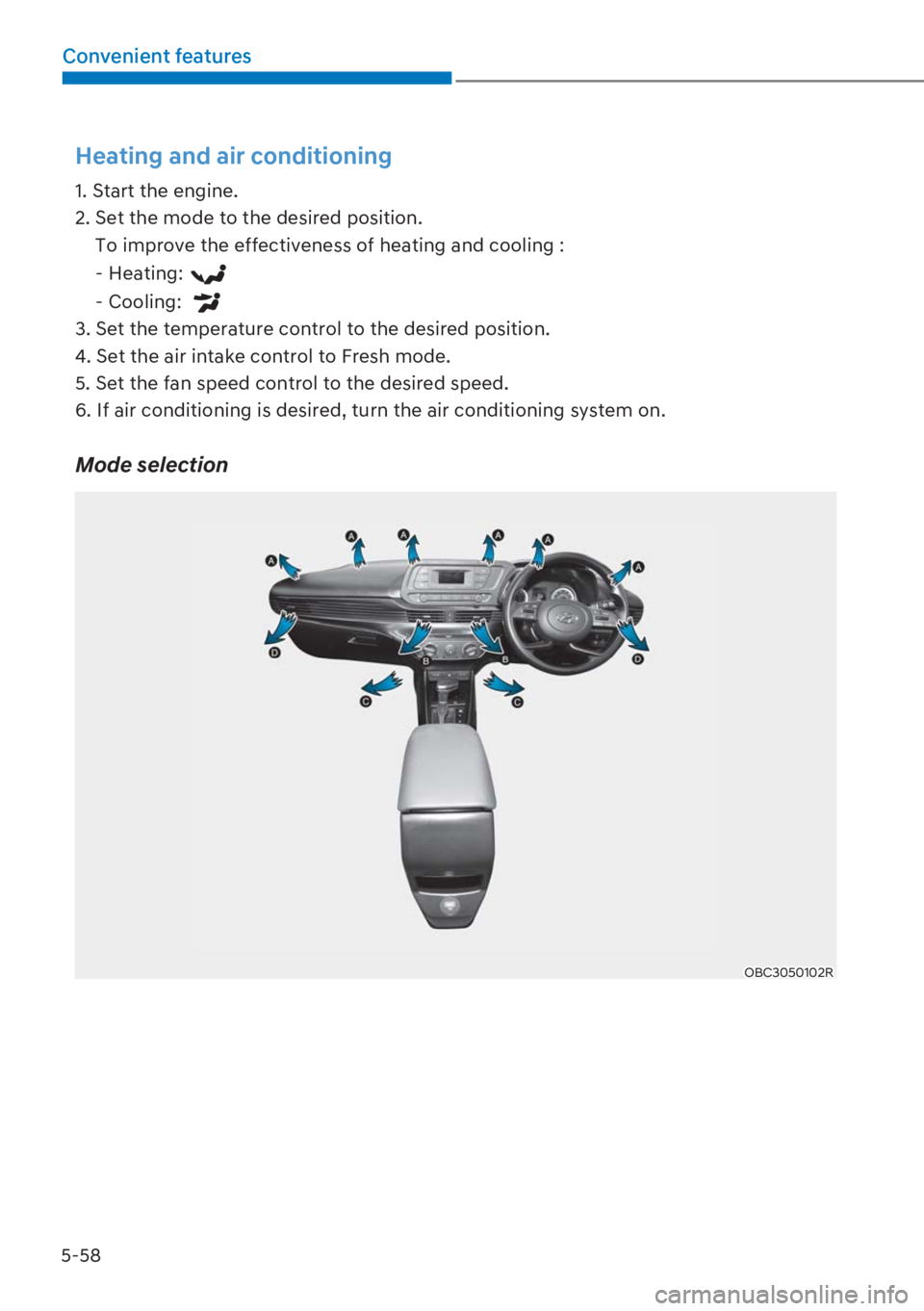

OBC3050102R

5-59
05
OBC3050103

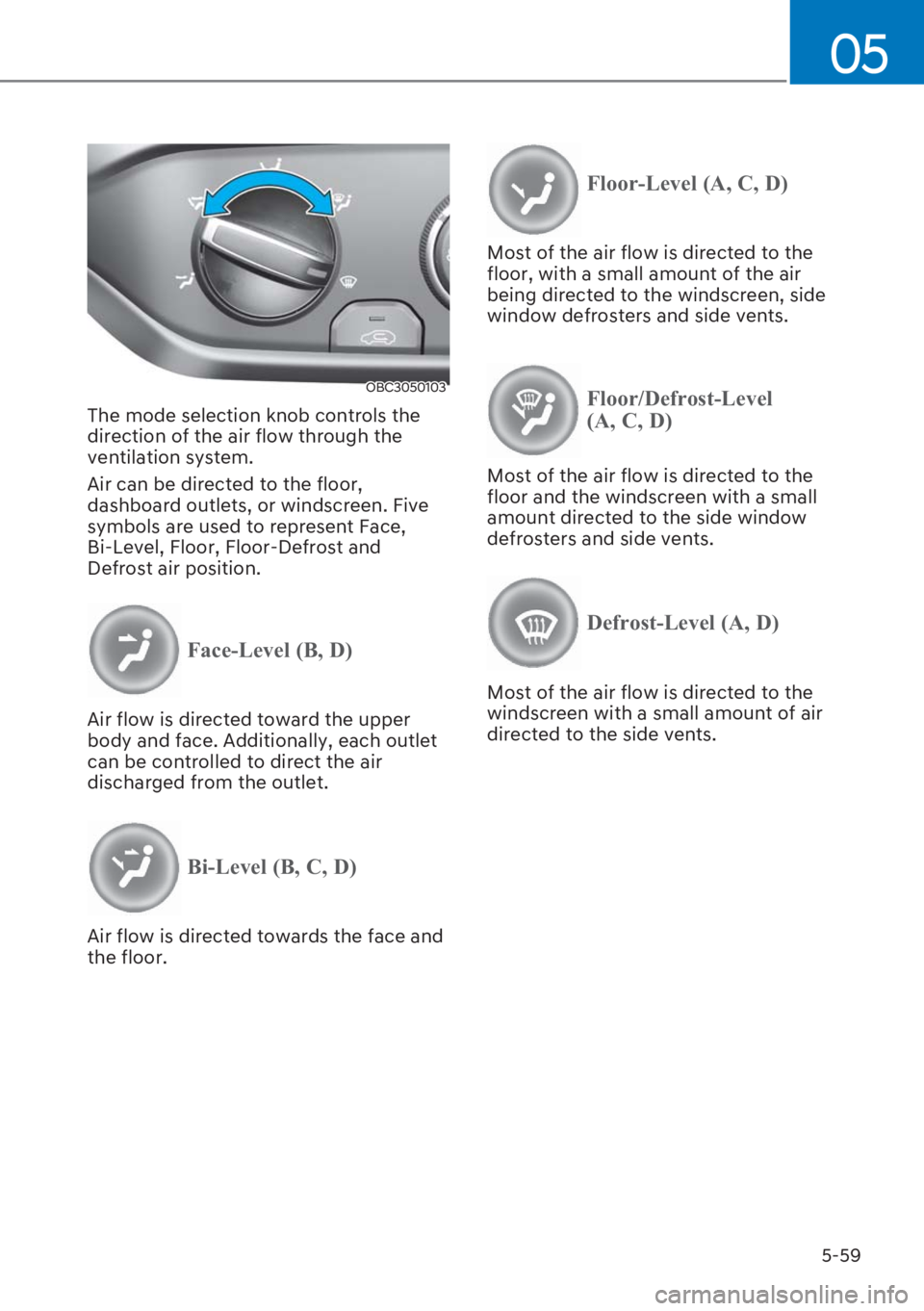

The mode selection knob controls the
direction of the air flow through the
ventilation system.
Air can be directed to the floor,
dashboard outlets, or windscreen. Five
symbols are used to represent Face,
Bi-Level, Floor, Floor-Defrost and
Defrost air position.
)DFH/HYHO%'
Air flow is directed toward the upper
body and face. Additionally, each outlet
can be controlled to direct the air
discharged from the outlet.
%L/HYHO%&'
Air flow is directed towards the face and
the floor.
)ORRU/HYHO$&'
Most of the air flow is directed to the
floor, with a small amount of the air
being directed to the windscreen, side
window defrosters and side vents.
)ORRU'HIURVW/HYHO
$&'
Most of the air flow is directed to the
floor and the windscreen with a small
amount directed to the side window
defrosters and side vents.
'HIURVW/HYHO$'
Most of the air flow is directed to the
windscreen with a small amount of air
directed to the side vents.
