5-40
Convenient features
OBC3N050015
3. Pull the fuel filler door out (1) to fully
open.
4. To remove the fuel tank cap (2), turn
it counterclockwise. You may hear a
hissing noise as the pressure inside
the tank equalizes.
5. Place the cap on the fuel filler door
(3).
i Information
, I W K H I X H O I L O O H U G R R U G R H V Q R W R S H Q
because ice has formed around it, tap
lightly or push on the door to break the
L F H D Q G U H O H D V H W K H G R R U ' R Q R W S U \ R Q W K H
G R R U , I Q H F H V V D U \ V S U D \ D U R X Q G W K H G R R U
with an approved de-icer fluid (do not use
U D G L D W R U D Q W L I U H H ] H R U P R Y H W K H Y H K L F O H
to a warm place and allow the ice to melt.
Closing the fuel filler door
1. To install the fuel tank cap, turn it
clockwise until it “Clicks”.
2. Close the fuel filler door until it is
latched securely.
WARNING
3 H W U R O L V K L J K O \ I O D P P D E O H D Q G
H [ S O R V L Y H ) D L O X U H W R I R O O R Z W K H V H
guidelines may result in SERIOUS
INJURY or DEATH:
[ Read and follow all warnings posted
at the gas station.
[ Before refuelling, note the location
R I W K H ( P H U J H Q F \ 3 H W U R O 6 K X W 2 I I L I
available, at the gas station.
[ Before touching the fuel nozzle, you
should eliminate the potential build-
up of static electricity by touching
a metal part of the vehicle, a safe
distance away from the fuel filler
neck, nozzle, or other gas source,
with your bare hand.
[ Do not use mobile phones whilst
refuelling. Electric current and/or
electronic interference from mobile
phones can potentially ignite fuel
vapours and cause a fire.
Page 182 of 649
5-41
05
[ Do not get back into a vehicle
once you have begun refuelling.
You can generate a build-up of
static electricity by touching,
rubbing or sliding against any item
or fabric capable of producing
static electricity. Static electricity
discharge can ignite fuel vapours
causing a fire. If you must re-enter
the vehicle, you should once again
eliminate potentially dangerous
static electricity discharge by
touching a metal part of the vehicle,
away from the fuel filler neck, nozzle
or other petrol source, with your bare
hand.
[ When refuelling, always move the
shift lever to the N (Neutral, for
Automatic transmission/Dual clutch
transmission) or the first gear or R
(Reverse, for Manual transmission)
position, set the parking brake,
and place the ignition switch to the
/ 2 & . 2 ) ) S R V L W L R Q 6 S D U N V S U R G X F H G
by electrical components related to
the engine can ignite fuel vapours
causing a fire.
[ When using an approved portable
fuel container, be sure to place
the container on the ground prior
to refuelling. Static electricity
discharge from the container can
ignite fuel vapours causing a fire.
Once refuelling has begun, contact
between your bare hand and the
vehicle should be maintained until
the filling is complete.
[ Use only approved portable plastic
fuel containers designed to carry and
store petrol.[ Do not use matches or a lighter and
do not smoke or leave a lit cigarette
in your vehicle whilst at a gas station,
especially during refuelling.
[ Do not over-fill or top-off your
vehicle tank, which can cause petrol
spillage.
[ If a fire breaks out during refuelling,
leave the vicinity of the vehicle, and
immediately contact the manager
of the gas station and then contact
W K H O R F D O I L U H G H S D U W P H Q W ) R O O R Z D Q \
safety instructions they provide.
[ If pressurized fuel sprays out, it can
cover your clothes or skin and thus
subject you to the risk of fire and
burns. Always remove the fuel cap
carefully and slowly. If the cap is
venting fuel or if you hear a hissing
sound, wait until the condition stops
before completely removing the cap.
[ Always check that the fuel cap is
installed securely to prevent fuel
spillage in the event of an accident.
i Information
0 D N H V X U H W R U H I X H O \ R X U Y H K L F O H
D F F R U G L Q J W R W K H
Page 183 of 649
5-42
Convenient features
Lighting control
OPDE046065
To operate the lights, turn the knob at
the end of the control lever to one of the
following positions:
(1) OFF (O) position
(2) AUTO light position (if equipped)
(3) Position light position
(4) Headlight position
OBC3050029
$ 8 7 2 O L J K W S R V L W L R Q L I H T X L S S H G
When the light switch is in the AUTO
position, the position light and headlight
will be turned ON or OFF automatically
depending on the amount of light
outside the vehicle.
Even with the AUTO light feature
in operation, it is recommended to
manually turn ON the lights when driving
at night or in a fog, or when you enter
dark areas, such as tunnels and parking
facilities.
NOTICE
[ ' R Q R W F R Y H U R U V S L O O D Q \ W K L Q J R Q W K H
sensor (1) located on the instrument
panel.
[ ' R Q R W F O H D Q W K H V H Q V R U X V L Q J
a window cleaner, the cleanser
may leave a light film which could
interfere with sensor operation.
[ , I \ R X U Y H K L F O H K D V Z L Q G R Z W L Q W R U
other types of metallic coating on
the front windscreen, the AUTO light
system may not work properly.
EXTERIOR LIGHTS
Page 184 of 649
5-43
05
OAE046469L

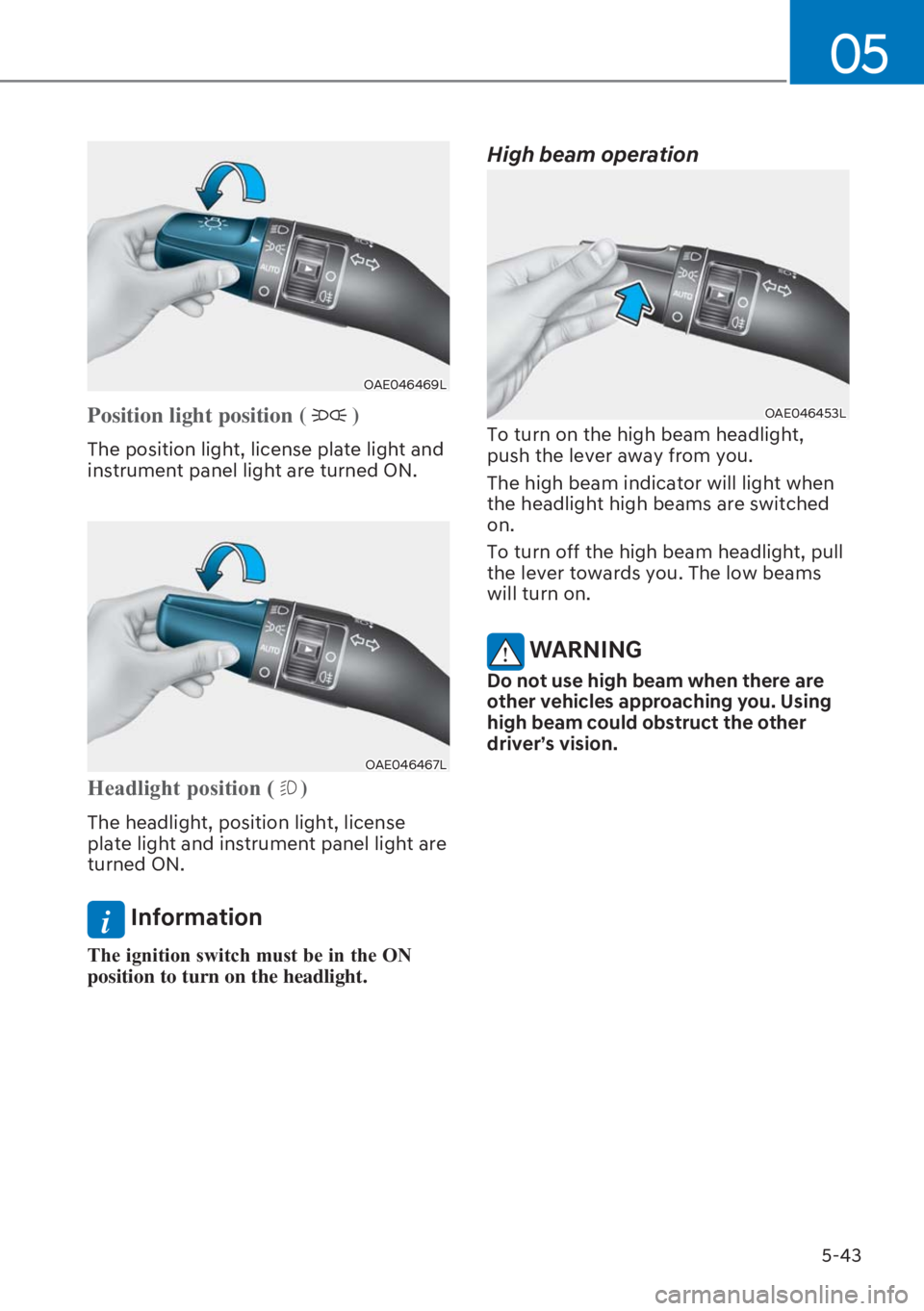

Position light position ()
The position light, license plate light and
instrument panel light are turned ON.
OAE046467L
+ H D G O L J K W S R V L W L R Q )
The headlight, position light, license
plate light and instrument panel light are
turned ON.
i Information
7 K H L J Q L W L R Q V Z L W F K P X V W E H L Q W K H 2 1
position to turn on the headlight.
High beam operation
OAE046453L
To turn on the high beam headlight,
push the lever away from you.
The high beam indicator will light when
the headlight high beams are switched
on.
To turn off the high beam headlight, pull
the lever towards you. The low beams
will turn on.
WARNING
Do not use high beam when there are
other vehicles approaching you. Using
high beam could obstruct the other
driver’s vision.
Page 185 of 649
5-44
Convenient features
OAE046455L

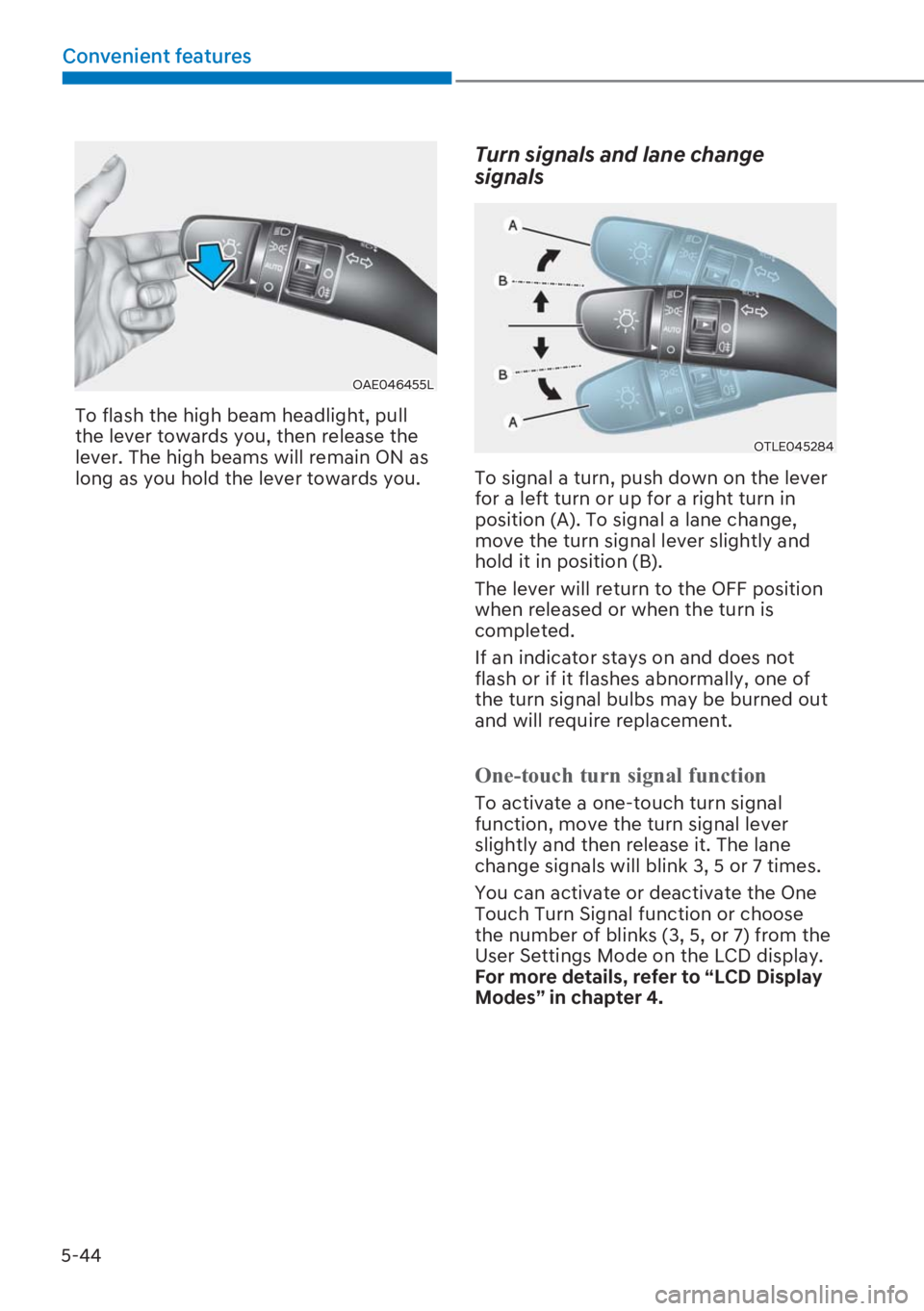

To flash the high beam headlight, pull
the lever towards you, then release the
lever. The high beams will remain ON as
long as you hold the lever towards you.
Turn signals and lane change
signals
OTLE045284
To signal a turn, push down on the lever
for a left turn or up for a right turn in
position (A). To signal a lane change,
move the turn signal lever slightly and
hold it in position (B).
The lever will return to the OFF position
when released or when the turn is
completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned out
and will require replacement.
2 Q H W R X F K W X U Q V L J Q D O I X Q F W L R Q
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7 times.
You can activate or deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from the
User Settings Mode on the LCD display.
) R U P R U H G H W D L O V U H I H U W R U / & ' ' L V S O D \
0 R G H VV L Q F K D S W H U
Page 186 of 649
5-45
05
Front fog light (if equipped)
OPDE046066
Fog lamps are used to provide improved
visibility when visibility is poor due to
fog, rain or snow, etc. Use the switch
next to the headlamp switch to turn the
fog lamps ON and OFF.
1. Turn on the position lamp.
2. Turn the light switch (1) to the front
fog lamp position.
3. To turn off the front fog lamp, turn
the light switch to the front fog lamp
position again or turn off the position
lamp.
NOTICE
When in operation, the fog lights
consume large amounts of vehicle
electrical power. Only use the fog lights
when visibility is poor.
Rear fog light
OPDE046064
To turn on the rear fog lamp:
Position the light switch in the position
lamp position, turn the light switch (1)
to the front fog lamp position, and then
turn the light switch (1) to the rear fog
lamp position.
To turn the rear fog lamps off, do one of
the following:
[ Turn off the position light switch.
[ Turn the light switch to the rear fog
lamp position again.
[ When the light switch is in the position
lamp position, if you turn off the front
fog lamp, the rear fog lamp will also
turn off.
Page 187 of 649
5-46
Convenient features
OAC3059027TU
Vehicle without front fog lamp
To turn on the rear fog lamp:
Position the light switch in the headlamp
position, and then turn the light switch
(1) to the rear fog lamp position.
To turn the rear fog lamps off, do one of
the following:
[ Turn off the headlamp switch.
[ Turn the light switch to the rear fog
lamp position again.
Battery saver function
The purpose of this feature is to prevent
the battery from being discharged.
The system automatically turns off the
position lamp when the driver turns the
engine off and opens the driver-side
door.
With this feature, the position lamps will
turn off automatically if the driver parks
on the side of road at night.
If necessary, to keep the lamps on when
the engine is turned off, perform the
following:
1) Open the driver-side door.
2) Turn the position lamps OFF and ON
again using the light switch on the
steering column.
Headlamps delay function
(if equipped)
If you place the ignition switch in the
ACC or OFF position with the headlamps
ON, the headlamps (and/or position
lamps) remain on for about 5 minutes.
However, with the engine off if the
G U L Y H UT V G R R U L V R S H Q H G D Q G F O R V H G W K H
headlamps (and/or position lamps) are
turned off after 15 seconds.
The headlamps (and/or position lamps)
can be turned off by pressing the lock
button on the remote key or smart
key twice or turning the light switch to
the OFF or AUTO position. However, if
you turn the light switch to the AUTO
position when it is dark outside, the
headlamps will not be turned off.
Page 188 of 649
5-47
05
NOTICE
If the driver exits the vehicle through
another door besides the driver
door, the battery saver function
does not operate and the headlight
G H O D \ I X Q F W L R Q G R H V Q R W W X U Q 2 ) )
automatically.
This may cause the battery to
discharge. To avoid battery discharge,
W X U Q 2 ) ) W K H K H D G O L J K W V P D Q X D O O \ I U R P
the headlight switch before exiting the
vehicle.
Daytime running light (DRL)
(if equipped)
The Daytime Running Lights (DRL) can
make it easier for others to see the front
of your vehicle during the day, especially
after dawn and before sunset.
The DRL system will turn the dedicated
light OFF when:
1. The parking brake is applied.
2. The engine is turned off.

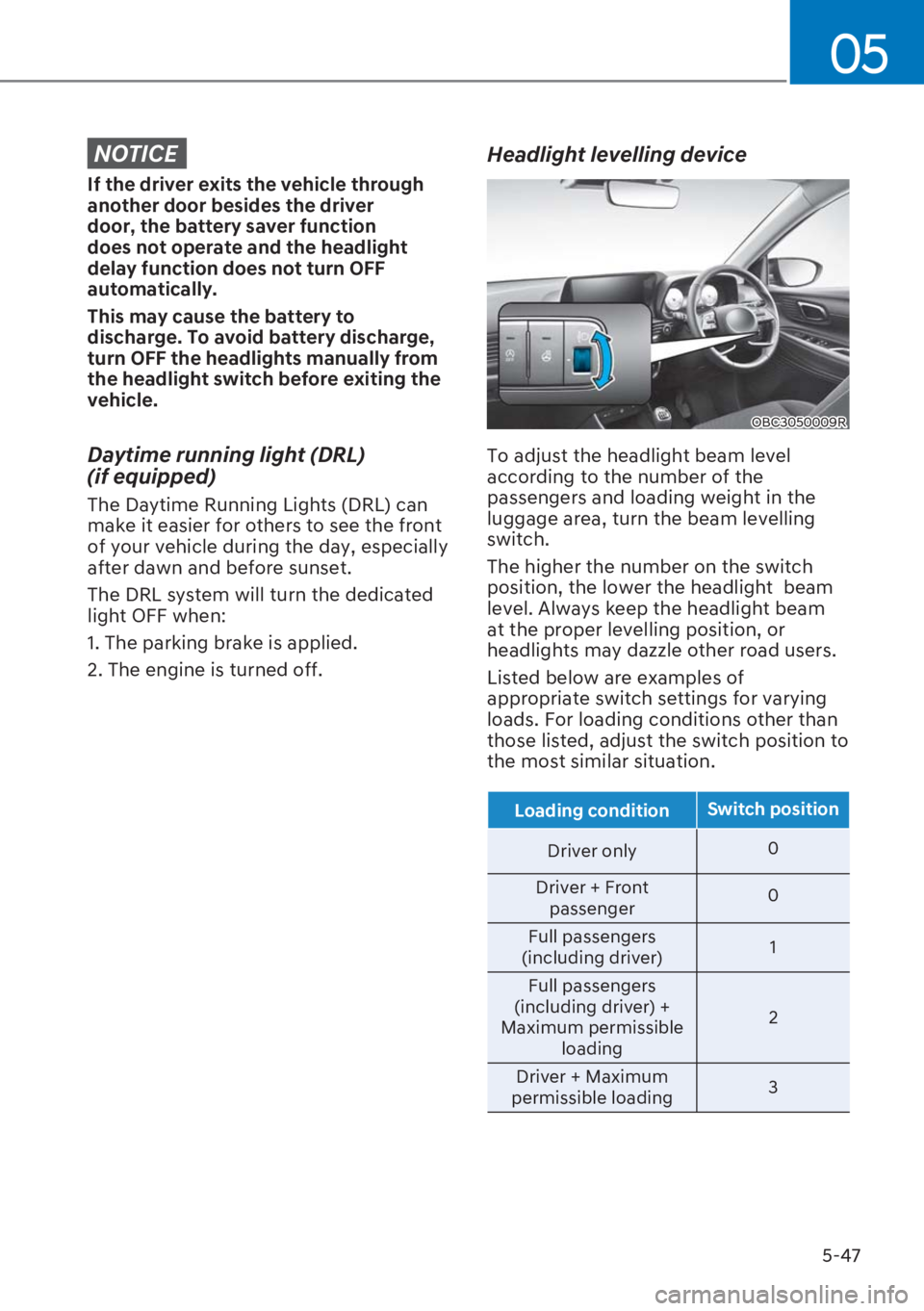

Headlight levelling device
OBC3050009R
To adjust the headlight beam level
according to the number of the
passengers and loading weight in the
luggage area, turn the beam levelling
switch.
The higher the number on the switch
position, the lower the headlight beam
level. Always keep the headlight beam
at the proper levelling position, or
headlights may dazzle other road users.
Listed below are examples of
appropriate switch settings for varying
loads. For loading conditions other than
those listed, adjust the switch position to
the most similar situation.
Loading conditionSwitch position
Driver only0
Driver + Front
passenger0
Full passengers
(including driver)1
Full passengers
(including driver) +
Maximum permissible
loading2
Driver + Maximum
permissible loading 3
Page 189 of 649
5-48
Convenient features

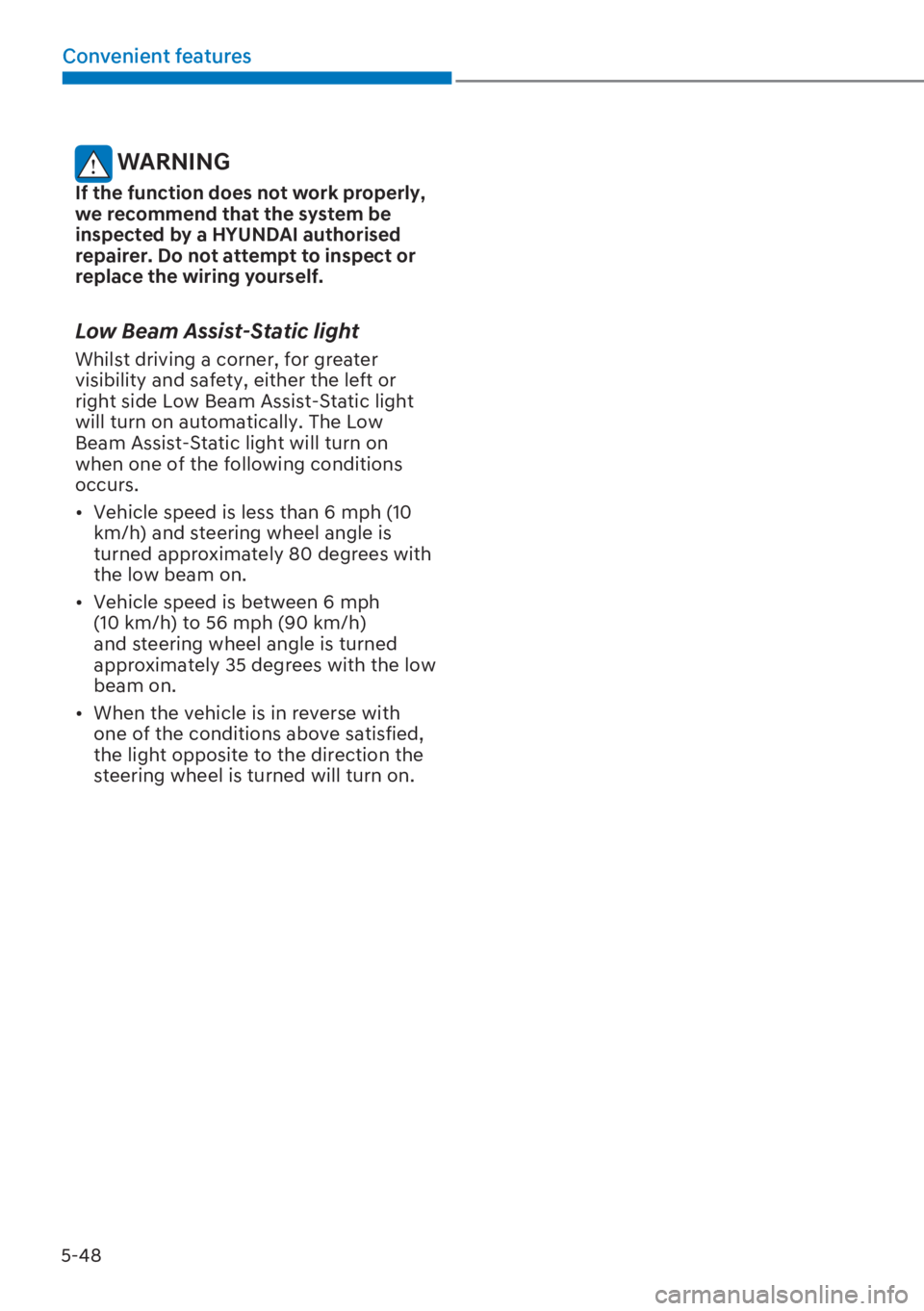

WARNING
If the function does not work properly,
we recommend that the system be
inspected by a HYUNDAI authorised
repairer. Do not attempt to inspect or
replace the wiring yourself.
Low Beam Assist-Static light
Whilst driving a corner, for greater
visibility and safety, either the left or
right side Low Beam Assist-Static light
will turn on automatically. The Low
Beam Assist-Static light will turn on
when one of the following conditions
occurs.
[ Vehicle speed is less than 6 mph (10
km/h) and steering wheel angle is
turned approximately 80 degrees with
the low beam on.
[ Vehicle speed is between 6 mph
(10 km/h) to 56 mph (90 km/h)
and steering wheel angle is turned
approximately 35 degrees with the low
beam on.
[ When the vehicle is in reverse with
one of the conditions above satisfied,
the light opposite to the direction the
steering wheel is turned will turn on.
Page 190 of 649
5-49
05
+ , * + % ( $ 0 $ 6 6 , 6 7
