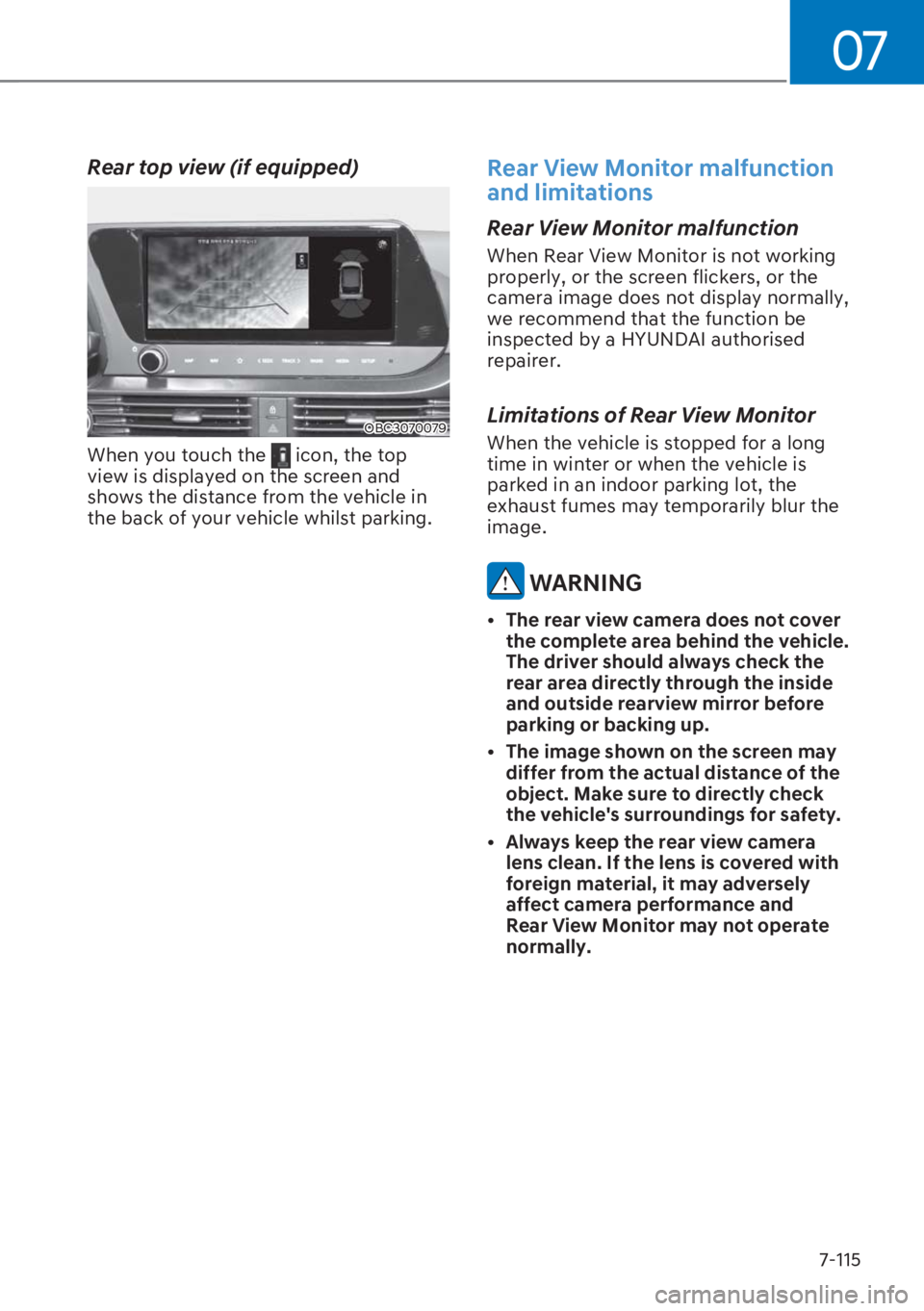

Page 461 of 649

HYUNDAI I20 2023  Owners Manual 07
7-115
Rear top view (if equipped)
OBC3070079
When you touch the  icon, the top
view is displayed on the screen and
shows the distance from the vehicle in
the back of your vehicle whilst parking.

Page 462 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-116
Rear Cross-Traffic Collision Warning
Assist is designed to help detect vehicles
approaching from the left and right side
whilst your vehicle is reversing, and warn
t

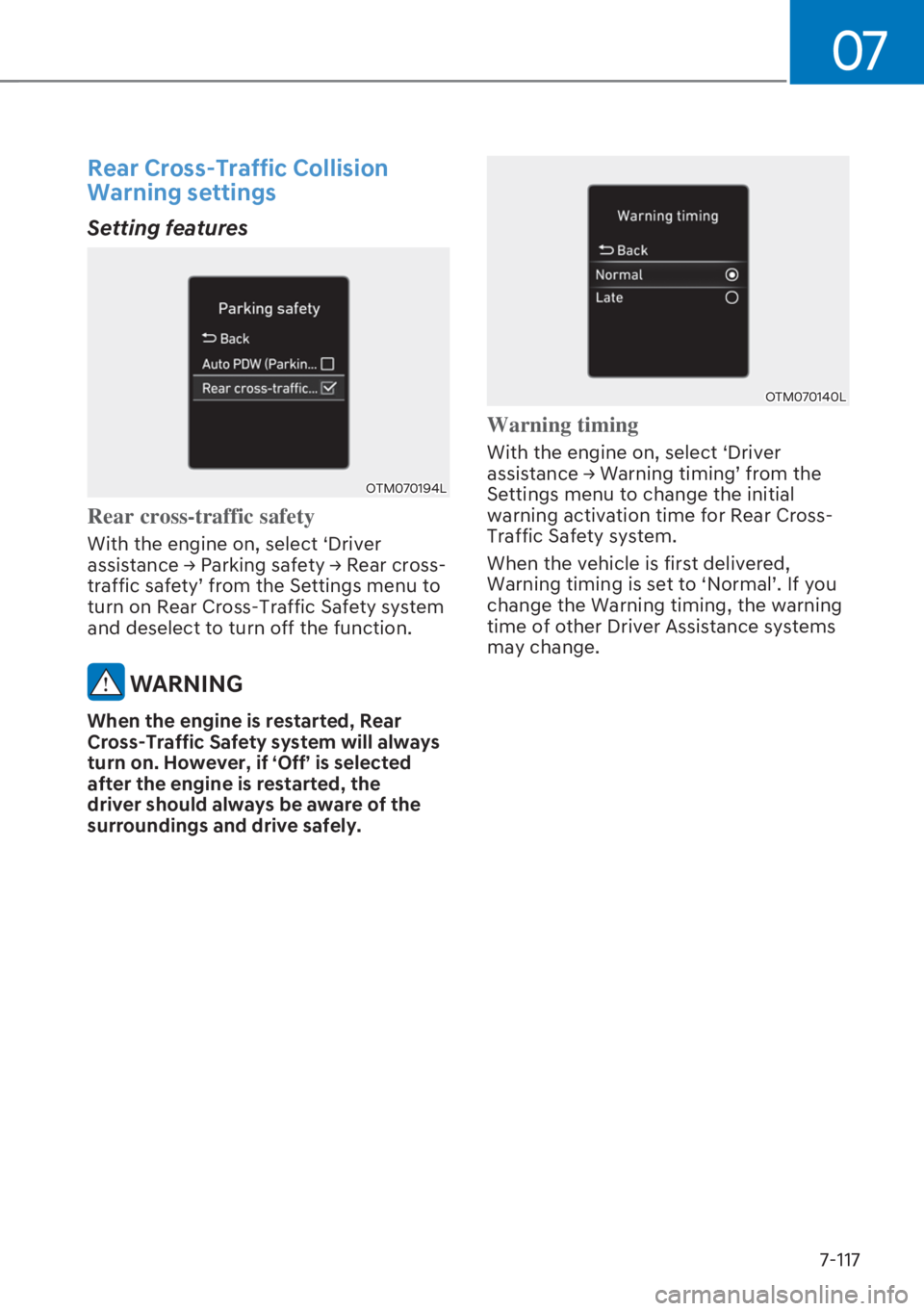

Page 463 of 649

HYUNDAI I20 2023  Owners Manual 07
7-117
Rear Cross-Traffic Collision
Warning settings
Setting features
OTM070194L
Rear cross-traffic safety
With the engine on, select ‘Driver
�D�V�V�L�V�W�D�Q�F�H�

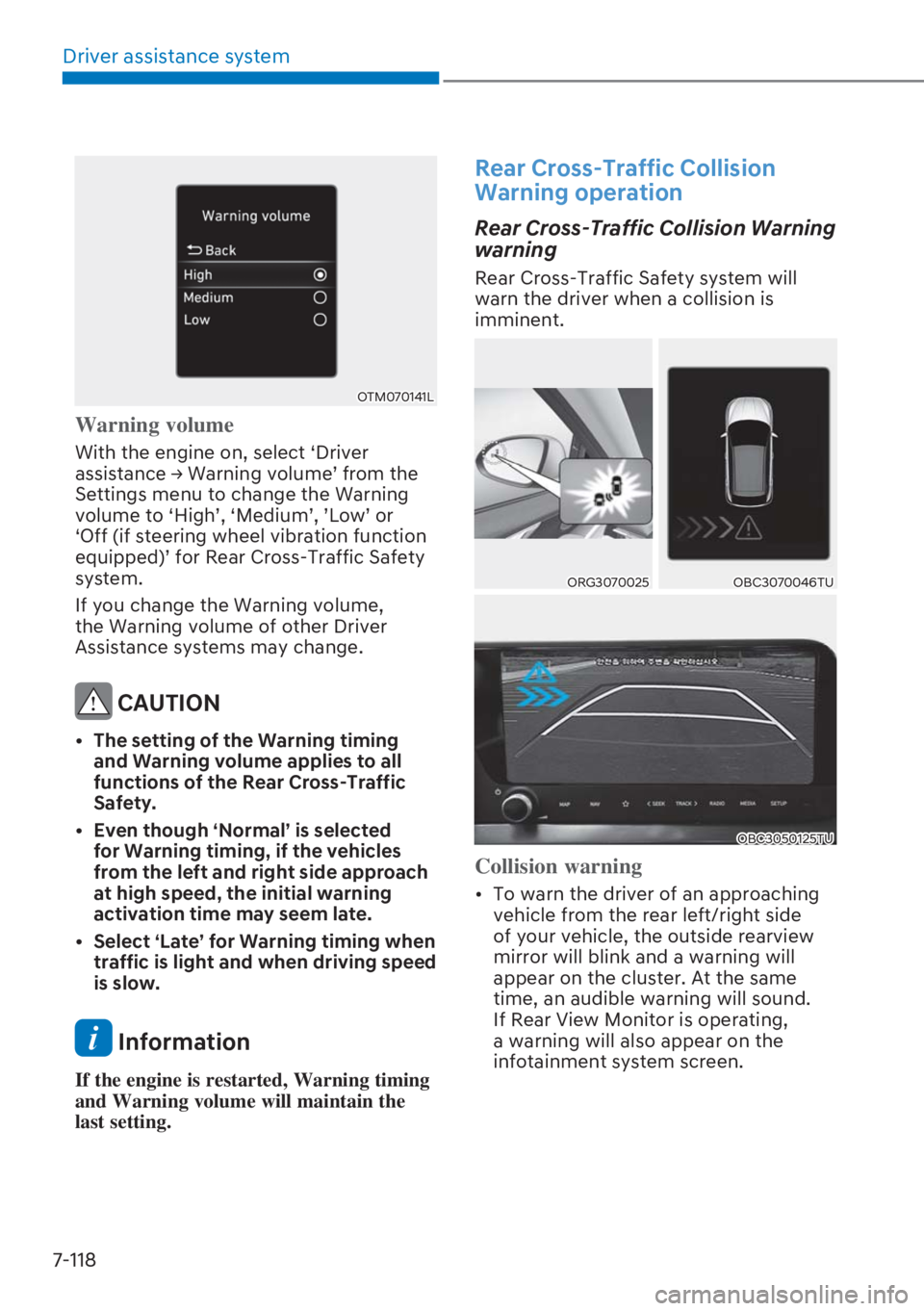

Page 464 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-118
OTM070141L
Warning volume
With the engine on, select ‘Driver
�D�V�V�L�V�W�D�Q�F�H�

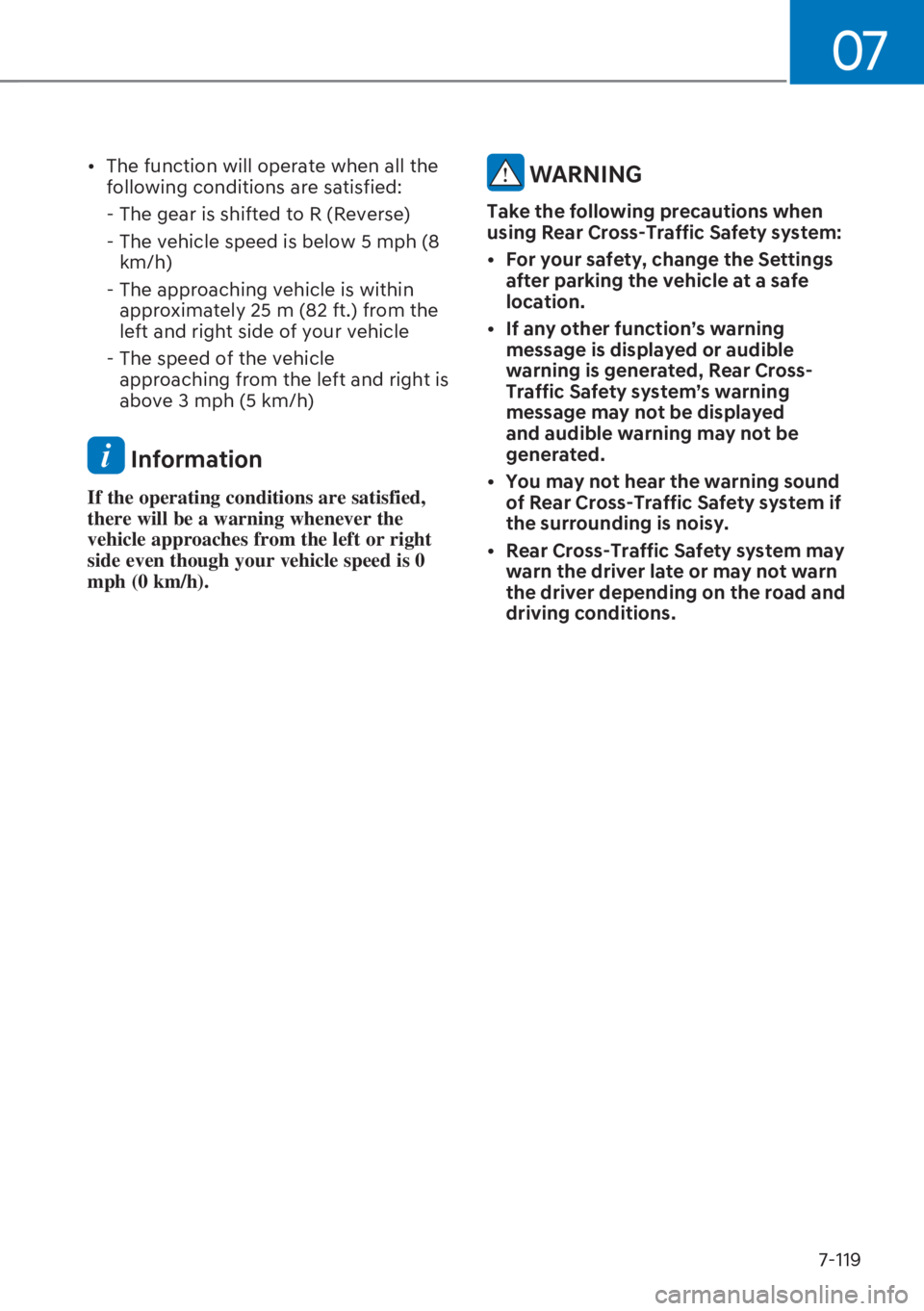

Page 465 of 649

HYUNDAI I20 2023  Owners Manual 07
7-119 [�The function will operate when all the
following conditions are satisfied:
  -  The gear is shifted to R (Reverse)
  -  The vehicle speed is below 5 mph (8
km/h)
  -  The approaching ve

Page 466 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-120
Rear Cross-Traffic Collision
Warning Assist malfunction and
limitations
Rear Cross-Traffic Collision Warning
Assist malfunction
OTM070125L
When Rear Cross-Traffic Saf

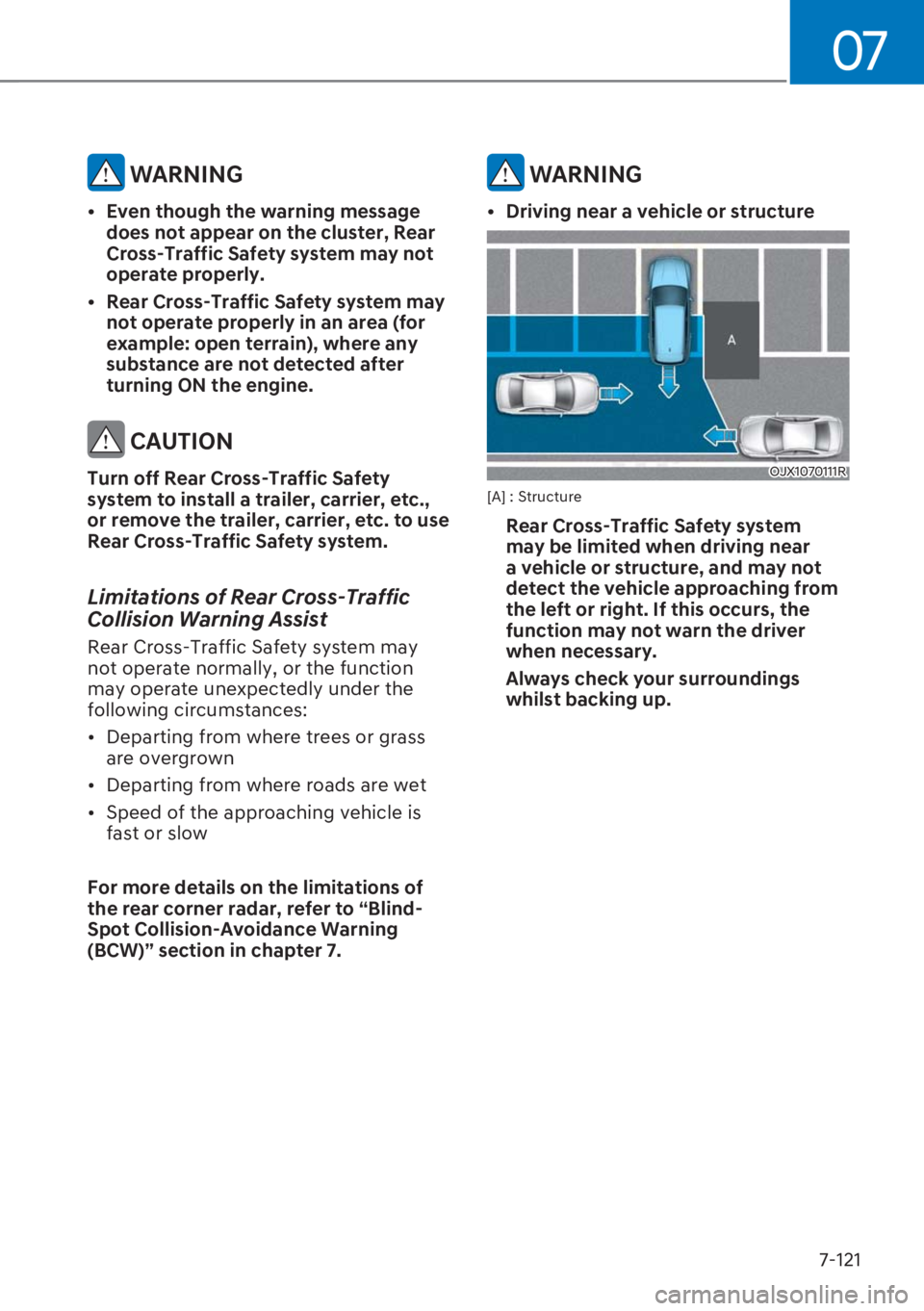

Page 467 of 649

HYUNDAI I20 2023  Owners Manual 07
7-121
 WARNING
[�Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.
[�Rear Cross-Traffic Safety system may
not opera

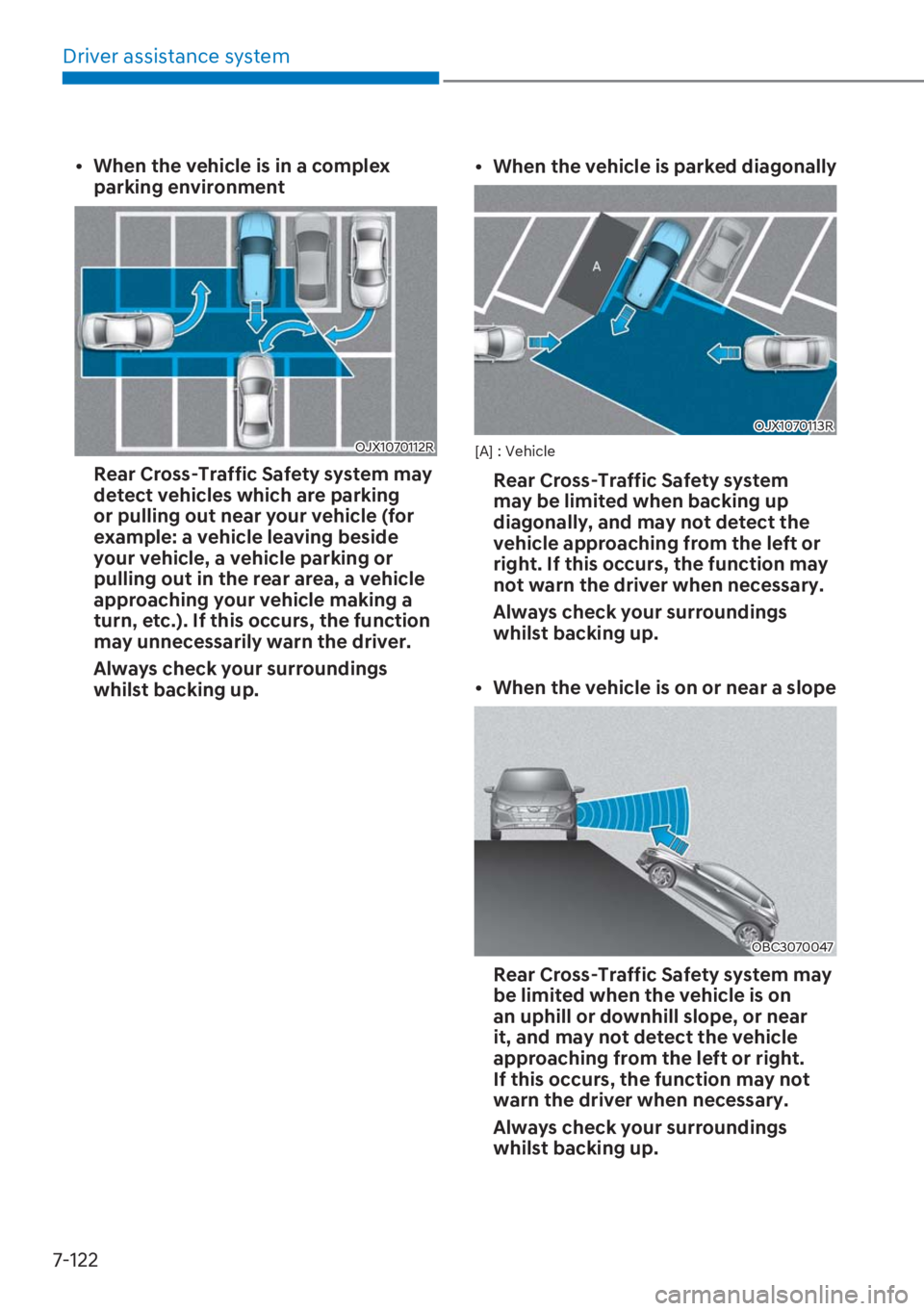

Page 468 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-122
[�When the vehicle is in a complex
parking environment
OJX1070112R
  Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your

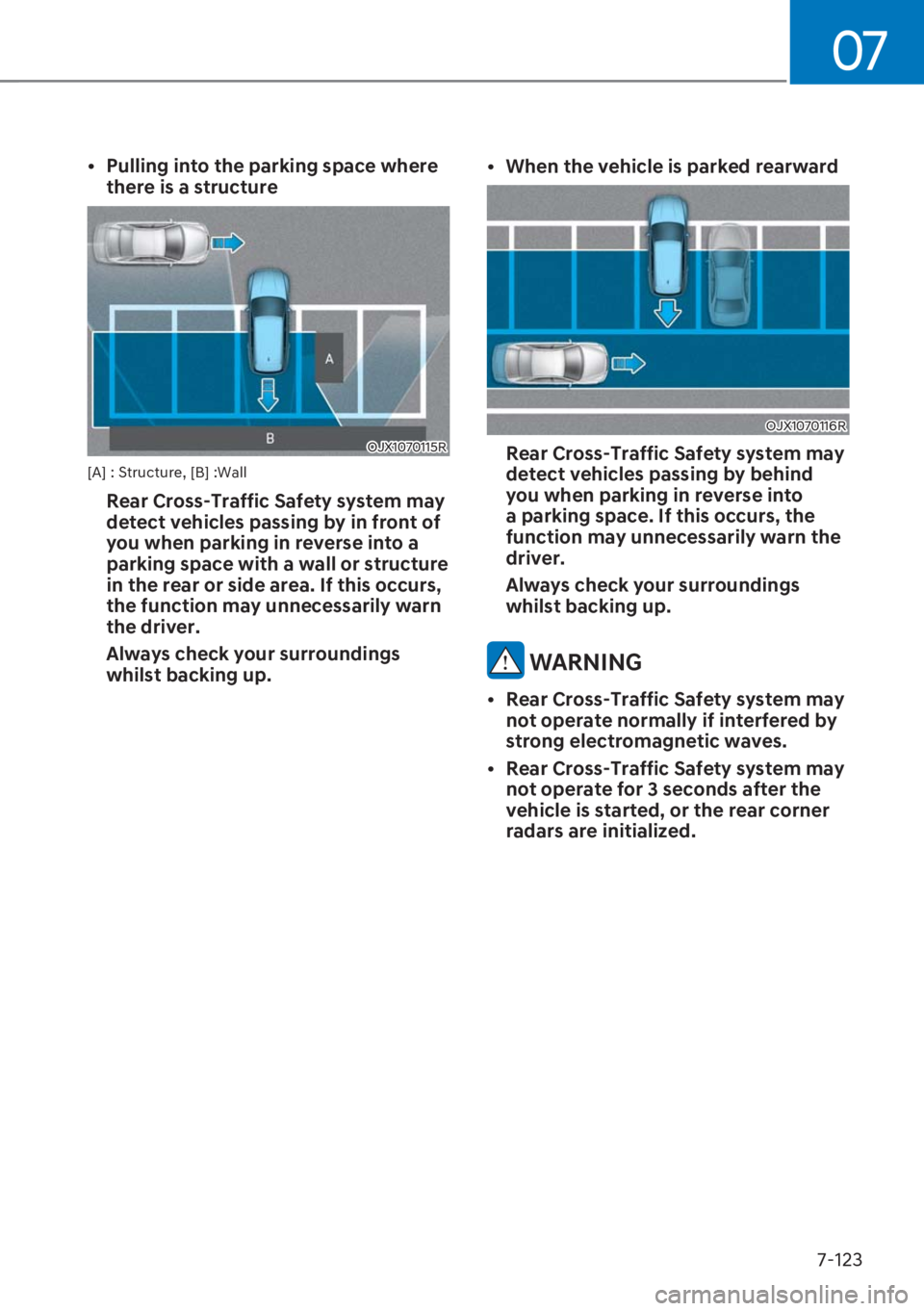

Page 469 of 649

HYUNDAI I20 2023  Owners Manual 07
7-123 [�Pulling into the parking space where
there is a structure
OJX1070115R
[A] : Structure, [B] :Wall
  Rear Cross-Traffic Safety system may
detect vehicles passing by in front of
you when

Page 470 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-124
Rear Cross-Traffic Collision-Avoidance
Assist is designed to help detect vehicles
approaching from the left and right side
whilst your vehicle is reversing, and warn
