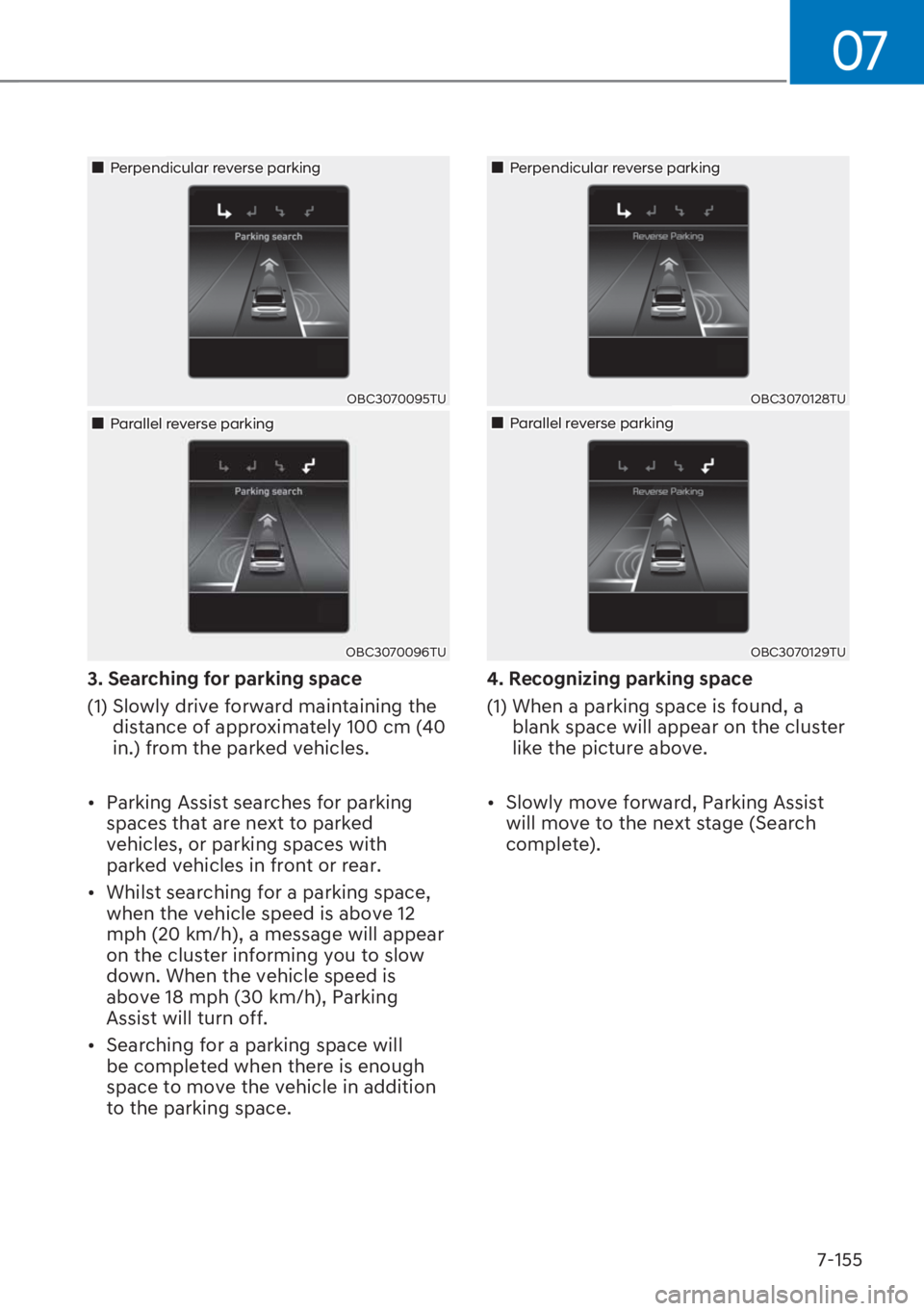

Page 501 of 649

HYUNDAI I20 2023  Owners Manual 07
7-155
��„Parallel reverse parking
OBC3070096TU
��„Perpendicular reverse parking
OBC3070095TU
3. Searching for parking space
(1)  Slowly drive forward maintaining the
distance of approximate

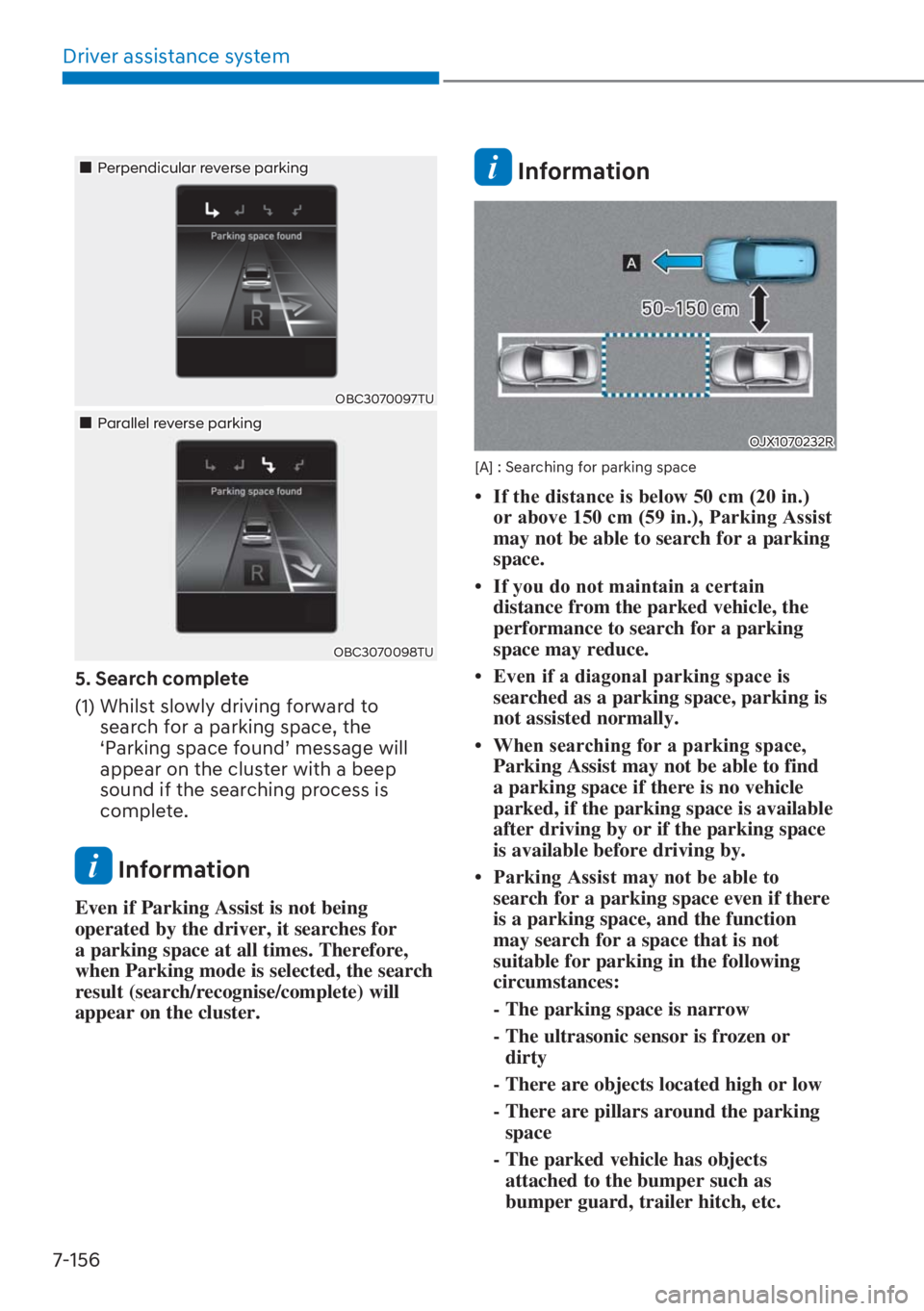

Page 502 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-156
��„Parallel reverse parking
OBC3070098TU
��„Perpendicular reverse parking
OBC3070097TU
5. Search complete
(1)  Whilst slowly driving forward to
search for a parki

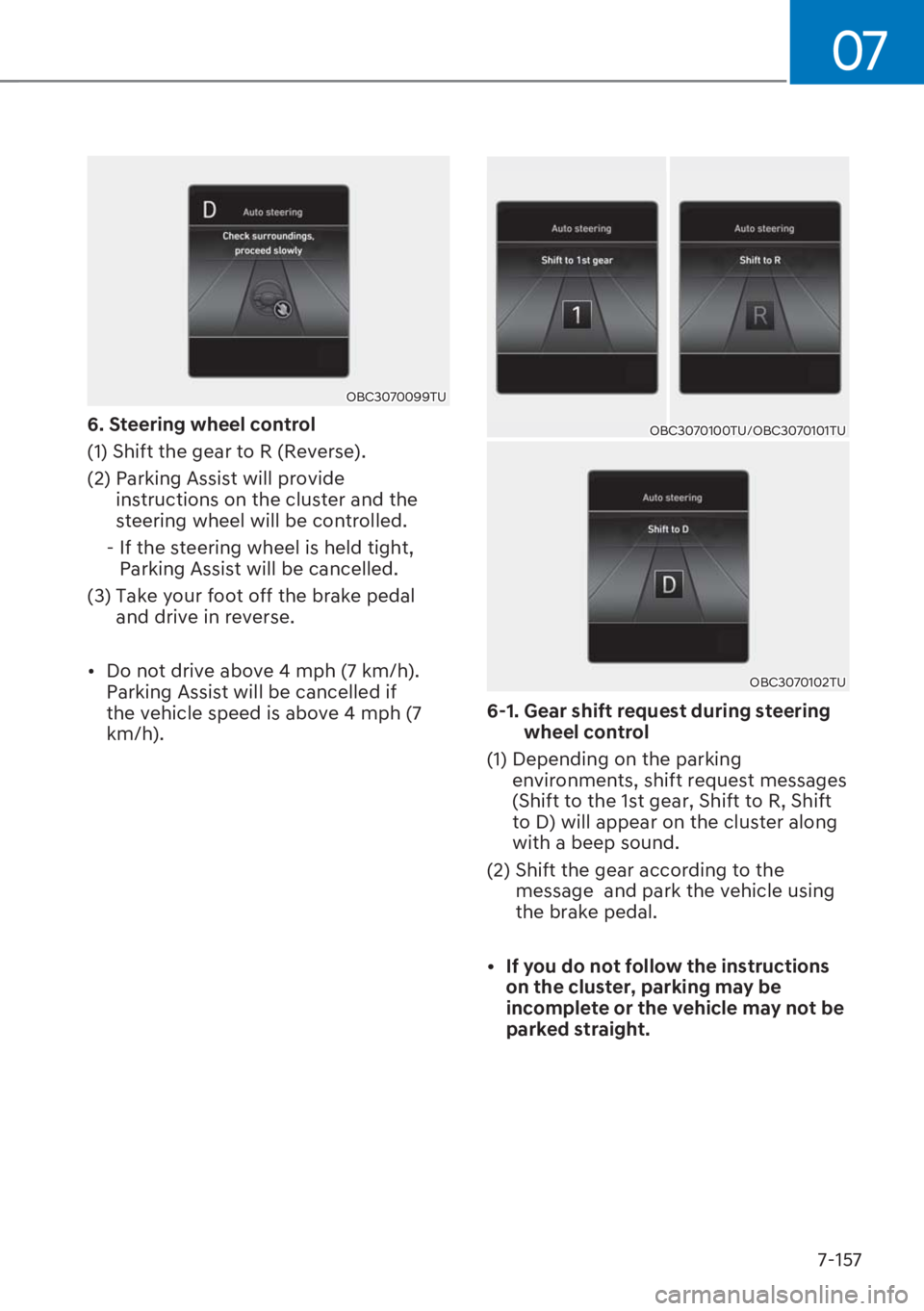

Page 503 of 649

HYUNDAI I20 2023  Owners Manual 07
7-157
OBC3070099TU
6. Steering wheel control
(1) Shift the gear to R (Reverse).
(2)  Parking Assist will provide
instructions on the cluster and the
steering wheel will be controlled.
  -  If th

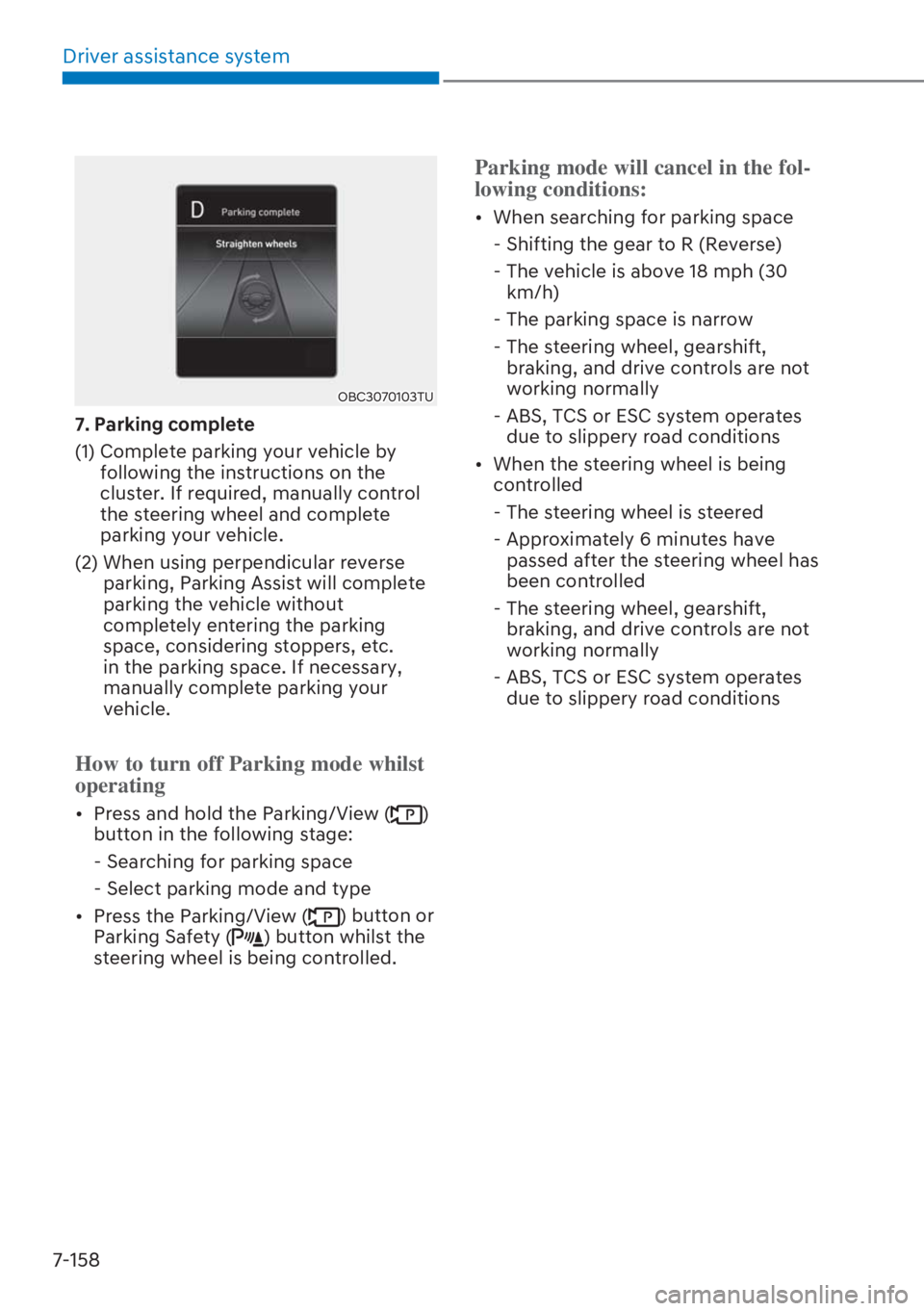

Page 504 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-158
OBC3070103TU
7. Parking complete
(1)  Complete parking your vehicle by
following the instructions on the
cluster. If required, manually control
the steering wheel and

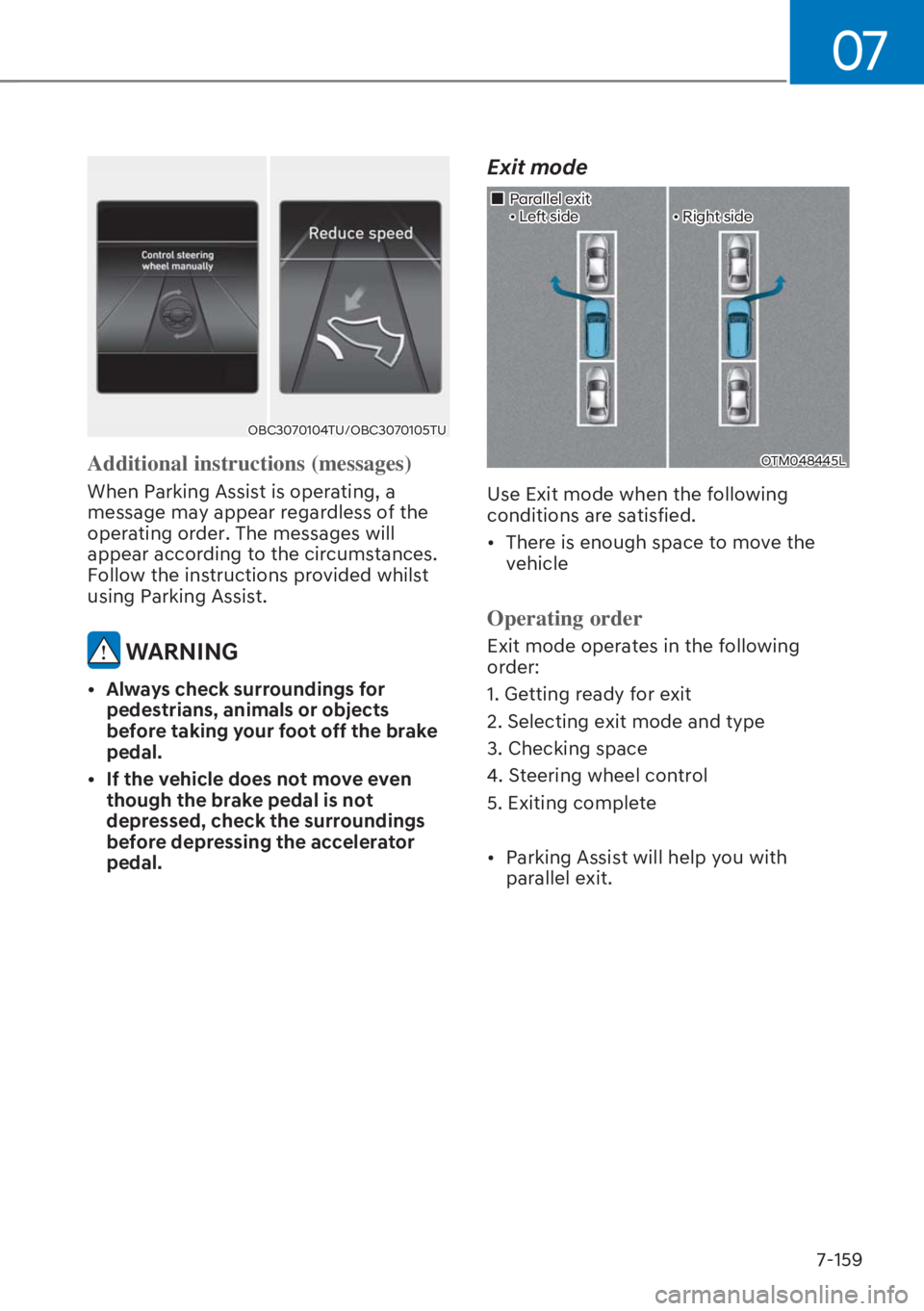

Page 505 of 649

HYUNDAI I20 2023  Owners Manual 07
7-159
OBC3070104TU/OBC3070105TU
Additional instructions (messages)
When Parking Assist is operating, a
message may appear regardless of the
operating order. The messages will
appear according to

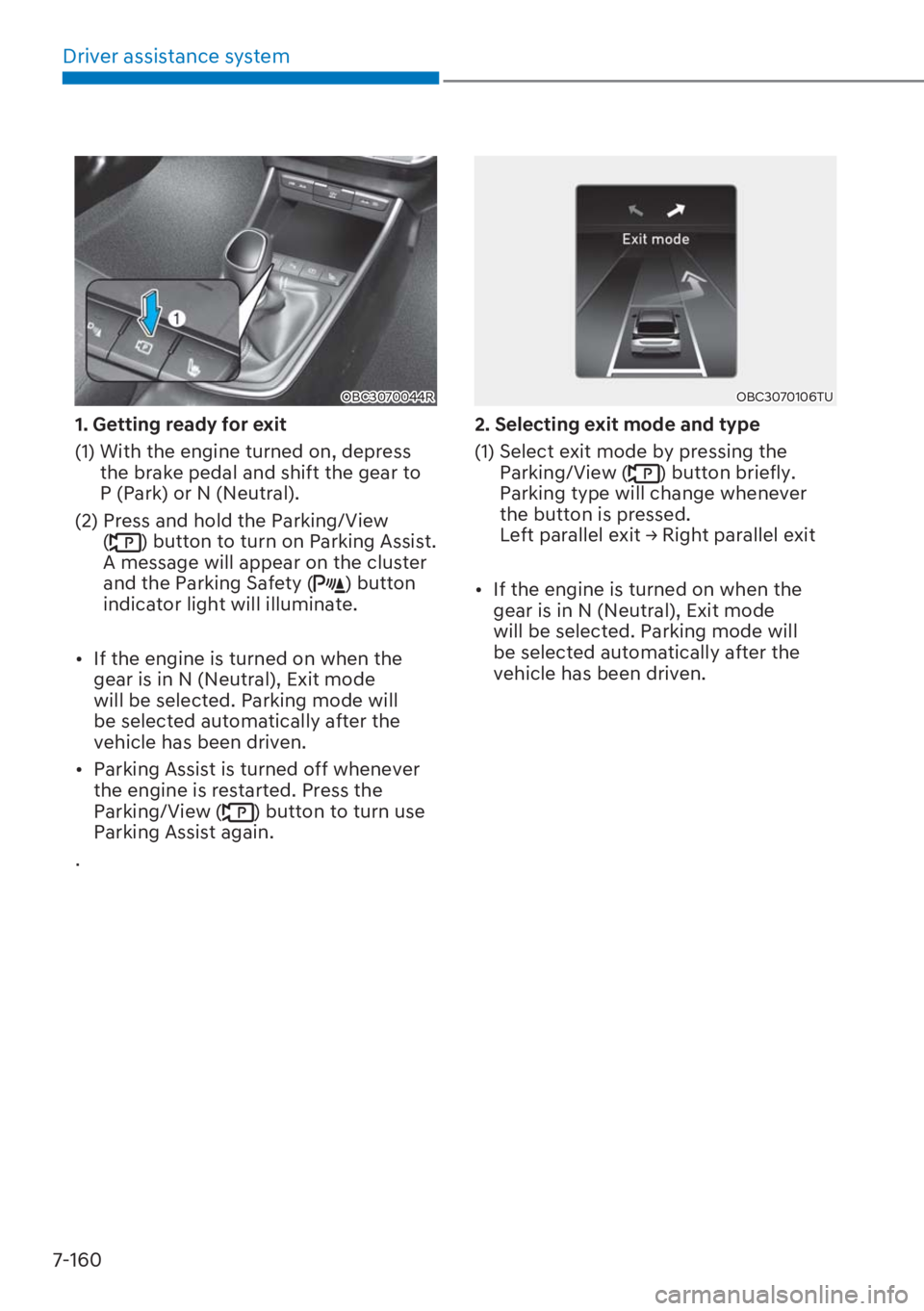

Page 506 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-160
OBC3070044R
1. Getting ready for exit
(1)  With the engine turned on, depress
the brake pedal and shift the gear to
P (Park) or N (Neutral).
(2)  Press and hold the P

Page 507 of 649

HYUNDAI I20 2023  Owners Manual 07
7-161
OBC3070118TU
3. Checking space
(1)  When the vehicle is parked parallel,
the vehicle sensors will detect the
distance from nearby objects and
check for space to exit.
[�If the front or

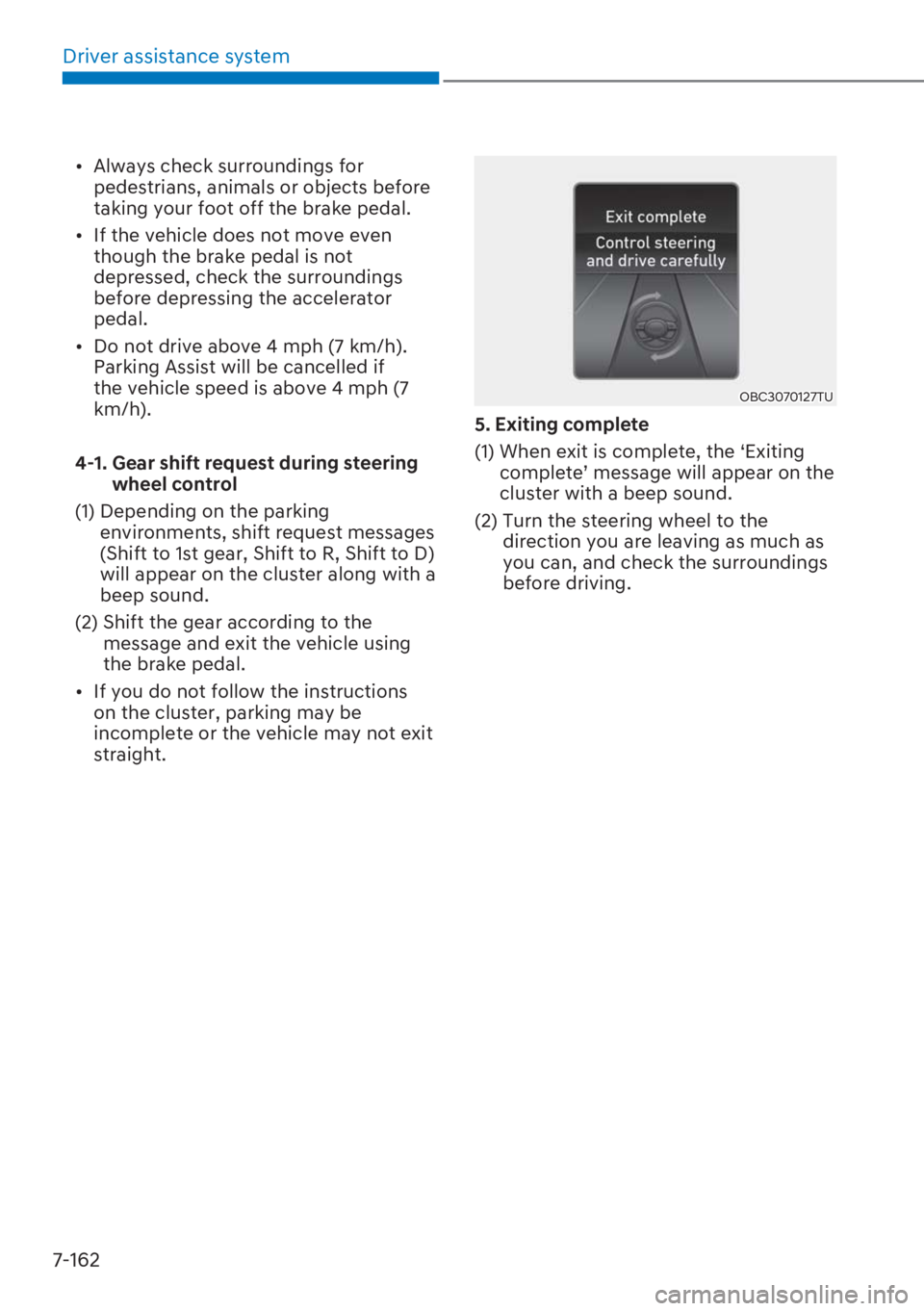

Page 508 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-162
[�Always check surroundings for
pedestrians, animals or objects before
taking your foot off the brake pedal.
[�If the vehicle does not move even
though the brake

Page 509 of 649

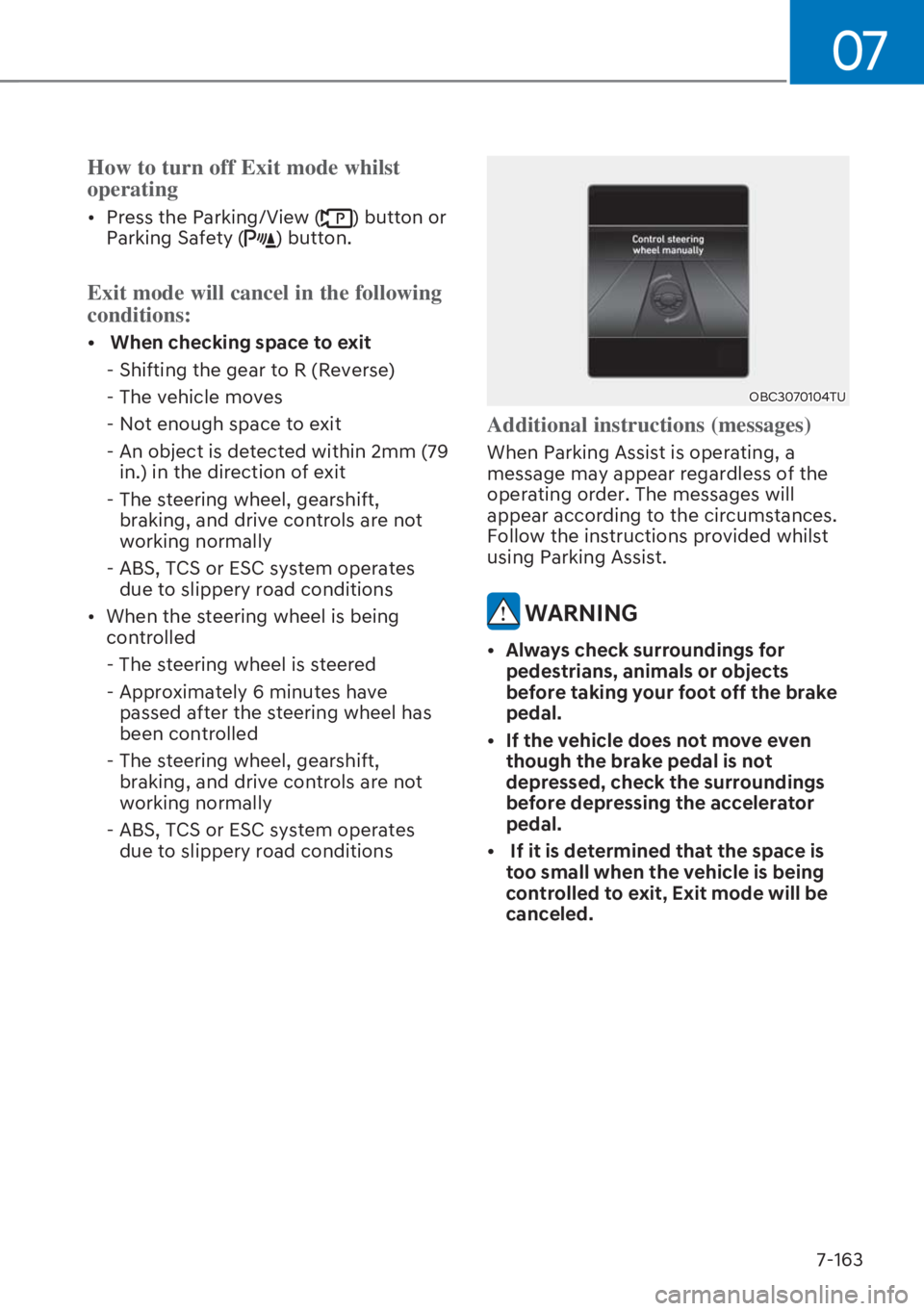

HYUNDAI I20 2023  Owners Manual 07
7-163
How to turn off Exit mode whilst
operating
[�Press the Parking/View () button or
Parking Safety () button.
Exit mode will cancel in the following
conditions:
[� When checking space to

Page 510 of 649

HYUNDAI I20 2023  Owners Manual Driver assistance system
7-164
Parking Assist malfunction and
limitations
Parking Assist malfunction
OBC3070120TU
When Parking Assist is not working
properly, the ‘Check PA (Parking Assist)
�V�\�
