HYUNDAI I20 2023 Owners Manual

07
7-125

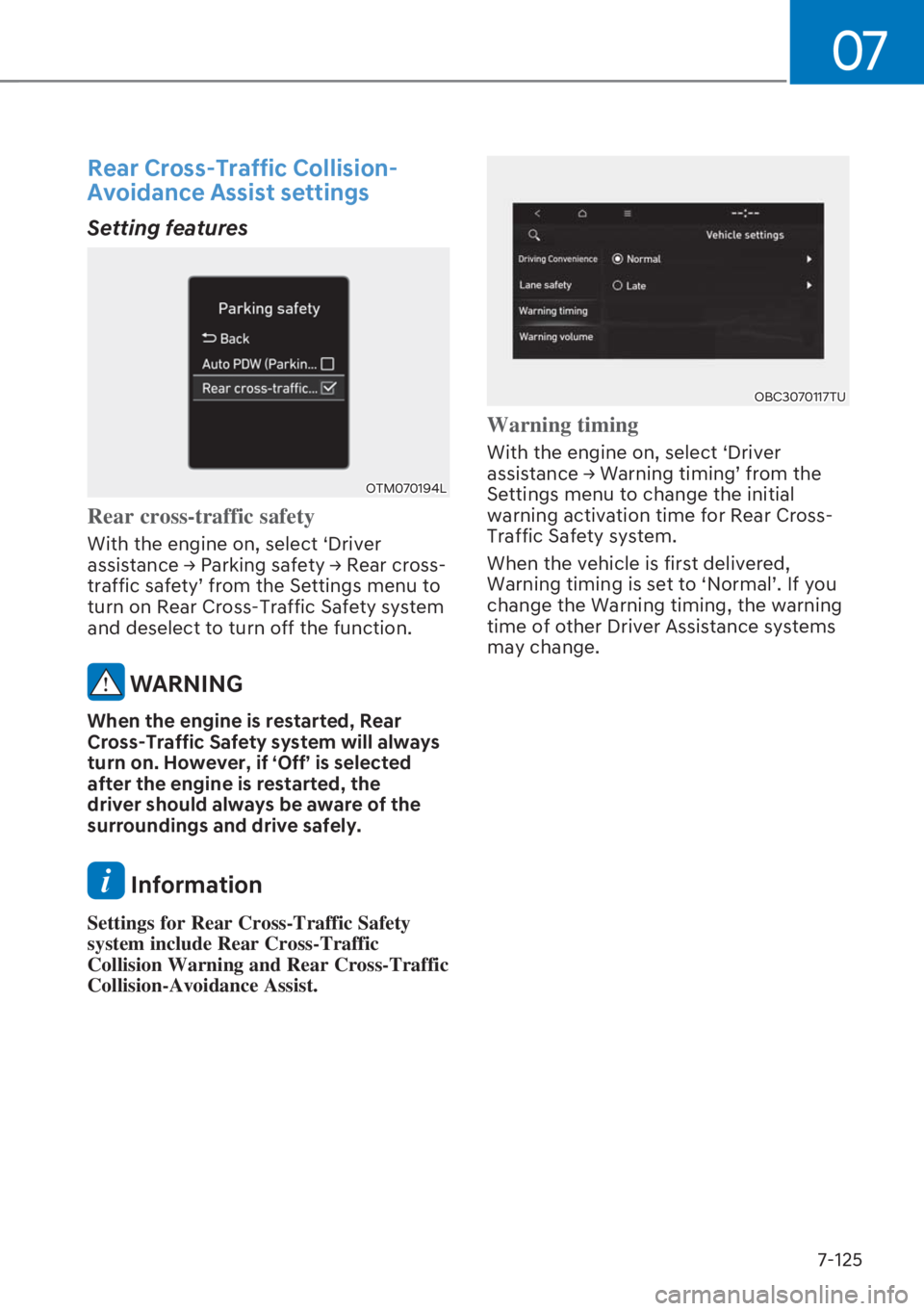

Rear Cross-Traffic Collision-
Avoidance Assist settings
Setting features
OTM070194L
Rear cross-traffic safety
With the engine on, select ‘Driver
DVVLVWDQFH

Driver assistance system

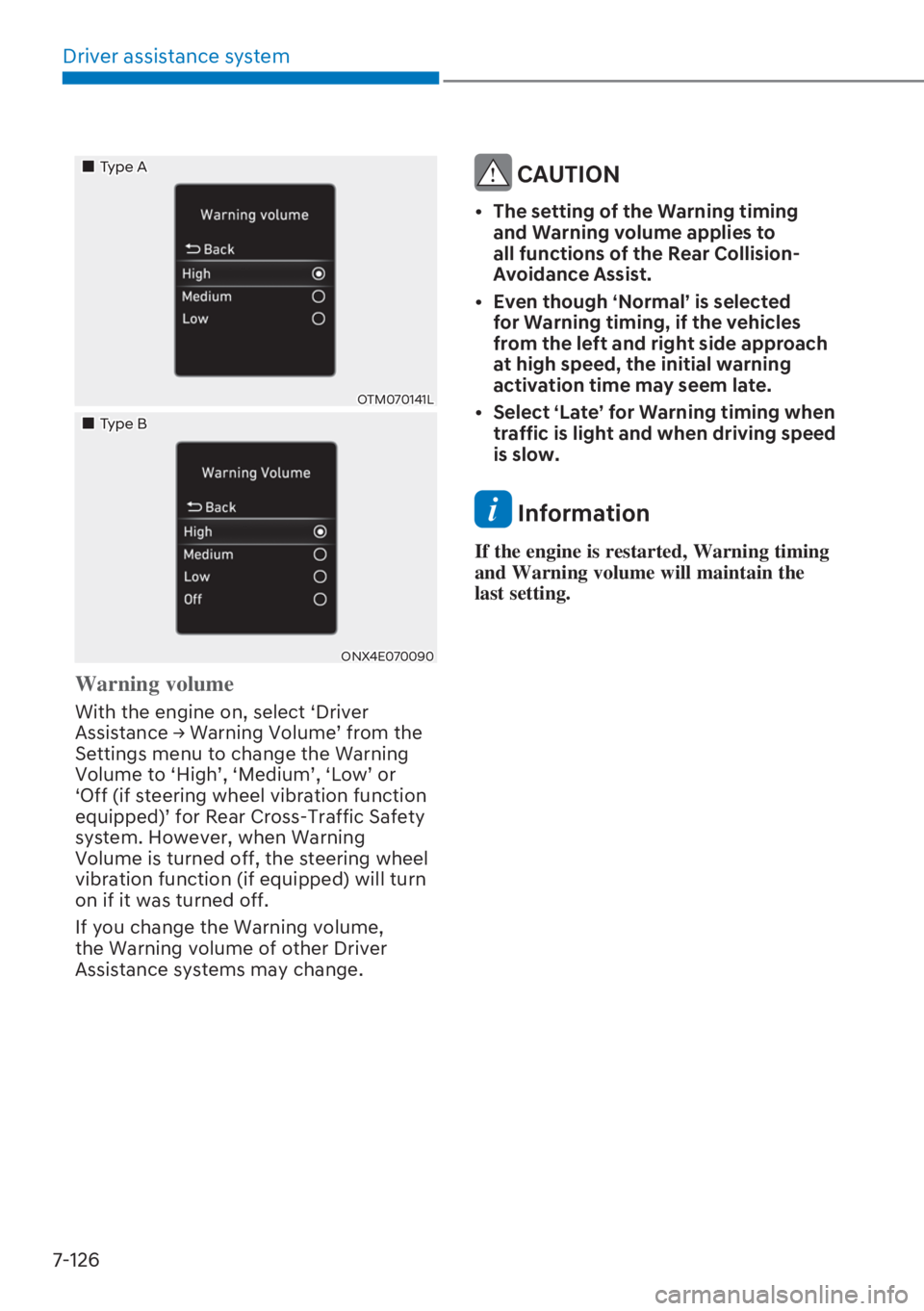

7-126
„Type A
OTM070141L
„Type B
ONX4E070090
Warning volume
With the engine on, select ‘Driver
$VVLVWDQFH

07

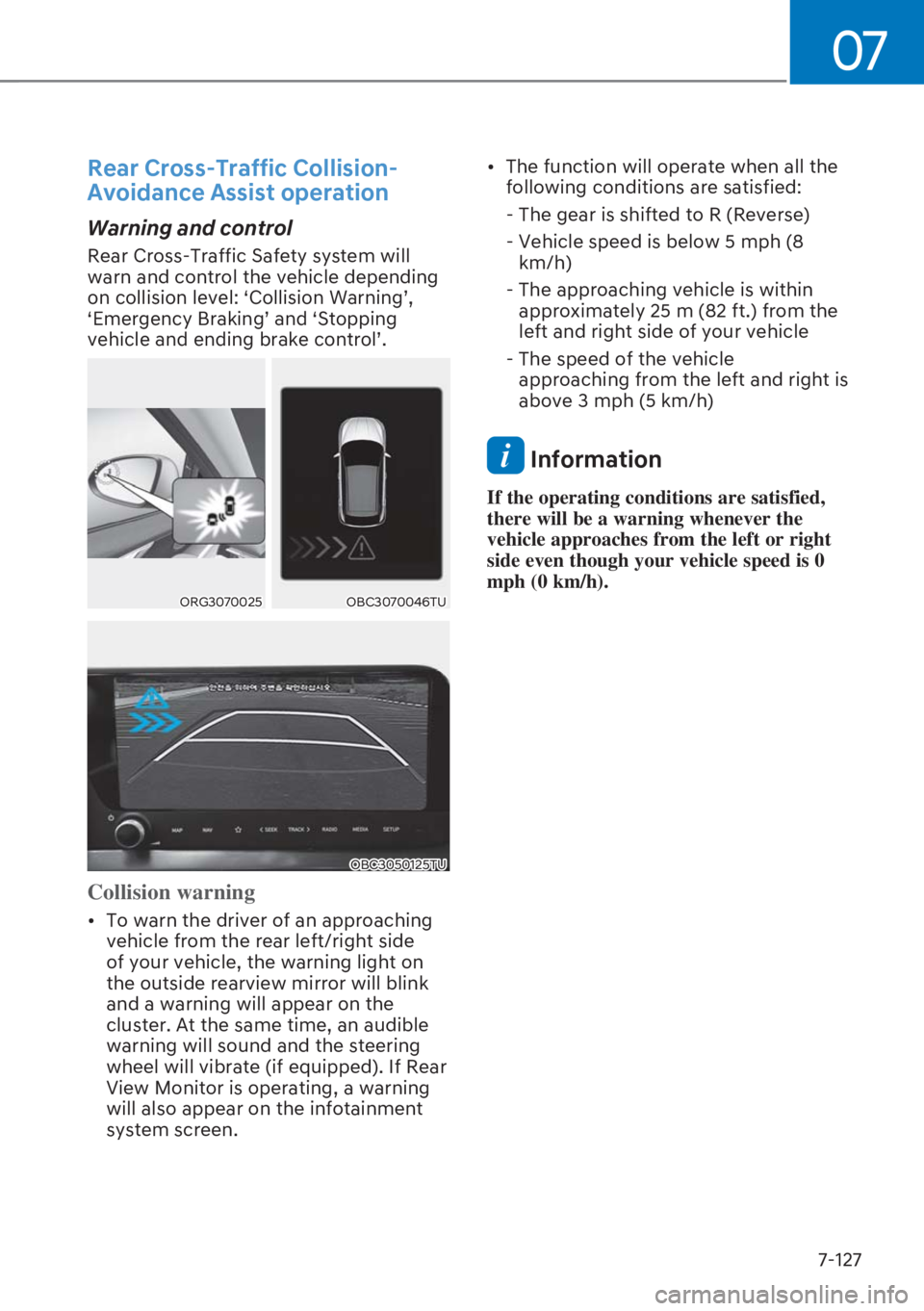

7-127
Rear Cross-Traffic Collision-
Avoidance Assist operation
Warning and control
Rear Cross-Traffic Safety system will
warn and control the vehicle depending
RQFROOLVLRQOHYHO
S&ROOLVLRQ:DUQLQJ
T

S(PHUJHQF\%UDNLQJ
TDQG
S6WRSSLQJ
YHKLFOHDQGHQGLQJEUDNHFRQWURO
T
ORG3070025OBC3070046TU
OBC3050125TU
Collision warning

[To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light on
the outside rearview mirror will blink
and a warning will appear on the
cluster. At the same time, an audible
warning will sound and the steering
wheel will vibrate (if equipped). If Rear
View Monitor is operating, a warning
will also appear on the infotainment
system screen.
[The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8
km/h)
- The approaching vehicle is within
approximately 25 m (82 ft.) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right is
above 3 mph (5 km/h)
Information
If the operating conditions are satisfied,
there will be a warning whenever the
vehicle approaches from the left or right
side even though your vehicle speed is 0
mph (0 km/h).

Driver assistance system

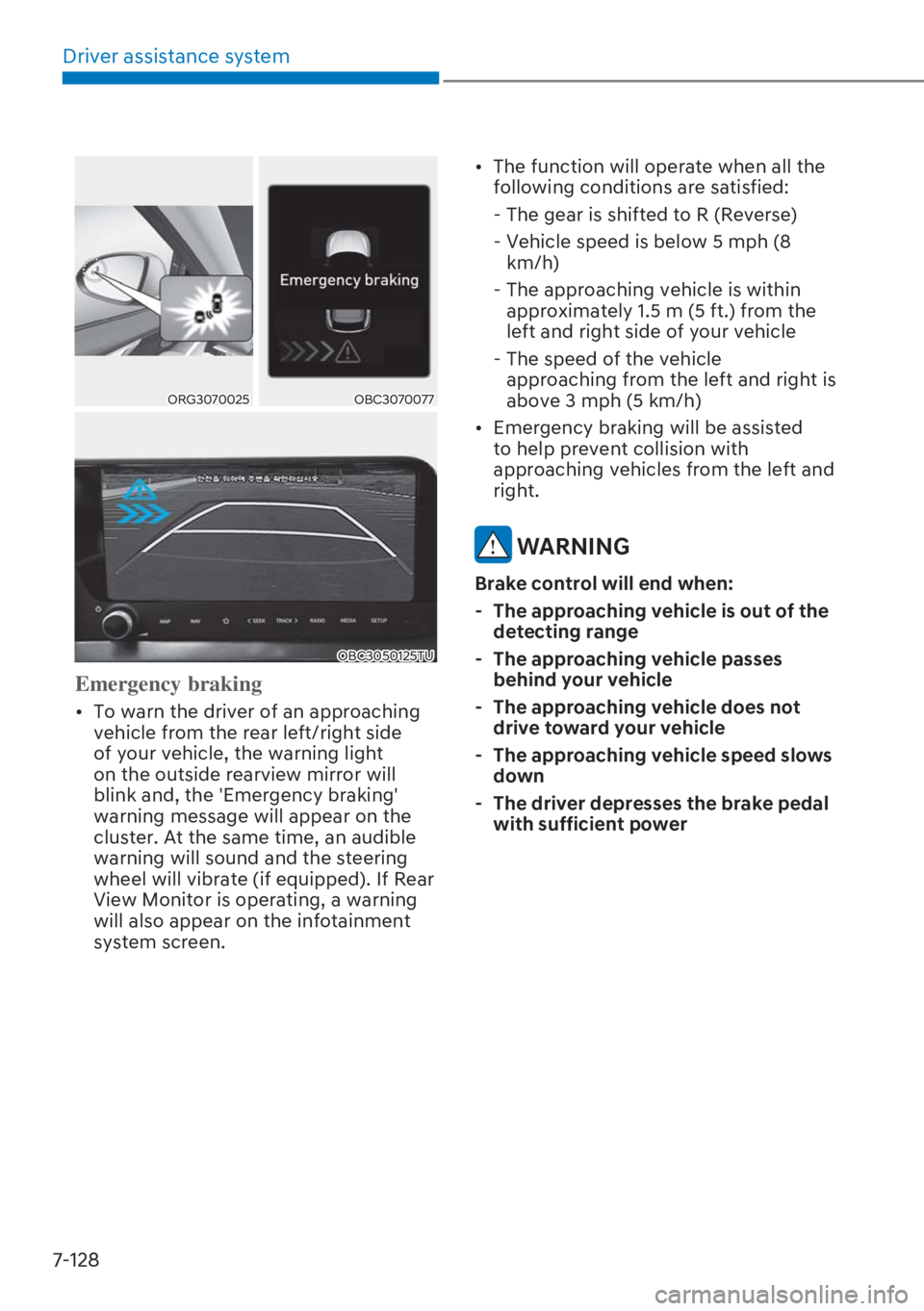

7-128
ORG3070025OBC3070077
OBC3050125TU
Emergency braking

[To warn the driver of an approaching
vehicle from the rear left/right side
of your vehicle, the warning light
on the outside rearview mirror will
blink and, the 'Emergency braking'
warning message will appear on the
cluster. At the same time, an audible
warning will sound and the steering
wheel will vibrate (if equipped). If Rear
View Monitor is operating, a warning
will also appear on the infotainment
system screen.
[The function will operate when all the
following conditions are satisfied:
- The gear is shifted to R (Reverse)
- Vehicle speed is below 5 mph (8
km/h)
- The approaching vehicle is within
approximately 1.5 m (5 ft.) from the
left and right side of your vehicle
- The speed of the vehicle
approaching from the left and right is
above 3 mph (5 km/h)

[Emergency braking will be assisted
to help prevent collision with
approaching vehicles from the left and
right.
WARNING
Brake control will end when:
- The approaching vehicle is out of the
detecting range
- The approaching vehicle passes
behind your vehicle
- The approaching vehicle does not
drive toward your vehicle
- The approaching vehicle speed slows
down
- The driver depresses the brake pedal
with sufficient power

07
7-129
OBC3070004
Stopping vehicle and ending brake
control

[When the vehicle is stopped due
to emergency braking, the ‘Drive
FDUHIXOO\
TZDUQLQJPHVVDJHZLOODSSHDU
on the cluster.

[For your safety, the driver should
depress the brake pedal immediately
and check the surroundings.

[Brake control will end after the vehicle
is stopped by emergency braking for
approximately 2 seconds.

[During emergency braking,
braking control by the system will
automatically cancel when the driver
excessively depresses the brake pedal.
WARNING
Take the following precautions when
using Rear Cross-Traffic Safety system:

[For your safety, change the Settings
after parking the vehicle at a safe
location.

[If any other function’s warning
message is displayed or audible
warning is generated, Rear Cross-
Traffic Safety system’s warning
message may not be displayed
and audible warning may not be
generated.

[You may not hear the warning sound
of Rear Cross-Traffic Safety system if
the surrounding is noisy.

[Rear Cross-Traffic Safety system may
not operate if the driver applies the
brake pedal to avoid collision.

[During Rear Cross-Traffic Safety
system operation, the vehicle may
stop suddenly injuring passengers
and shifting loose objects. Always
have the seat belt on and keep loose
objects secured.

[Even if there is a problem with Rear
Cross-Traffic Safety system, the
vehicle’s basic braking performance
will operate normally.

[Rear Cross-Traffic Safety system does
not operate in all situations or cannot
avoid all collisions.

[During emergency braking,
braking control by the function will
automatically cancel when the driver
excessively depresses the accelerator
pedal.

Driver assistance system

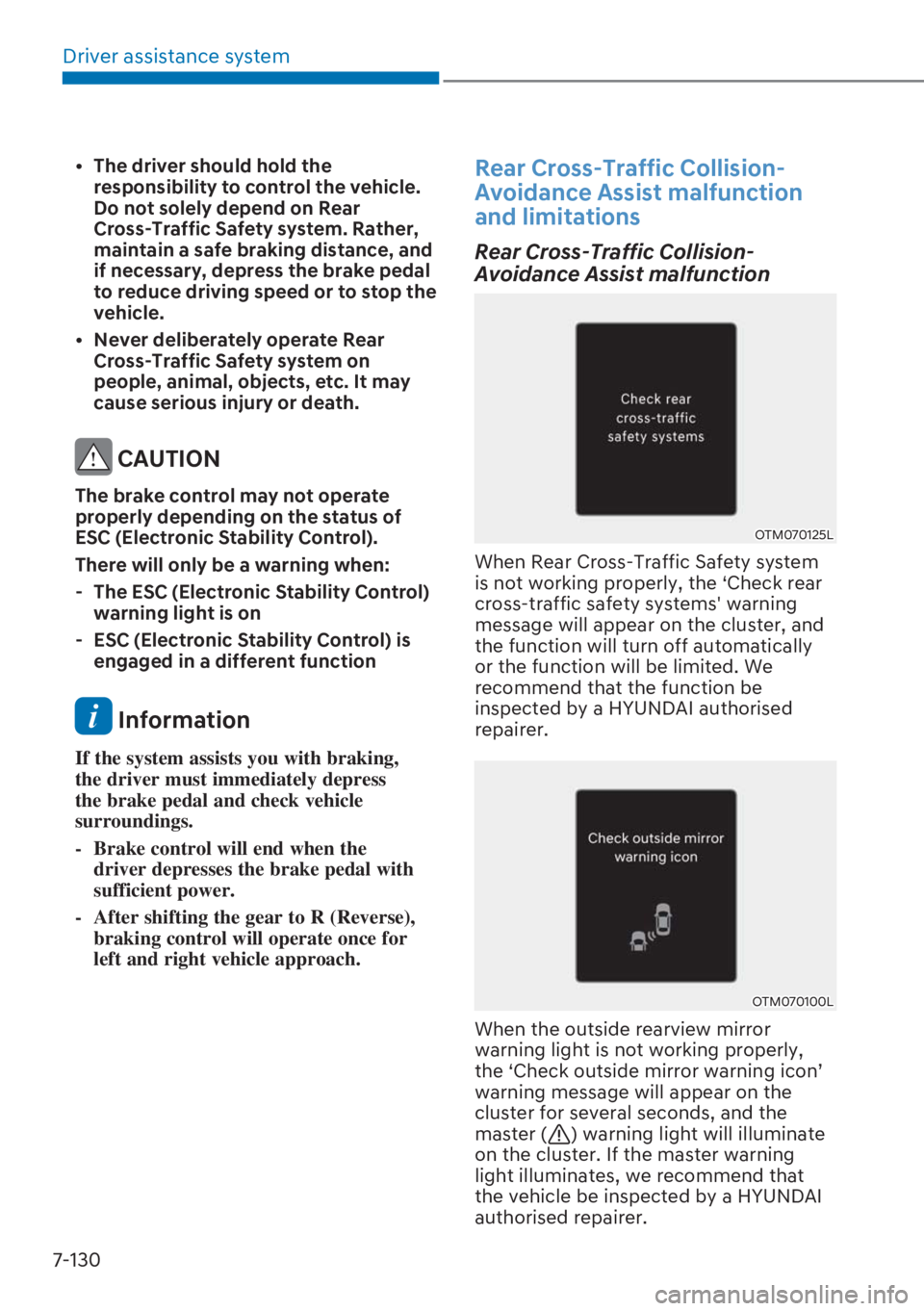

7-130

[The driver should hold the
responsibility to control the vehicle.
Do not solely depend on Rear
Cross-Traffic Safety system. Rather,
maintain a safe braking distance, and
if necessary, depress the brake pedal
to reduce driving speed or to stop the
vehicle.

[Never deliberately operate Rear
Cross-Traffic Safety system on
people, animal, objects, etc. It may
cause serious injury or death.
CAUTION
The brake control may not operate
properly depending on the status of
ESC (Electronic Stability Control).
There will only be a warning when:
- The ESC (Electronic Stability Control)
warning light is on
- ESC (Electronic Stability Control) is
engaged in a different function
Information
If the system assists you with braking,
the driver must immediately depress
the brake pedal and check vehicle
surroundings.
- Brake control will end when the
driver depresses the brake pedal with
sufficient power.
- After shifting the gear to R (Reverse),
braking control will operate once for
left and right vehicle approach.
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
and limitations
Rear Cross-Traffic Collision-
Avoidance Assist malfunction
OTM070125L
When Rear Cross-Traffic Safety system
is not working properly, the ‘Check rear
cross-traffic safety systems' warning
message will appear on the cluster, and
the function will turn off automatically
or the function will be limited. We
recommend that the function be
inspected by a HYUNDAI authorised
repairer.
OTM070100L
When the outside rearview mirror
warning light is not working properly,
WKH
S&KHFNRXWVLGHPLUURUZDUQLQJLFRQ
T
warning message will appear on the
cluster for several seconds, and the
master (
) warning light will illuminate
on the cluster. If the master warning
light illuminates, we recommend that
the vehicle be inspected by a HYUNDAI
authorised repairer.

07
7-131
Rear Cross-Traffic Collision-
Avoidance Assist disabled
OTM070124L
When the rear bumper around the rear-
side radar or sensor is covered with
foreign material, such as snow or rain,
or installing a trailer or carrier, it can
reduce the detecting performance and
temporarily limit or disable Rear Cross-
Traffic Safety system.
If this occurs, the ‘Rear cross-traffic
VDIHW\IXQFWLRQVGLVDEOHG5DGDUEORFNHG
T
warning message will appear on the
cluster.
The function will operate normally when
such foreign material or trailer, etc. is
removed.
If the function does not operate normally
after it is removed, we recommend that
the function be inspected by a HYUNDAI
authorised repairer.
WARNING

[Even though the warning message
does not appear on the cluster, Rear
Cross-Traffic Safety system may not
operate properly.

[Rear Cross-Traffic Safety system may
not operate properly in an area (for
example: open terrain), where any
substance are not detected after
turning ON the engine.
CAUTION
Turn off Rear Cross-Traffic Safety
system to install a trailer, carrier, etc.,
or remove the trailer, carrier, etc. to use
Rear Cross-Traffic Safety system.
Limitations of Rear Cross-Traffic
Collision-Avoidance Assist
Rear Cross-Traffic Safety system may
not operate normally, or the function
may operate unexpectedly under the
following circumstances:

[Departing from where trees or grass
are overgrown

[Departing from where roads are wet

[Speed of the approaching vehicle is
fast or slow
%UDNLQJFRQWUROPD\QRWZRUNGULYHU
TV
attention is required in the following
circumstances:

[The vehicle severely vibrates whilst
driving over a bumpy road, uneven
road or concrete patch

[Driving on a slippery surface due to
snow, water puddle, ice, etc.

[The tyre pressure is low or a tyre is
damaged

[The brake is reworked

[Parking Assist is operating
(if equipped)

Driver assistance system

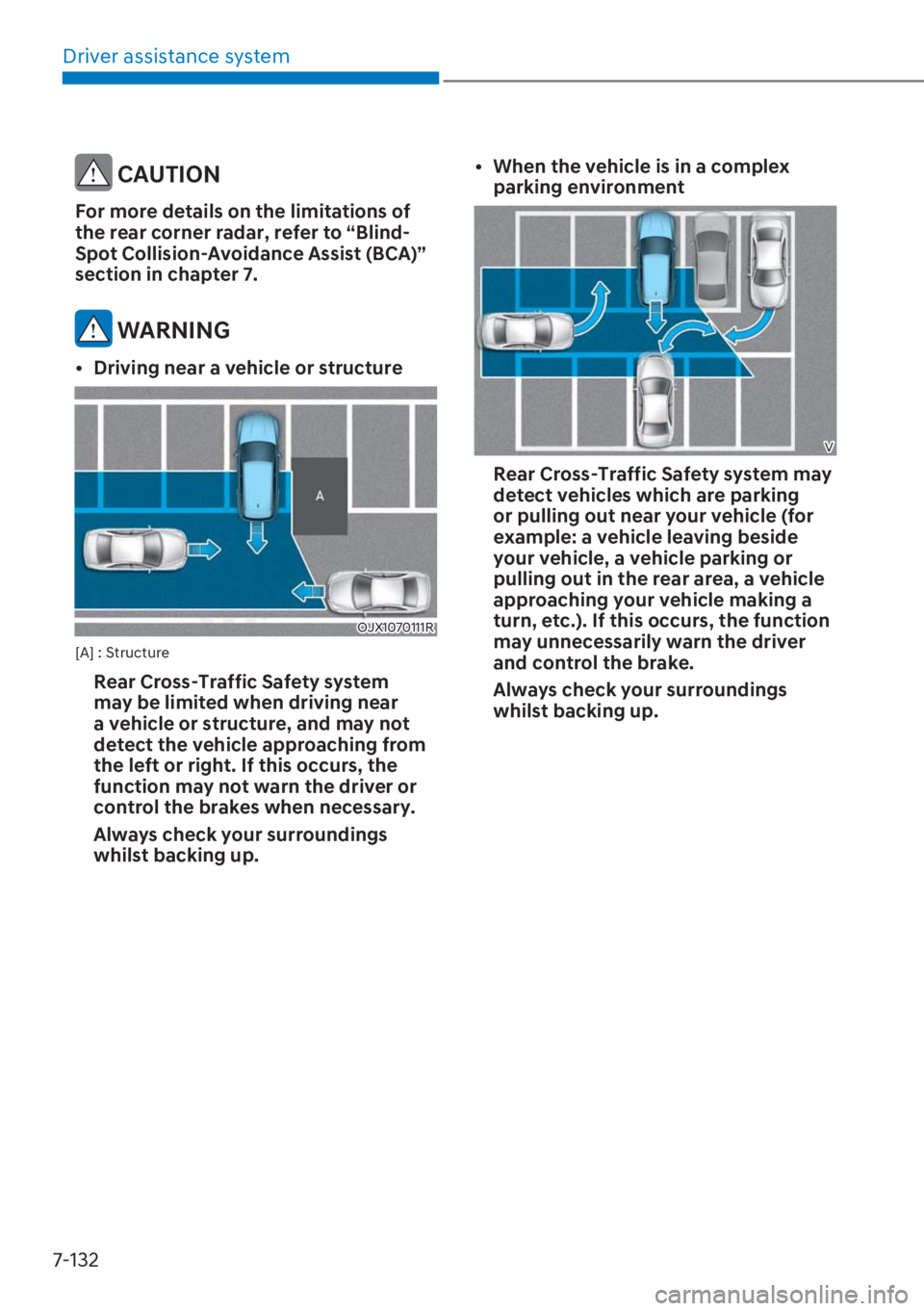

7-132
CAUTION
For more details on the limitations of
the rear corner radar, refer to “Blind-
Spot Collision-Avoidance Assist (BCA)”
section in chapter 7.
WARNING

[Driving near a vehicle or structure
OJX1070111R
[A] : Structure
Rear Cross-Traffic Safety system
may be limited when driving near
a vehicle or structure, and may not
detect the vehicle approaching from
the left or right. If this occurs, the
function may not warn the driver or
control the brakes when necessary.
Always check your surroundings
whilst backing up.
[When the vehicle is in a complex
parking environment
V
Rear Cross-Traffic Safety system may
detect vehicles which are parking
or pulling out near your vehicle (for
example: a vehicle leaving beside
your vehicle, a vehicle parking or
pulling out in the rear area, a vehicle
approaching your vehicle making a
turn, etc.). If this occurs, the function
may unnecessarily warn the driver
and control the brake.
Always check your surroundings
whilst backing up.

07

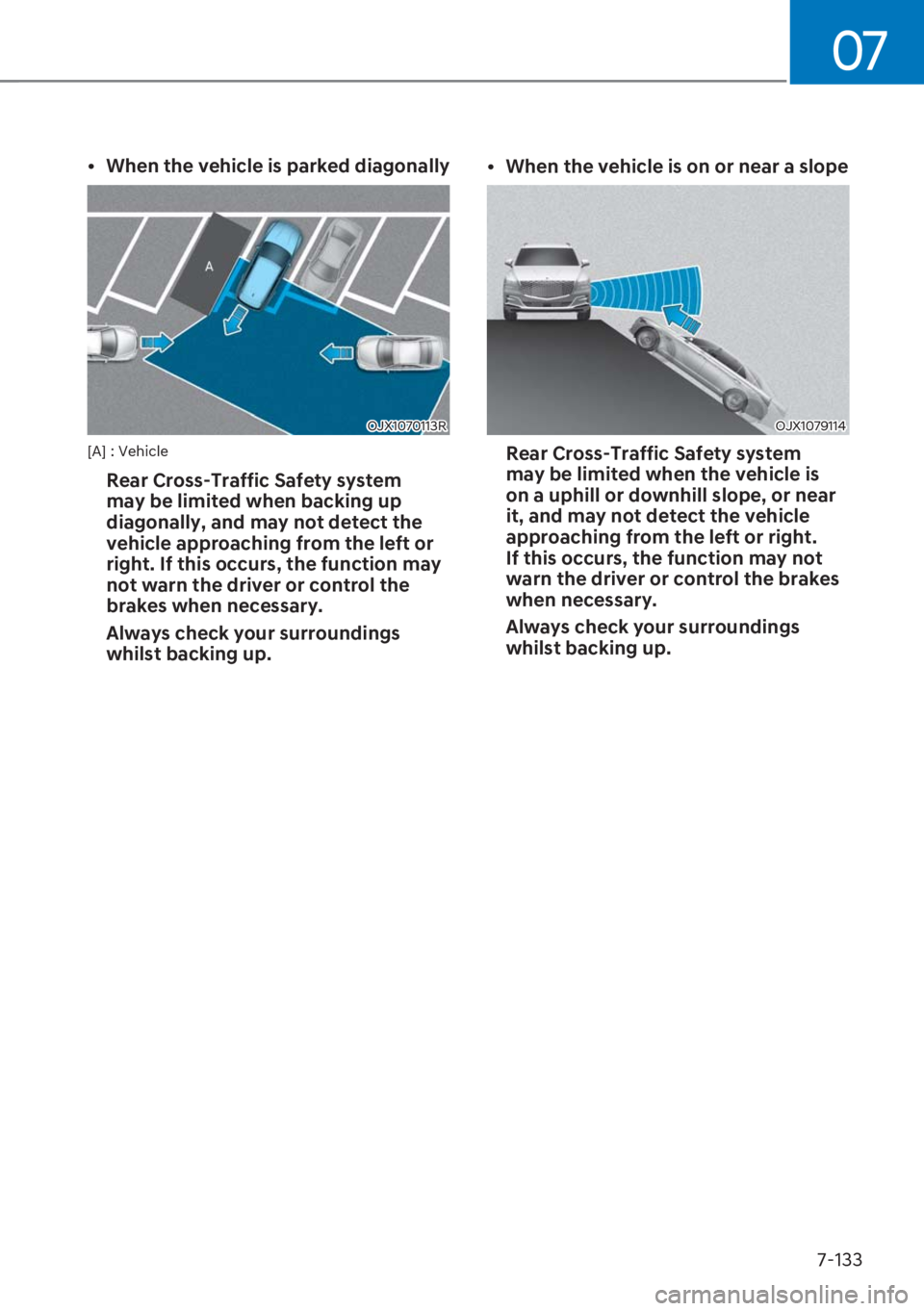

7-133
[When the vehicle is parked diagonally
OJX1070113R
[A] : Vehicle
Rear Cross-Traffic Safety system
may be limited when backing up
diagonally, and may not detect the
vehicle approaching from the left or
right. If this occurs, the function may
not warn the driver or control the
brakes when necessary.
Always check your surroundings
whilst backing up.
[When the vehicle is on or near a slope
OJX1079114
Rear Cross-Traffic Safety system
may be limited when the vehicle is
on a uphill or downhill slope, or near
it, and may not detect the vehicle
approaching from the left or right.
If this occurs, the function may not
warn the driver or control the brakes
when necessary.
Always check your surroundings
whilst backing up.

Driver assistance system

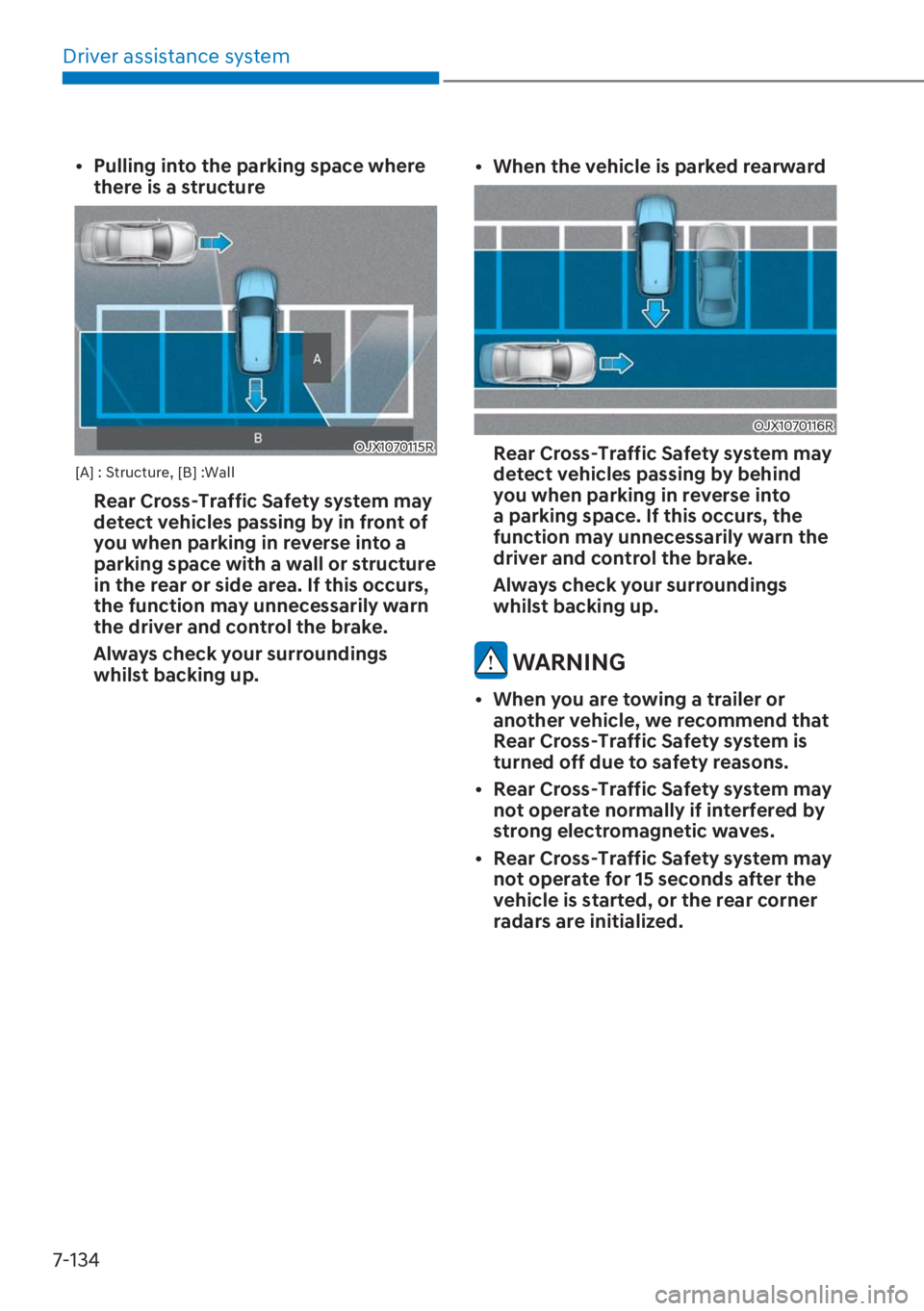

7-134

[Pulling into the parking space where
there is a structure
OJX1070115R
[A] : Structure, [B] :Wall
Rear Cross-Traffic Safety system may
detect vehicles passing by in front of
you when parking in reverse into a
parking space with a wall or structure
in the rear or side area. If this occurs,
the function may unnecessarily warn
the driver and control the brake.
Always check your surroundings
whilst backing up.
[When the vehicle is parked rearward
OJX1070116R
Rear Cross-Traffic Safety system may
detect vehicles passing by behind
you when parking in reverse into
a parking space. If this occurs, the
function may unnecessarily warn the
driver and control the brake.
Always check your surroundings
whilst backing up.
WARNING

[When you are towing a trailer or
another vehicle, we recommend that
Rear Cross-Traffic Safety system is
turned off due to safety reasons.

[Rear Cross-Traffic Safety system may
not operate normally if interfered by
strong electromagnetic waves.

[Rear Cross-Traffic Safety system may
not operate for 15 seconds after the
vehicle is started, or the rear corner
radars are initialized.
