Page 521 of 649

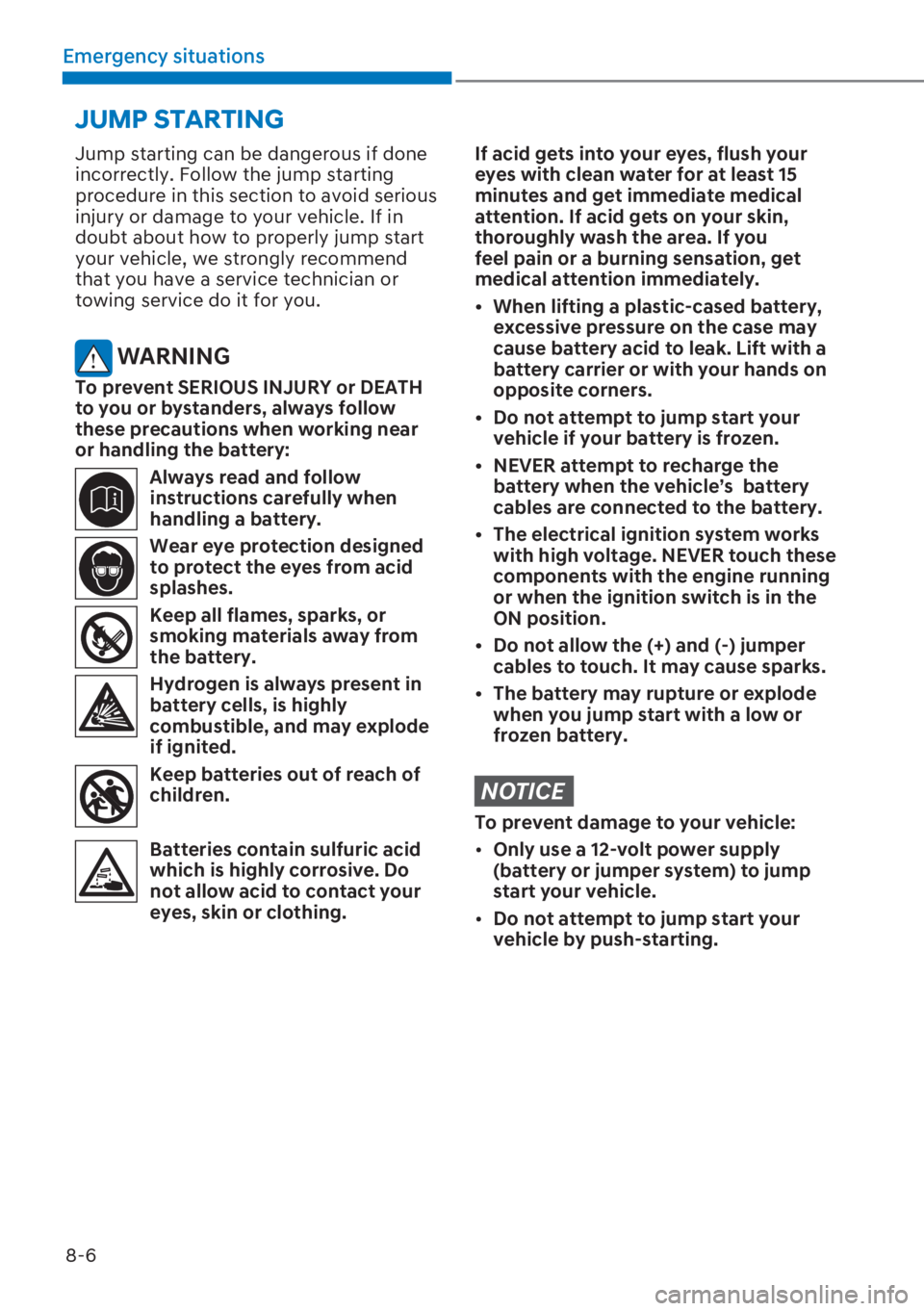

8-6
Emergency situations
Jump starting can be dangerous if done
incorrectly. Follow the jump starting
procedure in this section to avoid serious
injury or damage to your vehicle. If in
doubt about how to properly jump start
your vehicle, we strongly recommend
that you have a service technician or
towing service do it for you.
WARNING
To prevent SERIOUS INJURY or DEATH
to you or bystanders, always follow
these precautions when working near
or handling the battery:
Always read and follow
instructions carefully when
handling a battery.
Wear eye protection designed
to protect the eyes from acid
splashes.
Keep all flames, sparks, or
smoking materials away from
the battery.
Hydrogen is always present in
battery cells, is highly
combustible, and may explode
if ignited.
Keep batteries out of reach of
children.
Batteries contain sulfuric acid
which is highly corrosive. Do
not allow acid to contact your
eyes, skin or clothing.
If acid gets into your eyes, flush your
eyes with clean water for at least 15
minutes and get immediate medical
attention. If acid gets on your skin,
thoroughly wash the area. If you
feel pain or a burning sensation, get
medical attention immediately.
[ When lifting a plastic-cased battery,
excessive pressure on the case may
cause battery acid to leak. Lift with a
battery carrier or with your hands on
opposite corners.
[ Do not attempt to jump start your
vehicle if your battery is frozen.
[ NEVER attempt to recharge the
battery when the vehicle’s battery
cables are connected to the battery.
[ The electrical ignition system works
with high voltage. NEVER touch these
components with the engine running
or when the ignition switch is in the
ON position.
[ Do not allow the (+) and (-) jumper
cables to touch. It may cause sparks.
[ The battery may rupture or explode
when you jump start with a low or
frozen battery.
NOTICE
To prevent damage to your vehicle:
[ Only use a 12-volt power supply
(battery or jumper system) to jump
start your vehicle.
[ Do not attempt to jump start your
vehicle by push-starting.
JUMP STARTING
Page 522 of 649

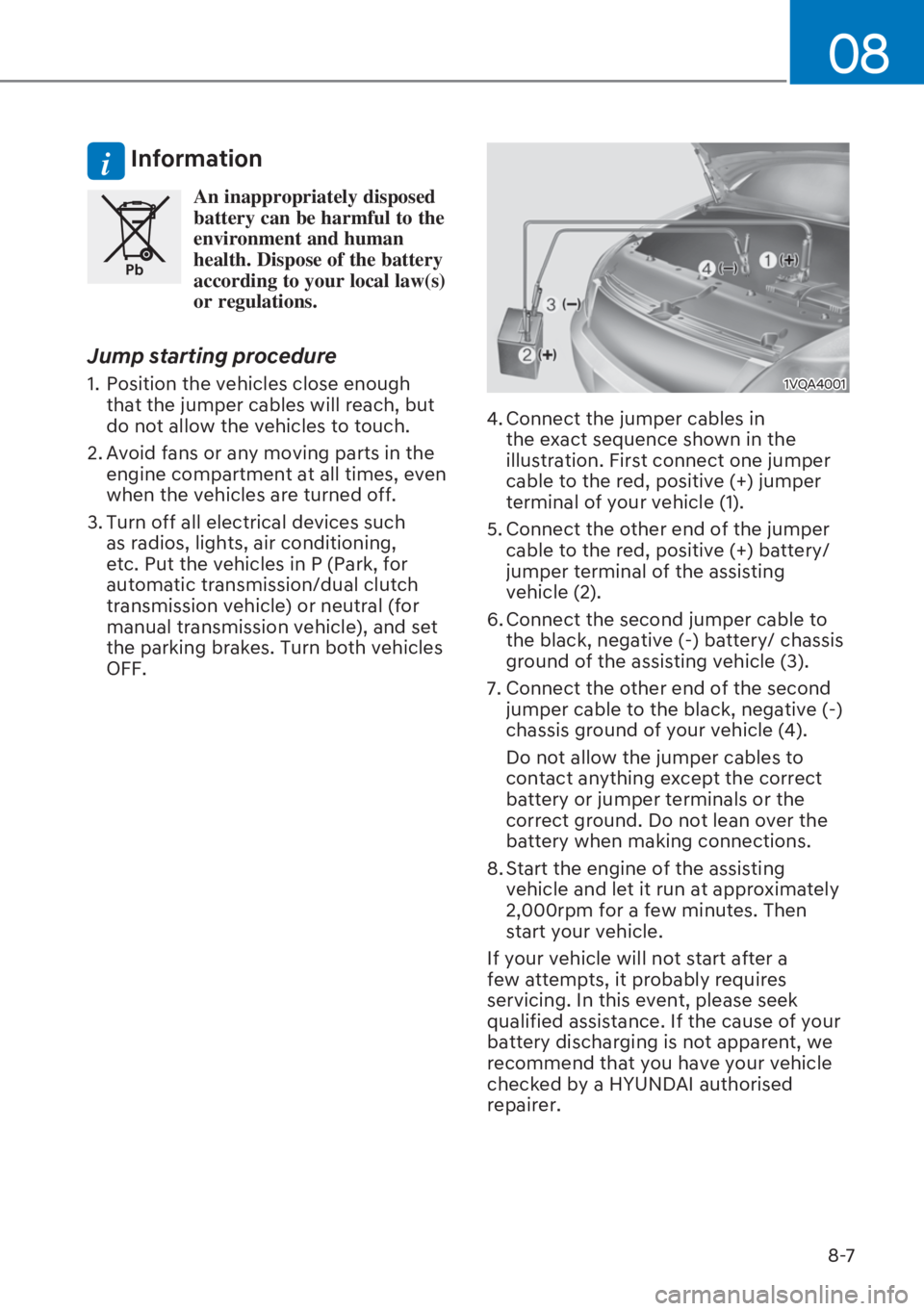

8-7
08
i Information
Pb
An inappropriately disposed
battery can be harmful to the
environment and human
health. Dispose of the battery
according to your local law(s)
or regulations.
Jump starting procedure
1. Position the vehicles close enough
that the jumper cables will reach, but
do not allow the vehicles to touch.
2. Avoid fans or any moving parts in the
engine compartment at all times, even
when the vehicles are turned off.
3. Turn off all electrical devices such
as radios, lights, air conditioning,
etc. Put the vehicles in P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral (for
manual transmission vehicle), and set
the parking brakes. Turn both vehicles
OFF.1VQA4001
4. Connect the jumper cables in
the exact sequence shown in the
illustration. First connect one jumper
cable to the red, positive (+) jumper
terminal of your vehicle (1).
5. Connect the other end of the jumper
cable to the red, positive (+) battery/
jumper terminal of the assisting
vehicle (2).
6. Connect the second jumper cable to
the black, negative (-) battery/ chassis
ground of the assisting vehicle (3).
7. Connect the other end of the second
jumper cable to the black, negative (-)
chassis ground of your vehicle (4).
Do not allow the jumper cables to
contact anything except the correct
battery or jumper terminals or the
correct ground. Do not lean over the
battery when making connections.
8. Start the engine of the assisting
vehicle and let it run at approximately
2,000rpm for a few minutes. Then
start your vehicle.
If your vehicle will not start after a
few attempts, it probably requires
servicing. In this event, please seek
qualified assistance. If the cause of your
battery discharging is not apparent, we
recommend that you have your vehicle
checked by a HYUNDAI authorised
repairer.
Page 523 of 649

8-8
Emergency situations
Disconnect the jumper cables in the
exact reverse order you connected
them:
1. Disconnect the jumper cable from the
black, negative (-) chassis ground of
your vehicle (4).
2. Disconnect the other end of the
jumper cable from the black, negative
(-) battery/chassis ground of the
assisting vehicle (3).
3. Disconnect the second jumper cable
from the red, positive (+) battery/
jumper terminal of the assisting
vehicle (2).
4. Disconnect the other end of the
jumper cable from the red, positive (+)
jumper terminal of your vehicle (1).
Page 524 of 649

8-9
08
If your temperature gauge indicates
overheating, you experience a loss of
power, or hear loud pinging or knocking,
the engine may be overheating. If this
happens, you should:
1. Pull off the road and stop as soon as it
is safe to do so.
2. Place the shift lever in P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral (for
manual transmission/dual clutch
transmission vehicle) and set the
parking brake. If the air conditioning is
ON, turn it OFF.
3. If engine coolant is running out under
the vehicle or steam is coming out
from the bonnet, stop the engine. Do
not open the bonnet until the coolant
has stopped running or the steaming
has stopped. If there is no visible
loss of engine coolant and no steam,
leave the engine running and check
to be sure the engine cooling fan is
operating. If the fan is not running,
turn the engine off.
WARNING
Whilst the engine is
running, keep hands,
clothing and tools away
from the moving parts such
as the cooling fan and drive
belt to prevent serious
injury.4. Check for coolant leaking from the
radiator, hoses or under the vehicle. (If
the air conditioning had been in use, it
is normal for cold water to be draining
from it when you stop.)
5. If engine coolant is leaking out, stop
the engine immediately and we
recommend that you call a HYUNDAI
authorised repairer for assistance.
WARNING
NEVER remove the radiator
cap or the drain plug whilst
the engine and radiator are
hot. Hot coolant and steam
may blow out under
pressure, causing serious injury.
Turn the engine off and wait until the
engine cools down. Use extreme care
when removing the radiator cap. Wrap
a thick towel around it, and turn it
counterclockwise slowly to the first
stop. Step back whilst the pressure
is released from the cooling system.
When you are sure all the pressure
has been released, press down on the
cap, using a thick towel, and continue
turning counterclockwise to remove it.
IF THE ENGINE OVERHEATS
Page 525 of 649

8-10
Emergency situations
6. If you cannot find the cause of the
overheating, wait until the engine
temperature has returned to normal.
Then, if coolant has been lost,
carefully add coolant to the reservoir
to bring the fluid level in the reservoir
up to the halfway mark.
7. Proceed with caution, keeping alert
for further signs of overheating.
If overheating happens again, we
recommend that you call a HYUNDAI
authorised repairer for assistance.
NOTICE
[ 6 H U L R X V O R V V R I F R R O D Q W L Q G L F D W H V D
leak in the cooling system and we
recommend the system be checked
by a HYUNDAI authorised repairer.
[ : K H Q W K H H Q J L Q H R Y H U K H D W V I U R P
low engine coolant, suddenly adding
engine coolant may cause cracks
in the engine. To prevent damage,
add engine coolant slowly in small
quantities.
Page 526 of 649

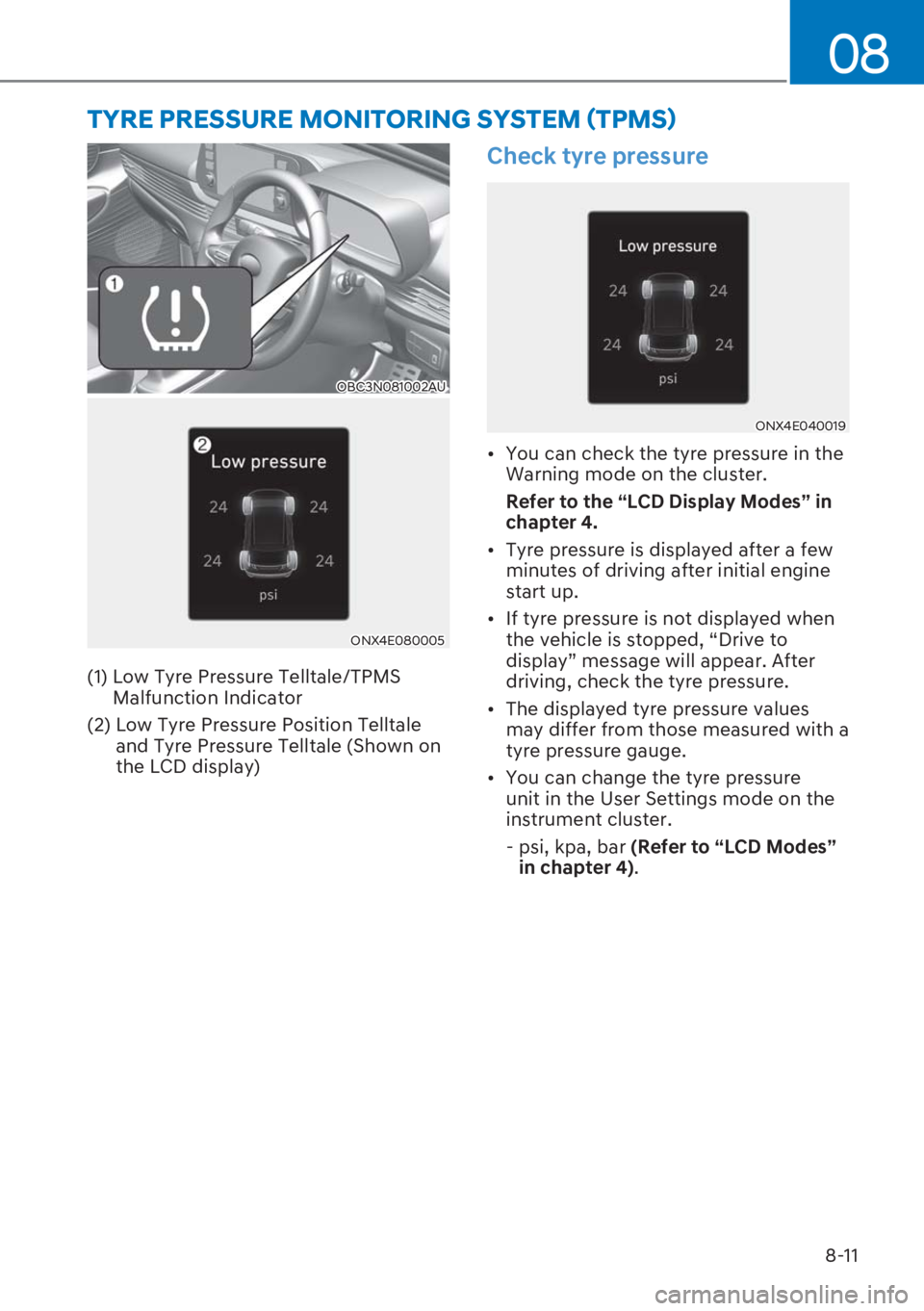

8-11
08
OBC3N081002AU
ONX4E080005
(1) Low Tyre Pressure Telltale/TPMS
Malfunction Indicator
(2) Low Tyre Pressure Position Telltale
and Tyre Pressure Telltale (Shown on
the LCD display)
Check tyre pressure
ONX4E040019
[ You can check the tyre pressure in the
Warning mode on the cluster.
Refer to the “LCD Display Modes” in
chapter 4.
[ Tyre pressure is displayed after a few
minutes of driving after initial engine
start up.
[ If tyre pressure is not displayed when
the vehicle is stopped, “Drive to
display” message will appear. After
driving, check the tyre pressure.
[ The displayed tyre pressure values
may differ from those measured with a
tyre pressure gauge.
[ You can change the tyre pressure
unit in the User Settings mode on the
instrument cluster.
- psi, kpa, bar (Refer to “LCD Modes”
in chapter 4).
