ENGINE COMPARTMENT
The actual engine room in the vehicle may differ from the illustration.
OBC3090001R
„Smartstream G 1.0 T-GDi/Smartstream G1.0 T-GDi (48V) MHEV
1. Engine coolant reservoir
'PIKPGQKN
NNGTECR
$TCMGENWVEJ

9-4
Maintenance

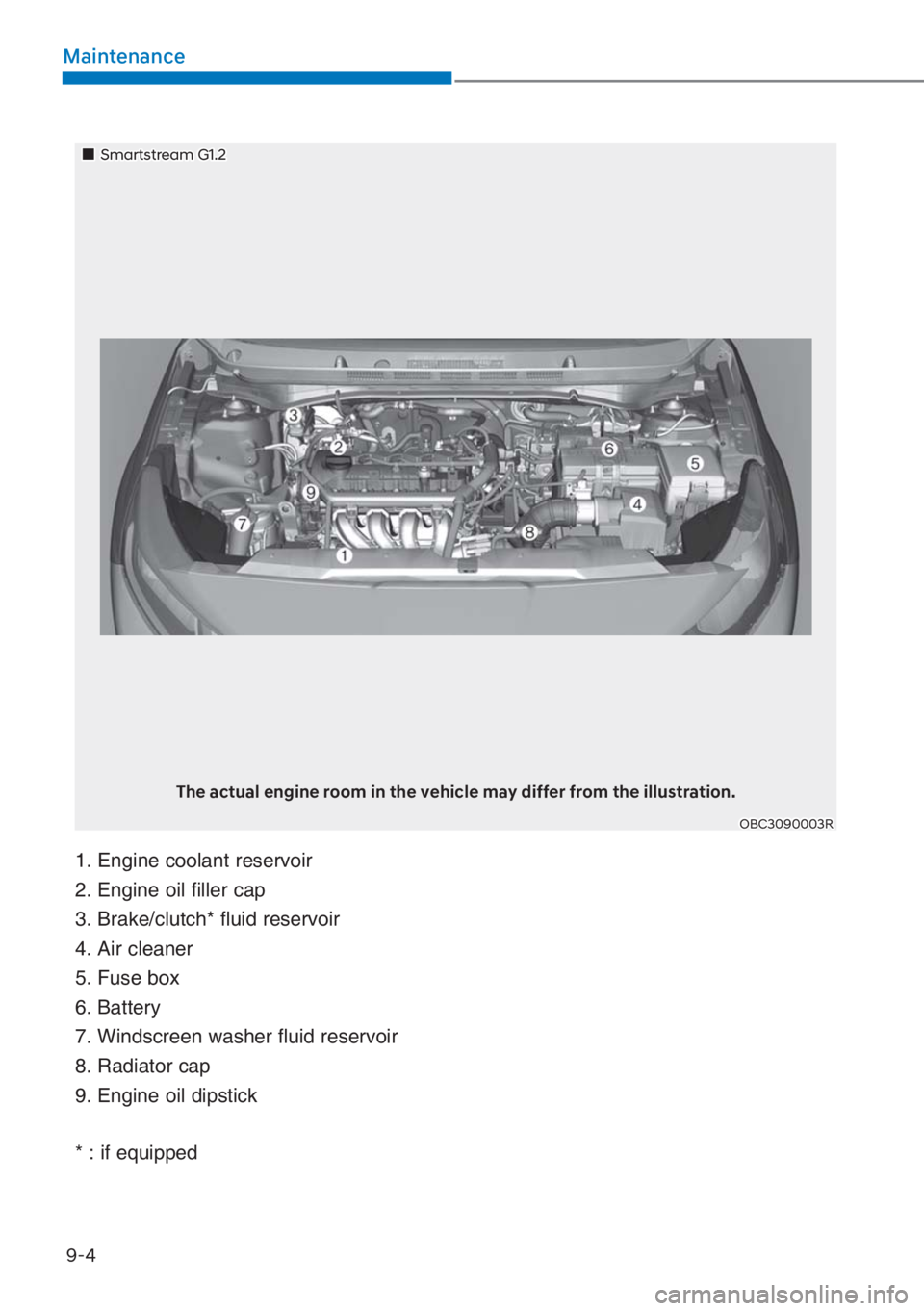

The actual engine room in the vehicle may differ from the illustration.
OBC3090003R
„Smartstream G1.2
1. Engine coolant reservoir
'PIKPGQKN
NNGTECR
$TCMGENWVEJ

9-5
09

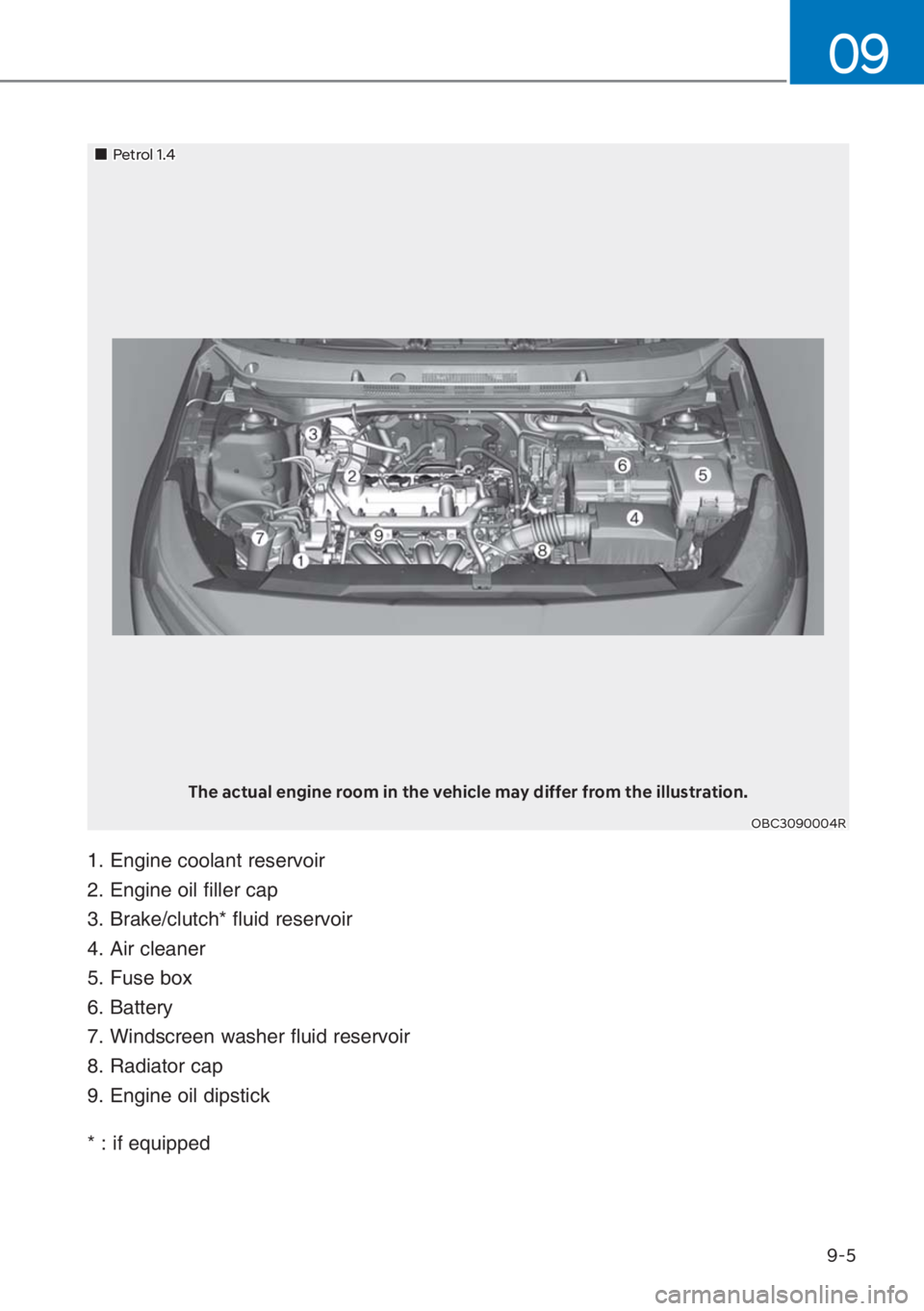

The actual engine room in the vehicle may differ from the illustration.
OBC3090004R
„Petrol 1.4
1. Engine coolant reservoir
'PIKPGQKN
NNGTECR
$TCMGENWVEJ

9-6
Maintenance

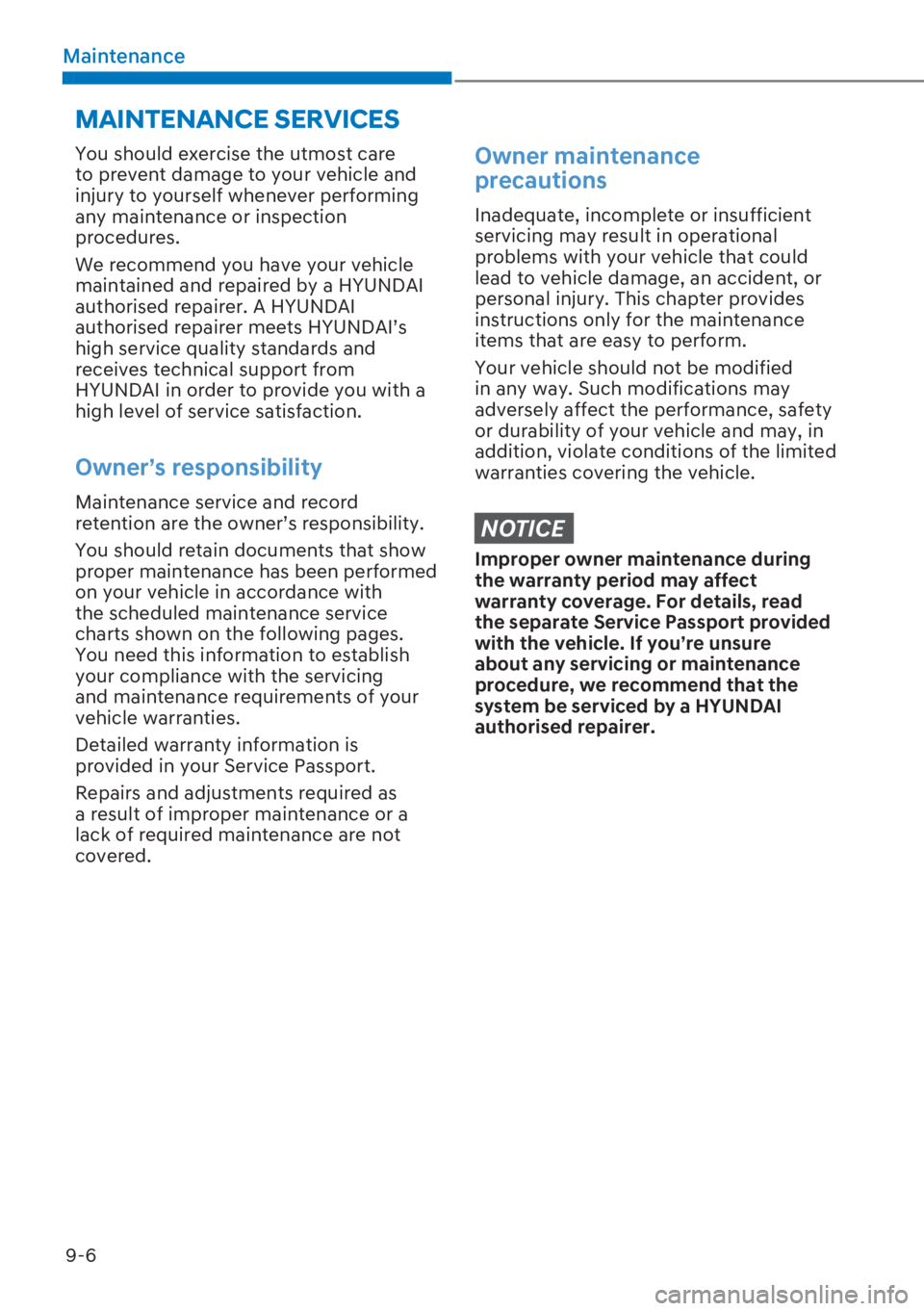

You should exercise the utmost care
to prevent damage to your vehicle and
injury to yourself whenever performing
any maintenance or inspection
procedures.
We recommend you have your vehicle
maintained and repaired by a HYUNDAI
authorised repairer. A HYUNDAI
authorised repairer meets HYUNDAI’s
high service quality standards and
receives technical support from
HYUNDAI in order to provide you with a
high level of service satisfaction.
Owner’s responsibility
Maintenance service and record
retention are the owner’s responsibility.
You should retain documents that show
proper maintenance has been performed
on your vehicle in accordance with
the scheduled maintenance service
charts shown on the following pages.
You need this information to establish
your compliance with the servicing
and maintenance requirements of your
vehicle warranties.
Detailed warranty information is
provided in your Service Passport.
Repairs and adjustments required as
a result of improper maintenance or a
lack of required maintenance are not
covered.
Owner maintenance
precautions
Inadequate, incomplete or insufficient
servicing may result in operational
problems with your vehicle that could
lead to vehicle damage, an accident, or
personal injury. This chapter provides
instructions only for the maintenance
items that are easy to perform.
Your vehicle should not be modified
in any way. Such modifications may
adversely affect the performance, safety
or durability of your vehicle and may, in
addition, violate conditions of the limited
warranties covering the vehicle.
NOTICE
Improper owner maintenance during
the warranty period may affect
warranty coverage. For details, read
the separate Service Passport provided
with the vehicle. If you’re unsure
about any servicing or maintenance
procedure, we recommend that the
system be serviced by a HYUNDAI
authorised repairer.
MAINTENANCE SERVICES

9-7
09
WARNING
Performing maintenance work on a
vehicle can be dangerous. If you lack
sufficient knowledge and experience
or the proper tools and equipment
to do the work, we recommend that
the system be serviced by a HYUNDAI
authorised repairer. ALWAYS follow
these precautions for performing
maintenance work:

[ 3DUN\RXUYHKLFOHRQOHYHOJURXQG
move the shift lever into the P (Park,
for automatic transmission/dual
clutch transmission vehicle) position,
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.

[ %ORFNWKHW\UHVIURQWDQGEDFNWR
prevent the vehicle from moving.
Remove loose clothing or jewellery
that can become entangled in
moving parts.

[ ,I\RXPXVWUXQWKHHQJLQHGXULQJ
maintenance, do so out doors or in an
area with plenty of ventilation.

[ .HHSIODPHVVSDUNVRUVPRNLQJ
materials away from the battery and
fuel-related parts.The following lists are vehicle checks
and inspections that should be
performed by the owner or a HYUNDAI
authorised repairer at the frequencies
indicated to help ensure safe,
dependable operation of your vehicle.
Any adverse conditions should be
brought to the attention of your dealer
as soon as possible.
These Owner Maintenance vehicle
checks are generally not covered by
warranties and you may be charged for
labour, parts and lubricants used.

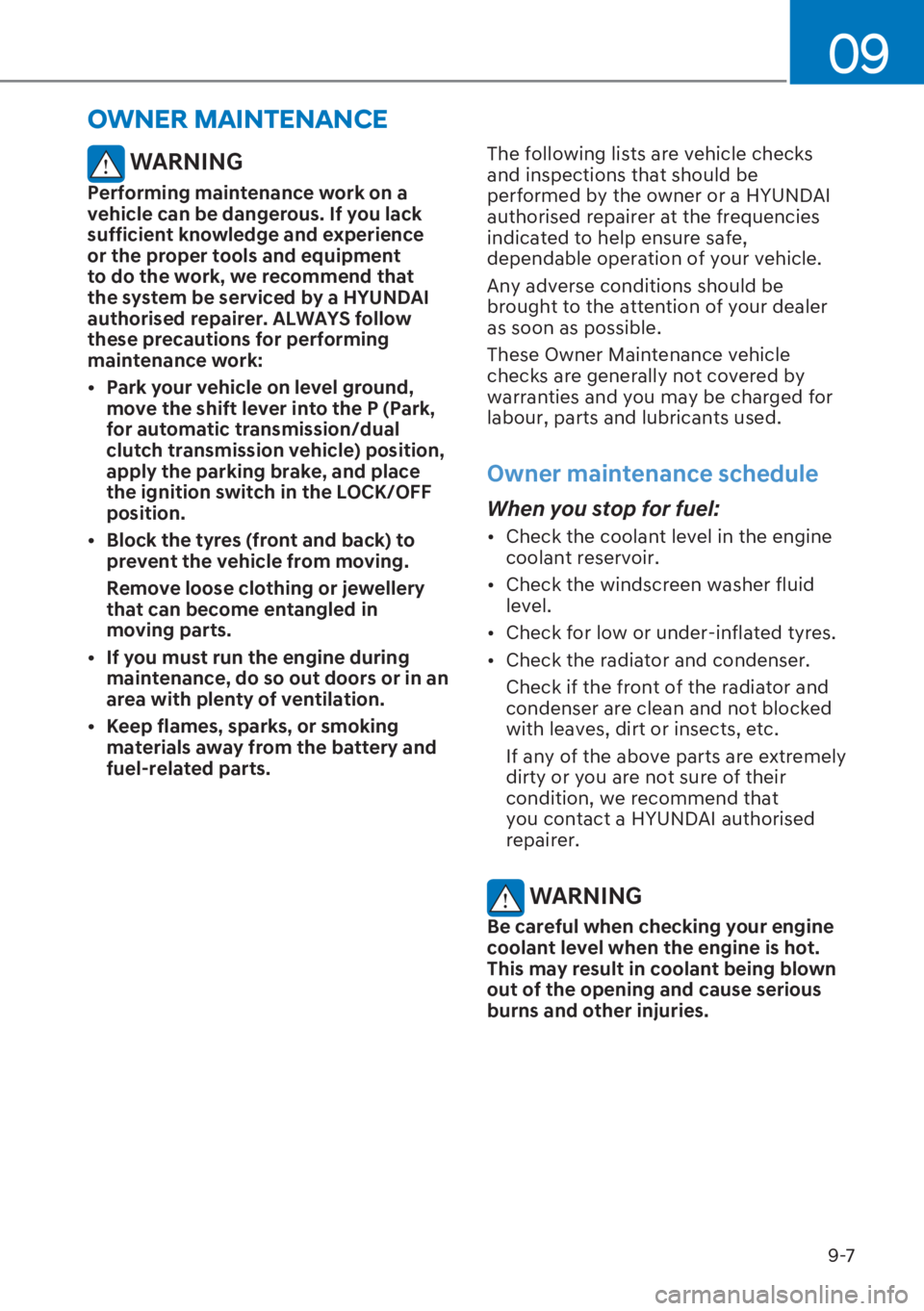

Owner maintenance schedule
When you stop for fuel:

[Check the coolant level in the engine
coolant reservoir.

[Check the windscreen washer fluid
level.

[Check for low or under-inflated tyres.

[Check the radiator and condenser.
Check if the front of the radiator and
condenser are clean and not blocked
with leaves, dirt or insects, etc.
If any of the above parts are extremely
dirty or you are not sure of their
condition, we recommend that
you contact a HYUNDAI authorised
repairer.
WARNING
%HFDUHIXOZKHQFKHFNLQJ\RXUHQJLQH
coolant level when the engine is hot.
This may result in coolant being blown
out of the opening and cause serious
burns and other injuries.
OWNER MAINTENANCE

9-8
Maintenance

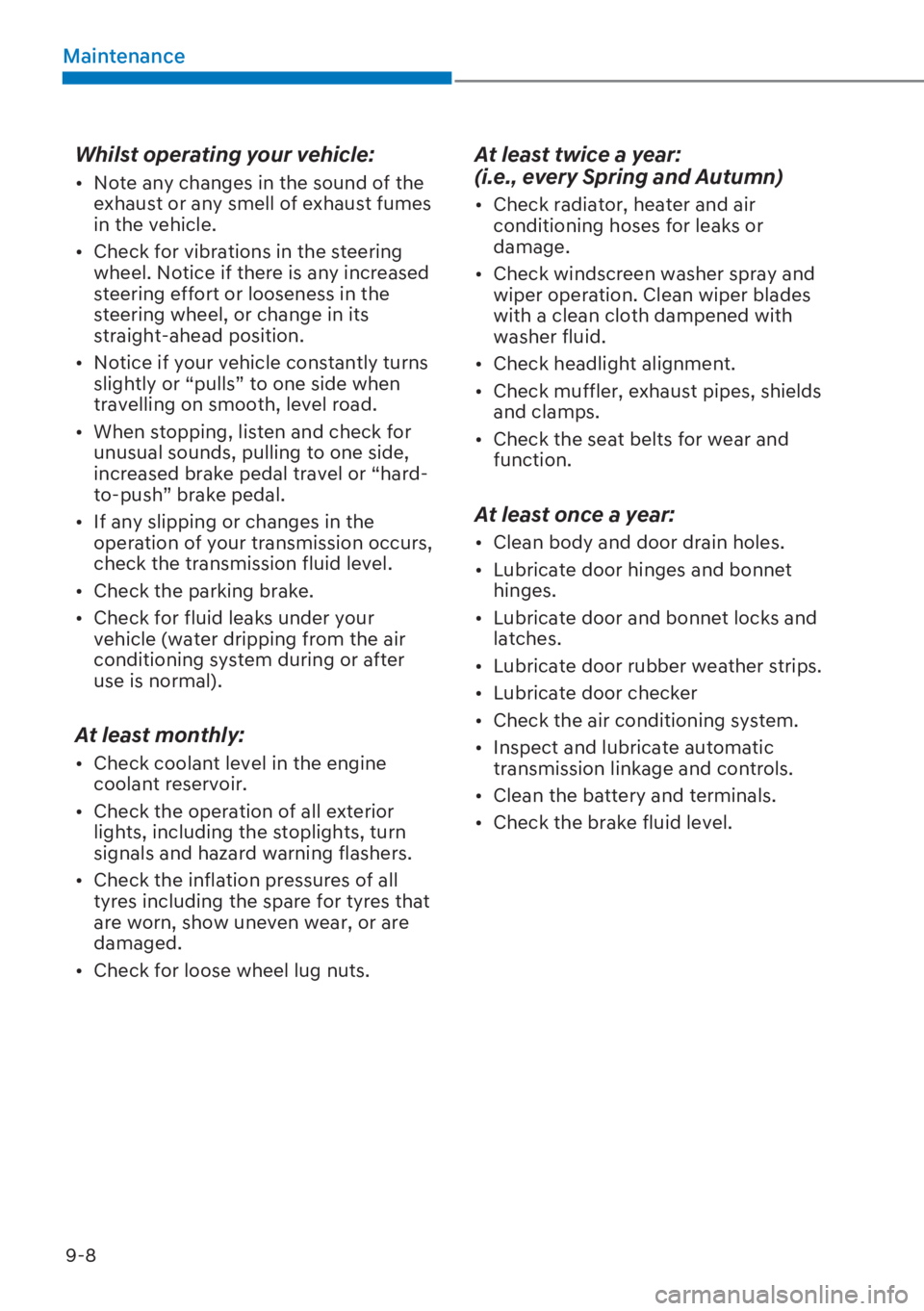

Whilst operating your vehicle:

[Note any changes in the sound of the
exhaust or any smell of exhaust fumes
in the vehicle.

[Check for vibrations in the steering
wheel. Notice if there is any increased
steering effort or looseness in the
steering wheel, or change in its
straight-ahead position.

[Notice if your vehicle constantly turns
slightly or “pulls” to one side when
travelling on smooth, level road.

[When stopping, listen and check for
unusual sounds, pulling to one side,
increased brake pedal travel or “hard-
to-push” brake pedal.

[If any slipping or changes in the
operation of your transmission occurs,
check the transmission fluid level.

[Check the parking brake.

[Check for fluid leaks under your
vehicle (water dripping from the air
conditioning system during or after
use is normal).
At least monthly:

[Check coolant level in the engine
coolant reservoir.

[Check the operation of all exterior
lights, including the stoplights, turn
signals and hazard warning flashers.

[Check the inflation pressures of all
tyres including the spare for tyres that
are worn, show uneven wear, or are
damaged.

[Check for loose wheel lug nuts.
At least twice a year:
(i.e., every Spring and Autumn)

[Check radiator, heater and air
conditioning hoses for leaks or
damage.

[Check windscreen washer spray and
wiper operation. Clean wiper blades
with a clean cloth dampened with
washer fluid.

[Check headlight alignment.

[Check muffler, exhaust pipes, shields
and clamps.

[Check the seat belts for wear and
function.
At least once a year:

[Clean body and door drain holes.

[Lubricate door hinges and bonnet
hinges.

[Lubricate door and bonnet locks and
latches.

[Lubricate door rubber weather strips.

[Lubricate door checker

[Check the air conditioning system.

[Inspect and lubricate automatic
transmission linkage and controls.

[Clean the battery and terminals.

[Check the brake fluid level.

9-9
09

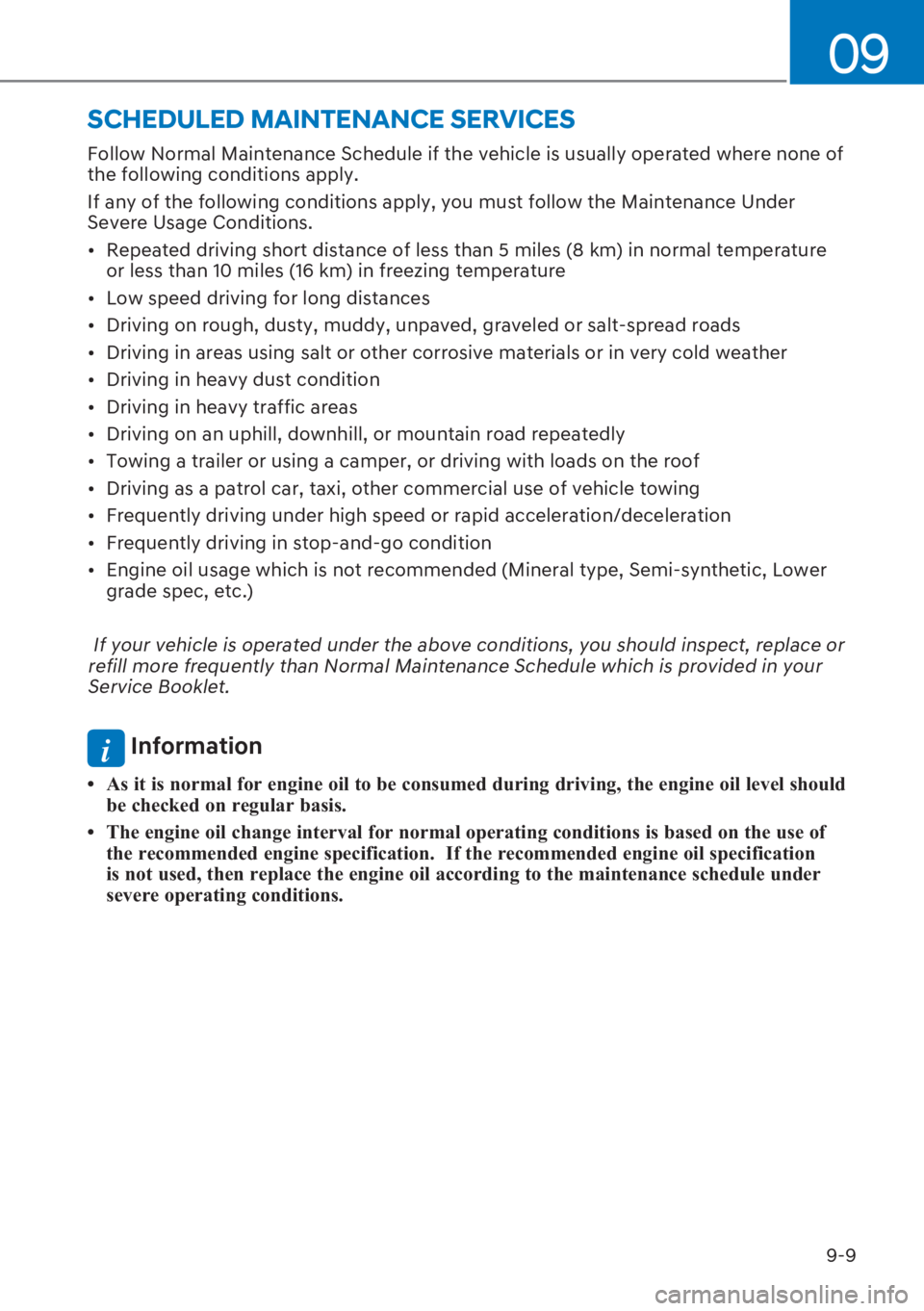

Follow Normal Maintenance Schedule if the vehicle is usually operated where none of
the following conditions apply.
If any of the following conditions apply, you must follow the Maintenance Under
Severe Usage Conditions.

[Repeated driving short distance of less than 5 miles (8 km) in normal temperature
or less than 10 miles (16 km) in freezing temperature

[Low speed driving for long distances

[Driving on rough, dusty, muddy, unpaved, graveled or salt-spread roads

[Driving in areas using salt or other corrosive materials or in very cold weather

[Driving in heavy dust condition

[Driving in heavy traffic areas

[Driving on an uphill, downhill, or mountain road repeatedly

[Towing a trailer or using a camper, or driving with loads on the roof

[Driving as a patrol car, taxi, other commercial use of vehicle towing

[Frequently driving under high speed or rapid acceleration/deceleration

[Frequently driving in stop-and-go condition

[Engine oil usage which is not recommended (Mineral type, Semi-synthetic, Lower
grade spec, etc.)
If your vehicle is operated under the above conditions, you should inspect, replace or
refill more frequently than Normal Maintenance Schedule which is provided in your
Service Booklet.
i Information

9-10
Maintenance

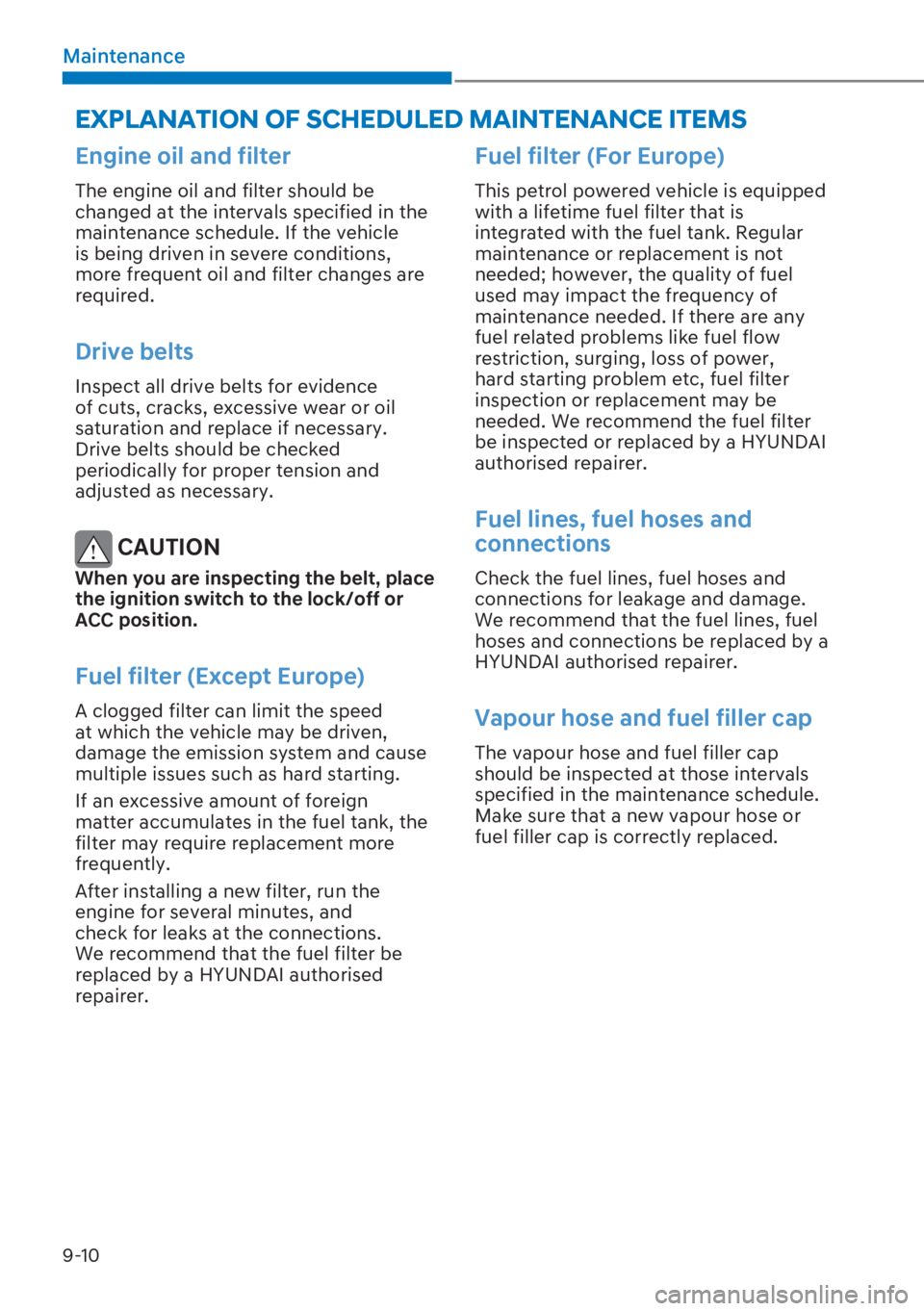

Engine oil and filter
The engine oil and filter should be
changed at the intervals specified in the
maintenance schedule. If the vehicle
is being driven in severe conditions,
more frequent oil and filter changes are
required.
Drive belts
Inspect all drive belts for evidence
of cuts, cracks, excessive wear or oil
saturation and replace if necessary.
Drive belts should be checked
periodically for proper tension and
adjusted as necessary.
CAUTION
When you are inspecting the belt, place
the ignition switch to the lock/off or
ACC position.
Fuel filter (Except Europe)
A clogged filter can limit the speed
at which the vehicle may be driven,
damage the emission system and cause
multiple issues such as hard starting.
If an excessive amount of foreign
matter accumulates in the fuel tank, the
filter may require replacement more
frequently.
After installing a new filter, run the
engine for several minutes, and
check for leaks at the connections.
We recommend that the fuel filter be
replaced by a HYUNDAI authorised
repairer.
Fuel filter (For Europe)
This petrol powered vehicle is equipped
with a lifetime fuel filter that is
integrated with the fuel tank. Regular
maintenance or replacement is not
needed; however, the quality of fuel
used may impact the frequency of
maintenance needed. If there are any
fuel related problems like fuel flow
restriction, surging, loss of power,
hard starting problem etc, fuel filter
inspection or replacement may be
needed. We recommend the fuel filter
be inspected or replaced by a HYUNDAI
authorised repairer.
Fuel lines, fuel hoses and
connections
Check the fuel lines, fuel hoses and
connections for leakage and damage.
We recommend that the fuel lines, fuel
hoses and connections be replaced by a
HYUNDAI authorised repairer.
Vapour hose and fuel filler cap
The vapour hose and fuel filler cap
should be inspected at those intervals
specified in the maintenance schedule.
Make sure that a new vapour hose or
fuel filler cap is correctly replaced.
EXPLANATION OF SCHEDULED MAINTENANCE ITEMS

9-11
09
Vacuum crankcase ventilation
hoses (if equipped)
Inspect the surface of hoses for
evidence of heat and/or mechanical
damage. Hard and brittle rubber,
cracking, tears, cuts, abrasions, and
excessive swelling indicate deterioration.
Particular attention should be paid to
examine those hose surfaces nearest to
high heat sources, such as the exhaust
manifold.
Inspect the hose routing to assure that
the hoses do not come in contact with
any heat source, sharp edges or moving
component which might cause heat
damage or mechanical wear. Inspect
all hose connections, such as clamps
and couplings, to make sure they are
secure, and that no leaks are present.
Hoses should be replaced immediately if
there is any evidence of deterioration or
damage.
Air cleaner filter
We recommend that the air cleaner filter
be replaced by a HYUNDAI authorised
repairer.
Spark plugs
(for petrol engine)
Make sure to install new spark plugs of
the correct heat range.
When assembling parts, be sure to
wipe out foreign substances inside
and outside of the boot bottom of the
ignition coil and the insulator of the
spark plug with a soft cloth to prevent
contamination of the spark plug
insulator.
WARNING
Do not disconnect and inspect spark
plugs when the engine is hot. You may
burn yourself.
Cooling system
Check the cooling system parts, such
as radiator, coolant reservoir, hoses and
connections for leakage and damage.
Replace any damaged parts.
Engine coolant
The coolant should be changed at the
intervals specified in the maintenance
schedule.
Manual transmission fluid/iMT
system actuator fluid
(if equipped)
Inspect the Manual transmission fluid/
iMT system actuator fluid according to
the maintenance schedule.
Automatic transmission fluid
(if equipped)
Automatic transmission fluid should
not be checked under normal usage
conditions.
We recommend that the automatic
transmission fluid is changed by a
HYUNDAI authorised repairer according
to the maintenance schedule.
i Information
$XWRPDWLFWUDQVPLVVLRQIOXLGFRORXULVUHG
ZKHQQHZ
$VWKHYHKLFOHLVGULYHQWKHDXWRPDWLF
WUDQVPLVVLRQIOXLGZLOOEHJLQWRORRN
GDUNHU
7KLVLVDQRUPDOFRQGLWLRQ,WGRHVQRW
QHHGWREHUHSODFHGEDVHGRQWKHFRORXU
FKDQJH
