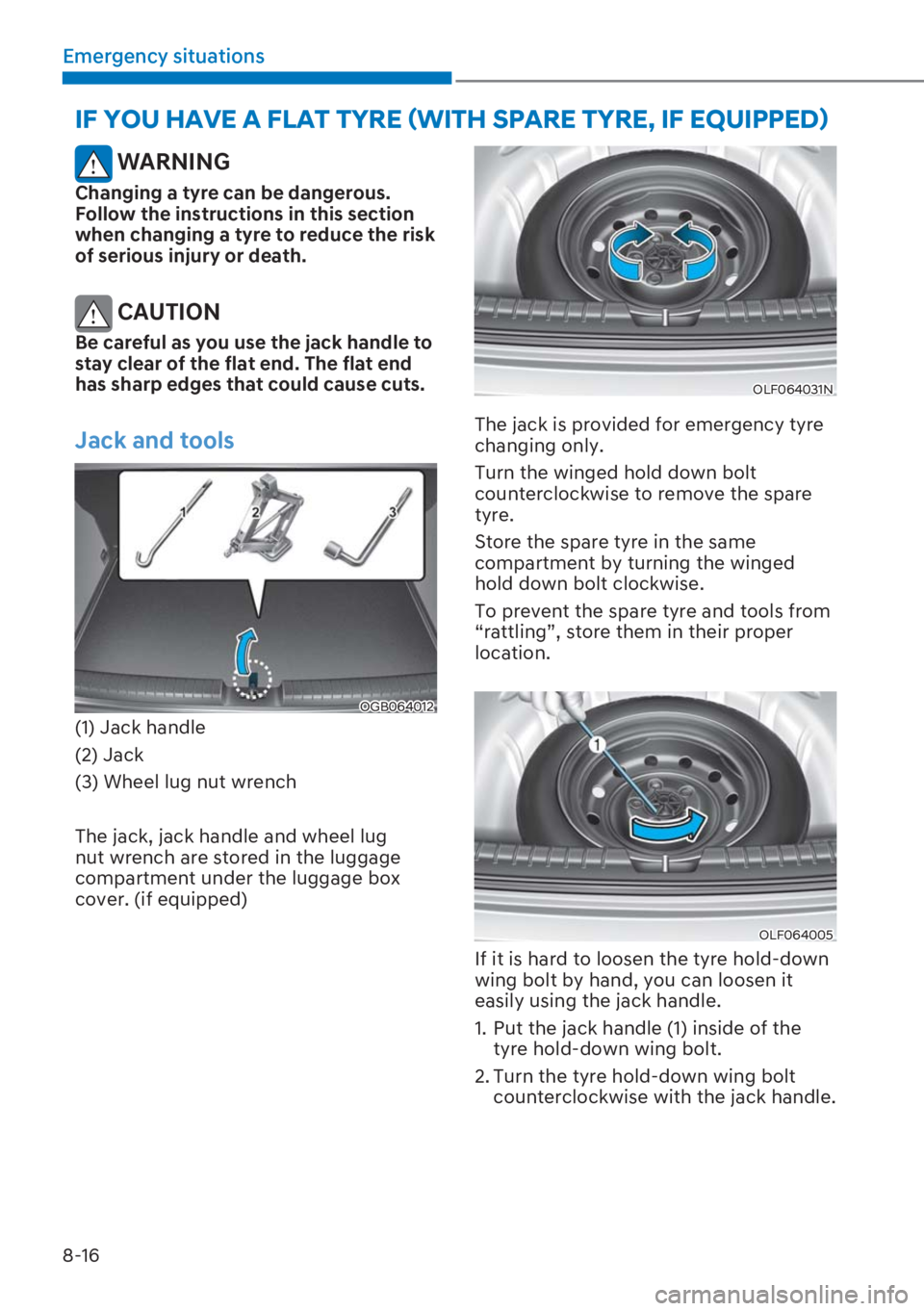

Page 531 of 649
8-16
Emergency situations
WARNING
Changing a tyre can be dangerous.
Follow the instructions in this section
when changing a tyre to reduce the risk
of serious injury or death.
CAUTION
Be careful as you use the jack handle to
stay clear of the flat end. The flat end
has sharp edges that could cause cuts.
Jack and tools
OGB064012
(1) Jack handle
(2) Jack
(3) Wheel lug nut wrench
The jack, jack handle and wheel lug
nut wrench are stored in the luggage
compartment under the luggage box
cover. (if equipped)
OLF064031N
The jack is provided for emergency tyre
changing only.
Turn the winged hold down bolt
counterclockwise to remove the spare
tyre.
Store the spare tyre in the same
compartment by turning the winged
hold down bolt clockwise.
To prevent the spare tyre and tools from
“rattling”, store them in their proper
location.
OLF064005
If it is hard to loosen the tyre hold-down
wing bolt by hand, you can loosen it
easily using the jack handle.
1. Put the jack handle (1) inside of the
tyre hold-down wing bolt.
2. Turn the tyre hold-down wing bolt
counterclockwise with the jack handle.
, ) < 2 8 + $ 9 ( $ ) / $ 7 7 < 5 (

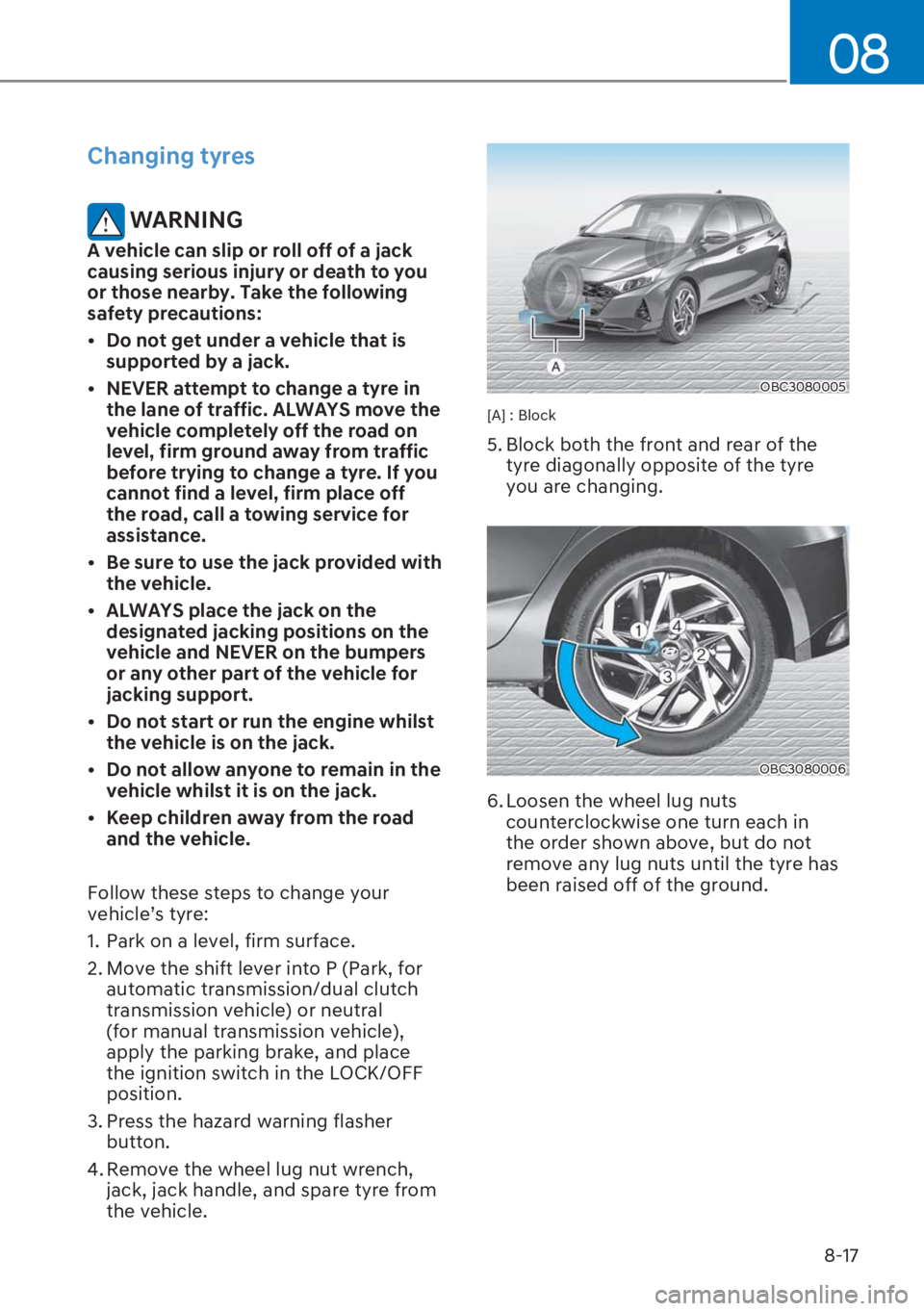

Page 532 of 649
8-17
08
Changing tyres
WARNING
A vehicle can slip or roll off of a jack
causing serious injury or death to you
or those nearby. Take the following
safety precautions:
[ Do not get under a vehicle that is
supported by a jack.
[ NEVER attempt to change a tyre in
the lane of traffic. ALWAYS move the
vehicle completely off the road on
level, firm ground away from traffic
before trying to change a tyre. If you
cannot find a level, firm place off
the road, call a towing service for
assistance.
[ Be sure to use the jack provided with
the vehicle.
[ ALWAYS place the jack on the
designated jacking positions on the
vehicle and NEVER on the bumpers
or any other part of the vehicle for
jacking support.
[ Do not start or run the engine whilst
the vehicle is on the jack.
[ Do not allow anyone to remain in the
vehicle whilst it is on the jack.
[ Keep children away from the road
and the vehicle.
Follow these steps to change your
vehicle’s tyre:
1. Park on a level, firm surface.
2. Move the shift lever into P (Park, for
automatic transmission/dual clutch
transmission vehicle) or neutral
(for manual transmission vehicle),
apply the parking brake, and place
the ignition switch in the LOCK/OFF
position.
3. Press the hazard warning flasher
button.
4. Remove the wheel lug nut wrench,
jack, jack handle, and spare tyre from
the vehicle.
OBC3080005
[A] : Block
5. Block both the front and rear of the
tyre diagonally opposite of the tyre
you are changing.
OBC3080006
6. Loosen the wheel lug nuts
counterclockwise one turn each in
the order shown above, but do not
remove any lug nuts until the tyre has
been raised off of the ground.

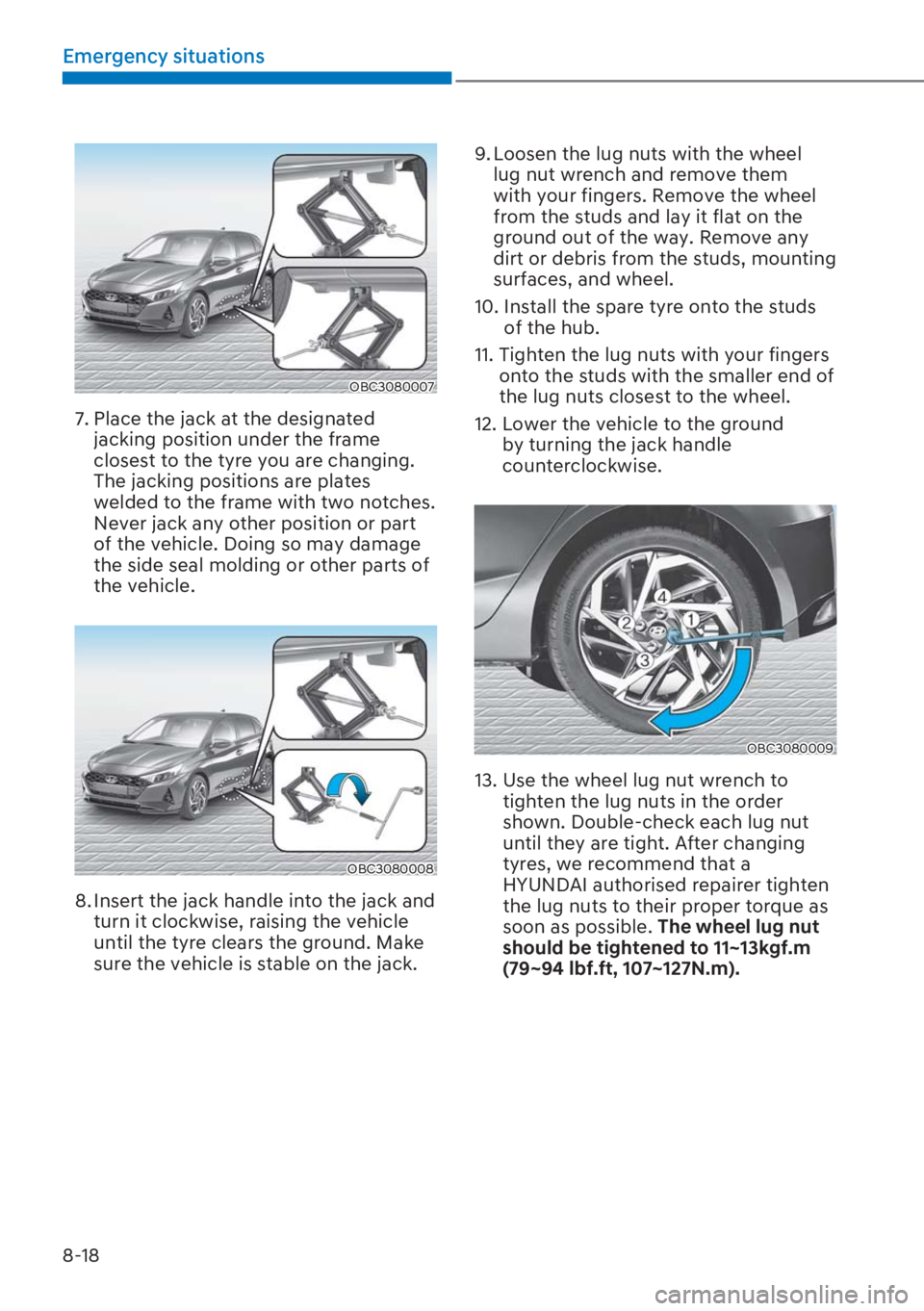

Page 533 of 649
8-18
Emergency situations
OBC3080007
7. Place the jack at the designated
jacking position under the frame
closest to the tyre you are changing.
The jacking positions are plates
welded to the frame with two notches.
Never jack any other position or part
of the vehicle. Doing so may damage
the side seal molding or other parts of
the vehicle.
OBC3080008
8. Insert the jack handle into the jack and
turn it clockwise, raising the vehicle
until the tyre clears the ground. Make
sure the vehicle is stable on the jack.9. Loosen the lug nuts with the wheel
lug nut wrench and remove them
with your fingers. Remove the wheel
from the studs and lay it flat on the
ground out of the way. Remove any
dirt or debris from the studs, mounting
surfaces, and wheel.
10. Install the spare tyre onto the studs
of the hub.
11. Tighten the lug nuts with your fingers
onto the studs with the smaller end of
the lug nuts closest to the wheel.
12. Lower the vehicle to the ground
by turning the jack handle
counterclockwise.
OBC3080009
13. Use the wheel lug nut wrench to
tighten the lug nuts in the order
shown. Double-check each lug nut
until they are tight. After changing
tyres, we recommend that a
HYUNDAI authorised repairer tighten
the lug nuts to their proper torque as
soon as possible. The wheel lug nut
should be tightened to 11~13kgf.m
(79~94 lbf.ft, 107~127N.m).

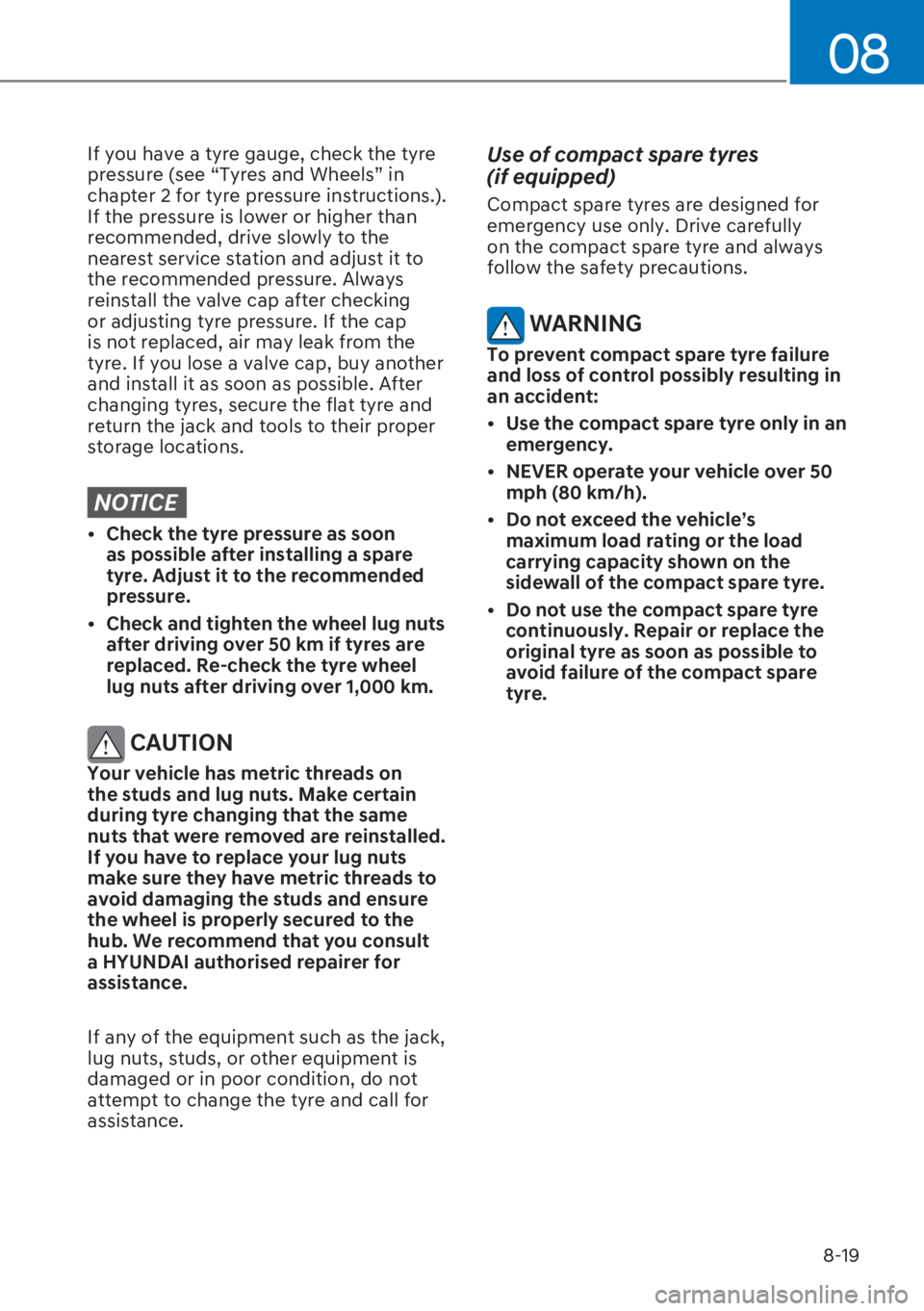

Page 534 of 649
8-19
08
If you have a tyre gauge, check the tyre
pressure (see “Tyres and Wheels” in
chapter 2 for tyre pressure instructions.).
If the pressure is lower or higher than
recommended, drive slowly to the
nearest service station and adjust it to
the recommended pressure. Always
reinstall the valve cap after checking
or adjusting tyre pressure. If the cap
is not replaced, air may leak from the
tyre. If you lose a valve cap, buy another
and install it as soon as possible. After
changing tyres, secure the flat tyre and
return the jack and tools to their proper
storage locations.
NOTICE
[ & K H F N W K H W \ U H S U H V V X U H D V V R R Q
as possible after installing a spare
tyre. Adjust it to the recommended
pressure.
[ & K H F N D Q G W L J K W H Q W K H Z K H H O O X J Q X W V
after driving over 50 km if tyres are
replaced. Re-check the tyre wheel
lug nuts after driving over 1,000 km.
CAUTION
Your vehicle has metric threads on
the studs and lug nuts. Make certain
during tyre changing that the same
nuts that were removed are reinstalled.
If you have to replace your lug nuts
make sure they have metric threads to
avoid damaging the studs and ensure
the wheel is properly secured to the
hub. We recommend that you consult
a HYUNDAI authorised repairer for
assistance.
If any of the equipment such as the jack,
lug nuts, studs, or other equipment is
damaged or in poor condition, do not
attempt to change the tyre and call for
assistance.
Use of compact spare tyres
(if equipped)
Compact spare tyres are designed for
emergency use only. Drive carefully
on the compact spare tyre and always
follow the safety precautions.
WARNING
To prevent compact spare tyre failure
and loss of control possibly resulting in
an accident:
[ 8 V H W K H F R P S D F W V S D U H W \ U H R Q O \ L Q D Q
emergency.
[ 1 ( 9 ( 5 R S H U D W H \ R X U Y H K L F O H R Y H U
mph (80 km/h).
[ ' R Q R W H [ F H H G W K H Y H K L F O HT V
maximum load rating or the load
carrying capacity shown on the
sidewall of the compact spare tyre.
[ ' R Q R W X V H W K H F R P S D F W V S D U H W \ U H
continuously. Repair or replace the
original tyre as soon as possible to
avoid failure of the compact spare
tyre.

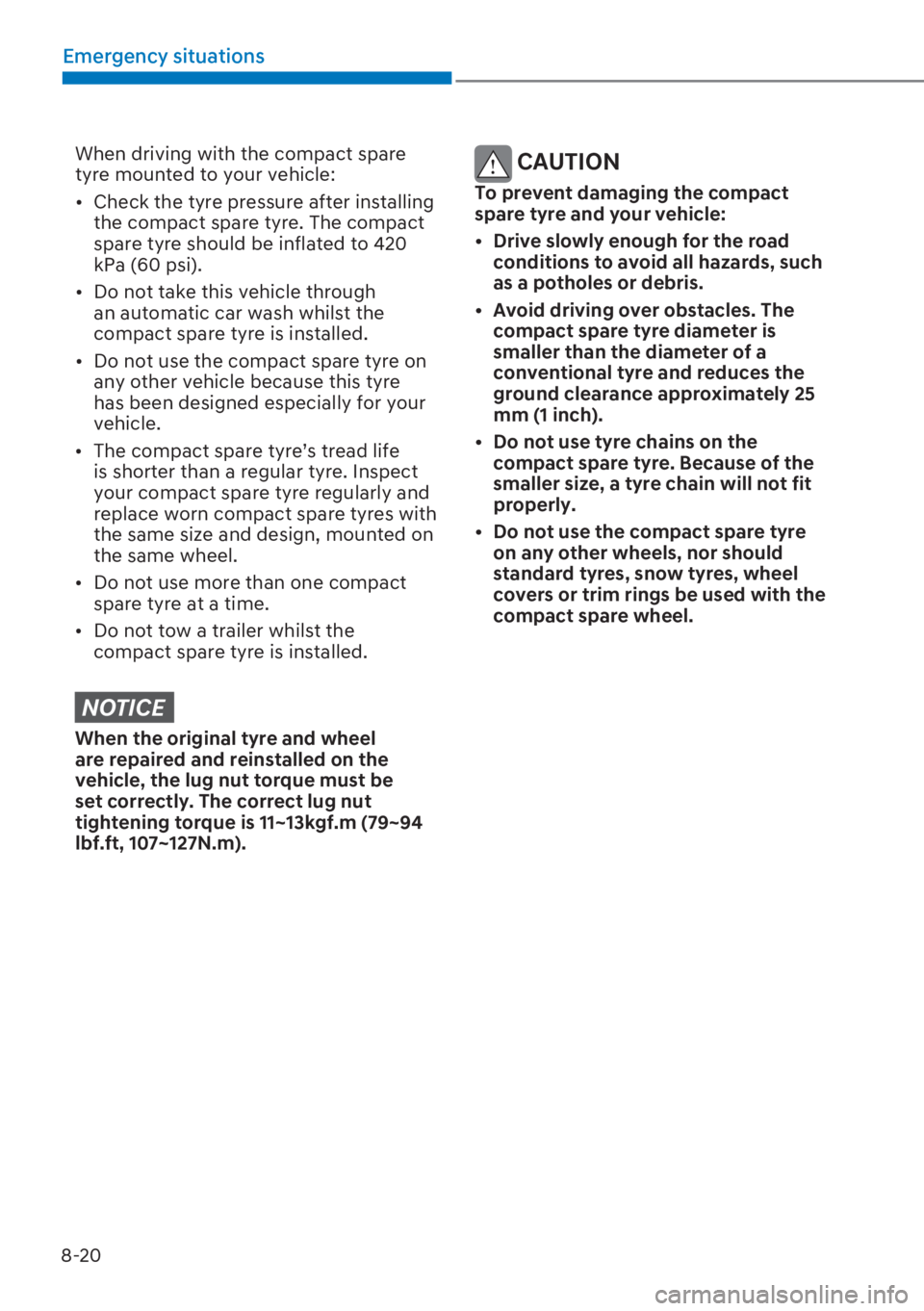

Page 535 of 649
8-20
Emergency situations
When driving with the compact spare
tyre mounted to your vehicle:
[ & K H F N W K H W \ U H S U H V V X U H D I W H U L Q V W D O O L Q J
the compact spare tyre. The compact
spare tyre should be inflated to 420
kPa (60 psi).
[ ' R Q R W W D N H W K L V Y H K L F O H W K U R X J K
an automatic car wash whilst the
compact spare tyre is installed.
[ ' R Q R W X V H W K H F R P S D F W V S D U H W \ U H R Q
any other vehicle because this tyre
has been designed especially for your
vehicle.
[ 7 K H F R P S D F W V S D U H W \ U HT V W U H D G O L I H
is shorter than a regular tyre. Inspect
your compact spare tyre regularly and
replace worn compact spare tyres with
the same size and design, mounted on
the same wheel.
[ ' R Q R W X V H P R U H W K D Q R Q H F R P S D F W
spare tyre at a time.
[ ' R Q R W W R Z D W U D L O H U Z K L O V W W K H
compact spare tyre is installed.
NOTICE
When the original tyre and wheel
are repaired and reinstalled on the
vehicle, the lug nut torque must be
set correctly. The correct lug nut
tightening torque is 11~13kgf.m (79~94
lbf.ft, 107~127N.m).
CAUTION
To prevent damaging the compact
spare tyre and your vehicle:
[ Drive slowly enough for the road
conditions to avoid all hazards, such
as a potholes or debris.
[ Avoid driving over obstacles. The
compact spare tyre diameter is
smaller than the diameter of a
conventional tyre and reduces the
ground clearance approximately 25
mm (1 inch).
[ Do not use tyre chains on the
compact spare tyre. Because of the
smaller size, a tyre chain will not fit
properly.
[ Do not use the compact spare tyre
on any other wheels, nor should
standard tyres, snow tyres, wheel
covers or trim rings be used with the
compact spare wheel.
Page 536 of 649
8-21
08

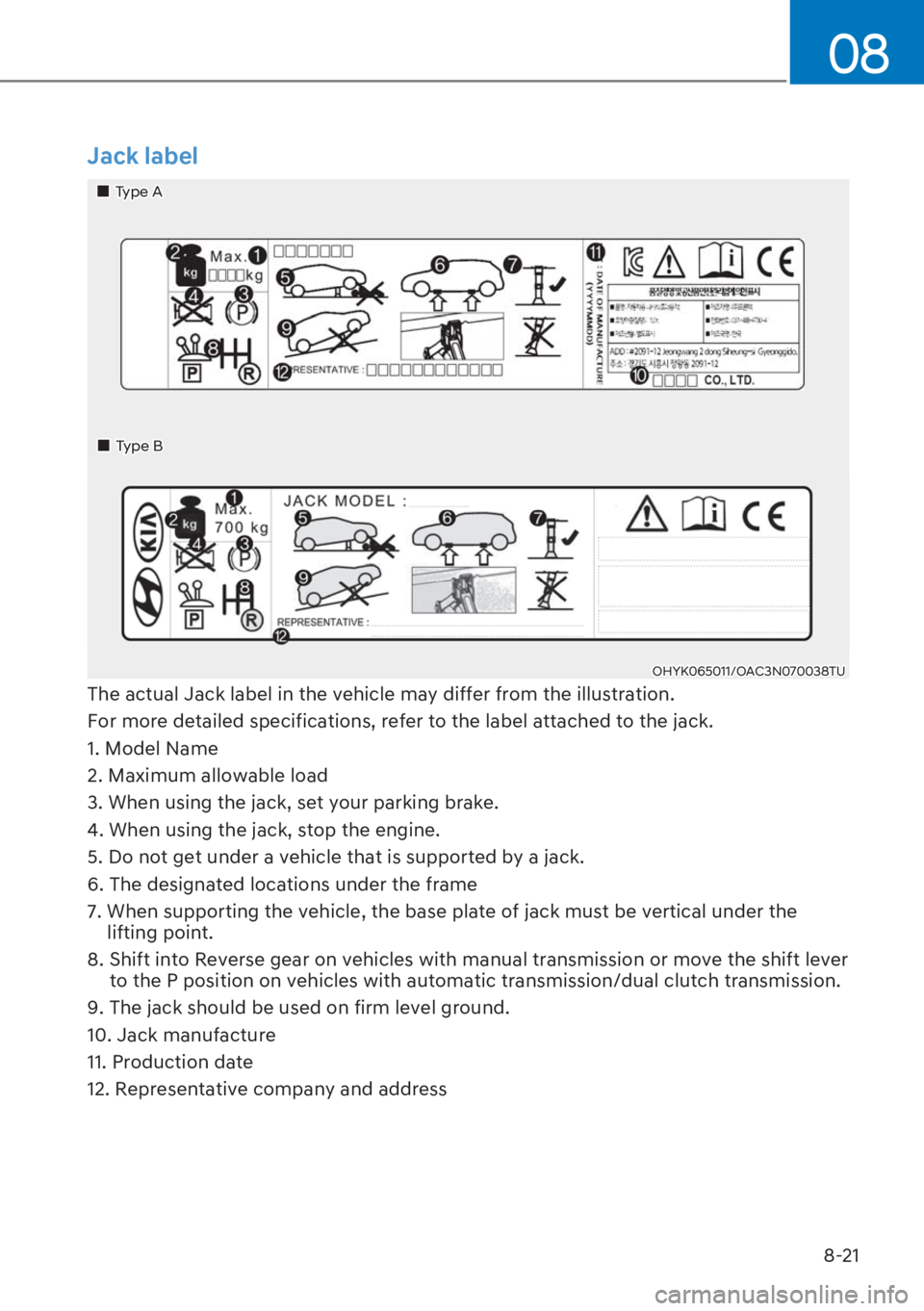

Jack label
OHYK065011/OAC3N070038TU
„Type A
„Type B
The actual Jack label in the vehicle may differ from the illustration.
For more detailed specifications, refer to the label attached to the jack.
1. Model Name
2. Maximum allowable load
3. When using the jack, set your parking brake.
4. When using the jack, stop the engine.
5. Do not get under a vehicle that is supported by a jack.
6. The designated locations under the frame
7. When supporting the vehicle, the base plate of jack must be vertical under the
lifting point.
8. Shift into Reverse gear on vehicles with manual transmission or move the shift lever
to the P position on vehicles with automatic transmission/dual clutch transmission.
9. The jack should be used on firm level ground.
10. Jack manufacture
11. Production date
12. Representative company and address

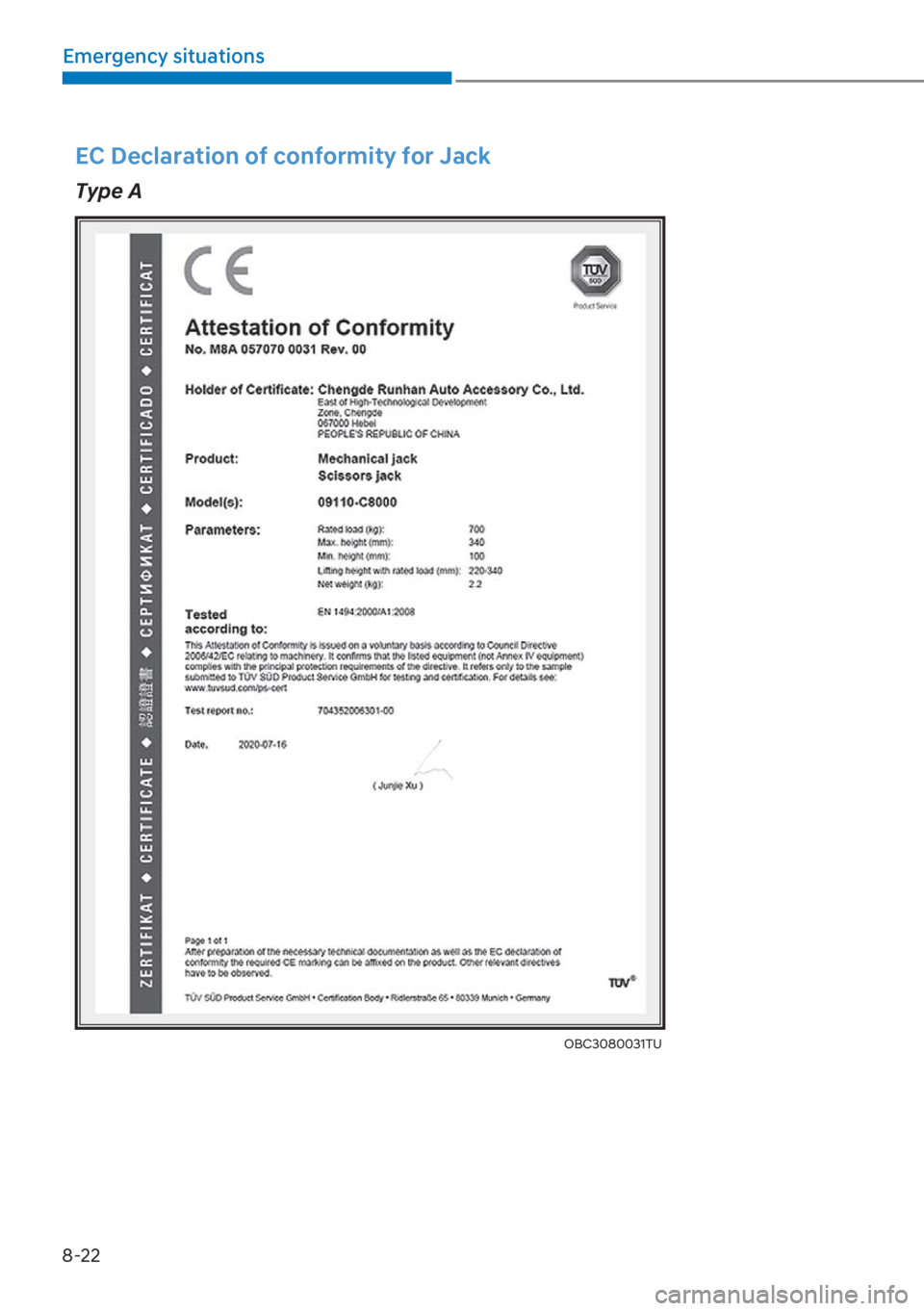

Page 537 of 649
8-22
Emergency situations
EC Declaration of conformity for Jack
Type A
OBC3080031TU

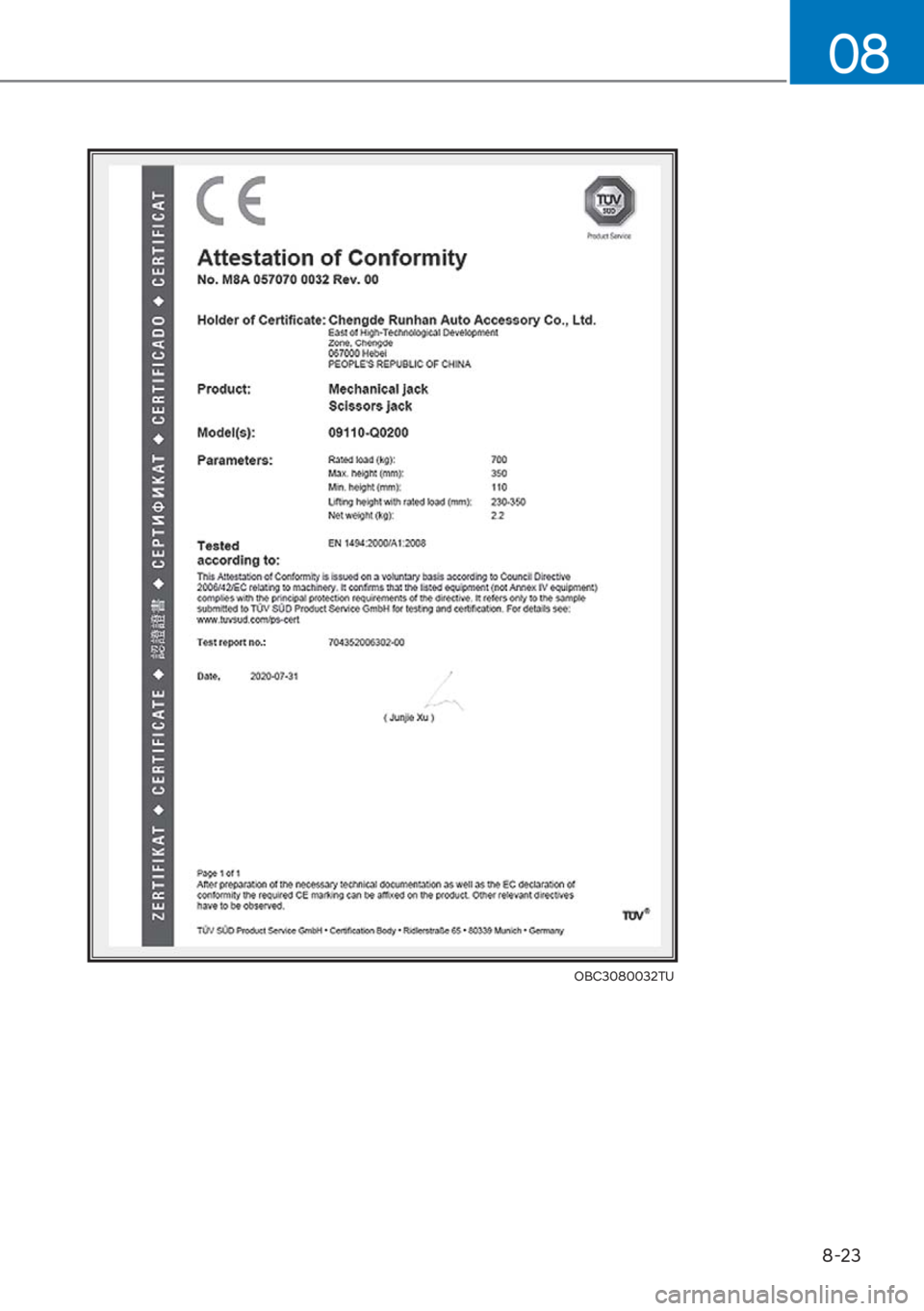

Page 538 of 649
8-23
08
OBC3080032TU
Page 539 of 649
8-24
Emergency situations

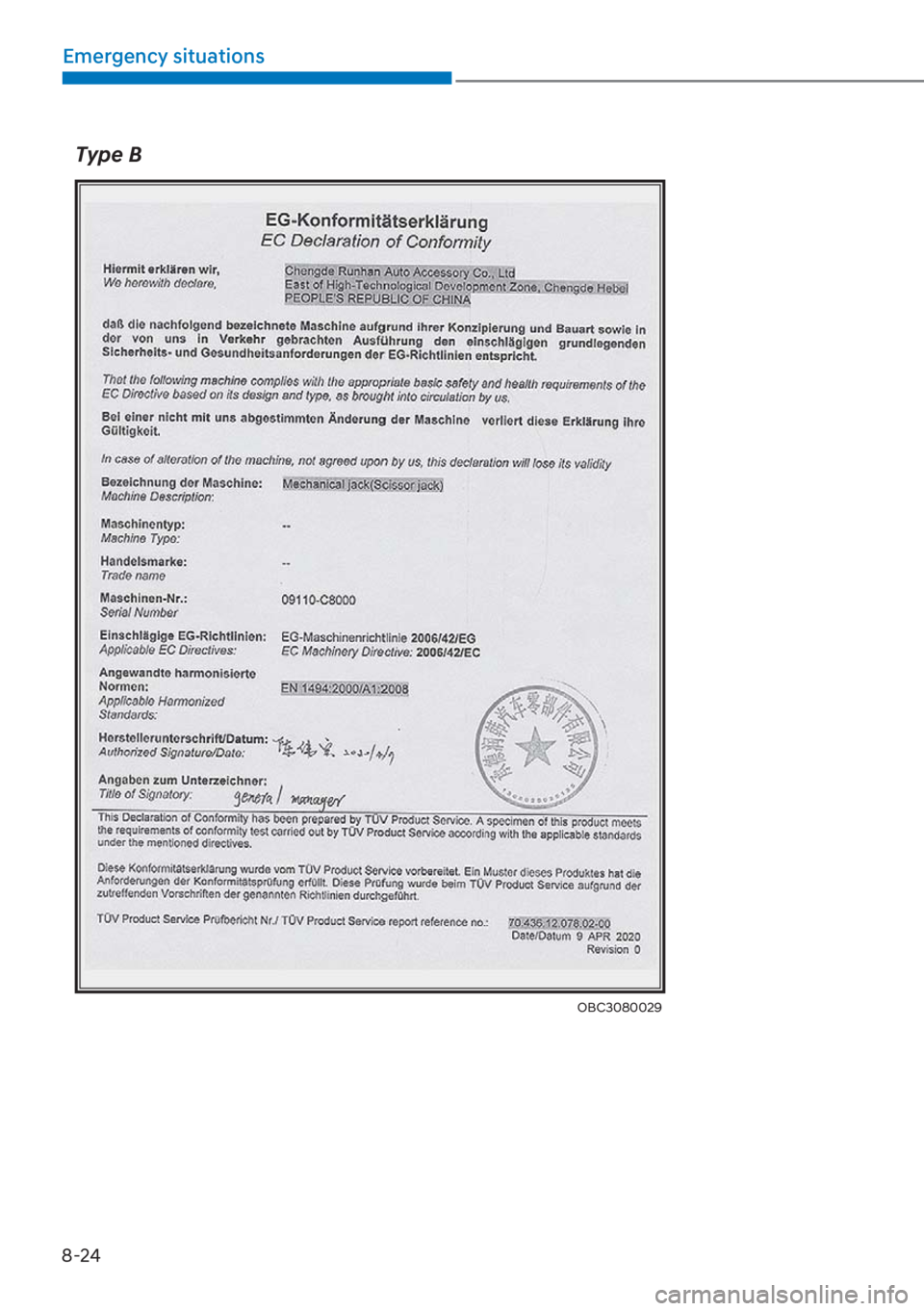

Type B
OBC3080029

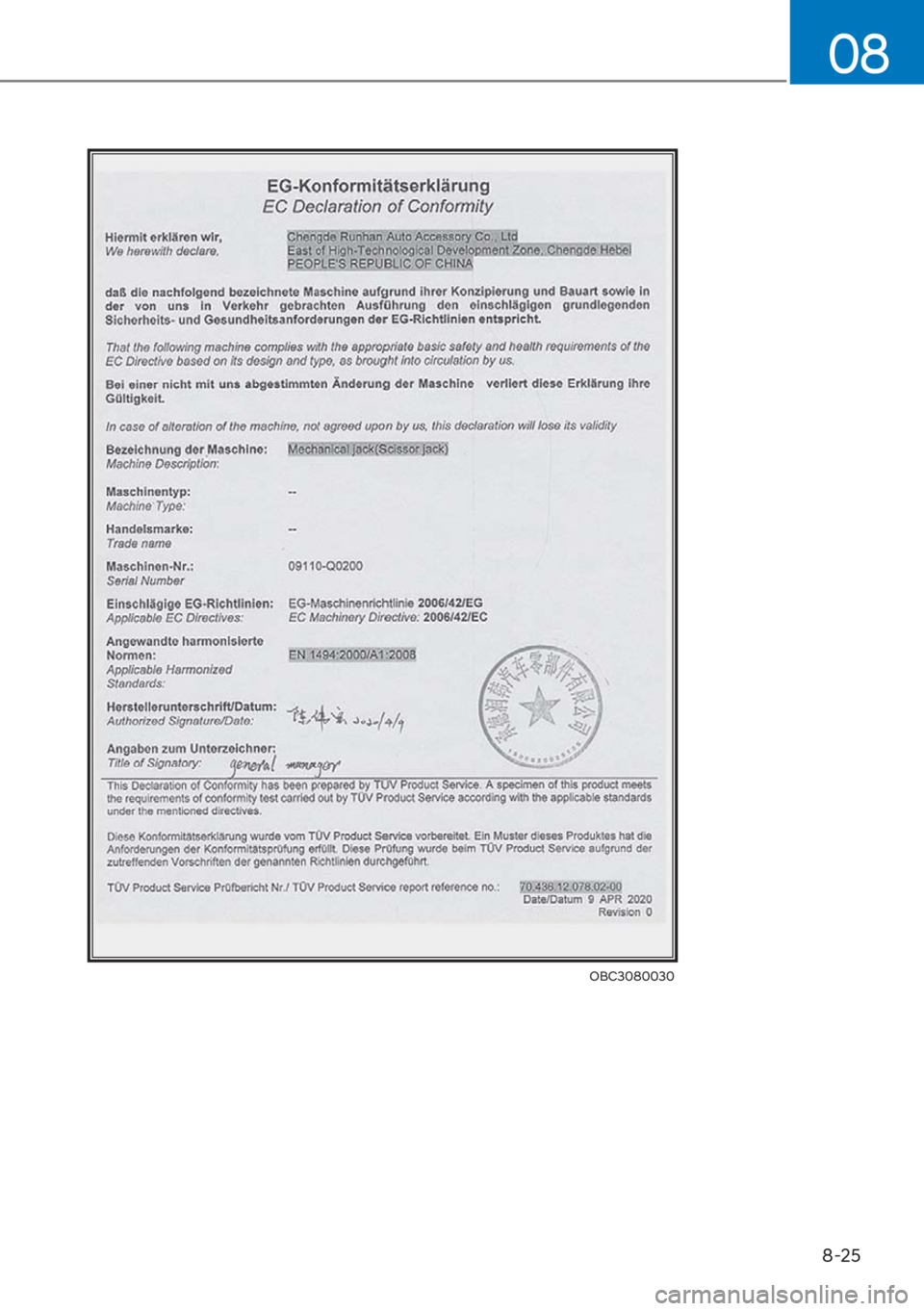

Page 540 of 649
8-25
08
OBC3080030
