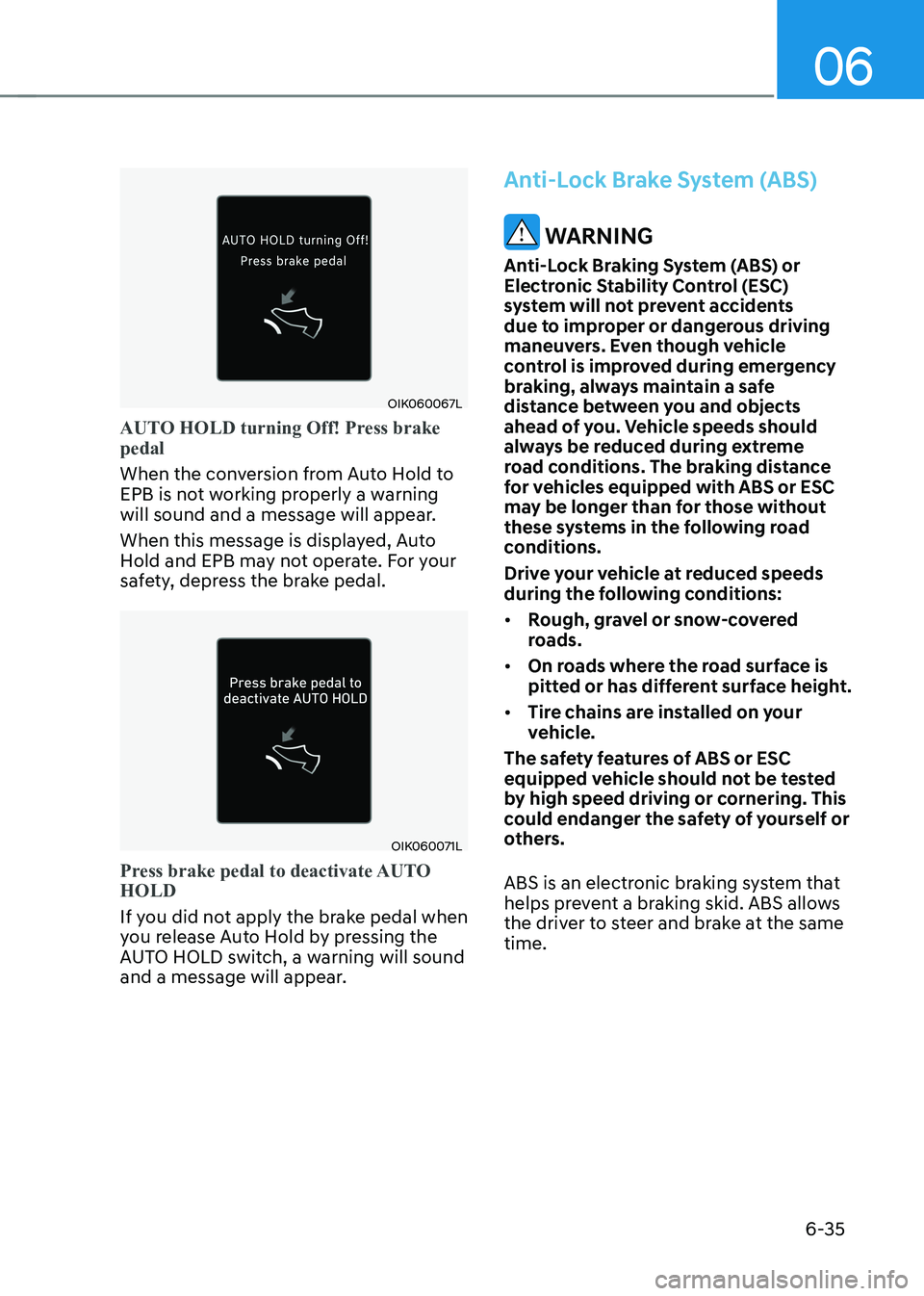

Page 361 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 06
6-35
OIK060067L
AUTO HOLD turning Off! Press brake  pedal
When the conversion from Auto Hold to
EPB is not working properly a warning
will sound and a message will appear.
When this message is

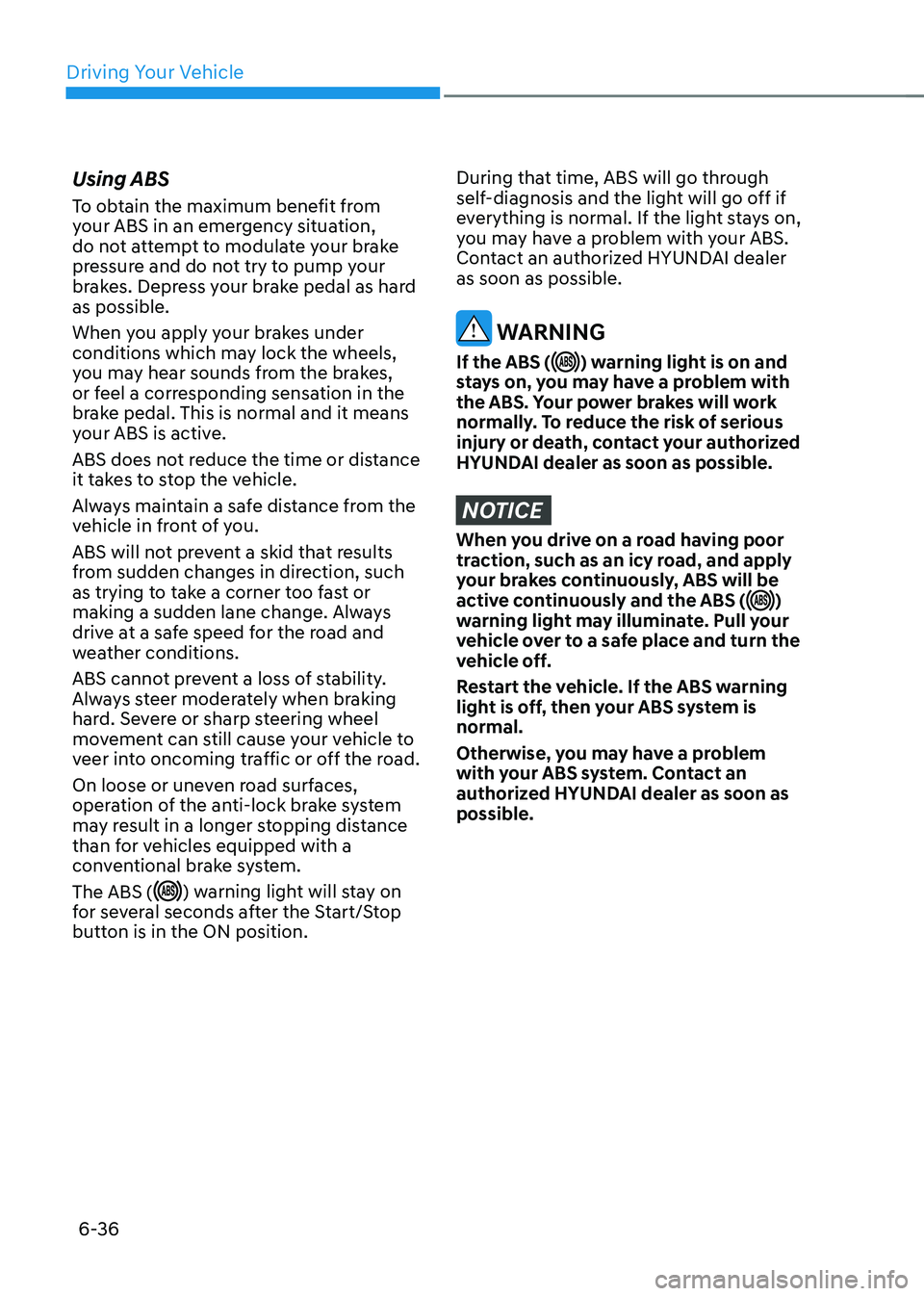

Page 362 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Driving Your Vehicle
6-36
Using ABS
To obtain the maximum benefit from
your ABS in an emergency situation,
do not attempt to modulate your brake
pressure and do not try to pump your
brakes. Depr

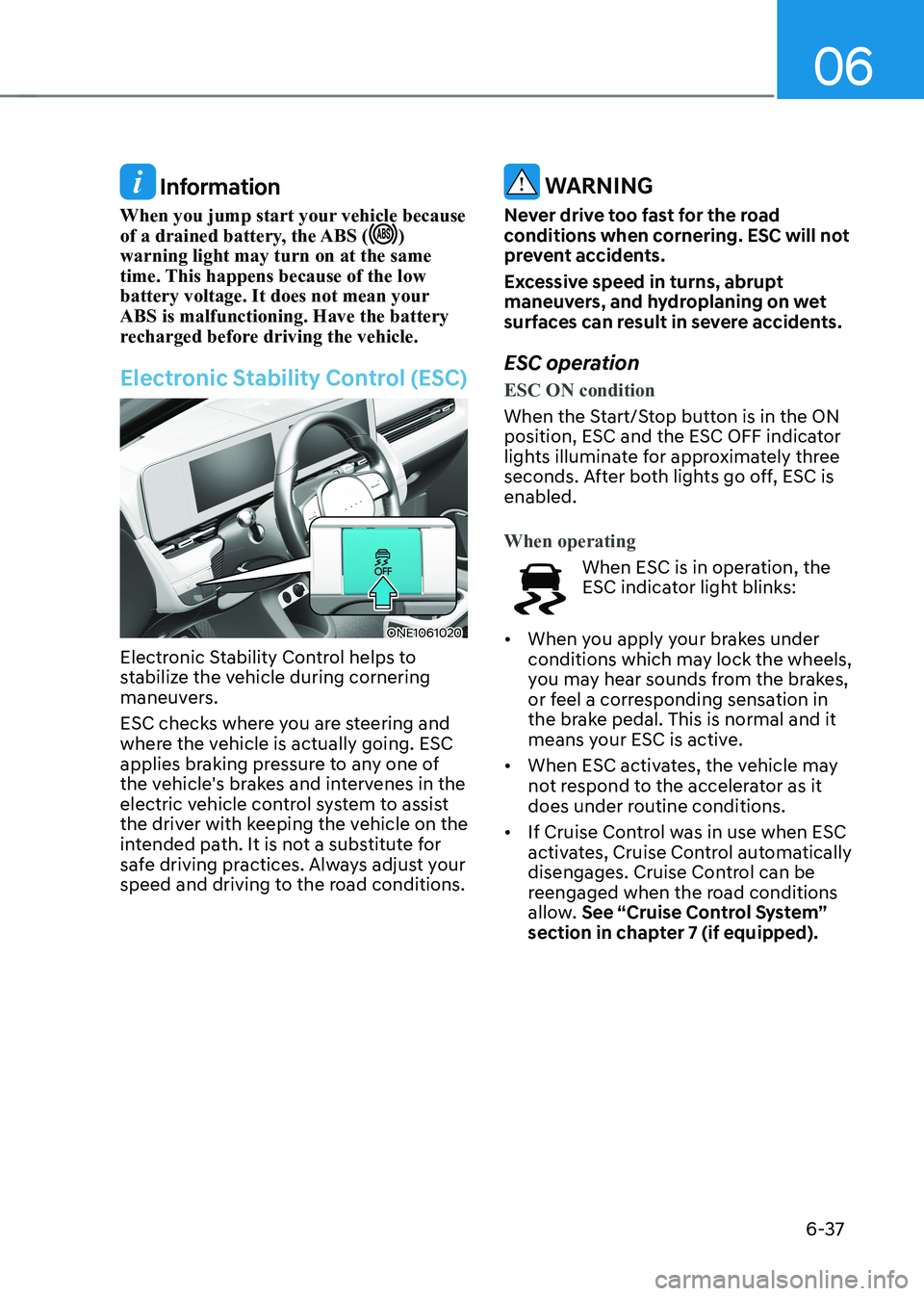

Page 363 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 06
6-37
 Information
When you jump start your vehicle because
of a drained battery, the ABS (
)
warning light may turn on at the same
time. This happens because of the low
battery voltage. It do

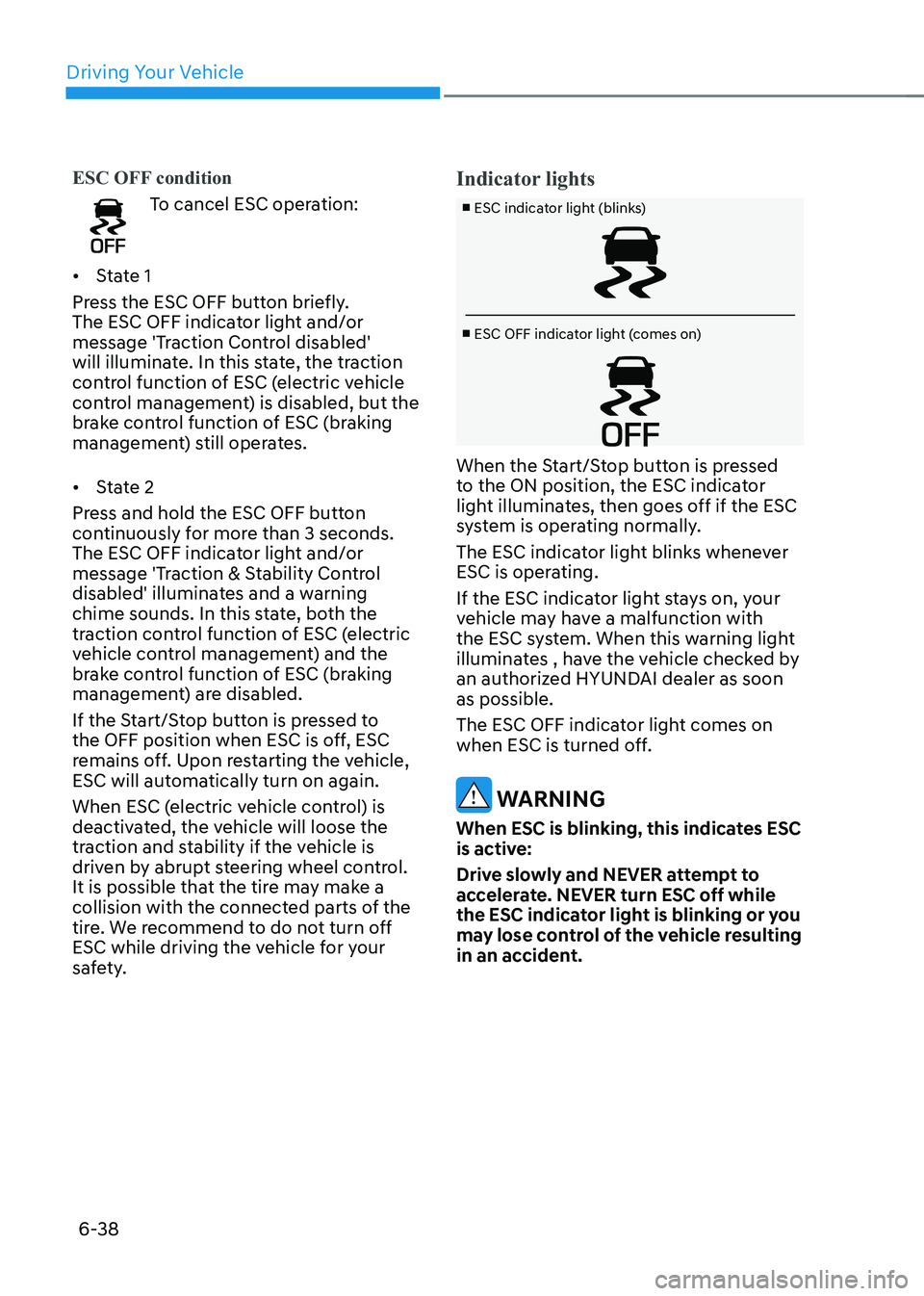

Page 364 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Driving Your Vehicle
6-38
ESC OFF condition
To cancel ESC operation:
•	 State 1
Press the ESC OFF button briefly.
The ESC OFF indicator light and/or
message 'Traction Control disabled'
w

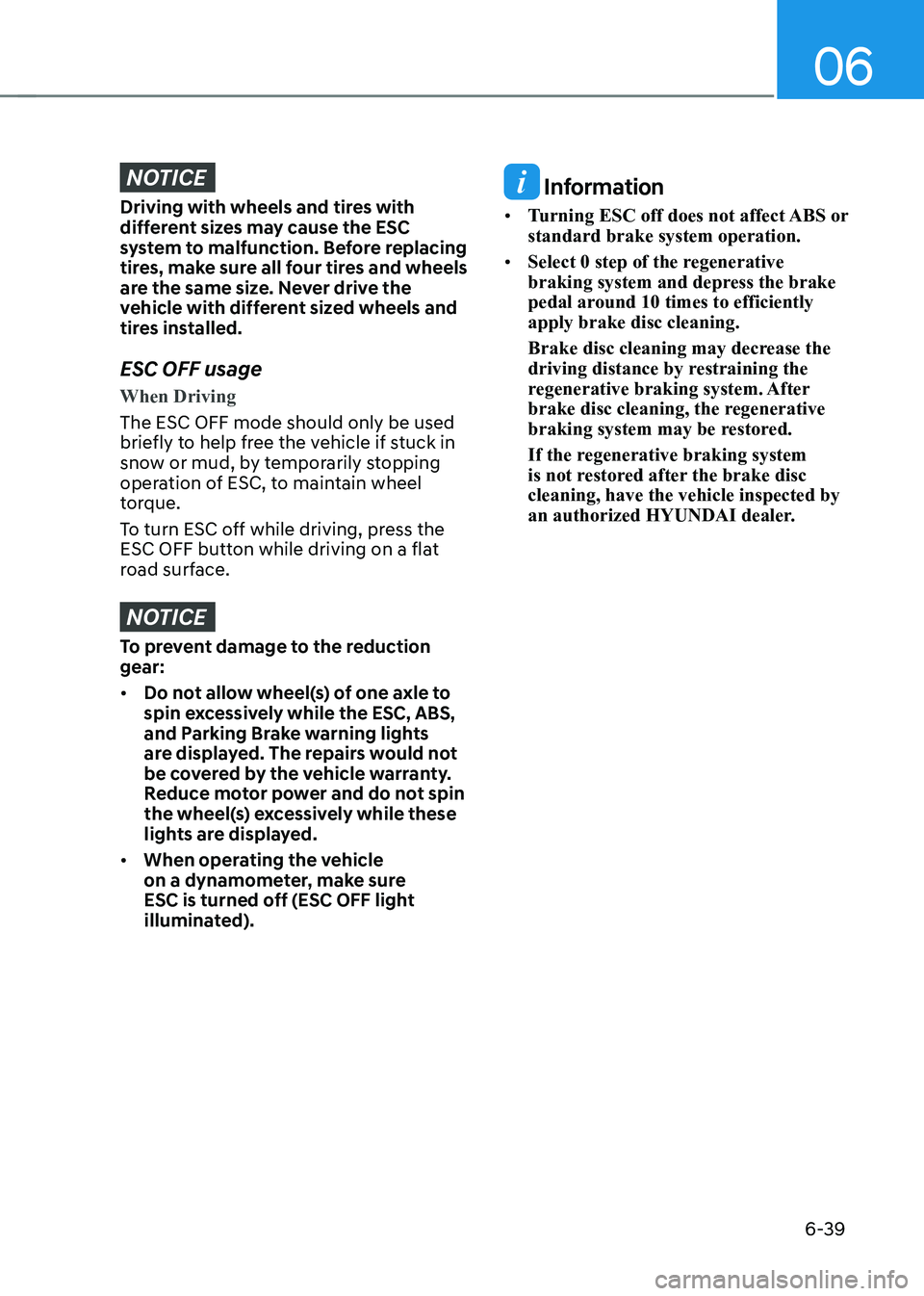

Page 365 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 06
6-39
NOTICE
Driving with wheels and tires with
different sizes may cause the ESC
system to malfunction. Before replacing
tires, make sure all four tires and wheels
are the same size. Never dri

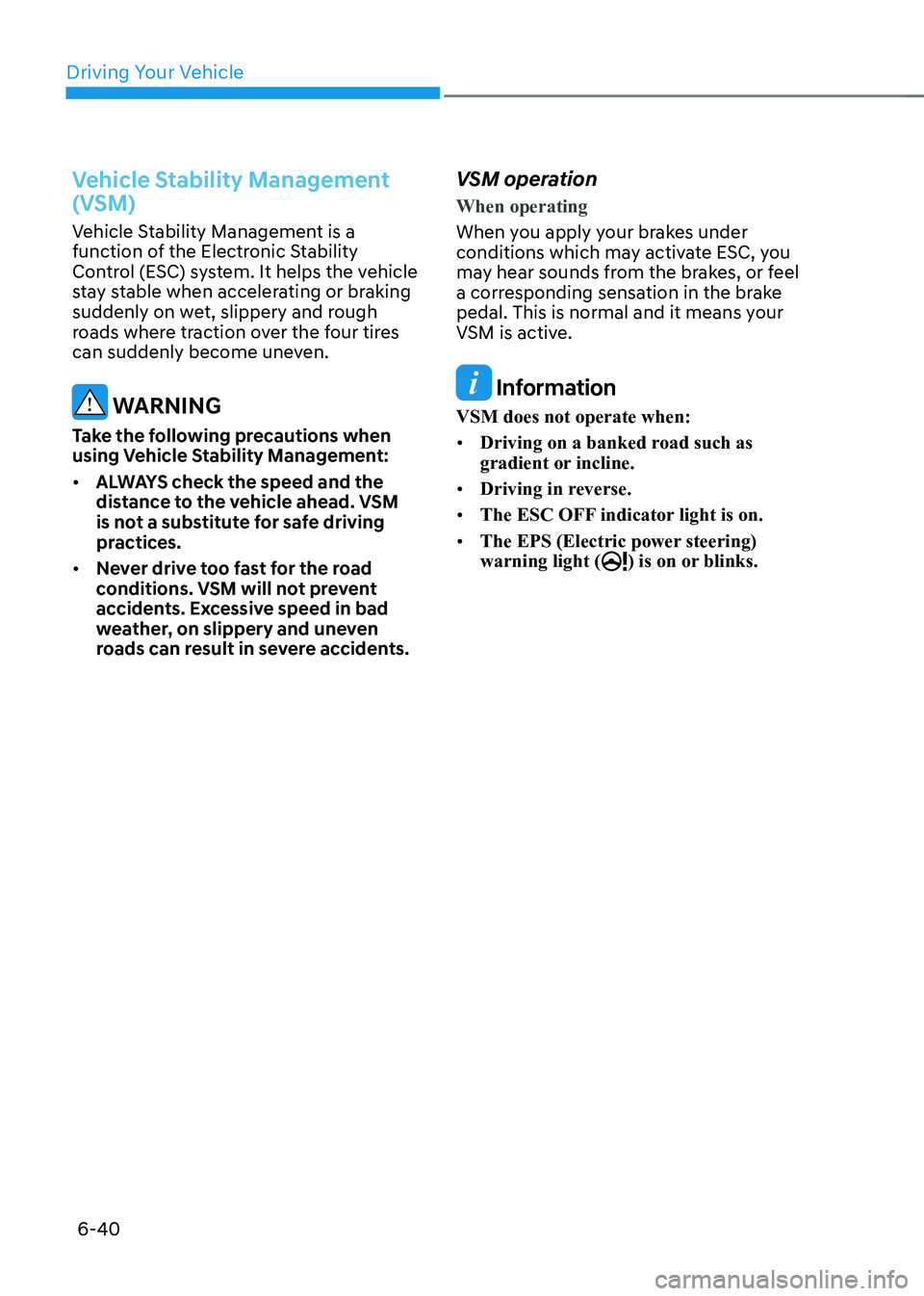

Page 366 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Driving Your Vehicle
6-40
Vehicle Stability Management
(VSM)
Vehicle Stability Management is a
function of the Electronic Stability
Control (ESC) system. It helps the vehicle
stay stable when ac

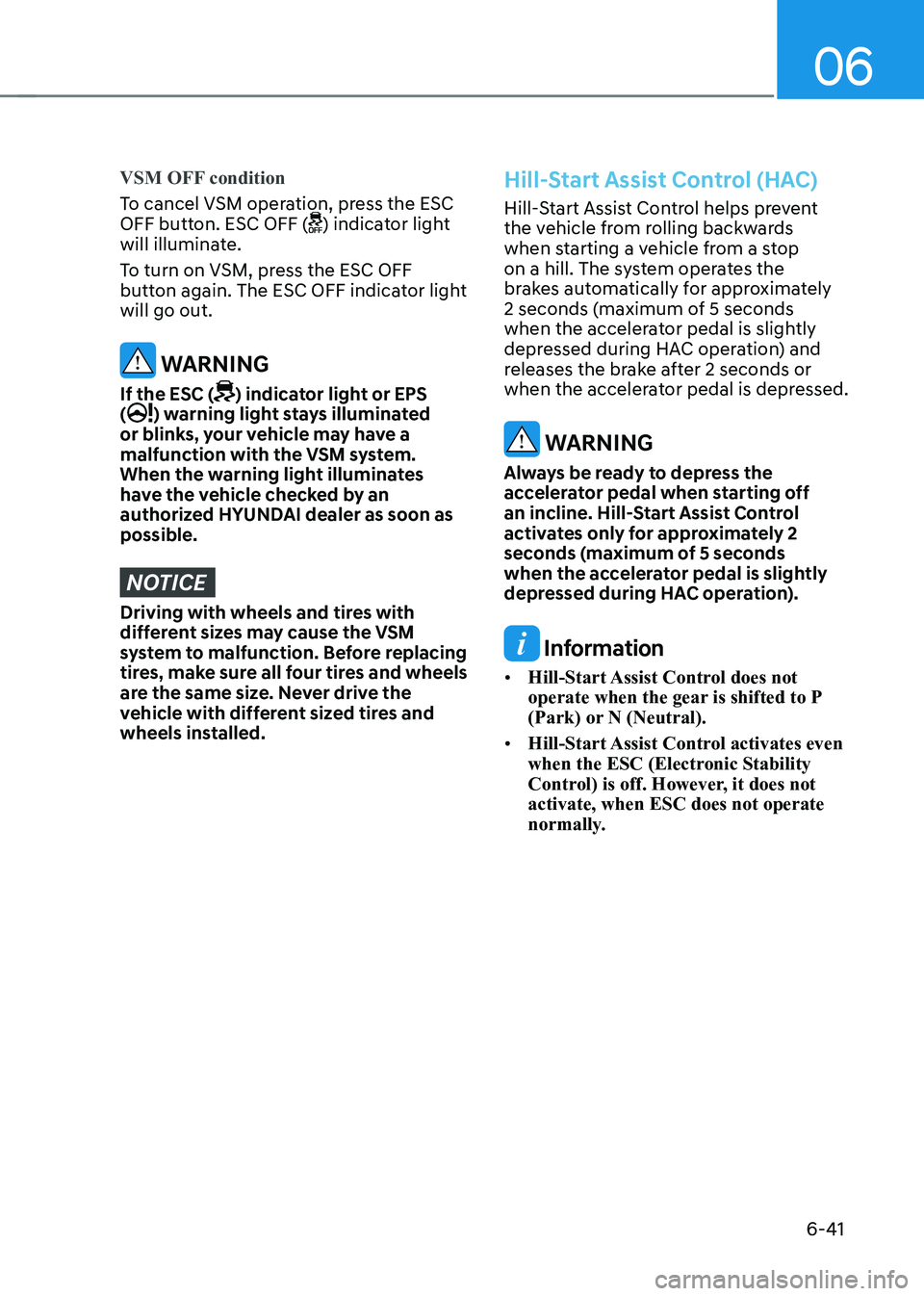

Page 367 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 06
6-41
VSM OFF condition
To cancel VSM operation, press the ESC
OFF button. ESC OFF () indicator light
will illuminate.
To turn on VSM, press the ESC OFF
button again. The ESC OFF indicator lig

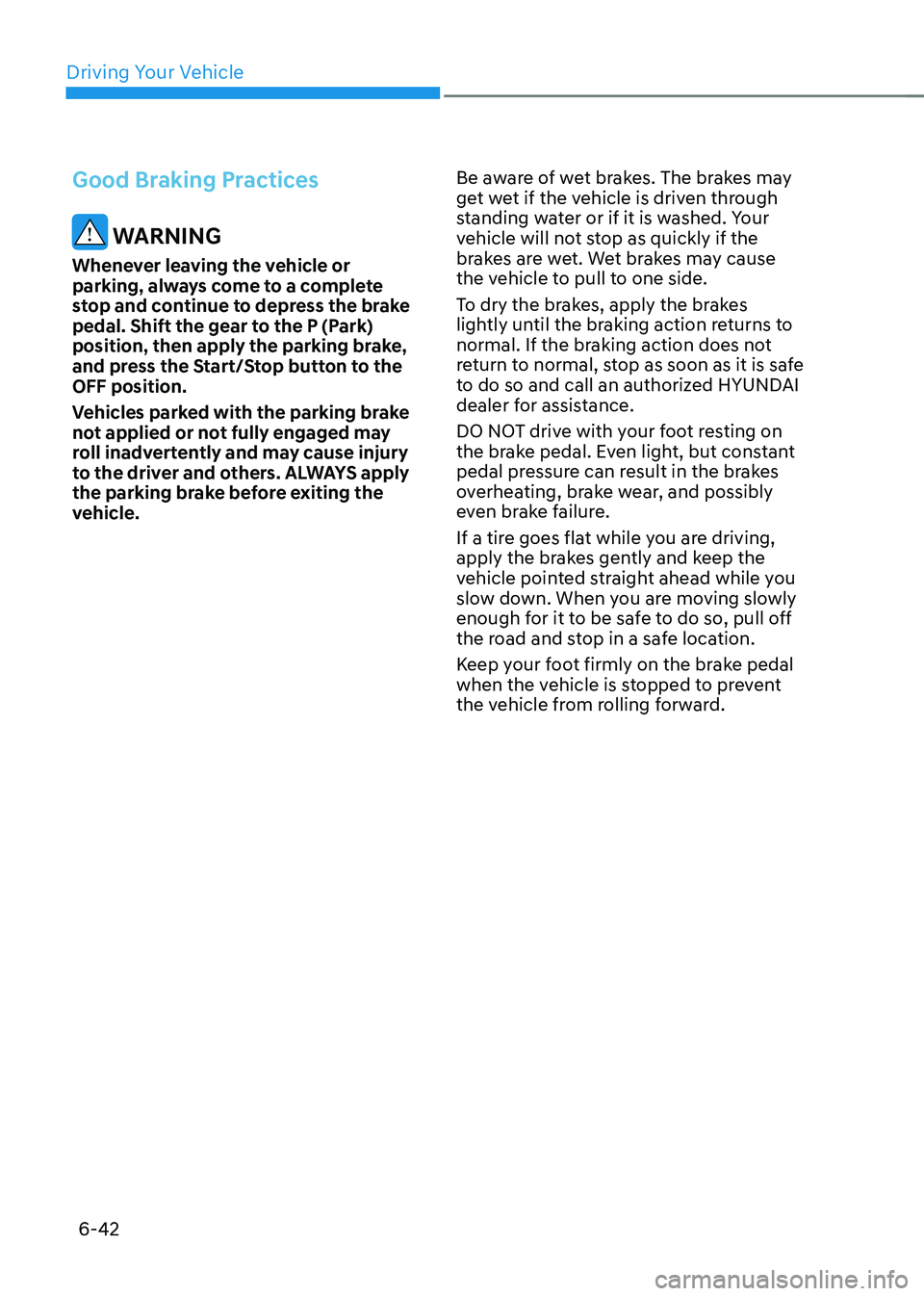

Page 368 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Driving Your Vehicle
6-42
Good Braking Practices
 WARNING
Whenever leaving the vehicle or
parking, always come to a complete
stop and continue to depress the brake
pedal. Shift the gear to the P (

Page 369 of 680

HYUNDAI IONIQ 5 2023  Owners Manual 06
6-43
When All Wheel Drive(AWD) is
activated, driving forces are distributed
appropriately to front and rear wheels.
It could improve driving performance by
maximizing the driving force of vehi

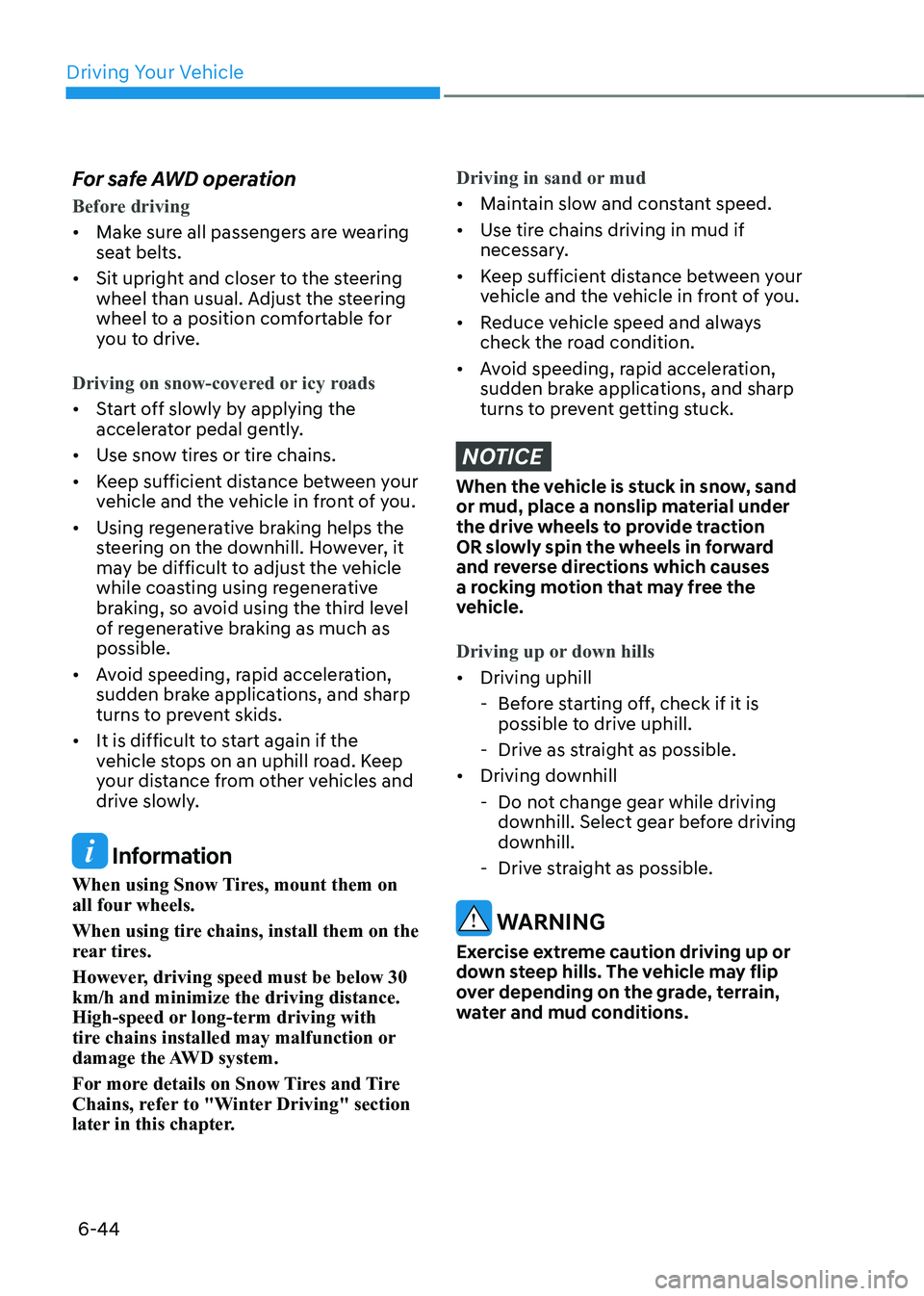

Page 370 of 680

HYUNDAI IONIQ 5 2023  Owners Manual Driving Your Vehicle
6-44
For safe AWD operation
Before driving
•
Make sure all passengers are wearing
seat belts.
•	 Sit upright and closer to the steering
wheel than usual. Adjust the steeri
