HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB

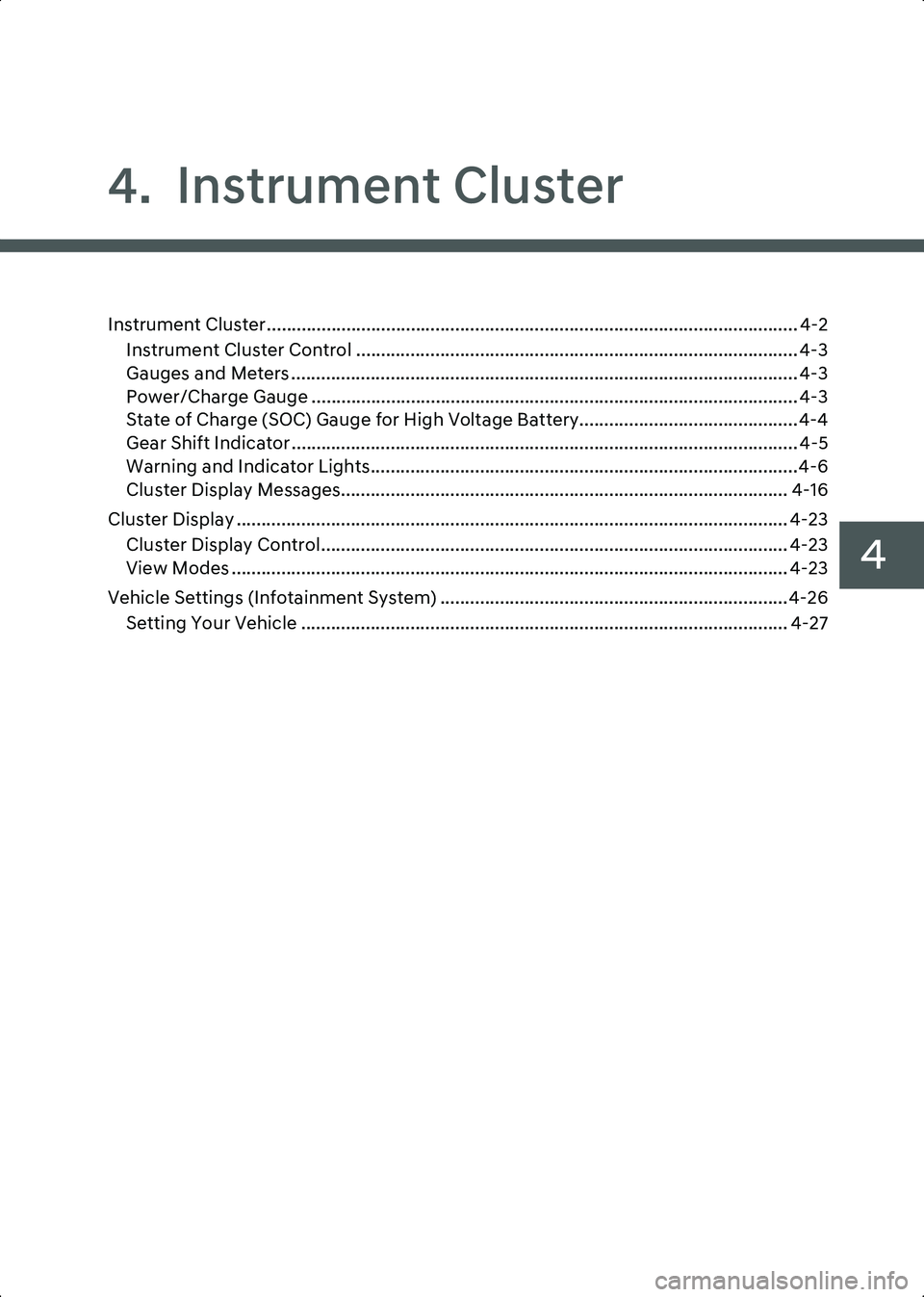

Page 151 of 582
4
4. Instrument Cluster
Instrument Cluster........................................................................................................... 4-2Instrument Cluster Control ......................................................................................... 4-3
Gauges and Meters ...................................................................................................... 4-3Power/Charge Gauge .................................................................................................. 4-3
State of Charge (SOC) Gauge for High Voltage Battery............................................4-4
Gear Shift Indicator ...................................................................................................... 4-5Warning and Indicator Lights......................................................................................4-6Cluster Display Messages.......................................................................................... 4-16
Cluster Display ............................................................................................................... 4-23 Cluster Display Control.............................................................................................. 4-23
View Modes ................................................................................................................ 4-23
Vehicle Settings (Infotainment System) ...................................................................... 4-26 Setting Your Vehicle .................................................................................................. 4-27
Hyundai_CE_en_US.book Page 1

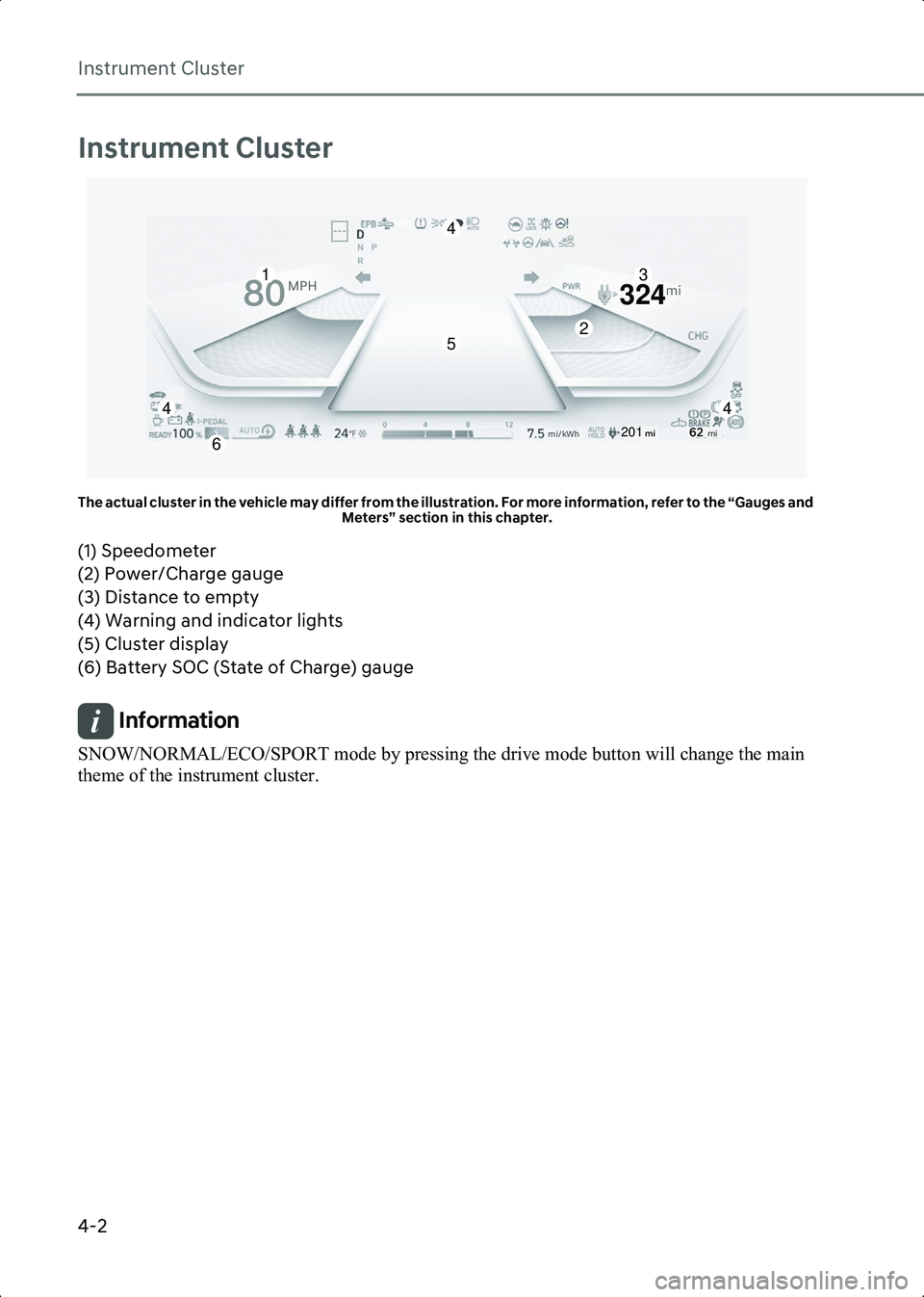

Page 152 of 582
Instrument Cluster
4-2
Instrument Cluster
A4000101The actual cluster in the vehicle may differ from the illustration. For more information, refer to the “Gauges and Meters” section in this chapter.
(1) Speedometer
(2) Power/Charge gauge
(3) Distance to empty
(4) Warning and indicator lights
(5) Cluster display
(6) Battery SOC (State of Charge) gauge
Information SNOW/NORMAL/ECO/SPORT mode by pressing the drive mode button will change the main
theme of the instrument cluster.
. 1 )
N J L 8 I
Š '201 N J N J
324 N J1
4
6
4
4
52
3
Hyundai_CE_en_US.book Page 2

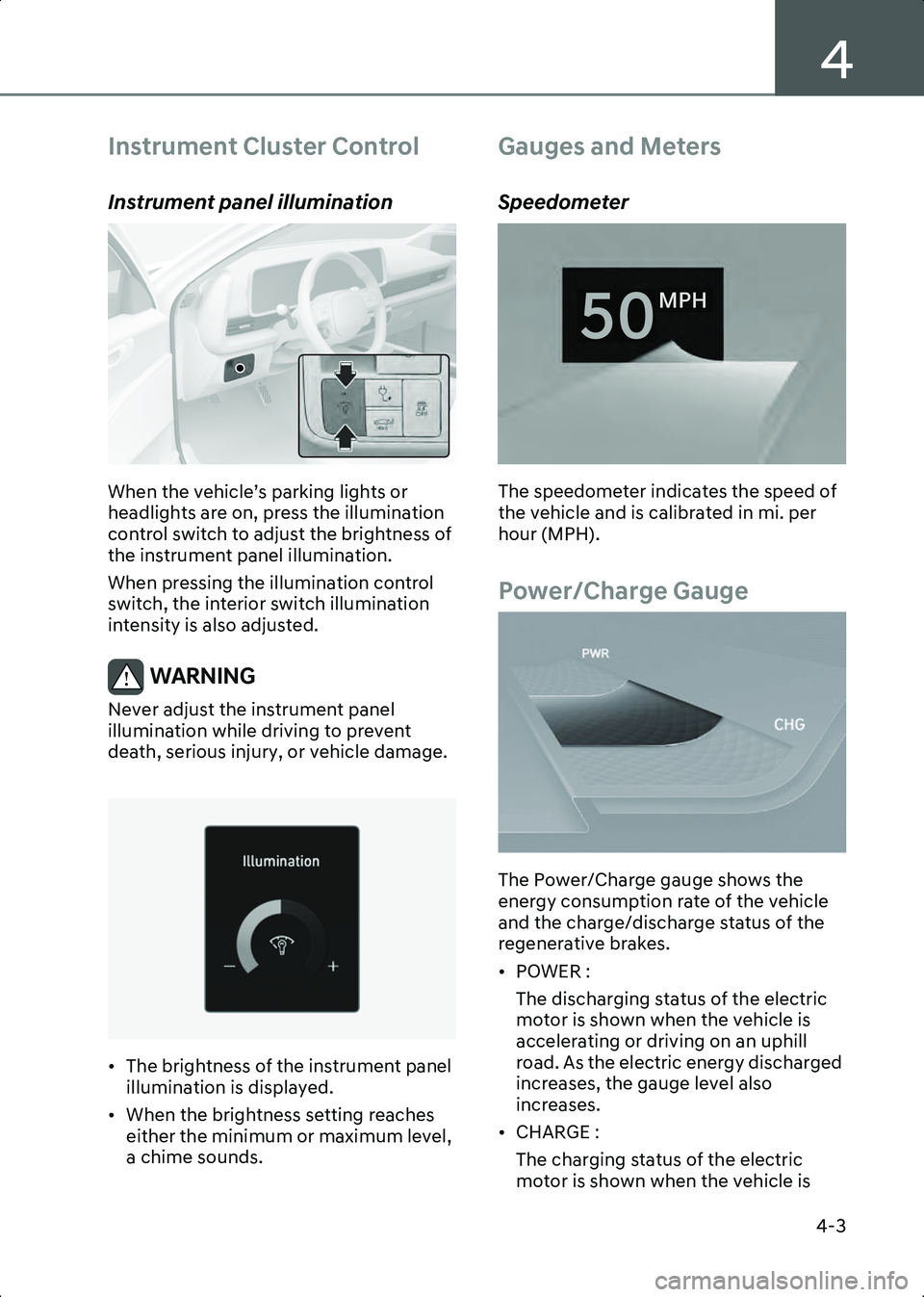

Page 153 of 582
4
4-3
Instrument Cluster Control
Instrument panel illumination
ONE1041044L
When the vehicle’s parking lights or
headlights are on, press the illumination
control switch to adjust the brightness of
the instrument panel illumination.
When pressing the illumination control
switch, the interior switch illumination
intensity is also adjusted.
WARNING Never adjust the instrument panel
illumination while driving to prevent
death, serious injury, or vehicle damage.
ONE1041056N
• The brightness of the instrument panel illumination is displayed.
• When the brightness setting reaches either the minimum or maximum level,
a chime sounds.
Gauges and Meters
Speedometer
B4000301
The speedometer indicates the speed of
the vehicle and is calibrated in mi. per
hour (MPH).
Power/Charge Gauge
B4000306
The Power/Charge gauge shows the
energy consumption rate of the vehicle
and the charge/discharge status of the
regenerative brakes.
• POWER :
The discharging status of the electric
motor is shown when the vehicle is
accelerating or driving on an uphill
road. As the electric energy discharged
increases, the gauge level also
increases.
• CHARGE : The charging status of the electric
motor is shown when the vehicle is
. 1 )
Hyundai_CE_en_US.book Page 3

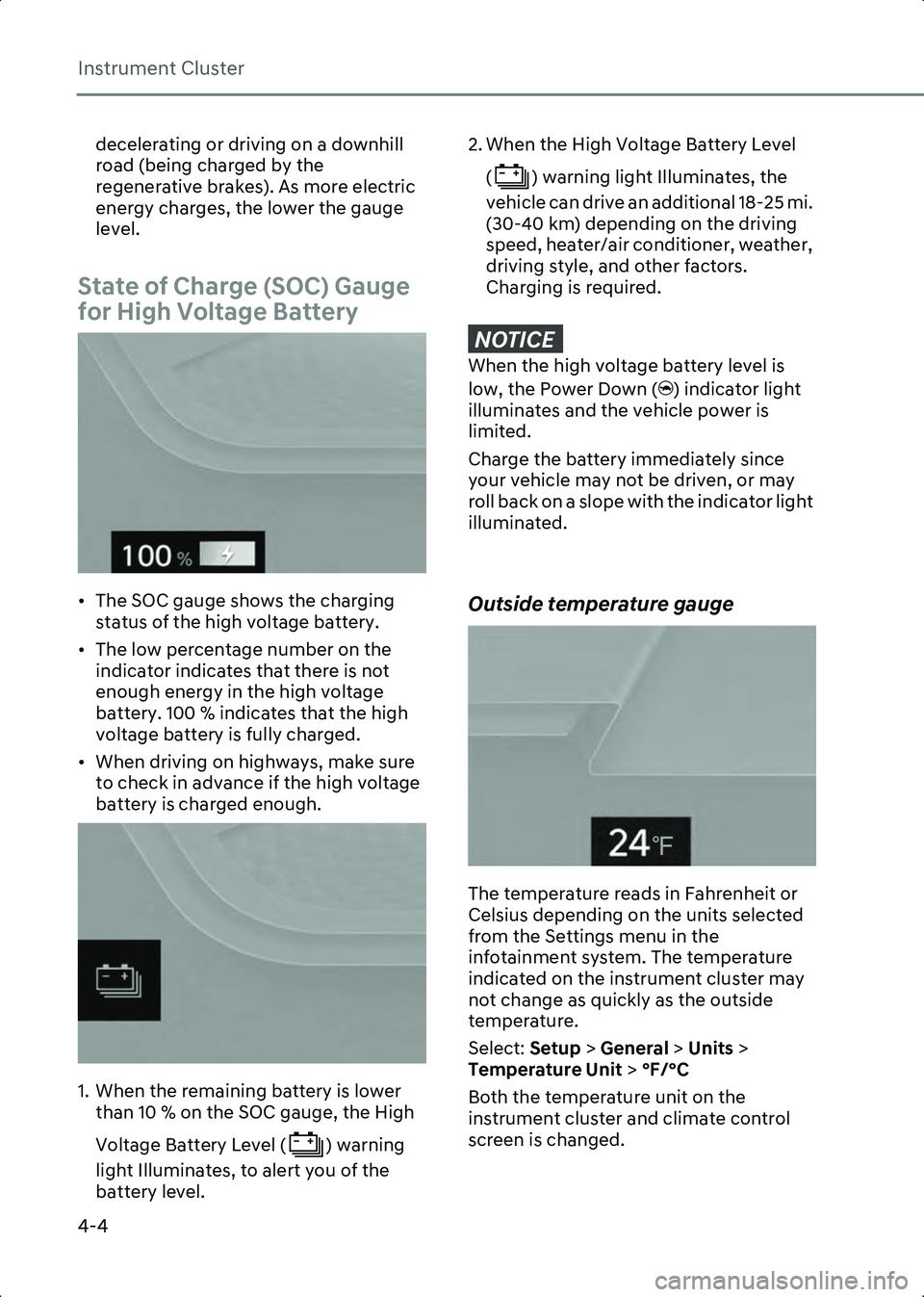

Page 154 of 582
Instrument Cluster
4-4
decelerating or driving on a downhill
road (being charged by the
regenerative brakes). As more electric
energy charges, the lower the gauge
level.
State of Charge (SOC) Gauge
for High Voltage Battery
B4000307
• The SOC gauge shows the charging status of the high voltage battery.
• The low percentage number on the indicator indicates that there is not
enough energy in the high voltage
battery. 100 % indicates that the high
voltage battery is fully charged.
• When driving on highways, make sure to check in advance if the high voltage
battery is charged enough.
B4000308
1. When the remaining battery is lower than 10 % on the SOC gauge, the High
Voltage Battery Level ( ) warning
light Illuminates, to alert you of the
battery level. 2. When the High Voltage Battery Level
( ) warning light Illuminates, the
vehicle can drive an additional 18-25 mi.
(30-40 km) depending on the driving
speed, heater/air conditioner, weather,
driving style, and other factors.
Charging is required.
NOTICE : K H Q W K H K L J K Y R O W D J H E D W W H U \ O H Y H O L V
O R Z W K H 3 R Z H U ' R Z Q \f L Q G L F D W R U O L J K W
L O O X P L Q D W H V D Q G W K H Y H K L F O H S R Z H U L V
O L P L W H G
& K D U J H W K H E D W W H U \ L P P H G L D W H O \ V L Q F H
\ R X U Y H K L F O H P D \ Q R W E H G U L Y H Q R U P D \
U R O O E D F N R Q D V O R S H Z L W K W K H L Q G L F D W R U O L J K W
L O O X P L Q D W H G
Outside temperature gauge
B4000304
The temperature reads in Fahrenheit or
Celsius depending on the units selected
from the Settings menu in the
infotainment system. The temperature
indicated on the instrument cluster may
not change as quickly as the outside
temperature.
Select: Setup > General > Units >
Temperature Unit > °F/°C
Both the temperature unit on the
instrument cluster and climate control
screen is changed.
'
Hyundai_CE_en_US.book Page 4

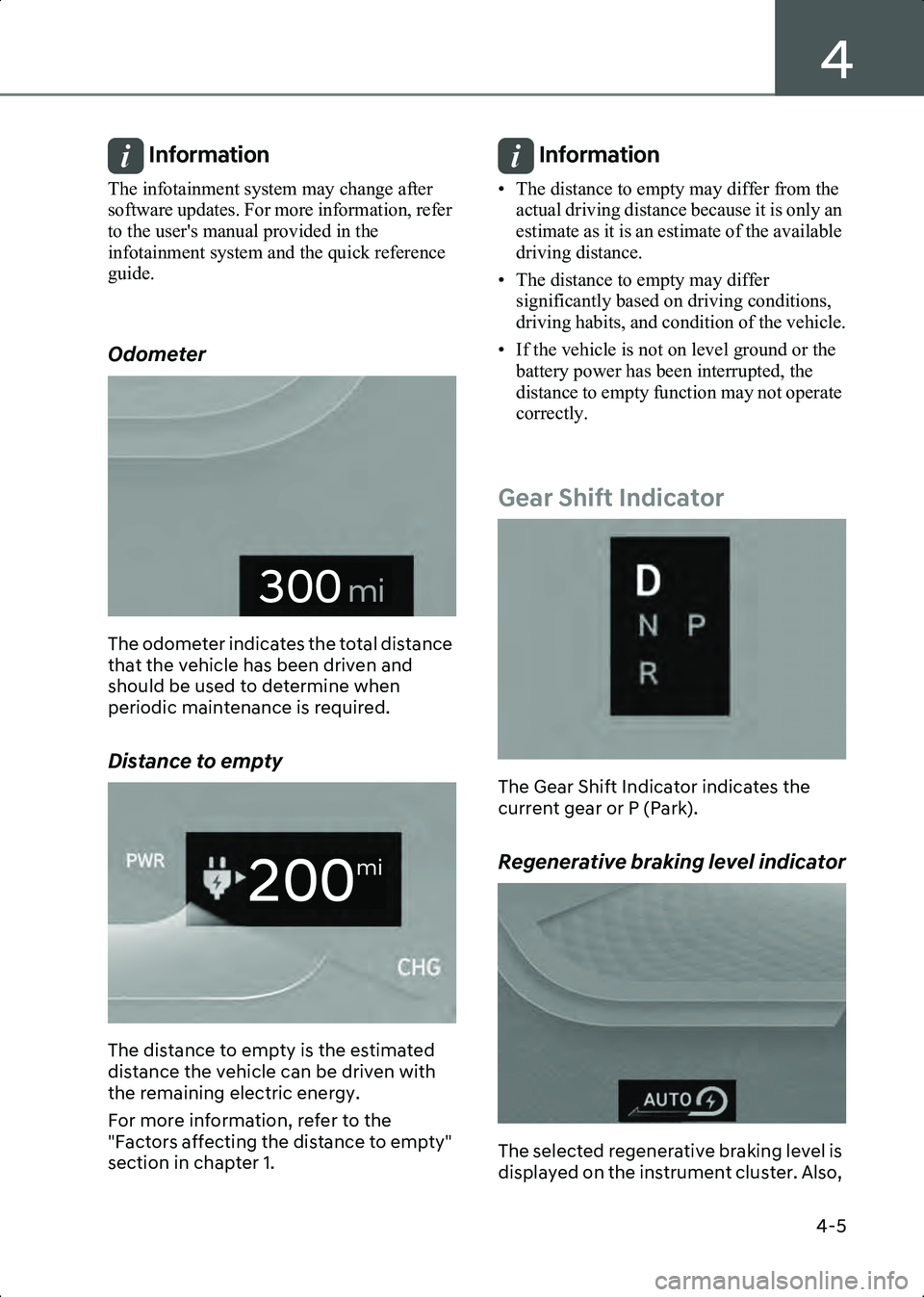

Page 155 of 582
4
4-5
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Odometer
B4000302
The odometer indicates the total distance
that the vehicle has been driven and
should be used to determine when
periodic maintenance is required.
Distance to empty
B4000303
The distance to empty is the estimated
distance the vehicle can be driven with
the remaining electric energy.
For more information, refer to the
"Factors affecting the distance to empty"
section in chapter 1.
Information • The distance to empty may differ from the actual driving distance because it is only an
estimate as it is an estimate of the available
driving distance.
• The distance to empty may differ significantly based on driving conditions,
driving habits, and condition of the vehicle.
• If the vehicle is not on level ground or the battery power has been interrupted, the
distance to empty function may not operate
correctly.
Gear Shift Indicator
B4000305
The Gear Shift Indicator indicates the
current gear or P (Park).
Regenerative braking level indicator
B4000309
The selected regenerative braking level is
displayed on the instrument cluster. Also,
N J
N J
Hyundai_CE_en_US.book Page 5

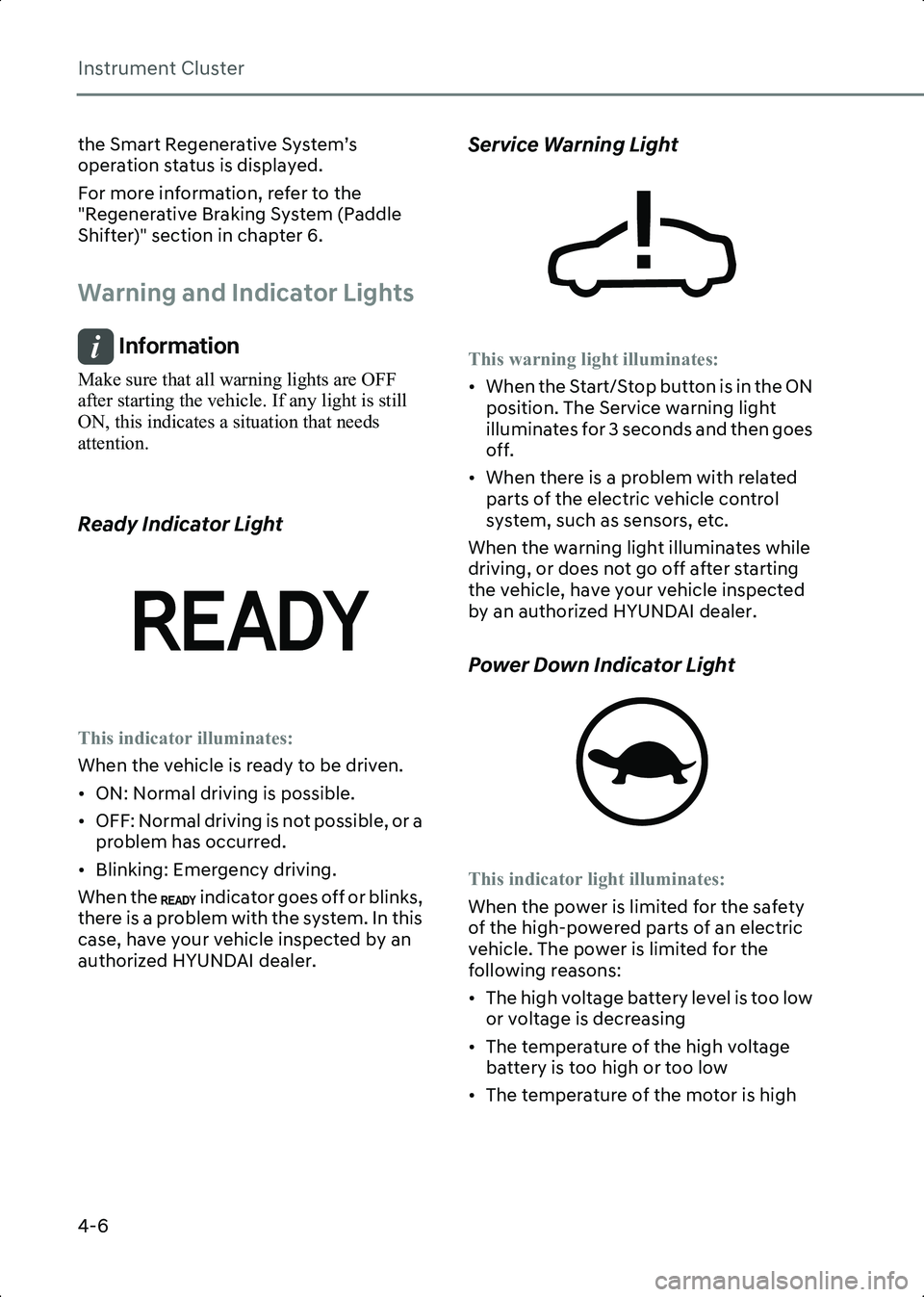

Page 156 of 582
Instrument Cluster
4-6
the Smart Regenerative System’s
operation status is displayed.
For more information, refer to the
"Regenerative Braking System (Paddle
Shifter)" section in chapter 6.
Warning and Indicator Lights
Information Make sure that all warning lights are OFF
after starting the vehicle. If any light is still
ON, this indicates a situation that needs
attention.
Ready Indicator Light
WL_ReadyLamp
This indicator illuminates:
When the vehicle is ready to be driven.
• ON: Normal driving is possible.
• OFF: Normal driving is not possible, or a problem has occurred.
• Blinking: Emergency driving.
When the indicator goes off or blinks,
there is a problem with the system. In this
case, have your vehicle inspected by an
authorized HYUNDAI dealer.
Service Warning Light
WL_ServiceWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Service warning light
illuminates for 3 seconds and then goes
off.
• When there is a problem with related parts of the electric vehicle control
system, such as sensors, etc.
When the warning light illuminates while
driving, or does not go off after starting
the vehicle, have your vehicle inspected
by an authorized HYUNDAI dealer.
Power Down Indicator Light
WL_PowerDownLamp
This indicator light illuminates:
When the power is limited for the safety
of the high-powered parts of an electric
vehicle. The power is limited for the
following reasons:
• The high voltage battery level is too low or voltage is decreasing
• The temperature of the high voltage battery is too high or too low
• The temperature of the motor is high
Hyundai_CE_en_US.book Page 6

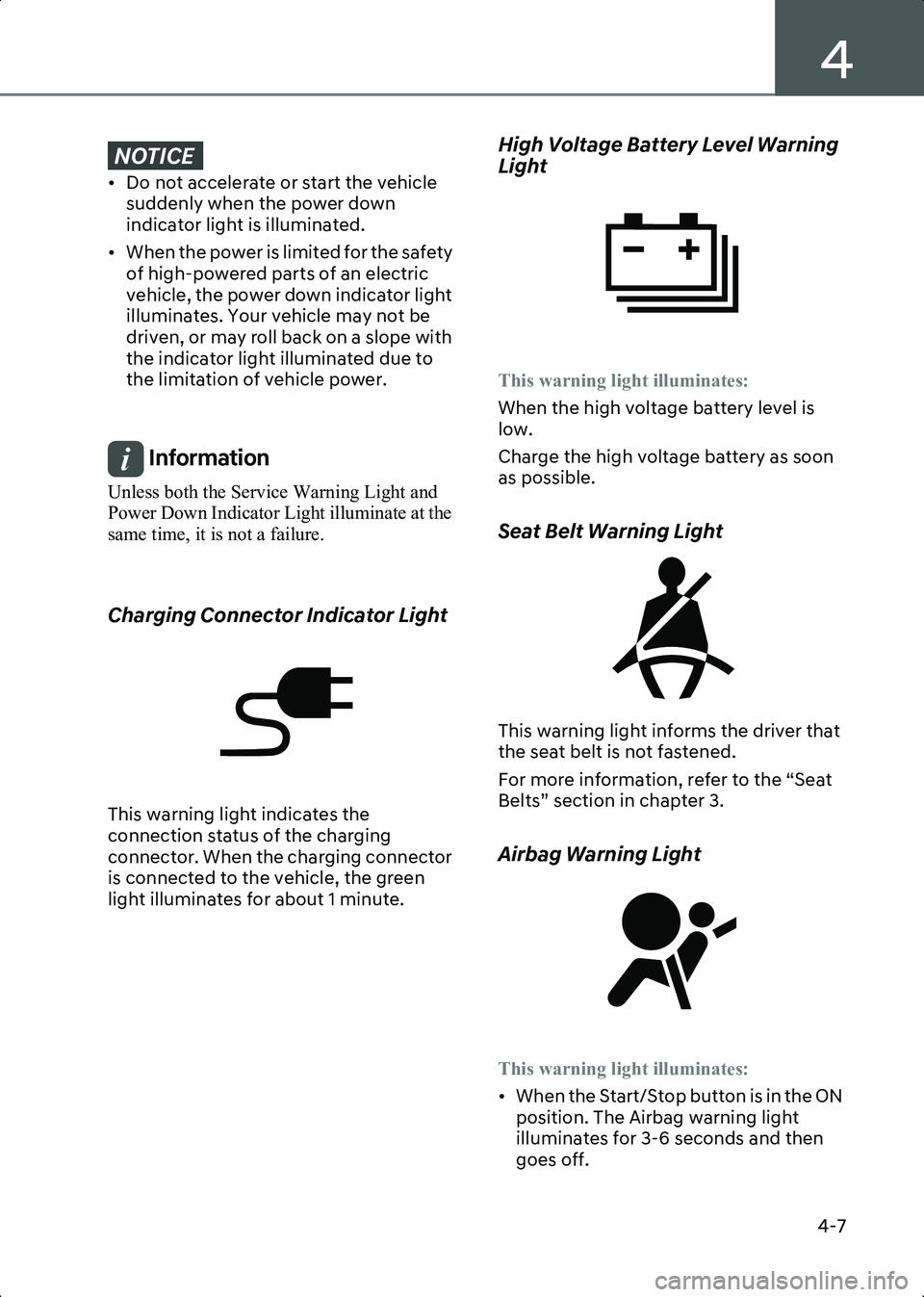

Page 157 of 582
4
4-7
NOTICE [ ' R Q R W D F F H O H U D W H R U V W D U W W K H Y H K L F O H V X G G H Q O \ Z K H Q W K H S R Z H U G R Z Q
L Q G L F D W R U O L J K W L V L O O X P L Q D W H G
[ : K H Q W K H S R Z H U L V O L P L W H G I R U W K H V D I H W \ R I K L J K S R Z H U H G S D U W V R I D Q H O H F W U L F
Y H K L F O H W K H S R Z H U G R Z Q L Q G L F D W R U O L J K W
L O O X P L Q D W H V < R X U Y H K L F O H P D \ Q R W E H
G U L Y H Q R U P D \ U R O O E D F N R Q D V O R S H Z L W K
W K H L Q G L F D W R U O L J K W L O O X P L Q D W H G G X H W R
W K H O L P L W D W L R Q R I Y H K L F O H S R Z H U
Information Unless both the Service Warning Light and
Power Down Indicator Light illuminate at the
same time, it is not a failure.
Charging Connector Indicator Light
WL_ChargingConnectLamp
This warning light indicates the
connection status of the charging
connector. When the charging connector
is connected to the vehicle, the green
light illuminates for about 1 minute.
High Voltage Battery Level Warning
Light
WL_BatteryLovelLowWarningLamp
This warning light illuminates:
When the high voltage battery level is
low.
Charge the high voltage battery as soon
as possible.
Seat Belt Warning Light
WL_SeatBeltWarningLamp
This warning light informs the driver that
the seat belt is not fastened.
For more information, refer to the “Seat
Belts” section in chapter 3.
Airbag Warning Light
WL_AirbagWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Airbag warning light
illuminates for 3-6 seconds and then
goes off.
Hyundai_CE_en_US.book Page 7

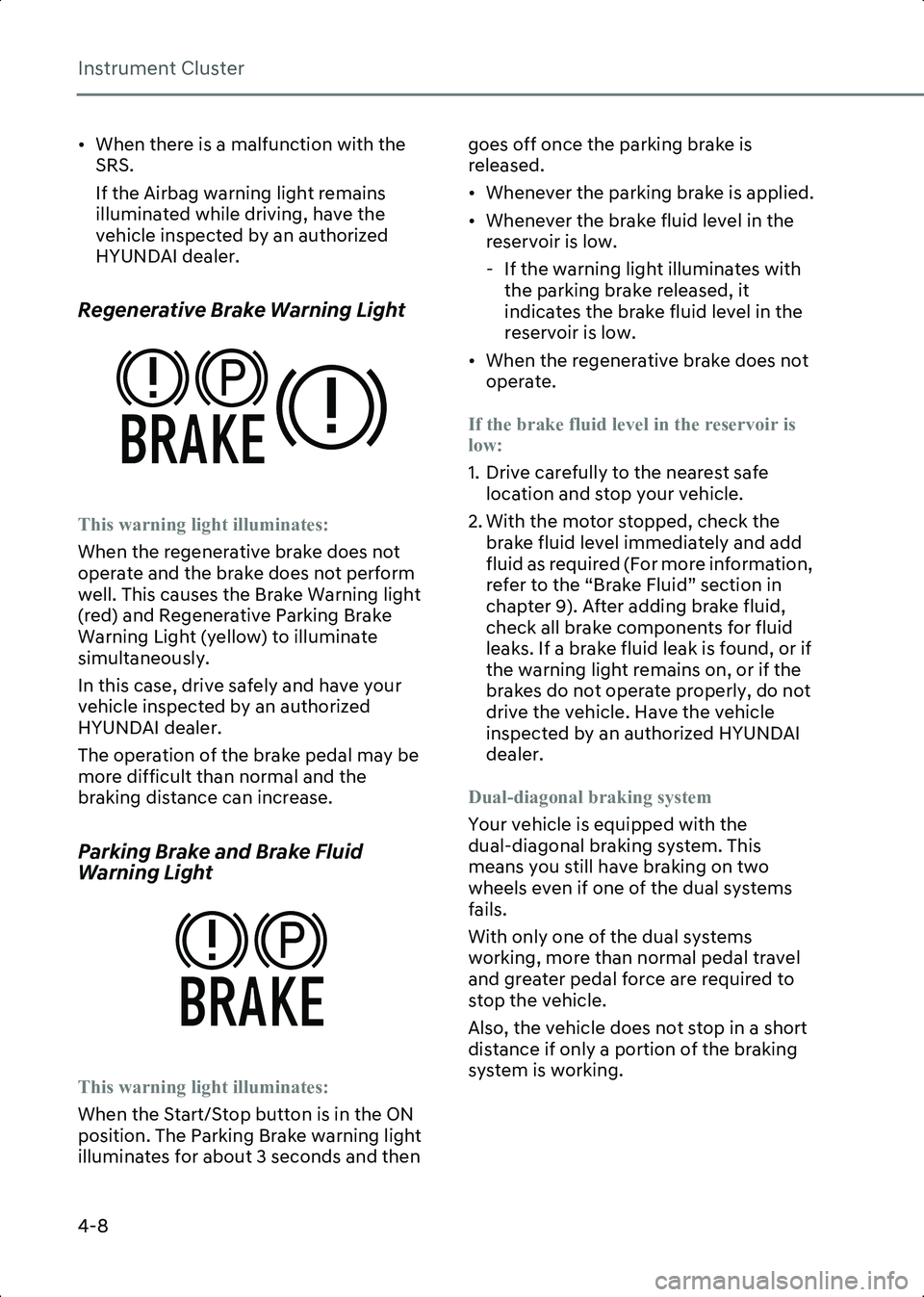

Page 158 of 582
Instrument Cluster
4-8
• When there is a malfunction with the SRS.
If the Airbag warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Regenerative Brake Warning Light
WL_RegenerativeBreakWarningLamp
This warning light illuminates:
When the regenerative brake does not
operate and the brake does not perform
well. This causes the Brake Warning light
(red) and Regenerative Parking Brake
Warning Light (yellow) to illuminate
simultaneously.
In this case, drive safely and have your
vehicle inspected by an authorized
HYUNDAI dealer.
The operation of the brake pedal may be
more difficult than normal and the
braking distance can increase.
Parking Brake and Brake Fluid
Warning Light
WL_BreakWarningLamp
This warning light illuminates:
When the Start/Stop button is in the ON
position. The Parking Brake warning light
illuminates for about 3 seconds and then goes off once the parking brake is
released.
• Whenever the parking brake is applied.
• Whenever the brake fluid level in the
reservoir is low.
- If the warning light illuminates with the parking brake released, it
indicates the brake fluid level in the
reservoir is low.
• When the regenerative brake does not operate.
If the brake fluid level in the reservoir is
low:
1. Drive carefully to the nearest safe location and stop your vehicle.
2. With the motor stopped, check the brake fluid level immediately and add
fluid as required (For more information,
refer to the “Brake Fluid” section in
chapter 9). After adding brake fluid,
check all brake components for fluid
leaks. If a brake fluid leak is found, or if
the warning light remains on, or if the
brakes do not operate properly, do not
drive the vehicle. Have the vehicle
inspected by an authorized HYUNDAI
dealer.
Dual-diagonal braking system
Your vehicle is equipped with the
dual-diagonal braking system. This
means you still have braking on two
wheels even if one of the dual systems
fails.
With only one of the dual systems
working, more than normal pedal travel
and greater pedal force are required to
stop the vehicle.
Also, the vehicle does not stop in a short
distance if only a portion of the braking
system is working.
Hyundai_CE_en_US.book Page 8
Page 159 of 582
4
4-9

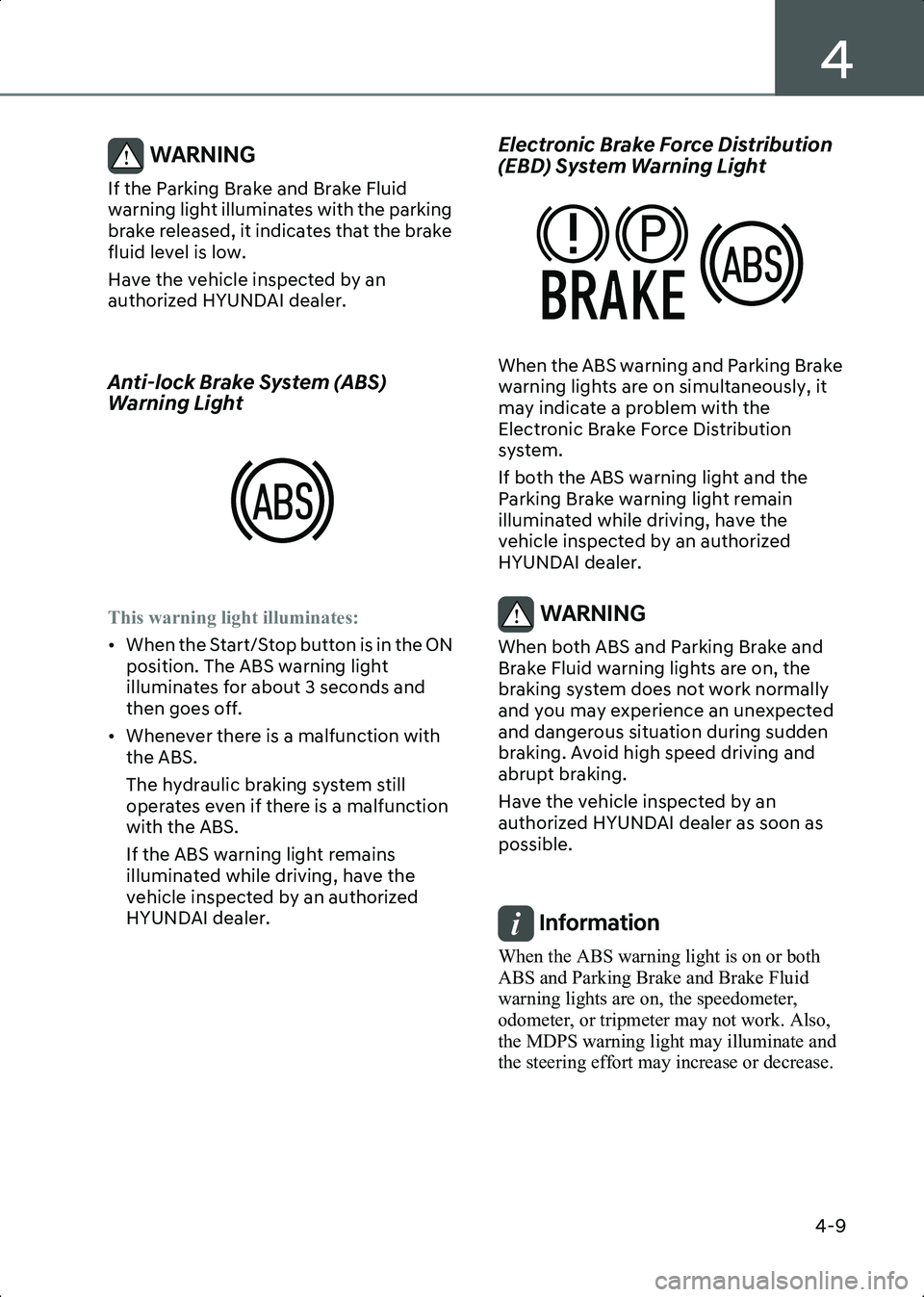

WARNING If the Parking Brake and Brake Fluid
warning light illuminates with the parking
brake released, it indicates that the brake
fluid level is low.
Have the vehicle inspected by an
authorized HYUNDAI dealer.
Anti-lock Brake System (ABS)
Warning Light
WL_ABSWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The ABS warning light
illuminates for about 3 seconds and
then goes off.
• Whenever there is a malfunction with the ABS.
The hydraulic braking system still
operates even if there is a malfunction
with the ABS.
If the ABS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Electronic Brake Force Distribution
(EBD) System Warning Light
WL_EBDWarningLamp
When the ABS warning and Parking Brake
warning lights are on simultaneously, it
may indicate a problem with the
Electronic Brake Force Distribution
system.
If both the ABS warning light and the
Parking Brake warning light remain
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
WARNING When both ABS and Parking Brake and
Brake Fluid warning lights are on, the
braking system does not work normally
and you may experience an unexpected
and dangerous situation during sudden
braking. Avoid high speed driving and
abrupt braking.
Have the vehicle inspected by an
authorized HYUNDAI dealer as soon as
possible.
Information When the ABS warning light is on or both
ABS and Parking Brake and Brake Fluid
warning lights are on, the speedometer,
odometer, or tripmeter may not work. Also,
the MDPS warning light may illuminate and
the steering effort may increase or decrease.
Hyundai_CE_en_US.book Page 9
Page 160 of 582

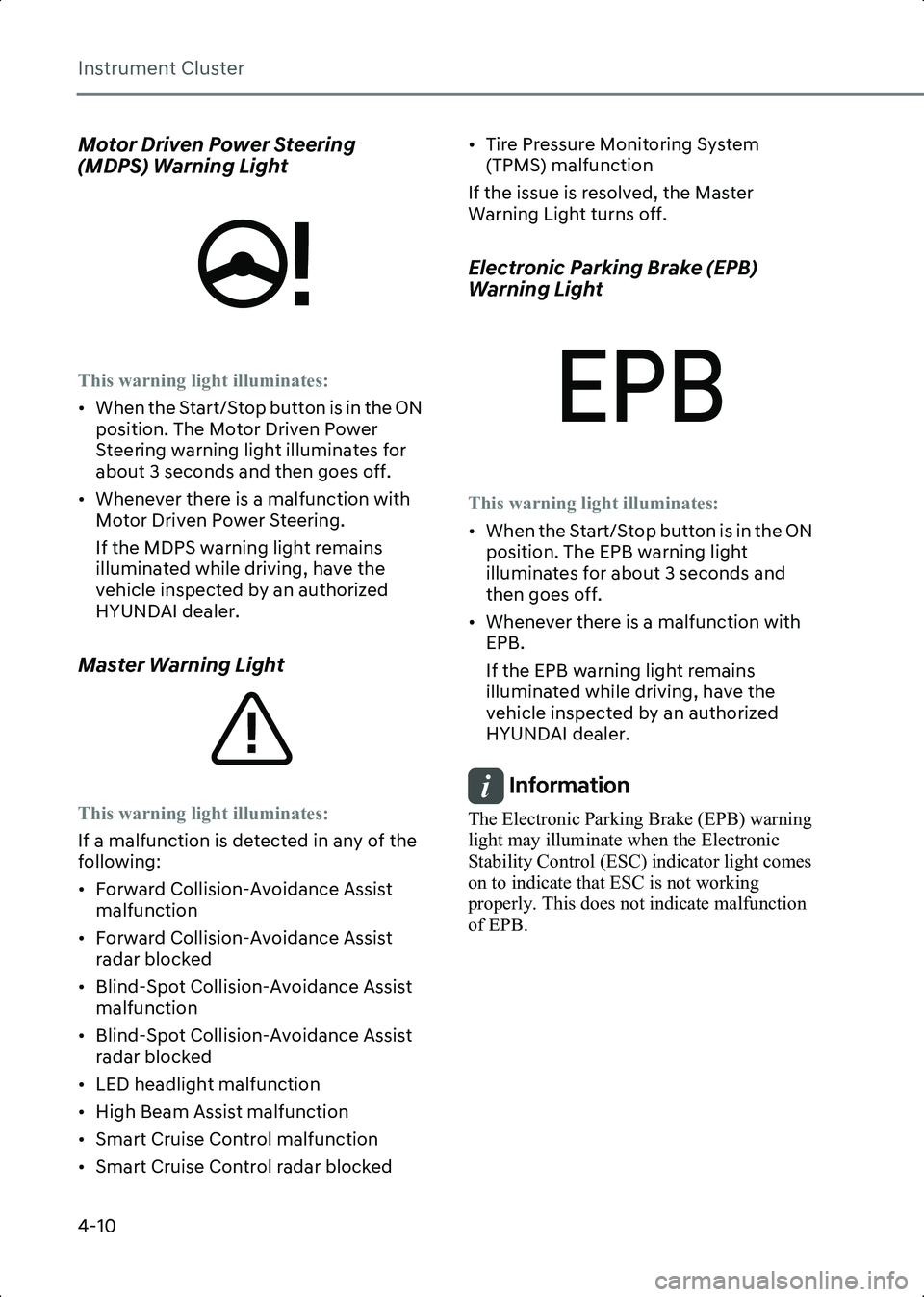

Instrument Cluster
4-10
Motor Driven Power Steering
(MDPS) Warning Light
WL_PowerStreeringWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The Motor Driven Power
Steering warning light illuminates for
about 3 seconds and then goes off.
• Whenever there is a malfunction with Motor Driven Power Steering.
If the MDPS warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Master Warning Light
WL_MasterWarningLamp
This warning light illuminates:
If a malfunction is detected in any of the
following:
• Forward Collision-Avoidance Assist malfunction
• Forward Collision-Avoidance Assist radar blocked
• Blind-Spot Collision-Avoidance Assist malfunction
• Blind-Spot Collision-Avoidance Assist radar blocked
• LED headlight malfunction
• High Beam Assist malfunction
• Smart Cruise Control malfunction
• Smart Cruise Control radar blocked • Tire Pressure Monitoring System
(TPMS) malfunction
If the issue is resolved, the Master
Warning Light turns off.
Electronic Parking Brake (EPB)
Warning Light
WL_EPBWarningLamp
This warning light illuminates:
• When the Start/Stop button is in the ON position. The EPB warning light
illuminates for about 3 seconds and
then goes off.
• Whenever there is a malfunction with EPB.
If the EPB warning light remains
illuminated while driving, have the
vehicle inspected by an authorized
HYUNDAI dealer.
Information The Electronic Parking Brake (EPB) warning
light may illuminate when the Electronic
Stability Control (ESC) indicator light comes
on to indicate that ESC is not working
properly. This does not indicate malfunction
of EPB.
Hyundai_CE_en_US.book Page 10
