HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 171 of 582
4
4-21

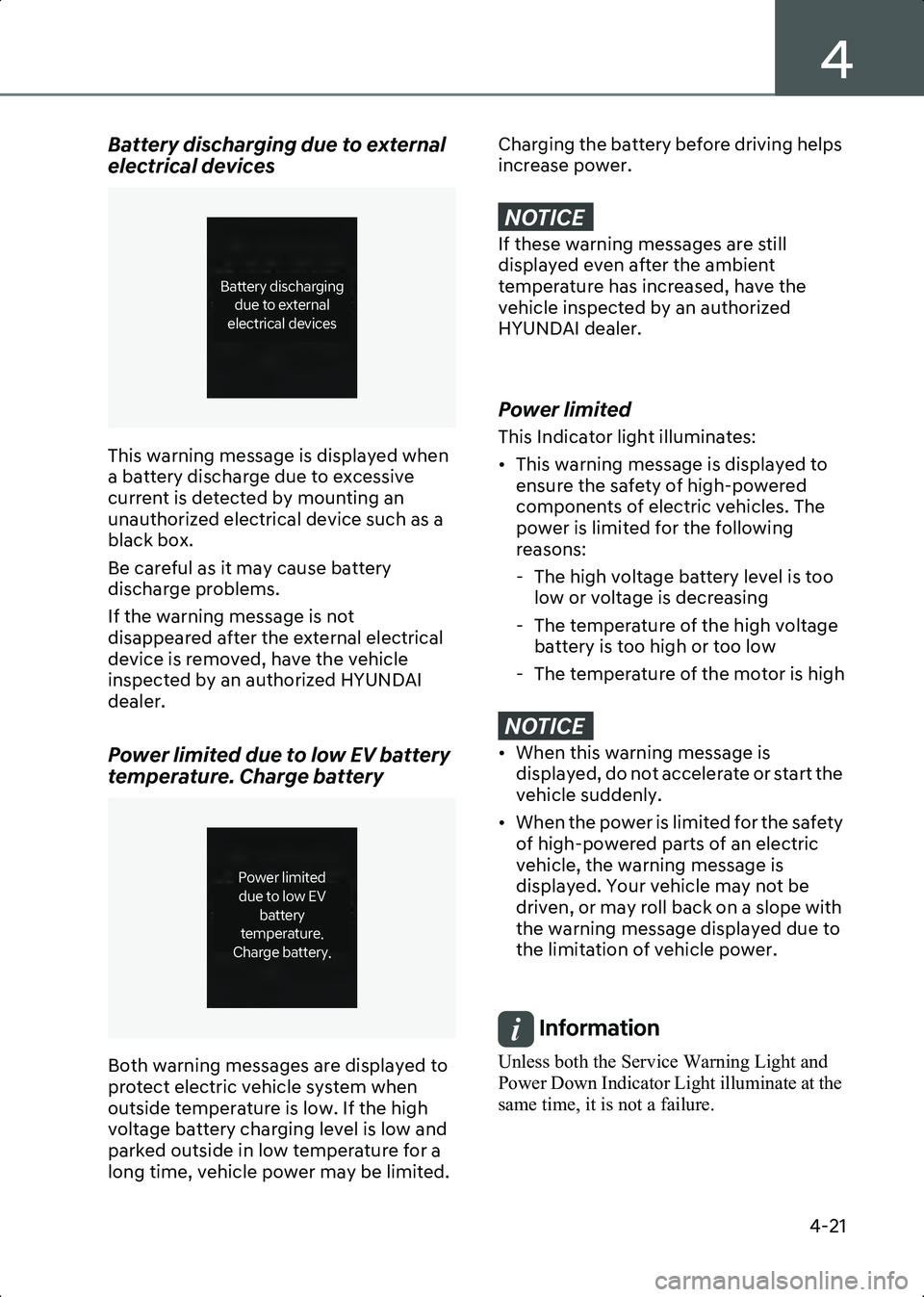

Battery discharging due to external
electrical devices
ONE1041054L
This warning message is displayed when
a battery discharge due to excessive
current is detected by mounting an
unauthorized electrical device such as a
black box.
Be careful as it may cause battery
discharge problems.
If the warning message is not
disappeared after the external electrical
device is removed, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Power limited due to low EV battery
temperature. Charge battery
OOSEV040507L
Both warning messages are displayed to
protect electric vehicle system when
outside temperature is low. If the high
voltage battery charging level is low and
parked outside in low temperature for a
long time, vehicle power may be limited.Charging the battery before driving helps
increase power.
NOTICE , I W K H V H Z D U Q L Q J P H V V D J H V D U H V W L O O
G L V S O D \ H G H Y H Q D I W H U W K H D P E L H Q W
W H P S H U D W X U H K D V L Q F U H D V H G K D Y H W K H
Y H K L F O H L Q V S H F W H G E \ D Q D X W K R U L ] H G
+ < 8 1 ' $ , G H D O H U
Power limited
This Indicator light illuminates:
• This warning message is displayed to
ensure the safety of high-powered
components of electric vehicles. The
power is limited for the following
reasons:
- The high voltage battery level is too low or voltage is decreasing
- The temperature of the high voltage battery is too high or too low
- The temperature of the motor is high
NOTICE [ : K H Q W K L V Z D U Q L Q J P H V V D J H L V G L V S O D \ H G G R Q R W D F F H O H U D W H R U V W D U W W K H
Y H K L F O H V X G G H Q O \
[ : K H Q W K H S R Z H U L V O L P L W H G I R U W K H V D I H W \ R I K L J K S R Z H U H G S D U W V R I D Q H O H F W U L F
Y H K L F O H W K H Z D U Q L Q J P H V V D J H L V
G L V S O D \ H G < R X U Y H K L F O H P D \ Q R W E H
G U L Y H Q R U P D \ U R O O E D F N R Q D V O R S H Z L W K
W K H Z D U Q L Q J P H V V D J H G L V S O D \ H G G X H W R
W K H O L P L W D W L R Q R I Y H K L F O H S R Z H U
Information Unless both the Service Warning Light and
Power Down Indicator Light illuminate at the
same time, it is not a failure.
# B U U F S Z E J T D I B S H J O H E V F U P F Y U F S O B M
F M F D U S J D B M E F W J D F T
1 P X F S M J N J U F E E V F U P M P X & 7 C B U U F S Z
U F N Q F S B U V S F
$ I B S H F C B U U F S Z
Hyundai_CE_en_US.book Page 21
Page 172 of 582

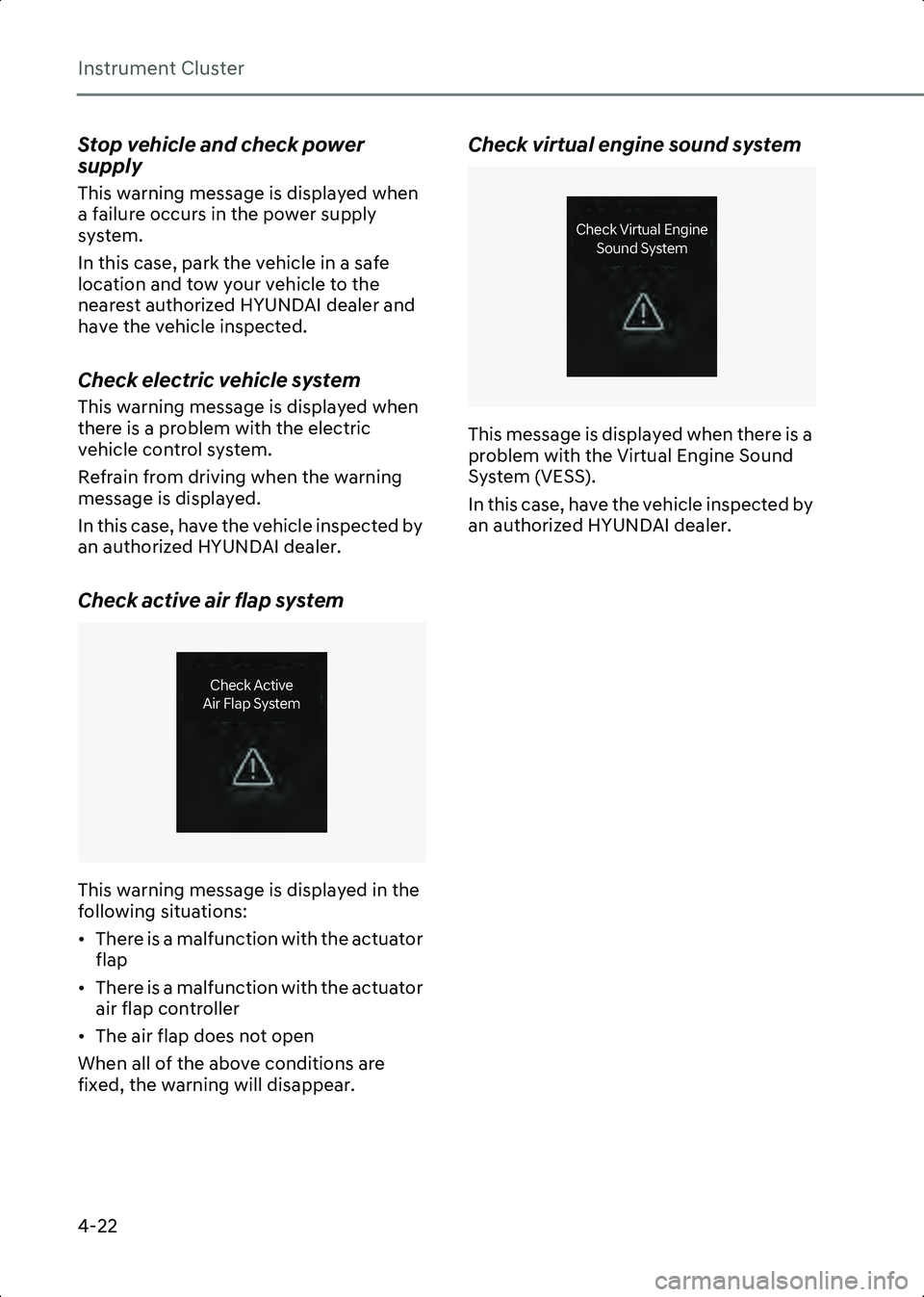

Instrument Cluster
4-22
Stop vehicle and check power
supply
This warning message is displayed when
a failure occurs in the power supply
system.
In this case, park the vehicle in a safe
location and tow your vehicle to the
nearest authorized HYUNDAI dealer and
have the vehicle inspected.
Check electric vehicle system
This warning message is displayed when
there is a problem with the electric
vehicle control system.
Refrain from driving when the warning
message is displayed.
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
Check active air flap system
OOSEV040510L
This warning message is displayed in the
following situations:
• There is a malfunction with the actuator flap
• There is a malfunction with the actuator air flap controller
• The air flap does not open
When all of the above conditions are
fixed, the warning will disappear.
Check virtual engine sound system
OOSEV040512L
This message is displayed when there is a
problem with the Virtual Engine Sound
System (VESS).
In this case, have the vehicle inspected by
an authorized HYUNDAI dealer.
$ I F D L " D U J W F
" J S ' M B Q 4 Z T U F N
$ I F D L 7 J S U V B M & O H J O F 4 P V O E 4 Z T U F N
Hyundai_CE_en_US.book Page 22
Page 173 of 582
4
4-23

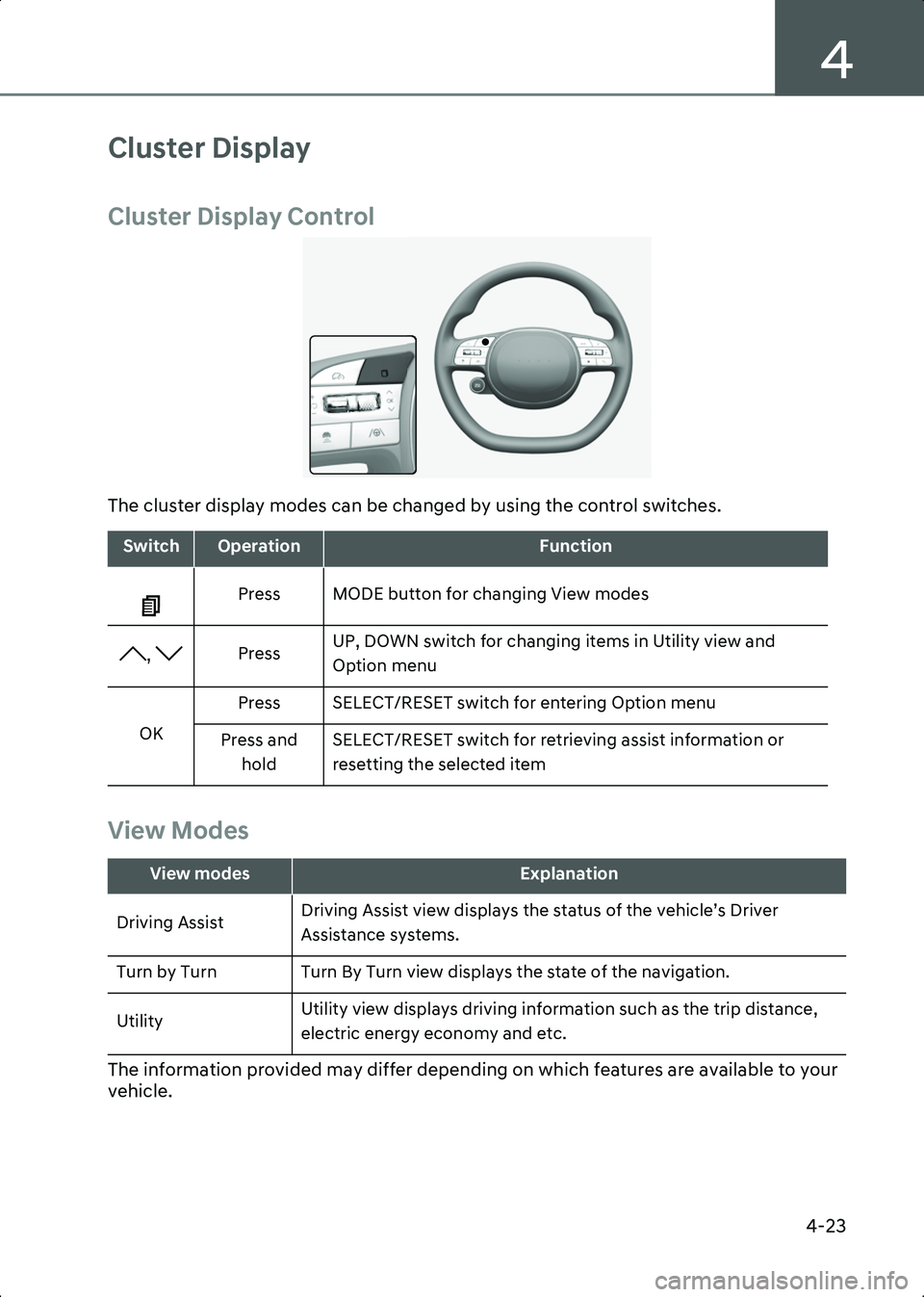

Cluster Display
Cluster Display Control
B4000701
The cluster display modes can be changed by using the control switches.
View Modes
The information provided may differ depending on which features are available to your
vehicle.
SwitchOperationFunction
Press MODE button for changing View modes
, Press UP, DOWN switch for changing items in Utility view and
Option menu
OK Press SELECT/RESET switch for entering Option menu
Press and hold SELECT/RESET switch for retrieving assist information or
resetting the selected item
View modesExplanation
Driving Assist Driving Assist view displays the status of the vehicle’s Driver
Assistance systems.
Turn by Turn Turn By Turn view displays the state of the navigation.
Utility Utility view displays driving information such as the trip distance,
electric energy economy and etc.
Hyundai_CE_en_US.book Page 23
Page 174 of 582

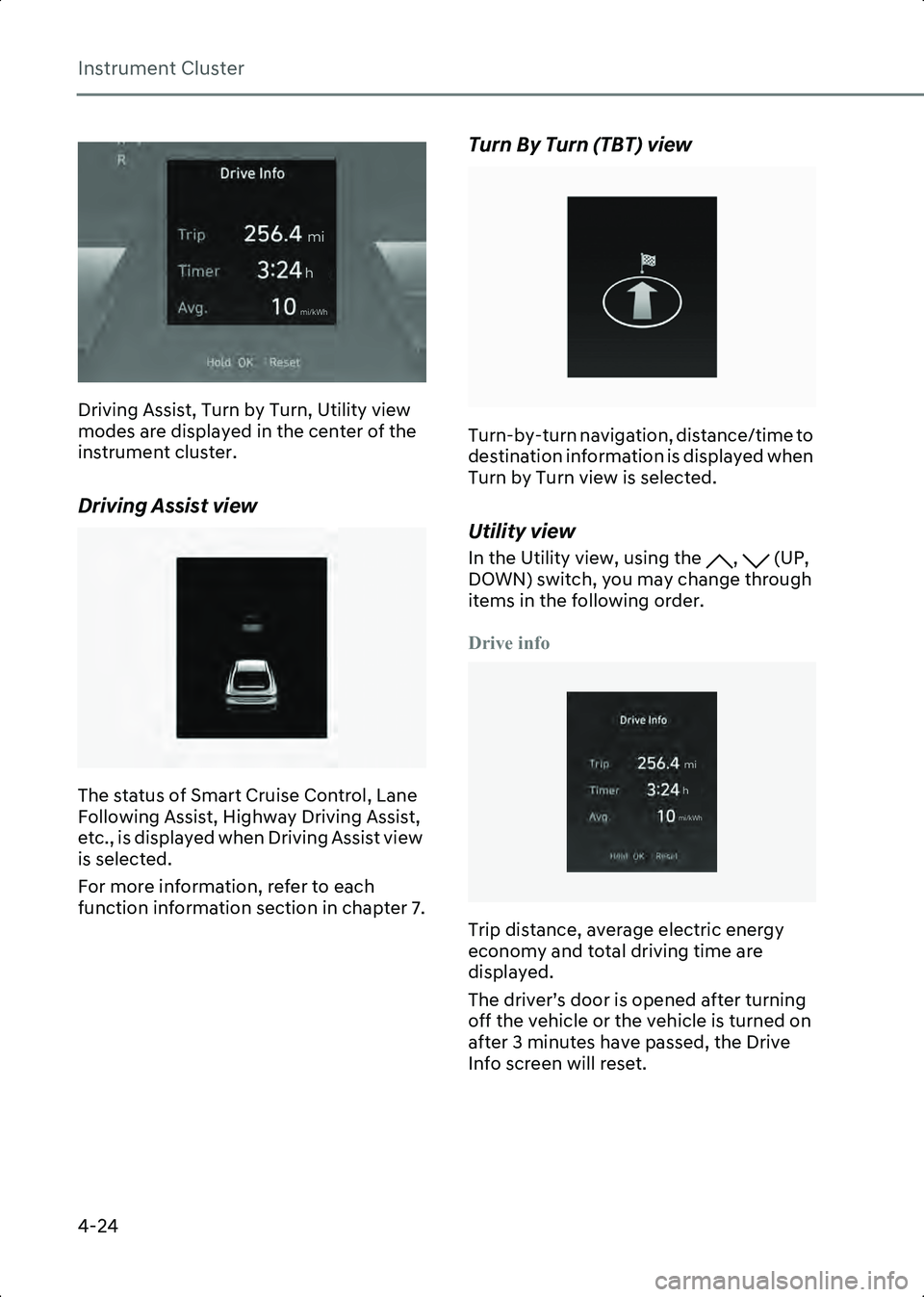

Instrument Cluster
4-24
ONE1041019L
Driving Assist, Turn by Turn, Utility view
modes are displayed in the center of the
instrument cluster.
Driving Assist view
B4000902
The status of Smart Cruise Control, Lane
Following Assist, Highway Driving Assist,
etc., is displayed when Driving Assist view
is selected.
For more information, refer to each
function information section in chapter 7.
Turn By Turn (TBT) view
B4000903
Turn-by-turn navigation, distance/time to
destination information is displayed when
Turn by Turn view is selected.
Utility view
In the Utility view, using the , (UP, DOWN) switch, you may change through
items in the following order.
Drive info
ONE1041047L_1
Trip distance, average electric energy
economy and total driving time are
displayed.
The driver’s door is opened after turning
off the vehicle or the vehicle is turned on
after 3 minutes have passed, the Drive
Info screen will reset.
N J
I
N J L 8 I
N J
I
N J L 8 I
Hyundai_CE_en_US.book Page 24
Page 175 of 582
4
4-25
After Recharging
ONE1041062L
Trip distance, total driving time and
average energy consumption after the
vehicle has been recharged are displayed.
To reset manually, press the OK button on
the steering wheel for more than 1 second
when ‘After Recharging’ is displayed.
Accumulated info
ONE1041046L
This display shows the accumulated trip
distance (1), the average energy
consumption (2), and the total driving
time (3).
The information is accumulated starting
from the last reset.
To manually reset the information, press
and hold the OK button when viewing the
Accumulated driving info. The trip
distance, the average energy
consumption, and total driving time will
reset simultaneously.
The accumulated driving information will
continue to be counted while the vehicle
is on ( indicator is on) (for example, when the vehicle is in traffic or stopped at
a stop light).
Information The vehicle must be driven for a minimum of
0.19 mi. (300 m) since the last ignition key
cycle before the accumulated driving
information is recalculated.
Tire pressure
ONE1041010L
The tire pressure of each tire is displayed.
For more information, refer to the “Tire
Pressure Monitoring System (TPMS)”
section in chapter 8.
if equipped
Energy flow/Driving force distribution
B4000909
• The electric vehicle system informs the
drivers its energy flow in various
operating modes.
• The distribution status of the driving power of the front and rear wheels are
N J
I
N J L 8 I
1
2
3
N J
I
N J L 8 I
5 J S F 1 S F T T V S F
Hyundai_CE_en_US.book Page 25
Page 176 of 582

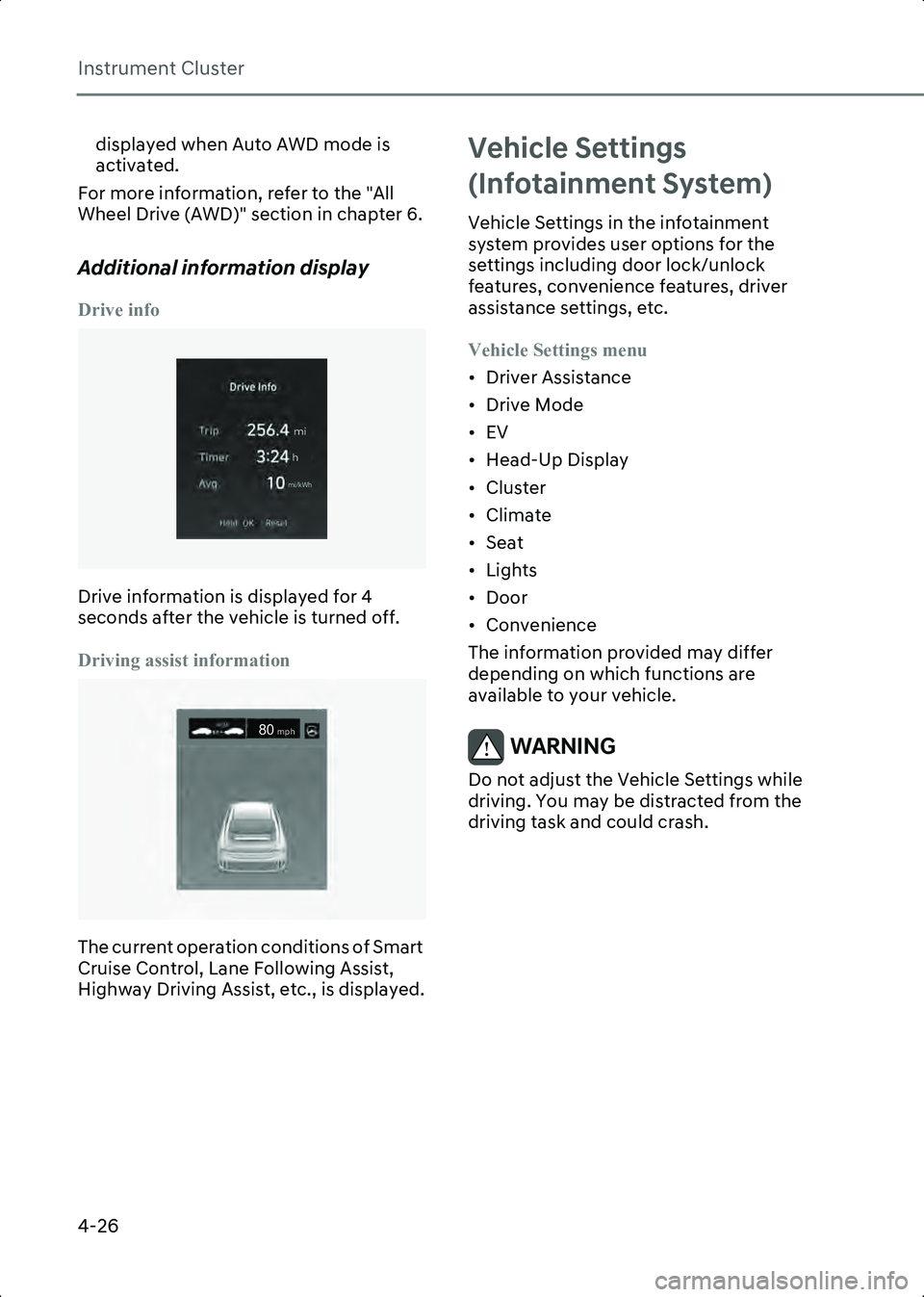

Instrument Cluster
4-26
displayed when Auto AWD mode is
activated.
For more information, refer to the "All
Wheel Drive (AWD)" section in chapter 6.
Additional information display
Drive info
ONE1041047L_1
Drive information is displayed for 4
seconds after the vehicle is turned off.
Driving assist information
B4000911
The current operation conditions of Smart
Cruise Control, Lane Following Assist,
Highway Driving Assist, etc., is displayed.
Vehicle Settings
(Infotainment System)
Vehicle Settings in the infotainment
system provides user options for the
settings including door lock/unlock
features, convenience features, driver
assistance settings, etc.
Vehicle Settings menu
• Driver Assistance
• Drive Mode
• EV
• Head-Up Display
• Cluster
• Climate
• Seat
• Lights
• Door
• Convenience
The information provided may differ
depending on which functions are
available to your vehicle.
WARNING Do not adjust the Vehicle Settings while
driving. You may be distracted from the
driving task and could crash.
N J
I
N J L 8 I
80 N Q I
Hyundai_CE_en_US.book Page 26
Page 177 of 582
4
4-27

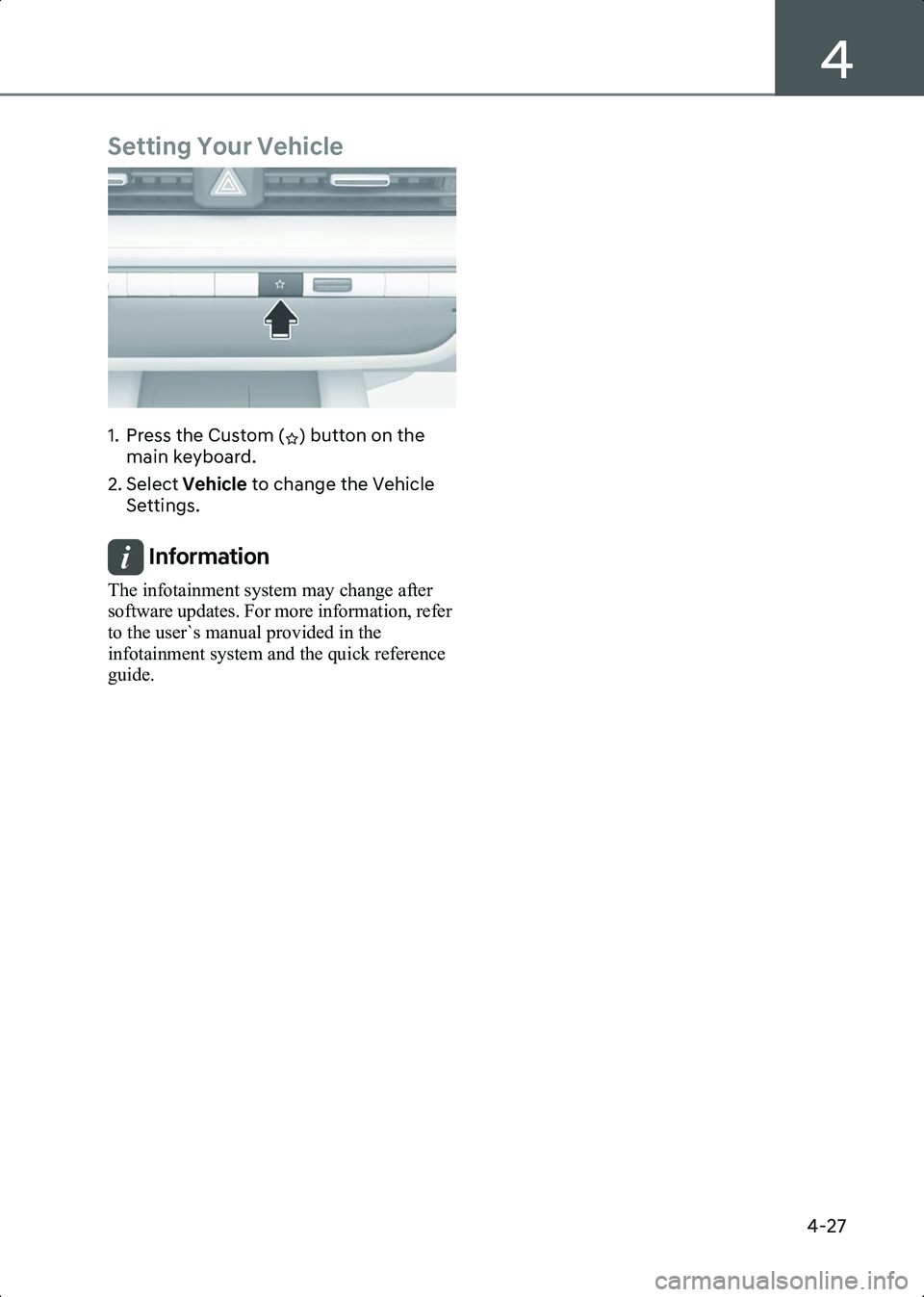

Setting Your Vehicle
B4001701
1. Press the Custom ( ) button on the main keyboard.
2. Select Vehicle to change the Vehicle
Settings.
Information The infotainment system may change after
software updates. For more information, refer
to the user`s manual provided in the
infotainment system and the quick reference
guide.
Hyundai_CE_en_US.book Page 27
Page 178 of 582
Hyundai_CE_en_US.book Page 28
Page 179 of 582

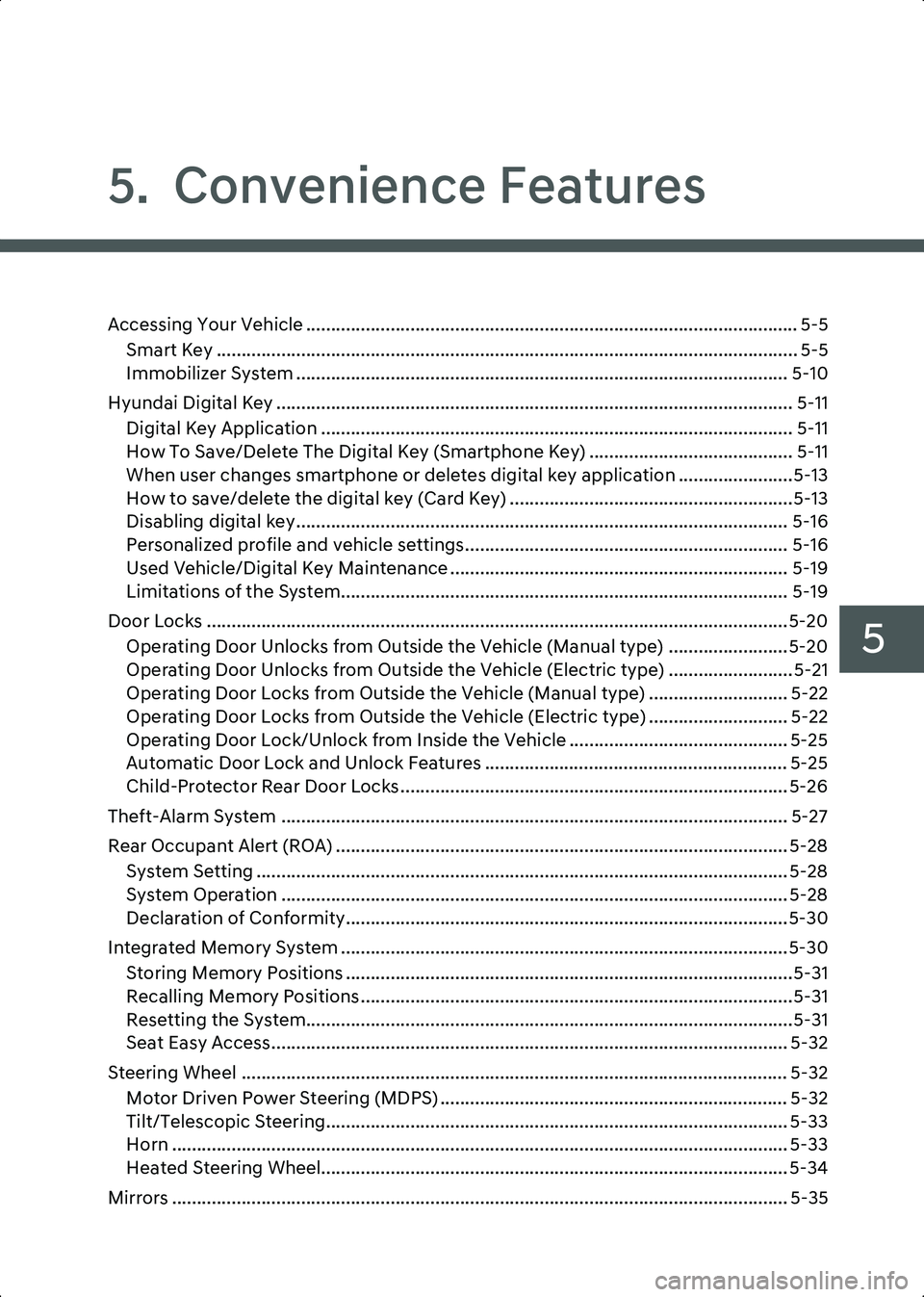

5
5. Convenience Features
Accessing Your Vehicle ................................................................................................... 5-5Smart Key ..................................................................................................................... 5-5
Immobilizer System ................................................................................................... 5-10
Hyundai Digital Key ........................................................................................................ 5-11 Digital Key Application ............................................................................................... 5-11
How To Save/Delete The Digital Key (Smartphone Key) ......................................... 5-11
When user changes smartphone or deletes digital key application .......................5-13
How to save/delete the digital key (Card Key) .........................................................5-13
Disabling digital key................................................................................................... 5-16
Personalized profile and vehicle settings................................................................. 5-16
Used Vehicle/Digital Key Maintenance .................................................................... 5-19
Limitations of the System.......................................................................................... 5-19
Door Locks ..................................................................................................................... 5-20 Operating Door Unlocks from Outside the Vehicle (Manual type) ........................ 5-20
Operating Door Unlocks from Outside the Vehicle (Electric type) ......................... 5-21
Operating Door Locks from Outside the Vehicle (Manual type) ............................ 5-22
Operating Door Locks from Outside the Vehicle (Electric type) ............................ 5-22
Operating Door Lock/Unlock from Inside the Vehicle ............................................ 5-25
Automatic Door Lock and Unlock Features ............................................................. 5-25
Child-Protector Rear Door Locks .............................................................................. 5-26
Theft-Alarm System ...................................................................................................... 5-27
Rear Occupant Alert (ROA) ........................................................................................... 5-28 System Setting ........................................................................................................... 5-28
System Operation ...................................................................................................... 5-28
Declaration of Conformity......................................................................................... 5-30
Integrated Memory System ..........................................................................................5-30 Storing Memory Positions ..........................................................................................5-31
Recalling Memory Positions.......................................................................................5-31
Resetting the System..................................................................................................5-31
Seat Easy Access ........................................................................................................ 5-32
Steering Wheel .............................................................................................................. 5-32 Motor Driven Power Steering (MDPS) ...................................................................... 5-32
Tilt/Telescopic Steering............................................................................................. 5-33
Horn ............................................................................................................................ 5-33
Heated Steering Wheel.............................................................................................. 5-34
Mirrors ............................................................................................................................ 5-35
Hyundai_CE_en_US.book Page 1

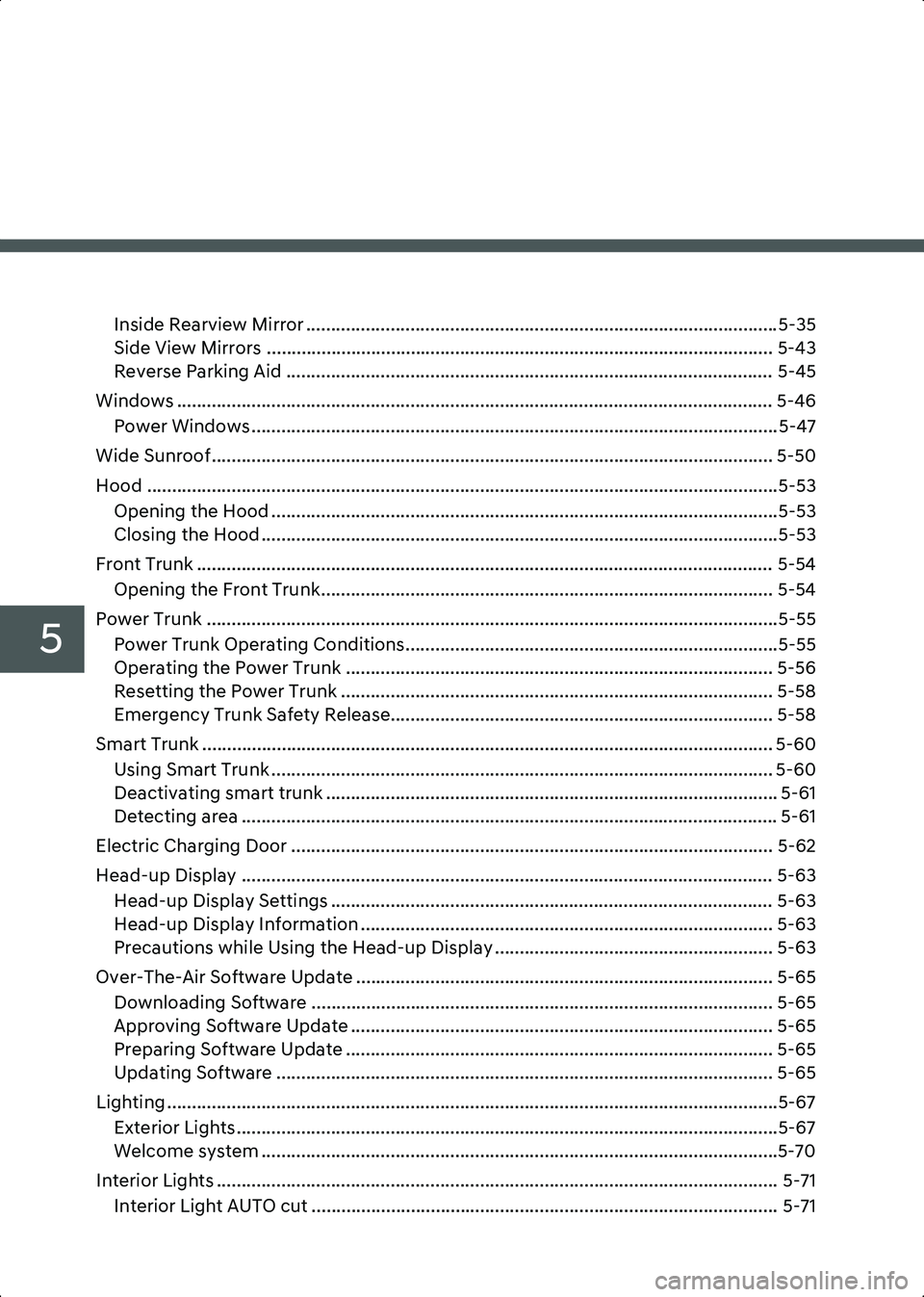

Page 180 of 582
5
Inside Rearview Mirror ...............................................................................................5-35
Side View Mirrors ...................................................................................................... 5-43
Reverse Parking Aid .................................................................................................. 5-45
Windows ........................................................................................................................ 5-46 Power Windows .......................................................................................................... 5-47
Wide Sunroof................................................................................................................. 5-50
Hood ...............................................................................................................................5-53 Opening the Hood ......................................................................................................5-53
Closing the Hood ........................................................................................................5-53
Front Trunk .................................................................................................................... 5-54 Opening the Front Trunk........................................................................................... 5-54
Power Trunk ...................................................................................................................5-55 Power Trunk Operating Conditions...........................................................................5-55
Operating the Power Trunk ...................................................................................... 5-56Resetting the Power Trunk ....................................................................................... 5-58
Emergency Trunk Safety Release............................................................................. 5-58
Smart Trunk ................................................................................................................... 5-60 Using Smart Trunk ..................................................................................................... 5-60
Deactivating smart trunk ........................................................................................... 5-61
Detecting area ............................................................................................................ 5-61
Electric Charging Door ................................................................................................. 5-62
Head-up Display ........................................................................................................... 5-63 Head-up Display Settings ......................................................................................... 5-63
Head-up Display Information ................................................................................... 5-63
Precautions while Using the Head-up Display ........................................................ 5-63
Over-The-Air Software Update .................................................................................... 5-65 Downloading Software ............................................................................................. 5-65
Approving Software Update ..................................................................................... 5-65
Preparing Software Update ...................................................................................... 5-65Updating Software .................................................................................................... 5-65
Lighting ...........................................................................................................................5-67 Exterior Lights ............................................................................................................. 5-67
Welcome system ........................................................................................................5-70
Interior Lights ................................................................................................................. 5-71 Interior Light AUTO cut .............................................................................................. 5-71
Hyundai_CE_en_US.book Page 2
