HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 181 of 582
5

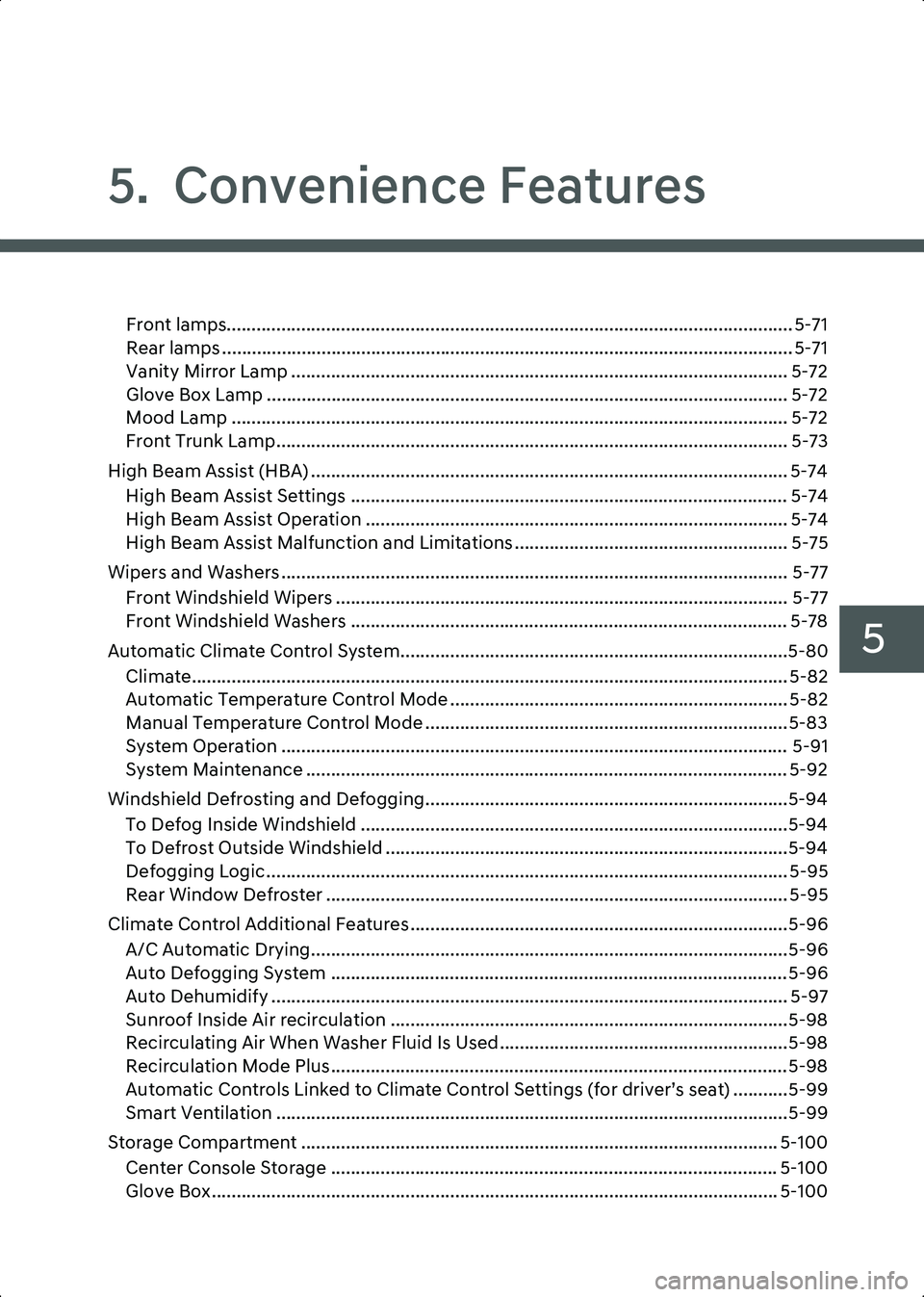

5. Convenience Features
Front lamps.................................................................................................................. 5-71
Rear lamps ................................................................................................................... 5-71
Vanity Mirror Lamp .................................................................................................... 5-72
Glove Box Lamp ......................................................................................................... 5-72
Mood Lamp ................................................................................................................ 5-72
Front Trunk Lamp....................................................................................................... 5-73
High Beam Assist (HBA) ................................................................................................ 5-74 High Beam Assist Settings ........................................................................................ 5-74
High Beam Assist Operation ..................................................................................... 5-74
High Beam Assist Malfunction and Limitations ....................................................... 5-75
Wipers and Washers ...................................................................................................... 5-77 Front Windshield Wipers ........................................................................................... 5-77
Front Windshield Washers ........................................................................................ 5-78
Automatic Climate Control System..............................................................................5-80 Climate........................................................................................................................ 5-82
Automatic Temperature Control Mode .................................................................... 5-82
Manual Temperature Control Mode ......................................................................... 5-83
System Operation ...................................................................................................... 5-91
System Maintenance ................................................................................................. 5-92
Windshield Defrosting and Defogging.........................................................................5-94 To Defog Inside Windshield ......................................................................................5-94To Defrost Outside Windshield .................................................................................5-94
Defogging Logic......................................................................................................... 5-95
Rear Window Defroster ............................................................................................. 5-95
Climate Control Additional Features ............................................................................5-96 A/C Automatic Drying................................................................................................5-96
Auto Defogging System ............................................................................................5-96
Auto Dehumidify ........................................................................................................ 5-97
Sunroof Inside Air recirculation ................................................................................5-98
Recirculating Air When Washer Fluid Is Used..........................................................5-98
Recirculation Mode Plus............................................................................................5-98
Automatic Controls Linked to Climate Control Settings (for driver’s seat) ...........5-99
Smart Ventilation .......................................................................................................5-99
Storage Compartment ................................................................................................ 5-100 Center Console Storage .......................................................................................... 5-100
Glove Box.................................................................................................................. 5-100
Hyundai_CE_en_US.book Page 3
Page 182 of 582
5

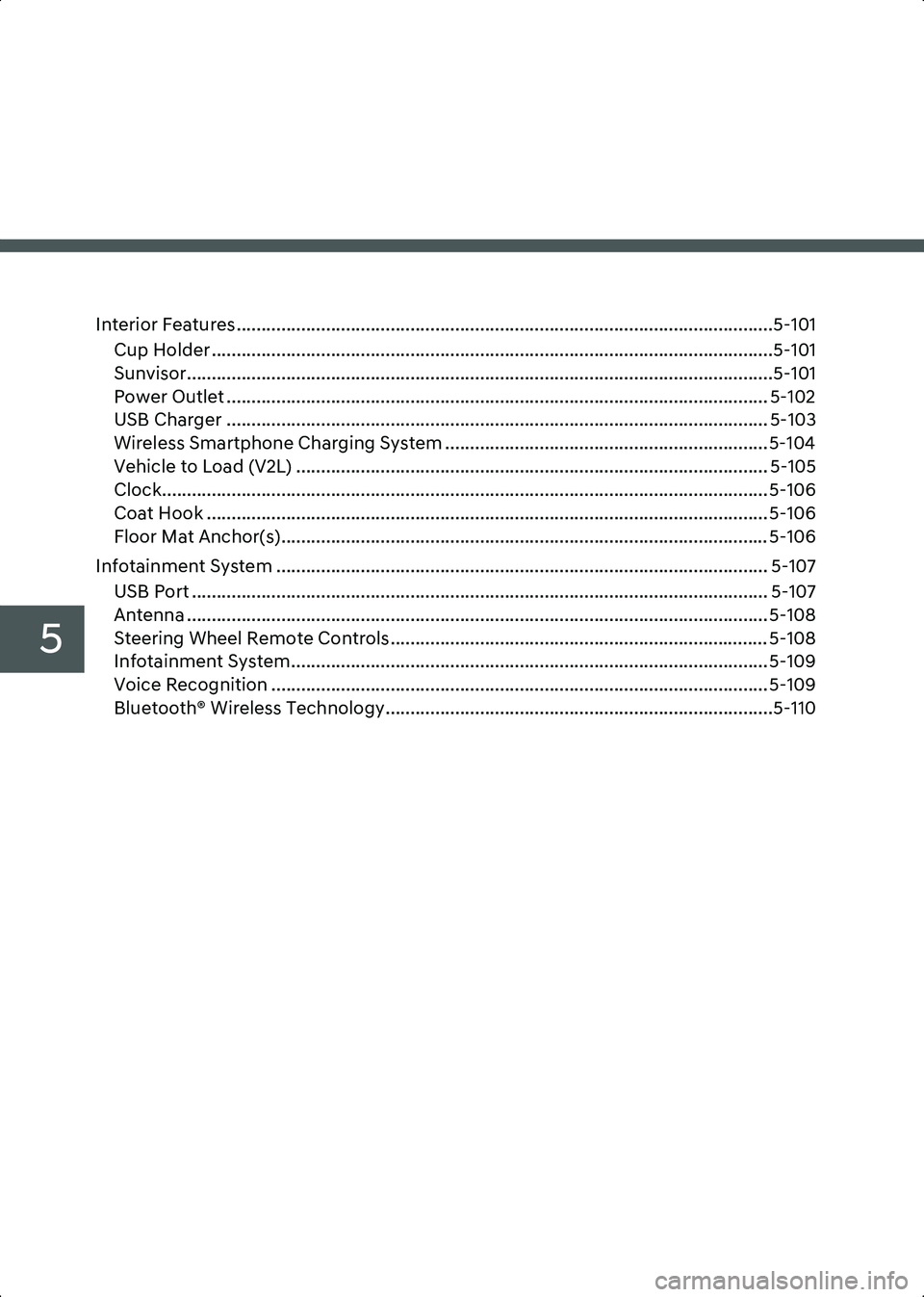

Interior Features............................................................................................................5-101Cup Holder .................................................................................................................5-101
Sunvisor......................................................................................................................5-101
Power Outlet ............................................................................................................. 5-102
USB Charger ............................................................................................................. 5-103
Wireless Smartphone Charging System ................................................................. 5-104
Vehicle to Load (V2L) ............................................................................................... 5-105
Clock.......................................................................................................................... 5-106
Coat Hook ................................................................................................................. 5-106
Floor Mat Anchor(s).................................................................................................. 5-106
Infotainment System ................................................................................................... 5-107 USB Port .................................................................................................................... 5-107
Antenna ..................................................................................................................... 5-108
Steering Wheel Remote Controls ............................................................................ 5-108
Infotainment System................................................................................................ 5-109
Voice Recognition .................................................................................................... 5-109
Bluetooth® Wireless Technology..............................................................................5-110
Hyundai_CE_en_US.book Page 4
Page 183 of 582
5
5-5

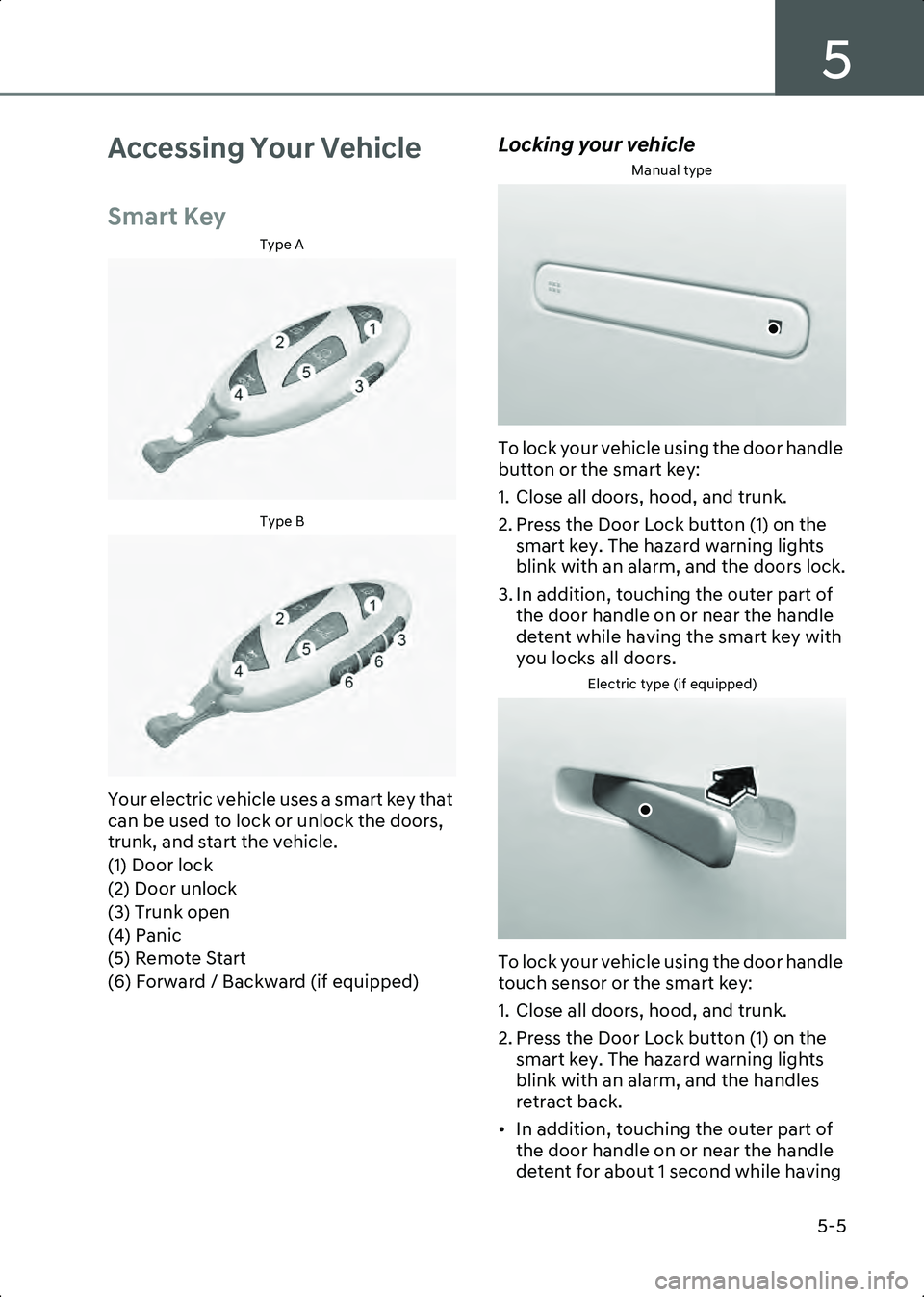

Accessing Your Vehicle
Smart Key
Type A
B5000201Type B
B5000202
Your electric vehicle uses a smart key that
can be used to lock or unlock the doors,
trunk, and start the vehicle.
(1) Door lock
(2) Door unlock
(3) Trunk open
(4) Panic
(5) Remote Start
(6) Forward / Backward (if equipped)
Locking your vehicle
Manual type
B5000203
To lock your vehicle using the door handle
button or the smart key:
1. Close all doors, hood, and trunk.
2. Press the Door Lock button (1) on the smart key. The hazard warning lights
blink with an alarm, and the doors lock.
3. In addition, touching the outer part of the door handle on or near the handle
detent while having the smart key with
you locks all doors.
Electric type (if equipped)
B5000203_1
To lock your vehicle using the door handle
touch sensor or the smart key:
1. Close all doors, hood, and trunk.
2. Press the Door Lock button (1) on the smart key. The hazard warning lights
blink with an alarm, and the handles
retract back.
• In addition, touching the outer part of the door handle on or near the handle
detent for about 1 second while having
Hyundai_CE_en_US.book Page 5
Page 184 of 582
Convenience Features
5-6
smart key with you locks all doors and
let the door handle to retract back.
Information • The side view mirror will fold if ‘Enable on
Door Unlock’ is selected from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Lights > Welcome
Mirror/Light > Enable on Door Unlock .
• The door handle touch sensor operates when the smart key is within 28-40 in.
(0.7-1 m) from the outside door handle.
• If you lock the doors using the door handle touch sensor, the doors are not locked under
the following circumstances:
- The smart key is in the vehicle.
- The Start/Stop button is from ACC or ON position.
- Any door is open (except for the trunk).
• If this occurs, a chime sounds for about 3 seconds. Check the vehicle before
attempting to lock the vehicle again.
WARNING Do not leave the smart key in your vehicle
with children that are unattended or
unsupervised.
Children could unintentionally press the
Start/Stop button or could operate the
power windows or other vehicle controls
or even cause the vehicle to move. This
may result in serious injury or death.
Information • To fold/unfold the side view mirror simultaneously when the door is
locked/unlocked, select Setup > Vehicle >
Lights > Welcome Mirror/Light >
Enable on Door Unlock in the
infotainment system.
• The door handle button will only operate when the smart key is within 28-40 in. (0.7-1 m) from the outside door handle.
Other people can also open the doors
without the smart key in possession.
• After unlocking the doors, the doors will lock automatically after 30 seconds unless a
door is opened.
The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.
Unlocking your vehicle
Manual type
B5000204
To unlock your vehicle using the door
handle button or the smart key:
1. Have the smart key with you.
2. Pushing the button on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All doors handles will be unlocked
and the hazard warning lights will blink
twice.
3. After unlocking the doors, the doors will automatically re-lock after 30 seconds
unless a door is opened.
Hyundai_CE_en_US.book Page 6
Page 185 of 582
5
5-7

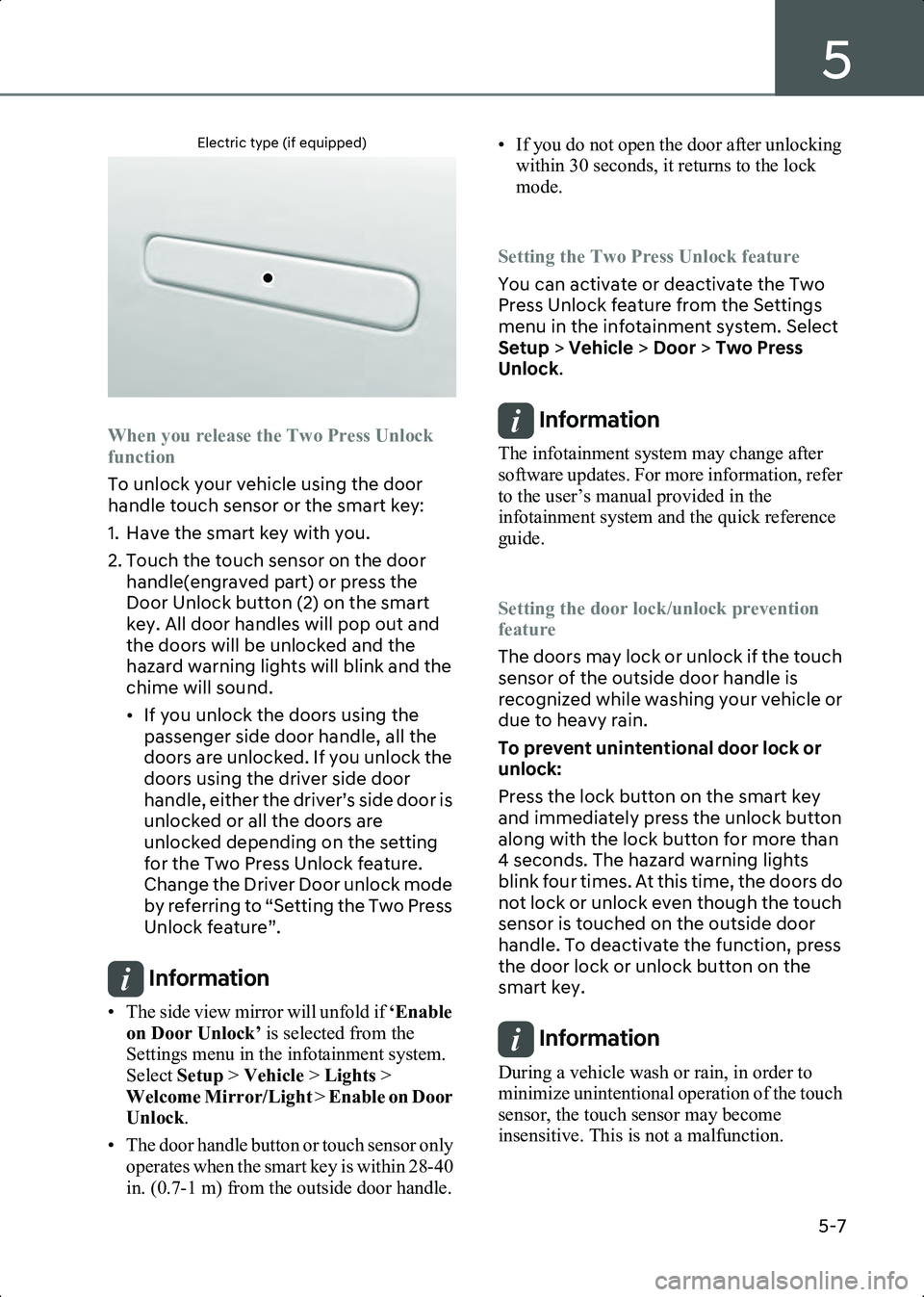

Electric type (if equipped)
B5002804
When you release the Two Press Unlock
function
To unlock your vehicle using the door
handle touch sensor or the smart key:
1. Have the smart key with you.
2. Touch the touch sensor on the door handle(engraved part) or press the
Door Unlock button (2) on the smart
key. All door handles will pop out and
the doors will be unlocked and the
hazard warning lights will blink and the
chime will sound.
• If you unlock the doors using the passenger side door handle, all the
doors are unlocked. If you unlock the
doors using the driver side door
handle, either the driver’s side door is
unlocked or all the doors are
unlocked depending on the setting
for the Two Press Unlock feature.
Change the Driver Door unlock mode
by referring to “Setting the Two Press
Unlock feature”.
Information • The side view mirror will unfold if ‘Enable
on Door Unlock’ is selected from the
Settings menu in the infotainment system.
Select Setup > Vehicle > Lights >
Welcome Mirror/Light > Enable on Door
Unlock .
• The door handle button or touch sensor only operates when the smart key is within 28-40
in. (0.7-1 m) from the outside door handle. • If you do not open the door after unlocking
within 30 seconds, it returns to the lock
mode.
Setting the Two Press Unlock feature
You can activate or deactivate the Two
Press Unlock feature from the Settings
menu in the infotainment system. Select
Setup > Vehicle > Door > Two Press
Unlock .
Information The infotainment system may change after
software updates. For more information, refer
to the user’s manual provided in the
infotainment system and the quick reference
guide.
Setting the door lock/unlock prevention
feature
The doors may lock or unlock if the touch
sensor of the outside door handle is
recognized while washing your vehicle or
due to heavy rain.
To prevent unintentional door lock or
unlock:
Press the lock button on the smart key
and immediately press the unlock button
along with the lock button for more than
4 seconds. The hazard warning lights
blink four times. At this time, the doors do
not lock or unlock even though the touch
sensor is touched on the outside door
handle. To deactivate the function, press
the door lock or unlock button on the
smart key.
Information During a vehicle wash or rain, in order to
minimize unintentional operation of the touch
sensor, the touch sensor may become
insensitive. This is not a malfunction.
Hyundai_CE_en_US.book Page 7
Page 186 of 582
Convenience Features
5-8

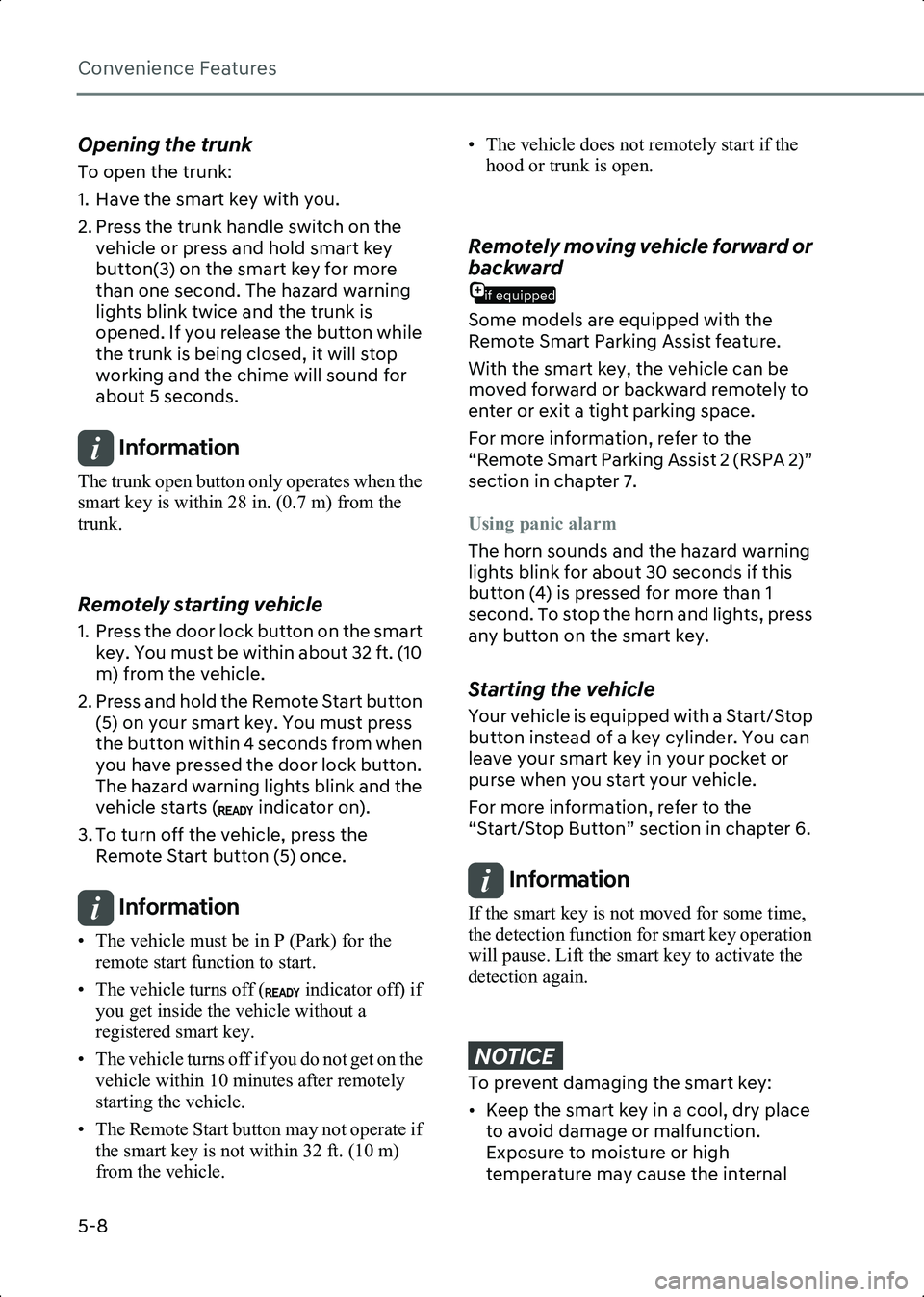

Opening the trunk
To open the trunk:
1. Have the smart key with you.
2. Press the trunk handle switch on the vehicle or press and hold smart key
button(3) on the smart key for more
than one second. The hazard warning
lights blink twice and the trunk is
opened. If you release the button while
the trunk is being closed, it will stop
working and the chime will sound for
about 5 seconds.
Information The trunk open button only operates when the
smart key is within 28 in. (0.7 m) from the
trunk.
Remotely starting vehicle
1. Press the door lock button on the smart key. You must be within about 32 ft. (10
m) from the vehicle.
2. Press and hold the Remote Start button (5) on your smart key. You must press
the button within 4 seconds from when
you have pressed the door lock button.
The hazard warning lights blink and the
vehicle starts ( indicator on).
3. To turn off the vehicle, press the Remote Start button (5) once.
Information • The vehicle must be in P (Park) for the remote start function to start.
• The vehicle turns off ( indicator off) if you get inside the vehicle without a
registered smart key.
• The vehicle turns off if you do not get on the vehicle within 10 minutes after remotely
starting the vehicle.
• The Remote Start button may not operate if the smart key is not within 32 ft. (10 m)
from the vehicle. • The vehicle does not remotely start if the
hood or trunk is open.
Remotely moving vehicle forward or
if equipped
backward
Some models are equipped with the
Remote Smart Parking Assist feature.
With the smart key, the vehicle can be
moved forward or backward remotely to
enter or exit a tight parking space.
For more information, refer to the
“Remote Smart Parking Assist 2 (RSPA 2)”
section in chapter 7.
Using panic alarm
The horn sounds and the hazard warning
lights blink for about 30 seconds if this
button (4) is pressed for more than 1
second. To stop the horn and lights, press
any button on the smart key.
Starting the vehicle
Your vehicle is equipped with a Start/Stop
button instead of a key cylinder. You can
leave your smart key in your pocket or
purse when you start your vehicle.
For more information, refer to the
“Start/Stop Button” section in chapter 6.
Information If the smart key is not moved for some time,
the detection function for smart key operation
will pause. Lift the smart key to activate the
detection again.
NOTICE 7 R S U H Y H Q W G D P D J L Q J W K H V P D U W N H \
[ . H H S W K H V P D U W N H \ L Q D F R R O G U \ S O D F H W R D Y R L G G D P D J H R U P D O I X Q F W L R Q
( [ S R V X U H W R P R L V W X U H R U K L J K
W H P S H U D W X U H P D \ F D X V H W K H L Q W H U Q D O
Hyundai_CE_en_US.book Page 8
Page 187 of 582

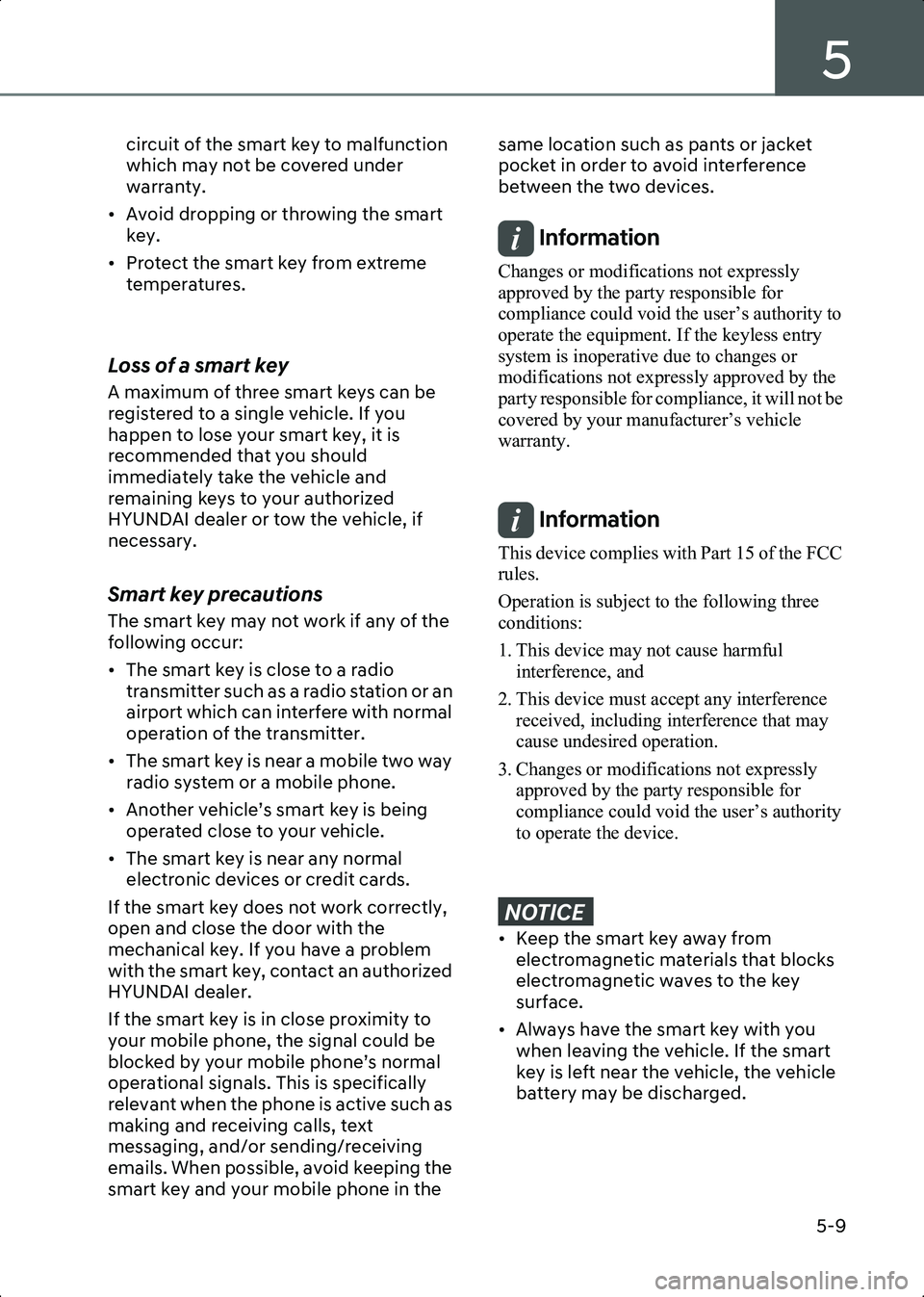

5
5-9
circuit of the smart key to malfunction
which may not be covered under
warranty.
• Avoid dropping or throwing the smart key.
• Protect the smart key from extreme temperatures.
Loss of a smart key
A maximum of three smart keys can be
registered to a single vehicle. If you
happen to lose your smart key, it is
recommended that you should
immediately take the vehicle and
remaining keys to your authorized
HYUNDAI dealer or tow the vehicle, if
necessary.
Smart key precautions
The smart key may not work if any of the
following occur:
• The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
• The smart key is near a mobile two way radio system or a mobile phone.
• Another vehicle’s smart key is being operated close to your vehicle.
• The smart key is near any normal electronic devices or credit cards.
If the smart key does not work correctly,
open and close the door with the
mechanical key. If you have a problem
with the smart key, contact an authorized
HYUNDAI dealer.
If the smart key is in close proximity to
your mobile phone, the signal could be
blocked by your mobile phone’s normal
operational signals. This is specifically
relevant when the phone is active such as
making and receiving calls, text
messaging, and/or sending/receiving
emails. When possible, avoid keeping the
smart key and your mobile phone in the same location such as pants or jacket
pocket in order to avoid interference
between the two devices.
Information Changes or modifications not expressly
approved by the party responsible for
compliance could void the user’s authority to
operate the equipment. If the keyless entry
system is inoperative due to changes or
modifications not expressly approved by the
party responsible for compliance, it will not be
covered by your manufacturer’s vehicle
warranty.
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful
interference, and
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device.
NOTICE [ . H H S W K H V P D U W N H \ D Z D \ I U R P H O H F W U R P D J Q H W L F P D W H U L D O V W K D W E O R F N V
H O H F W U R P D J Q H W L F Z D Y H V W R W K H N H \
V X U I D F H
[ $ O Z D \ V K D Y H W K H V P D U W N H \ Z L W K \ R X Z K H Q O H D Y L Q J W K H Y H K L F O H , I W K H V P D U W
N H \ L V O H I W Q H D U W K H Y H K L F O H W K H Y H K L F O H
E D W W H U \ P D \ E H G L V F K D U J H G
Hyundai_CE_en_US.book Page 9
Page 188 of 582

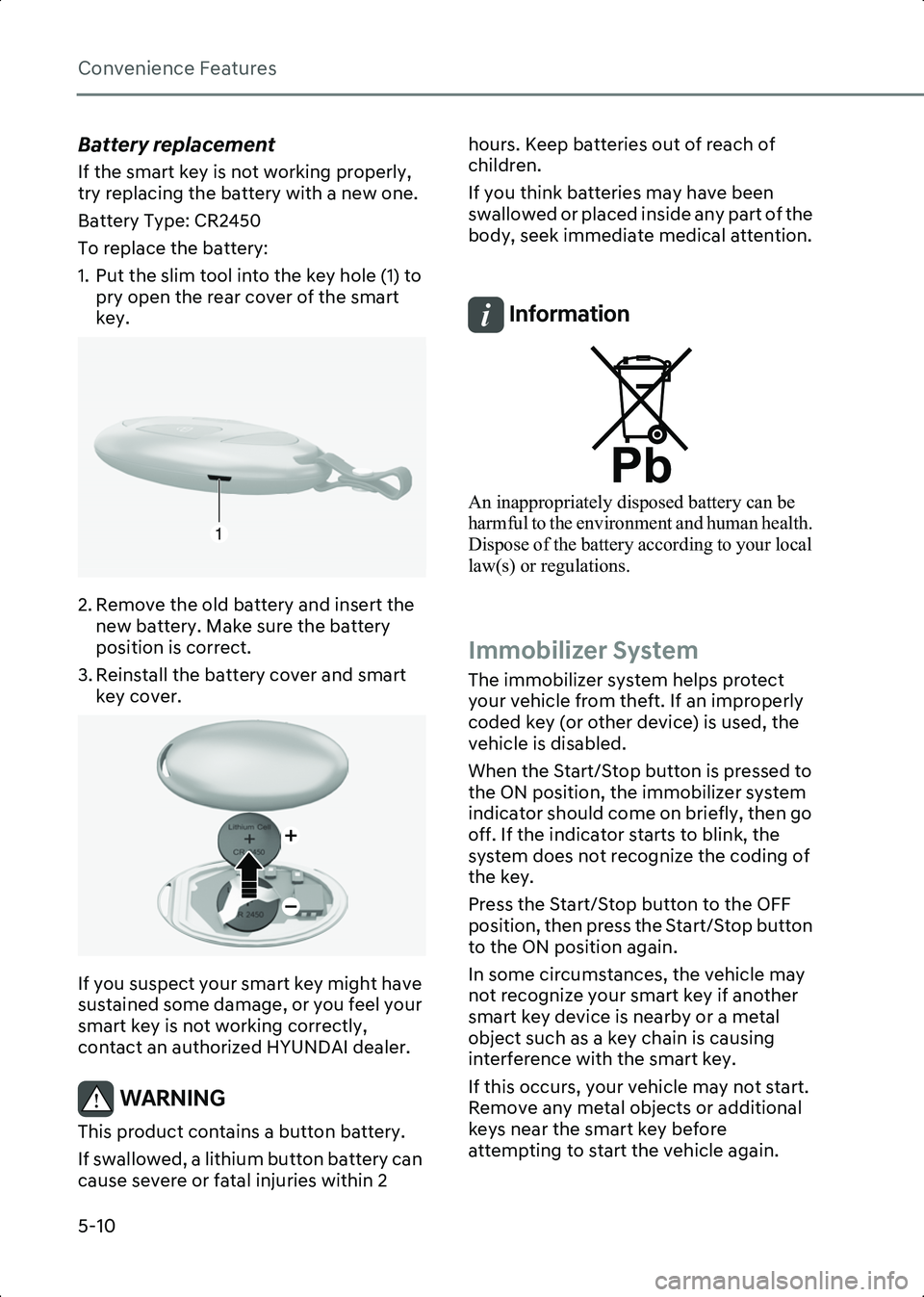

Convenience Features
5-10
Battery replacement
If the smart key is not working properly,
try replacing the battery with a new one.
Battery Type: CR2450
To replace the battery:
1. Put the slim tool into the key hole (1) to pry open the rear cover of the smart
key.
B5000401
2. Remove the old battery and insert the new battery. Make sure the battery
position is correct.
3. Reinstall the battery cover and smart key cover.
B5000402
If you suspect your smart key might have
sustained some damage, or you feel your
smart key is not working correctly,
contact an authorized HYUNDAI dealer.
WARNING This product contains a button battery.
If swallowed, a lithium button battery can
cause severe or fatal injuries within 2 hours. Keep batteries out of reach of
children.
If you think batteries may have been
swallowed or placed inside any part of the
body, seek immediate medical attention.
Information
An inappropriately disposed battery can be
harmful to the environment and human health.
Dispose of the battery according to your local
law(s) or regulations.
Immobilizer System
The immobilizer system helps protect
your vehicle from theft. If an improperly
coded key (or other device) is used, the
vehicle is disabled.
When the Start/Stop button is pressed to
the ON position, the immobilizer system
indicator should come on briefly, then go
off. If the indicator starts to blink, the
system does not recognize the coding of
the key.
Press the Start/Stop button to the OFF
position, then press the Start/Stop button
to the ON position again.
In some circumstances, the vehicle may
not recognize your smart key if another
smart key device is nearby or a metal
object such as a key chain is causing
interference with the smart key.
If this occurs, your vehicle may not start.
Remove any metal objects or additional
keys near the smart key before
attempting to start the vehicle again.
1
Hyundai_CE_en_US.book Page 10
Page 189 of 582

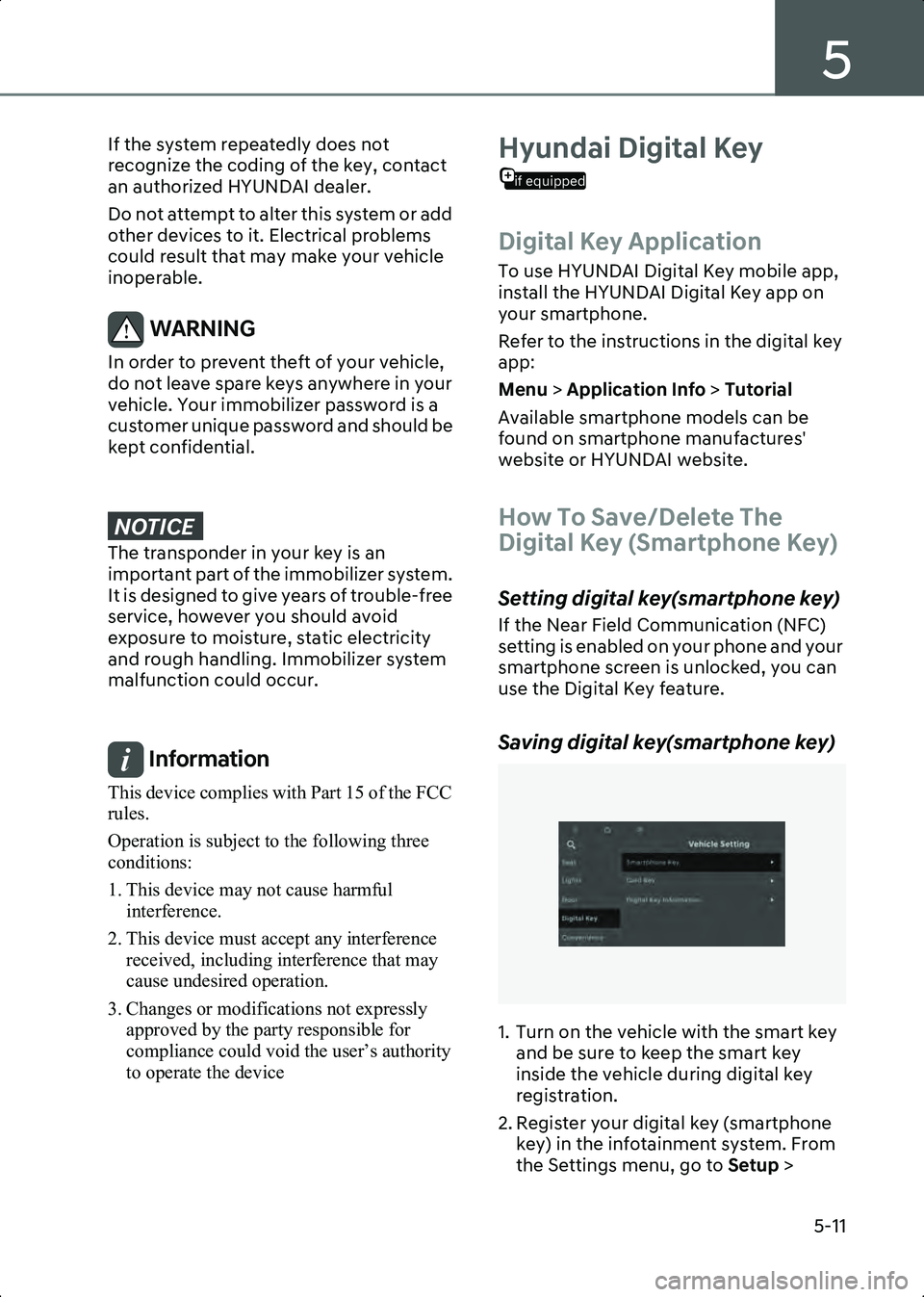

5
5-11
If the system repeatedly does not
recognize the coding of the key, contact
an authorized HYUNDAI dealer.
Do not attempt to alter this system or add
other devices to it. Electrical problems
could result that may make your vehicle
inoperable.
WARNING In order to prevent theft of your vehicle,
do not leave spare keys anywhere in your
vehicle. Your immobilizer password is a
customer unique password and should be
kept confidential.
NOTICE 7 K H W U D Q V S R Q G H U L Q \ R X U N H \ L V D Q
L P S R U W D Q W S D U W R I W K H L P P R E L O L ] H U V \ V W H P
, W L V G H V L J Q H G W R J L Y H \ H D U V R I W U R X E O H I U H H
V H U Y L F H K R Z H Y H U \ R X V K R X O G D Y R L G
H [ S R V X U H W R P R L V W X U H V W D W L F H O H F W U L F L W \
D Q G U R X J K K D Q G O L Q J , P P R E L O L ] H U V \ V W H P
P D O I X Q F W L R Q F R X O G R F F X U
Information This device complies with Part 15 of the FCC
rules.
Operation is subject to the following three
conditions:
1. This device may not cause harmful interference.
2. This device must accept any interference received, including interference that may
cause undesired operation.
3. Changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority
to operate the device
if equipped
Hyundai Digital Key
Digital Key Application
To use HYUNDAI Digital Key mobile app,
install the HYUNDAI Digital Key app on
your smartphone.
Refer to the instructions in the digital key
app:
Menu > Application Info > Tutorial
Available smartphone models can be
found on smartphone manufactures'
website or HYUNDAI website.
How To Save/Delete The
Digital Key (Smartphone Key)
Setting digital key(smartphone key)
If the Near Field Communication (NFC)
setting is enabled on your phone and your
smartphone screen is unlocked, you can
use the Digital Key feature.
Saving digital key(smartphone key)
B5026401
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during digital key
registration.
2. Register your digital key (smartphone key) in the infotainment system. From
the Settings menu, go to Setup >
Hyundai_CE_en_US.book Page 11
Page 190 of 582

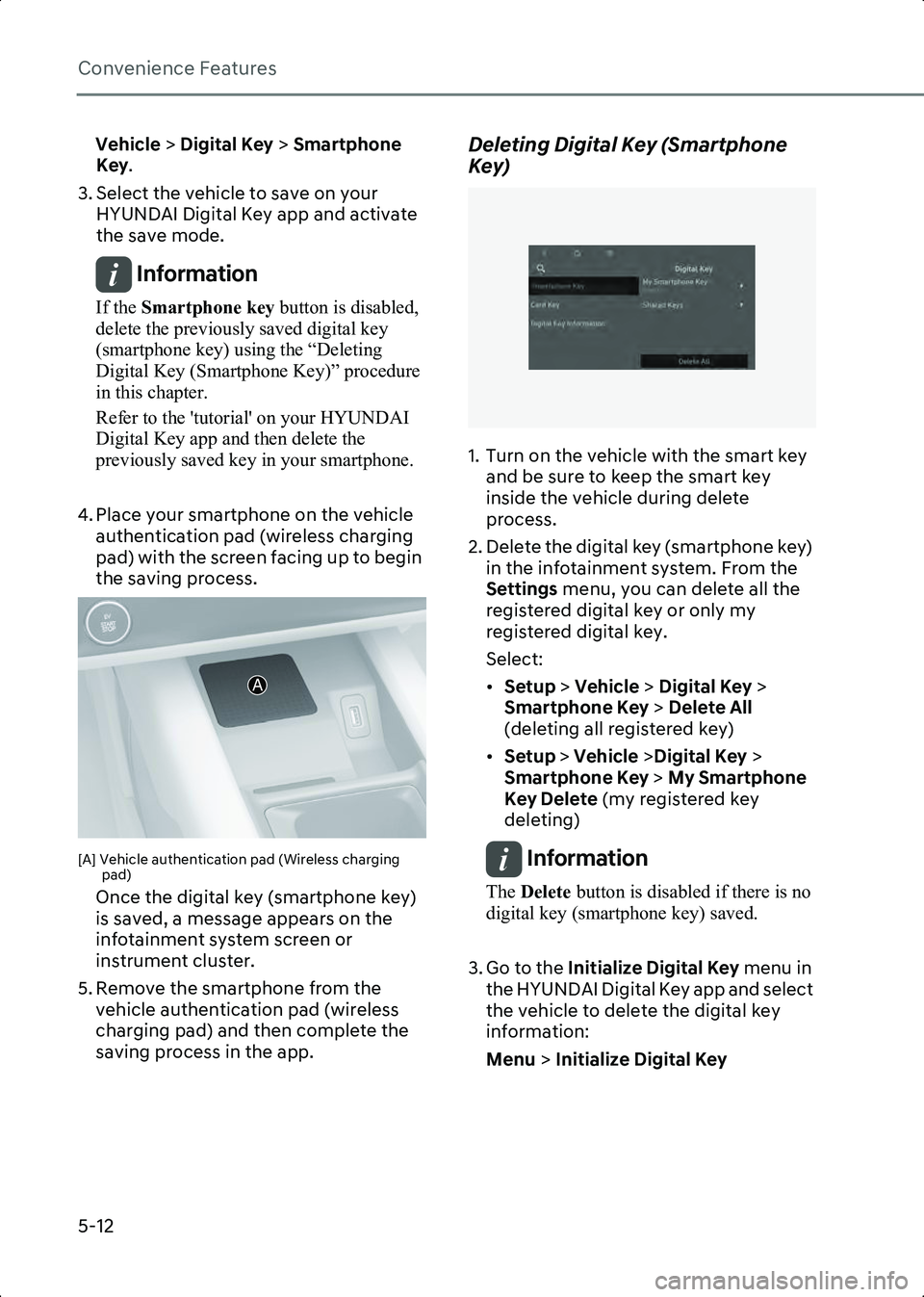

Convenience Features
5-12
Vehicle > Digital Key > Smartphone
Key .
3. Select the vehicle to save on your HYUNDAI Digital Key app and activate
the save mode.
Information If the Smartphone key button is disabled,
delete the previously saved digital key
(smartphone key) using the “Deleting
Digital Key (Smartphone Key)” procedure
in this chapter.
Refer to the 'tutorial' on your HYUNDAI
Digital Key app and then delete the
previously saved key in your smartphone.
4. Place your smartphone on the vehicle authentication pad (wireless charging
pad) with the screen facing up to begin
the saving process.
B5026502[A] Vehicle authentication pad (Wireless charging pad)
Once the digital key (smartphone key)
is saved, a message appears on the
infotainment system screen or
instrument cluster.
5. Remove the smartphone from the vehicle authentication pad (wireless
charging pad) and then complete the
saving process in the app.
Deleting Digital Key (Smartphone
Key)
B0901EU05
1. Turn on the vehicle with the smart key and be sure to keep the smart key
inside the vehicle during delete
process.
2. Delete the digital key (smartphone key) in the infotainment system. From the
Settings menu, you can delete all the
registered digital key or only my
registered digital key.
Select:
• Setup > Vehicle > Digital Key >
Smartphone Key > Delete All
(deleting all registered key)
• Setup > Vehicle >Digital Key >
Smartphone Key > My Smartphone
Key Delete (my registered key
deleting)
Information The Delete button is disabled if there is no
digital key (smartphone key) saved.
3. Go to the Initialize Digital Key menu in
the HYUNDAI Digital Key app and select
the vehicle to delete the digital key
information:
Menu > Initialize Digital Key
A
Hyundai_CE_en_US.book Page 12
