HYUNDAI IONIQ 6 2023 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2023, Model line: IONIQ 6, Model: HYUNDAI IONIQ 6 2023Pages: 582, PDF Size: 10.77 MB
Page 271 of 582
5

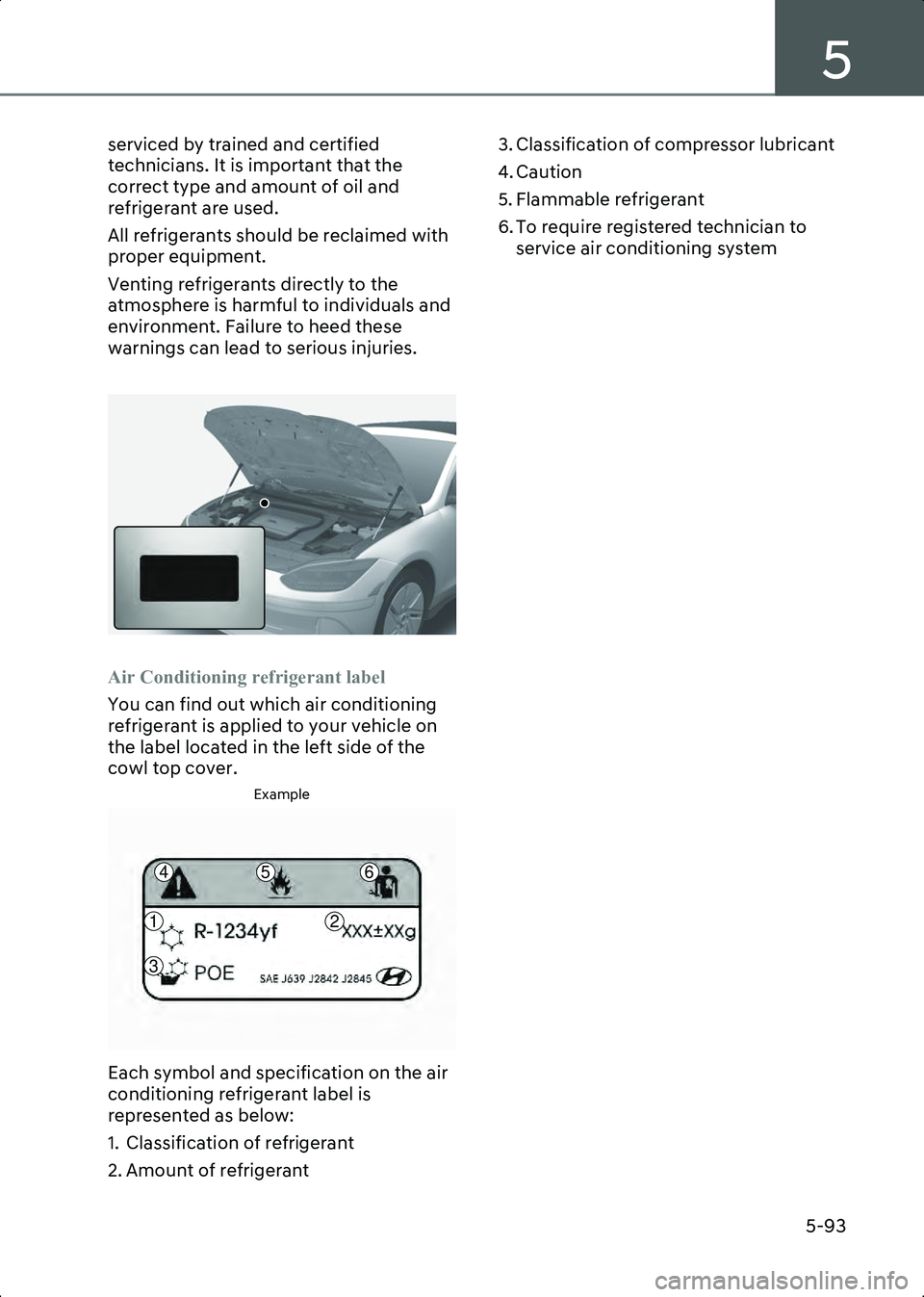

5-93
serviced by trained and certified
technicians. It is important that the
correct type and amount of oil and
refrigerant are used.
All refrigerants should be reclaimed with
proper equipment.
Venting refrigerants directly to the
atmosphere is harmful to individuals and
environment. Failure to heed these
warnings can lead to serious injuries.
B5020201
Air Conditioning refrigerant label
You can find out which air conditioning
refrigerant is applied to your vehicle on
the label located in the left side of the
cowl top cover.
Example
B5020202
Each symbol and specification on the air
conditioning refrigerant label is
represented as below:
1. Classification of refrigerant
2. Amount of refrigerant3. Classification of compressor lubricant
4. Caution
5. Flammable refrigerant
6. To require registered technician to
service air conditioning system
456
21
3
Hyundai_CE_en_US.book Page 93
Page 272 of 582
Convenience Features

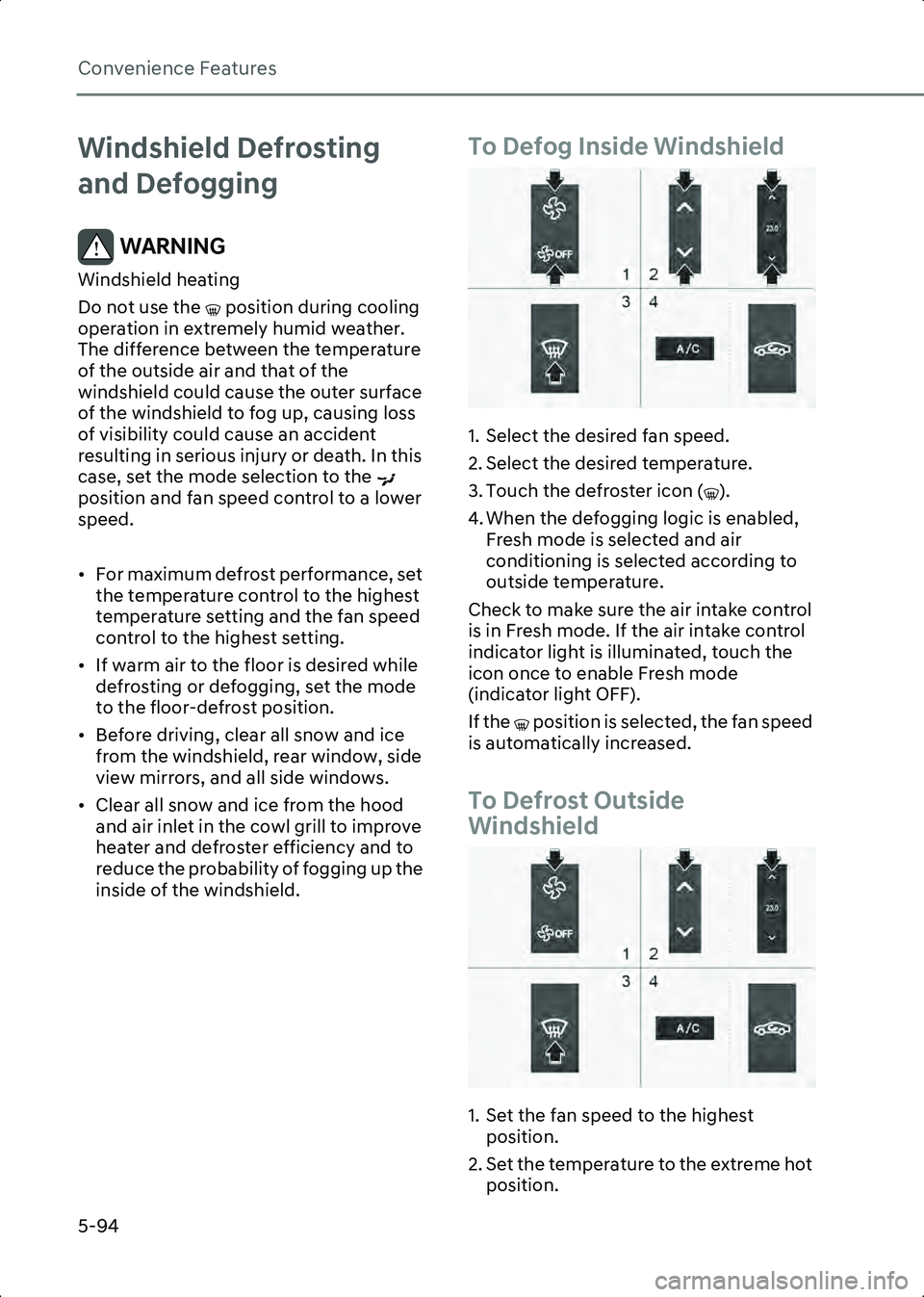

5-94
Windshield Defrosting
and Defogging
WARNING Windshield heating
Do not use the position during cooling
operation in extremely humid weather.
The difference between the temperature
of the outside air and that of the
windshield could cause the outer surface
of the windshield to fog up, causing loss
of visibility could cause an accident
resulting in serious injury or death. In this
case, set the mode selection to the
position and fan speed control to a lower
speed.
• For maximum defrost performance, set the temperature control to the highest
temperature setting and the fan speed
control to the highest setting.
• If warm air to the floor is desired while defrosting or defogging, set the mode
to the floor-defrost position.
• Before driving, clear all snow and ice from the windshield, rear window, side
view mirrors, and all side windows.
• Clear all snow and ice from the hood and air inlet in the cowl grill to improve
heater and defroster efficiency and to
reduce the probability of fogging up the
inside of the windshield.
To Defog Inside Windshield
B5020401
1. Select the desired fan speed.
2. Select the desired temperature.
3. Touch the defroster icon ( ).
4. When the defogging logic is enabled, Fresh mode is selected and air
conditioning is selected according to
outside temperature.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, touch the
icon once to enable Fresh mode
(indicator light OFF).
If the position is selected, the fan speed
is automatically increased.
To Defrost Outside
Windshield
B5020501
1. Set the fan speed to the highest position.
2. Set the temperature to the extreme hot position.
Hyundai_CE_en_US.book Page 94
Page 273 of 582
5

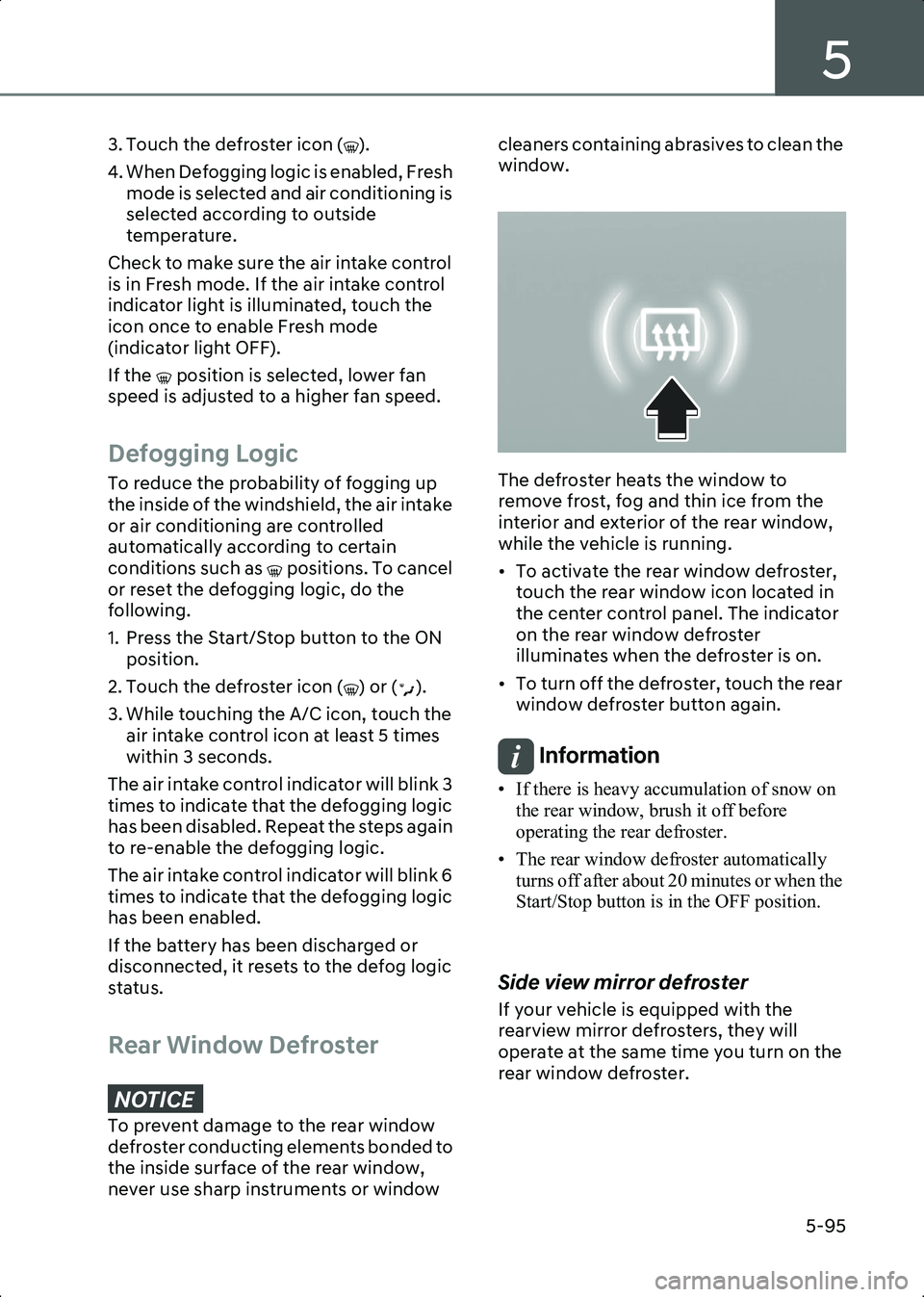

5-95
3. Touch the defroster icon ( ).
4. When Defogging logic is enabled, Fresh mode is selected and air conditioning is
selected according to outside
temperature.
Check to make sure the air intake control
is in Fresh mode. If the air intake control
indicator light is illuminated, touch the
icon once to enable Fresh mode
(indicator light OFF).
If the position is selected, lower fan
speed is adjusted to a higher fan speed.
Defogging Logic
To reduce the probability of fogging up
the inside of the windshield, the air intake
or air conditioning are controlled
automatically according to certain
conditions such as positions. To cancel
or reset the defogging logic, do the
following.
1. Press the Start/Stop button to the ON position.
2. Touch the defroster icon ( ) or ( ).
3. While touching the A/C icon, touch the air intake control icon at least 5 times
within 3 seconds.
The air intake control indicator will blink 3
times to indicate that the defogging logic
has been disabled. Repeat the steps again
to re-enable the defogging logic.
The air intake control indicator will blink 6
times to indicate that the defogging logic
has been enabled.
If the battery has been discharged or
disconnected, it resets to the defog logic
status.
Rear Window Defroster
NOTICE To prevent damage to the rear window
defroster conducting elements bonded to
the inside surface of the rear window,
never use sharp instruments or window cleaners containing abrasives to clean the
window.
B5020801
The defroster heats the window to
remove frost, fog and thin ice from the
interior and exterior of the rear window,
while the vehicle is running.
• To activate the rear window defroster,
touch the rear window icon located in
the center control panel. The indicator
on the rear window defroster
illuminates when the defroster is on.
• To turn off the defroster, touch the rear window defroster button again.
Information • If there is heavy accumulation of snow on the rear window, brush it off before
operating the rear defroster.
• The rear window defroster automatically turns off after about 20 minutes or when the
Start/Stop button is in the OFF position.
Side view mirror defroster
If your vehicle is equipped with the
rearview mirror defrosters, they will
operate at the same time you turn on the
rear window defroster.
Hyundai_CE_en_US.book Page 95
Page 274 of 582
Convenience Features

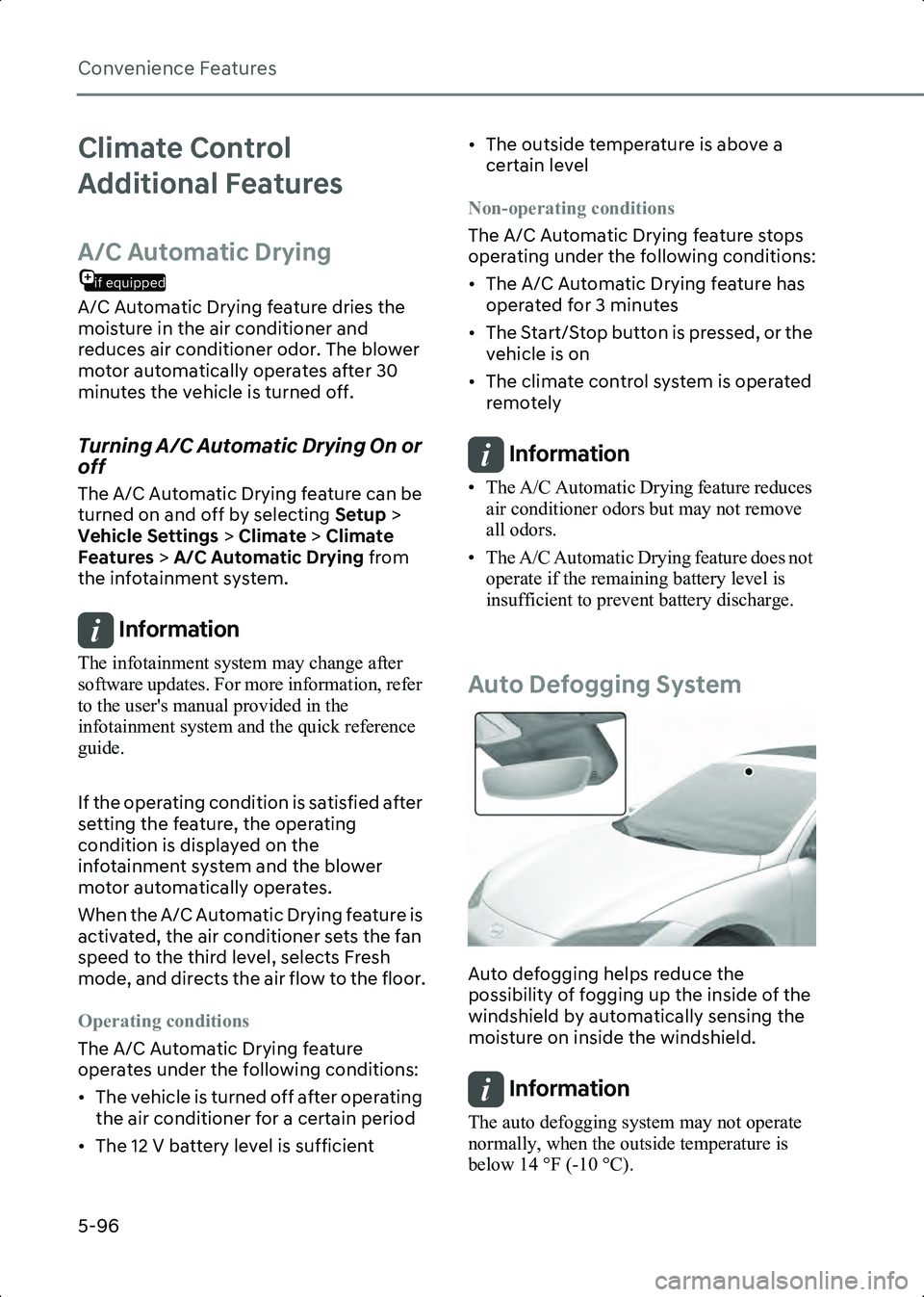

5-96
Climate Control
Additional Features
if equipped
A/C Automatic Drying
A/C Automatic Drying feature dries the
moisture in the air conditioner and
reduces air conditioner odor. The blower
motor automatically operates after 30
minutes the vehicle is turned off.
Turning A/C Automatic Drying On or
off
The A/C Automatic Drying feature can be
turned on and off by selecting Setup >
Vehicle Settings > Climate > Climate
Features > A/C Automatic Drying from
the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
If the operating condition is satisfied after
setting the feature, the operating
condition is displayed on the
infotainment system and the blower
motor automatically operates.
When the A/C Automatic Drying feature is
activated, the air conditioner sets the fan
speed to the third level, selects Fresh
mode, and directs the air flow to the floor.
Operating conditions
The A/C Automatic Drying feature
operates under the following conditions:
• The vehicle is turned off after operating the air conditioner for a certain period
• The 12 V battery level is sufficient • The outside temperature is above a
certain level
Non-operating conditions
The A/C Automatic Drying feature stops
operating under the following conditions:
• The A/C Automatic Drying feature has operated for 3 minutes
• The Start/Stop button is pressed, or the vehicle is on
• The climate control system is operated remotely
Information • The A/C Automatic Drying feature reduces air conditioner odors but may not remove
all odors.
• The A/C Automatic Drying feature does not operate if the remaining battery level is
insufficient to prevent battery discharge.
Auto Defogging System
B5021201
Auto defogging helps reduce the
possibility of fogging up the inside of the
windshield by automatically sensing the
moisture on inside the windshield.
Information The auto defogging system may not operate
normally, when the outside temperature is
below 14 °F (-10 °C).
Hyundai_CE_en_US.book Page 96
Page 275 of 582
5

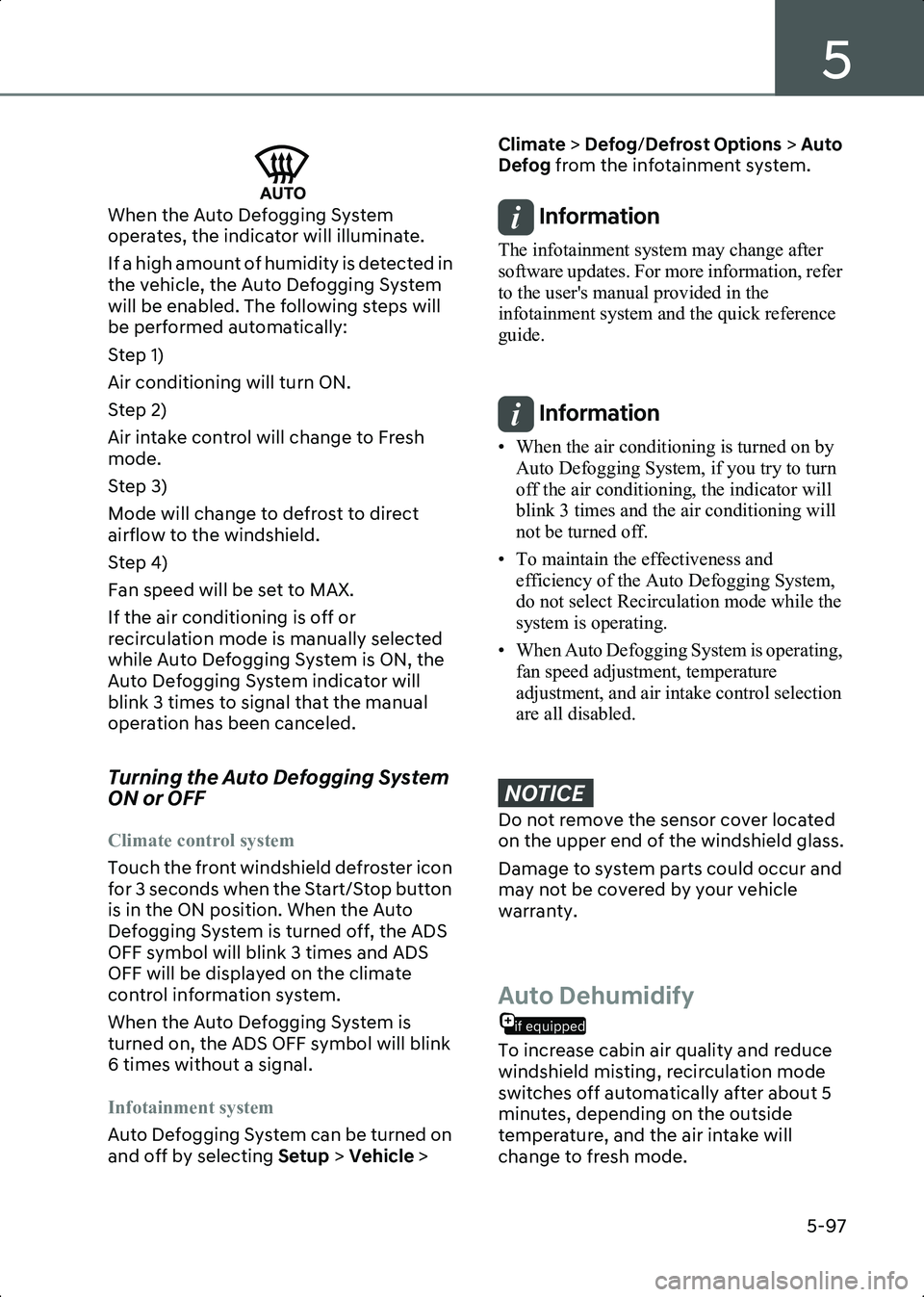

5-97
When the Auto Defogging System
operates, the indicator will illuminate.
If a high amount of humidity is detected in
the vehicle, the Auto Defogging System
will be enabled. The following steps will
be performed automatically:
Step 1)
Air conditioning will turn ON.
Step 2)
Air intake control will change to Fresh
mode.
Step 3)
Mode will change to defrost to direct
airflow to the windshield.
Step 4)
Fan speed will be set to MAX.
If the air conditioning is off or
recirculation mode is manually selected
while Auto Defogging System is ON, the
Auto Defogging System indicator will
blink 3 times to signal that the manual
operation has been canceled.
Turning the Auto Defogging System
ON or OFF
Climate control system
Touch the front windshield defroster icon
for 3 seconds when the Start/Stop button
is in the ON position. When the Auto
Defogging System is turned off, the ADS
OFF symbol will blink 3 times and ADS
OFF will be displayed on the climate
control information system.
When the Auto Defogging System is
turned on, the ADS OFF symbol will blink
6 times without a signal.
Infotainment system
Auto Defogging System can be turned on
and off by selecting Setup > Vehicle > Climate
> Defog /Defrost Options > Auto
Defog from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Information • When the air conditioning is turned on by
Auto Defogging System, if you try to turn
off the air conditioning, the indicator will
blink 3 times and the air conditioning will
not be turned off.
• To maintain the effectiveness and efficiency of the Auto Defogging System,
do not select Recirculation mode while the
system is operating.
• When Auto Defogging System is operating, fan speed adjustment, temperature
adjustment, and air intake control selection
are all disabled.
NOTICE ' R Q R W U H P R Y H W K H V H Q V R U F R Y H U O R F D W H G
R Q W K H X S S H U H Q G R I W K H Z L Q G V K L H O G J O D V V
' D P D J H W R V \ V W H P S D U W V F R X O G R F F X U D Q G
P D \ Q R W E H F R Y H U H G E \ \ R X U Y H K L F O H
Z D U U D Q W \
if equipped
Auto Dehumidify
To increase cabin air quality and reduce
windshield misting, recirculation mode
switches off automatically after about 5
minutes, depending on the outside
temperature, and the air intake will
change to fresh mode.
Hyundai_CE_en_US.book Page 97
Page 276 of 582
Convenience Features
5-98
Turning Auto Dehumidify ON or OFF
Climate control system
To turn the Auto Dehumidify feature on or
off, select Face level ( ) mode and touch
the air intake control icon at least five
times within three seconds. When Auto
Dehumidify is turned on, the air intake
control button indicator will blink 6 times.
When turned off, the indicator will blink 3
times.
Infotainment system
Auto Dehumidify can be turned on and off
by selecting Setup > Vehicle > Climate >
Automatic Ventilation > Auto
Dehumidify from the infotainment
system.
Information If the battery (12 V) is discharged or
disconnected, Auto dehumidify settings will
be reset. Readjust the settings to turning Auto
dehumidify option ON or OFF.
NOTICE 7 K H L Q I R W D L Q P H Q W V \ V W H P P D \ F K D Q J H
D I W H U V R I W Z D U H X S G D W H V ) R U P R U H
L Q I R U P D W L R Q U H I H U W R W K H X V H U
V P D Q X D O
S U R Y L G H G L Q W K H L Q I R W D L Q P H Q W V \ V W H P D Q G
W K H T X L F N U H I H U H Q F H J X L G H
Sunroof Inside Air
if equipped
recirculation
When the is sunroof opened, fresh mode
will be automatically selected. At this
time, if you press the air intake control
button, recirculation mode will be
selected but will change back to fresh
mode after 3 minutes. When the sunroof
is closed, the air intake position will return
to the original position that was selected.
Recirculating Air When
Washer Fluid Is Used
Recirculation mode automatically
activates to reduce any objectionable
scent of the washer fluid from entering
the cabin when the windshield washer is
used.
Turning Activate upon Washer Fluid
Use ON or OFF
Activate upon Washer Fluid Use can be
turned on and off by selecting Setup >
Vehicle > Climate > Internal air
circulation > Activation on washer fluid
use from the infotainment system.
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
if equipped
Recirculation Mode Plus
• To prevent the inflow of polluted air
into the vehicle when passing through a
tunnel, this function automatically
closes the windows and switches the
climate control system to Recirculation
mode for about 7 seconds before
entering a tunnel based on the map
information of the navigation and the
speed of the vehicle.
• The windows automatically closes before entering a tunnel and area
requiring air recirculation. The windows
open to the previous position after
passing the area. If the power window
switch is operated before the window
opens, the window does not open to
the previous position.
• Tunnel linkage automatic control is available only for models with
Hyundai_CE_en_US.book Page 98
Page 277 of 582

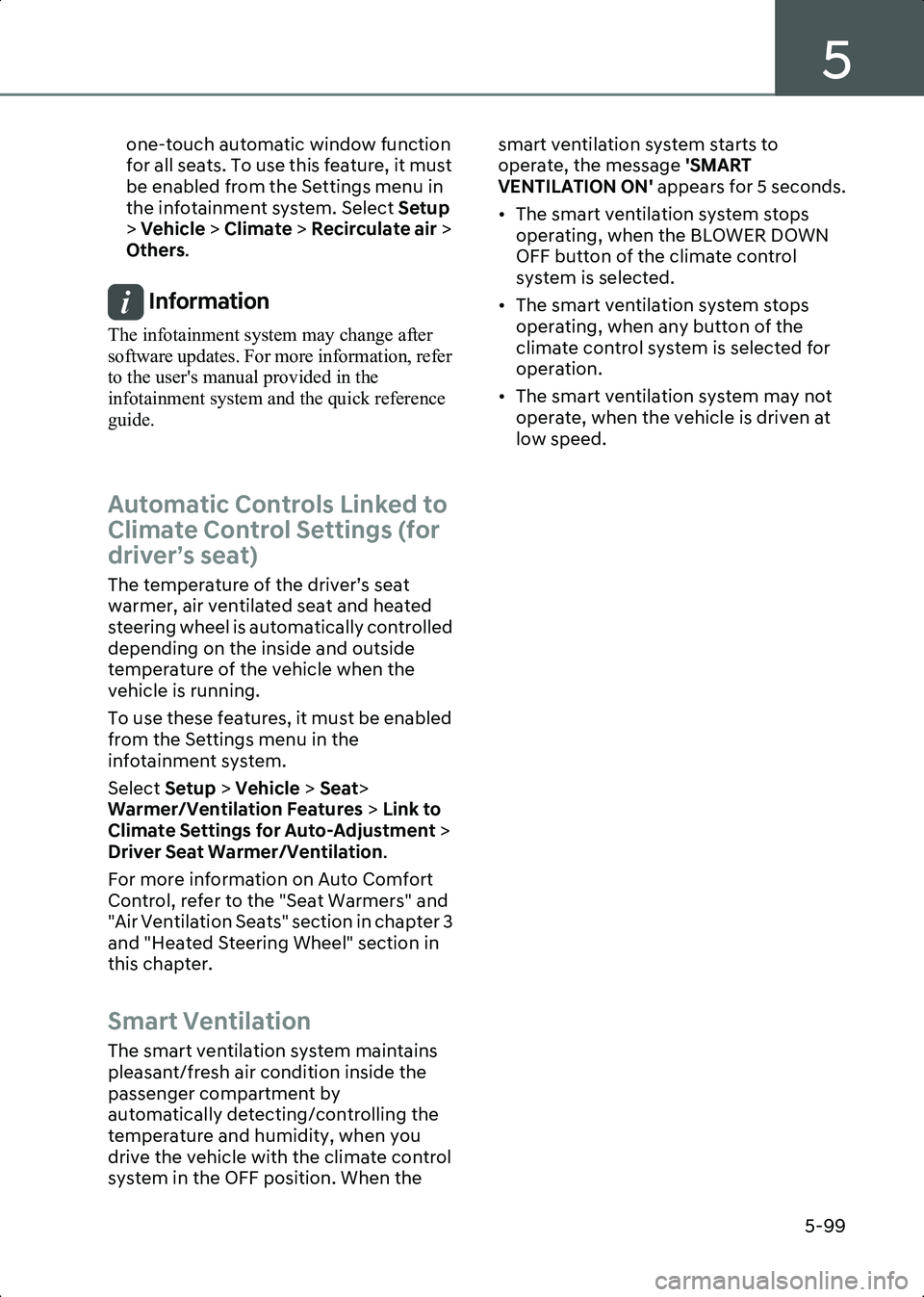

5
5-99
one-touch automatic window function
for all seats. To use this feature, it must
be enabled from the Settings menu in
the infotainment system. Select Setup
> Vehicle > Climate > Recirculate air >
Others .
Information The infotainment system may change after
software updates. For more information, refer
to the user's manual provided in the
infotainment system and the quick reference
guide.
Automatic Controls Linked to
Climate Control Settings (for
driver’s seat)
The temperature of the driver’s seat
warmer, air ventilated seat and heated
steering wheel is automatically controlled
depending on the inside and outside
temperature of the vehicle when the
vehicle is running.
To use these features, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Seat >
Warmer/Ventilation Features > Link to
Climate Settings for Auto-Adjustment >
Driver Seat Warmer/Ventilation .
For more information on Auto Comfort
Control, refer to the "Seat Warmers" and
"Air Ventilation Seats" section in chapter 3
and "Heated Steering Wheel" section in this chapter.
Smart Ventilation
The smart ventilation system maintains
pleasant/fresh air condition inside the
passenger compartment by
automatically detecting/controlling the
temperature and humidity, when you
drive the vehicle with the climate control
system in the OFF position. When the smart ventilation system starts to
operate, the message
'SMART
VENTILATION ON' appears for 5 seconds.
• The smart ventilation system stops operating, when the BLOWER DOWN
OFF button of the climate control
system is selected.
• The smart ventilation system stops operating, when any button of the
climate control system is selected for
operation.
• The smart ventilation system may not operate, when the vehicle is driven at
low speed.
Hyundai_CE_en_US.book Page 99
Page 278 of 582
Convenience Features
5-100
Storage Compartment
WARNING Never store cigarette lighters, propane
cylinders, or other flammable/explosive
materials in the vehicle. These items may
catch fire and/or explode if the vehicle is
exposed to hot temperatures for
extended periods.
WARNING ALWAYS keep the storage compartment
covers closed securely while driving.
Items inside your vehicle are moving as
fast as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items may fly out of the compartment and
may cause an injury if they strike the
driver or a passenger.
NOTICE 7 R D Y R L G S R V V L E O H W K H I W G R Q R W O H D Y H
Y D O X D E O H V L Q W K H V W R U D J H F R P S D U W P H Q W V
Center Console Storage
Console Box
B5022101
To open:
Grab and hold the latch on the arm rest
then lift the lid.
• This space provides objects storing compartment.
Glove Box
B5022201
To open:
Pull the lever (1).
WARNING ALWAYS close the glove box door after
use.
An open glove box door can cause serious
injury to the passenger in an accident,
even if the passenger is wearing a seat
belt.
NOTICE 8 V H R I H [ F H V V L Y H I R U F H W R W K H J O R Y H E R [
P D \ G D P D J H W K H V O L G L Q J U D L O R U W K H O H Y H U
Hyundai_CE_en_US.book Page 100
Page 279 of 582
5
5-101
Interior Features
Cup Holder
Front
B5023101Rear
B5023102
Cups or small beverages cups may be
placed in the cup holders.
WARNING • Avoid abrupt starting and braking when the cup holder is in use to prevent
spilling your drink. If hot liquid spills,
you could be burned. Such a burn to the
driver could cause loss of vehicle
control resulting in an accident.
• Do not place uncovered or unsecured cups, bottles, cans, etc., in the cup
holder containing hot liquid while the
vehicle is in motion. Injuries may result
in the event of a sudden stop or
collision. • Only use soft cups in the cup holders.
Hard objects can injure you in an
accident.
WARNING Keep cans or bottles out of direct sun light
and do not put them in a hot vehicle. It
may explode.
NOTICE [ . H H S \ R X U G U L Q N V V H D O H G Z K L O H G U L Y L Q J W R S U H Y H Q W V S L O O L Q J \ R X U G U L Q N , I O L T X L G
V S L O O V L W P D \ J H W L Q W R W K H Y H K L F O HT V
H O H F W U L F D O H O H F W U R Q L F V \ V W H P D Q G
G D P D J H H O H F W U L F D O H O H F W U R Q L F S D U W V
[ : K H Q F O H D Q L Q J V S L O O H G O L T X L G V G R Q R W X V H K R W D L U W R E O R Z R X W R U G U \ W K H F X S
K R O G H U 7 K L V P D \ G D P D J H W K H L Q W H U L R U
Sunvisor
B5023401
To use the sunvisor, pull it downward.
To use the sunvisor to block the sun from
the side window, pull it downward,
release it from the bracket (1) and swing it
to the side (2) towards the window.
To use the vanity mirror, pull down the
sunvisor and slide the mirror cover (3).
Adjust the sunvisor forward or backward
(4) as needed (if equipped). Use the ticket
holder (5) to hold tickets.
Hyundai_CE_en_US.book Page 101
Page 280 of 582

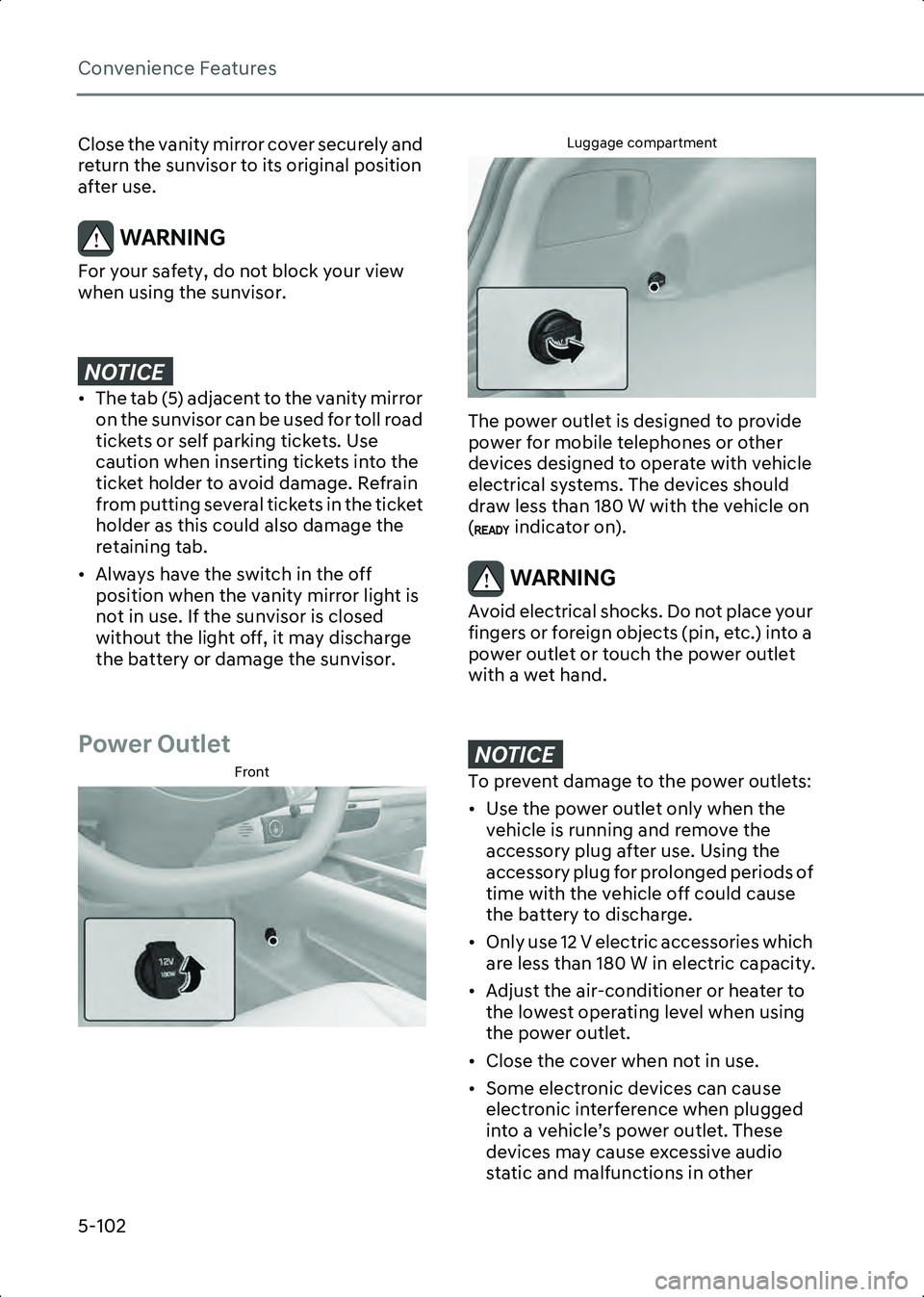

Convenience Features
5-102
Close the vanity mirror cover securely and
return the sunvisor to its original position
after use.
WARNING For your safety, do not block your view
when using the sunvisor.
NOTICE [ 7 K H W D E \f D G M D F H Q W W R W K H Y D Q L W \ P L U U R U R Q W K H V X Q Y L V R U F D Q E H X V H G I R U W R O O U R D G
W L F N H W V R U V H O I S D U N L Q J W L F N H W V 8 V H
F D X W L R Q Z K H Q L Q V H U W L Q J W L F N H W V L Q W R W K H
W L F N H W K R O G H U W R D Y R L G G D P D J H 5 H I U D L Q
I U R P S X W W L Q J V H Y H U D O W L F N H W V L Q W K H W L F N H W
K R O G H U D V W K L V F R X O G D O V R G D P D J H W K H
U H W D L Q L Q J W D E
[ $ O Z D \ V K D Y H W K H V Z L W F K L Q W K H R I I S R V L W L R Q Z K H Q W K H Y D Q L W \ P L U U R U O L J K W L V
Q R W L Q X V H , I W K H V X Q Y L V R U L V F O R V H G
Z L W K R X W W K H O L J K W R I I L W P D \ G L V F K D U J H
W K H E D W W H U \ R U G D P D J H W K H V X Q Y L V R U
Power Outlet
Front
B5023601
Luggage compartment
B5023602
The power outlet is designed to provide
power for mobile telephones or other
devices designed to operate with vehicle
electrical systems. The devices should
draw less than 180 W with the vehicle on
( indicator on).
WARNING Avoid electrical shocks. Do not place your
fingers or foreign objects (pin, etc.) into a
power outlet or touch the power outlet
with a wet hand.
NOTICE 7 R S U H Y H Q W G D P D J H W R W K H S R Z H U R X W O H W V
[ 8 V H W K H S R Z H U R X W O H W R Q O \ Z K H Q W K H Y H K L F O H L V U X Q Q L Q J D Q G U H P R Y H W K H
D F F H V V R U \ S O X J D I W H U X V H 8 V L Q J W K H
D F F H V V R U \ S O X J I R U S U R O R Q J H G S H U L R G V R I
W L P H Z L W K W K H Y H K L F O H R I I F R X O G F D X V H
W K H E D W W H U \ W R G L V F K D U J H
[ 2 Q O \ X V H 9 H O H F W U L F D F F H V V R U L H V Z K L F K D U H O H V V W K D Q : L Q H O H F W U L F F D S D F L W \
[ $ G M X V W W K H D L U F R Q G L W L R Q H U R U K H D W H U W R W K H O R Z H V W R S H U D W L Q J O H Y H O Z K H Q X V L Q J
W K H S R Z H U R X W O H W
[ & O R V H W K H F R Y H U Z K H Q Q R W L Q X V H
[ 6 R P H H O H F W U R Q L F G H Y L F H V F D Q F D X V H H O H F W U R Q L F L Q W H U I H U H Q F H Z K H Q S O X J J H G
L Q W R D Y H K L F O HT V S R Z H U R X W O H W 7 K H V H
G H Y L F H V P D \ F D X V H H [ F H V V L Y H D X G L R
V W D W L F D Q G P D O I X Q F W L R Q V L Q R W K H U
Hyundai_CE_en_US.book Page 102
