5
5-53

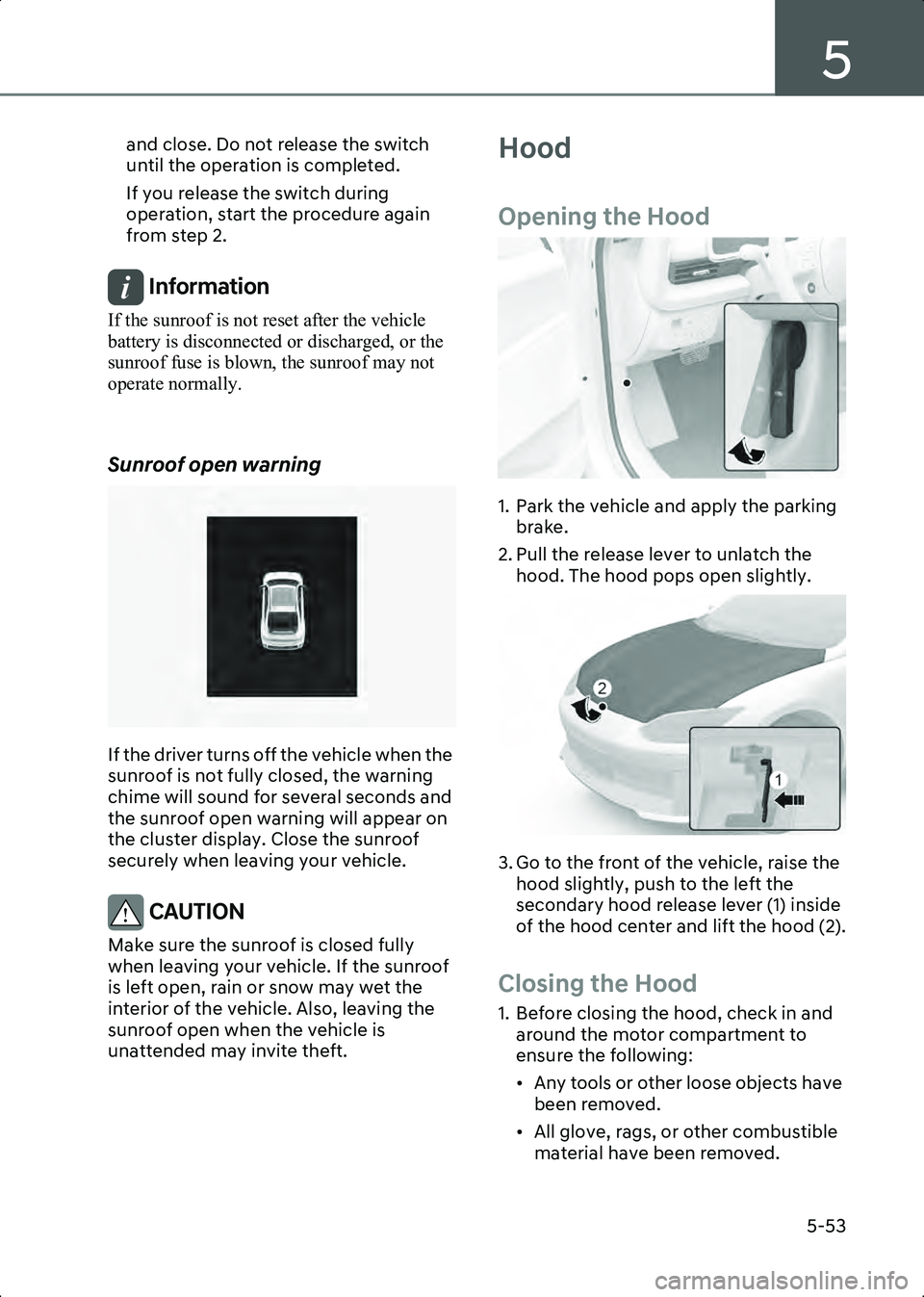

and close. Do not release the switch
until the operation is completed.
If you release the switch during
operation, start the procedure again
from step 2.
Information If the sunroof is not reset after the vehicle
battery is disconnected or discharged, or the
sunroof fuse is blown, the sunroof may not
operate normally.
Sunroof open warning
B5027901
If the driver turns off the vehicle when the
sunroof is not fully closed, the warning
chime will sound for several seconds and
the sunroof open warning will appear on
the cluster display. Close the sunroof
securely when leaving your vehicle.
CAUTION Make sure the sunroof is closed fully
when leaving your vehicle. If the sunroof
is left open, rain or snow may wet the
interior of the vehicle. Also, leaving the
sunroof open when the vehicle is
unattended may invite theft.
Hood
Opening the Hood
B5010001
1. Park the vehicle and apply the parking brake.
2. Pull the release lever to unlatch the hood. The hood pops open slightly.
B5010002
3. Go to the front of the vehicle, raise the hood slightly, push to the left the
secondary hood release lever (1) inside
of the hood center and lift the hood (2).
Closing the Hood
1. Before closing the hood, check in and around the motor compartment to
ensure the following:
• Any tools or other loose objects have been removed.
• All glove, rags, or other combustible material have been removed.
Hyundai_CE_en_US.book Page 53
Page 232 of 582
Convenience Features
5-54
• All filler caps are tightly and correctly installed
2. Lower the hood until it is about 12 in. (30 cm) above the closed position and then
let it drop.
3. Check the hood has locked properly. If the hood is raised slightly, open it again
and drop it from a little higher. Check
again.
WARNING • Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Always double check to make sure that the hood is firmly latched before driving
away. Check there is no hood open
warning light or message displayed on
the instrument cluster. Driving with the
hood open may cause a total loss of
visibility, resulting in a collision.
• Do not move the vehicle with the hood raised. It may block your vision and may
result in a collision.
Front Trunk
Opening the Front Trunk
B5010702
Opening the hood reveals the front trunk
and you can store your belongings.
Information Front trunk weight limit: 25 lbs. (10 kg)
The front trunk’s weight limit depends on the
specifications.
WARNING • NEVER make an attempt to get inside the front trunk. It will cause a fatal
injury.
• Before closing the hood, ensure all obstructions are removed from around
the hood opening. The hood will rise up
or move down automatically if the
height is not firmly adjusted. Be aware
of the damage caused by the
unintended hood movements.
• Never store cigarette lighters, propane cylinders, or other
flammable/explosive materials in the
vehicle. These items may catch fire
and/or explode if the vehicle is exposed
to hot temperatures for extended
periods.
Hyundai_CE_en_US.book Page 54
Page 233 of 582
5
5-55

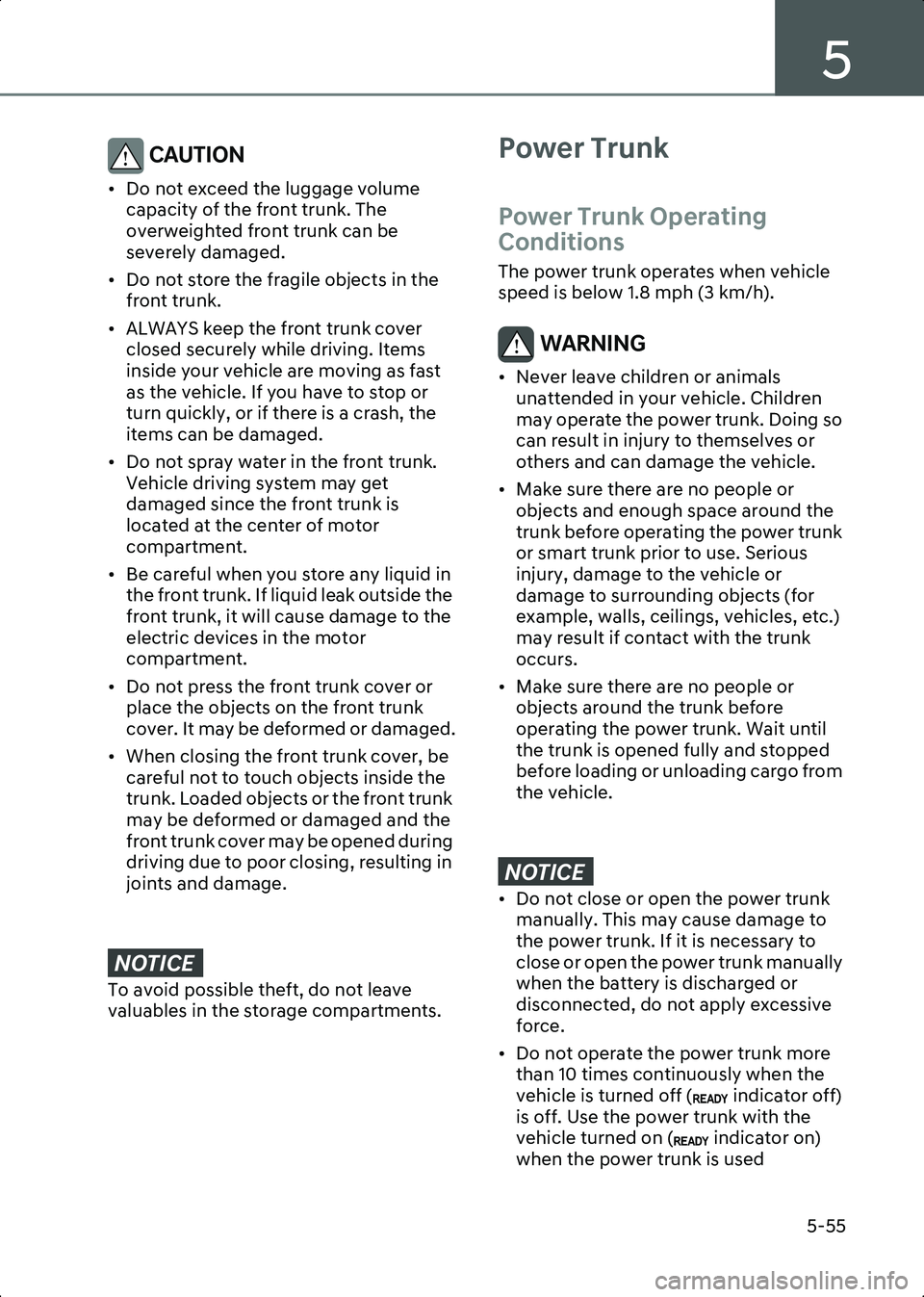

CAUTION • Do not exceed the luggage volume capacity of the front trunk. The
overweighted front trunk can be
severely damaged.
• Do not store the fragile objects in the front trunk.
• ALWAYS keep the front trunk cover closed securely while driving. Items
inside your vehicle are moving as fast
as the vehicle. If you have to stop or
turn quickly, or if there is a crash, the
items can be damaged.
• Do not spray water in the front trunk. Vehicle driving system may get
damaged since the front trunk is
located at the center of motor
compartment.
• Be careful when you store any liquid in the front trunk. If liquid leak outside the
front trunk, it will cause damage to the
electric devices in the motor
compartment.
• Do not press the front trunk cover or place the objects on the front trunk
cover. It may be deformed or damaged.
• When closing the front trunk cover, be careful not to touch objects inside the
trunk. Loaded objects or the front trunk
may be deformed or damaged and the
front trunk cover may be opened during
driving due to poor closing, resulting in
joints and damage.
NOTICE 7 R D Y R L G S R V V L E O H W K H I W G R Q R W O H D Y H
Y D O X D E O H V L Q W K H V W R U D J H F R P S D U W P H Q W V
Power Trunk
Power Trunk Operating
Conditions
The power trunk operates when vehicle
speed is below 1.8 mph (3 km/h).
WARNING • Never leave children or animals unattended in your vehicle. Children
may operate the power trunk. Doing so
can result in injury to themselves or
others and can damage the vehicle.
• Make sure there are no people or objects and enough space around the
trunk before operating the power trunk
or smart trunk prior to use. Serious
injury, damage to the vehicle or
damage to surrounding objects (for
example, walls, ceilings, vehicles, etc.)
may result if contact with the trunk
occurs.
• Make sure there are no people or objects around the trunk before
operating the power trunk. Wait until
the trunk is opened fully and stopped
before loading or unloading cargo from
the vehicle.
NOTICE [ ' R Q R W F O R V H R U R S H Q W K H S R Z H U W U X Q N P D Q X D O O \ 7 K L V P D \ F D X V H G D P D J H W R
W K H S R Z H U W U X Q N , I L W L V Q H F H V V D U \ W R
F O R V H R U R S H Q W K H S R Z H U W U X Q N P D Q X D O O \
Z K H Q W K H E D W W H U \ L V G L V F K D U J H G R U
G L V F R Q Q H F W H G G R Q R W D S S O \ H [ F H V V L Y H
I R U F H
[ ' R Q R W R S H U D W H W K H S R Z H U W U X Q N P R U H W K D Q W L P H V F R Q W L Q X R X V O \ Z K H Q W K H
Y H K L F O H L V W X U Q H G R I I L Q G L F D W R U R I I \f
L V R I I 8 V H W K H S R Z H U W U X Q N Z L W K W K H
Y H K L F O H W X U Q H G R Q L Q G L F D W R U R Q \f
Z K H Q W K H S R Z H U W U X Q N L V X V H G
Hyundai_CE_en_US.book Page 55
Page 234 of 582
Convenience Features
5-56

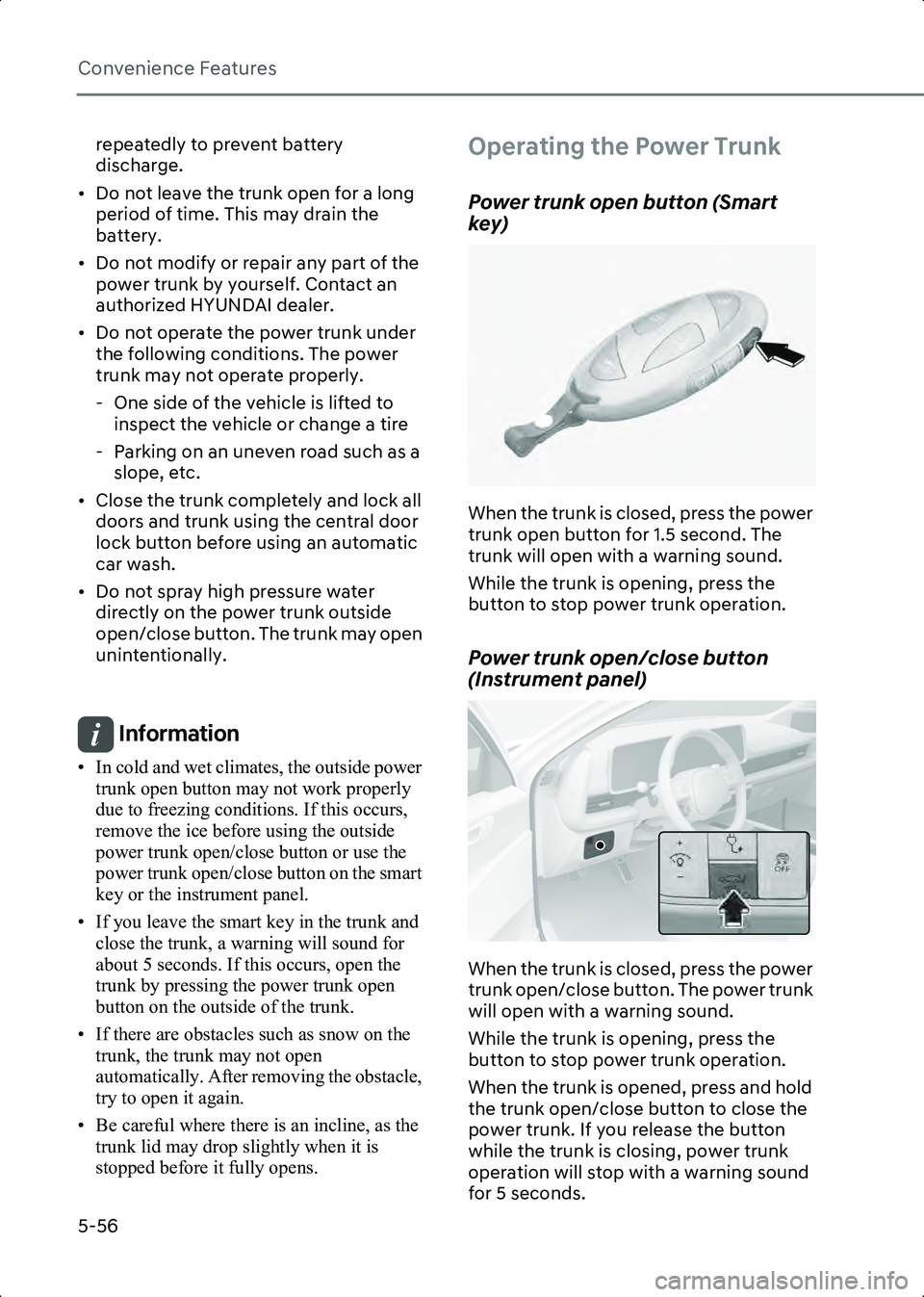

repeatedly to prevent battery
discharge.
• Do not leave the trunk open for a long period of time. This may drain the
battery.
• Do not modify or repair any part of the power trunk by yourself. Contact an
authorized HYUNDAI dealer.
• Do not operate the power trunk under the following conditions. The power
trunk may not operate properly.
- One side of the vehicle is lifted to inspect the vehicle or change a tire
- Parking on an uneven road such as a slope, etc.
• Close the trunk completely and lock all doors and trunk using the central door
lock button before using an automatic
car wash.
• Do not spray high pressure water directly on the power trunk outside
open/close button. The trunk may open
unintentionally.
Information • In cold and wet climates, the outside power trunk open button may not work properly
due to freezing conditions. If this occurs,
remove the ice before using the outside
power trunk open/close button or use the
power trunk open/close button on the smart
key or the instrument panel.
• If you leave the smart key in the trunk and close the trunk, a warning will sound for
about 5 seconds. If this occurs, open the
trunk by pressing the power trunk open
button on the outside of the trunk.
• If there are obstacles such as snow on the trunk, the trunk may not open
automatically. After removing the obstacle,
try to open it again.
• Be careful where there is an incline, as the trunk lid may drop slightly when it is
stopped before it fully opens.
Operating the Power Trunk
Power trunk open button (Smart
key)
B5011101
When the trunk is closed, press the power
trunk open button for 1.5 second. The
trunk will open with a warning sound.
While the trunk is opening, press the
button to stop power trunk operation.
Power trunk open/close button
(Instrument panel)
B5011102
When the trunk is closed, press the power
trunk open/close button. The power trunk
will open with a warning sound.
While the trunk is opening, press the
button to stop power trunk operation.
When the trunk is opened, press and hold
the trunk open/close button to close the
power trunk. If you release the button
while the trunk is closing, power trunk
operation will stop with a warning sound
for 5 seconds.
Hyundai_CE_en_US.book Page 56
Page 235 of 582
5
5-57

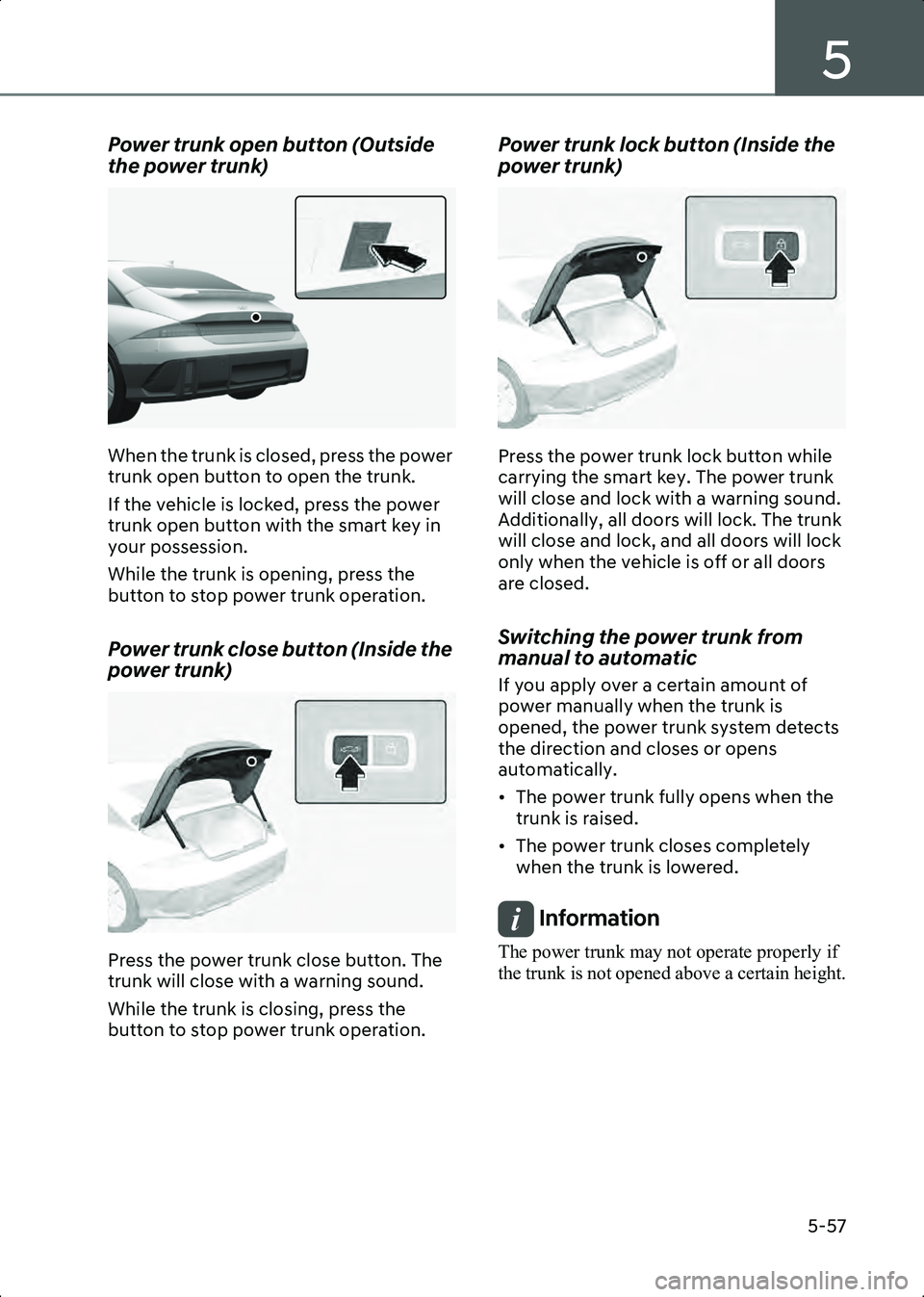

Power trunk open button (Outside
the power trunk)
B5011103
When the trunk is closed, press the power
trunk open button to open the trunk.
If the vehicle is locked, press the power
trunk open button with the smart key in
your possession.
While the trunk is opening, press the
button to stop power trunk operation.
Power trunk close button (Inside the
power trunk)
B5011104
Press the power trunk close button. The
trunk will close with a warning sound.
While the trunk is closing, press the
button to stop power trunk operation.
Power trunk lock button (Inside the
power trunk)
B5011105
Press the power trunk lock button while
carrying the smart key. The power trunk
will close and lock with a warning sound.
Additionally, all doors will lock. The trunk
will close and lock, and all doors will lock
only when the vehicle is off or all doors
are closed.
Switching the power trunk from
manual to automatic
If you apply over a certain amount of
power manually when the trunk is
opened, the power trunk system detects
the direction and closes or opens
automatically.
• The power trunk fully opens when the trunk is raised.
• The power trunk closes completely when the trunk is lowered.
Information The power trunk may not operate properly if
the trunk is not opened above a certain height.
Hyundai_CE_en_US.book Page 57
Page 236 of 582
Convenience Features
5-58

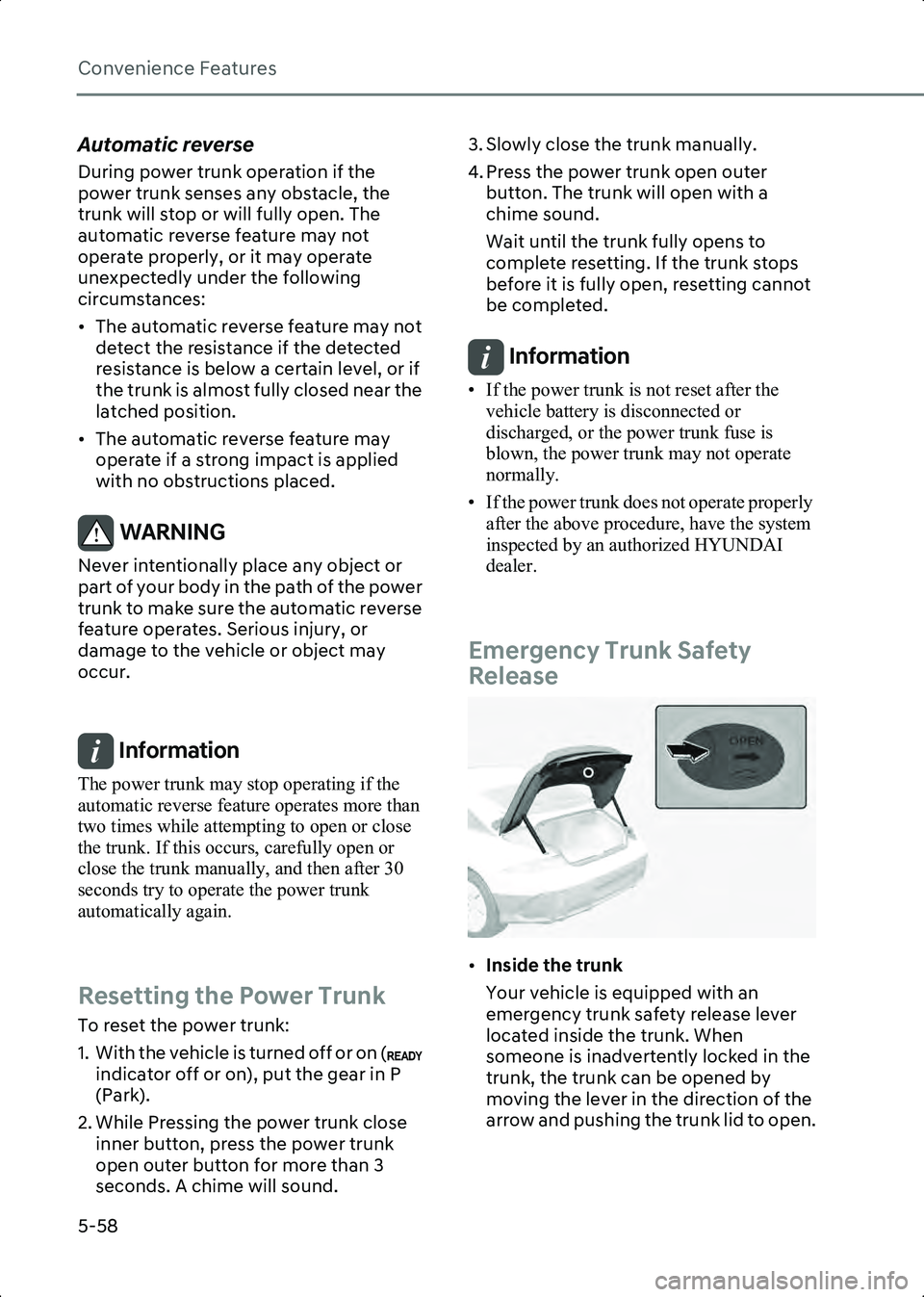

Automatic reverse
During power trunk operation if the
power trunk senses any obstacle, the
trunk will stop or will fully open. The
automatic reverse feature may not
operate properly, or it may operate
unexpectedly under the following
circumstances:
• The automatic reverse feature may not detect the resistance if the detected
resistance is below a certain level, or if
the trunk is almost fully closed near the
latched position.
• The automatic reverse feature may operate if a strong impact is applied
with no obstructions placed.
WARNING Never intentionally place any object or
part of your body in the path of the power
trunk to make sure the automatic reverse
feature operates. Serious injury, or
damage to the vehicle or object may
occur.
Information The power trunk may stop operating if the
automatic reverse feature operates more than
two times while attempting to open or close
the trunk. If this occurs, carefully open or
close the trunk manually, and then after 30
seconds try to operate the power trunk
automatically again.
Resetting the Power Trunk
To reset the power trunk:
1. With the vehicle is turned off or on ( indicator off or on), put the gear in P
(Park).
2. While Pressing the power trunk close inner button, press the power trunk
open outer button for more than 3
seconds. A chime will sound. 3. Slowly close the trunk manually.
4. Press the power trunk open outer
button. The trunk will open with a
chime sound.
Wait until the trunk fully opens to
complete resetting. If the trunk stops
before it is fully open, resetting cannot
be completed.
Information • If the power trunk is not reset after the vehicle battery is disconnected or
discharged, or the power trunk fuse is
blown, the power trunk may not operate
normally.
• If the power trunk does not operate properly after the above procedure, have the system
inspected by an authorized HYUNDAI
dealer.
Emergency Trunk Safety
Release
B5011701
• Inside the trunk
Your vehicle is equipped with an
emergency trunk safety release lever
located inside the trunk. When
someone is inadvertently locked in the
trunk, the trunk can be opened by
moving the lever in the direction of the
arrow and pushing the trunk lid to open.
Hyundai_CE_en_US.book Page 58
Page 237 of 582
5
5-59
B5011702

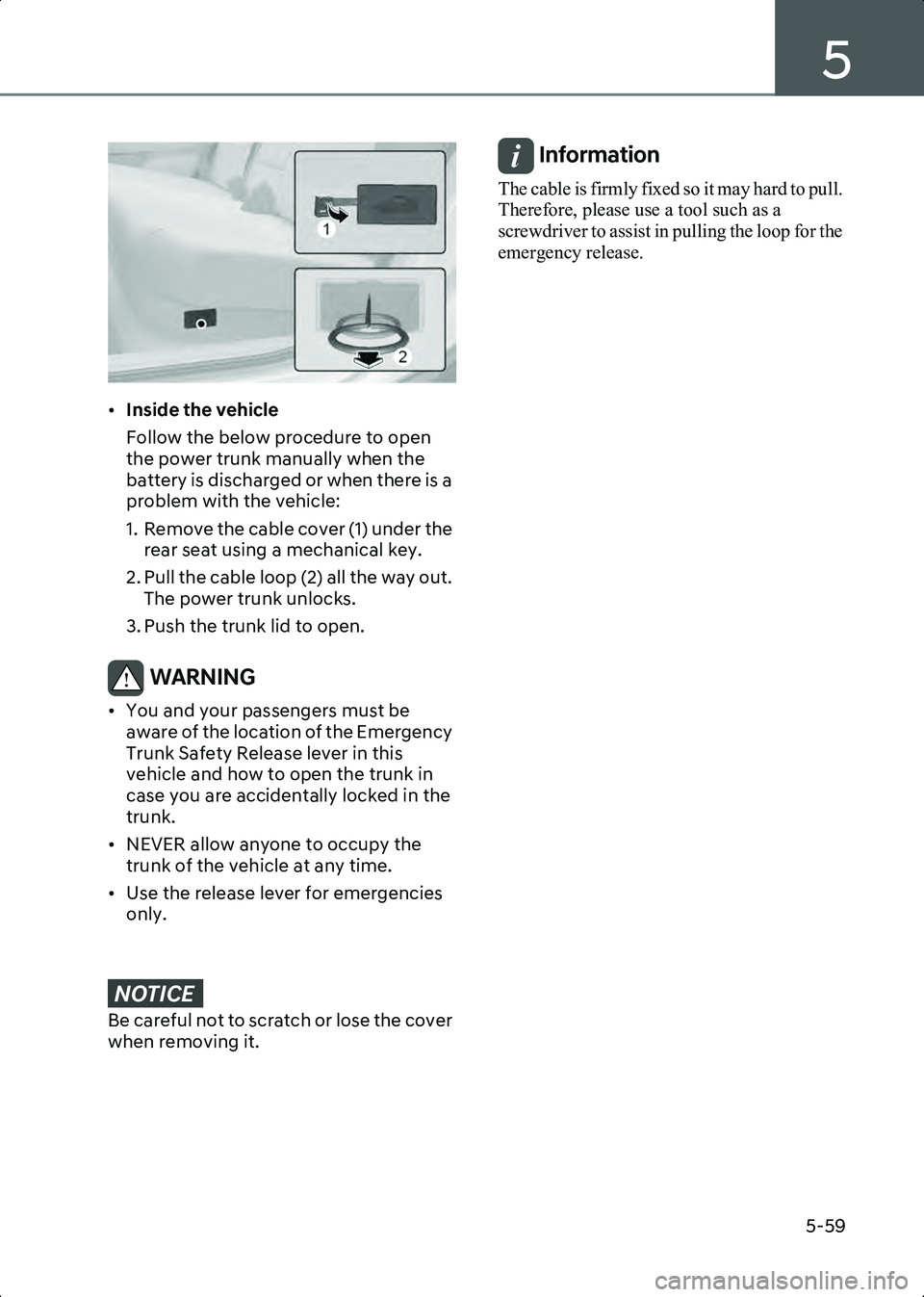

•Inside the vehicle
Follow the below procedure to open
the power trunk manually when the
battery is discharged or when there is a
problem with the vehicle:
1. Remove the cable cover (1) under the
rear seat using a mechanical key.
2. Pull the cable loop (2) all the way out. The power trunk unlocks.
3. Push the trunk lid to open.
WARNING • You and your passengers must be aware of the location of the Emergency
Trunk Safety Release lever in this
vehicle and how to open the trunk in
case you are accidentally locked in the
trunk.
• NEVER allow anyone to occupy the trunk of the vehicle at any time.
• Use the release lever for emergencies only.
NOTICE % H F D U H I X O Q R W W R V F U D W F K R U O R V H W K H F R Y H U
Z K H Q U H P R Y L Q J L W
Information The cable is firmly fixed so it may hard to pull.
Therefore, please use a tool such as a
screwdriver to assist in pulling the loop for the
emergency release.
Hyundai_CE_en_US.book Page 59
Page 238 of 582
Convenience Features
5-60
if equipped

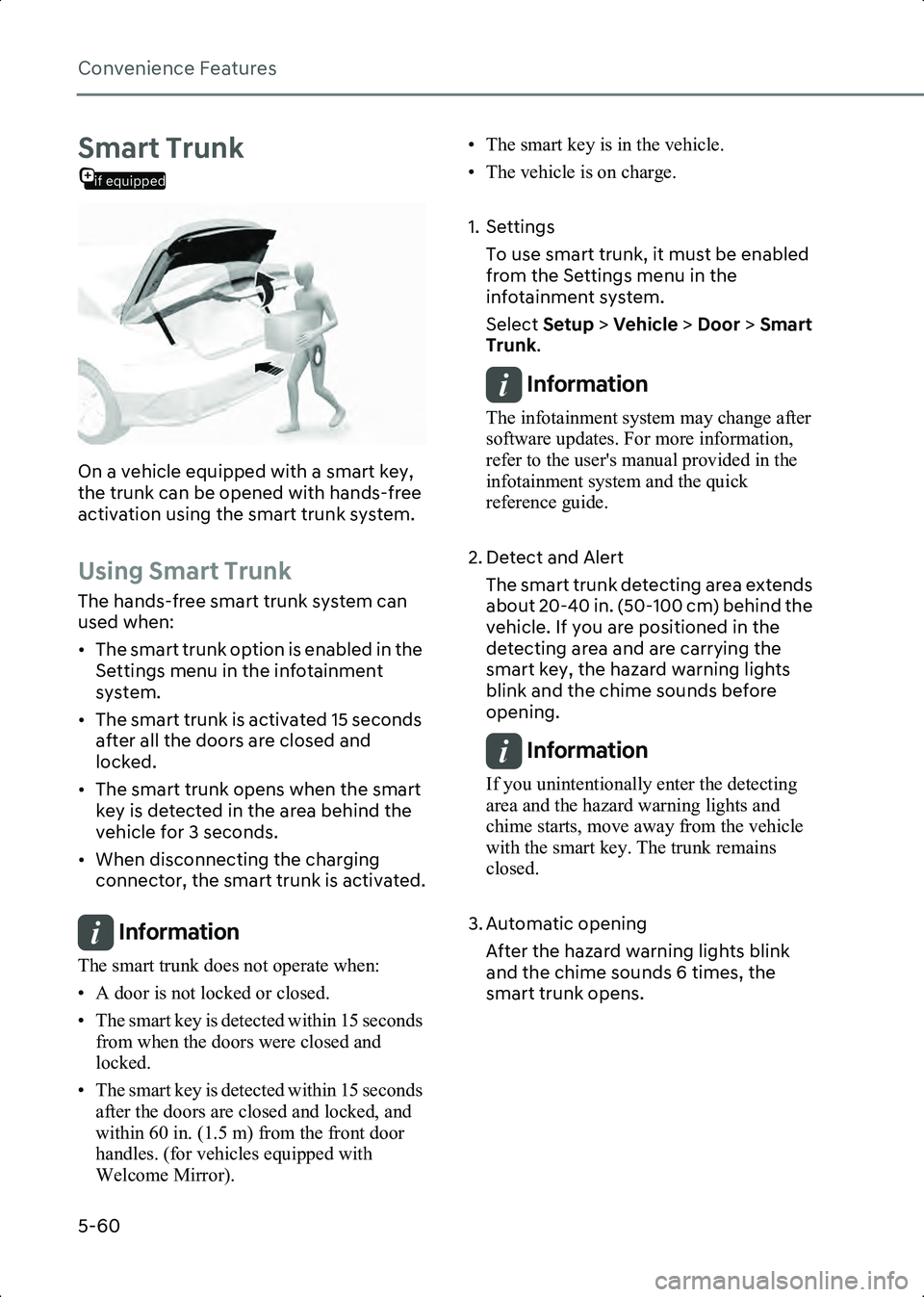

Smart Trunk
B5012501
On a vehicle equipped with a smart key,
the trunk can be opened with hands-free
activation using the smart trunk system.
Using Smart Trunk
The hands-free smart trunk system can
used when:
• The smart trunk option is enabled in the Settings menu in the infotainment
system.
• The smart trunk is activated 15 seconds after all the doors are closed and
locked.
• The smart trunk opens when the smart key is detected in the area behind the
vehicle for 3 seconds.
• When disconnecting the charging connector, the smart trunk is activated.
Information The smart trunk does not operate when:
• A door is not locked or closed.
• The smart key is detected within 15 seconds from when the doors were closed and
locked.
• The smart key is detected within 15 seconds after the doors are closed and locked, and
within 60 in. (1.5 m) from the front door
handles. (for vehicles equipped with
Welcome Mirror). • The smart key is in the vehicle.
• The vehicle is on charge.
1. Settings
To use smart trunk, it must be enabled
from the Settings menu in the
infotainment system.
Select Setup > Vehicle > Door > Smart
Trunk .
Information The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in the
infotainment system and the quick
reference guide.
2. Detect and Alert The smart trunk detecting area extends
about 20-40 in. (50-100 cm) behind the
vehicle. If you are positioned in the
detecting area and are carrying the
smart key, the hazard warning lights
blink and the chime sounds before
opening.
Information If you unintentionally enter the detecting
area and the hazard warning lights and
chime starts, move away from the vehicle
with the smart key. The trunk remains
closed.
3. Automatic opening After the hazard warning lights blink
and the chime sounds 6 times, the
smart trunk opens.
Hyundai_CE_en_US.book Page 60
Page 239 of 582
5
5-61

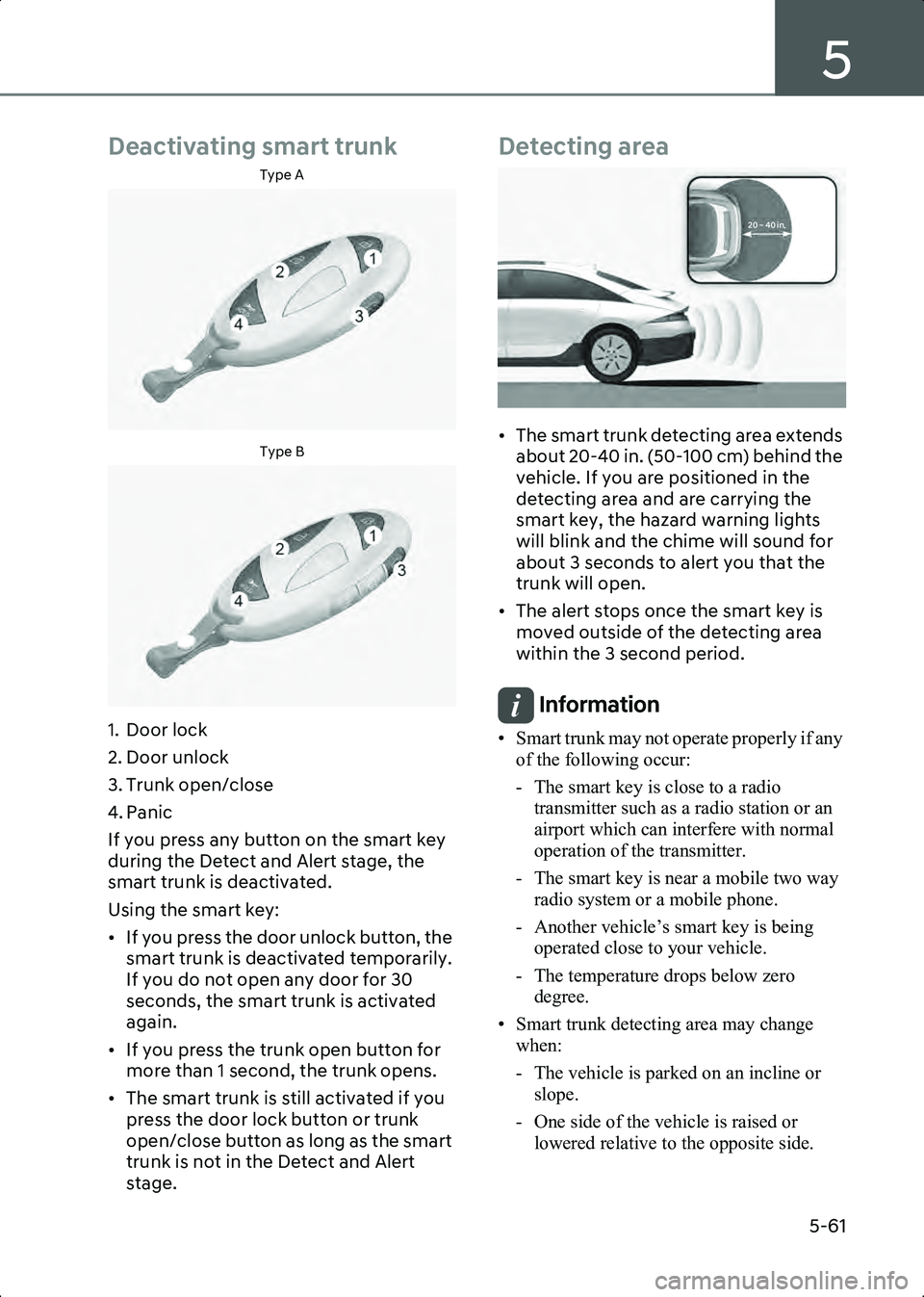

Deactivating smart trunk
Type A
B5012801Type B
B5012802
1. Door lock
2. Door unlock
3. Trunk open/close
4. Panic
If you press any button on the smart key
during the Detect and Alert stage, the
smart trunk is deactivated.
Using the smart key:
• If you press the door unlock button, the smart trunk is deactivated temporarily.
If you do not open any door for 30
seconds, the smart trunk is activated
again.
• If you press the trunk open button for more than 1 second, the trunk opens.
• The smart trunk is still activated if you press the door lock button or trunk
open/close button as long as the smart
trunk is not in the Detect and Alert
stage.
Detecting area
B5012901
• The smart trunk detecting area extends about 20-40 in. (50-100 cm) behind the
vehicle. If you are positioned in the
detecting area and are carrying the
smart key, the hazard warning lights
will blink and the chime will sound for
about 3 seconds to alert you that the
trunk will open.
• The alert stops once the smart key is moved outside of the detecting area
within the 3 second period.
Information • Smart trunk may not operate properly if any of the following occur:
- The smart key is close to a radio transmitter such as a radio station or an
airport which can interfere with normal
operation of the transmitter.
- The smart key is near a mobile two way radio system or a mobile phone.
- Another vehicle’s smart key is being operated close to your vehicle.
- The temperature drops below zero degree.
• Smart trunk detecting area may change when:
- The vehicle is parked on an incline or slope.
- One side of the vehicle is raised or lowered relative to the opposite side.
_ J O
Hyundai_CE_en_US.book Page 61
Page 240 of 582
Convenience Features
5-62

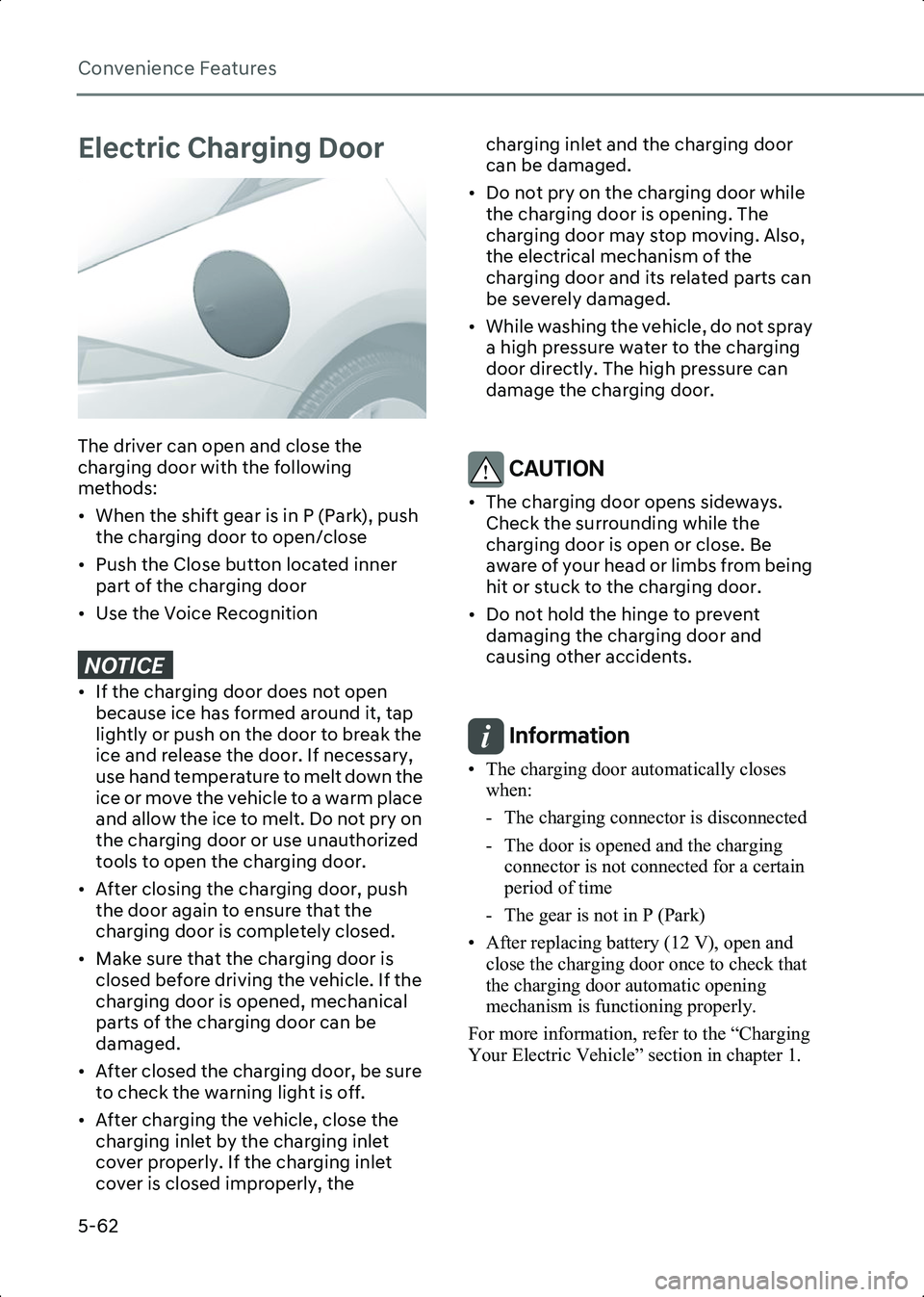

Electric Charging Door
B5013501
The driver can open and close the
charging door with the following
methods:
• When the shift gear is in P (Park), push the charging door to open/close
• Push the Close button located inner part of the charging door
• Use the Voice Recognition
NOTICE [ , I W K H F K D U J L Q J G R R U G R H V Q R W R S H Q E H F D X V H L F H K D V I R U P H G D U R X Q G L W W D S
O L J K W O \ R U S X V K R Q W K H G R R U W R E U H D N W K H
L F H D Q G U H O H D V H W K H G R R U , I Q H F H V V D U \
X V H K D Q G W H P S H U D W X U H W R P H O W G R Z Q W K H
L F H R U P R Y H W K H Y H K L F O H W R D Z D U P S O D F H
D Q G D O O R Z W K H L F H W R P H O W ' R Q R W S U \ R Q
W K H F K D U J L Q J G R R U R U X V H X Q D X W K R U L ] H G
W R R O V W R R S H Q W K H F K D U J L Q J G R R U
[ $ I W H U F O R V L Q J W K H F K D U J L Q J G R R U S X V K W K H G R R U D J D L Q W R H Q V X U H W K D W W K H
F K D U J L Q J G R R U L V F R P S O H W H O \ F O R V H G
[ 0 D N H V X U H W K D W W K H F K D U J L Q J G R R U L V F O R V H G E H I R U H G U L Y L Q J W K H Y H K L F O H , I W K H
F K D U J L Q J G R R U L V R S H Q H G P H F K D Q L F D O
S D U W V R I W K H F K D U J L Q J G R R U F D Q E H
G D P D J H G
[ $ I W H U F O R V H G W K H F K D U J L Q J G R R U E H V X U H W R F K H F N W K H Z D U Q L Q J O L J K W L V R I I
[ $ I W H U F K D U J L Q J W K H Y H K L F O H F O R V H W K H F K D U J L Q J L Q O H W E \ W K H F K D U J L Q J L Q O H W
F R Y H U S U R S H U O \ , I W K H F K D U J L Q J L Q O H W
F R Y H U L V F O R V H G L P S U R S H U O \ W K H F K D U J L Q J L Q O H W D Q G W K H F K D U J L Q J G R R U
F D Q E H G D P D J H G
[ ' R Q R W S U \ R Q W K H F K D U J L Q J G R R U Z K L O H W K H F K D U J L Q J G R R U L V R S H Q L Q J 7 K H
F K D U J L Q J G R R U P D \ V W R S P R Y L Q J $ O V R
W K H H O H F W U L F D O P H F K D Q L V P R I W K H
F K D U J L Q J G R R U D Q G L W V U H O D W H G S D U W V F D Q
E H V H Y H U H O \ G D P D J H G
[ : K L O H Z D V K L Q J W K H Y H K L F O H G R Q R W V S U D \ D K L J K S U H V V X U H Z D W H U W R W K H F K D U J L Q J
G R R U G L U H F W O \ 7 K H K L J K S U H V V X U H F D Q
G D P D J H W K H F K D U J L Q J G R R U
CAUTION • The charging door opens sideways. Check the surrounding while the
charging door is open or close. Be
aware of your head or limbs from being
hit or stuck to the charging door.
• Do not hold the hinge to prevent damaging the charging door and
causing other accidents.
Information • The charging door automatically closes when:
- The charging connector is disconnected
- The door is opened and the charging connector is not connected for a certain
period of time
- The gear is not in P (Park)
• After replacing battery (12 V), open and close the charging door once to check that
the charging door automatic opening
mechanism is functioning properly.
For more information, refer to the “Charging
Your Electric Vehicle” section in chapter 1.
Hyundai_CE_en_US.book Page 62
