HYUNDAI IONIQ 6 2023 Owners Manual

5
5-83

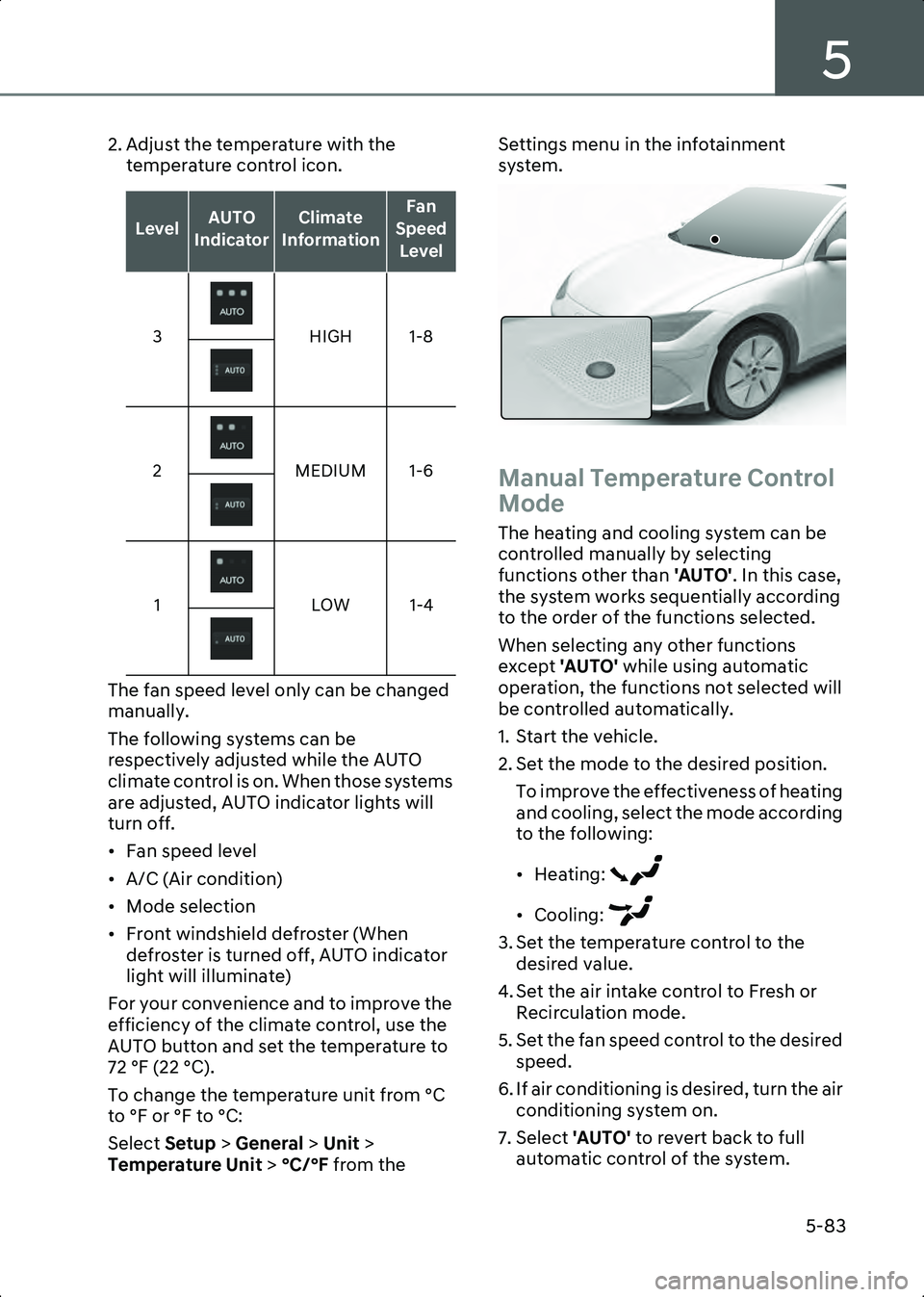

2. Adjust the temperature with the temperature control icon.
The fan speed level only can be changed
manually.
The following systems can be
respectively adjusted while the AUTO
climate control is on. When those systems
are adjusted, AUTO indicator lights will
turn off.
• Fan speed level
• A/C (Air condition)
• Mode selection
• Front windshield defroster (When defroster is turned off, AUTO indicator
light will illuminate)
For your convenience and to improve the
efficiency of the climate control, use the
AUTO button and set the temperature to
72 °F (22 °C).
To change the temperature unit from °C
to °F or °F to °C:
Select Setup > General > Unit >
Temperature Unit > °C/°F from the Settings menu in the infotainment
system.
B5019903
Manual Temperature Control
Mode
The heating and cooling system can be
controlled manually by selecting
functions other than
'AUTO'. In this case,
the system works sequentially according
to the order of the functions selected.
When selecting any other functions
except 'AUTO' while using automatic
operation, the functions not selected will
be controlled automatically.
1. Start the vehicle.
2. Set the mode to the desired position.
To improve the effectiveness of heating
and cooling, select the mode according
to the following:
• Heating:
• Cooling:
3. Set the temperature control to the desired value.
4. Set the air intake control to Fresh or Recirculation mode.
5. Set the fan speed control to the desired speed.
6. If air conditioning is desired, turn the air conditioning system on.
7. Select 'AUTO' to revert back to full
automatic control of the system.
LevelAUTO
IndicatorClimate
InformationFan
Speed Level
3 HIGH 1-8
2 MEDIUM 1-6
1 LOW 1-4
Hyundai_CE_en_US.book Page 83

Convenience Features
5-84

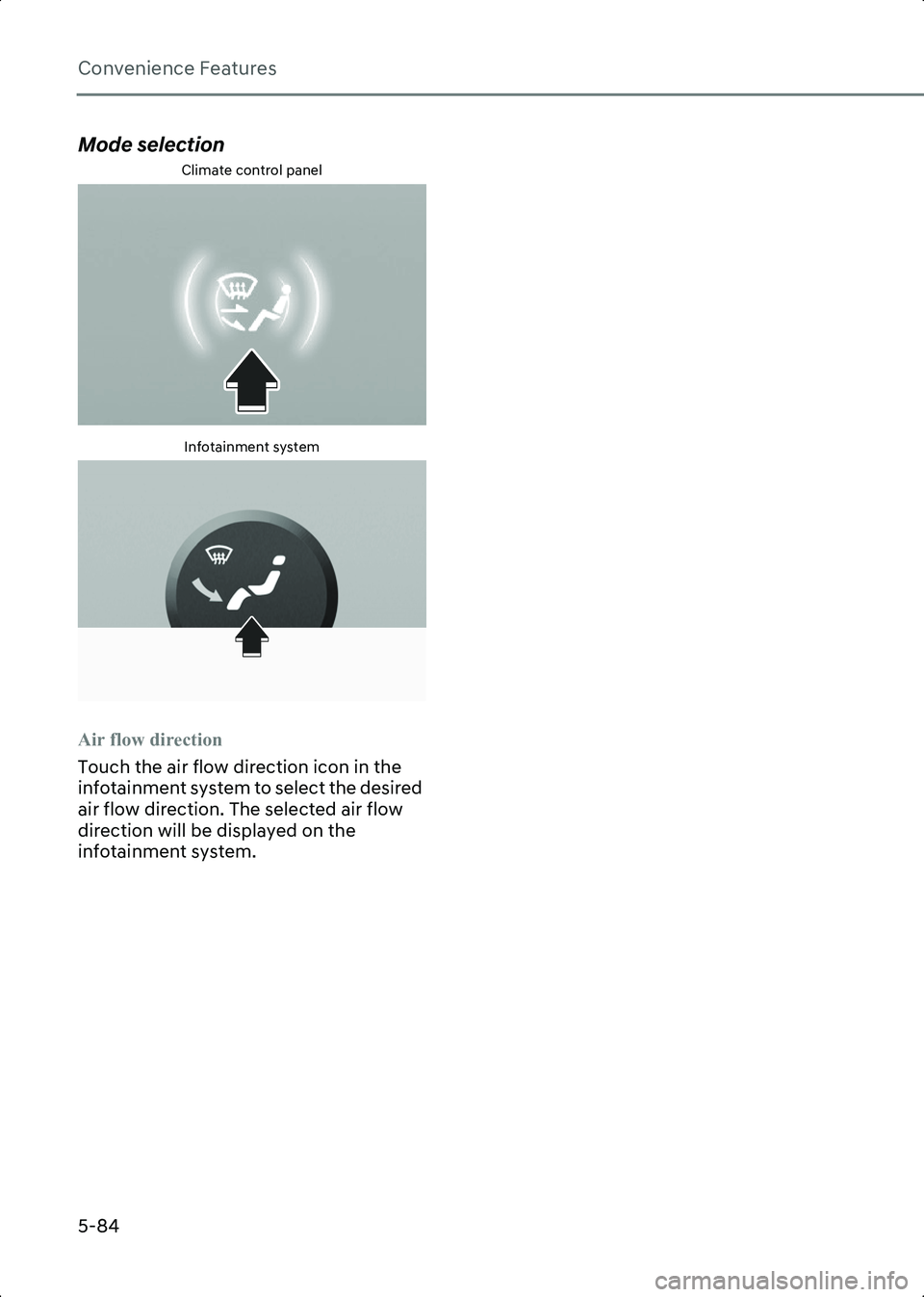

Mode selection
Climate control panel
B5020001Infotainment system
B5020002
Air flow direction
Touch the air flow direction icon in the
infotainment system to select the desired
air flow direction. The selected air flow
direction will be displayed on the
infotainment system.
Hyundai_CE_en_US.book Page 84

5
5-85

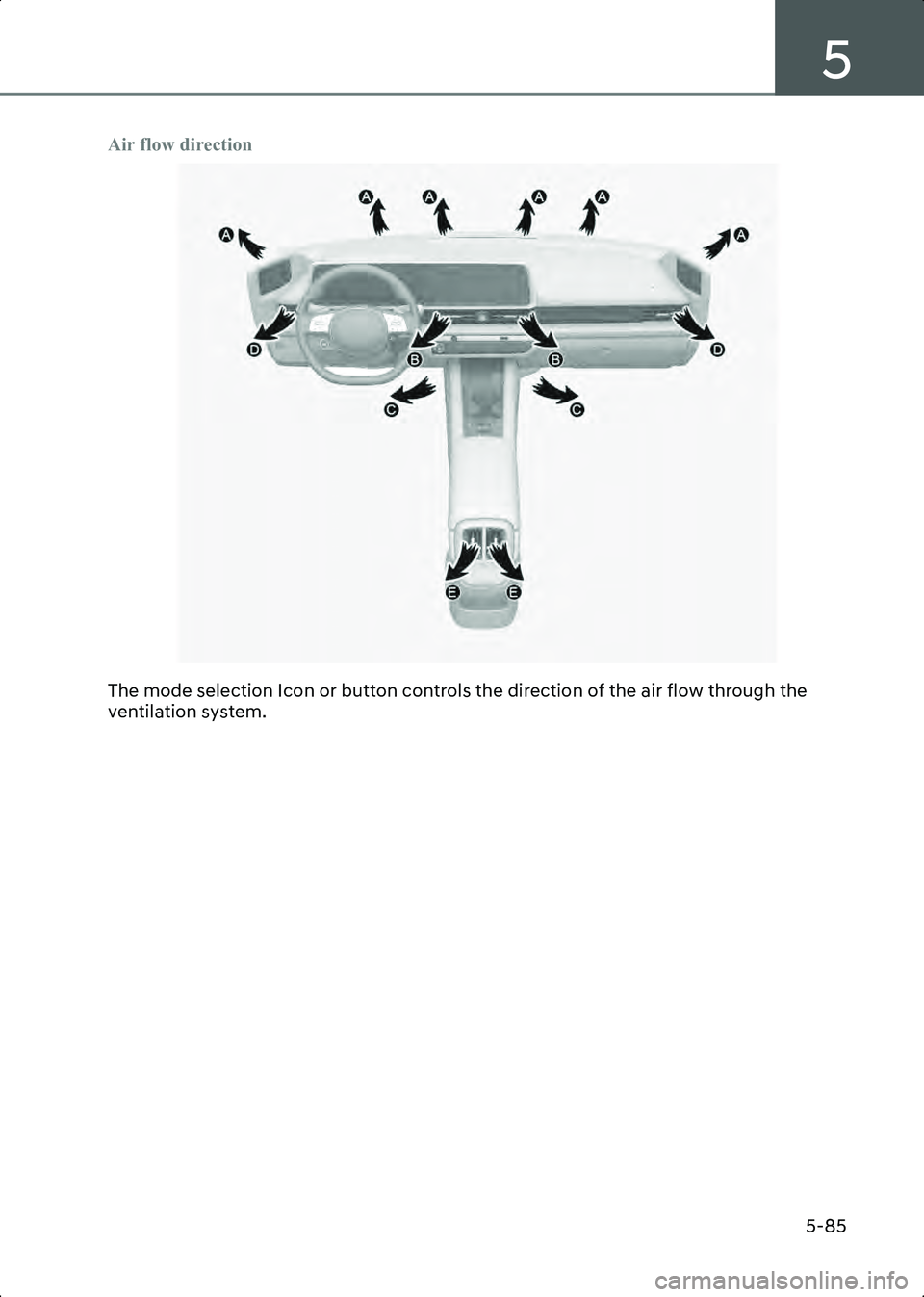

Air flow direction
A5020001
The mode selection Icon or button controls the direction of the air flow through the
ventilation system.
Hyundai_CE_en_US.book Page 85

Convenience Features
5-86
Face-Level (B, D)
Air flow is directed toward the upper body
and face. Additionally, each outlet can be
controlled to direct the air discharged
from the outlet.
Bi-Level (B, C, D, E)
Air flow is directed towards the face and
the floor.
All Level (A, B, C, D, E, F)
Air flow is directed toward the face, the
floor and the windshield.
Floor-Level (A, C, D, E)
Most of the air flow is directed to the
floor, with a small amount of the air being
directed to the windshield and side
window defrosters.
Floor/Defrost-Level (A, C, D, E)
Most of the air flow is directed to the floor
and the windshield with a small amount
directed to the side window defrosters.
Defroster-Level (A, D)
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.Front windshield defroster
B5020003
Defrost-level (A, D)
Press the icon, and the indicator light will
illuminate and the windshield defroster
indicator will appear on the climate
control panel.
Most of the air flow is directed to the
windshield with a small amount of air
directed to the side window defrosters.
When Defogging logic is enabled, Fresh
mode is selected and air conditioning is
selected according to outside
temperature.
If the icon is pressed again, the indicator
light will turn off and the previous settings
will be selected.
Hyundai_CE_en_US.book Page 86

5
5-87
Instrument panel vents
Front seat
B5020004Rear seat
B5020005
The instrument panel vent air flow can be
directed up/down or left/right using the
vent adjustment lever.
The air flow can also be CLOSED using the
vent adjustment lever.
Front seat
Move the lever away horizontally from the
seat to close until the levers click and
lock. Slightly move the lever toward the
seating position to unlock and open.
Rear seat
Move the lever downward to close the air
flow. Move the lever upward to open the
air flow.
Temperature control
Climate control panel
B5020006Infotainment system
B5020007
Touch the or icon to select the
temperature.
The temperature can be increased or
decreased by increments of 1 °F (0.5 °C)
for each incremental location. When set
to the lowest temperature setting, the air
conditioning will operate continuously to
quickly cool the interior of the vehicle
initially. After interior temperature has
been cooled down sufficiently, select
'AUTO' and set the temperature to 72 °F
(22 °C).
Hyundai_CE_en_US.book Page 87

Convenience Features
5-88

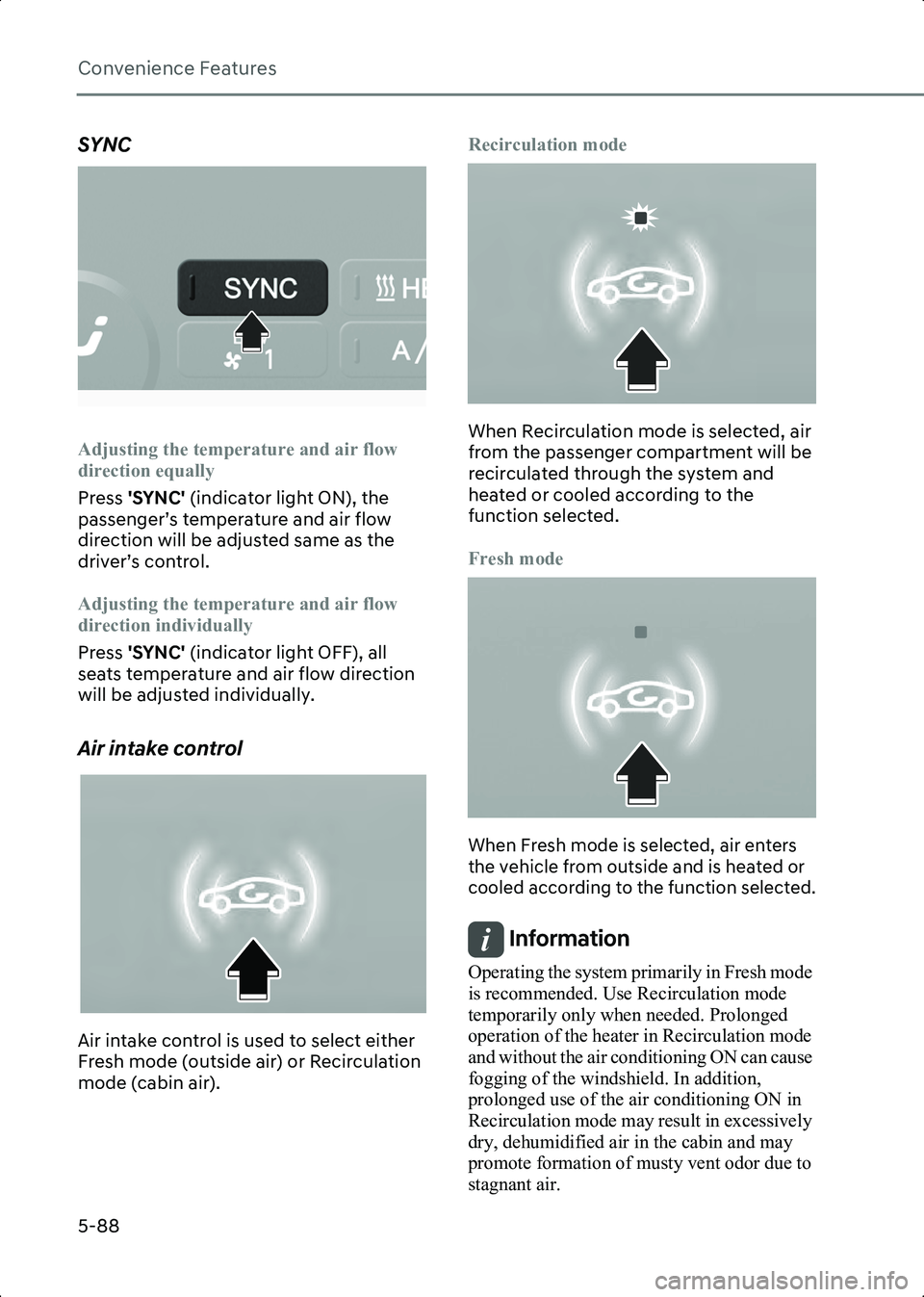

SYNC
B5020008
Adjusting the temperature and air flow
direction equally
Press 'SYNC' (indicator light ON), the
passenger’s temperature and air flow
direction will be adjusted same as the
driver’s control.
Adjusting the temperature and air flow
direction individually
Press 'SYNC' (indicator light OFF), all
seats temperature and air flow direction
will be adjusted individually.
Air intake control
B5020009
Air intake control is used to select either
Fresh mode (outside air) or Recirculation
mode (cabin air). Recirculation mode
B5020010
When Recirculation mode is selected, air
from the passenger compartment will be
recirculated through the system and
heated or cooled according to the
function selected.
Fresh mode
B5020011

When Fresh mode is selected, air enters
the vehicle from outside and is heated or
cooled according to the function selected.

Information Operating the system primarily in Fresh mode
is recommended. Use Recirculation mode
temporarily only when needed. Prolonged
operation of the heater in Recirculation mode
and without the air conditioning ON can cause
fogging of the windshield. In addition,
prolonged use of the air conditioning ON in
Recirculation mode may result in excessively
dry, dehumidified air in the cabin and may
promote formation of musty vent odor due to
stagnant air.

Hyundai_CE_en_US.book Page 88

5
5-89

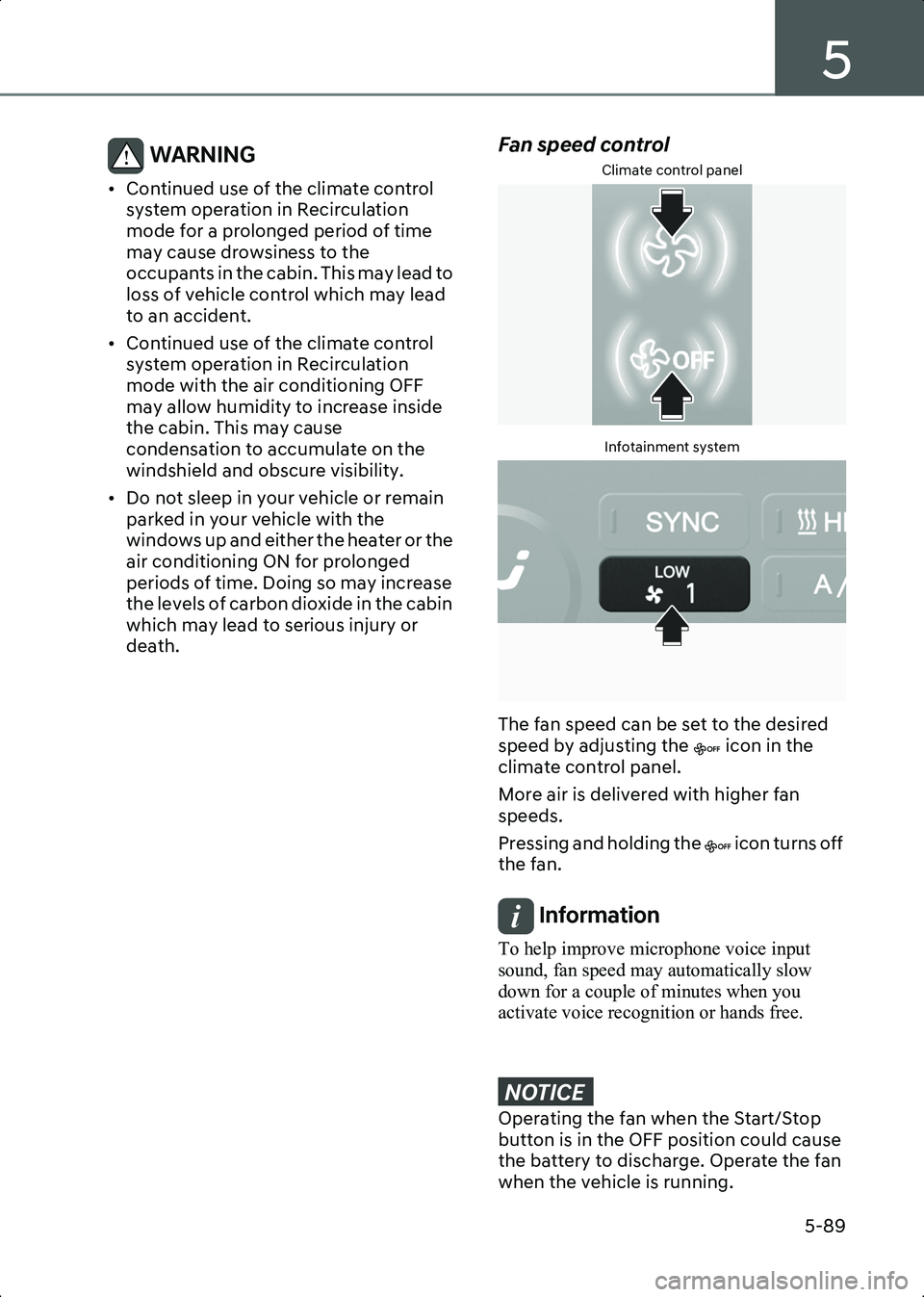

WARNING • Continued use of the climate control system operation in Recirculation
mode for a prolonged period of time
may cause drowsiness to the
occupants in the cabin. This may lead to
loss of vehicle control which may lead
to an accident.
• Continued use of the climate control system operation in Recirculation
mode with the air conditioning OFF
may allow humidity to increase inside
the cabin. This may cause
condensation to accumulate on the
windshield and obscure visibility.
• Do not sleep in your vehicle or remain parked in your vehicle with the
windows up and either the heater or the
air conditioning ON for prolonged
periods of time. Doing so may increase
the levels of carbon dioxide in the cabin
which may lead to serious injury or
death.

Fan speed control
Climate control panel
B5020012Infotainment system
B5020013
The fan speed can be set to the desired
speed by adjusting the icon in the
climate control panel.
More air is delivered with higher fan
speeds.
Pressing and holding the icon turns off
the fan.
Information To help improve microphone voice input
sound, fan speed may automatically slow
down for a couple of minutes when you
activate voice recognition or hands free.

NOTICE2SHUDWLQJWKHIDQZKHQWKH6WDUW6WRS
EXWWRQLVLQWKH2))SRVLWLRQFRXOGFDXVH
WKHEDWWHU\WRGLVFKDUJH2SHUDWHWKHIDQ
ZKHQWKHYHKLFOHLVUXQQLQJ

Hyundai_CE_en_US.book Page 89

Convenience Features
5-90

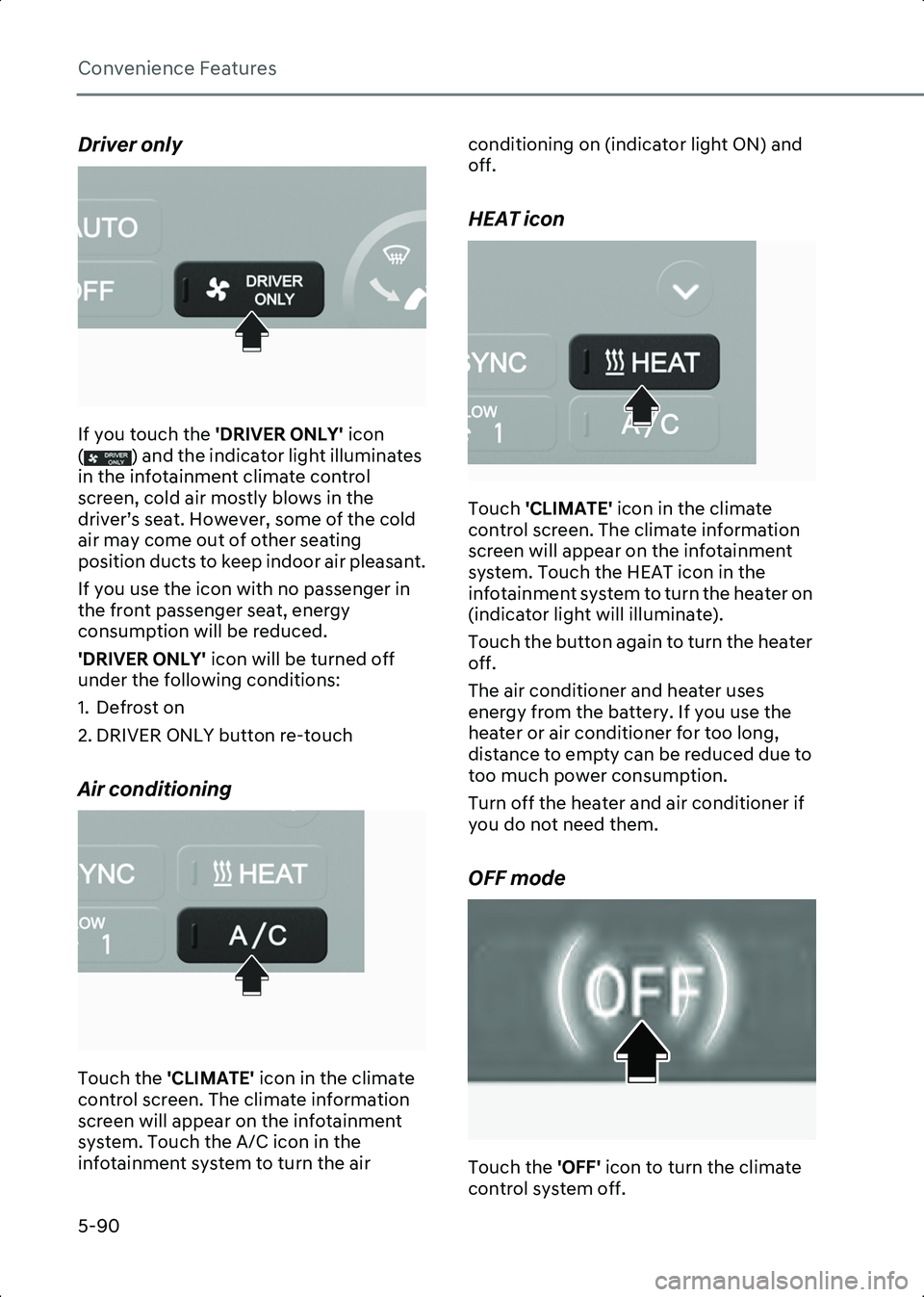

Driver only
B5020014
If you touch the 'DRIVER ONLY' icon
( ) and the indicator light illuminates
in the infotainment climate control
screen, cold air mostly blows in the
driver’s seat. However, some of the cold
air may come out of other seating
position ducts to keep indoor air pleasant.
If you use the icon with no passenger in
the front passenger seat, energy
consumption will be reduced.
'DRIVER ONLY' icon will be turned off
under the following conditions:
1. Defrost on
2. DRIVER ONLY button re-touch
Air conditioning
B5020015
Touch the 'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the A/C icon in the
infotainment system to turn the air conditioning on (indicator light ON) and
off.
HEAT icon
B5020016
Touch
'CLIMATE' icon in the climate
control screen. The climate information
screen will appear on the infotainment
system. Touch the HEAT icon in the
infotainment system to turn the heater on
(indicator light will illuminate).
Touch the button again to turn the heater
off.
The air conditioner and heater uses
energy from the battery. If you use the
heater or air conditioner for too long,
distance to empty can be reduced due to
too much power consumption.
Turn off the heater and air conditioner if
you do not need them.
OFF mode
B5020017
Touch the 'OFF' icon to turn the climate
control system off.
Hyundai_CE_en_US.book Page 90

5
5-91

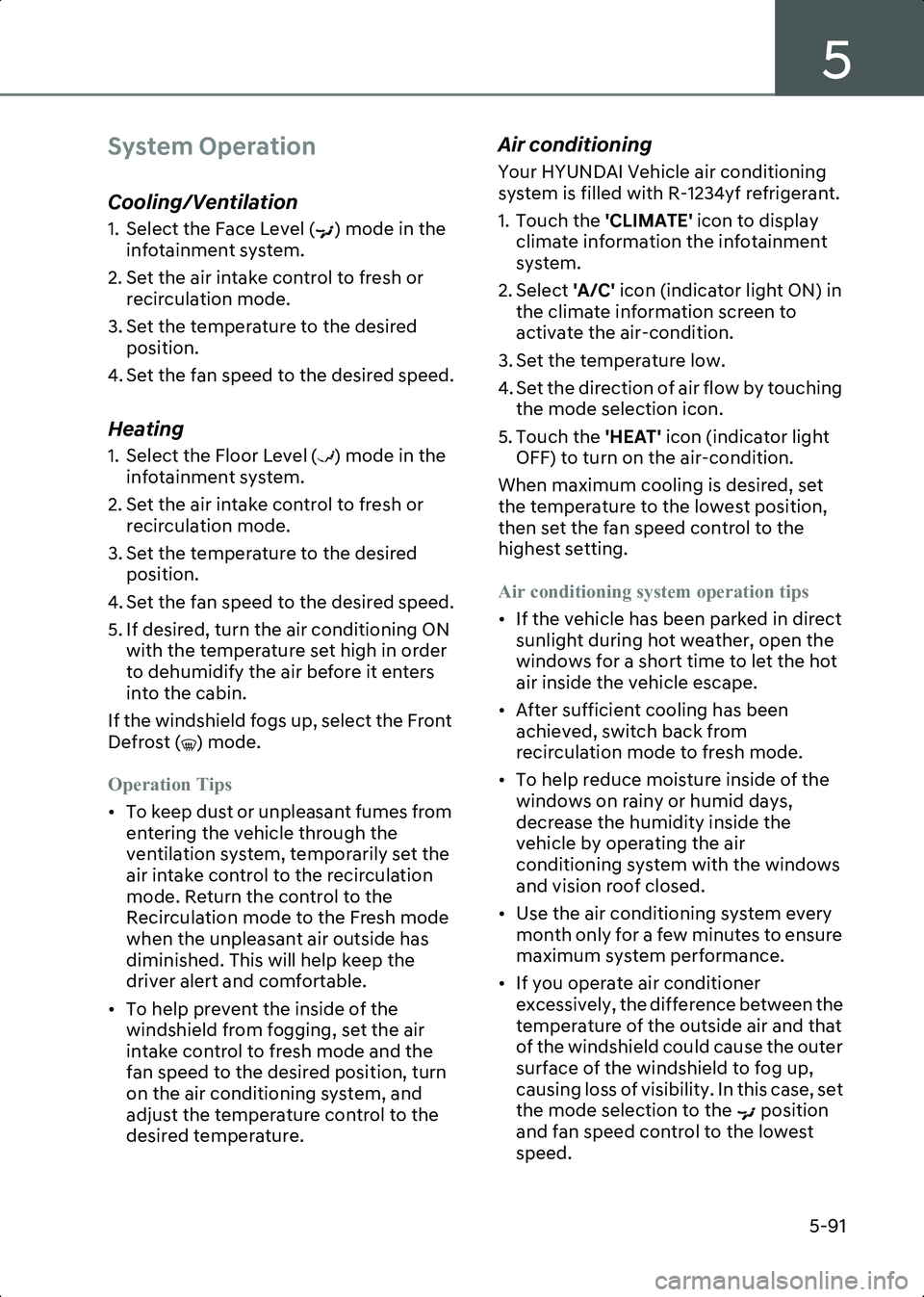

System Operation
Cooling/Ventilation
1. Select the Face Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
Heating
1. Select the Floor Level ( ) mode in the infotainment system.
2. Set the air intake control to fresh or recirculation mode.
3. Set the temperature to the desired position.
4. Set the fan speed to the desired speed.
5. If desired, turn the air conditioning ON with the temperature set high in order
to dehumidify the air before it enters
into the cabin.
If the windshield fogs up, select the Front
Defrost ( ) mode.
Operation Tips
• To keep dust or unpleasant fumes from entering the vehicle through the
ventilation system, temporarily set the
air intake control to the recirculation
mode. Return the control to the
Recirculation mode to the Fresh mode
when the unpleasant air outside has
diminished. This will help keep the
driver alert and comfortable.
• To help prevent the inside of the windshield from fogging, set the air
intake control to fresh mode and the
fan speed to the desired position, turn
on the air conditioning system, and
adjust the temperature control to the
desired temperature.
Air conditioning
Your HYUNDAI Vehicle air conditioning
system is filled with R-1234yf refrigerant.
1. Touch the 'CLIMATE' icon to display
climate information the infotainment
system.
2. Select 'A/C' icon (indicator light ON) in
the climate information screen to
activate the air-condition.
3. Set the temperature low.
4. Set the direction of air flow by touching the mode selection icon.
5. Touch the 'HEAT' icon (indicator light
OFF) to turn on the air-condition.
When maximum cooling is desired, set
the temperature to the lowest position,
then set the fan speed control to the
highest setting.
Air conditioning system operation tips
• If the vehicle has been parked in direct sunlight during hot weather, open the
windows for a short time to let the hot
air inside the vehicle escape.
• After sufficient cooling has been achieved, switch back from
recirculation mode to fresh mode.
• To help reduce moisture inside of the windows on rainy or humid days,
decrease the humidity inside the
vehicle by operating the air
conditioning system with the windows
and vision roof closed.
• Use the air conditioning system every month only for a few minutes to ensure
maximum system performance.
• If you operate air conditioner excessively, the difference between the
temperature of the outside air and that
of the windshield could cause the outer
surface of the windshield to fog up,
causing loss of visibility. In this case, set
the mode selection to the position
and fan speed control to the lowest
speed.
Hyundai_CE_en_US.book Page 91

Convenience Features
5-92

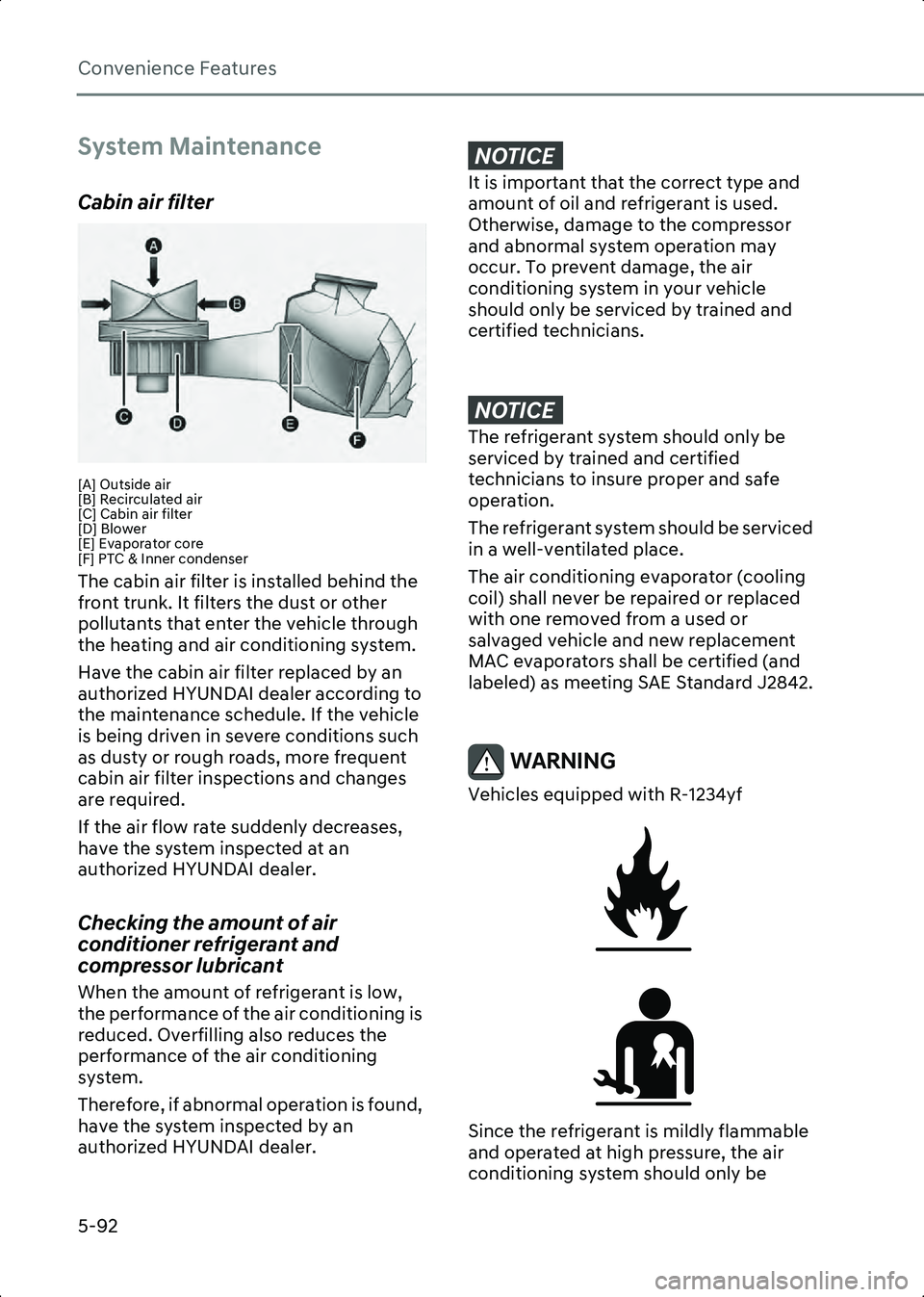

System Maintenance
Cabin air filter
OHI048581L[A] Outside air
[B] Recirculated air
[C] Cabin air filter
[D] Blower
[E] Evaporator core
[F] PTC & Inner condenser
The cabin air filter is installed behind the
front trunk. It filters the dust or other
pollutants that enter the vehicle through
the heating and air conditioning system.
Have the cabin air filter replaced by an
authorized HYUNDAI dealer according to
the maintenance schedule. If the vehicle
is being driven in severe conditions such
as dusty or rough roads, more frequent
cabin air filter inspections and changes
are required.
If the air flow rate suddenly decreases,
have the system inspected at an
authorized HYUNDAI dealer.
Checking the amount of air
conditioner refrigerant and
compressor lubricant
When the amount of refrigerant is low,
the performance of the air conditioning is
reduced. Overfilling also reduces the
performance of the air conditioning
system.
Therefore, if abnormal operation is found,
have the system inspected by an
authorized HYUNDAI dealer.
NOTICE,WLVLPSRUWDQWWKDWWKHFRUUHFWW\SHDQG
DPRXQWRIRLODQGUHIULJHUDQWLVXVHG
2WKHUZLVHGDPDJHWRWKHFRPSUHVVRU
DQGDEQRUPDOV\VWHPRSHUDWLRQPD\
RFFXU7RSUHYHQWGDPDJHWKHDLU
FRQGLWLRQLQJV\VWHPLQ\RXUYHKLFOH
VKRXOGRQO\EHVHUYLFHGE\WUDLQHGDQG
FHUWLILHGWHFKQLFLDQV

NOTICE7KHUHIULJHUDQWV\VWHPVKRXOGRQO\EH
VHUYLFHGE\WUDLQHGDQGFHUWLILHG
WHFKQLFLDQVWRLQVXUHSURSHUDQGVDIH
RSHUDWLRQ
7KHUHIULJHUDQWV\VWHPVKRXOGEHVHUYLFHG
LQDZHOOYHQWLODWHGSODFH
7KHDLUFRQGLWLRQLQJHYDSRUDWRUFRROLQJ
FRLO\fVKDOOQHYHUEHUHSDLUHGRUUHSODFHG
ZLWKRQHUHPRYHGIURPDXVHGRU
VDOYDJHGYHKLFOHDQGQHZUHSODFHPHQW
0$&HYDSRUDWRUVVKDOOEHFHUWLILHGDQG
ODEHOHG\fDVPHHWLQJ6$(6WDQGDUG-

WARNING Vehicles equipped with R-1234yf
Since the refrigerant is mildly flammable
and operated at high pressure, the air
conditioning system should only be
Hyundai_CE_en_US.book Page 92
