Hyundai Ioniq Hybrid 2017 Multimedia Manual

What is Voice Recognition?
Precautions Required for Successful Voice Recognition Starting/Ending and Setting Voice Recognition
Voice Recognition Screen Overview
Voice CommandsSiri Eyes Free

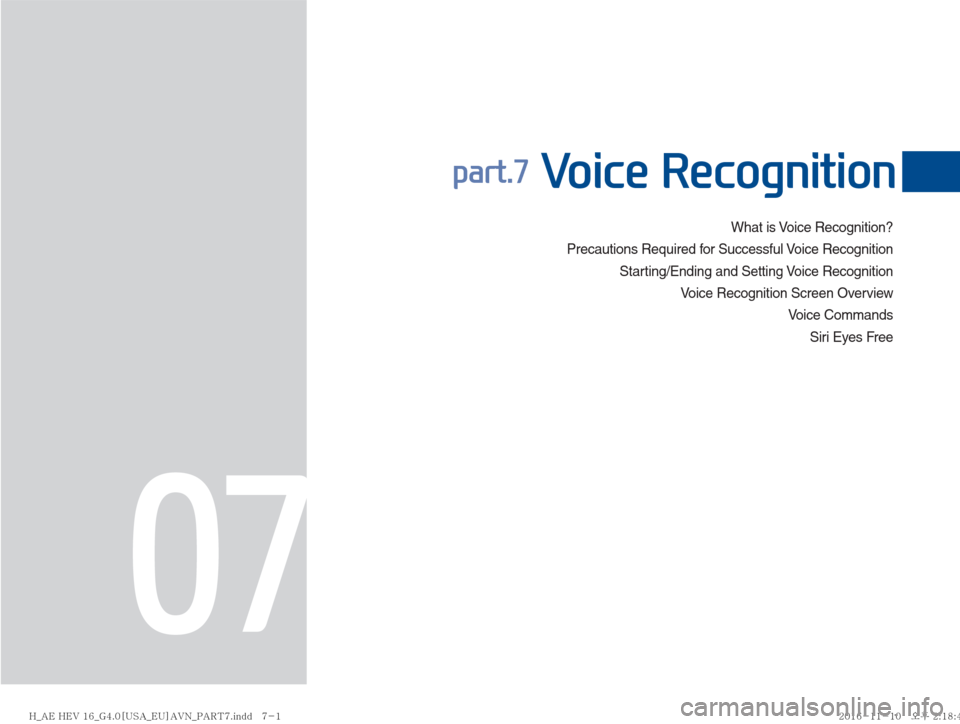

part.7 Voice Recognition
07
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE



)@"&
)&7
@(<64"@&6>"7/@1"35JOEE




7-2 I Voice Recognition

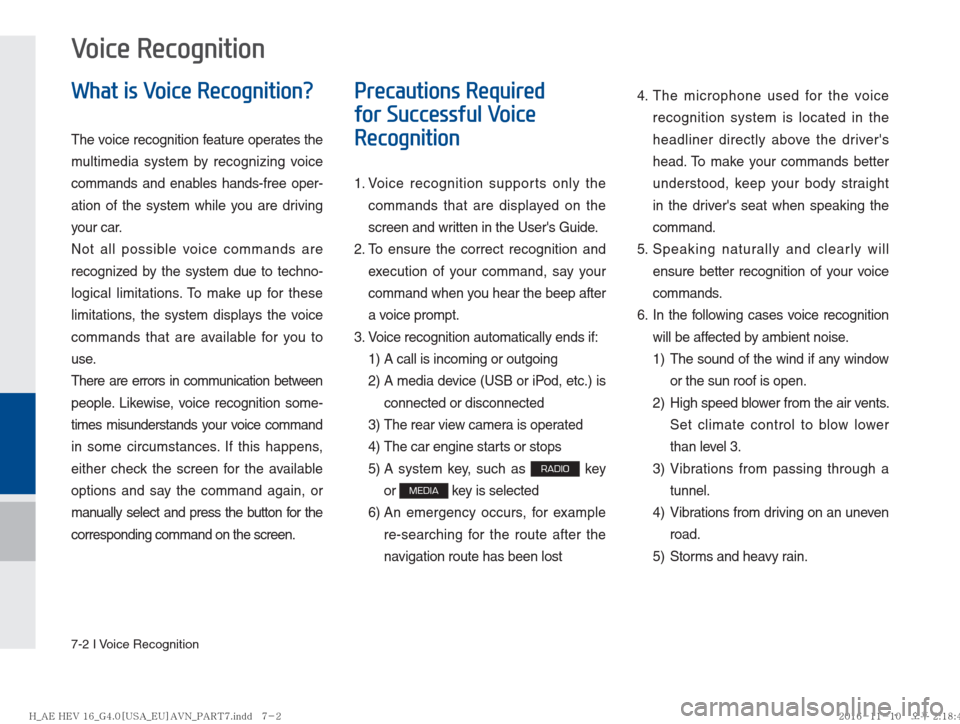

What is Voice Recognition?
The voice recognition feature operates the
multimedia system by recognizing voice
commands and enables hands-free oper-
ation of the system while you are driving
your car.
Not all possible voice commands are
recognized by the system due to techno-
logical limitations. To make up for these
limitations, the system displays the voice
commands that are available for you to
use.
There are errors in communication between
people. Likewise, voice recognition some-
times misunderstands your voice command
in some circumstances. If this happens,
either check the screen for the available
options and say the command again, or
manually select and press the button for the
corresponding command on the screen.
Precautions Required
for Successful Voice
Recognition
1. Voice recognition supports only the
commands that are displayed on the
screen and written in the User's Guide.
2. To ensure the correct recognition and
execution of your command, say your
command when you hear the beep after
a voice prompt.
3. Voice recognition automatically ends if:
1) A call is incoming or outgoing
2) A media device (USB or iPod, etc.) is
connected or disconnected
3) The rear view camera is operated
4) The car engine starts or stops
5) A system key, such as
RADIO key
or
MEDIA key is selected
6) An emergency occurs, for example
re-searching for the route after the
navigation route has been lost 4.
The microphone used for the voice
recognition system is located in the
headliner directly above the driver's
head. To make your commands better
understood, keep your body straight
in the driver's seat when speaking the
command.
5. Speaking naturally and clearly will
ensure better recognition of your voice
commands.
6. In the following cases voice recognition
will be affected by ambient noise.
1) The sound of the wind if any window
or the sun roof is open.
2) High speed blower from the air vents.
Set climate control to blow lower
than level 3.
3) Vibrations from passing through a
tunnel.
4) Vibrations from driving on an uneven
road.
5) Storms and heavy rain.
Voice Recognition
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




Starting/Ending and Setting Voice Recognition I 7-3
07

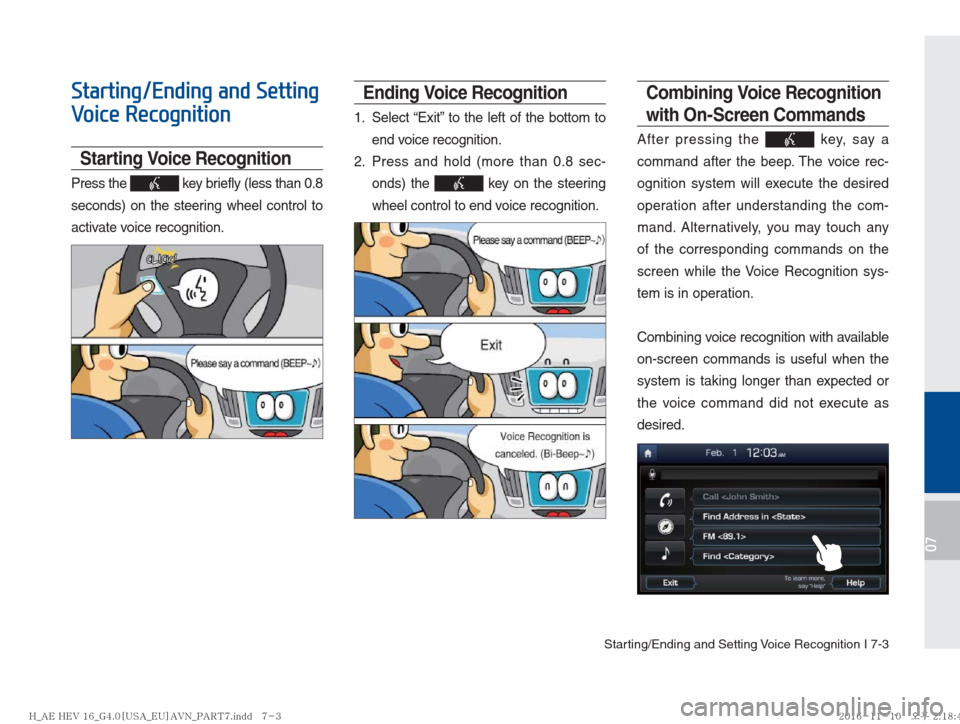

Starting/Ending and Setting
Voice Recognition
Starting Voice Recognition
Press the key briefly (less than 0.8
seconds) on the steering wheel control to
activate voice recognition.
Ending Voice Recognition
1. Select “Exit” to the left of the bottom to end voice recognition.
2. Press and hold (more than 0.8 sec- onds) the
key on the steering
wheel control to end voice recognition.
Combining Voice Recognition
with On-Screen Commands
After pressing the key, say a
command after the beep. The voice rec-
ognition system will execute the desired
operation after understanding the com-
mand. Alternatively, you may touch any
of the corresponding commands on the
screen while the Voice Recognition sys-
tem is in operation.
Combining voice recognition with available
on-screen commands is useful when the
system is taking longer than expected or
the voice command did not execute as
desired.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




7-4 I Voice Recognition

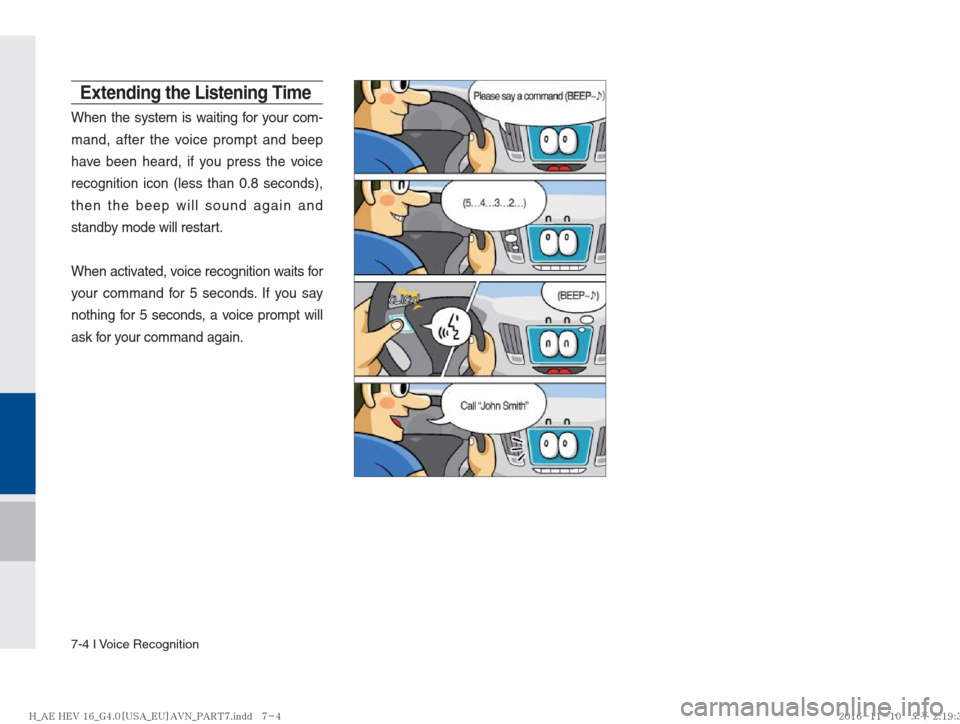

Extending the Listening Time
When the system is waiting for your com-
mand, after the voice prompt and beep
have been heard, if you press the voice
recognition icon (less than 0.8 seconds),
then the beep will sound again and
standby mode will restart.
When activated, voice recognition waits for
your command for 5 seconds. If you say
nothing for 5 seconds, a voice prompt will
ask for your command again.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




Starting/Ending and Setting Voice Recognition I 7-5
07

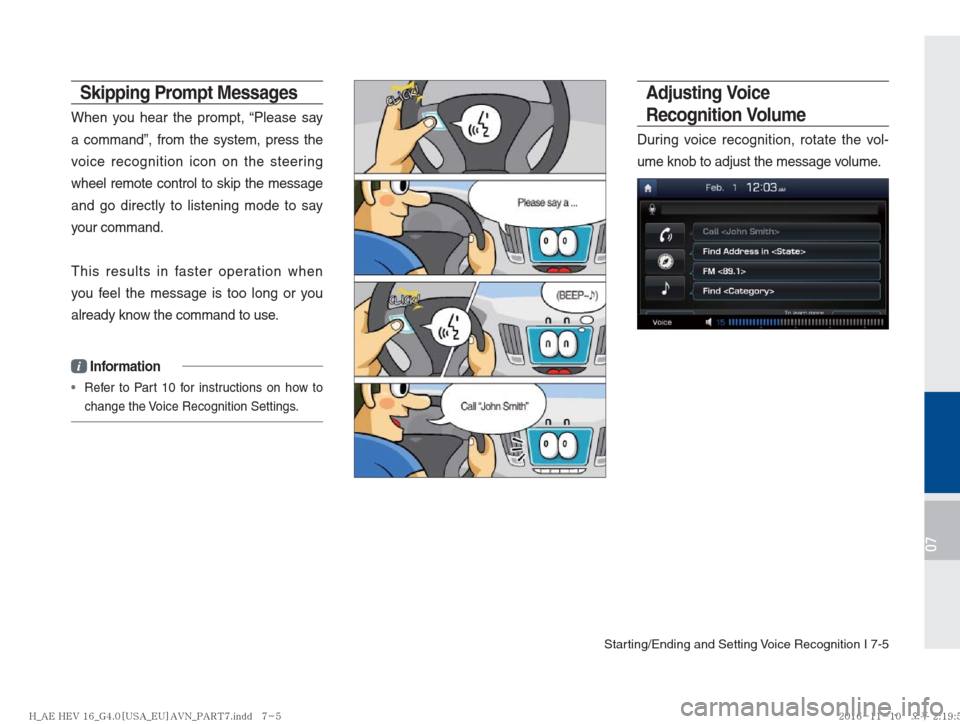

Skipping Prompt Messages
When you hear the prompt, “Please say
a command”, from the system, press the
voice recognition icon on the steering
wheel remote control to skip the message
and go directly to listening mode to say
your command.
This results in faster operation when
you feel the message is too long or you
already know the command to use.
Information
Refer to Part 10 for instructions on how to
change the
Voice Recognition Settings.
Adjusting Voice
Recognition Volume
During voice recognition, rotate the vol-
ume knob to adjust the message volume.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




7-6 I Voice Recognition

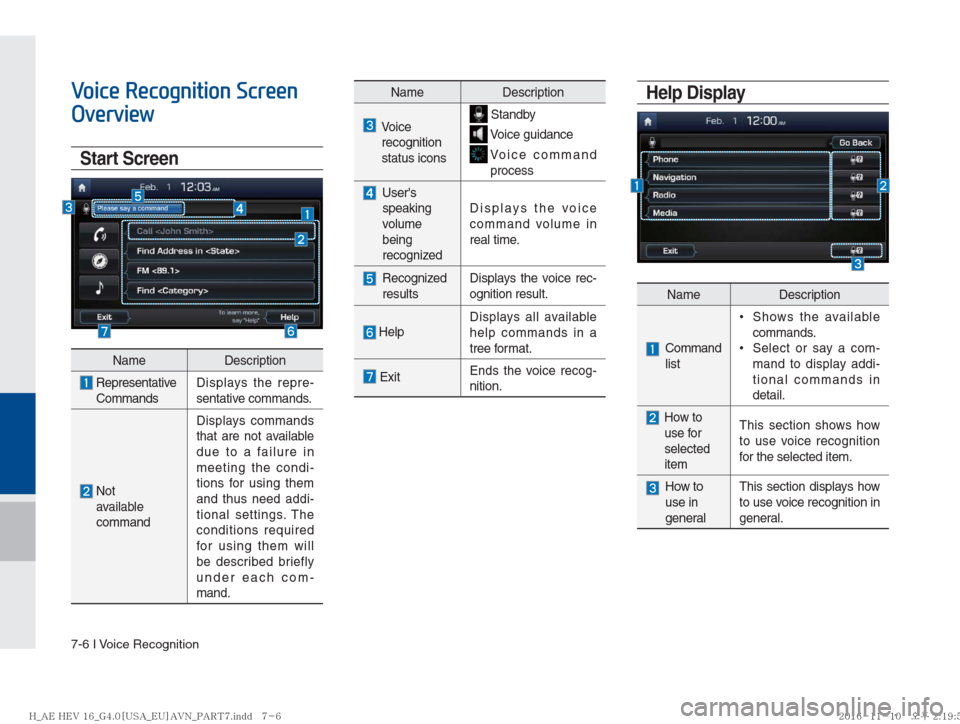

Voice Recognition Screen
Overview
Start Screen
NameDescription
Representative
Commands Displays the repre-
sentative commands.

Not
available
command Displays commands
that are not available
due to a failure in
meeting the condi-
tions for using them
and thus need addi-
tional settings. The
conditions required
for using them will
be described briefly
under each com-
mand.
Name
Description
Voice
recognition
status icons Standby
Voice guidance
Voice command
process

User's
speaking
volume
being
recognized Displays the voice
command volume in
real time.

Recognized
results Displays the voice rec-
ognition result.
Help
Displays all available
help commands in a
tree format.
Exit
Ends the voice recog-
nition.
Help Display
Name
Description
Command
list
•

Shows the available
commands.

•
Select or say a com-
mand to display addi-
tional commands in
detail.
How to
use for
selected
item This section shows how
to use voice recognition
for the selected item.

How to
use in
general This section displays how
to use voice recognition in
general.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE





Voice Recognition Screen Overview I 7-7
07

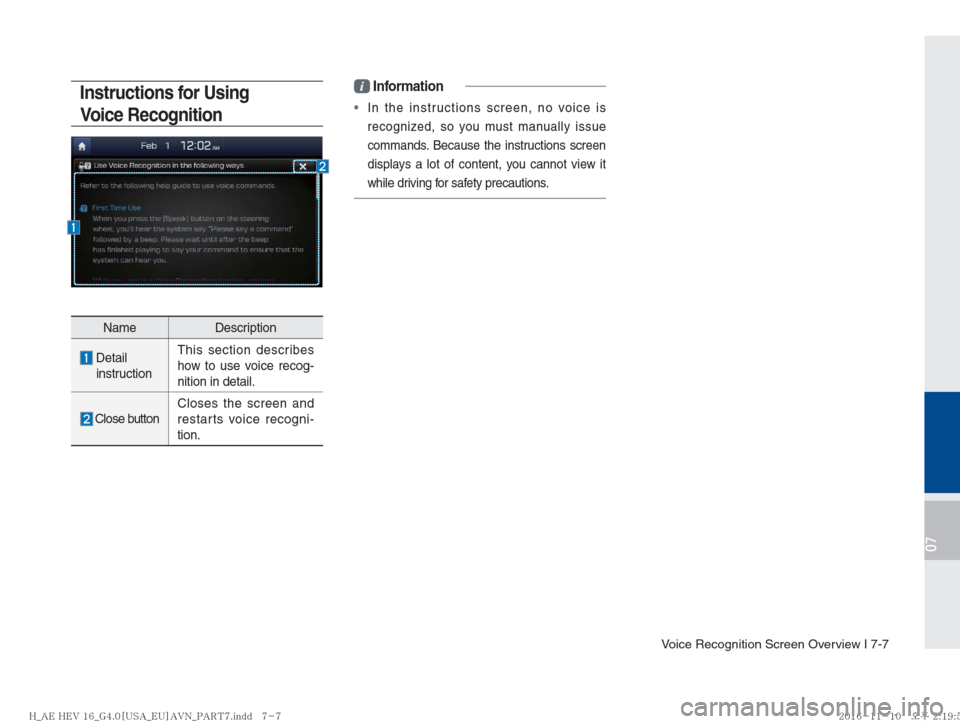

Instructions for Using
Voic e R e cognit ion
NameDescription
Detail
instruction This section describes
how to use voice recog-
nition in detail.
Close button
Closes the screen and
restarts voice recogni-
tion.
Information

In the instructions screen, no voice is
recogniz
ed, so you must manually issue
commands. Because the instructions screen
displays a lot of content, you cannot view it
while driving for safety precautions.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE




7-8 I Voice Recognition

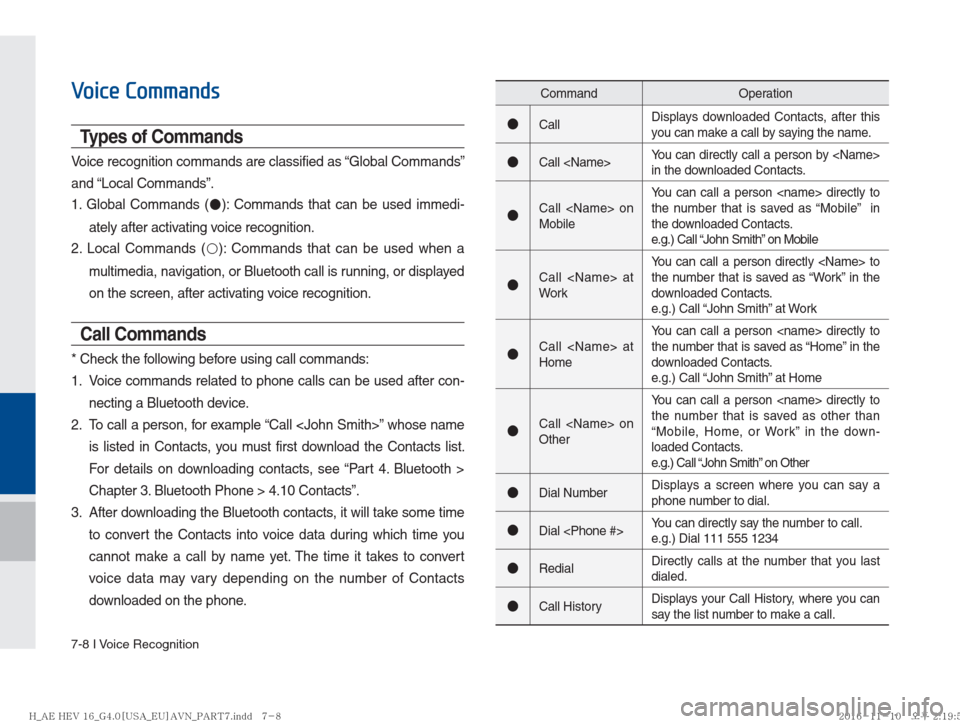

Voice Commands
Types of Commands
Voice recognition commands are classified as “Global Commands”
and “Local Commands”.
1. Global Commands (
●): Commands that can be used immedi-
ately after activating voice recognition.
2. Local Commands (
○): Commands that can be used when a
multimedia, navigation, or Bluetooth call is running, or displayed
on the screen, after activating voice recognition.
Call Commands
* Check the following before using call commands:
1. Voice commands related to phone calls can be used after con- necting a Bluetooth device.
2. To call a person, for example “Call ” whose name is listed in Contacts, you must first download the Contacts list.
For details on downloading contacts, see “Part 4. Bluetooth >
Chapter 3. Bluetooth Phone > 4.10 Contacts”.
3. After downloading the Bluetooth contacts, it will take some time to convert the Contacts into voice data during which time you
cannot make a call by name yet. The time it takes to convert
voice data may vary depending on the number of Contacts
downloaded on the phone.
Command Operation
●CallDisplays downloaded Contacts, after this
you can make a call by saying the name.
●Call You can directly call a person by
in the downloaded Contacts.
●Call on
MobileYou can call a person directly to
the number that is saved as “Mobile” in
the downloaded Contacts.
e.g.) Call “John Smith” on Mobile
●Call at
WorkYou can call a person directly to
the number that is saved as “Work” in the
downloaded Contacts.
e.g.) Call “John Smith” at Work
●Call at
HomeYou can call a person directly to
the number that is saved as “Home” in the
downloaded Contacts.
e.g.) Call “John Smith” at Home
●Call on
OtherYou can call a person directly to
the number that is saved as other than
“Mobile, Home, or Work” in the down-
loaded Contacts.
e.g.) Call “John Smith” on Other
●Dial Number
Displays a screen where you can say a
phone number to dial.
●Dial You can directly say the number to call.
e.g.) Dial 111 555 1234
●RedialDirectly calls at the number that you last
dialed.
●Call HistoryDisplays your Call History, where you can
say the list number to make a call.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE





Voice Commands I 7-9
07

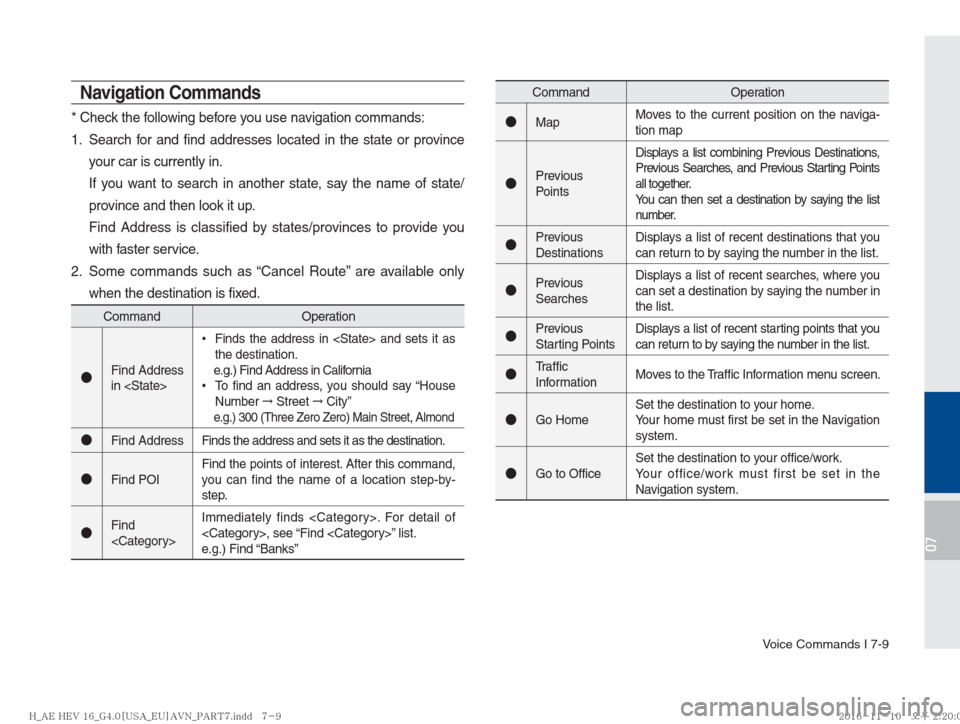

Navigation Commands
* Check the following before you use navigation commands:
1. Search for and find addresses located in the state or province your car is currently in.
If you want to search in another state, say the name of state/ province and then look it up.
Find Address is classified by states/provinces to provide you with faster service.
2. Some commands such as “Cancel Route” are available only when the destination is fixed.
Command Operation
●Find Address
in
•
Finds the address in and sets it as
the destination.
e.g.) Find Address in California
•
To find an address, you should say “House
Number →
Street →
City”

e.g.) 300 (Three Zero Zero) Main Street, Almond
●Find Address Finds the address and sets it as the destination.
●Find POIFind the points of interest. After this command,
you can find the name of a location step-by-
step.
●Find
Immediately finds . For detail of
, see “Find ” list.
e.g.) Find “Banks”
Command
Operation
●MapMoves to the current position on the naviga-
tion map
●Previous
PointsDisplays a list combining Previous Destinations,
Previous Searches, and Previous Starting Points
all together.
You can then set a destination by saying the list
number.
●Previous
Destinations
Displays a list of recent destinations that you
can return to by saying the number in the list.
●Previous
SearchesDisplays a list of recent searches, where you
can set a destination by saying the number in
the list.
●Previous
Starting Points
Displays a list of recent starting points that you
can return to by saying the number in the list.
●Traffic
Information
Moves to the Traffic Information menu screen.
●Go HomeSet the destination to your home.
Your home must first be set in the Navigation
system.
●Go to OfficeSet the destination to your office/work.
Your office/work must first be set in the
Navigation system.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE

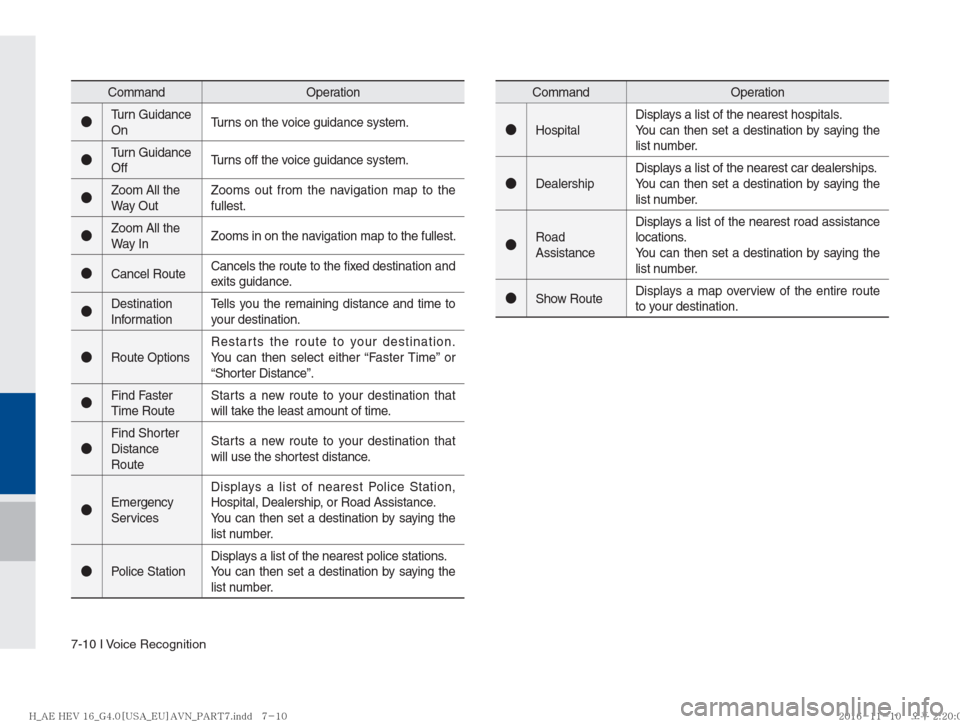

7-10 I Voice Recognition
CommandOperation
●Turn Guidance
OnTurns on the voice guidance system.
●Turn Guidance
OffTurns off the voice guidance system.
●Zoom All the
Way OutZooms out from the navigation map to the
fullest.
●Zoom All the
Way In
Zooms in on the navigation map to the fullest.
●Cancel RouteCancels the route to the fixed destination and
exits guidance.
●Destination
InformationTells you the remaining distance and time to
your destination.
●Route OptionsRestarts the route to your destination.
You can then select either “Faster Time” or
“Shorter Distance”.
●Find Faster
Time RouteStarts a new route to your destination that
will take the least amount of time.
●
Find Shorter
Distance
RouteStarts a new route to your destination that
will use the shortest distance.
●Emergency
ServicesDisplays a list of nearest Police Station,
Hospital, Dealership, or Road Assistance.
You can then set a destination by saying the
list number.
●Police Station
Displays a list of the nearest police stations.
You can then set a destination by saying the
list number.
Command
Operation
●HospitalDisplays a list of the nearest hospitals.
You can then set a destination by saying the
list number.
●DealershipDisplays a list of the nearest car dealerships.
You can then set a destination by saying the
list number.
●Road
AssistanceDisplays a list of the nearest road assistance
locations.
You can then set a destination by saying the
list number.
●Show Route
Displays a map overview of the entire route
to your destination.
)@"&
)&7
@(<64"@&6>"7/@1"35JOEE


 )@"&
)&7
@(<64"@&6>"7/@1"35JOEE
