Hyundai Ioniq Hybrid 2017 User Guide

1-4
Your vehicle at a glanceI

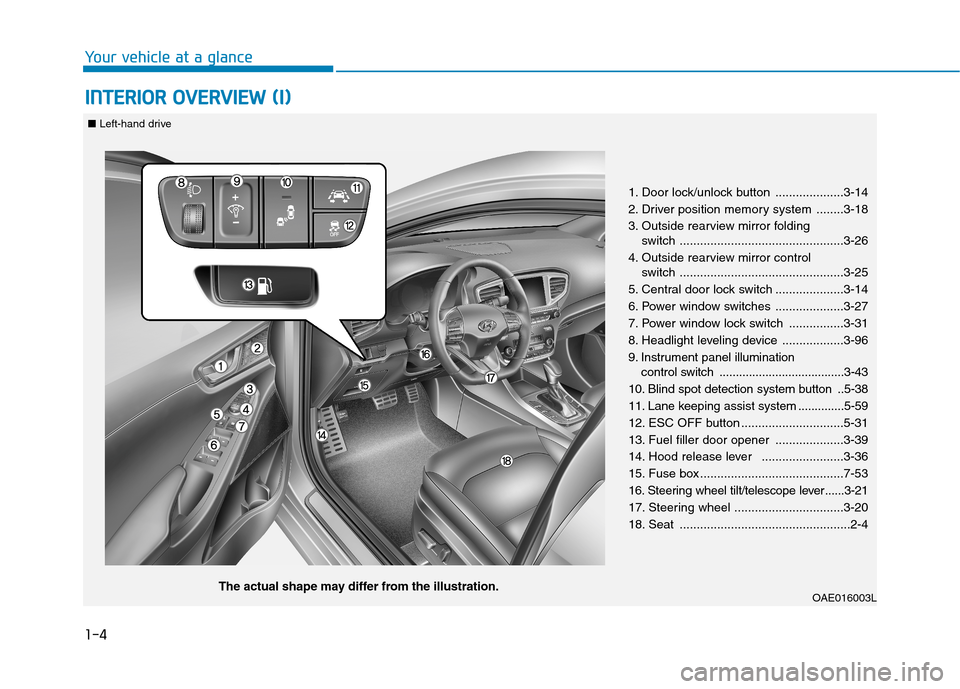

I NN TTEERR IIOO RR OO VVEERR VV IIEE WW (( II))
1. Door lock/unlock button ....................3-14
2. Driver position memory system ........3-18
3. Outside rearview mirror folding
switch ................................................3-26
4. Outside rearview mirror control switch ................................................3-25
5. Central door lock switch ....................3-14
6. Power window switches ....................3-27
7. Power window lock switch ................3-31
8. Headlight leveling device ..................3-96
9. Instrument panel illumination control switch ......................................3-43
10. Blind spot detection system button ..5-38
11. Lane keeping assist system ..............5-59
12. ESC OFF button ..............................5-31
13. Fuel filler door opener ....................3-39
14. Hood release lever ........................3-36
15. Fuse box ..........................................7-53
16. Steering wheel tilt/telescope lever ......3-21
17. Steering wheel ................................3-20
18. Seat ..................................................2-4
OAE016003L
The actual shape may differ from the illustration.
■
Left-hand drive

1-5
Your vehicle at a glance

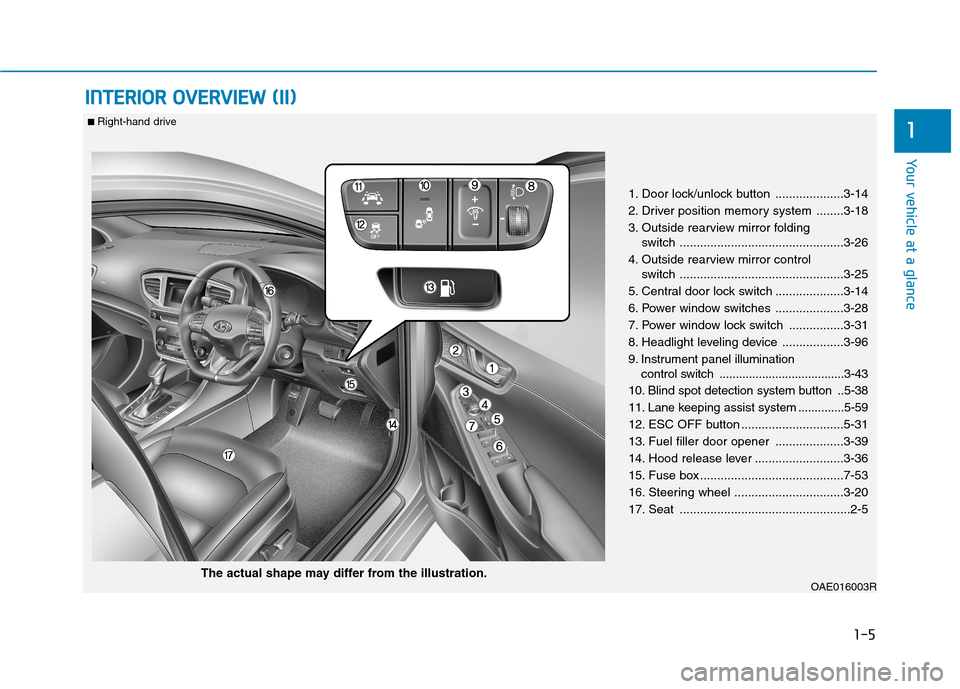

IINN TTEERR IIOO RR OO VVEERR VV IIEE WW (( IIII))
1
1. Door lock/unlock button ....................3-14
2. Driver position memory system ........3-18
3. Outside rearview mirror folding
switch ................................................3-26
4. Outside rearview mirror control switch ................................................3-25
5. Central door lock switch ....................3-14
6. Power window switches ....................3-28
7. Power window lock switch ................3-31
8. Headlight leveling device ..................3-96
9. Instrument panel illumination control switch ......................................3-43
10. Blind spot detection system button ..5-38
11. Lane keeping assist system ..............5-59
12. ESC OFF button ..............................5-31
13. Fuel filler door opener ....................3-39
14. Hood release lever ..........................3-36
15. Fuse box ..........................................7-53
16. Steering wheel ................................3-20
17. Seat ..................................................2-5
OAE016003R
■ Right-hand drive
The actual shape may differ from the illustration.

1-6

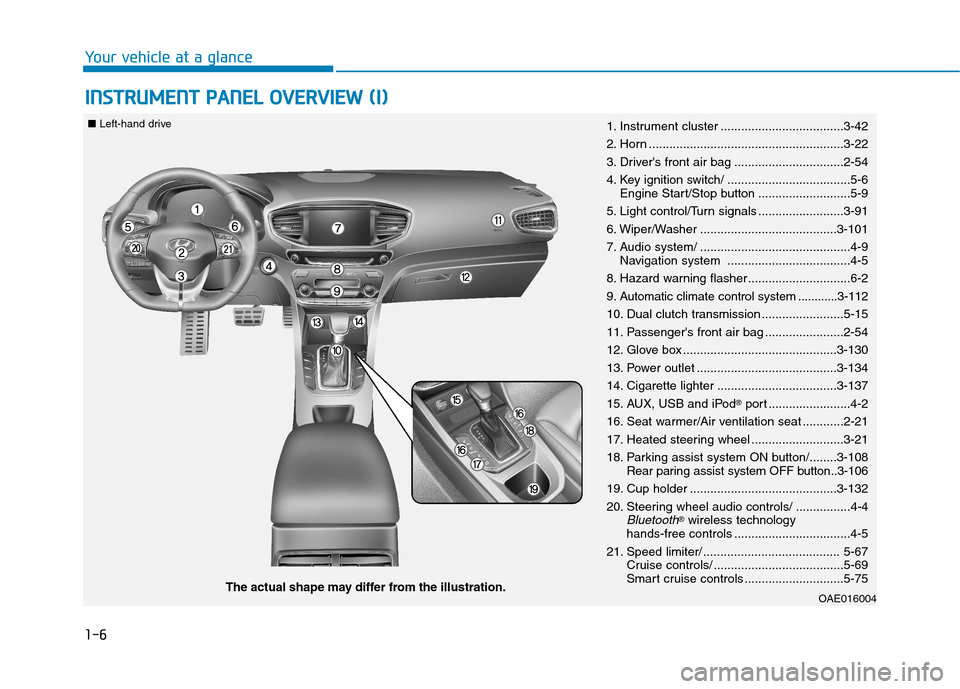

IINN SSTT RR UU MM EENN TT PP AA NN EELL OO VVEERR VV IIEE WW (( II))
Your vehicle at a glance
OAE016004The actual shape may differ from the illustration.
■
Left-hand drive
1. Instrument cluster ....................................3-42
2. Horn .........................................................3-22
3. Driver's front air bag ................................2-54
4. Key ignition switch/ ....................................5-6
Engine Start/Stop button ...........................5-9
5. Light control/Turn signals .........................3-91
6. Wiper/Washer ........................................3-101
7. Audio system/ ............................................4-9 Navigation system ....................................4-5
8. Hazard warning flasher ..............................6-2
9. Automatic climate control system ............3-112
10. Dual clutch transmission ........................5-15
11. Passenger's front air bag .......................2-54
12. Glove box .............................................3-130
13. Power outlet .........................................3-134
14. Cigarette lighter ...................................3-137
15. AUX, USB and iPod ®
port ........................4-2
16. Seat warmer/Air ventilation seat ............2-21
17. Heated steering wheel ...........................3-21
18. Parking assist system ON button/........3-108 Rear paring assist system OFF button..3-106
19. Cup holder ...........................................3-132
20. Steering wheel audio controls/ ................4-4
Bluetooth® wireless technology
hands-free controls ..................................4-5
21. Speed limiter/ ........................................ 5-67 Cruise controls/ ......................................5-69
Smart cruise controls .............................5-75

1-7
Your vehicle at a glance
1

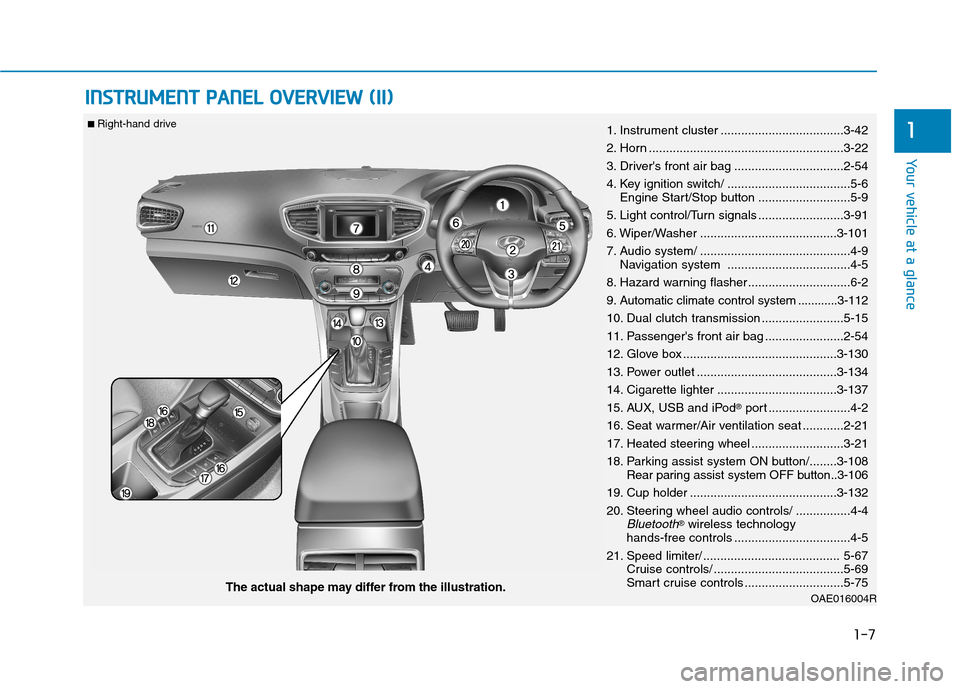

IINN SSTT RR UU MM EENN TT PP AA NN EELL OO VVEERR VV IIEE WW (( IIII))
OAE016004RThe actual shape may differ from the illustration.
■
Right-hand drive
1. Instrument cluster ....................................3-42
2. Horn .........................................................3-22
3. Driver's front air bag ................................2-54
4. Key ignition switch/ ....................................5-6
Engine Start/Stop button ...........................5-9
5. Light control/Turn signals .........................3-91
6. Wiper/Washer ........................................3-101
7. Audio system/ ............................................4-9 Navigation system ....................................4-5
8. Hazard warning flasher ..............................6-2
9. Automatic climate control system ............3-112
10. Dual clutch transmission ........................5-15
11. Passenger's front air bag .......................2-54
12. Glove box .............................................3-130
13. Power outlet .........................................3-134
14. Cigarette lighter ...................................3-137
15. AUX, USB and iPod ®
port ........................4-2
16. Seat warmer/Air ventilation seat ............2-21
17. Heated steering wheel ...........................3-21
18. Parking assist system ON button/........3-108 Rear paring assist system OFF button..3-106
19. Cup holder ...........................................3-132
20. Steering wheel audio controls/ ................4-4
Bluetooth® wireless technology
hands-free controls ..................................4-5
21. Speed limiter/ ........................................ 5-67 Cruise controls/ ......................................5-69
Smart cruise controls .............................5-75

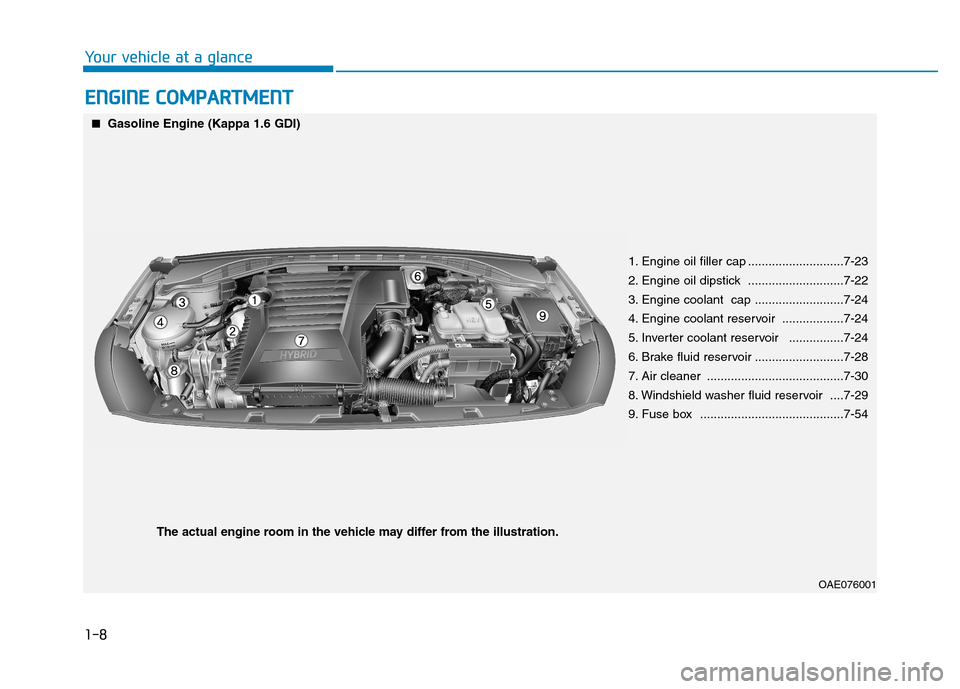

EENN GGIINN EE CC OO MM PPAA RRTTMM EENN TT
1-8
Your vehicle at a glance
OAE076001
■■
Gasoline Engine (Kappa 1.6 GDI)
1. Engine oil filler cap ............................7-23
2. Engine oil dipstick ............................7-22
3. Engine coolant cap ..........................7-24
4. Engine coolant reservoir ..................7-24
5. Inverter coolant reservoir ................7-24
6. Brake fluid reservoir ..........................7-28
7. Air cleaner ........................................7-30
8. Windshield washer fluid reservoir ....7-29
9. Fuse box ..........................................7-54
The actual engine room in the vehicle may differ from the illustration.

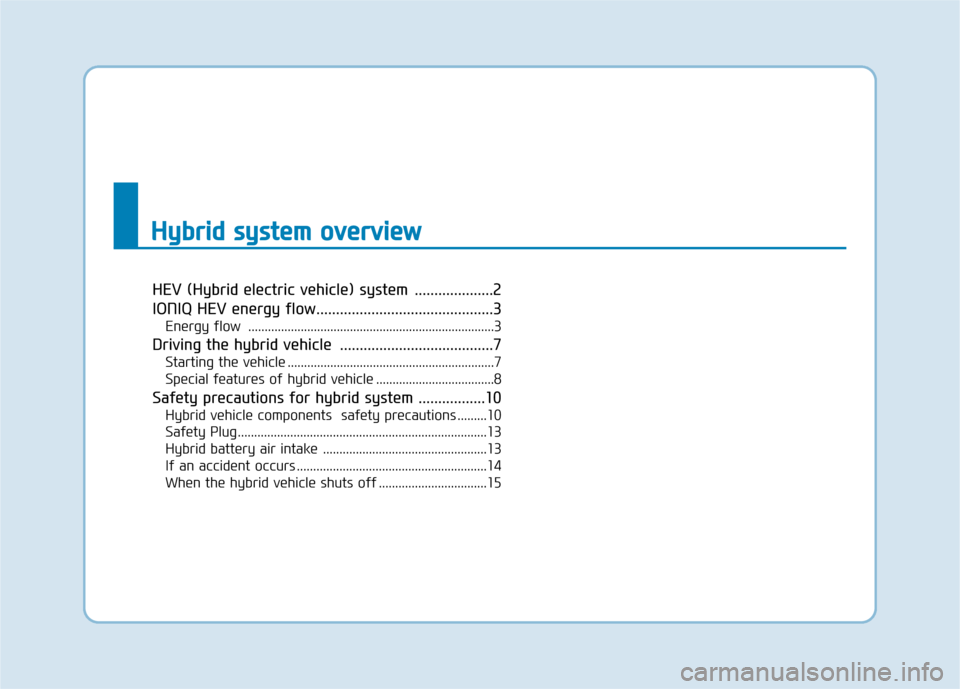

HEV (Hybrid electric vehicle) system ....................2
IONIQ HEV energy flow.............................................3Energy flow ...........................................................................3
Driving the hybrid vehicle .......................................7 Starting the vehicle ...............................................................7
Special features of hybrid vehicle ....................................8
Safety precautions for hybrid system .................10 Hybrid vehicle components safety precautions .........10
Safety Plug............................................................................13
Hybrid battery air intake ..................................................13
If an accident occurs ..........................................................14
When the hybrid vehicle shuts off .................................15
HH yybbrriidd ss yy ssttee mm oo vvee rrvv iiee ww

H2

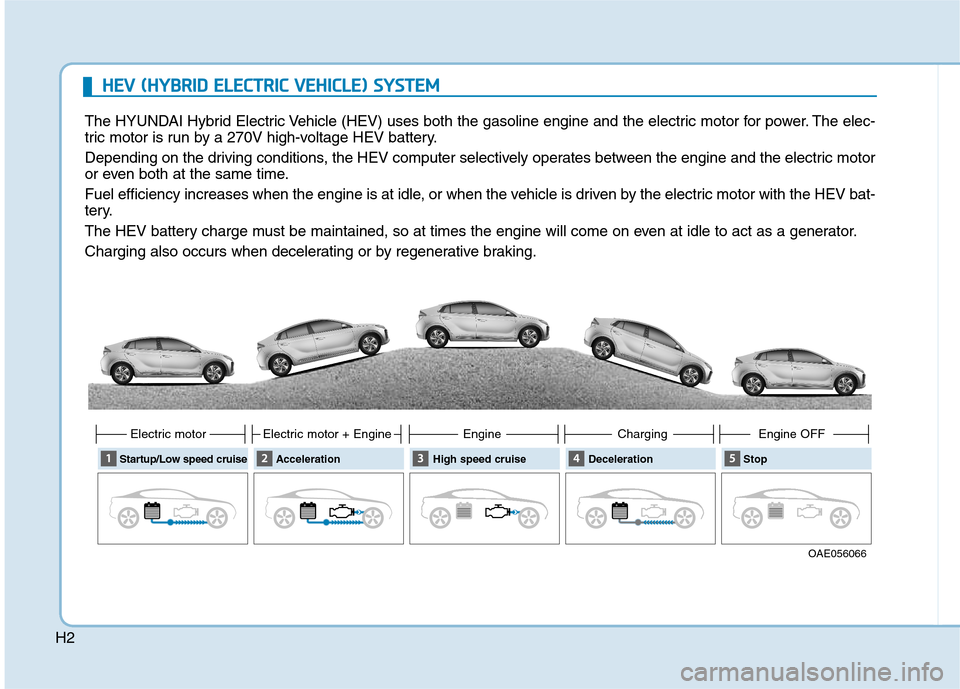

HHEEVV (( HH YY BBRRIIDD EE LLEE CCTT RR IICC VV EEHH IICC LLEE )) SS YY SSTT EEMM
The HYUNDAI Hybrid Electric Vehicle (HEV) uses both the gasoline engine and the electric motor for power. The elec-
tric motor is run by a 270V high-voltage HEV battery.
Depending on the driving conditions, the HEV computer selectively operates between the engine and the electric motor
or even both at the same time.
Fuel efficiency increases when the engine is at idle, or when the vehicle is driven by the electric motor with the HEV bat-
tery.
The HEV battery charge must be maintained, so at times the engine will come on even at idle to act as a generator.
Charging also occurs when decelerating or by regenerative braking.
OAE056066
Startup/Low speed cruise
Electric motor
AccelerationElectric motor + Engine High speed cruiseEngineDecelerationCharging Stop Engine OFF

H3

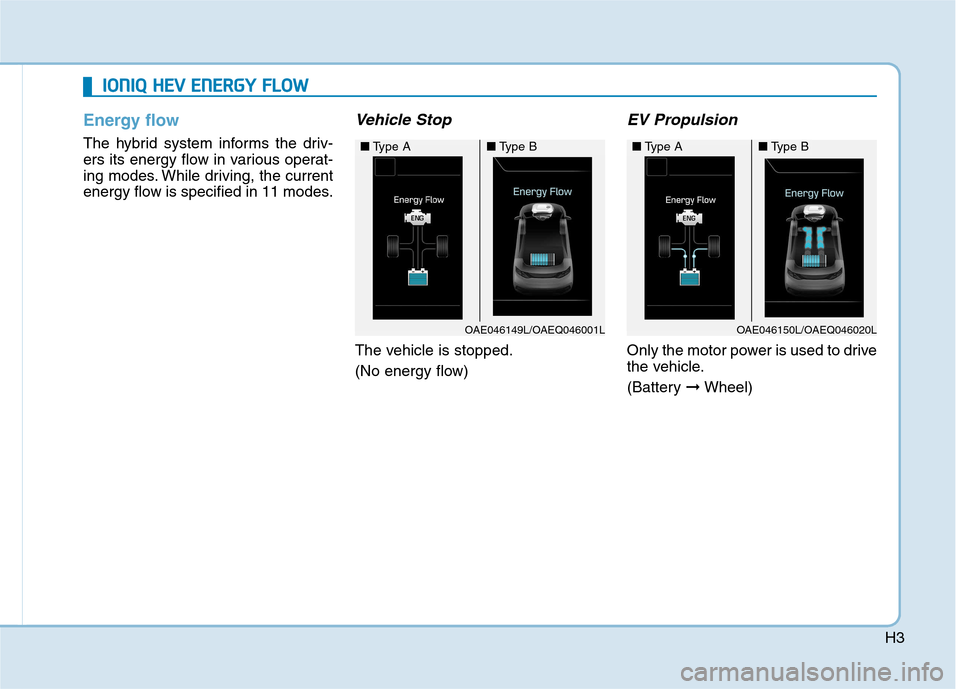

Energy flow
The hybrid system informs the driv-
ers its energy flow in various operat-
ing modes. While driving, the current
energy flow is specified in 11 modes.
Vehicle Stop
The vehicle is stopped.
(No energy flow)
EV Propulsion
Only the motor power is used to drive
the vehicle.
(Battery ➞Wheel)
IIOO NNIIQQ HH EEVV EE NN EERR GG YY FF LLOO WW
OAE046149L/OAEQ046001L
■ Type A■Type B
OAE046150L/OAEQ046020L
■Type A■Type B

H4

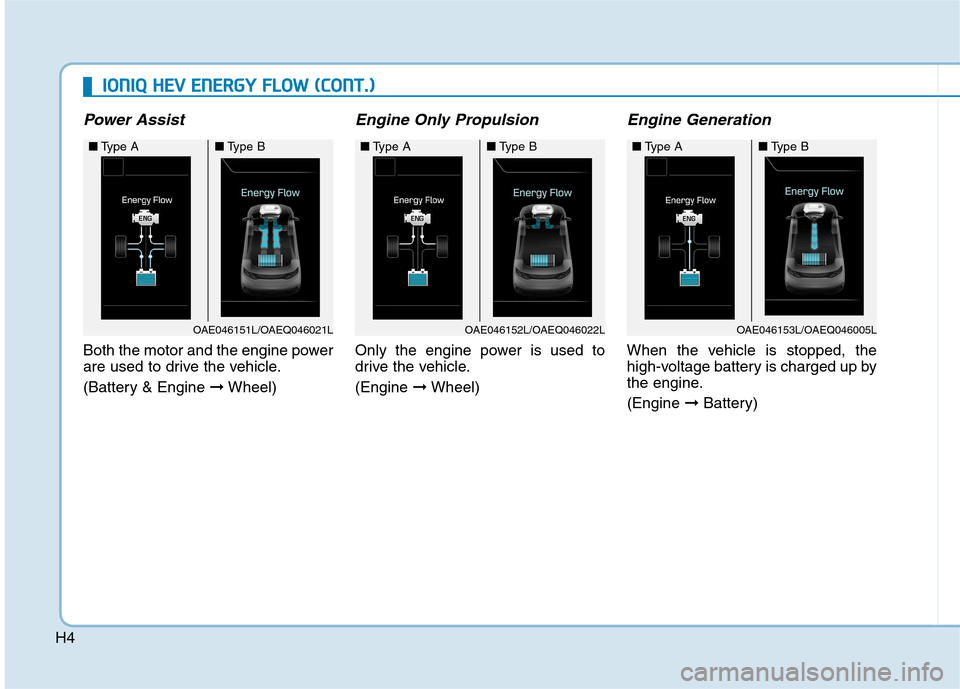

Power Assist
Both the motor and the engine power
are used to drive the vehicle.
(Battery & Engine ➞Wheel)
Engine Only Propulsion
Only the engine power is used to
drive the vehicle. (Engine ➞Wheel)
Engine Generation
When the vehicle is stopped, the
high-voltage battery is charged up by
the engine. (Engine ➞Battery)
IIOO NNIIQQ HH EEVV EE NN EERR GG YY FF LLOO WW (( CC OO NNTT..))
OAE046151L/OAEQ046021L
■ Type A■Type B
OAE046152L/OAEQ046022L
■Type A■Type B
OAE046153L/OAEQ046005L
■Type A■Type B

H5

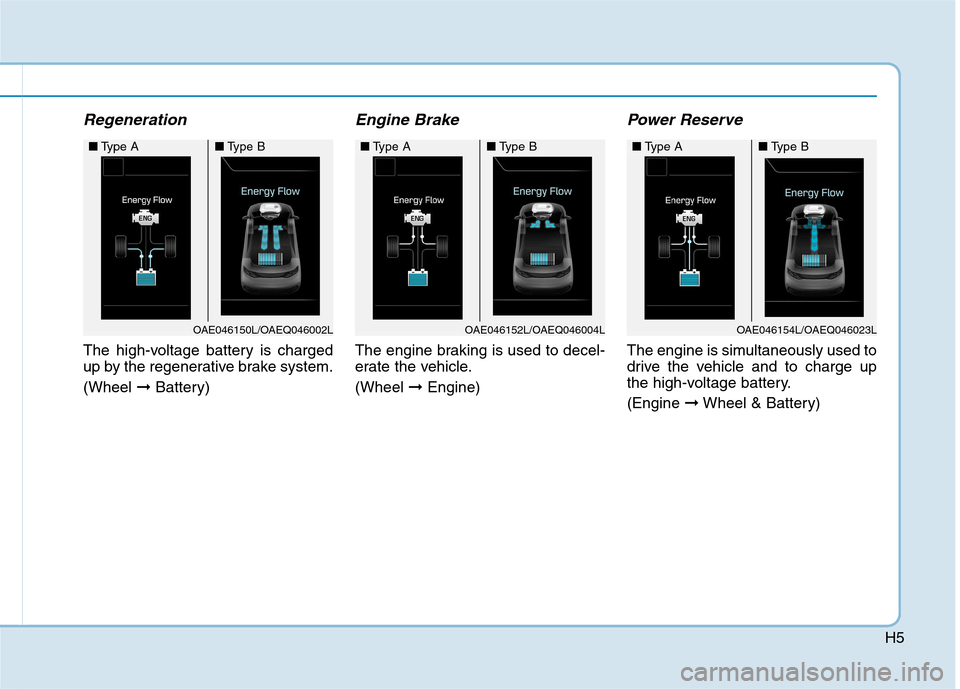

Regeneration
The high-voltage battery is charged
up by the regenerative brake system. (Wheel ➞Battery)
Engine Brake
The engine braking is used to decel-
erate the vehicle. (Wheel ➞Engine)
Power Reserve
The engine is simultaneously used to
drive the vehicle and to charge up
the high-voltage battery. (Engine ➞Wheel & Battery)
OAE046152L/OAEQ046004L
■Type A■Type B
OAE046154L/OAEQ046023L
■Type A■Type B
OAE046150L/OAEQ046002L
■Type A■Type B
