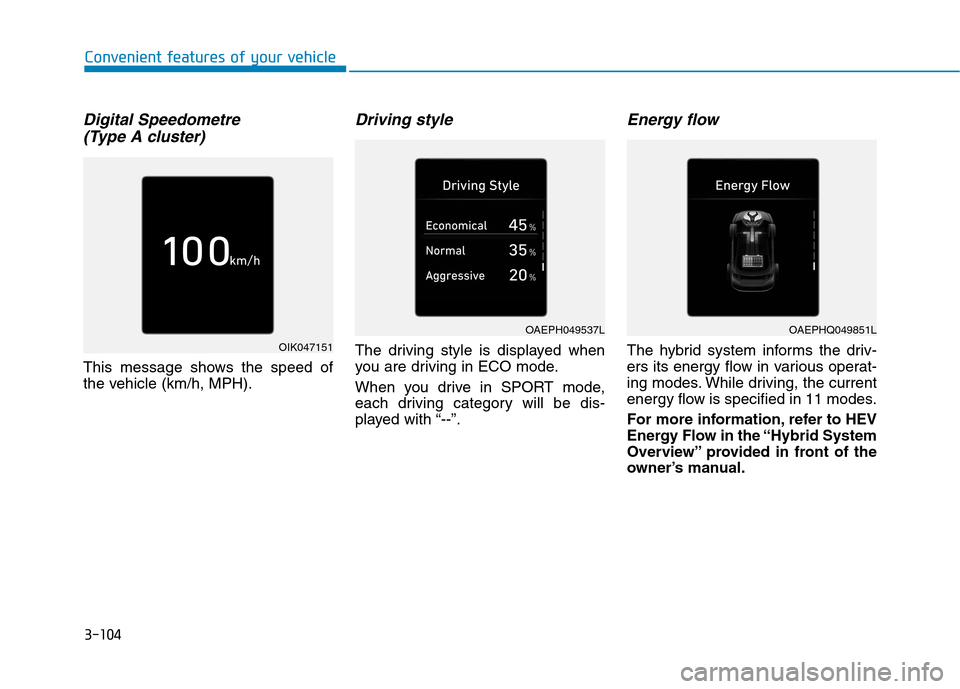

Digital Speedometre
(Type A cluster)
This message shows the speed of
the vehicle (km/h, MPH).
Driving style
The driving style is displayed when
you are driving in ECO mode.
When you drive in SPORT mode,
each driving category will be dis-
played with “--”.
Energy flow
The hybrid system informs the driv-
ers its energy flow in various operat-
ing modes. While driving, the current
energy flow is specified in 11 modes.
For more information, refer to HEV
Energy Flow in the “Hybrid System
Overview” provided in front of the
owner’s manual.
Convenient features of your vehicle
OAEPH049537LOAEPHQ049851L
OIK047151

3-105
Convenient features of your vehicle

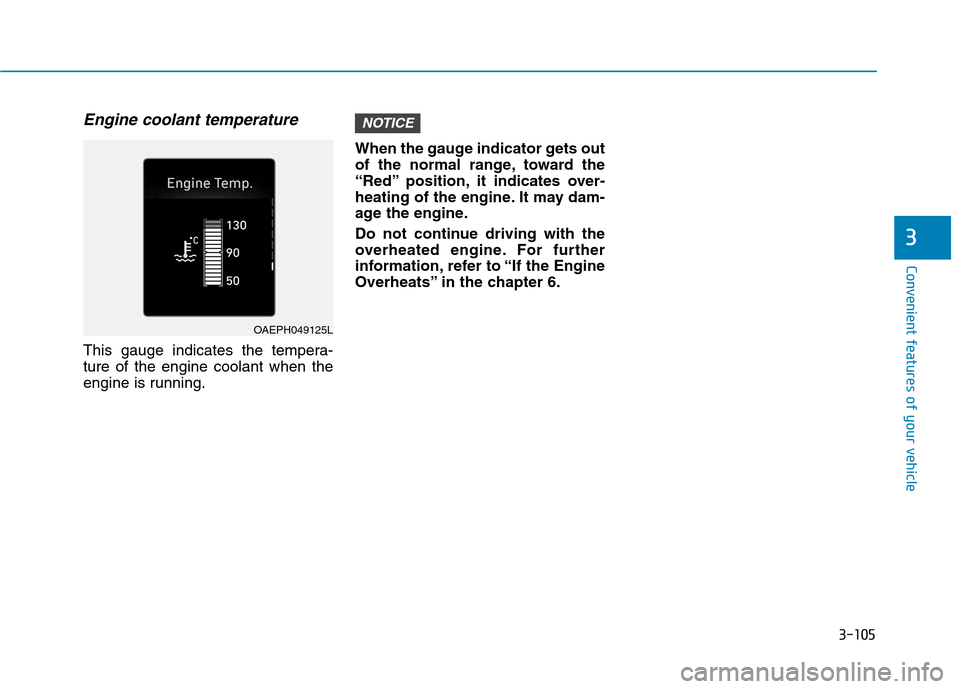

Engine coolant temperature
This gauge indicates the tempera-
ture of the engine coolant when the
engine is running.When the gauge indicator gets out
of the normal range, toward the
“Red” position, it indicates over-
heating of the engine. It may dam-
age the engine.
Do not continue driving with the
overheated engine. For further
information, refer to “If the Engine
Overheats” in the chapter 6.
NOTICE
3
OAEPH049125L

3-106
Convenient features of your vehicle

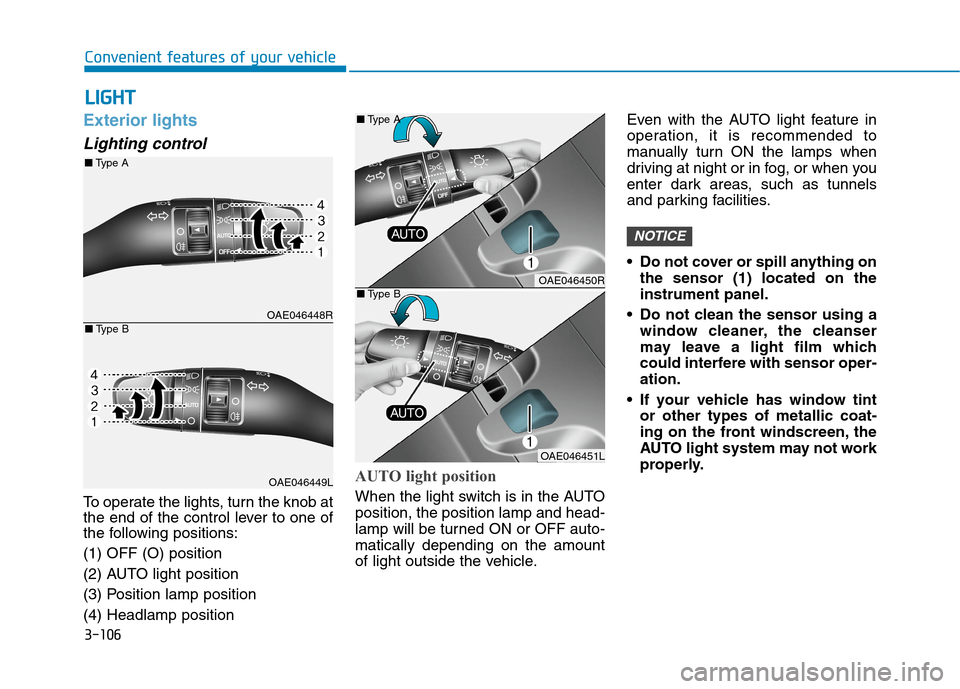

Exterior lights
Lighting control
To operate the lights, turn the knob at
the end of the control lever to one of
the following positions:
(1) OFF (O) position
(2) AUTO light position
(3) Position lamp position
(4) Headlamp position
AUTO light position
When the light switch is in the AUTO
position, the position lamp and head-
lamp will be turned ON or OFF auto-
matically depending on the amount
of light outside the vehicle.Even with the AUTO light feature in
operation, it is recommended to
manually turn ON the lamps when
driving at night or in fog, or when you
enter dark areas, such as tunnels
and parking facilities.
• Do not cover or spill anything on
the sensor (1) located on the
instrument panel.
Do not clean the sensor using a
window cleaner, the cleanser
may leave a light film which
could interfere with sensor oper-
ation.
If your vehicle has window tint
or other types of metallic coat-
ing on the front windscreen, the
AUTO light system may not work
properly.
NOTICE
L LI
IG
GH
HT
T
OAE046448R
OAE046449L
■Type A
■Type B
OAE046450R
OAE046451L ■Type A
■Type B

3-107
Convenient features of your vehicle
3

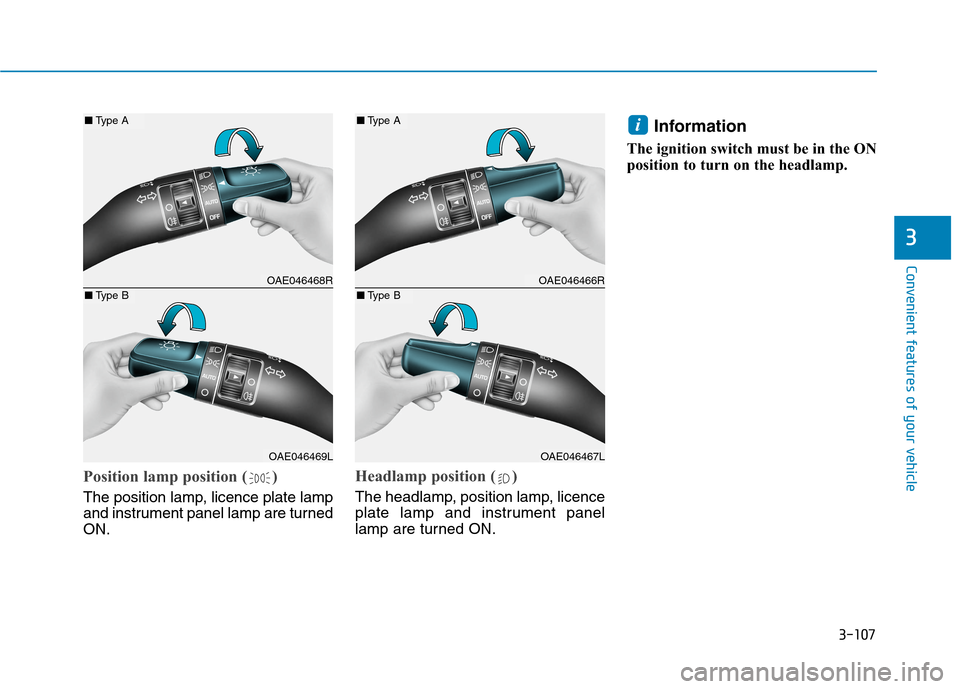

Position lamp position ( )
The position lamp, licence plate lamp
and instrument panel lamp are turned
ON.
Headlamp position ( )
The headlamp, position lamp, licence
plate lamp and instrument panel
lamp are turned ON.
Information
The ignition switch must be in the ON
position to turn on the headlamp.
i
OAE046468R
OAE046469L
■Type A
■Type BOAE046466R
OAE046467L
■Type A
■Type B

3-108
Convenient features of your vehicle

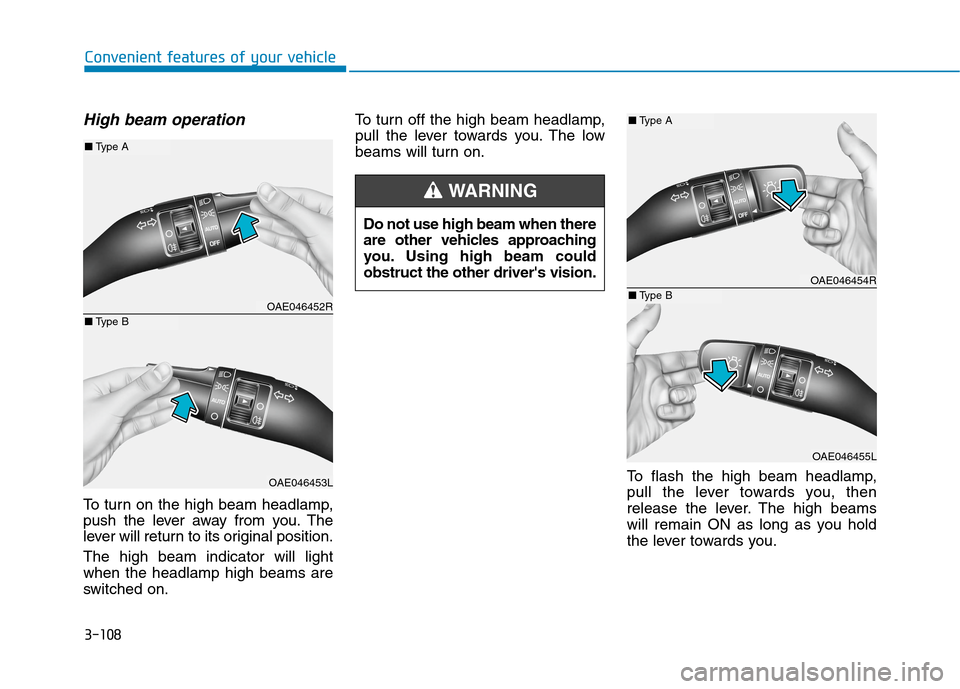

High beam operation
To turn on the high beam headlamp,
push the lever away from you. The
lever will return to its original position.
The high beam indicator will light
when the headlamp high beams are
switched on.To turn off the high beam headlamp,
pull the lever towards you. The low
beams will turn on.
To flash the high beam headlamp,
pull the lever towards you, then
release the lever. The high beams
will remain ON as long as you hold
the lever towards you. Do not use high beam when there
are other vehicles approaching
you. Using high beam could
obstruct the other driver's vision.
WARNING
OAE046454R
OAE046455L
■Type A
■Type BOAE046452R
OAE046453L
■Type A
■Type B

3-109
Convenient features of your vehicle

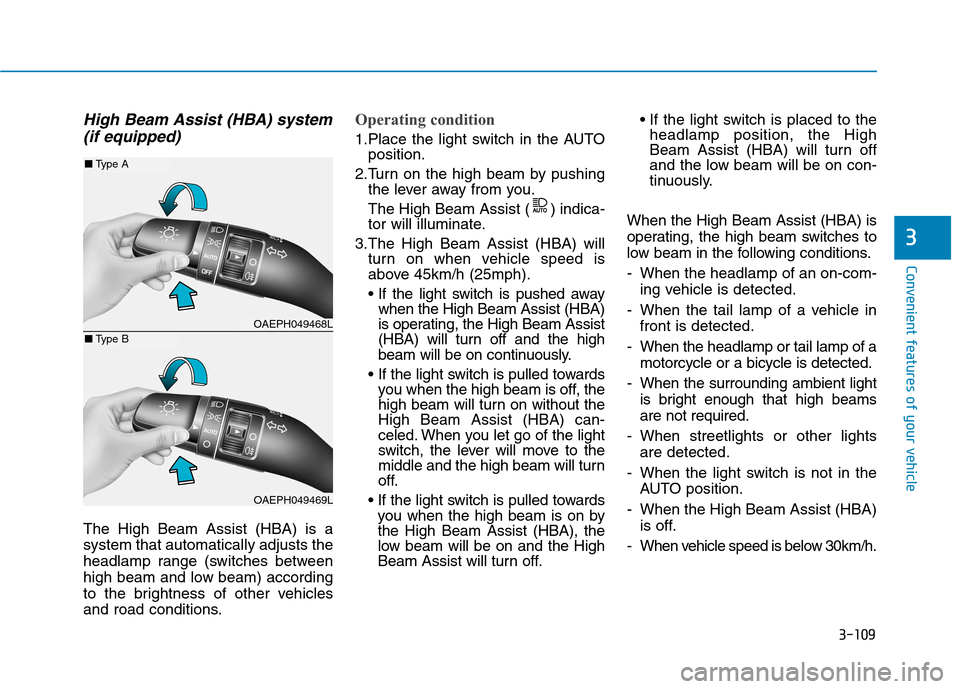

High Beam Assist (HBA) system
(if equipped)
The High Beam Assist (HBA) is a
system that automatically adjusts the
headlamp range (switches between
high beam and low beam) according
to the brightness of other vehicles
and road conditions.
Operating condition
1.Place the light switch in the AUTO
position.
2.Turn on the high beam by pushing
the lever away from you.
The High Beam Assist ( ) indica-
tor will illuminate.
3.The High Beam Assist (HBA) will
turn on when vehicle speed is
above 45km/h (25mph).
• If the light switch is pushed away
when the High Beam Assist (HBA)
is operating, the High Beam Assist
(HBA) will turn off and the high
beam will be on continuously.

you when the high beam is off, the
high beam will turn on without the
High Beam Assist (HBA) can-
celed. When you let go of the light
switch, the lever will move to the
middle and the high beam will turn
off.

you when the high beam is on by
the High Beam Assist (HBA), the
low beam will be on and the High
Beam Assist will turn off.
headlamp position, the High
Beam Assist (HBA) will turn off
and the low beam will be on con-
tinuously.
When the High Beam Assist (HBA) is
operating, the high beam switches to
low beam in the following conditions.
- When the headlamp of an on-com-
ing vehicle is detected.
- When the tail lamp of a vehicle in
front is detected.
- When the headlamp or tail lamp of a
motorcycle or a bicycle is detected.
- When the surrounding ambient light
is bright enough that high beams
are not required.
- When streetlights or other lights
are detected.
- When the light switch is not in the
AUTO position.
- When the High Beam Assist (HBA)
is off.
- When vehicle speed is below 30km/h.
3
OAEPH049468L
OAEPH049469L
■Type A
■Type B

3-110

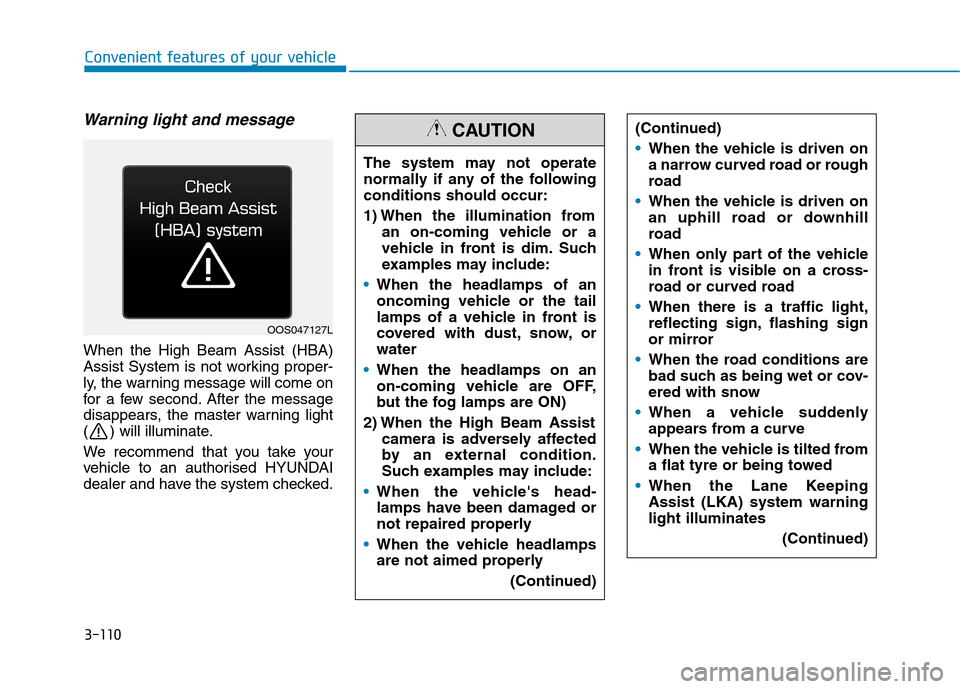

Warning light and message
When the High Beam Assist (HBA)
Assist System is not working proper-
ly, the warning message will come on
for a few second. After the message
disappears, the master warning light
( ) will illuminate.
We recommend that you take your
vehicle to an authorised HYUNDAI
dealer and have the system checked.
Convenient features of your vehicle
OOS047127L
The system may not operate
normally if any of the following
conditions should occur:
1) When the illumination from
an on-coming vehicle or a
vehicle in front is dim. Such
examples may include:
When the headlamps of an
oncoming vehicle or the tail
lamps of a vehicle in front is
covered with dust, snow, or
water
When the headlamps on an
on-coming vehicle are OFF,
but the fog lamps are ON)
2) When the High Beam Assist
camera is adversely affected
by an external condition.
Such examples may include:
When the vehicle's head-
lamps have been damaged or
not repaired properly
When the vehicle headlamps
are not aimed properly
(Continued)
(Continued)
When the vehicle is driven on
a narrow curved road or rough
road
When the vehicle is driven on
an uphill road or downhill
road
When only part of the vehicle
in front is visible on a cross-
road or curved road
When there is a traffic light,
reflecting sign, flashing sign
or mirror
When the road conditions are
bad such as being wet or cov-
ered with snow
When a vehicle suddenly
appears from a curve
When the vehicle is tilted from
a flat tyre or being towed
When the Lane Keeping
Assist (LKA) system warning
light illuminates
(Continued)CAUTION

3-111
Convenient features of your vehicle
3

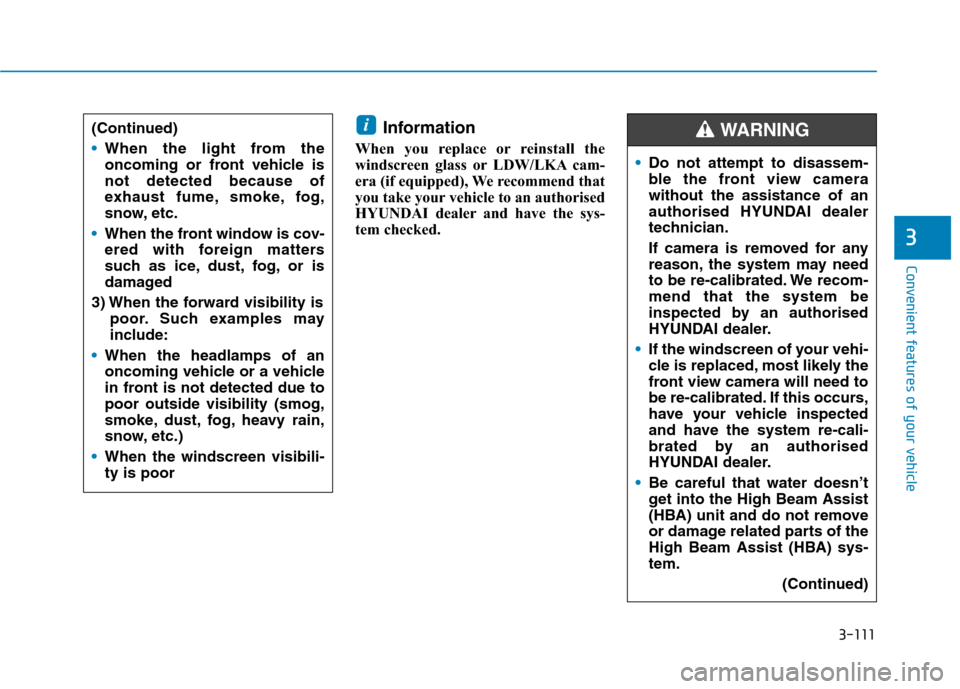

Information
When you replace or reinstall the
windscreen glass or LDW/LKA cam-
era (if equipped), We recommend that
you take your vehicle to an authorised
HYUNDAI dealer and have the sys-
tem checked.
i(Continued)
When the light from the
oncoming or front vehicle is
not detected because of
exhaust fume, smoke, fog,
snow, etc.
When the front window is cov-
ered with foreign matters
such as ice, dust, fog, or is
damaged
3) When the forward visibility is
poor. Such examples may
include:
When the headlamps of an
oncoming vehicle or a vehicle
in front is not detected due to
poor outside visibility (smog,
smoke, dust, fog, heavy rain,
snow, etc.)
When the windscreen visibili-
ty is poor
Do not attempt to disassem-
ble the front view camera
without the assistance of an
authorised HYUNDAI dealer
technician.
If camera is removed for any
reason, the system may need
to be re-calibrated. We recom-
mend that the system be
inspected by an authorised
HYUNDAI dealer.
If the windscreen of your vehi-
cle is replaced, most likely the
front view camera will need to
be re-calibrated. If this occurs,
have your vehicle inspected
and have the system re-cali-
brated by an authorised
HYUNDAI dealer.
Be careful that water doesn’t
get into the High Beam Assist
(HBA) unit and do not remove
or damage related parts of the
High Beam Assist (HBA) sys-
tem.
(Continued)
WARNING

3-112
Convenient features of your vehicle

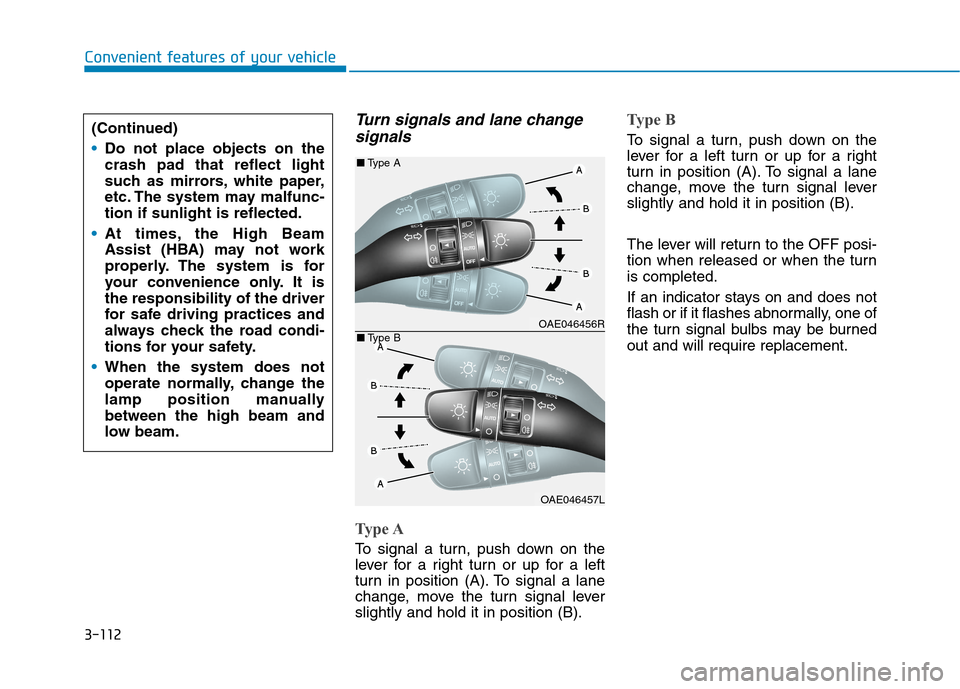

Turn signals and lane change
signals
Type A
To signal a turn, push down on the
lever for a right turn or up for a left
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).
Type B
To signal a turn, push down on the
lever for a left turn or up for a right
turn in position (A). To signal a lane
change, move the turn signal lever
slightly and hold it in position (B).
The lever will return to the OFF posi-
tion when released or when the turn
is completed.
If an indicator stays on and does not
flash or if it flashes abnormally, one of
the turn signal bulbs may be burned
out and will require replacement. (Continued)
Do not place objects on the
crash pad that reflect light
such as mirrors, white paper,
etc. The system may malfunc-
tion if sunlight is reflected.
At times, the High Beam
Assist (HBA) may not work
properly. The system is for
your convenience only. It is
the responsibility of the driver
for safe driving practices and
always check the road condi-
tions for your safety.
When the system does not
operate normally, change the
lamp position manually
between the high beam and
low beam.
OAE046456R
OAE046457L ■Type A
■Type B

3-113
Convenient features of your vehicle
3

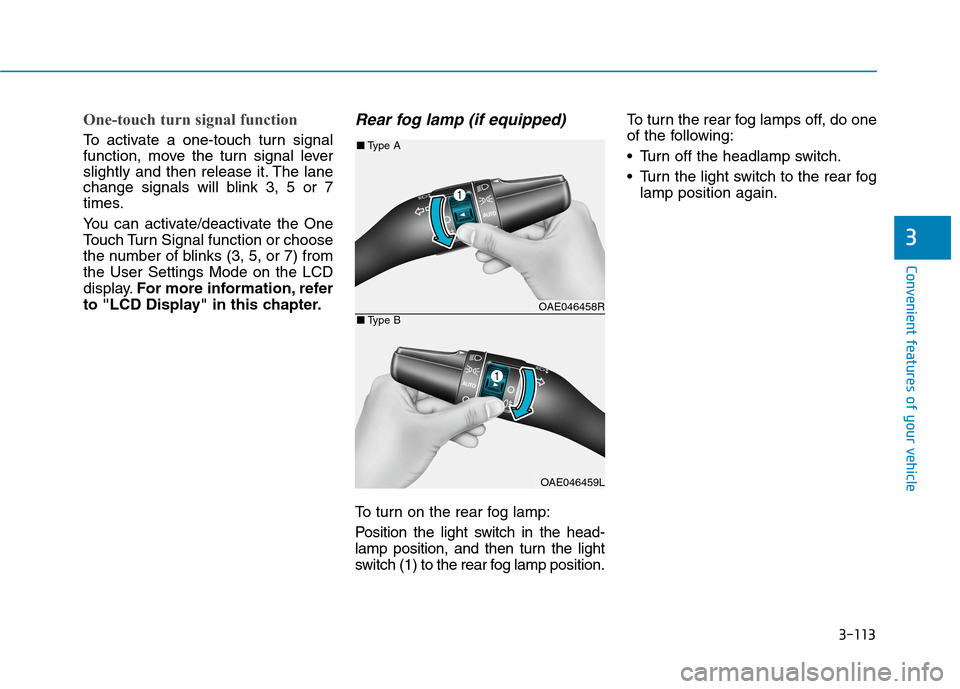

One-touch turn signal function
To activate a one-touch turn signal
function, move the turn signal lever
slightly and then release it. The lane
change signals will blink 3, 5 or 7
times.
You can activate/deactivate the One
Touch Turn Signal function or choose
the number of blinks (3, 5, or 7) from
the User Settings Mode on the LCD
display.For more information, refer
to "LCD Display" in this chapter.
Rear fog lamp (if equipped)
To turn on the rear fog lamp:
Position the light switch in the head-
lamp position, and then turn the light
switch (1) to the rear fog lamp position.To turn the rear fog lamps off, do one
of the following:
Turn off the headlamp switch.
Turn the light switch to the rear fog
lamp position again.
OAE046458R
OAE046459L
■Type A
■Type B
