HYUNDAI KONA EV 2023 Repair Manual Foreword / Electric Vehicle System Overview
1-56
Energy flow
The electric vehicle system informs
the drivers its energy flow in various
operating modes. While driving, the
current energy flow is s

Page 62 of 548

HYUNDAI KONA EV 2023 Repair Manual 01
1-57

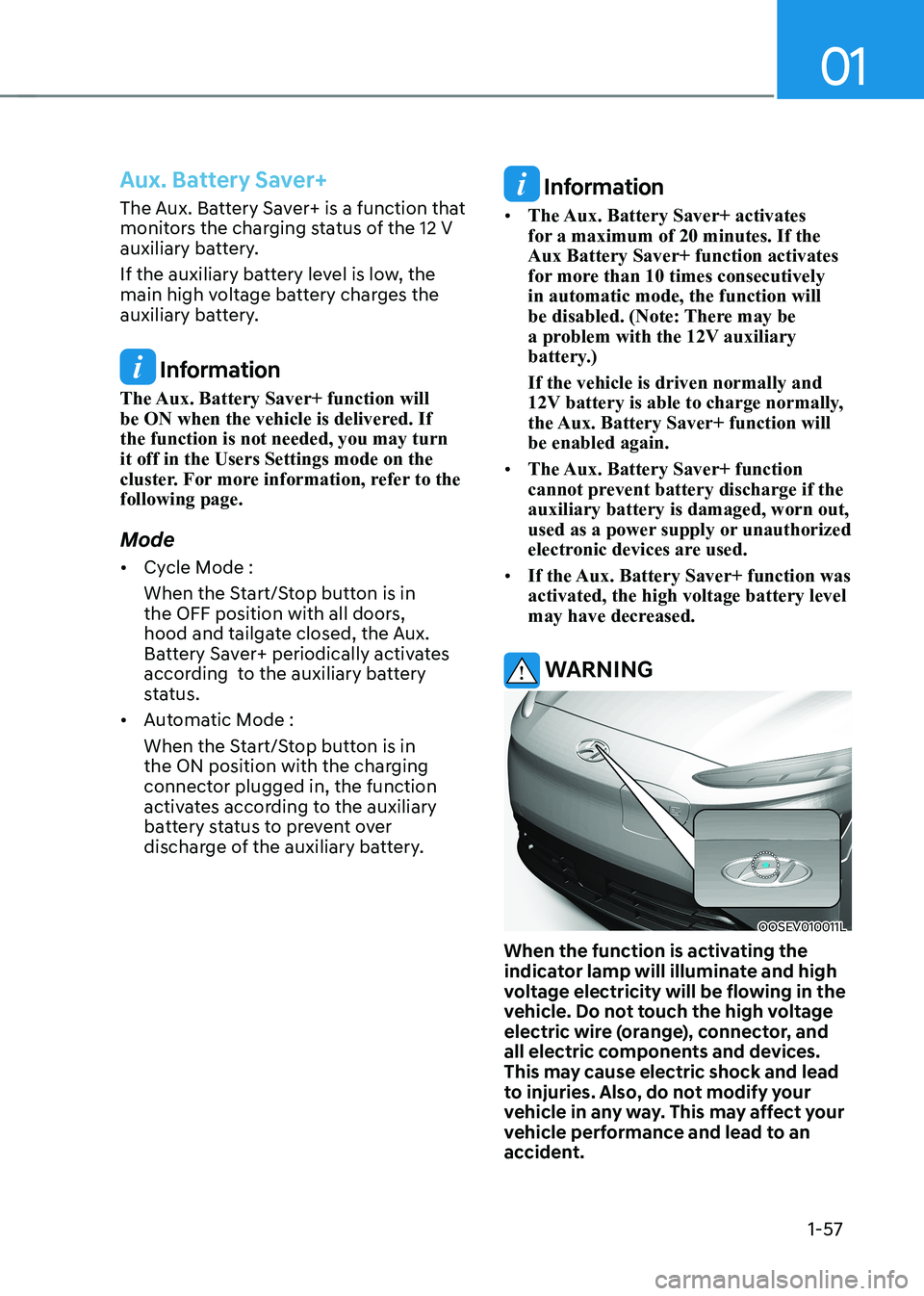

Aux. Battery Saver+
The Aux. Battery Saver+ is a function that
monitors the charging status of the 12 V
auxiliary battery.
If the auxiliary battery level is low, the
main high voltage ba

Page 63 of 548

HYUNDAI KONA EV 2023 Repair Manual Foreword / Electric Vehicle System Overview
1-58

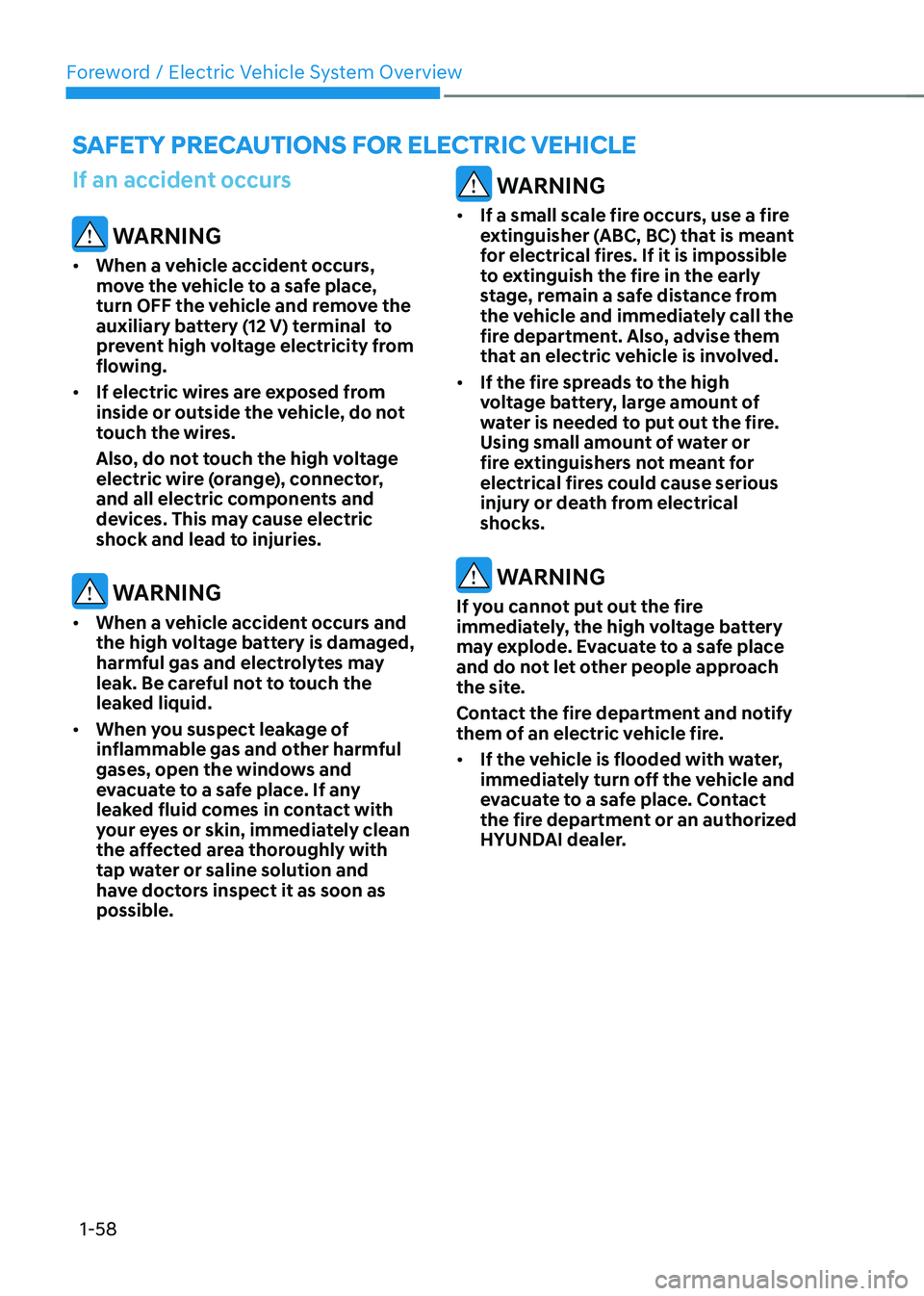

If an accident occurs
 WARNING
•	 When a vehicle accident occurs,
move the vehicle to a safe place,
turn OFF the vehicle and remove the
auxiliary

Page 64 of 548

HYUNDAI KONA EV 2023 Repair Manual 01
1-59
 WARNING
OOSEV068009

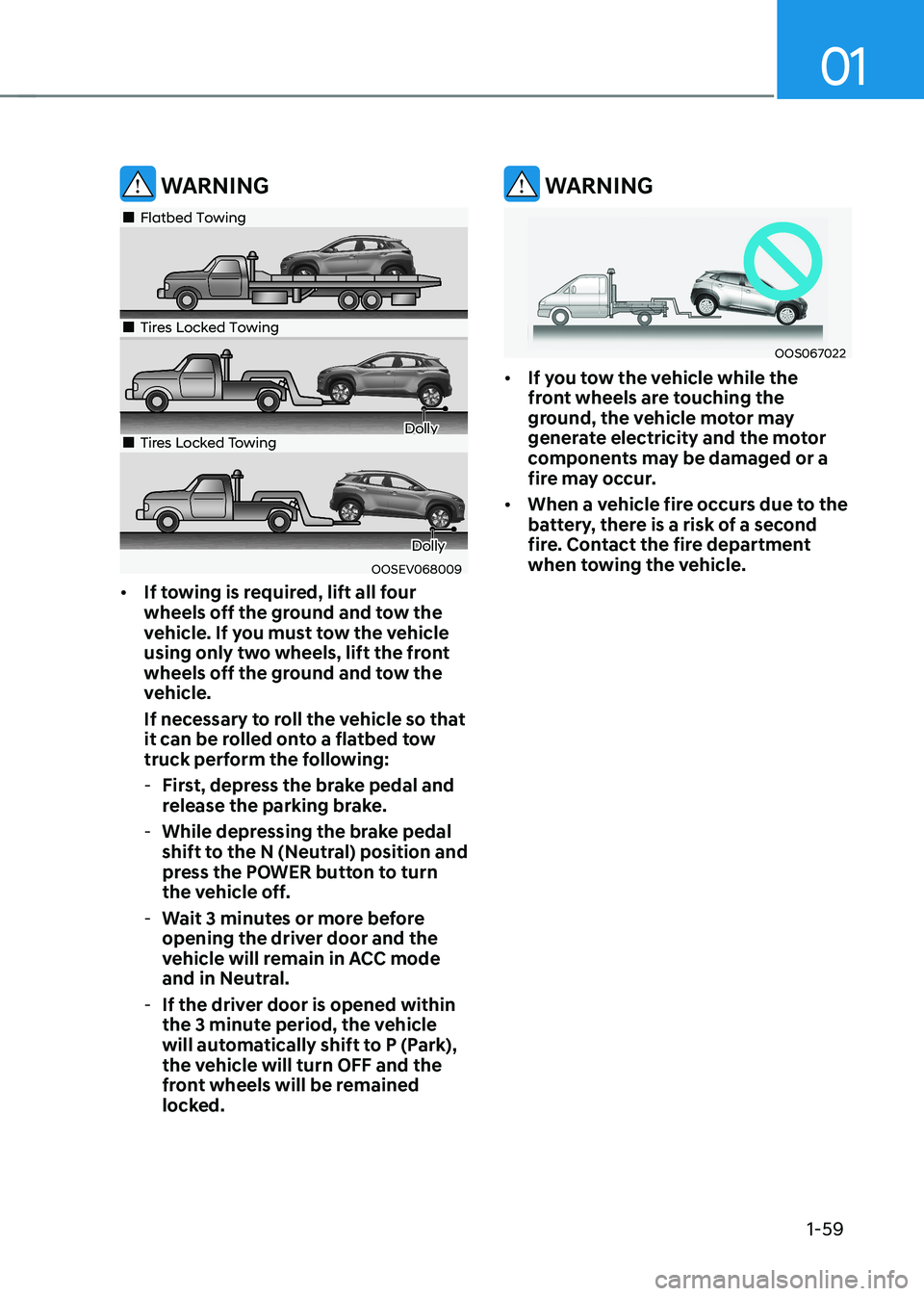

„„Flatbed Towing
„„Tires Locked Towing
Dolly„„Tires Locked Towing
Dolly
•	 If towing is required, lift all four
wheels off the ground and

Page 65 of 548

HYUNDAI KONA EV 2023 Repair Manual Foreword / Electric Vehicle System Overview
1-60

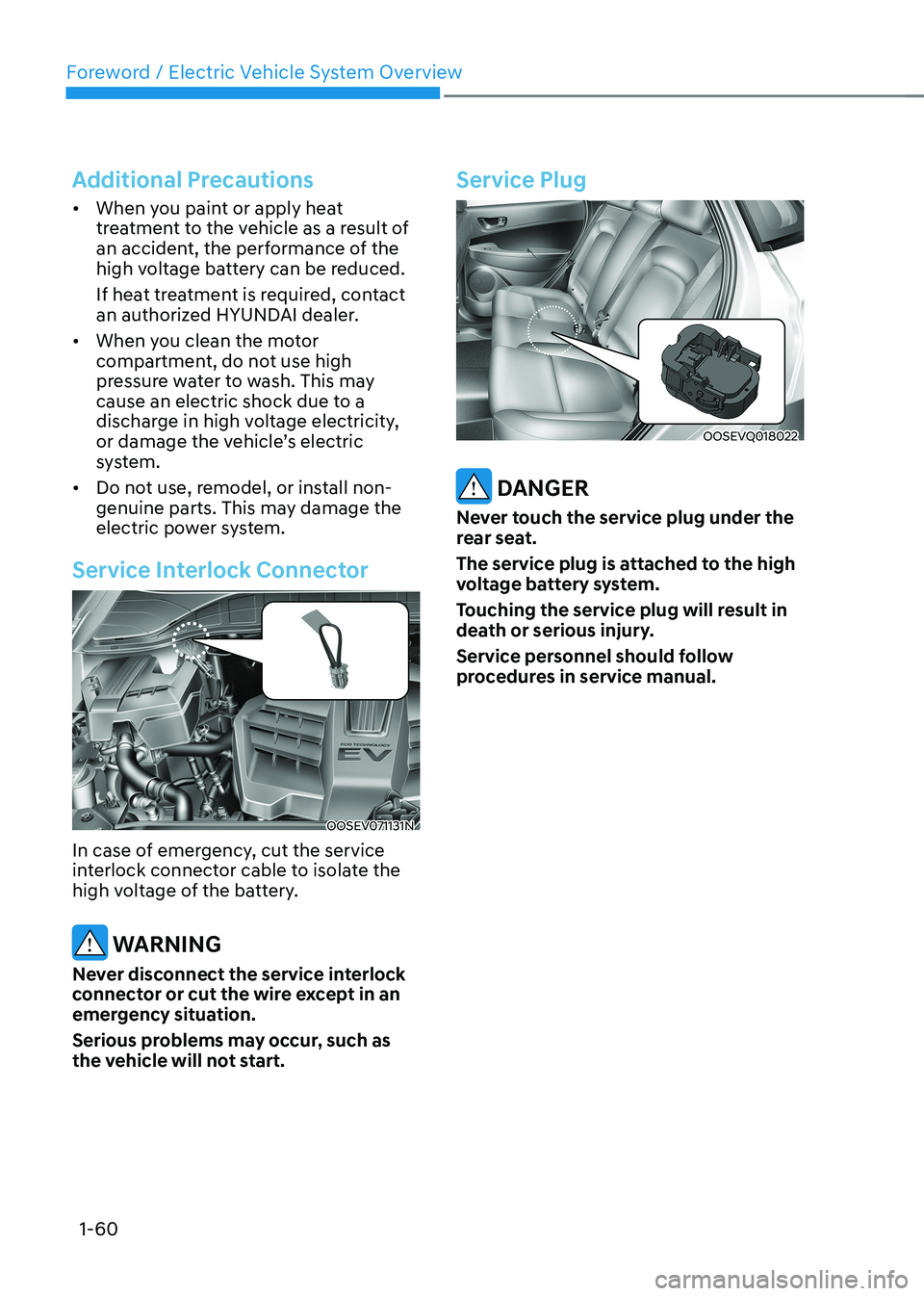

Additional Precautions
•	When you paint or apply heat
treatment to the vehicle as a result of
an accident, the performance of the
high voltage ba

Page 66 of 548

HYUNDAI KONA EV 2023 Repair Manual 2

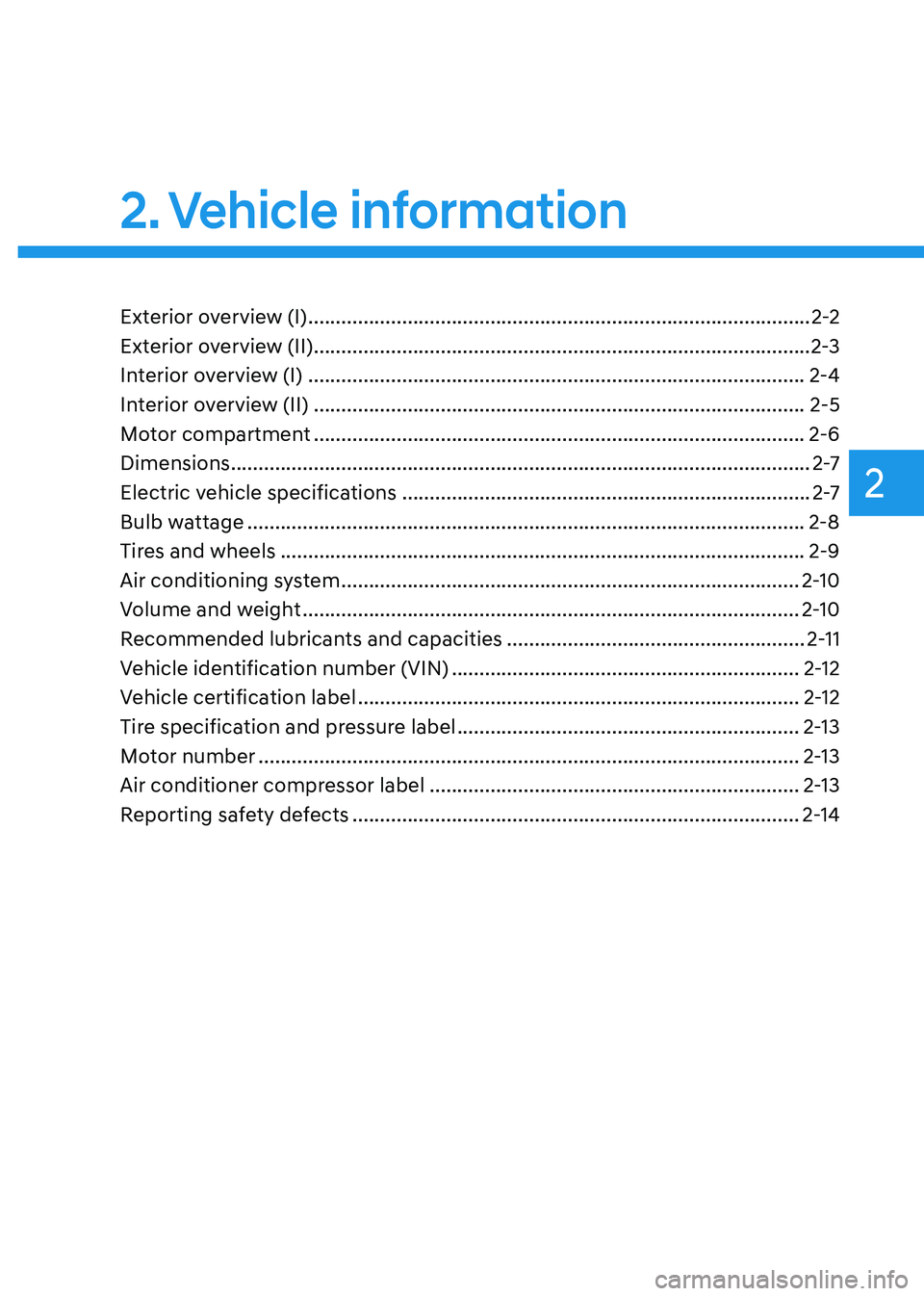

2. Vehicle  information
Exterior overview (I) ........................................................................................... 2-2
Exterior overview (II)  ................................

Page 67 of 548

HYUNDAI KONA EV 2023 Repair Manual 2-2
Vehicle informationExtErior ovErviEw (i)

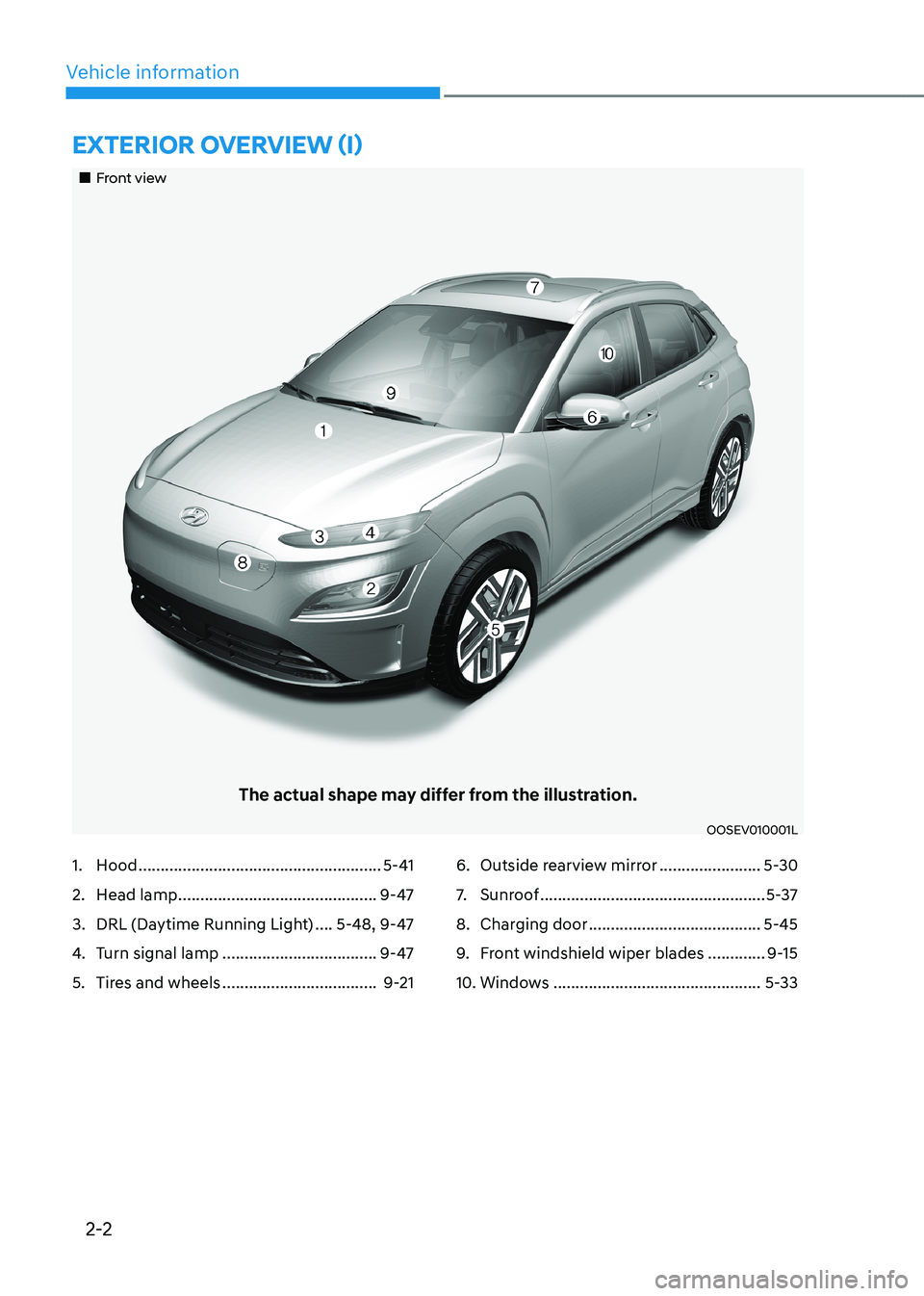

„„Front view

The actual shape may differ from the illustration.
OOSEV010001L
1.  Hood  .......................................................

Page 68 of 548

HYUNDAI KONA EV 2023 Repair Manual 2-3
02

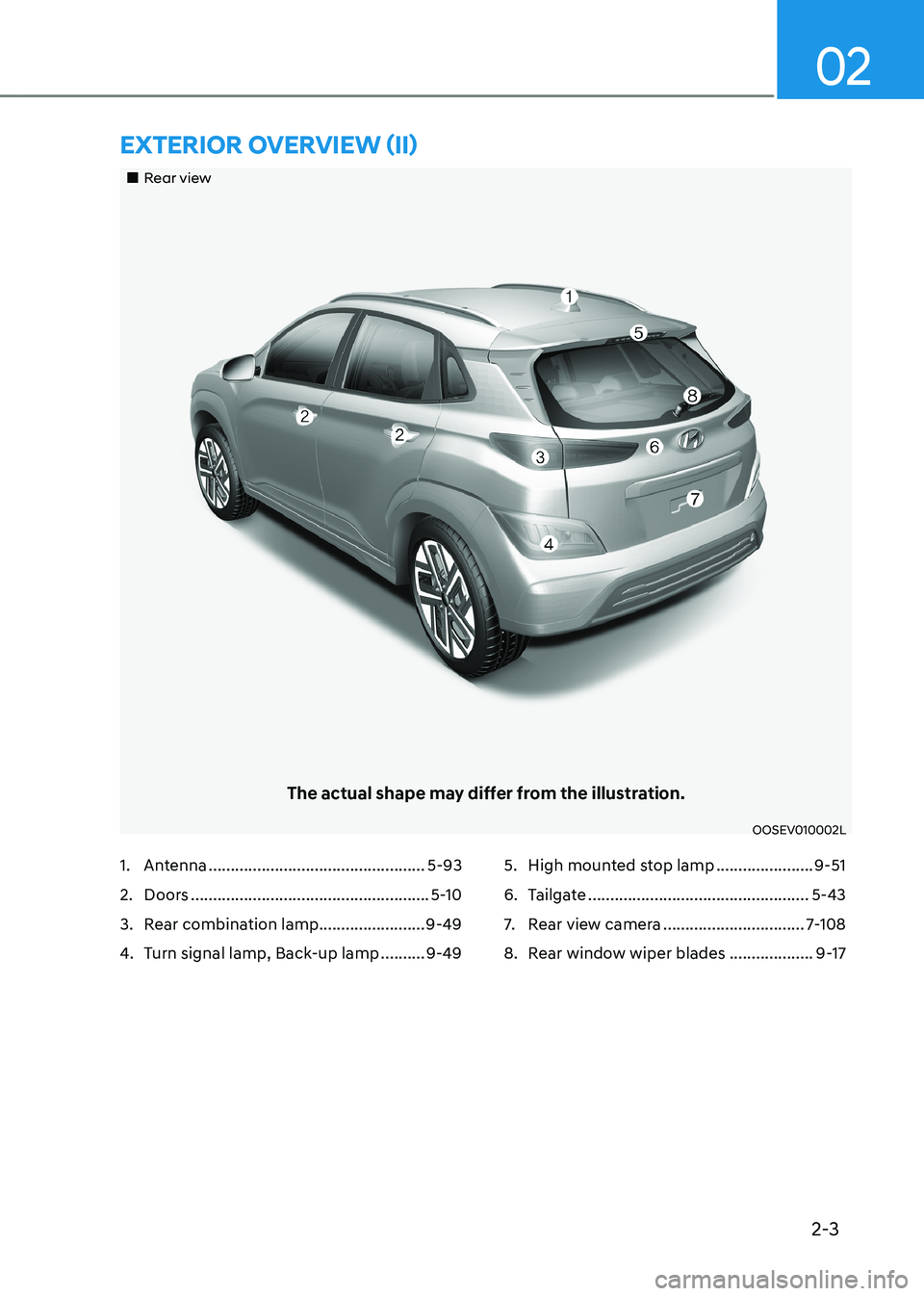

„„Rear view
The actual shape may differ from the illustration.
OOSEV010002L
ExtErior ovErviEw (ii)
1.  Antenna ................................................. 5-93
2.  Doors  ......

Page 69 of 548

HYUNDAI KONA EV 2023 Repair Manual 2-4
Vehicle information

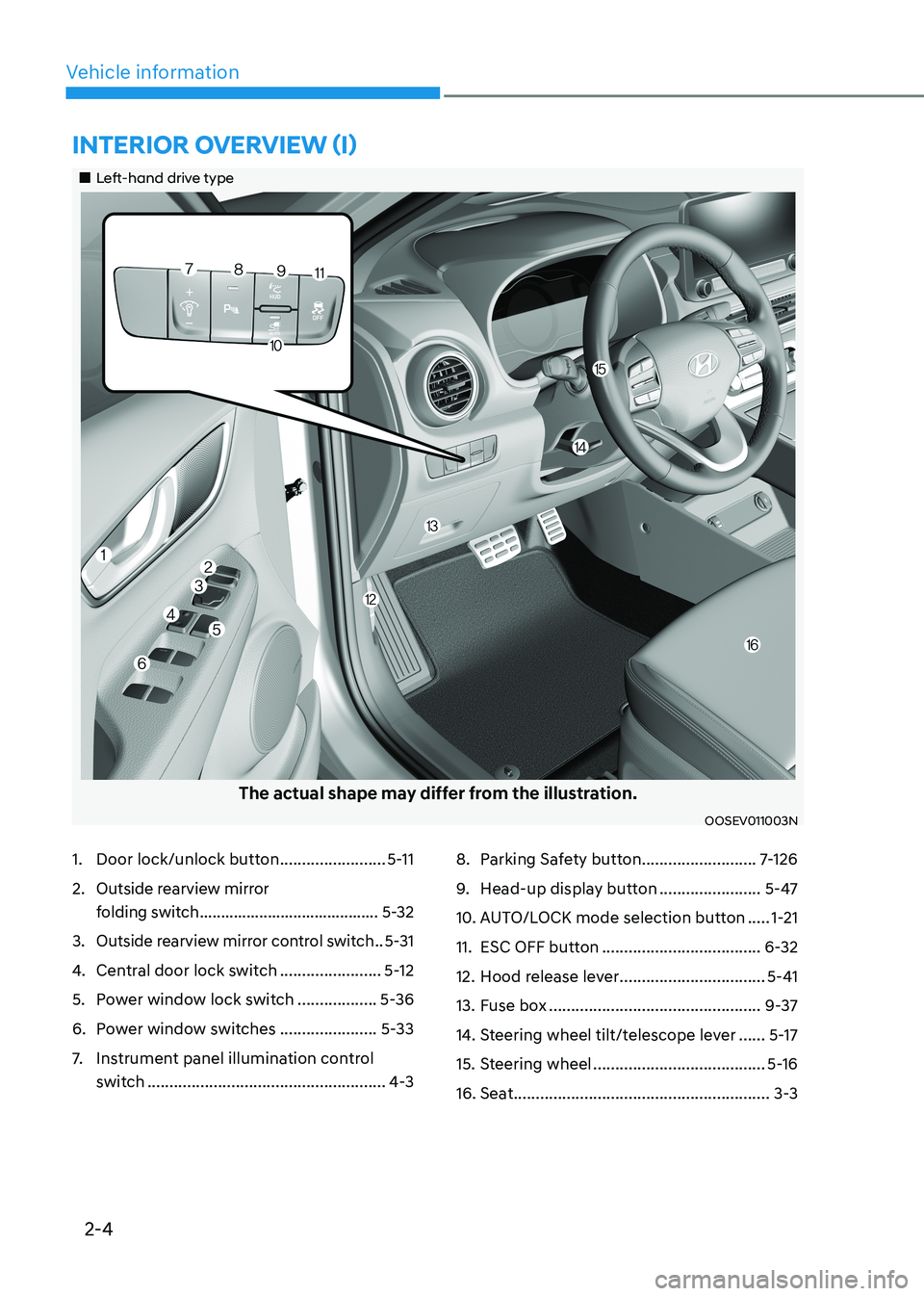

1.  Door lock/unlock button ........................5-11
2.  Outside rearview mirror
folding switch  .......................................... 5-32
3. Outside rearview mirr

Page 70 of 548

HYUNDAI KONA EV 2023 Repair Manual 2-5
02
The actual shape may differ from the illustration.
OOSEV010004L

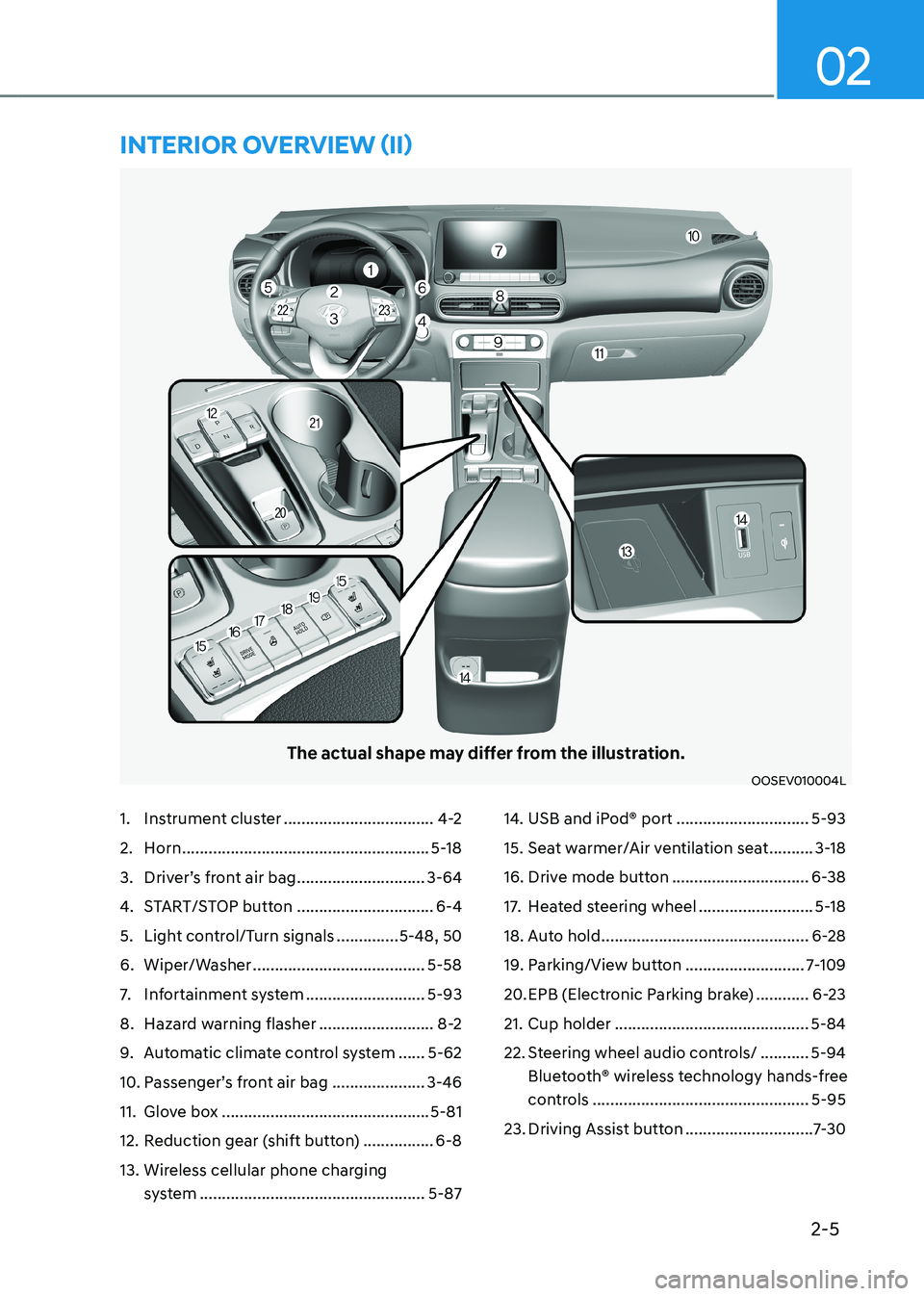

1.  Instrument cluster  ..................................4-2
2.  Horn  ........................................................
