FEATURES OF YOUR HYUNDAI
1- 2
B030A01E
B030A01A-AAT KEYS For greater convenience, the same key oper- ates all the locks in your Hyundai. However,because the doors can be locked without a key,carrying a spare key is recommended in caseyou accidentally lock one key inside the car.
o Don't let the engine idle longer than 3 min-
utes at one time.
o Don't tow a trailer during the first 2,000 km (1,200 miles) of operation.
B010F01A-AAT Operation in Foreign CountriesIf you are going to drive your Hyundai in another country, be sure to:
o Observe all regulations regarding registra-tion and insurance.
o Determine that acceptable fuel is available. B020A01S-GAT BREAKING IN YOUR NEW HYUNDAI During the First 2,000 Km (1,200 Miles)(Gasoline Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 2,000 km(1,200 miles).
o Don't drive faster than 88 km/h (55 mph).
o While driving, keep your engine speed (rpm, or revolutions per minute) between2,000 rpm and 4,000 rpm.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in toohigh a gear that theengine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time. B020B01FC-GAT BREAKING IN YOUR NEW HYUNDAI During the First 1,000 Km (600 Miles)(Diesel Engine) No formal "break-in" procedure is required with your new Hyundai. However, you can contrib-ute to the economical operation and durabilityof your Hyundai by observing the followingrecommendations during the first 1,000 km(600 miles).
o While driving, keep your engine speed (rpm,
or revolutions per minute) within 3,000 rpm.
o While driving, keep under three quarters of maximum speed.
o Use moderate acceleration. Don't start, de- press the accelerator pedal fully.
o For the first 300 km (200 miles), try to avoid hard stops.
o Don't lug the engine (in other words, don't drive so slowly in too-high a gear that the engine "bucks": shift to a lower gear).
o Whether going fast or slow, vary your speed from time to time.
o Don't let the engine idle longer than 3 min- utes at one time.
o Don't tow a trailer during the first 1,000 km (600 miles) of operation.

FEATURES OF YOUR HYUNDAI 1- 37
The trip computer is a microcomputer-con- trolled driver information gauge that displaysinformation related to driving, such as a dis-tance to empty, average speed and drive timeon the LCD. RESET SWITCH
o The reset switch is used to zero the multi-
functional display mode.
o Pushing in the reset switch changes the display as follows;
HFC2051
B400B01FC-GAT TRIP COMPUTER (If Installed)Reset switch
1. DISTANCE TO EMPTYDISTANCE TO EMPTY
AVERAGE SPEED DRIVE TIMEDistance to empty symbol
Distance to empty(km or mile)
o This mode indicates the estimated distance to empty from the current fuel in the fuel tankand distance to empty symbol.
o When refueling with more than 6 liters, the trip computer will recognize refueling.
o When the battery has been reinstalled after being discharged or disconnected, drivemore than 32km for an accurate distance toempty. NOTE:
o If the distance to empty is indicated "- -",
have the trip computer system checkedby your authorized Hyundai dealer.
o The distance to empty can differ from the actual tripmeter according to drivingconditions.
o The distance to empty can vary accord- ing to the driving conditions, drivingpattern or vehicle speed.
2. AVERAGE SPEED
o This mode indicates the average speed travelled since the last average speed re- set.
o Pressing the reset switch for more than 1 second, when the average speed is beingdisplayed, clears the average speed to zero.
Average speed symbol
Average speed (km/h)
HFC2052
HFC2053

FEATURES OF YOUR HYUNDAI
1- 38
3. DRIVE TIME
Drive time symbol
Drive timeHFC2054
o This mode indicates the drive time travelled since the last drive time reset.
o Pressing the reset switch for more than 1 second, when the drive time is being dis- played, clears the drive time to zero. B340B01A-AAT Lane Change Signal
B340B01FC
To indicate a lane change, move the lever up or down to a point where it begins flashing.The lever will automatically return to the centerposition when released.
B340A01A-AAT COMBINATION TURN SIGNAL, HEADLIGHT AND HIGH-BEAMSWITCH Turn Signal Operation Pulling down on the lever causes the turn signals on the left side of the car to blink.Pushing upwards on the lever causes the turnsignals on the right side of the car to blink. Asthe turn is completed, the lever will automati-cally return to the center position and turn offthe turn signals at the same time. If either turnsignal indicator light blinks more rapidly thanusual, goes on but does not blink, or does notgo on at all, there is a malfunction in the system.Check for a burned-out fuse or bulb or see yourHyundai dealer.
B340C01FC
B340C02FC-GAT Headlight Switch
To operate the headlights, turn the barrel on the end of the multi-function switch. The first posi-tion turns on the parking lights, sidelights, taillights and instrument panel lights. The secondposition turns on the headlights. NOTE: The ignition must be in the "ON" position toturn on the headlights. Parking light auto cut (If installed) If you do not turn the parking lights "OFF" after driving, the parking lights will automati-cally shut "OFF" when the driver's door isopened. To turn them "ON" again you must simply turn the ignition key to the "ON" position. B340F01A-GAT Daytime Running Lights (If Installed) Your Hyundai is equipped with daytime running
lights. The daytime running lights are used toimprove visibility for oncoming traffic. Your
vehicle daytime running lights are designed to
remain on continuously when the engine isoperating even though the headlight switch is inthe "OFF" position. However, the daytime run-ning lights will be off while the parking brake isapplied.

FEATURES OF YOUR HYUNDAI 1- 39
B350A01A-AAT WINDSHIELD WIPER AND WASHER SWITCH
B350A01O
The windshield wiper switch has three posi- tions:
1. Intermittent wiper operation
2. Low-speed operation
3. High-speed operation NOTE: To prevent damage to the wiper system, donot attempt to wipe away heavy accumula-tions of snow or ice. Accumulated snow andice should be removed manually. If there isonly a light layer of snow or ice, operate theheater in the defrost mode to melt the snowor ice before using the wiper.
B340E01A-AAT Headlight Flasher
B340E01FC
To flash the headlights, pull the switch lever toward you, then release it. The headlights canbe flashed even though the headlight switch isin the "OFF" position.
To use the windshield washer, pull the wiper/ washer lever toward the steering wheel. Whenthe washer lever is operated, the wipers auto-matically make two passes across the wind-shield. The washer continues to operate untilthe lever is released. NOTE:
o Do not operate the washer more than 15 seconds at a time or when the fluid reser-voir is empty.
o In icy or freezing weather, be sure the wiper blades are not frozen to the glassprior to operating the wipers.
o In areas where water freezes in winter, use windshield washer antifreeze.
B350B01O-GAT Windshield Washer Operation
B350B01O
B340D01A-AAT High-beam SwitchTo turn on the headlight high beams, push the lever forward (away from you). The high beamindicator light will come on at the same time.For low beams, pull the lever back toward you.

FEATURES OF YOUR HYUNDAI 1- 53
B560B01O-GAT AUTO FUEL CUT SWITCH (GASOLINE ENGINE)
HFC4001
The auto fuel cut switch is located on the driver's side of the engine compartment.In the event of a collision or sudden impact, theauto fuel cut device cuts off the fuel supply. Ifthis device is activated, it must be reset bypressing in on the top of the switch before theengine can be restarted. WARNING: Before resetting the auto fuel cut switch, thefuel line should be checked for fuel leaks.
34 kg (75 lb)
(Except European Community) 70 kg (154 lb)
(European Community Only) EVENLY DISTRIBUTED
HFC2106
B630A01FC-GAT ROOF RACK (If Installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails andfixing components to adapt the roof rack onyour vehicle may be obtained from an autho-rized Hyundai dealer. CAUTION:
o The following specifications are recom-
mended when loading cargo or luggage.
ROOF RACK
o Loading cargo or luggage above 34 kg (75 lb) (Except European Community)/
70 kg (154 lb) (European Community Only)on the roof rack may damage your vehi-cle.When you carry large objects, never letthem hang over the rear or the sides ofyour vehicle.
o To prevent damage or loss of cargo as you are driving, check frequently to makesure the luggage carrier and cargo arestill securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack, you must fit the roof rails with two or morecrossrails or equivalent before carryingcargo or lugguage on the roof.
o When crossrail is adapted, you can load things on the roof rack.
o Loading cargo or luggage over specifi- cation on the roof rack may damagestability of your vehicle.

FEATURES OF YOUR HYUNDAI 1- 55
B710A01Y-GAT Heating and Cooling Control (If Installed)
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Ventilator
B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard.To change the direction of the air flow, turn thecontrol knob on the middle of the ventilator asdesired. B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehicle through the sidevents. These vents can also be closed, so no airenters through the side vents. To change thedirection of the air flow, turn the control knobsas desired.
1
1
2
3 B710A01S-AAT VENTILATIONTo operate the ventilation system:
o Set the air intake control to "Fresh" mode
(
).
o To direct all intake air to the dashboard vents, set the air flow control to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
B250A01FC
B250A01FC

FEATURES OF YOUR HYUNDAI
1- 56

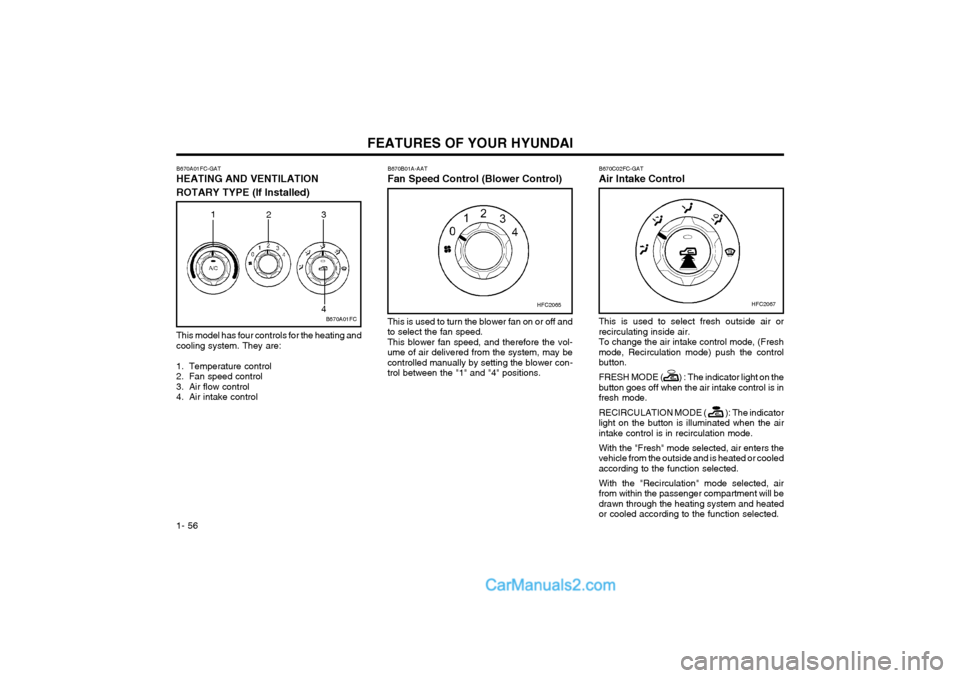

B670A01FC-GAT HEATING AND VENTILATION
ROTARY TYPE (If Installed)
B670A01FC
1
23 4
This model has four controls for the heating and cooling system. They are:
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air intake control B670C02FC-GAT Air Intake Control
HFC2067
This is used to select fresh outside air or recirculating inside air.To change the air intake control mode, (Freshmode, Recirculation mode) push the controlbutton. FRESH MODE (
) : The indicator light on the
button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
): The indicator
light on the button is illuminated when the air intake control is in recirculation mode. With the "Fresh" mode selected, air enters the vehicle from the outside and is heated or cooledaccording to the function selected. With the "Recirculation" mode selected, air
from within the passenger compartment will bedrawn through the heating system and heatedor cooled according to the function selected.
B670B01A-AAT Fan Speed Control (Blower Control)
HFC2065
This is used to turn the blower fan on or off and to select the fan speed.This blower fan speed, and therefore the vol-ume of air delivered from the system, may becontrolled manually by setting the blower con-trol between the "1" and "4" positions.

FEATURES OF YOUR HYUNDAI 1- 57
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
NOTE:
o It should be noted that prolonged opera- tion of the heating in "Recirculation"mode will increase to fogging of thewindshield and side windows and the airwithin the passenger compartment willbecome stale. In addition, prolonged useof the air conditioning with the "Recircu-lation" mode selected may result in theair within the passenger compartmentbecoming excessively dry.
o When the ignition switch is turned "ON" the air intake control will change to " "mode (regardless of switch position).This is normal operation. B670D05A-AAT Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, orwindshield. Five symbols are used to representFace, Bi-Level, Floor, Floor-Defrost and De-frost air position.
B670D01FC
B670D02FC
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to havecooler air from the dashboard vents and warmerair from the floor outlets at the same time.
