FEATURES OF YOUR HYUNDAI 1- 53
B650A01FC-GAT CARGO AREA COVER (If Installed)
B640A01FC
Nothing should be carried on top of the luggage cover. Loose materials could result in injury tovehicle occupants during sudden braking.
B800A02FC-GAT CD Auto Changer (If Installed)A CD Auto Changer is located under the front passenger seat. This system can store up to 8CDs.You may select music without changing discs.First, open the CD Auto Changer door andinsert 8 CDs by taking out the magazine. Then,push the magazine into the CD Auto Changer.The CD may be operated with the passengercompartment audio system controls. WARNING: Never attempt to change CDs the alreadyinserted in the CD changer magazine whilethe vehicle is moving. This could result inloss of control or an accident that maycause death, serious insury, or propertydamage.
HFC2105
B540D03FC-GAT Luggage Net (If Installed) Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartment to prevent objectsfrom sliding. WARNING: Avoid eye injury. DO NOT overstretch. AL-WAYS keep face and body out of recoilpath. DO NOT use when strap has visiblesigns of wear or damage. CAUTION: To prevent damage to the goods or thevehicle, care should be taken when carry-ing fragile or bulky objects in the trunk.
B540D01HP
Page 62 of 317
FEATURES OF YOUR HYUNDAI
1- 54 B560B01O-GAT AUTO FUEL CUT SWITCH (GASOLINE ENGINE)
HFC4001
The auto fuel cut switch is located on the driver's side of the engine compartment.In the event of a collision or sudden impact, theauto fuel cut device cuts off the fuel supply. Ifthis device is activated, it must be reset bypressing in on the top of the switch before theengine can be restarted. WARNING: Before resetting the auto fuel cut switch, thefuel line should be checked for fuel leaks.
34 kg (75 lb)
(Except European Community) 70 kg (154 lb)
(European Community Only) EVENLY DISTRIBUTED
HFC2106
B630A01FC-GAT ROOF RACK (If Installed) If your Hyundai has a roof rack, you can load things on top of your vehicle. Crossrails andfixing components to adapt the roof rack onyour vehicle may be obtained from an autho-rized Hyundai dealer. CAUTION:
o The following specifications are recom-
mended when loading cargo or luggage.
ROOF RACK
o Loading cargo or luggage above 34 kg (75 lb) (Except European Community)/
70 kg (154 lb) (European Community Only)on the roof rack may damage your vehi-cle.When you carry large objects, never letthem hang over the rear or the sides ofyour vehicle.
o To prevent damage or loss of cargo as you are driving, check frequently to makesure the luggage carrier and cargo arestill securely fastened.
o Always drive your vehicle at a moderate speed.
o To use the roof rails as a roof rack, you must fit the roof rails with two or morecrossrails or equivalent before carryingcargo or lugguage on the roof.
o When crossrail is adapted, you can load things on the roof rack.
o Loading cargo or luggage over specifi- cation on the roof rack may damagestability of your vehicle.
Page 63 of 317
FEATURES OF YOUR HYUNDAI 1- 55
B610B01A-GAT HORN (Without Airbag)B610B01FC
Press the center hub of the steering wheel to sound the horn.
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to the desired position.
3. After adjustment, securely tighten the lever by pulling it upward.
WARNING:Do not attempt to adjust the steering wheelwhile driving as this may result in loss ofcontrol of the vehicle which may causeserious injury or death.
B600A01A-AAT STEERING WHEEL TILT LEVER (If Installed)To Adjust the Steering Wheel:
HFC2041
B610A01E-GAT HORN (With Airbag) (If Installed)
HFC2099
Press the center hub of the steering wheel to sound the horn.
B580A01L-GAT SUN VISOR (If Installed)
HFC2094
Your Hyundai is equipped with sun visors to give the driver and front passenger either fron-tal or sideward shade. The sun visors are fittedon both sides on all models. To reduce glare orto shut out direct rays of the sun, turn the sunvisor down to block the annoyance. A vanitymirror is provided on the back of the sun visorfor the driver and front passenger. NOTE: The Supplemental Restraint System (SRS)label containing useful information can befound on the back of each sun visor. WARNING: Do not place the sun visor in such a mannerthat it obscures visibility of the roadway,traffic or other objects.
Vanity mirror
Page 64 of 317
FEATURES OF YOUR HYUNDAI
1- 56
B710A01Y-GAT
Heating and Cooling Control (If Installed)
1. Side Ventilator
2. Center Ventilator
3. Windshield Defrost Ventilator
B710B01A-AAT Center Ventilator The center ventilators are located in the middle of the dashboard.To change the direction of the air flow, turn thecontrol knob on the middle of the ventilator asdesired. B710C01Y-AAT Side Ventilator The side vent knobs control the amount of outside air entering the vehicle through the sidevents. These vents can also be closed, so no airenters through the side vents. To change thedirection of the air flow, turn the control knobsas desired.
1
1
2
3 B710A01S-AAT VENTILATIONTo operate the ventilation system:
o Set the air intake control to "Fresh" mode
(
).
o To direct all intake air to the dashboard vents, set the air flow control to "Face".
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
B250A01FC
B250A01FC
Page 65 of 317
FEATURES OF YOUR HYUNDAI 1- 57
B670A01FC-GAT HEATING AND VENTILATION
ROTARY TYPE (If Installed)
B670A01FC
1
23
4
This model has four controls for the heating and cooling system. They are:
1. Temperature control
2. Fan speed control
3. Air flow control
4. Air intake control B670C02FC-GAT Air Intake Control
HFC2067
This is used to select fresh outside air or recirculating inside air.To change the air intake control mode, (Freshmode, Recirculation mode) push the controlbutton. FRESH MODE (
) : The indicator light on the
button goes off when the air intake control is in fresh mode. RECIRCULATION MODE (
): The indicator
light on the button is illuminated when the air intake control is in recirculation mode. With the "Fresh" mode selected, air enters the
vehicle from the outside and is heated or cooledaccording to the function selected. With the "Recirculation" mode selected, air from within the passenger compartment will bedrawn through the heating system and heatedor cooled according to the function selected.
B670B01A-AAT Fan Speed Control (Blower Control)
HFC2065
This is used to turn the blower fan on or off and to select the fan speed.This blower fan speed, and therefore the vol-ume of air delivered from the system, may becontrolled manually by setting the blower con-trol between the "1" and "4" positions.
Page 66 of 317
FEATURES OF YOUR HYUNDAI
1- 58
Face-Level
Selecting the "Face" mode will cause air to be discharged through the face level vents.
NOTE:
o It should be noted that prolonged opera- tion of the heating in "Recirculation"mode will increase to fogging of thewindshield and side windows and the airwithin the passenger compartment willbecome stale. In addition, prolonged useof the air conditioning with the "Recircu-lation" mode selected may result in theair within the passenger compartmentbecoming excessively dry.
o When the ignition switch is turned "ON" the air intake control will change to " "mode (regardless of switch position).This is normal operation. B670D05A-AAT Air Flow Control
HFC2068
This is used to direct the flow of air. Air can be directed to the floor, dashboard outlets, orwindshield. Five symbols are used to representFace, Bi-Level, Floor, Floor-Defrost and De-frost air position.
B670D01FC
B670D02FC
Bi-Level
Air is discharged through the face vents and the floor vents. This makes it possible to havecooler air from the dashboard vents and warmerair from the floor outlets at the same time.
Page 67 of 317
FEATURES OF YOUR HYUNDAI 1- 59
B700A01S-AAT BI-LEVEL HEATING
This control is used to adjust the degree of heating or cooling desired. B690A02S-AAT HEATING CONTROLS For normal heating operation, set the air intake control to the "Fresh" position and the air flowcontrol to "Floor". For faster heating, the air intake control should be in the "Recirculation" position. If the windows fog up, move the air flow control to the "Def" (defroster) position. (The A/C willturn on automatically and "Fresh" mode will beactivated.) For maximum heat, move the temperature con- trol to "Warm".
HFC2066
B670E01A-AAT Temperature Control
Defrost-Level
Air is discharged through the windshield de- frost vents.If the "Defrost" mode is selected, the A/C willturn on automatically and "Fresh" mode will beactivated.
B670D05FC
Cool Warm
HFC2111
B670D03FC
B670D04FC
Floor-Level
Air is discharged through the floor vents.
Floor-Defrost Level
Air is discharged through the windshield de- frost vents and the floor vents.If the "Floor-Defrost" mode is selected, the A/Cwill be turn automatically and it will be changedto "Fresh" mode will be activated.
Page 68 of 317
FEATURES OF YOUR HYUNDAI
1- 60 B730A01FC-GAT Operation Tips
o To keep dust or unpleasant fumes from
entering the car through the ventilation sys- tem, temporarily set the air intake control at"Recirculation". Be sure to return the controlto "Fresh" when the irritation has passed tokeep fresh air in the vehicle. This will helpkeep the driver alert and comfortable.
o Air for the heating/cooling system is drawn in through the grilles just ahead of the wind-shield. Care should be taken that these arenot blocked by leaves, snow, ice or otherobstructions.
o To prevent interior fog on the windshield, set the air intake control to the fresh air(
) position and fan speed to the desired
position.
To remove interior fog on the windshield;
o Set the air flow control to the defrost (
)
position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to the desired position.
o Set the fan speed control between "1" and "4" position.
HFC2108
To remove frost or exterior fog on the wind- shield;
o Set the air flow control to the defrost (
)
position. (The A/C will turn on automatically and "Fresh" mode will be activated.)
o Set the temperature control to warm.
o Set the fan speed control to position "3" or "4".
NOTE: When the A/C is operated continuously onthe floor-defrost level (
) or defrost level
(), it may cause fog to form on the exterior
windshield. If this occurs, set the air flow control to the face level position (
)and fan
speed control to the low position.
Your Hyundai is equipped with bi-level heating controls. This makes it possible to have coolerair from the dashboard vents and warmer airfrom the floor outlets at the same time. To usethis feature:
o Set the air intake control to "Fresh" mode
(
).
o Set the air flow control at the "Bi-Level" position.
o Adjust the fan speed control to the desired speed.
o Set the temperature control between "Cool" and "Warm".
Use the heating/ventilation system to defrost or defog the windshield: B720A02FC-GAT DEFROSTING/DEFOGGING
HFC2107
Page 69 of 317

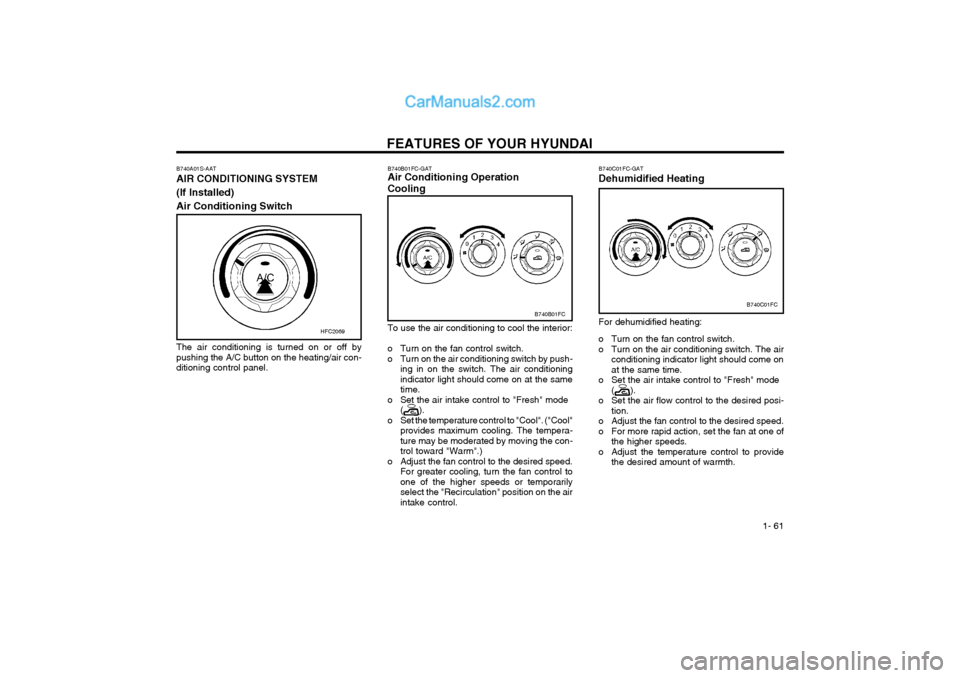

FEATURES OF YOUR HYUNDAI 1- 61
B740C01FC-GAT Dehumidified Heating
B740C01FC
For dehumidified heating:
o Turn on the fan control switch.
o Turn on the air conditioning switch. The air conditioning indicator light should come onat the same time.
o Set the air intake control to "Fresh" mode (
).
o Set the air flow control to the desired posi- tion.
o Adjust the fan control to the desired speed.
o For more rapid action, set the fan at one of the higher speeds.
o Adjust the temperature control to provide the desired amount of warmth.
B740B01FC-GAT Air Conditioning Operation Cooling
B740B01FC
To use the air conditioning to cool the interior:
o Turn on the fan control switch.
o Turn on the air conditioning switch by push- ing in on the switch. The air conditioningindicator light should come on at the sametime.
o Set the air intake control to "Fresh" mode (
).
o Set the temperature control to "Cool". ("Cool" provides maximum cooling. The tempera- ture may be moderated by moving the con-trol toward "Warm".)
o Adjust the fan control to the desired speed. For greater cooling, turn the fan control toone of the higher speeds or temporarilyselect the "Recirculation" position on the airintake control.
B740A01S-AAT AIR CONDITIONING SYSTEM (If Installed)Air Conditioning Switch
The air conditioning is turned on or off by pushing the A/C button on the heating/air con-ditioning control panel. HFC2069
Page 70 of 317
FEATURES OF YOUR HYUNDAI
1- 62
B760A01E
The air conditioner filter is located in front of the blower unit behind the glove box.It operates to decrease pollutants from enteringthe car and to filter the air. Replacement instructions:
1. Remove the adjusting pins on both sides of the glove box.
2. Remove the filter cover and replace the filler.
3. Installation is the reverse order of disas- sembly.
Evaporator coreBlower fan
Heater core
B760A01FC-GAT AIR CONDITIONER FILTER (IN FRONT OF BLOWER UNIT) (If Installed)
Outside air
Filter
Inside air
Inside air CAUTION:
o Replace the filter every 20,000 km (12,000
miles) or once a year. If the car is beingdriven in severe conditions such as dusty,rough roads, more frequent air condi-tioner filter inspections and changesare required.
o When the air flow rate is suddenly de- creased, it must be checked at an autho-rized dealer.
B740D01A-AAT Operation Tips
o If the interior of the car is hot when you firstget in, open the windows for a few minutes to expel the hot air.
o When you are using the air conditioning system, keep all windows closed to keep hotair out.
o When moving slowly, as in heavy traffic, shift to a lower gear. This increases enginespeed, which in turn increases the speed ofthe air conditioning compressor.
o On steep grades, turn the air conditioning off to avoid the possibility of the engine over-heating.
o During winter months or in periods when the air conditioning is not used regularly, run theair conditioning once every month for a fewminutes. This will help circulate the lubri-cants and keep your system in peak operat-ing condition.
