FEATURES OF YOUR HYUNDAI 1- 83
H290E01FC-GAT COMPACT DISC PLAYER OPERATION (H280) (If Installed)
H290A01O
5. EQUALIZER Button
3. TRACK UP/DOWN
1. CD Select Button 4. REPEAT
2. FF/REW Button
6. CD EJELT Button
7. SCAN Button (If installed)

FEATURES OF YOUR HYUNDAI
1- 84
H290F02O-GAT
1. CD Select Button
o Insert the CD with the label facing upward.
o Insert the CD to start CD playback, during
radio operation or cassette tape playing.
o When a disc is in the CD deck, if you press the CD button the CD player will beginplaying even if the radio or cassette playeris being used.
o The CD player can be used when the igni- tion switch is in either the "ON" or "ACC"position.
2. FF/REW ( / ) If you want to fast forward or reverse through the compact disc track, push and hold in the FF( ) or REW ( ) button.When you release the button, the compact discplayer will resume playing.
3. TRACK UP/DOWN
o The desired track on the disc currently being played can be selected using the track number.
o Press button once to skip forward to the beginning of the next track. Press buttononce to skip back to the beginning of thetrack.
4. REPEAT
o To repeat the track you are currently listen- ing to, press the RPT button. To cancel , press again. o If you do not release RPT operation when
the track ends, it will automatically be re-played.This process will be continued until youpush the button again.
5. EQUALIZER Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows; - Remove the audio fuse for 5 minutes.
Then, reinstall the audio fuse.
- Disconnect the negative terminal of the battery and wait 5 minutes.Then reconnect the negative batteryterminal.
o When replacing the fuse, replace it with a fuse having the correct capacity.
o The preset station frequencies are all erased when the car battery is discon-nected. Therefore, all data will have tobe set again if this should occur.
o Do not add any oil to the rotating parts. Keep magnets, screwdrivers and othermetallic objects away from the tapemechanism and head.
o This equipment is designed to be used only in a 12 volt DC battery system withnegative ground.
o This unit is made of precision parts. Do not attempt to disassemble or adjust anyparts.
o When driving your vehicle, be sure to keep the volume of the unit set low enoughto allow you to hear sounds coming fromthe outside.
o Do not expose this equipment (including the speakers and tape) to water or exces-sive moisture.
CAUTION:Do not insert warped or poor quality discsinto the CD player as damage to the unitmay occur.
CLASSIC JAZZ ROCK DEFEAT

6. CD EJECT Button When the button is pressed with a CD loaded, the CD will eject.
7. SCAN Button (If installed)
o Press the SCAN button to playback the first 10 seconds of each track.
o Press the SCAN button again within 10 sec. for the desired track.
NOTE:
o If the CD does not operate properly or if the ER2 fault code is displayed, use oneof two methods to reset the CD deckfunction.

FEATURES OF YOUR HYUNDAI 1- 85

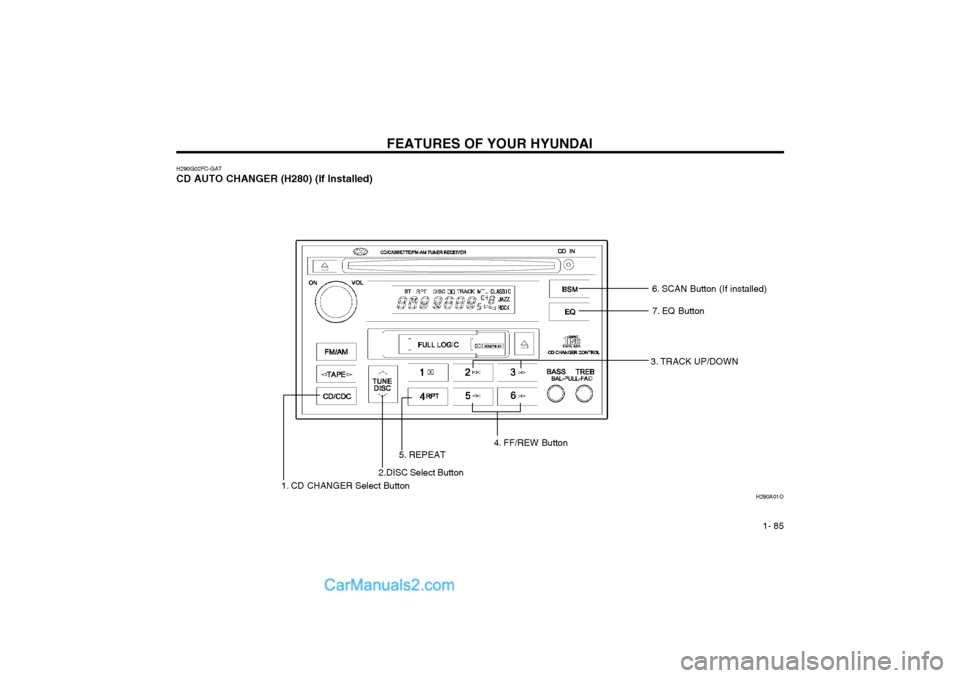

H290G02FC-GAT CD AUTO CHANGER (H280) (If Installed)
H290A01O
3. TRACK UP/DOWN
1. CD CHANGER Select Button 5. REPEAT
4. FF/REW Button
2.DISC Select Button
6. SCAN Button (If installed)
7. EQ Button

FEATURES OF YOUR HYUNDAI
1- 86
3. TRACK UP/DOWN
o The desired track on the disc currently being played can be selected using the track number.
o Press once to skip forward to the begin- ning of the next track. Press once to skipback to the beginning of the track.
4. FF/REW ( / ) If you want to fast forward or reverse through the compact disc track, push and hold in the FF( ) or REW ( ) button.When you release the button, the compact discplayer will resume playing. 5. REPEAT
o To repeat the track you are currently listen- ing to, press the RPT button. To cancel , press again.
o If you do not release RPT operation when the track ends, it will automatically be re-played.This process will be continued until youpush the button again.
6. SCAN Button (If installed)
o Press the SCAN button to playback the first 10 seconds of each track.
o Press the SCAN button again within 10 sec. for the desired track.B290H03FC-GAT The CD auto changer is located under the front passenger seat.
o To use the CD auto changer.
1. Open the sliding lid of the CD auto chang- er.
2. To eject the compact disc magazine, press the EJECT button located inside the CD auto changer.
3. Insert the discs into the magazine.
4. Push the magazine into the CD auto changer and close the sliding lid.
o The CD auto changer can be used when the ignition switch is in either "ON" or "ACC"position.
1. CD CHANGER Select Button When the CD changer magazine contains discs, press the "CD/CDC" button and the CD changercan be used even if the radio or cassette playeris being used. The Hyundai CD changer canhold up to eight discs. The disc number will belit, and the track number, and elapsed time willbe displayed. 2. DISC Select Button To select the CD you want, push " " to change the disc number.
CLASSIC JAZZ ROCK DEFEAT
7. EQ Button Press the EQ button to select the CLASSIC, JAZZ, ROCK and DEFEAT MODE for the de-sired tone quality. Each press of the buttonchanges the display as follows;
TUNE DISC
NOTE:
o When replacing the fuse, replace it with
a fuse having the correct capacity.
o This equipment is designed to be used only in a 12 volt DC battery system withnegative ground.
o This unit is made of precision parts. Do not attempt to disassemble or adjust anyparts.
o When driving your vehicle, be sure to keep the volume of the unit set low enoughto allow you to hear sounds coming fromthe outside.
CAUTION:Do not insert warped or poor quality discsinto the CD changer as damage to the unitmay occur. WARNING: Never attempt to change CDs the alreadyinserted in the CD changer magazine whilethe vehicle is moving. This could result inloss of control or an accident that maycause death, serious insury, or propertydamage.

FEATURES OF YOUR HYUNDAI 1- 87
B890A01Y-AAT AUDIO FAULT CODE
If you see any error indication in the display while using the CD or Tape mode, find the cause in the chart below. If you cannot clear the error indication, take the car to your Hyundai dealer.
INDICATION CAUSE SOLUTION
Er2 Er3 Er6 Er8 HHH no CD CD DECK MECHANICAL ERROR (EJECT ERROR, LOADING ERROR) FOCUS ERROR DATA READ ERROR DISC ERROR TAPE DECK ERROR TAPE EJECT ERROR TEMPERATURE IS TOO HIGH NO DISC IN MAGAZINE NO CD MAGAZINE IN THEAUTO CHANGER AFTER RESETTING THE AUDIO, PUSH THE EJECT BUTTON.IF DISC IS NOT EJECTED, CONSULT YOUR HYUNDAI DEALER. MAKE SURE THE DISC IS NOT SCRATCHED OR DAMAGED. PRESS THE EJECT BUTTON AND PULL OUT THE DISC. THEN INSERT A NORMAL CD DISC. CHECK IF THE DISC IS INSERTED CORRECTLY IN THE CD PLAYER. MAKE SURE THE DISC IS NOT SCRATCHED OR DAMAGED. AFTER RESETTING THE AUDIO, PUSH THE EJECT BUTTON. IF TAPE IS NOT EJECTED, CONSULT YOUR HYUNDAI DEALER. FAULT CODE WILL RESET AUTOMATICALLY WHEN THE TEM- PERATURE RETURNS TO NORMAL.
INSERT DISC IN MAGAZINE OR INSERT CD MAGAZINE IN THE AUTO CHANGER.

FEATURES OF YOUR HYUNDAI
1- 88
B850A01F-AAT CARE OF DISC Proper Handling
Do not grip or pull out the disc with your hand while the disc is being pulled into the unit by theself loading mechanism.Do not pull the unit from the dash immediatelyafter a disc is inserted or the eject switch hasbeen pressed. If the unit is pulled out before anoperation is completed, the disc will be un-stable in the unit and may be damaged.Do not attempt to insert a disc into the unit whenthe unit is out of the dash or the power is off. Keep Your Discs Clean
YL11240B
Handle your disc as shown. Do not drop the disc. Hold the disc so you will not leave finger-prints on the surface. If the surface is scratched,it may cause the pickup to skip signal tracks. Donot affix tape, paper, or gummed labels on thedisc. Do not write on the disc. Damaged Disc Do not attempt to play damaged, warped or cracked discs. These could severely damagethe playback mechanism. Storage When not in use, place your discs in their individual cases and store them in a cool placeaway from the sun, heat, and dust.
YL11250B
Fingerprints, dust, or soil on the surface of a disc could cause the pickup to skip signaltracks. Wipe the surface clean with a clean softcloth. If the surface is heavily soiled, dampen aclean soft cloth in a solution of mild neutraldetergent to wipe it clean. See drawing.B860A01A-AAT Care of Cassette Tapes
SSAR040B
Proper care of your cassette tapes will extend the tape life and increase your listening enjoy-ment. Always protect your tapes and cassettecases from direct sunlight, severe cold anddusty conditions. When not in use, cassettesshould always be stored in the protective cas-sette case. When the vehicle is very hot or cold,allow the interior temperature to become morecomfortable before listening to your cassettes.
o Never leave a cassette inserted in the player
when not being played. This could damage the tape player unit and the cassette tape.
o We strongly recommend against the use of tapes longer than C-60 (60 minutes total).Tapes such as C-120 or C-180 are very thinand do not perform as well in the automotiveenvironment.

FEATURES OF YOUR HYUNDAI 1- 89
B860A04A
NOTE: Look at a tape before you insert it. If the tapeis loose, tighten it by turning one of the hubswith a pencil or your finger. If the label ispeeling off, do not put it in the drive mecha-nism.Do not leave tapes sitting where they areexposed to hot, warm or, high humidity,such as on top of the dashboard or in theplayer.If a tape is exposed to excessively hot orcold, let it reach a moderate temperaturebefore putting it in the player.
Head
Cotton applicator
B880A01FC SSAR042B
o Be sure that the cassette label is not loose or peeling off or tape ejection may be diffi- cult.
o Never touch or soil the actual audio tape surfaces.
o Keep all magnetized objects, such as elec- tric motors, speakers or transformers awayfrom your cassette tapes and tape playerunit.
o Store cassettes in a cool, dry place with the open side facing down to prevent dust fromsetting in the cassette body.
o Avoid repeated fast reverse usage to replay one given tune or tape section. This cancause poor tape winding to occur, and even-tually cause excessive internal drag andpoor audio quality in the cassette. If thisoccurs, it can sometimes be corrected byfast winding the tape from end to end sev-eral times. If this does not correct the prob-lem, do not continue to use the tape in yourvehicle. o The playback head, capstan and pinch roll-
ers will develop a coating of tape residuethat can result in deterioration of soundquality, such as a wavering sound. Theyshould be cleaned monthly using a com-mercially available head cleaning tape orspecial solution available from audio spe-cialty shops. Follow the supplier's directionscarefully and never oil any part of the tapeplayer unit.
o Always be sure that the tape is tightly wound on its reel before inserting in the player.Rotate a pencil in the drive sprockets towind up any slack.

FEATURES OF YOUR HYUNDAI
1- 90
B870D01FC-GAT ANTENNA Roof Antenna
Your car uses a roof antenna to receive both AM and FM broadcast signals.This antenna is a removable type. To removethe antenna, turn the antenna counterclock-wise. To install the antenna, turn the antennaclockwise. CAUTION:
o Be sure to remove the antenna before
washing the car in an automatic car washor it may be damaged.
o Before entering a place with a low height clearance, be sure to adjust the roofantenna low.
o When reinstalling your antenna, it is im- portant that it is fully tightened to ensureproper reception.
HFC2100
