REMOVAL OF WATER FROM THE FUEL FILTER (Diesel Engine)
If the fuel filter warning light illumi- nates during driving, it indicates that water has accumulated in the fuelfilter. If this occurs, remove the water as described.
1. Loosen the drain plug at the bot- tom of the fuel filter.
2. Tighten the drain plug when water no longer comes out.
3. Check to be sure that the warning lamp illuminates when the ignition key is turned to "ON", and that it goes off when the engine is started. If in doubt, consult your nearest authorized HYUNDAI dealer.
NOTE: It is recommended that water ac-
cumulated in the fuel filter should be removed by an authorized Hyundai dealer. G300B02FC
!WARNING:
o Do not smoke or have any other open flame near the vehicle while bleeding the fuel system.
o Be sure to carefully wipe away
any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.

6
DO-IT-YOURSELF MAINTENANCE
35
!WARNING:
o Do not smoke or have any other open flame near the vehicle while bleeding the fuel system.
o Be sure to carefully wipe away any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
HEADLIGHT AIMING ADJUSTMENT
G290A01FC-GAT Before performing aiming adjustment, make sure of the following.
1. Keep all tires inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper and rear bumper down several times.Place the vehicle at a distance of 3,000 mm (118 in.) from the test wall.
3. See that the vehicle is unloaded
(except for full levels of coolant,engine oil and fuel, and spare tire, jack, and tools).
4. Clean the head lights lens and turn on the headlight (low beam). G290A01FC
5. Open the hood.
6. Draw the vertical line (through the center of each headlight beam pat- tern) and the horizontal line (throughthe center of each headlight beam pattern) on the aiming screen. And then, draw a horizontal paral- lel line at 30 mm (1.18 in.) under the horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with aphillips screwdriver - VERTICALAIMING.
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screwdriver - HORIZON- TAL AIMING.
Horizontal Aiming
Vertical Aiming

6
DO-IT-YOURSELF MAINTENANCE
37
G270A02A-GAT
HEADLIGHT BULB Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
3. Disconnect the power cord from
the bulb base in the back of the headlight.
4. Remove the dust cover. G270A01FC
!
5. Push the bulb spring for removing
the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Install the dust cover after retight- ening the bulb spring and recon- nect the power cord.
7. Use the protective cap and carton
to dispose of the old bulb.
8. Check for proper headlight aim. G270A02FC
WARNING:
The halogen bulb contains gasunder pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro-tection when servicing the bulb. Protect the bulb against abrasions or scratches and against liquidswhen lighted. Turn on the bulb only when installed in a headlight. Replace the headlight if damagedor cracked. Keep the bulb out of the reach of children and dispose of the used bulb with care.

6 DO-IT-YOURSELF MAINTENANCE
38
Socket type
W2.1×9.5D P43t-38
PK22s
BA 15s
W2.1×9.5D W2.1×9.5D S8.5/8.5
W2.1×4.6D Part Name
High Mounted Rear Stop Light License Plate Light Rear Fog Light (If installed) Luggage Compartment Light Rear Combination
No.
12 3 4 5 6 7

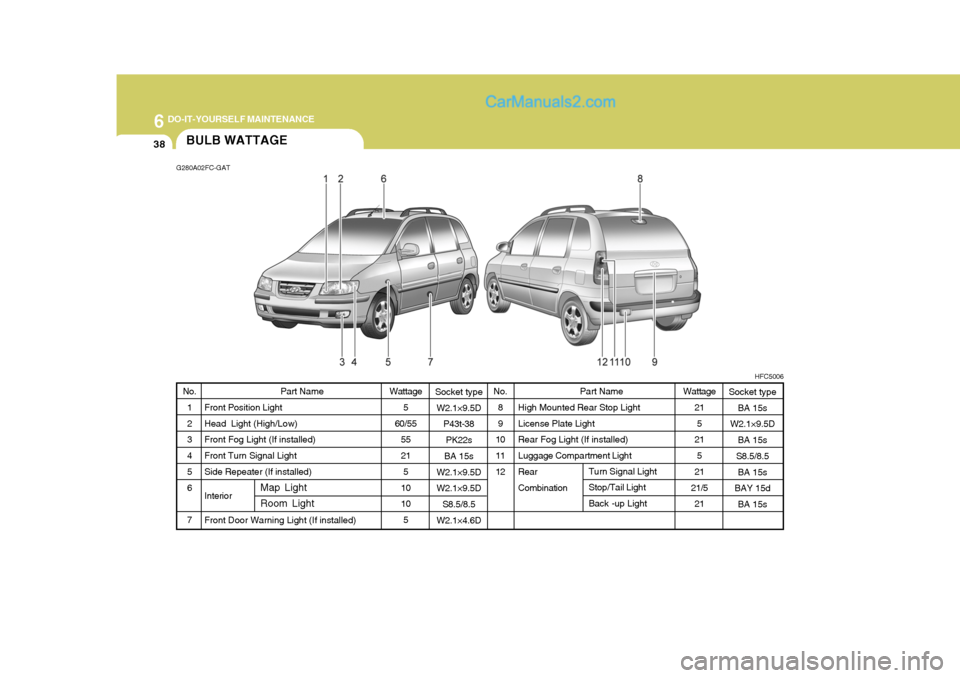

BULB WATTAGE
G280A02FC-GAT
HFC5006
Part Name
Front Position Light Head Light (High/Low) Front Fog Light (If installed) Front Turn Signal Light Side Repeater (If installed) InteriorFront Door Warning Light (If installed) No.
8 9
1011 12
Wattage
5
60/55 55 215
10 10 5
Socket type BA 15s
W2.1×9.5D
BA 15s
S8.5/8.5
BA 15s
BAY 15d
BA 15s
Map Light Room Light
Turn Signal Light Stop/Tail Light Back -up Light
Wattage
21
5
21
5
21
21/5 21

8CONSUMER INFORMATION
4
!
I050A01E-GAT TIRE CHAINS Tire chains, if necessary should be installed on the front wheels. Be sure that the chains are installed in accor- dance with the manufacturer's instruc-tions.To minimize tire and chain wear, donot continue to use tire chains when they are no longer needed.
WARNING:
o When driving on roads covered with snow or ice, drive at less than 30 km/h (20 mph).
o Use the SAE "S" class or wire &
plastic chains.
o If you have noise caused by chains contacting the body, re-tighten the chain to avoid con- tact with the vehicle body.
o To prevent body damage, re- tighten the chains after driving0.5 ~ 1 km.
I040A01S-GAT SNOW TIRES If you equip your car with snow tires, they should be the same size and have the same load capacity as the original tires. Snow tires should beinstalled on all four wheels; other- wise, poor handling may result. Snow tires should carry 28 kPa (4 psi) more air pressure than the pres- sure recommended for the standardtires on the tire label on, or up to the maximum pressure shown on the tire sidewall whichever is less. Do not drive faster than 120 km/h (75 mph) when your car is equipped with snow tires.
CAUTION:
Always observe the following:
o Check pressures when the tires are cold. That is, after the car has been parked for at least three hours and hasn't been drivenmore than 1.6 km or one mile since starting up.
o Check the pressure of your spare tire each time you check the pressure of other tires.
o Never overload your car. Be es- pecially careful about overload-ing if you equip your car with a luggage rack or car top carrier.
!

8
CONSUMER INFORMATION
5
!
I060A01FC-GAT
TIRE ROTATION
Tires should be rotated every 10,000 km (6,000 miles). If you notice that tires are wearing unevenly between rotations, have the car checked by aHyundai dealer so the cause may be corrected. After rotating, adjust the tire pres- sures and be sure to check wheel nut torque. HA1409
Spare tire WARNING:
o Do not use the temporary spare tire for tire rotation.
o Do not mix bias-ply and radial- ply tires under any circum- stances. This may cause dan- gerous handling characteristics. I070A01A-AAT TIRE BALANCING A tire that is out of balance may affect handling and tire wear. The tires on your Hyundai were balanced before the car was delivered but may needbalancing again during the years you own the car. Whenever a tire is dismounted for repair, it should be rebalanced before being reinstalled on the car. I080A01A-AAT
TIRE TRACTION
Tire traction can be reduced if you
drive on worn tires, tires that are improperly inflated or on slippery road surfaces. Tires should be replaced when tread wear indicators appear.To reduce the possibility of losing control, slow down whenever there is rain, snow or ice on the road.

8CONSUMER INFORMATION
6SPARE TIRE AND TOOLS
I100A01FC-GAT Your Hyundai is delivered with the
following:
Spare tire and wheel Wheel nut wrench, Wrench bar, Span-
ner, Screw driver
Jack D060B01FC
!WARNING:
o Driving on worn-out tires is dan- gerous! Worn-out tires can cause loss of braking effective-ness, steering control and trac- tion. When replacing tires, never mix radial and bias-ply tires onthe same car. If you replace ra- dial tires with bias-ply tires, they must be installed in sets of four.
o Using tires and wheels of other than the recommended sizesmay cause unusual handling characteristics that may cause death, serious injury or prop-erty damage.
I090A01S-GAT WHEN TO REPLACE TIRES
1.6 mm (0.06 in.)
The original tires on your car have tread wear indicators. The tread wear indicators appear when the tread depth is 1.6 mm (0.06 in.). The tireshould be replaced when these ap- pear as a solid bar across two or more grooves of the tread. Alwaysreplace your tires with those of the recommended size. If you change wheels, the new wheel's rim widthand offset must meet Hyundai speci- fication. Wear indicator
HFC248
