warning Hyundai Matrix 2005 Owner's Manual

1FEATURES OF YOUR HYUNDAI
72
!
!
CAUTION:
o Do not operate the switch con- tinuously for an unnecessary length of time.
o Scraping ice from the mirror face could cause permanent damage.To remove any ice, use a sponge, soft cloth or approved de-icer.
WARNING:
Be careful when judging the size ordistance of any object seen in thepassenger side rear view mirror. It is a convex mirror with a curved surface. Any objects seen in thismirror are closer than they appear.
To adjust the position of either mirror:
1. Move the selecting switch to the right or left to activate the adjustable mechanism for the correspondingdoor mirror.
2. Adjust mirror angle by depressing
the appropriate directional switchas illustrated.
B510D01EB510B01FC-GAT OUTSIDE REARVIEW MIRROR Electric Type The outside rearview mirrors can be adjusted to your preferred rear vision, both directly behind the vehicle, and to the rear of the left and right sides.The remote control outside rearview mirror switch controls the adjustments for both right and left outside mirrors. HFC2011
MIRROR

1
FEATURES OF YOUR HYUNDAI
73
B520A01A-AAT DAY/NIGHT INSIDE REARVIEW MIRRORManual Type Your Hyundai is equipped with a day/ night inside rearview mirror. The "night"position is selected by flipping the tab at the bottom of the mirror toward you. In the "night" position, the glare ofheadlights of cars behind you is re- duced. HXDFL2112
!
B510C01A-AAT FOLDING THE OUTSIDE REARVIEW MIRRORS To fold the outside rearview mirrors, push them towards the rear. The outside rearview mirrors can befolded rearward for parking in narrow areas.
WARNING:
Do not adjust or fold the outside rearview mirrors while the vehicle is moving. This could result in loss of control, and an accident whichcould cause death, serious injury or property damage. B510C01FCB510D01HP-AAT OUTSIDE REARVIEW MIRROR HEATER (If installed) The outside rearview mirror heater is actuated in connection with the rear window defroster. To heat the outside rearview mirror glass, pushin the switch for the rear window de- froster. The rearview mirror glass will be heated for defrosting or defoggingand will give you improved rear vision in inclement weather conditions. Push the switch again to turn the heater off.The outside rearview mirror heater automatically turns itself off after 20 minutes.
HFC2080

1FEATURES OF YOUR HYUNDAI
74FOLD-UP TRAY
B810A01FC-GAT For your convenience, it may be used as a table holding a book, cup or can.
WARNING:
To avoid the possibility of injury in case of an accident or a suddenstop, the fold-up tray should be place its original position while the vehicle is moving.
!
HFC2070
!WARNING:
Do not place the sun visor in such a manner that it obscures visibility of the roadway, traffic or other ob- jects. NOTE: The Supplemental Restraint Sys- tem (SRS) label containing useful information can be found on theback of each sun visor.

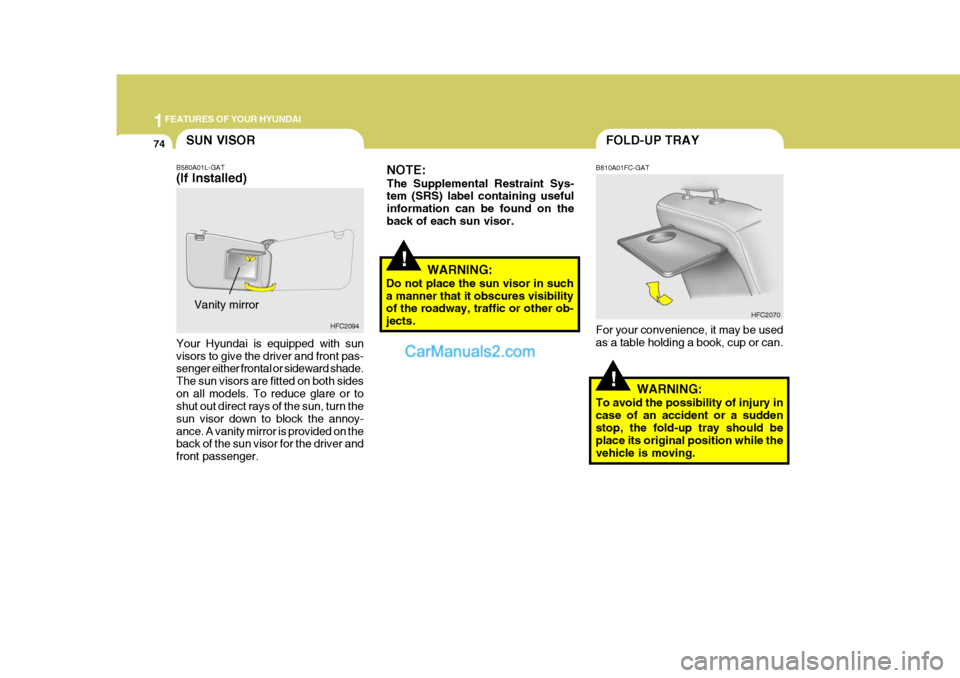

B580A01L-GAT (If Installed) Your Hyundai is equipped with sun visors to give the driver and front pas- senger either frontal or sideward shade. The sun visors are fitted on both sideson all models. To reduce glare or to shut out direct rays of the sun, turn the sun visor down to block the annoy-ance. A vanity mirror is provided on the back of the sun visor for the driver and front passenger. Vanity mirror
HFC2094
SUN VISOR

1FEATURES OF YOUR HYUNDAI
76
!WARNING:
Fuel vapors are dangerous. Before refueling, always stop the engineand never allow sparks or open flames near the filler area. If you need to replace the filler cap, use agenuine Hyundai replacement part. If you open the fuel filler cap during high ambient temperatures, a slight"pressure sound" may be heard. This is normal and not a cause for concern.Whenever you open the fuel filler
cap, turn it slowly. HFC2016
REMOTE FUEL-FILLER LID RELEASE
B560A02A-AAT The fuel-filler lid may be opened from inside the vehicle by pulling up on the fuel-filler lid opener located on the frontfloor area on the left side of the car. NOTE: If the fuel-filler lid will not open because ice has formed around it, tap lightly or push on the lid to break the ice and release the lid. Donot pry on the lid. If necessary, spray around the lid with an ap- proved de-icer fluid (do not useradiator anti-freeze) or move the vehicle to a warm place and allow the ice to melt. HFC2015
!WARNING:
o Always double check to be sure that the hood is firmly latched before driving away. If it is notlatched, the hood could open while the vehicle is being driven, causing a total loss of visibility,which might result in an acci- dent.
o The support rod must be inserted completely into the hole providedin the hood whenever you in- spect the engine compartment.This will prevent the hood from falling and possibly injuring you.
o Do not move the vehicle with the hood in the raised position, asvision is obstructed and the hood could fall or be damaged.

1
FEATURES OF YOUR HYUNDAI
77CD AUTO CHANGER
B800A02FC-GAT (If Installed) The CD Auto Changer is located under the front passenger seat. This system can store up to 8 CDs. You may select music without chang-ing discs. First, open the CD Auto Changer door, remore the CD "maga- zine" and insert up to 8 CDs. Then,push the magazine into the CD Auto Changer. The CD may be operated with the passenger compartment au-dio system controls.
o The tail gate can be locked or un-
locked with a key.
o The tail gate is opened by pulling the outside handle up, raising the tailgate manually.
o To close, lower the tail gate, then press down on it until it is closed. Tobe sure the tail gate is fully closed,always try to pull it up again without using the outside handle.
HFC2105
!
B540A01FC-GAT
WARNING:
The tail gate should always be kept completely closed while the vehicle is in motion. If it is left open or ajar,poisonous exhaust gases may en- ter the car resulting in serious ill- ness or death to the occupants. Seeadditional warnings concerning exhaust gases on page 2-2. B540A01FC
TAIL GATE
LOCK UNLOCK

1FEATURES OF YOUR HYUNDAI
78
!WARNING:
Avoid eye injury. DO NOT over- stretch the luggage net. ALWAYSkeep your face and body out of its recoil path. DO NOT use when the strap has visible signs of wear ordamage.
CAUTION:
To prevent damage to the goods orthe vehicle, care should be taken when carrying fragile or bulky ob- jects in the luggage compartment.
!

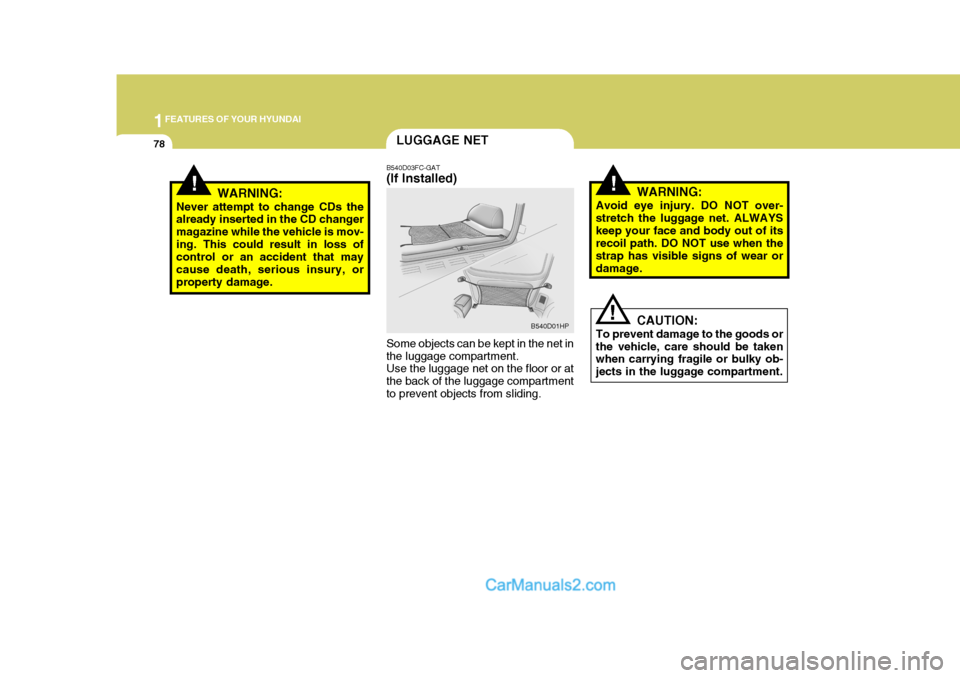

LUGGAGE NET
B540D03FC-GAT (If Installed) Some objects can be kept in the net in the luggage compartment. Use the luggage net on the floor or at the back of the luggage compartmentto prevent objects from sliding. B540D01HP
WARNING:
Never attempt to change CDs the already inserted in the CD changer magazine while the vehicle is mov-ing. This could result in loss of control or an accident that may cause death, serious insury, orproperty damage.!

1FEATURES OF YOUR HYUNDAI
80
!
STEERING WHEEL TILT LEVER
B600A01A-AAT (If Installed) To Adjust the Steering Wheel:
1. Push the lever downward to unlock.
2. Raise or lower the steering wheel to
the desired position.
3. After adjustment, securely tighten the lever by pulling it upward. HFC2041
WARNING:
Do not attempt to adjust the steer-ing wheel while driving as this may result in loss of control of the ve-hicle which may cause serious in- jury or death.AUTO FUEL CUT SWITCH
!
B560B01O-GAT (Gasoline Engine) The auto fuel cut switch is located on the driver's side of the engine compart-ment. In the event of a collision or sudden impact, the auto fuel cut device cuts offthe fuel supply. If this device is acti- vated, it must be reset by pressing in on the top of the switch before theengine can be restarted.
WARNING:
Before resetting the auto fuel cutswitch, the fuel line should be checked for fuel leaks. HFC4001
o Always drive your vehicle at a
moderate speed.
o To use the roof rails as a roof rack, you must fit the roof rails with two or more crossrails orequivalent before carrying cargo or lugguage on the roof.
o When crossrail is adapted, you can load things on the roof rack.
o Loading cargo or luggage over
specification on the roof rack may damage stability of your vehicle.

1FEATURES OF YOUR HYUNDAI
92
!
B750A04L

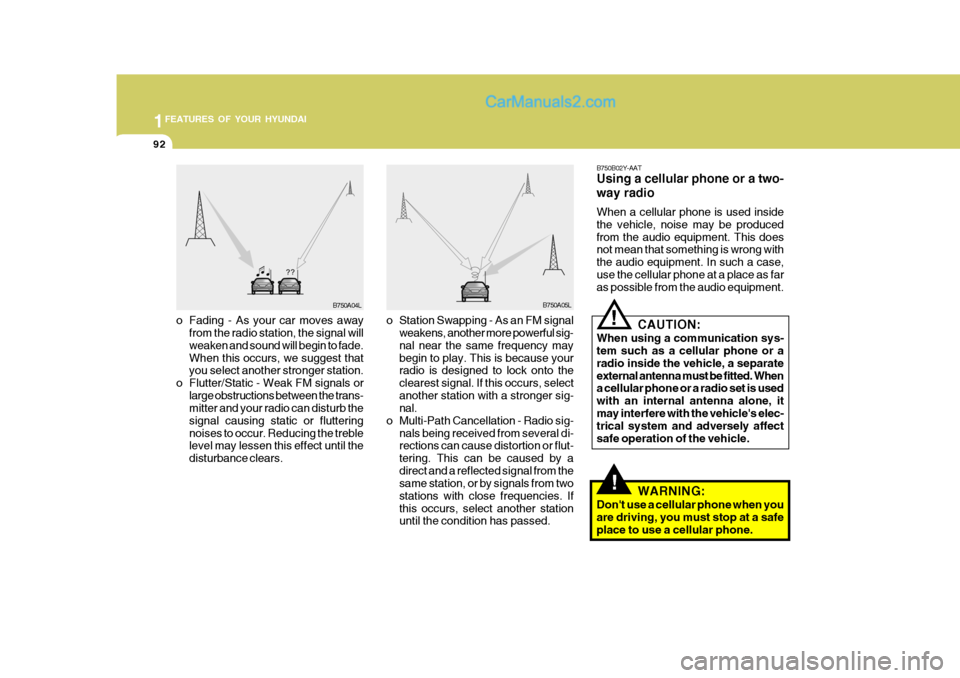

B750A05LB750B02Y-AAT Using a cellular phone or a two- way radio When a cellular phone is used inside the vehicle, noise may be producedfrom the audio equipment. This does not mean that something is wrong with the audio equipment. In such a case,use the cellular phone at a place as far as possible from the audio equipment.
!
CAUTION:
When using a communication sys- tem such as a cellular phone or a radio inside the vehicle, a separateexternal antenna must be fitted. When a cellular phone or a radio set is used with an internal antenna alone, itmay interfere with the vehicle's elec- trical system and adversely affect safe operation of the vehicle.
WARNING:
Don't use a cellular phone when youare driving, you must stop at a safeplace to use a cellular phone.
o Fading - As your car moves away
from the radio station, the signal will weaken and sound will begin to fade. When this occurs, we suggest that you select another stronger station.
o Flutter/Static - Weak FM signals or large obstructions between the trans-mitter and your radio can disturb the signal causing static or flutteringnoises to occur. Reducing the treble level may lessen this effect until the disturbance clears. o Station Swapping - As an FM signal
weakens, another more powerful sig- nal near the same frequency may begin to play. This is because your radio is designed to lock onto the clearest signal. If this occurs, selectanother station with a stronger sig- nal.
o Multi-Path Cancellation - Radio sig- nals being received from several di-rections can cause distortion or flut- tering. This can be caused by adirect and a reflected signal from the same station, or by signals from two stations with close frequencies. Ifthis occurs, select another station until the condition has passed.

1
FEATURES OF YOUR HYUNDAI
109
!

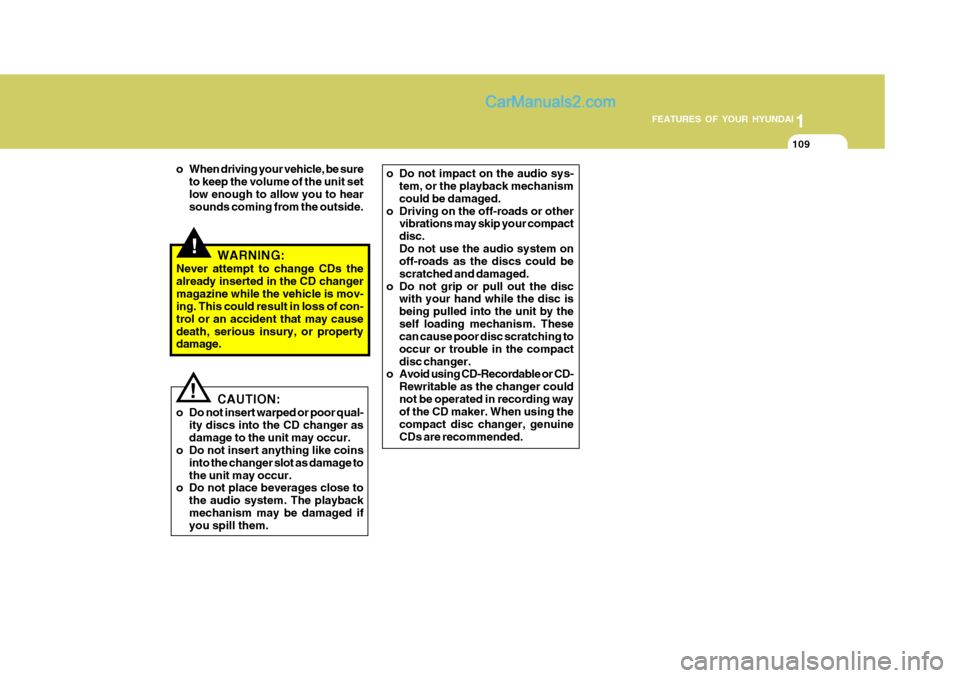

o When driving your vehicle, be sure
to keep the volume of the unit set low enough to allow you to hear sounds coming from the outside.
WARNING:
Never attempt to change CDs the already inserted in the CD changermagazine while the vehicle is mov- ing. This could result in loss of con- trol or an accident that may causedeath, serious insury, or property damage.
CAUTION:
o Do not insert warped or poor qual- ity discs into the CD changer as damage to the unit may occur.
o Do not insert anything like coins
into the changer slot as damage tothe unit may occur.
o Do not place beverages close to
the audio system. The playbackmechanism may be damaged if you spill them.
! o Do not impact on the audio sys-
tem, or the playback mechanism could be damaged.
o Driving on the off-roads or other vibrations may skip your compactdisc.Do not use the audio system on off-roads as the discs could be scratched and damaged.
o Do not grip or pull out the disc with your hand while the disc isbeing pulled into the unit by theself loading mechanism. These can cause poor disc scratching to occur or trouble in the compactdisc changer.
o Avoid using CD-Recordable or CD-
Rewritable as the changer couldnot be operated in recording way of the CD maker. When using the compact disc changer, genuineCDs are recommended.

1FEATURES OF YOUR HYUNDAI
120
NOTE:
o When replacing the fuse, replaceit with a fuse having the correct capacity.
o This equipment is designed to be used only in a 12 volt DC batterysystem with negative ground.
o This unit is made of precision parts. Do not attempt to disas-semble or adjust any parts.
o When driving your vehicle, be sure to keep the volume of the unit setlow enough to allow you to hearsounds coming from the outside.
!
!
CAUTION:
o Do not insert warped or poor qual- ity discs into the CD changer as damage to the unit may occur.
o Do not insert anything like coins into the changer slot as damage tothe unit may occur.
o Do not place beverages close to the audio system. The playbackmechanism may be damaged if you spill them.
o Do not impact on the audio sys- tem, or the playback mechanismcould be damaged.
o Driving on the off-roads or other vibrations may skip your compactdisc.Do not use the audio system on off-roads as the discs could be scratched and damaged.
o Do not grip or pull out the disc with your hand while the disc isbeing pulled into the unit by theself loading mechanism. These can cause poor disc scratching to occur or trouble in the compactdisc changer. o Avoid using CD-Recordable or CD-
Rewritable as the changer could not be operated in recording way of the CD maker. When using thecompact disc changer, genuine CDs are recommended.
WARNING:
Never attempt to change CDs thealready inserted in the CD changer magazine while the vehicle is mov-ing. This could result in loss of con- trol or an accident that may cause death, serious insury, or propertydamage.
