headrest Hyundai Matrix 2005 User Guide

1
FEATURES OF YOUR HYUNDAI
31
B230B01FC

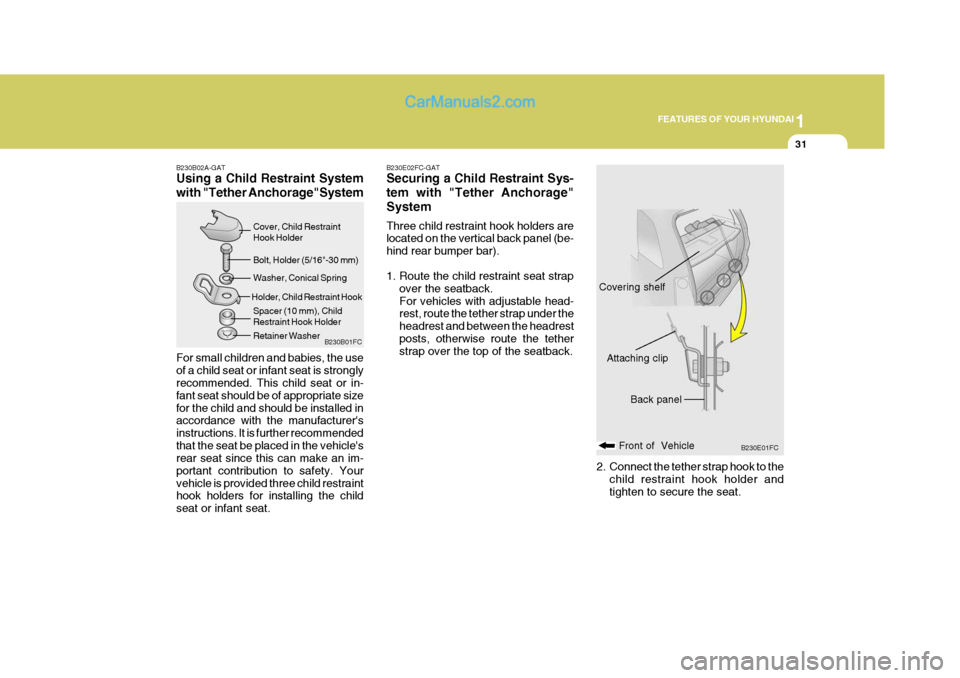

B230B02A-GAT Using a Child Restraint System with "Tether Anchorage"System For small children and babies, the use of a child seat or infant seat is strongly recommended. This child seat or in- fant seat should be of appropriate sizefor the child and should be installed in accordance with the manufacturer's instructions. It is further recommendedthat the seat be placed in the vehicle's rear seat since this can make an im- portant contribution to safety. Yourvehicle is provided three child restraint hook holders for installing the child seat or infant seat. B230E02FC-GAT Securing a Child Restraint Sys- tem with "Tether Anchorage"System Three child restraint hook holders are located on the vertical back panel (be- hind rear bumper bar).
1. Route the child restraint seat strap
over the seatback. For vehicles with adjustable head- rest, route the tether strap under the headrest and between the headrestposts, otherwise route the tether strap over the top of the seatback.
Cover, Child Restraint Hook Holder Bolt, Holder (5/16"-30 mm) Washer, Conical Spring
Holder, Child Restraint Hook Spacer (10 mm), Child Restraint Hook Holder Retainer Washer
B230E01FC
Front of Vehicle
Back panel
Covering shelf
Attaching clip
2. Connect the tether strap hook to the child restraint hook holder and tighten to secure the seat.

2
DRIVING YOUR HYUNDAI
3
!
TO START THE ENGINEBEFORE STARTING THE ENGINE
C020A01O-GAT Before you start the engine, you should always:
1. Look around the vehicle to be sure
there are no flat tires, puddles of oil, water or other indications of pos- sible trouble.
2. After entering the car, check to be sure the parking brake is engaged.
3. Check that all windows, and lights are clean.
4. Check that the interior and exterior
mirrors are clean and in position.
5. Check your seat, seatback and headrest to be sure they are in theirproper positions.
6. Lock all the doors.
7. Fasten your seat belt and be sure
that all other occupants have fas- tened theirs.
8. Turn off all lights and accessories
that are not needed. C030A01A-GAT COMBINATION IGNITION SWITCH Before starting the engine:
o If your Hyundai is equipped with a
manual transaxle, place the shift lever in neutral and depress theclutch pedal fully.
o If your Hyundai has an automatic
transaxle, place the shift lever in "P"(park).
o To start the engine, insert the igni-
tion key and turn it to the "START"position. Release it as soon as the engine starts. Do not hold the key in the "START" position for more than15 seconds.
NOTE: For safety, the engine will not start if the shift lever is not in "P" or "N"Position (Automatic Transaxle).
WARNING: (DIESEL ENGINE)
To ensure that sufficient vacuum exists within the brake system dur- ing cold weather start-up condi-tions, it is necessary to run the engine at idle for several seconds after starting the engine.
9. When you turn the ignition switch to
"ON", check that all appropriatewarning lights are operating and that you have sufficient fuel.
10.Check the operation of warning lights and all bulbs when key is inthe "ON" position.

10
INDEX
5
R Rear Fog Audible Warning Sound ............................1-52
Rear Seat
Adjustable headrests . ............................................. 1-18
Adjusting seatback angle ................. ...................... 1-17
Adjusting seat forwar d and rearward..................... 1-17
Arm Rest ................................................................ 1-67
Fold down .............................................................. 1-18
Rear Window Defroster Switch ................................ 1-62
Recommended Shift Points . ....................................... 2-8
Removal of water from the fuel fiter ........................6-34
Replacing Light Bulbs ............................................... 6-36
Replacing The Spark Plugs...................................... 6-15
Roof Rack ................................................................. 1-79
S Seat Belts 2-Point Static Type .............................................. 1-263-Point system ....................................................... 1-27
Adjustable height .................................................... 1-23
Adjusting your seat belt ............................... 1-25, 1-26
Care of seat belts .................................................. 1-23
Precautions ............................................................ 1-21
Seat Warmer ............................................................. 1-20
Spark Plugs ............................................................... 6-15
Spectacle Case ......................................................... 1-70
Speedometer ............................................................. 1-54
Starting Proce dures.................................................... 2-5 Steering Wheel
Free p lay ................................................................ 6-27
Tilt lever ................................................................. 1-80
Stereo Radio Operation (H210, H220, H260, H280) .............................................. 1-93, 1-96, 1-101, 1-110
Stereo Sound System ............................................... 1-91
Sunroof ...................................................................... 1-67
Sunshad e .................................................................. 1-67
Sun Visor .................................................................. 1-74
T Tail Gat e ................................................................... 1-77
Tail Gate Wiper And Washer Switch .......................1-61
Tachometer ............................................................... 1-54
Theft Alarm System .................................................. 1-10
Tires Balancing .................................................................. 8-5
Chains ...................................................................... 8-4
Changing a flat tire .................................................. 3-7
If you have a flat tire ............................................... 3-7
Information ............................................................... 8-3
Pressure ................................................................... 8-3
Replacement ............................................................ 8-6
Rotation .................................................................... 8-5
Snow tires ................................................................ 8-4
Spare tire ................................................................. 3-6
Traction .................................................................... 8-5
