headlight Hyundai Matrix 2005 Owner's Guide

Engine Compartment ................................................... 6-2
General Checks ........................................................... 6-5
Checking the Engine Oil .............................................. 6-6
Changing the Oil and Filter ......................................... 6-9
Checking and Changing the Engine Coolant ...........6-12
Spark Plugs ................................................................ 6-15
Changing the Air Cleaner Filter ................................ 6-17
Checking the Transaxle Oil (Manual) ....................... 6-19
Checking the Transaxle Fluid (Automatic) ................ 6-20
Checking the Brakes ................................................. 6-22
Checking the Clutch Fluid ......................................... 6-24
Air Conditioning Care ................................................ 6-25
Changing the Air Conditioner Filter
(In Front of Blower Unit) .......................................... 6-26
Checking Drive Belts ................................................. 6-28
Checking and Replacing Fuses ................................ 6-29
Checking The Battery ................................................ 6-31
Checking The Eclectric Cooling Fans ....................... 6-32
Power Steering Fluid Level ....................................... 6-32
Headlight Aiming Adjustment .................................... 6-35
Replacing headlight Bulbs ......................................... 6-36
Bulb Wattage ............................................................. 6-38
Fuse Panel Description ............................................. 6-39
DO-IT-YOURSELF MAINTENANCE
6
6

6
DO-IT-YOURSELF MAINTENANCE
35
!WARNING:
o Do not smoke or have any other open flame near the vehicle while bleeding the fuel system.
o Be sure to carefully wipe away any water drained out in thismanner, because the fuel mixed in the water might be ignited and result in a fire.
HEADLIGHT AIMING ADJUSTMENT
G290A01FC-GAT Before performing aiming adjustment, make sure of the following.
1. Keep all tires inflated to the correct
pressure.
2. Place the vehicle on level ground and press the front bumper and rear bumper down several times.Place the vehicle at a distance of 3,000 mm (118 in.) from the test wall.
3. See that the vehicle is unloaded
(except for full levels of coolant,engine oil and fuel, and spare tire, jack, and tools).
4. Clean the head lights lens and turn on the headlight (low beam). G290A01FC
5. Open the hood.
6. Draw the vertical line (through the center of each headlight beam pat- tern) and the horizontal line (throughthe center of each headlight beam pattern) on the aiming screen. And then, draw a horizontal paral- lel line at 30 mm (1.18 in.) under the horizontal line.
7. Adjust each cut-off line of the low beam to the parallel line with aphillips screwdriver - VERTICALAIMING.
8. Adjust each cut-off line of the low beam to each vertical line with a phillips screwdriver - HORIZON- TAL AIMING.
Horizontal Aiming
Vertical Aiming

6 DO-IT-YOURSELF MAINTENANCE
36
ing should be checked using an aim- ing screen as shown in the illustra-tion. Turn on the headlight switch. (Low Beam Position)
1. Adjust headlights so that main axisof light is parallel to center line of the body and is aligned with point "P" shown in the illustration.
2. Dotted lines in the illustration show the center of headlights. Specifications: "H" Horizontal center line of headlights from ground : 656 mm (26.8 in.) "W" Distance between each headlightcenter: 1,164 mm (47.7 in.) "L" Distance between the headlights and the wall that the lights are tested against : 3,000 mm (118 in.).REPLACING HEADLIGHT BULBS
G260A03A-GAT Before attempting to replace a head- light bulb, be sure the switch is turned to the "OFF" position. The next paragraph shows how to reach the headlight bulbs so they may be changed. Be sure to replacethe burned-out bulb with one of the same number and wattage rating. See page 6-38 for the wattage de- scriptions.
CAUTION:
Keep the lamps out of contact with petroleum products, such as oil,gasoline, etc.
!
G290B01FC-GAT

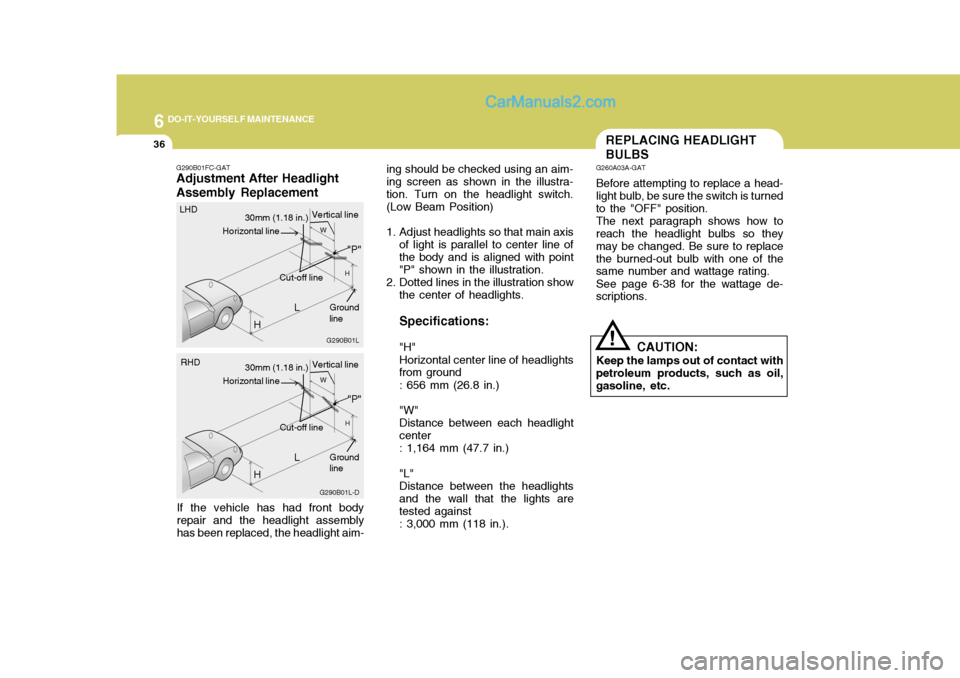

Adjustment After Headlight Assembly Replacement
If the vehicle has had front body repair and the headlight assemblyhas been replaced, the headlight aim- G290B01L
L
W
H
H Cut-off line
"P"
30mm (1.18 in.)
Vertical line
Horizontal line
Ground line
LHD
G290B01L-D
LW
H
H Cut-off line
"P"
30mm (1.18 in.)
Vertical line
Horizontal line
Ground line
RHD

6
DO-IT-YOURSELF MAINTENANCE
37
G270A02A-GAT
HEADLIGHT BULB Replacement instructions:
1. Allow the bulb to cool. Wear eye protection.
2. Always grasp the bulb by its plastic base, avoid touching the glass.
3. Disconnect the power cord from
the bulb base in the back of the headlight.
4. Remove the dust cover. G270A01FC
!
5. Push the bulb spring for removing
the headlight bulb.
6. Remove the protective cap from the replacement bulb and install the new bulb by matching the plas- tic base with the headlight hole.Install the dust cover after retight- ening the bulb spring and recon- nect the power cord.
7. Use the protective cap and carton
to dispose of the old bulb.
8. Check for proper headlight aim. G270A02FC
WARNING:
The halogen bulb contains gasunder pressure and if impacted could shatter, resulting in flying fragments. Always wear eye pro-tection when servicing the bulb. Protect the bulb against abrasions or scratches and against liquidswhen lighted. Turn on the bulb only when installed in a headlight. Replace the headlight if damagedor cracked. Keep the bulb out of the reach of children and dispose of the used bulb with care.
