HYUNDAI PALISADE 2023 Owners Manual

Convenience Features5-22

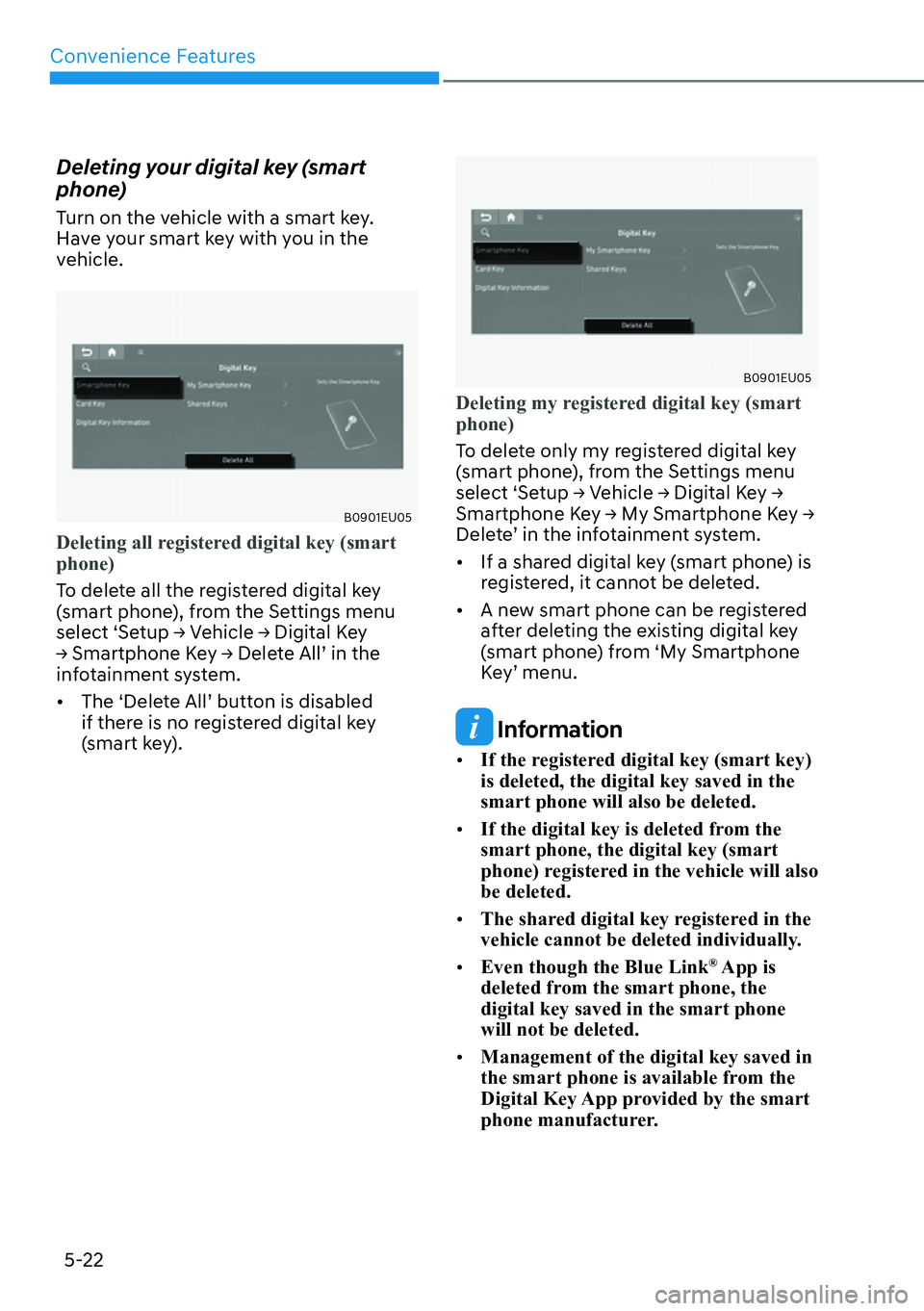

Deleting your digital key (smart
phone)
Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
B0901EU05
Deleting all registered digital key (smart
phone)
To delete all the registered digital key
(
smart phone), from the Settings menu
VHOHFW
S6HWXS

05
5-23

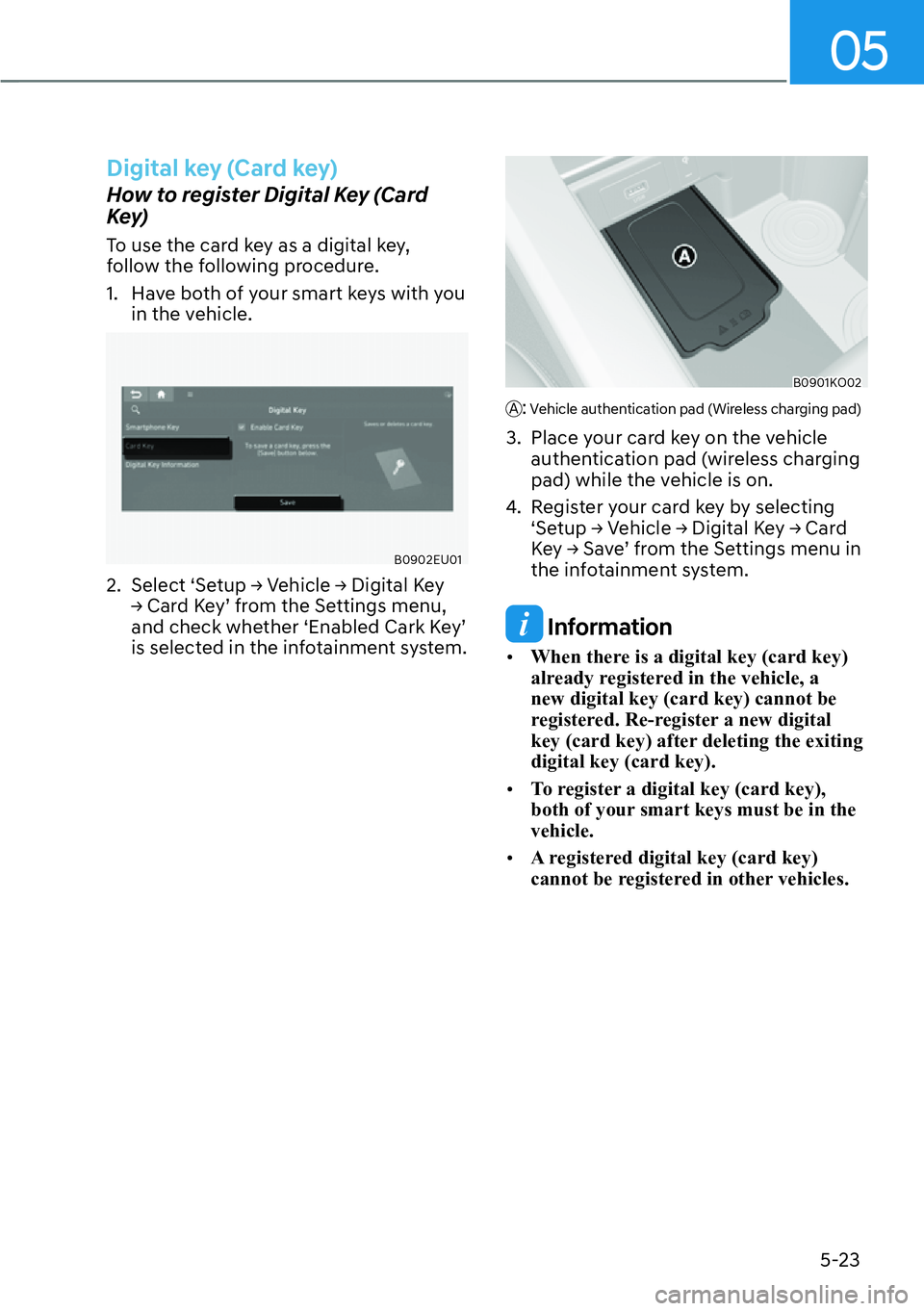

Digital key (Card key)
How to register Digital Key (Card
Key)
To use the card key as a digital key,
follow the following procedure.
1. Have both of your smart keys with you in the vehicle.
B0902EU01
2. 6HOHFW
S6HWXS

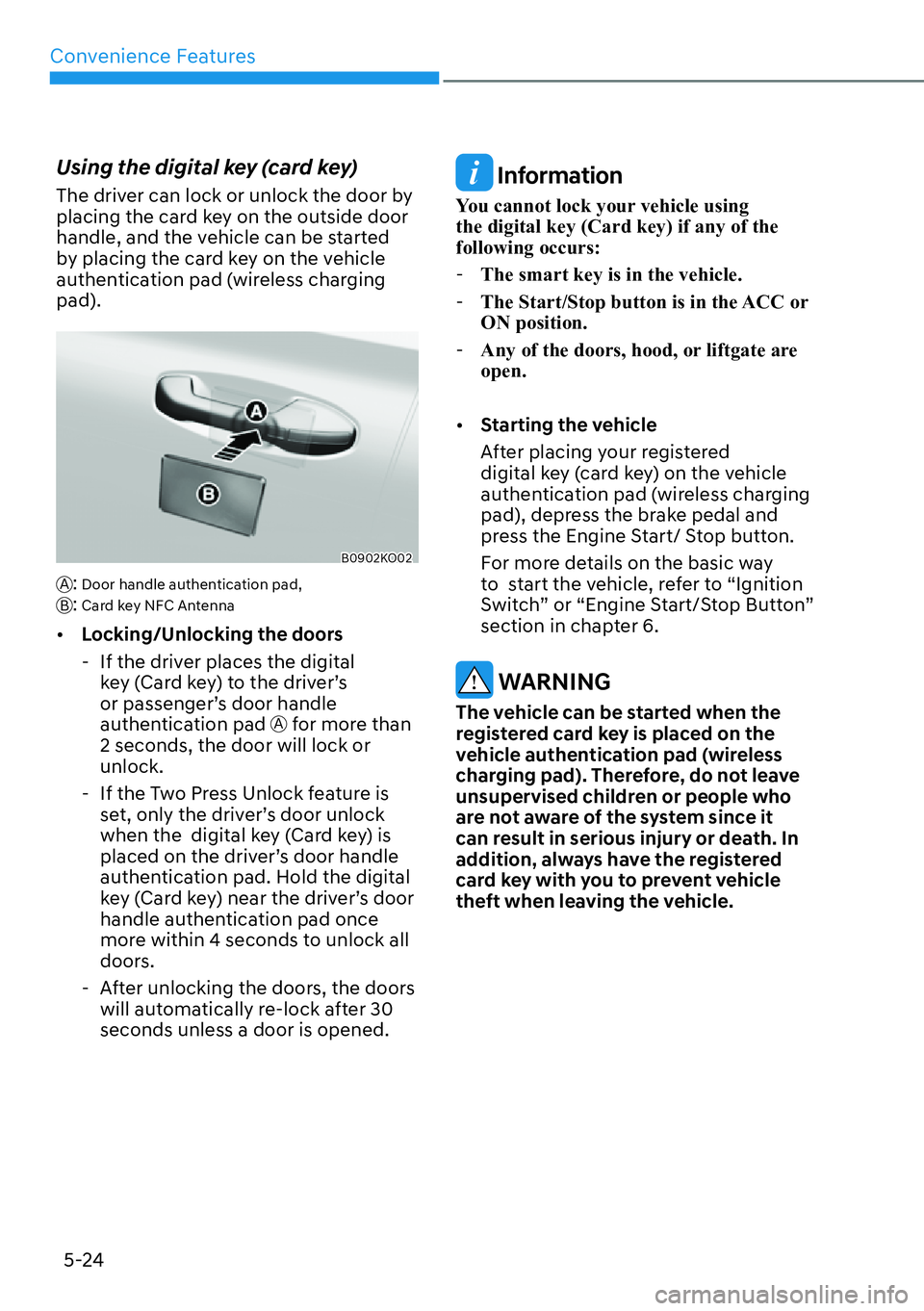

Convenience Features5-24
Using the digital key (card key)
The driver can lock or unlock the door by
placing the card key on the outside door
handle, and the vehicle can be started
by placing the card key on the vehicle
authentication pad (wireless charging
pad).
B0902KO02
A: Door handle authentication pad,
B: Card key NFC Antenna

[ Locking/Unlocking the doors

- If the driver places the digital
key (Card key) to the driver’s
or passenger’s door handle
authentication pad
A for more than
2 seconds, the door will lock or
unlock.

- If the Two Press Unlock feature is
set, only the driver’s door unlock
when the digital key (Card key) is
placed on the driver’s door handle
authentication pad. Hold the digital
key (Card key) near the driver’s door
handle authentication pad once
more within 4 seconds to unlock all
doors.

- After unlocking the doors, the doors
will automatically re-lock after 30
seconds unless a door is opened.
Information
You cannot lock your vehicle using
the digital key (Card key) if any of the
following occurs:

- The smart key is in the vehicle.

- The Start/Stop button is in the ACC or
ON position.

- Any of the doors, hood, or liftgate are
open.

[ Starting the vehicle
After placing your registered
digital key (card key) on the vehicle
authentication pad (wireless charging
pad), depress the brake pedal and
press the Engine Start/ Stop button.
For more details on the basic way
to start the vehicle, refer to “Ignition
Switch” or “Engine Start/Stop Button”
section in chapter 6.
WARNING
The vehicle can be started when the
registered card key is placed on the
vehicle authentication pad (wireless
charging pad). Therefore, do not leave
unsupervised children or people who
are not aware of the system since it
can result in serious injury or death. In
addition, always have the registered
card key with you to prevent vehicle
theft when leaving the vehicle.

05
5-25

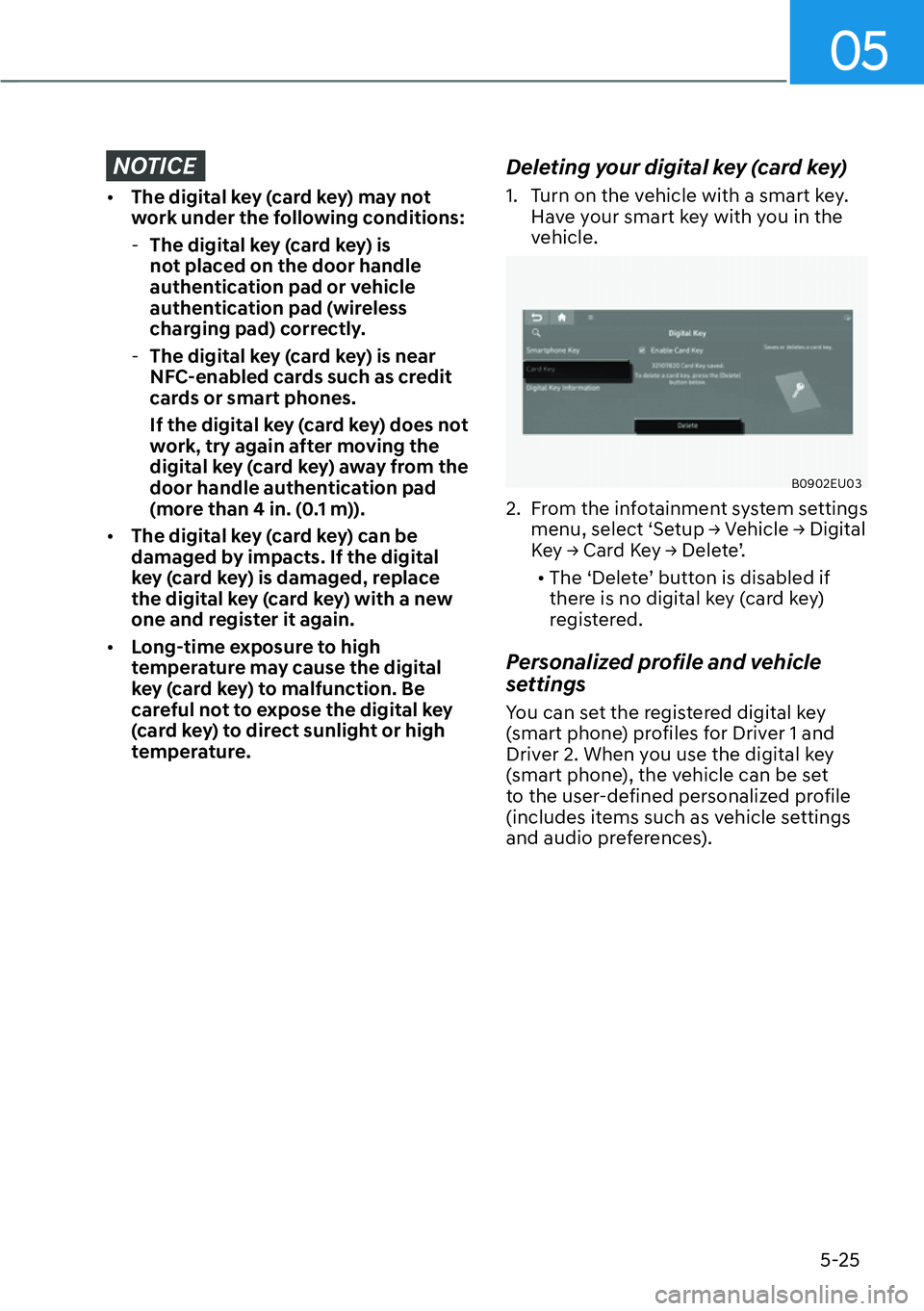

NOTICE

[The digital key (card key) may not
work under the following conditions:

- The digital key (card key) is
not placed on the door handle
authentication pad or vehicle
authentication pad (wireless
charging pad) correctly.

- The digital key (card key) is near
1)&HQDEOHGFDUGVVXFKDVFUHGLW
cards or smart phones.
If the digital key (card key) does not
work, try again after moving the
digital key (card key) away from the
door handle authentication pad
(more than 4 in. (0.1 m)).

[ The digital key (card key) can be
damaged by impacts. If the digital
key (card key) is damaged, replace
the digital key (card key) with a new
one and register it again.

[ Long-time exposure to high
temperature may cause the digital
key (card key) to malfunction. Be
careful not to expose the digital key
(card key) to direct sunlight or high
temperature.
Deleting your digital key (card key)
1. Turn on the vehicle with a smart key.
Have your smart key with you in the
vehicle.
B0902EU03
2. From the infotainment system settings PHQXVHOHFW
S6HWXS

Convenience Features5-26

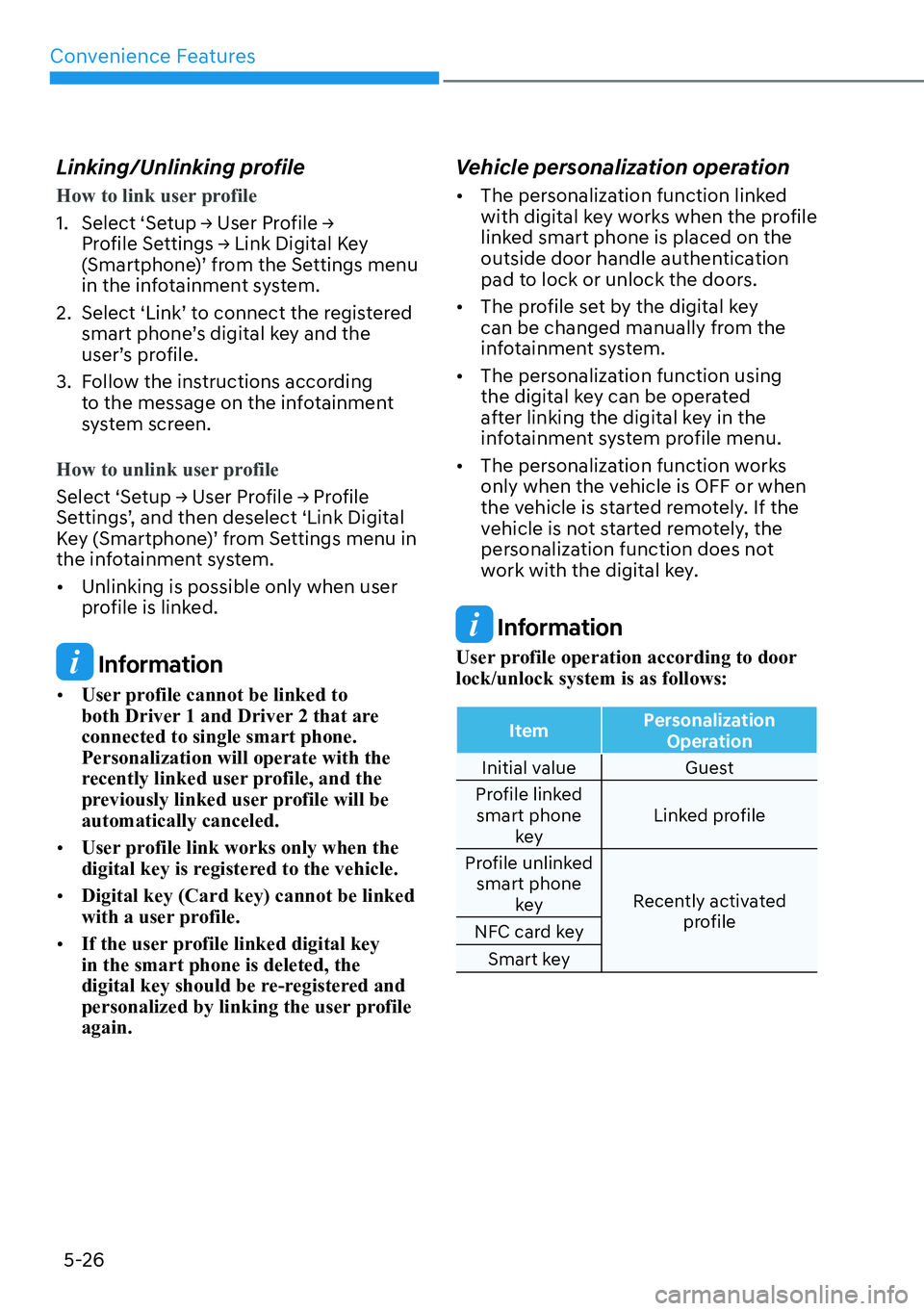

Linking/Unlinking profile
How to link user profile
1. 6HOHFW
S6H
WXS

05
5-27

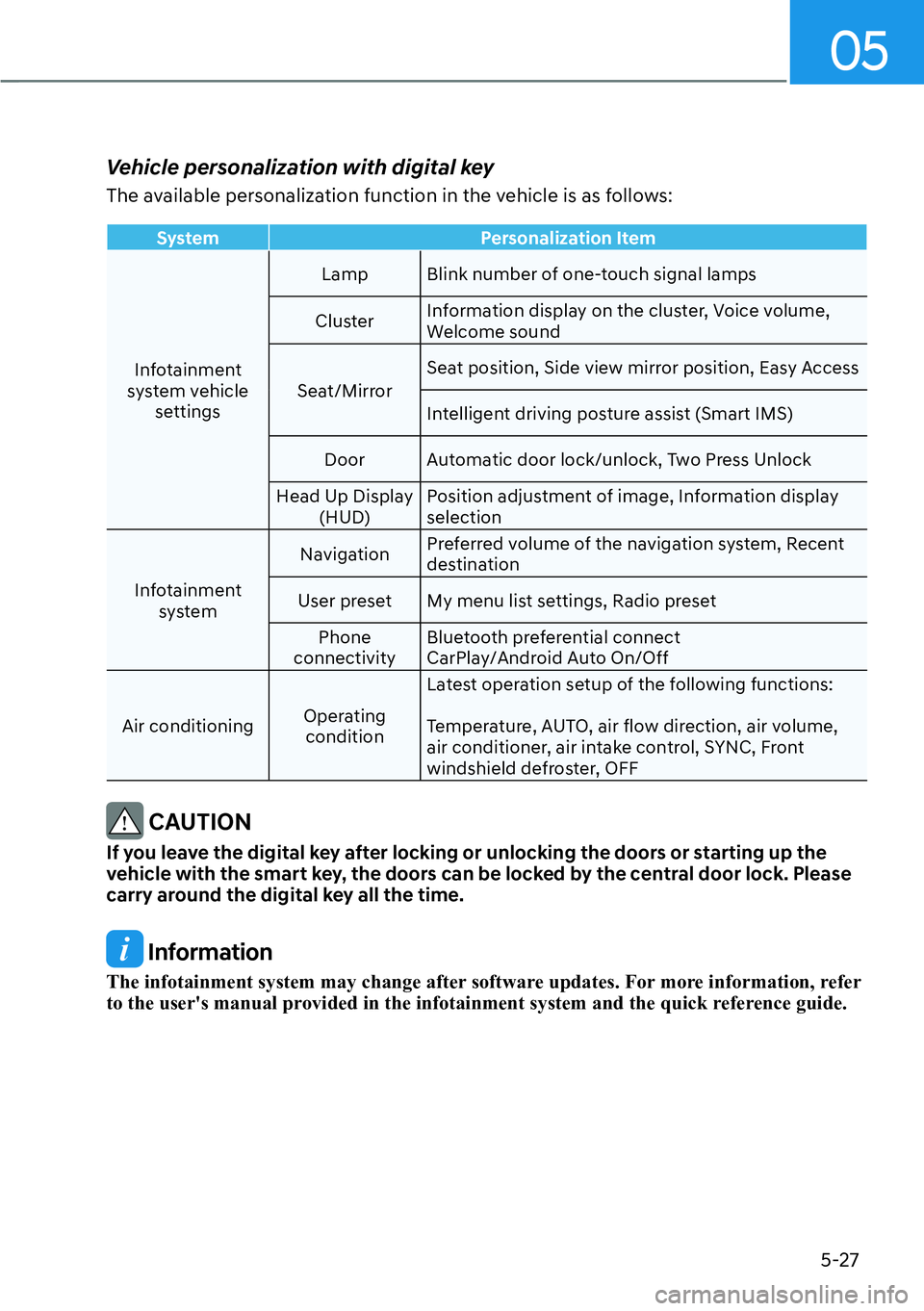

Vehicle personalization with digital key
The available personalization function in the vehicle is as follows:
SystemPersonalization Item
Infotainment
s
ystem vehicle settings Lamp Blink number of one-touch signal lamps
Cluster Information display on the cluster, Voice volume,
Welcome sound
Seat/Mirror Seat position, Side view mirror position, Easy Access
Intelligent driving posture assist (Smart IMS)
Door Automatic door lock/unlock, Two Press Unlock
Head Up Display (HUD) Position adjustment of image, Information display
selection
Infotainment system Navigation
Preferred volume of the navigation system, Recent
destination
User preset My menu list settings, Radio preset Phone
connectivity Bluetooth preferential connect
CarPlay/Android Auto On/Off
Air conditioning Operating
condition Latest operation setup of the following functions:
Temperature, AUTO, air flow direction, air volume,
air conditioner, air intake control, SYNC, Front
windshield defroster, OFF
CAUTION
If you leave the digital key after locking or unlocking the doors or starting up the
vehicle with the smart key, the doors can be locked by the central door lock. Please
carry around the digital key all the time.
Information
The infotainment system may change after software updates. For more information, refer
to the user's manual provided in the infotainment system and the quick reference guide.

Convenience Features5-28

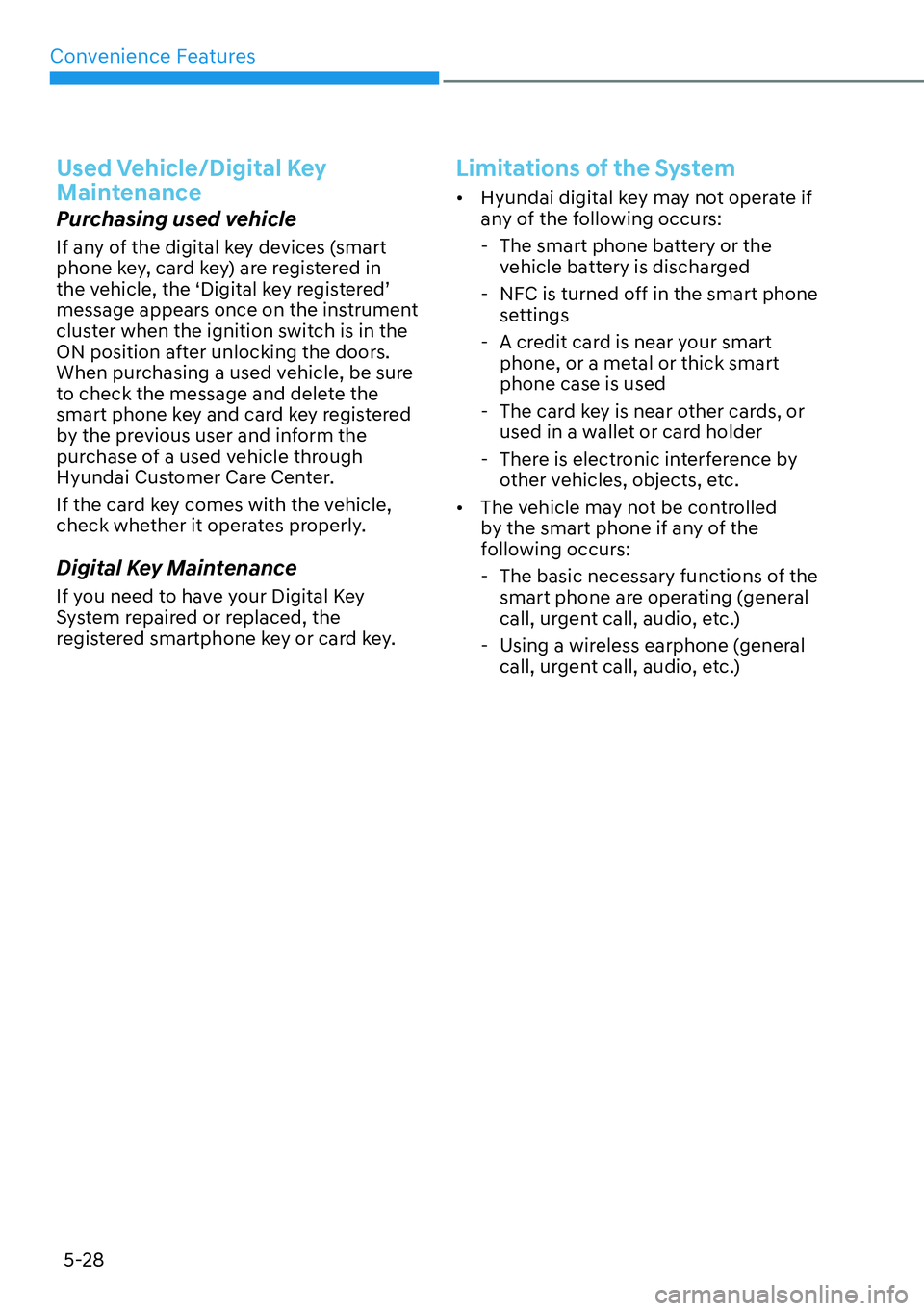

Used Vehicle/Digital Key
Maintenance
Purchasing used vehicle
If any of the digital key devices (smart
phone key, card key) are registered in
the vehicle, the ‘Digital key registered’
message appears once on the instrument
cluster when the ignition switch is in the
ON position after unlocking the doors.
When purchasing a used vehicle, be sure
to check the message and delete the
smart phone key and card key registered
by the previous user and inform the
purchase of a used vehicle through
Hyundai Customer Care Center.
If the card key comes with the vehicle,
check whether it operates properly.
Digital Key Maintenance
If you need to have your Digital Key
System repaired or replaced, the
registered smartphone key or card key.
Limitations of the System

[ Hyundai digital key may not operate if
any of the following occurs:

- The smart phone battery or the
vehicle battery is discharged

- NFC is turned off in the smart phone
settings

- A credit card is near your smart
phone, or a metal or thick smart
phone case is used

- The card key is near other cards, or
used in a wallet or card holder

- There is electronic interference by
other vehicles, objects, etc.

[ The vehicle may not be controlled
by the smart phone if any of the
following occurs:

- The basic necessary functions of the
smart phone are operating (general
call, urgent call, audio, etc.)

- Using a wireless earphone (general
call, urgent call, audio, etc.)

05
5-29

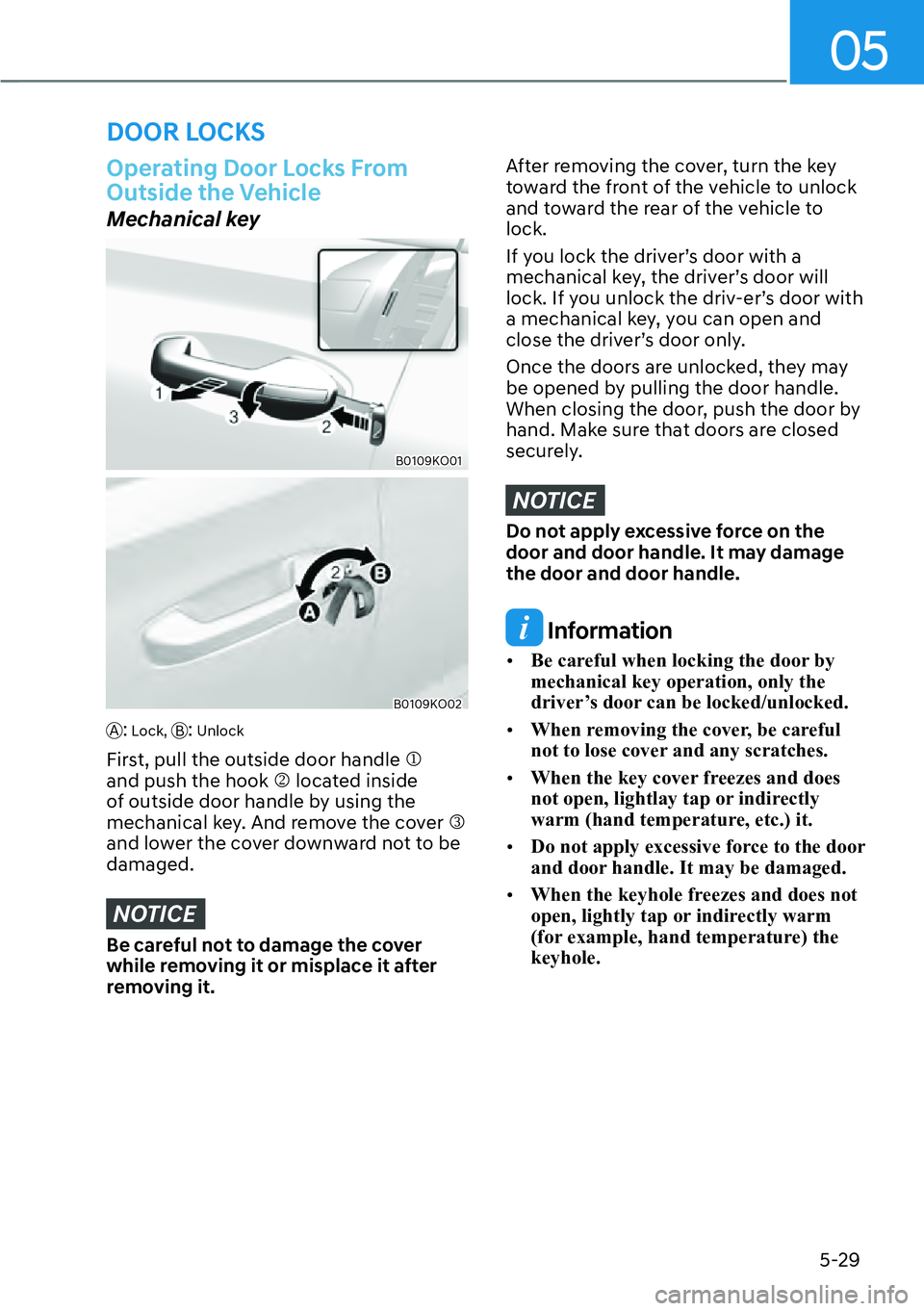

DOOR LOCKS
2SHUDWLQJ'RRU/RFNV)URP
Outside the Vehicle
Mechanical key
B0109KO01
B0109KO02
A: Lock, B: Unlock
First, pull the outside door handle M
and push the hook N located inside
of outside door handle by using the
mechanical key. And remove the cover O
and lower the cover downward not to be
damaged.
NOTICE
Be careful not to damage the cover
while removing it or misplace it after
removing it.
After removing the cover, turn the key
toward the front of the vehicle to unlock
and toward the rear of the vehicle to
lock.
If you lock the driver’s door with a
mechanical key, the driver’s door will
lock. If you unlock the driv-er’s door with
a mechanical key, you can open and
close the driver’s door only.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
NOTICE
Do not apply excessive force on the
door and door handle. It may damage
the door and door handle.
Information

[ Be careful when locking the door by
mechanical key operation, only the
driver’s door can be locked/unlocked.

[ When removing the cover, be careful
not to lose cover and any scratches.

[ When the key cover freezes and does
not open, lightlay tap or indirectly
warm (hand temperature, etc.) it.

[ Do not apply excessive force to the door
and door handle. It may be damaged.

[ When the keyhole freezes and does not
open, lightly tap or indirectly warm
(for example, hand temperature) the
keyhole.

Convenience Features5-30

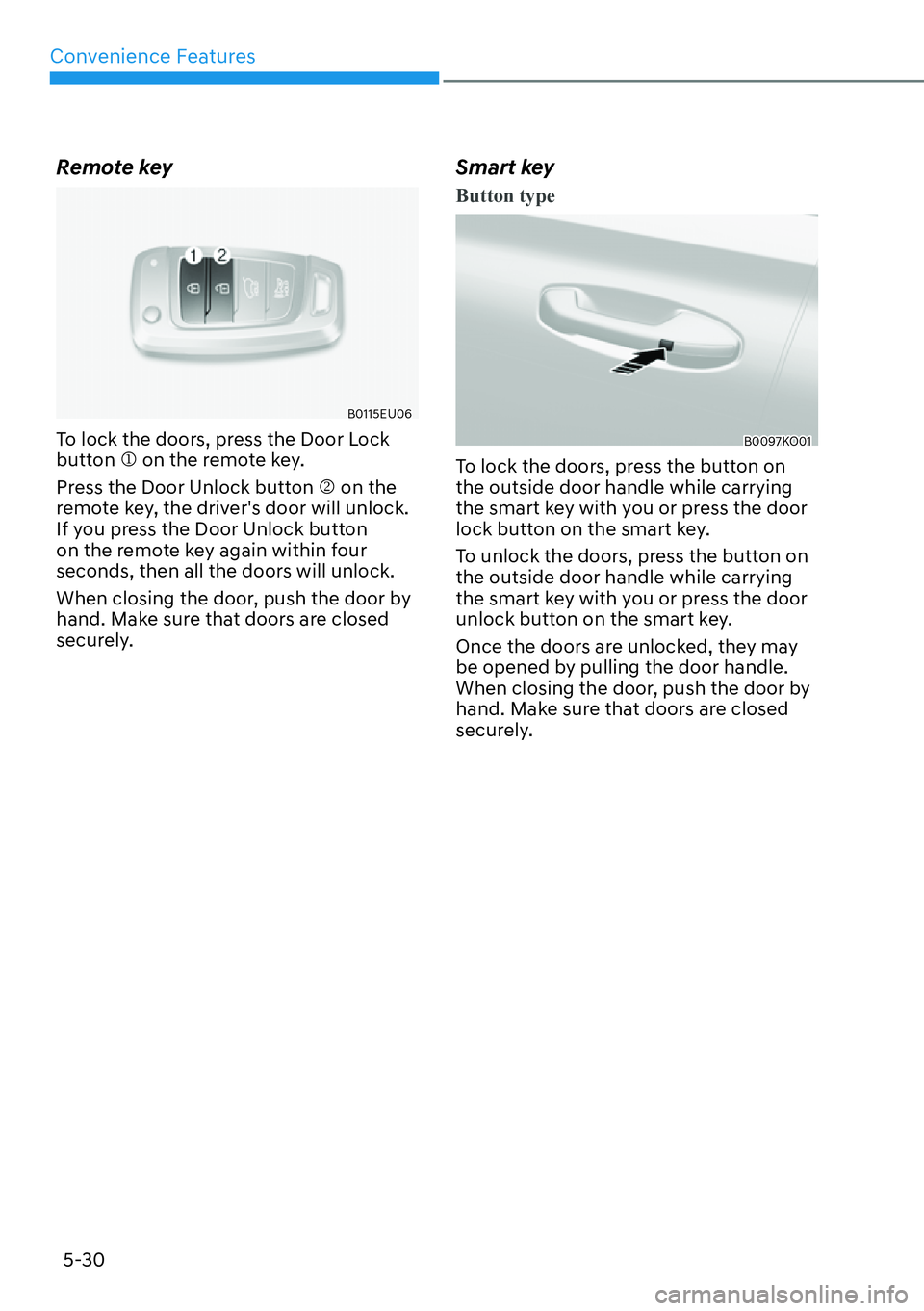

Remote key
B0115EU06
To lock the doors, press the Door Lock
button M on the remote key.
Press the Door Unlock button N on the
remote key, the driver's door will unlock.
If you press the Door Unlock button
on the remote key again within four
seconds, then all the doors will unlock.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
Smart key
Button type
B0097KO01
To lock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
lock button on the smart key.
To unlock the doors, press the button on
the outside door handle while carrying
the smart key with you or press the door
unlock button on the smart key.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.

05
5-31
Touch type
B0097EU04
Lock
Touch the touch sensor on the front
outside door handle (the engraved part)
while carrying the Smart Key with you or
press the Door Lock button on the Smart
Key, all doors will lock.
B0097EU03
Unlock
Put your hand in the front outside door
handle while carrying the Smart Key with
you or press the Door Unlock button on
the Smart Key, all doors will unlock.
Once the doors are unlocked, they may
be opened by pulling the door handle.
When closing the door, push the door by
hand. Make sure that doors are closed
securely.
For more details, refer to “Smart Key” in
the previous pages.
Information

[During a car wash or rain, in order
to minimize unintentional operation
of the touch sensor, the touch sensor
may become insensitive. This is not a
malfunction.

[ In cold and wet climates, door lock
and door mechanisms may not work
properly due to freezing conditions.

[ If the door is locked/unlocked multiple
times in rapid succession with either
the vehicle key or door lock switch, the
system may stop operating temporarily
in order to protect the circuit and
prevent damage to system components.
