HYUNDAI PALISADE 2023 Owners Manual

Convenience Features5-32

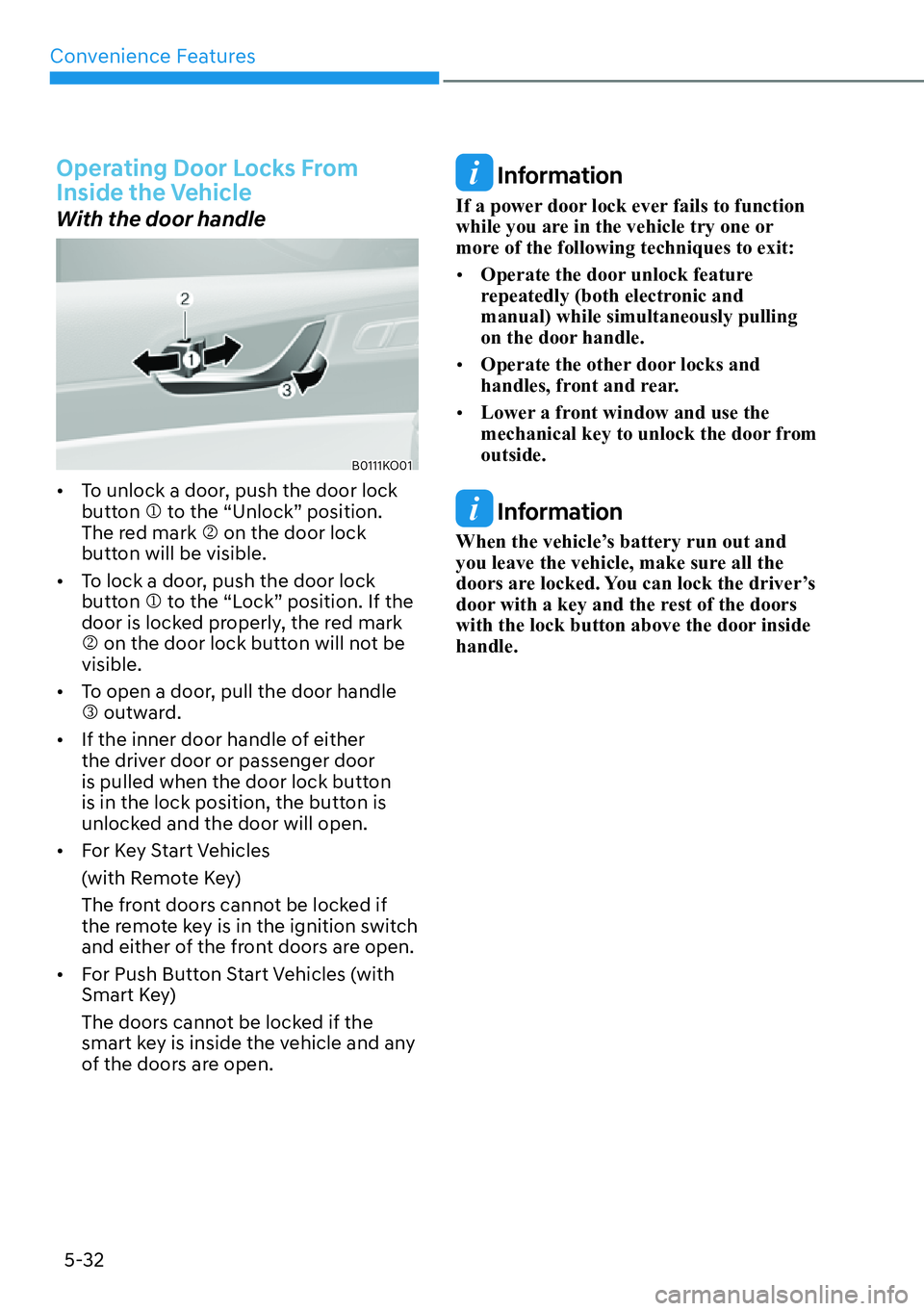

2SHUDWLQJ'RRU/RFNV)URP
Inside the Vehicle
With the door handle
B0111KO01

[ To unlock a door, push the door lock
button M to the “Unlock” position.
The red mark N on the door lock
button will be visible.

[ To lock a door, push the door lock
button M to the “Lock” position. If the
door is locked properly, the red mark
N on the door lock button will not be
visible.

[ To open a door, pull the door handle
O outward.

[ If the inner door handle of either
the driver door or passenger door
is pulled when the door lock button
is in the lock position, the button is
unlocked and the door will open.

[ For Key Start Vehicles
(with Remote Key)
The front doors cannot be locked if
the remote key is in the ignition switch
and either of the front doors are open.

[ For Push Button Start Vehicles (with
Smart Key)
The doors cannot be locked if the
smart key is inside the vehicle and any
of the doors are open.
Information
If a power door lock ever fails to function
while you are in the vehicle try one or
more of the following techniques to exit:

[Operate the door unlock feature
repeatedly (both electronic and
manual) while simultaneously pulling
on the door handle.

[ Operate the other door locks and
handles, front and rear.

[ Lower a front window and use the
mechanical key to unlock the door from
outside.
Information
When the vehicle’s battery run out and
you leave the vehicle, make sure all the
doors are locked. You can lock the driver’s
door with a key and the rest of the doors
with the lock button above the door inside
handle.

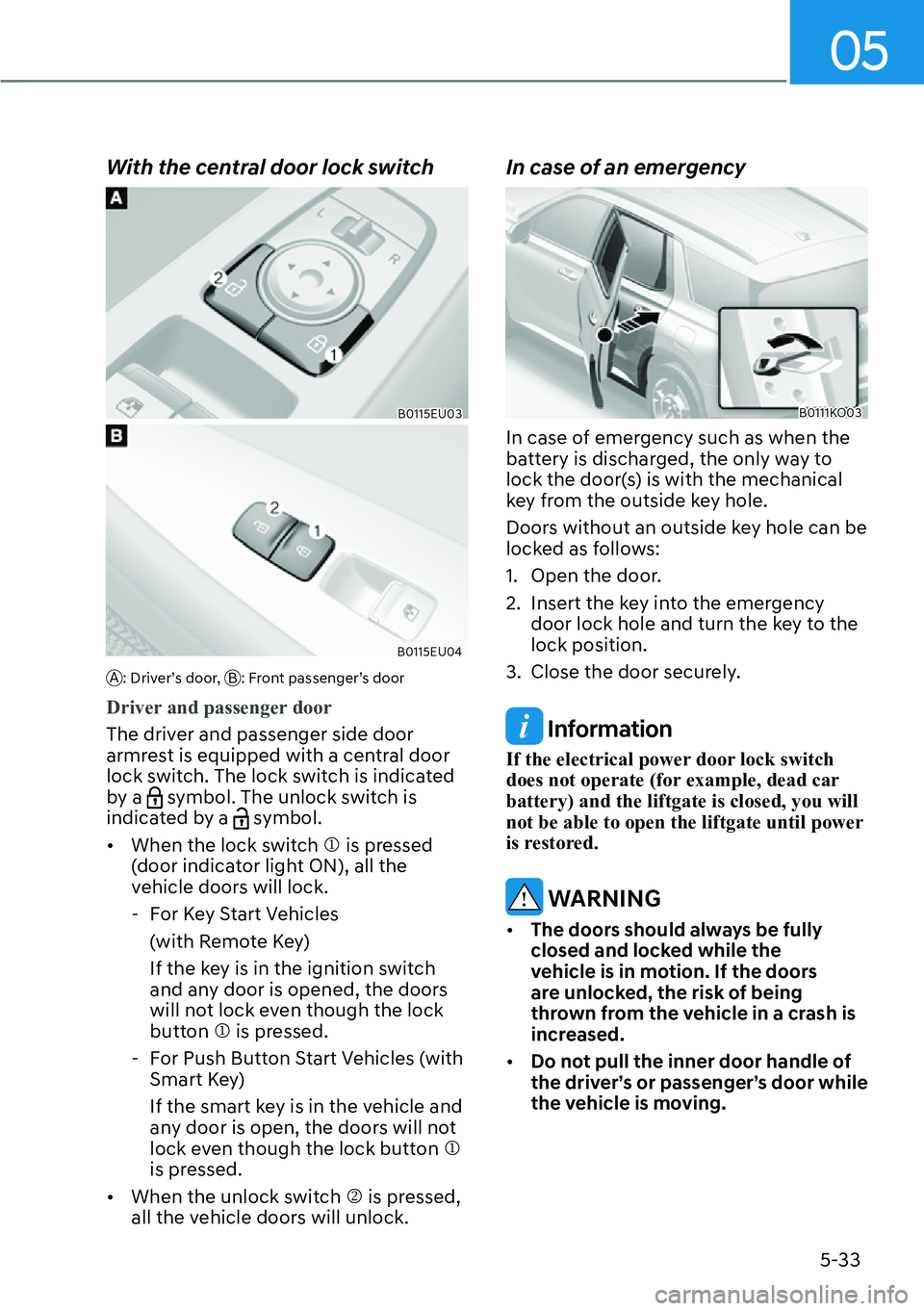

05
5-33
With the central door lock switch
B0115EU03
B0115EU04
A: Driver’s door, B: Front passenger’s door
Driver and passenger door
The driver and passenger side door
armr

est is equipped with a central door
lock switch. The lock switch is indicated
by a
symbol. The unlock switch is
indicated by a symbol.

[ When the lock switch M is pressed
(door indicator light ON), all the
vehicle doors will lock.

- For Key Start Vehicles
(with Remote Key)
If the key is in the ignition switch
and any door is opened, the doors
will not lock even though the lock
button M is pressed.

- For Push Button Start Vehicles (with
Smart Key)
If the smart key is in the vehicle and
any door is open, the doors will not
lock even though the lock button M
is pressed.

[ When the unlock switch N is pressed,
all the vehicle doors will unlock.
In case of an emergency
B0111KO03
In case of emergency such as when the
battery is discharged, the only way to
lock the door(s) is with the mechanical
key from the outside key hole.
Doors without an outside key hole can be
locked as follows:
1. Open the door.
2. Insert the key into the emergency
door lock hole and turn the key to the
lock position.
3. Close the door securely.
Information
If the electrical power door lock switch
does not operate (for example, dead car
battery) and the liftgate is closed, you will
not be able to open the liftgate until power
is restored.
WARNING

[ The doors should always be fully
closed and locked while the
vehicle is in motion. If the doors
are unlocked, the risk of being
thrown from the vehicle in a crash is
increased.

[ Do not pull the inner door handle of
the driver’s or passenger’s door while
the vehicle is moving.

Convenience Features5-34

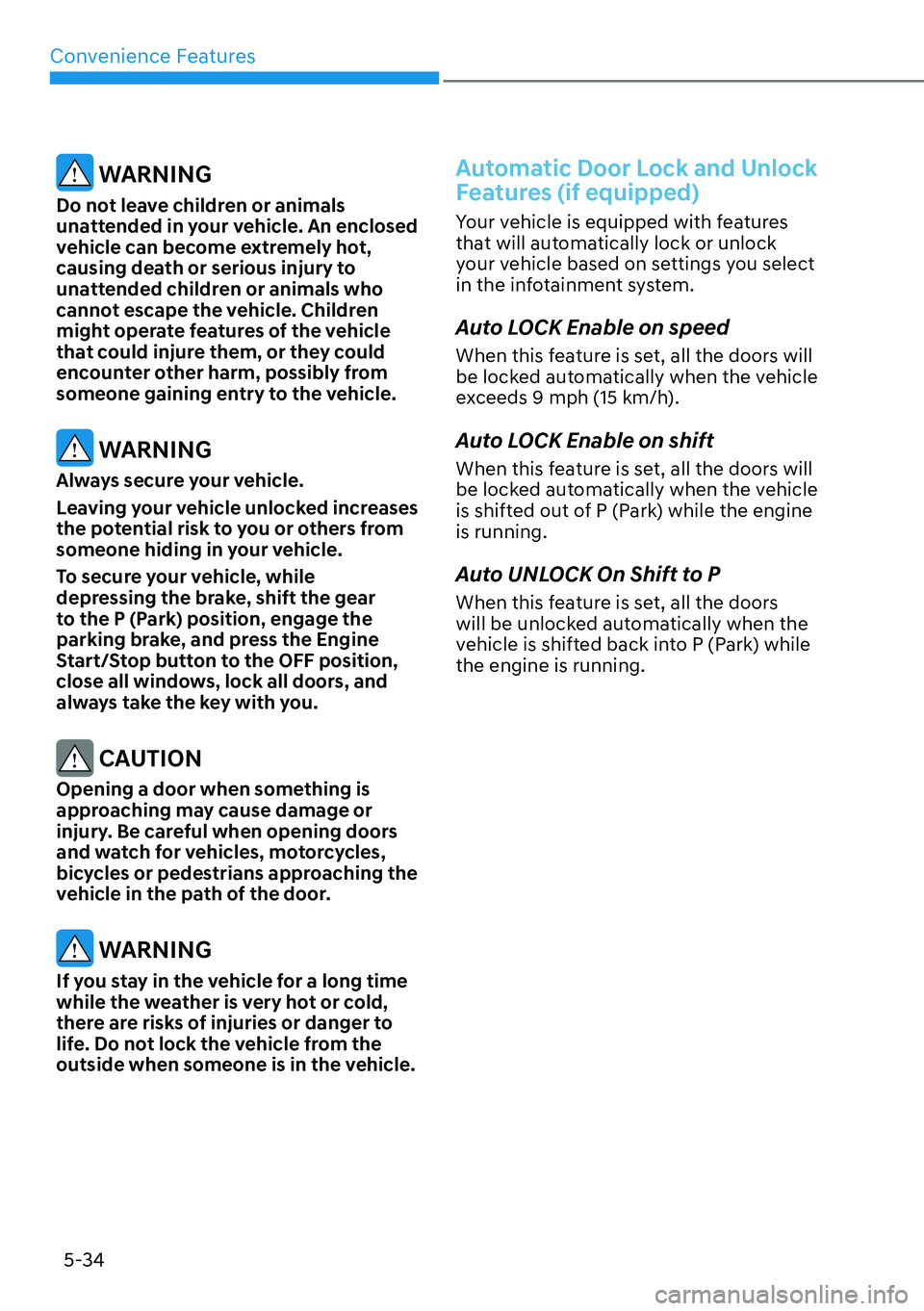

WARNING
Do not leave children or animals
unattended in your vehicle. An enclosed
vehicle can become extremely hot,
causing death or serious injury to
unattended children or animals who
cannot escape the vehicle. Children
might operate features of the vehicle
that could injure them, or they could
encounter other harm, possibly from
someone gaining entry to the vehicle.
WARNING
Always secure your vehicle.
Leaving your vehicle unlocked increases
the potential risk to you or others from
someone hiding in your vehicle.
To secure your vehicle, while
depressing the brake, shift the gear
to the P (Park) position, engage the
parking brake, and press the Engine
6WDUW6WRSEXWWRQWRWKH2))SRVLWLRQ
close all windows, lock all doors, and
always take the key with you.
CAUTION
Opening a door when something is
approaching may cause damage or
injury. Be careful when opening doors
and watch for vehicles, motorcycles,
bicycles or pedestrians approaching the
vehicle in the path of the door.
WARNING
If you stay in the vehicle for a long time
while the weather is very hot or cold,
there are risks of injuries or danger to
life. Do not lock the vehicle from the
outside when someone is in the vehicle.
Automatic Door Lock and Unlock
)HDWXUHVLIHTXLSSHG
Your vehicle is equipped with features
that will automatically lock or unlock
your vehicle based on settings you select
in the infotainment system.
Auto LOCK Enable on speed
When this feature is set, all the doors will
be locked automatically when the vehicle
exceeds 9 mph (15 km/h).
Auto LOCK Enable on shift
When this feature is set, all the doors will
be locked automatically when the vehicle
is shifted out of P (Park) while the engine
is running.
Auto UNLOCK On Shift to P
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is shifted back into P (Park) while
the engine is running.

05
5-35

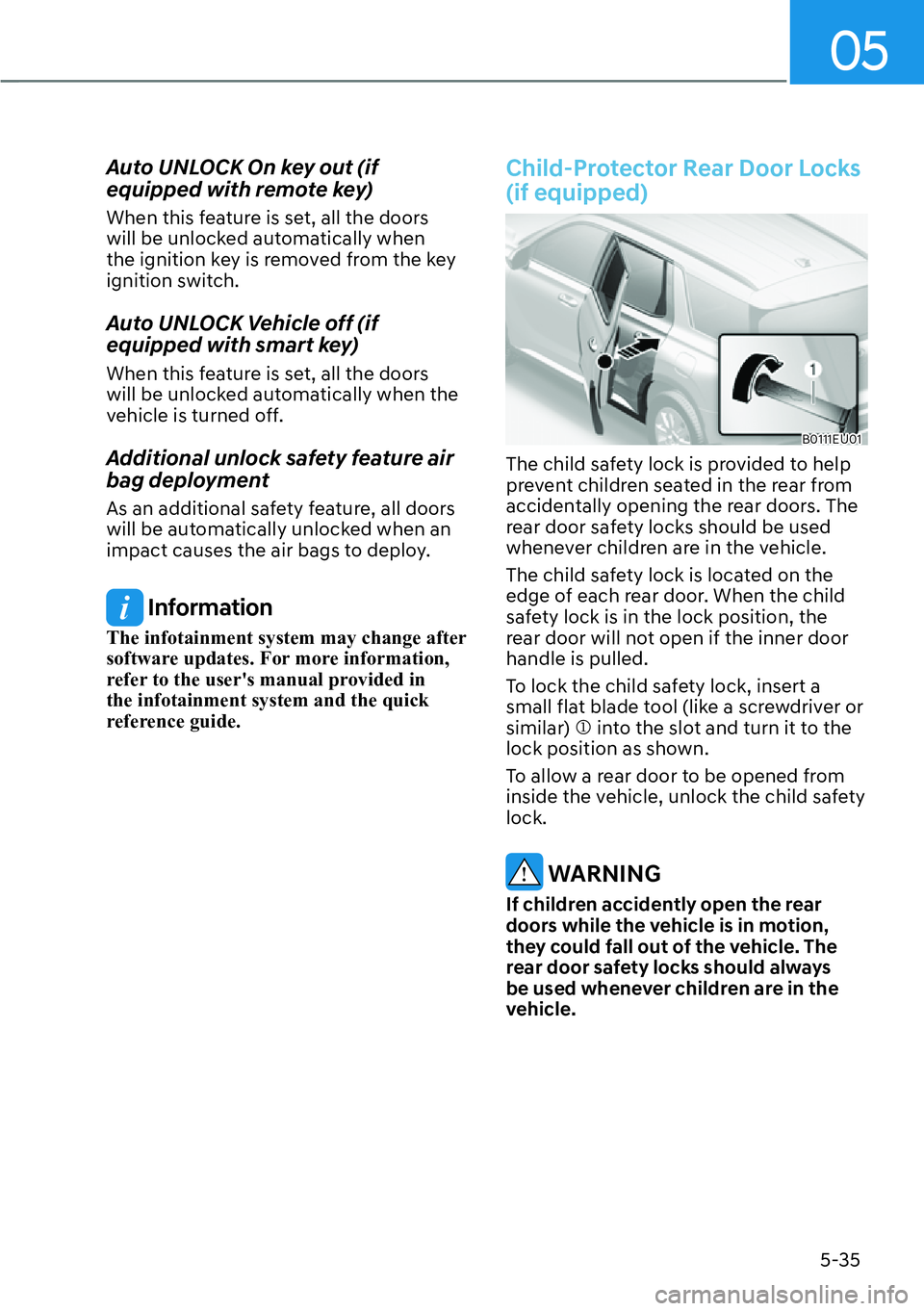

Auto UNLOCK On key out (if
equipped with remote key)
When this feature is set, all the doors
will be unlocked automatically when
the ignition key is removed from the key
ignition switch.
Auto UNLOCK Vehicle off (if
equipped with smart key)
When this feature is set, all the doors
will be unlocked automatically when the
vehicle is turned off.
Additional unlock safety feature air
bag deployment
As an additional safety feature, all doors
will be automatically unlocked when an
impact causes the air bags to deploy.
Information
The infotainment system may change after
software updates. For more information,
refer to the user's manual provided in
the infotainment system and the quick
reference guide.
Child-Protector Rear Door Locks
(if equipped)
B0111EU01
The child safety lock is provided to help
prevent children seated in the rear from
accidentally opening the rear doors. The
rear door safety locks should be used
whenever children are in the vehicle.
The child safety lock is located on the
edge of each rear door. When the child
safety lock is in the lock position, the
rear door will not open if the inner door
handle is pulled.
To lock the child safety lock, insert a
small flat blade tool (like a screwdriver or
similar) M into the slot and turn it to the
lock position as shown.
To allow a rear door to be opened from
inside the vehicle, unlock the child safety
lock.
WARNING
If children accidently open the rear
doors while the vehicle is in motion,
they could fall out of the vehicle. The
rear door safety locks should always
be used whenever children are in the
vehicle.

Convenience Features5-36

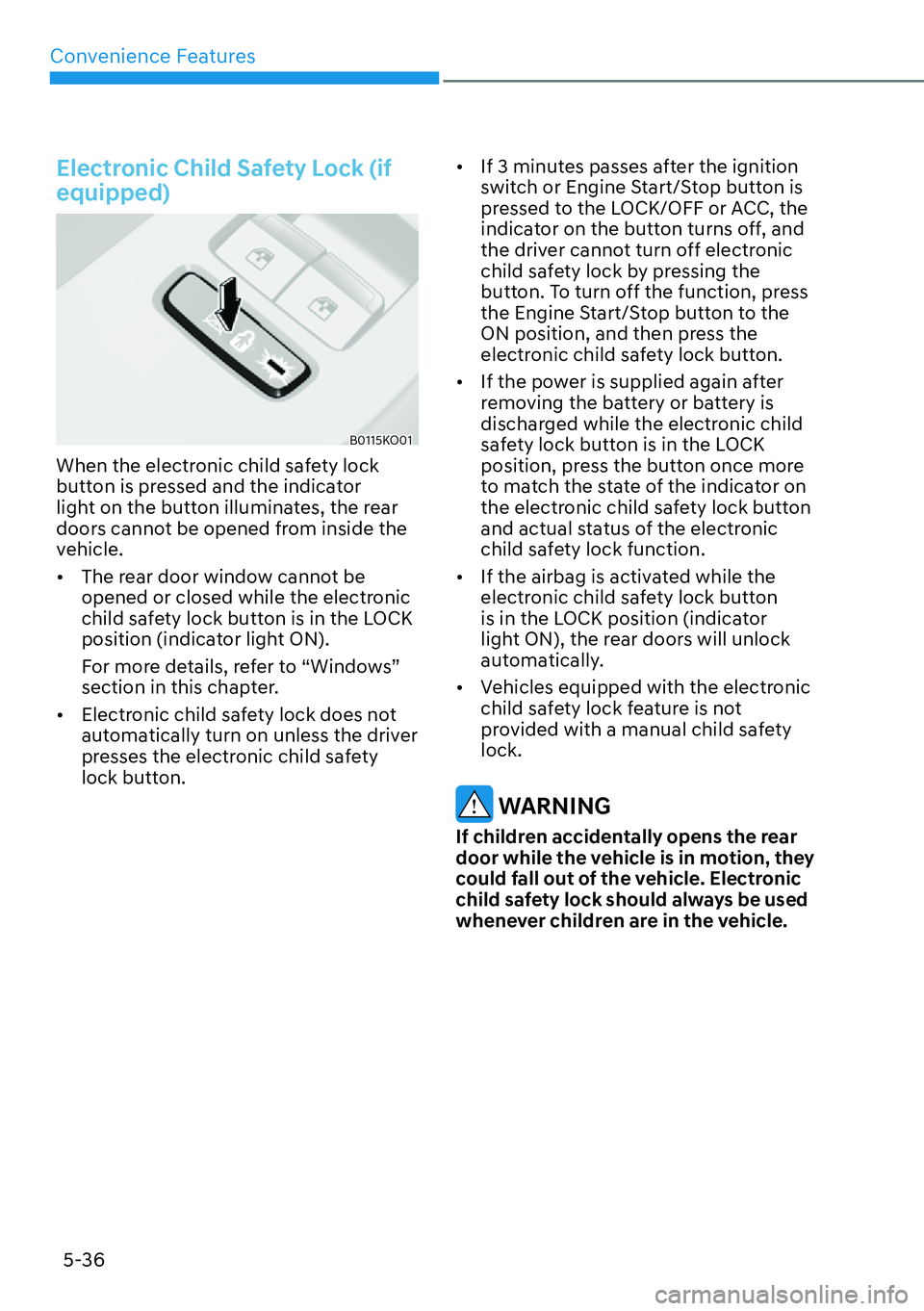

Electronic Child Safety Lock (if
equipped)
B0115KO01
When the electronic child safety lock
button is pressed and the indicator
light on the button illuminates, the rear
doors cannot be opened from inside the
vehicle.

[ The rear door window cannot be
opened or closed while the electronic
child safety lock button is in the LOCK
position (indicator light ON).
For more details, refer to “Windows”
section in this chapter.

[ Electronic child safety lock does not
automatically turn on unless the driver
presses the electronic child safety
lock button.
[
If 3 minutes passes after the ignition
switch or Engine Start/Stop button is
pressed to the LOCK/OFF or ACC, the
indicator on the button turns off, and
the driver cannot turn off electronic
child safety lock by pressing the
button. To turn off the function, press
the Engine Start/Stop button to the
ON position, and then press the
electronic child safety lock button.

[ If the power is supplied again after
removing the battery or battery is
discharged while the electronic child
safety lock button is in the LOCK
position, press the button once more
to match the state of the indicator on
the electronic child safety lock button
and actual status of the electronic
child safety lock function.

[ If the airbag is activated while the
electronic child safety lock button
is in the LOCK position (indicator
light ON), the rear doors will unlock
automatically.

[ Vehicles equipped with the electronic
child safety lock feature is not
provided with a manual child safety
lock.
WARNING
If children accidentally opens the rear
door while the vehicle is in motion, they
could fall out of the vehicle. Electronic
child safety lock should always be used
whenever children are in the vehicle.

05
5-37

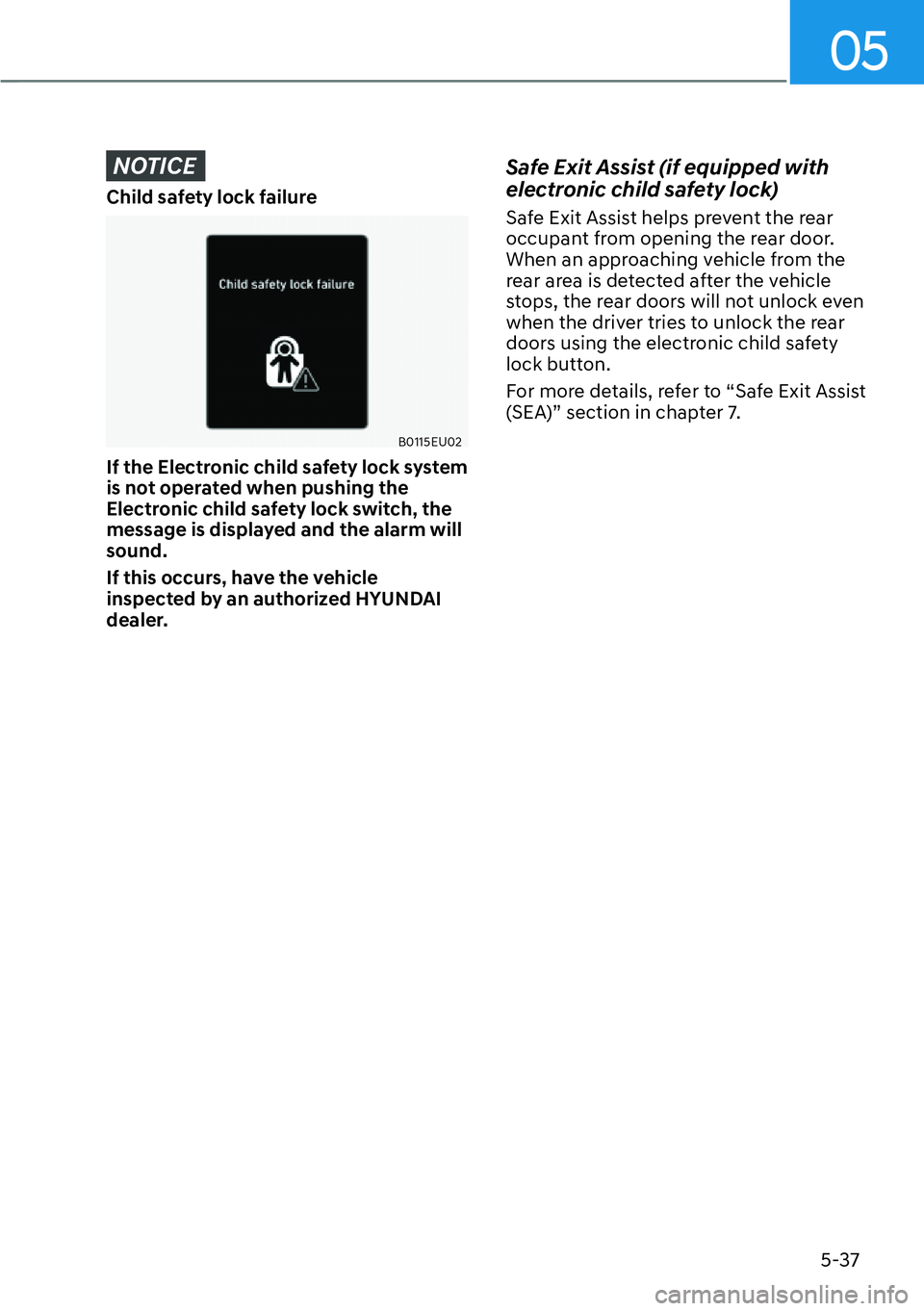

NOTICE
Child safety lock failure
B0115EU02
If the Electronic child safety lock system
is not operated when pushing the
Electronic child safety lock switch, the
message is displayed and the alarm will
sound.
If this occurs, have the vehicle
inspected by an authorized HYUNDAI
dealer.
Safe Exit Assist (if equipped with
electronic child safety lock)
Safe Exit Assist helps prevent the rear
occupant from opening the rear door.
When an approaching vehicle from the
rear area is detected after the vehicle
stops, the rear doors will not unlock even
when the driver tries to unlock the rear
doors using the electronic child safety
lock button.
For more details, refer to “Safe Exit Assist
(SEA)” section in chapter 7.

Convenience Features5-38
7+()7

05
5-39

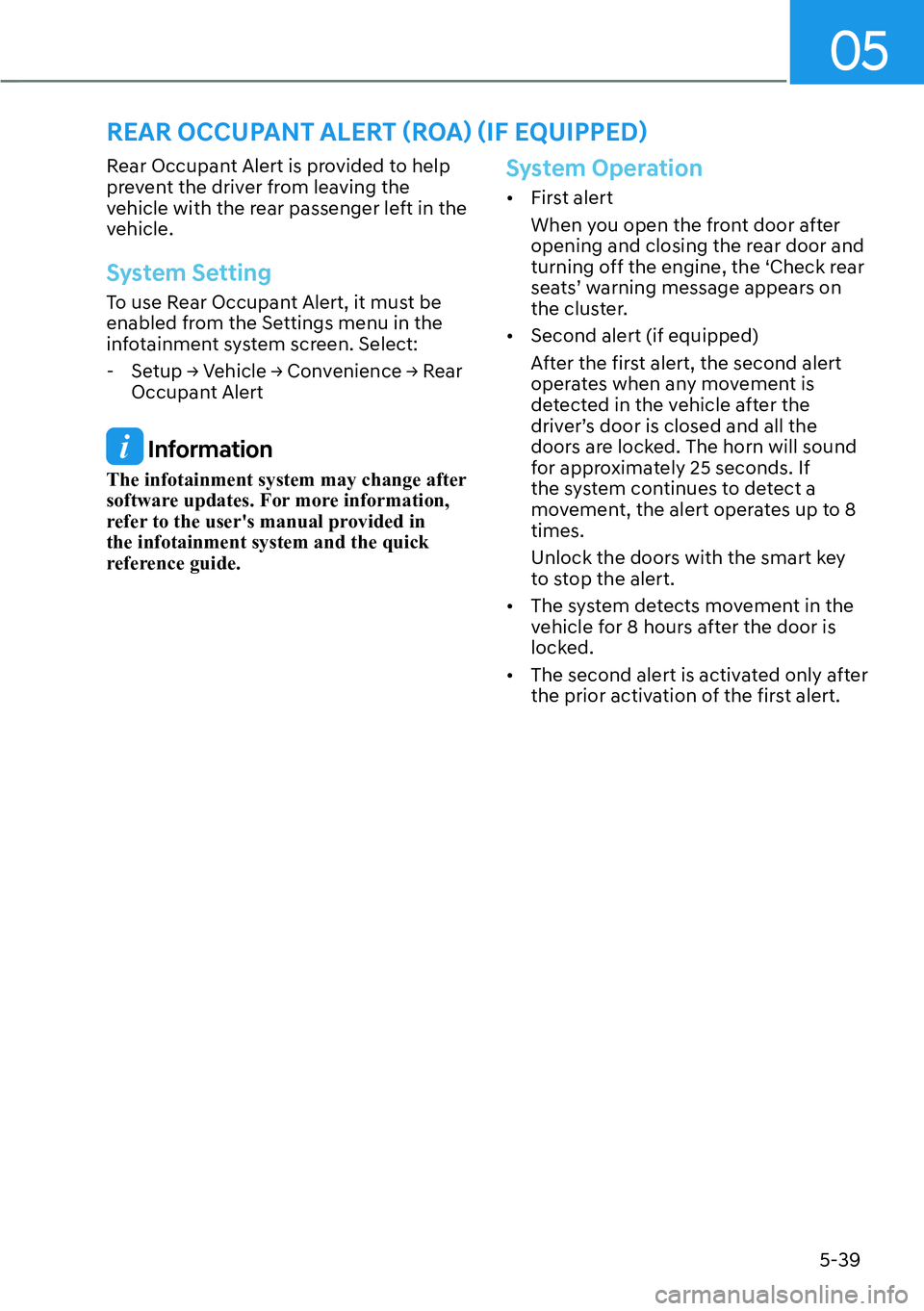

Rear Occupant Alert is provided to help
prevent the driver from leaving the
vehicle with the rear passenger left in the
vehicle.
System Setting
To use Rear Occupant Alert, it must be
enabled from the Settings menu in the
infotainment system screen. Select:
- 6HWXS

Convenience Features5-40
System Precautions

[ Make sure that all the windows are
closed. If the window is open, the
alert may operate by the sensor
detecting an unintended movement
(for example, wind or bugs).

[
B0116EU01
A: Cluster,
B: Steering wheel
If you do not want to use Rear
Occupant Alert, press the OK button
on the steering wheel when the first
alert is displayed on the cluster. Doing
so will deactivate the second alert one
time.

[ An alert can occur if the there is an
impact on the roof.

[ If boxes or objects are stacked in the
vehicle, the system may not detect
the boxes or objects. Or, the alert may
operate if the boxes or objects fall off.

[ The sensor may not operate normally
if the senor is obscured by foreign
substances.

[ The alert may operate if movement
in the driver or passenger seat is
detected.

[ The alert may operate with the doors
locked due to car wash or surrounding
vibration or noise.

[ If the vehicle is started remotely (if
equipped with Remote Start), inside
movement detection will stop.
WARNING
Even if your vehicle is equipped with
Rear Occupant Alert, always make sure
to check the rear seat before you leave
the vehicle.
Rear Occupant Alert may not operate
when:

[Movement does not continue for
a certain period of time or the
movement is small.

[ The rear passenger is covered with
an object such as a blanket.

[ Always be cautious of the
passenger’s safety as the detection
function and second alert may
not operate depending on the
surrounding environment and
certain conditions.

05
5-41

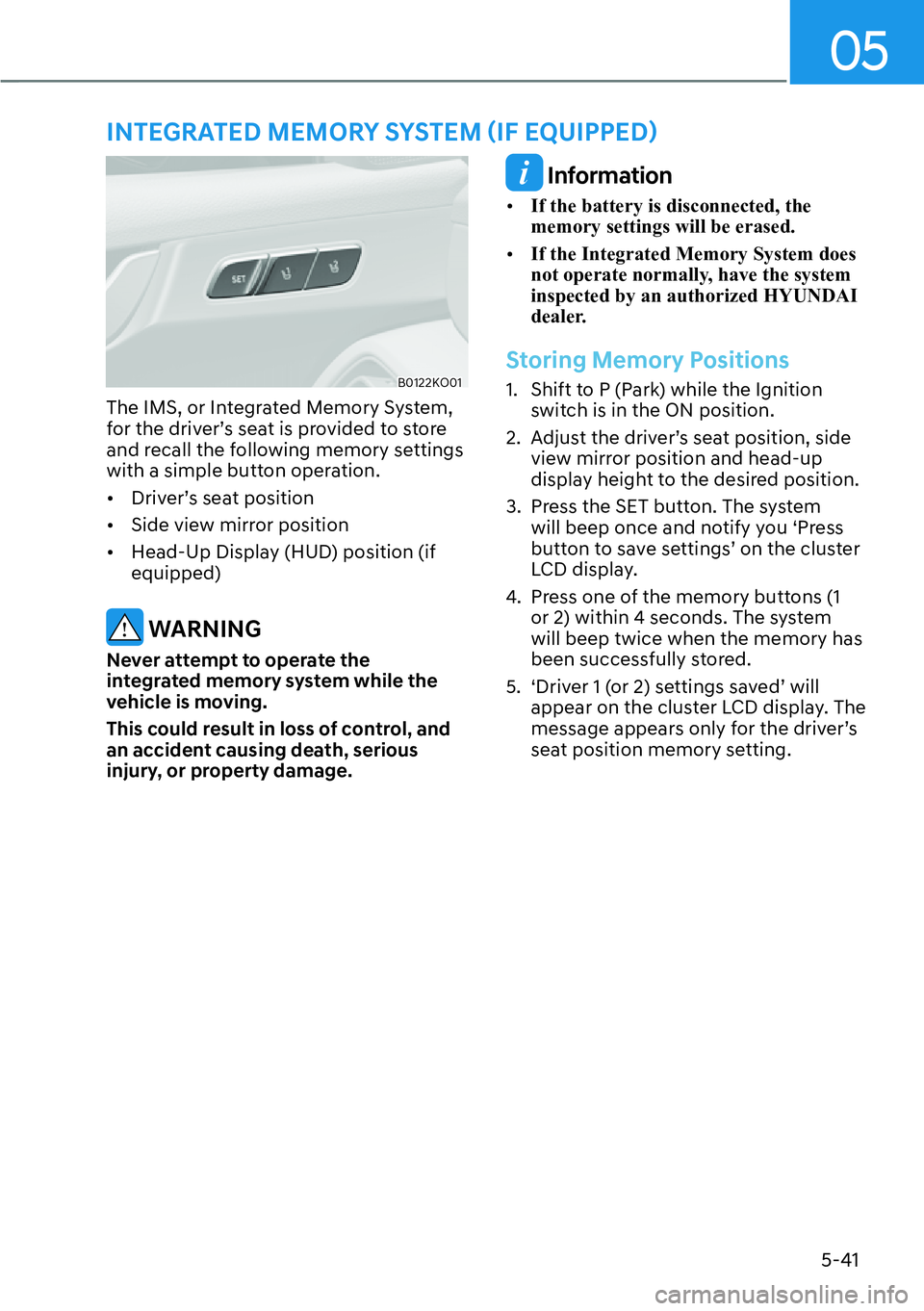

B0122KO01
The IMS, or Integrated Memory System,
for the driver’s seat is provided to store
and recall the following memory settings
with a simple button operation.

[Driver’s seat position

[ Side view mirror position

[ Head-Up Display (HUD) position (if
equipped)
WARNING
Never attempt to operate the
integrated memory system while the
vehicle is moving.
This could result in loss of control, and
an accident causing death, serious
injury, or property damage.
Information

[If the battery is disconnected, the
memory settings will be erased.

[ If the Integrated Memory System does
not operate normally, have the system
inspected by an authorized HYUNDAI
dealer.
Storing Memory Positions
1. Shift to P (Park) while the Ignition
switch is in the ON position.
2. Adjust the driver’s seat position, side view mirror position and head-up
display height to the desired position.
3. Press the SET button. The system will beep once and notify you ‘Press
button to save settings’ on the cluster
LCD display.
4. Press one of the memory buttons (1 or 2) within 4 seconds. The system
will beep twice when the memory has
been successfully stored.
5. ‘Driver 1 (or 2) settings saved’ will appear on the cluster LCD display. The
message appears only for the driver’s
seat position memory setting.
,17(*5$7('0(025<6<67(0
