Convenience Features5-42

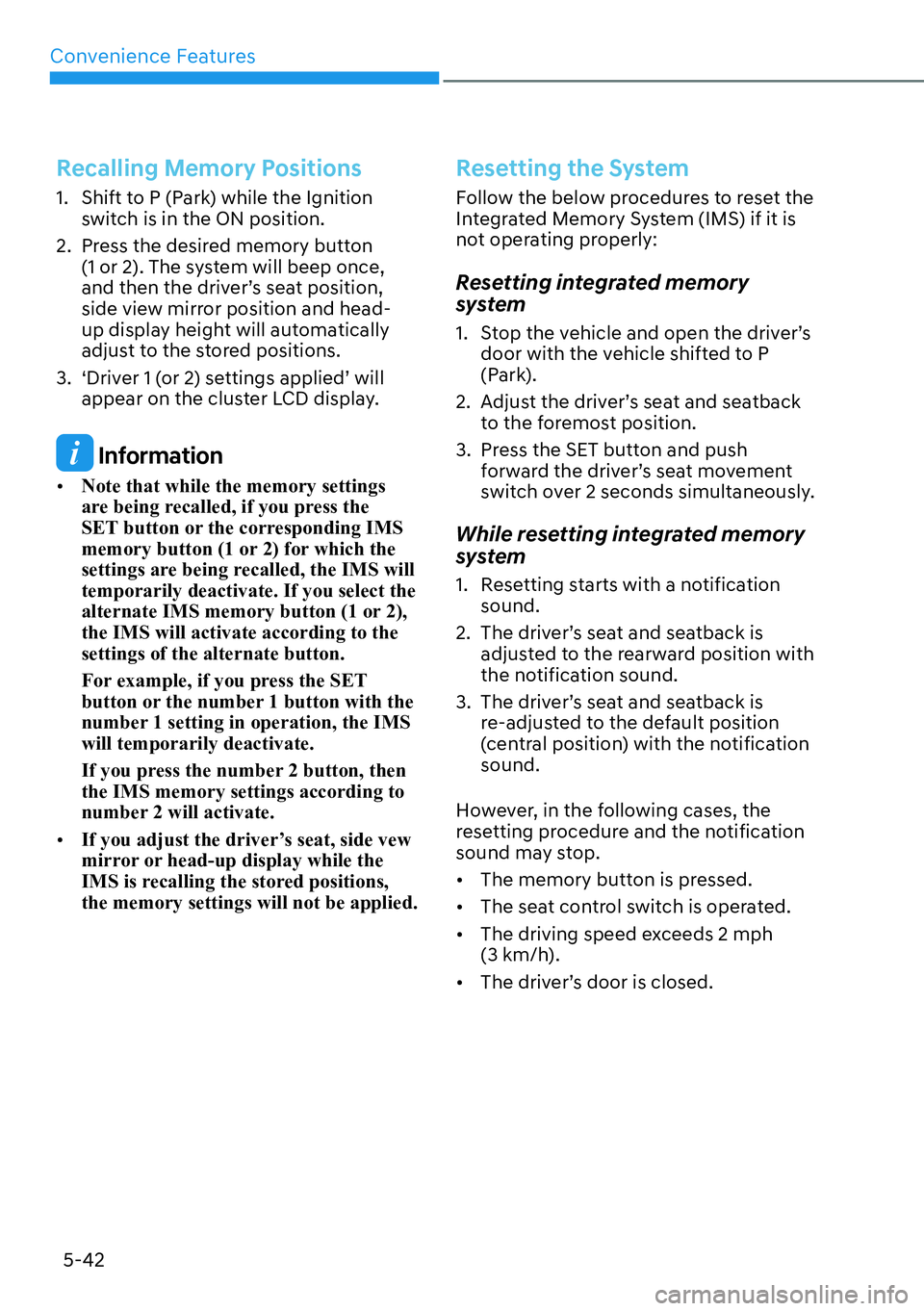

Recalling Memory Positions
1. Shift to P (Park) while the Ignition switch is in the ON position.
2. Press the desired memory button (1 or 2). The system will beep once,
and then the driver’s seat position,
side view mirror position and head-
up display height will automatically
adjust to the stored positions.
3. ‘Driver 1 (or 2) settings applied’ will appear on the cluster LCD display.
Information
[ Note that while the memory settings
are being recalled, if you press the
SET button or the corresponding IMS
memory button (1 or 2) for which the
settings are being recalled, the IMS will
temporarily deactivate. If you select the
alternate IMS memory button (1 or 2),
the IMS will activate according to the
settings of the alternate button.
For example, if you press the SET
button or the number 1 button with the
number 1 setting in operation, the IMS
will temporarily deactivate.
If you press the number 2 button, then
the IMS memory settings according to
number 2 will activate.
[ If you adjust the driver’s seat, side vew
mirror or head-up display while the
IMS is recalling the stored positions,
the memory settings will not be applied.
Resetting the System
Follow the below procedures to reset the
Integrated Memory System (IMS) if it is
not operating properly:
Resetting integrated memory
system
1. Stop the vehicle and open the driver’s
door with the vehicle shifted to P
(Park).
2. Adjust the driver’s seat and seatback to the foremost position.
3. Press the SET button and push forward the driver’s seat movement
switch over 2 seconds simultaneously.
While resetting integrated memory
system
1. Resetting starts with a notification sound.
2. The driver’s seat and seatback is adjusted to the rearward position with
the notification sound.
3. The driver’s seat and seatback is re-adjusted to the default position
(central position) with the notification
sound.
However, in the following cases, the
resetting procedure and the notification
sound may stop.
[ The memory button is pressed.
[ The seat control switch is operated.
[ The driving speed exceeds 2 mph
(3 km/h).
[ The driver’s door is closed.
Page 192 of 661
05
5-43

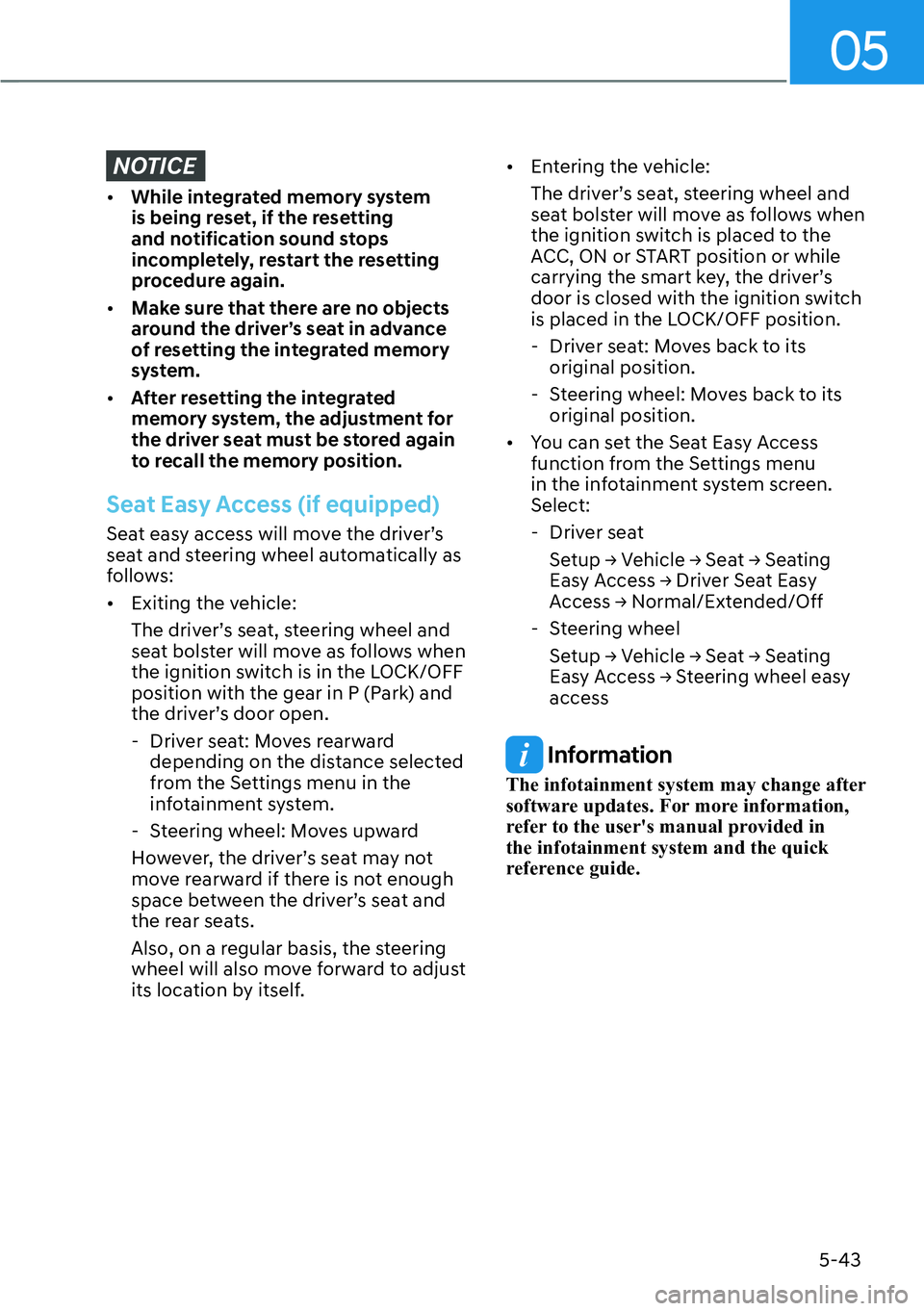

NOTICE
[ While integrated memory system
is being reset, if the resetting
and notification sound stops
incompletely, restart the resetting
procedure again.
[ Make sure that there are no objects
around the driver’s seat in advance
of resetting the integrated memory
system.
[ After resetting the integrated
memory system, the adjustment for
the driver seat must be stored again
to recall the memory position.
Seat Easy Access (if equipped)
Seat easy access will move the driver’s
seat and steering wheel automatically as
follows:
[ Exiting the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the ignition switch is in the LOCK/OFF
position with the gear in P (Park) and
the driver’s door open.
- Driver seat: Moves rearward
depending on the distance selected
from the Settings menu in the
infotainment system.
- Steering wheel: Moves upward
However, the driver’s seat may not
move rearward if there is not enough
space between the driver’s seat and
the rear seats.
Also, on a regular basis, the steering
wheel will also move forward to adjust
its location by itself. [
Entering the vehicle:
The driver’s seat, steering wheel and
seat bolster will move as follows when
the ignition switch is placed to the
ACC, ON or START position or while
carrying the smart key, the driver’s
door is closed with the ignition switch
is placed in the LOCK/OFF position.
- Driver seat: Moves back to its
original position.
- Steering wheel: Moves back to its
original position.
[ You can set the Seat Easy Access
function from the Settings menu
in the infotainment system screen.
Select:
- Driver seat
6 H W X S
Page 193 of 661
Convenience Features5-44

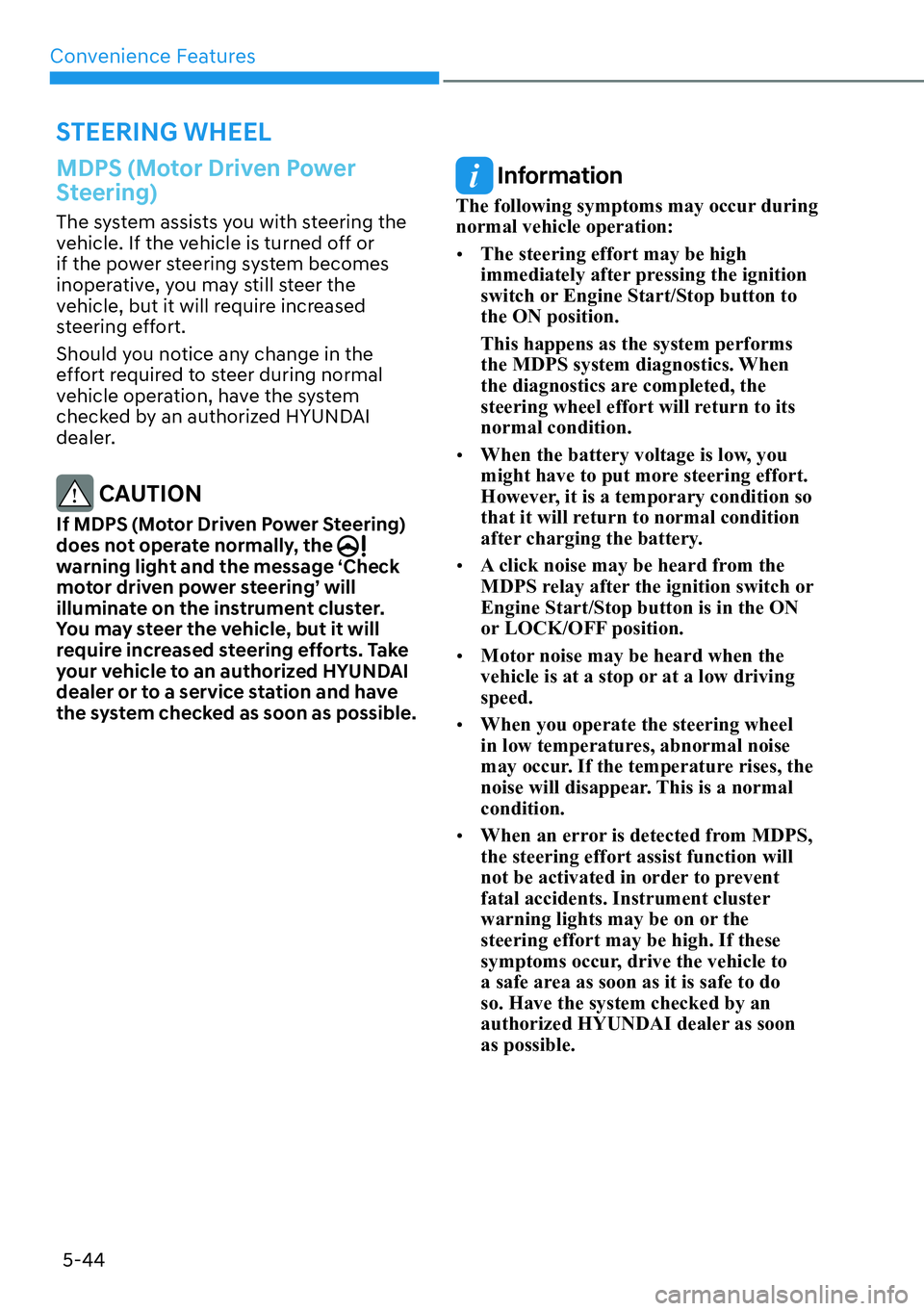

STEERING WHEEL
MDPS (Motor Driven Power
Steering)
The system assists you with steering the
vehicle. If the vehicle is turned off or
if the power steering system becomes
inoperative, you may still steer the
vehicle, but it will require increased
steering effort.
Should you notice any change in the
effort required to steer during normal
vehicle operation, have the system
checked by an authorized HYUNDAI
dealer.
CAUTION
If MDPS (Motor Driven Power Steering)
does not operate normally, the
warning light and the message ‘Check
motor driven power steering’ will
illuminate on the instrument cluster.
You may steer the vehicle, but it will
require increased steering efforts. Take
your vehicle to an authorized HYUNDAI
dealer or to a service station and have
the system checked as soon as possible.
Information
The following symptoms may occur during
normal vehicle operation:
[ The steering effort may be high
immediately after pressing the ignition
switch or Engine Start/Stop button to
the ON position.
This happens as the system performs
the MDPS system diagnostics. When
the diagnostics are completed, the
steering wheel effort will return to its
normal condition.
[ When the battery voltage is low, you
might have to put more steering effort.
However, it is a temporary condition so
that it will return to normal condition
after charging the battery.
[ A click noise may be heard from the
MDPS relay after the ignition switch or
Engine Start/Stop button is in the ON
or LOCK/OFF position.
[ Motor noise may be heard when the
vehicle is at a stop or at a low driving
speed.
[ When you operate the steering wheel
in low temperatures, abnormal noise
may occur. If the temperature rises, the
noise will disappear. This is a normal
condition.
[ When an error is detected from MDPS,
the steering effort assist function will
not be activated in order to prevent
fatal accidents. Instrument cluster
warning lights may be on or the
steering effort may be high. If these
symptoms occur, drive the vehicle to
a safe area as soon as it is safe to do
so. Have the system checked by an
authorized HYUNDAI dealer as soon
as possible.
Page 194 of 661
05
5-45

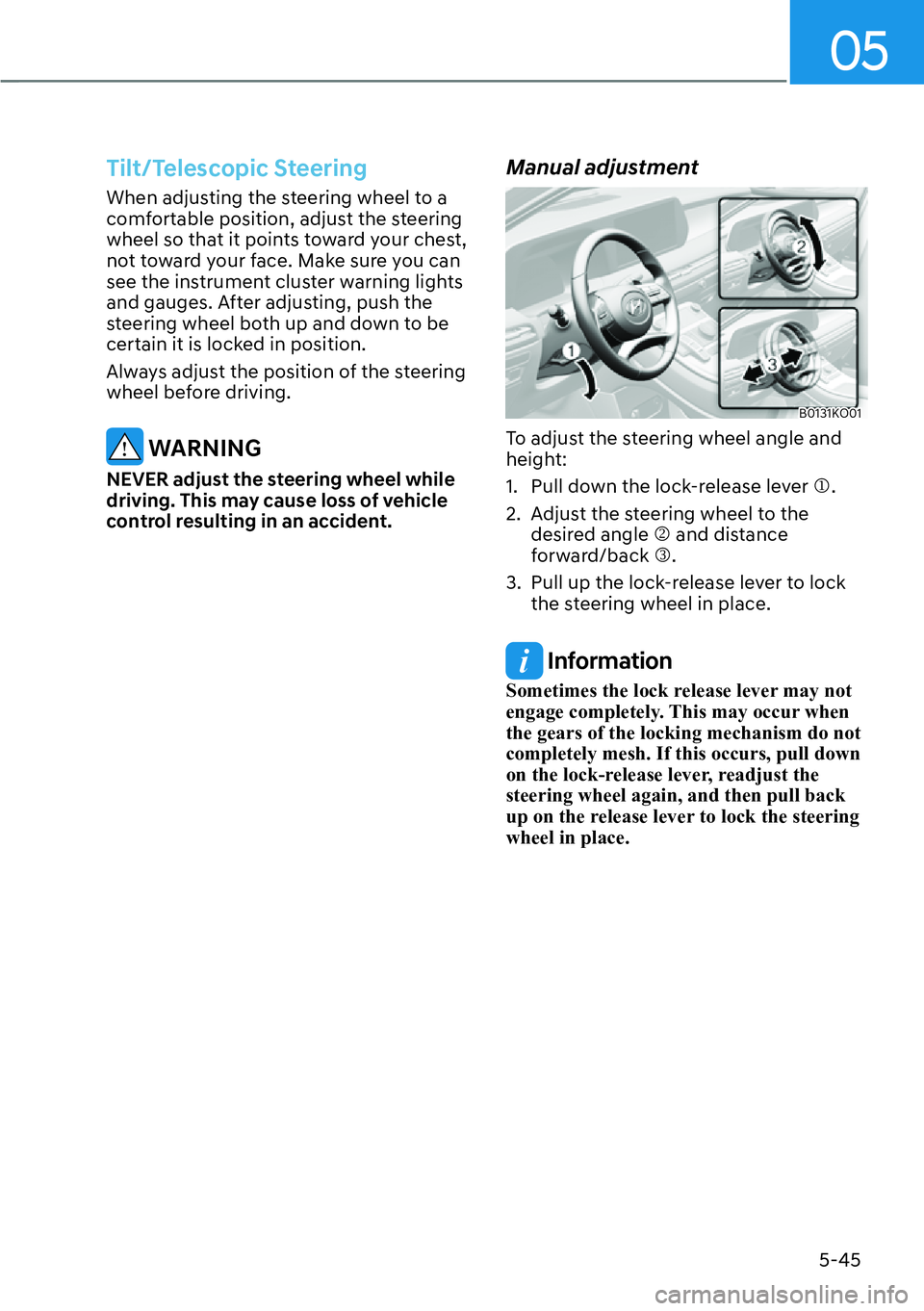

Tilt/Telescopic Steering
When adjusting the steering wheel to a
comfortable position, adjust the steering
wheel so that it points toward your chest,
not toward your face. Make sure you can
see the instrument cluster warning lights
and gauges. After adjusting, push the
steering wheel both up and down to be
certain it is locked in position.
Always adjust the position of the steering
wheel before driving.
WARNING
NEVER adjust the steering wheel while
driving. This may cause loss of vehicle
control resulting in an accident.
Manual adjustment
B0131KO01
To adjust the steering wheel angle and
height:
1. Pull down the lock-release lever M.
2. Adjust the steering wheel to the desired angle N and distance
forward/back O.
3. Pull up the lock-release lever to lock the steering wheel in place.
Information
Sometimes the lock release lever may not
engage completely. This may occur when
the gears of the locking mechanism do not
completely mesh. If this occurs, pull down
on the lock-release lever, readjust the
steering wheel again, and then pull back
up on the release lever to lock the steering
wheel in place.
Page 195 of 661
Convenience Features5-46

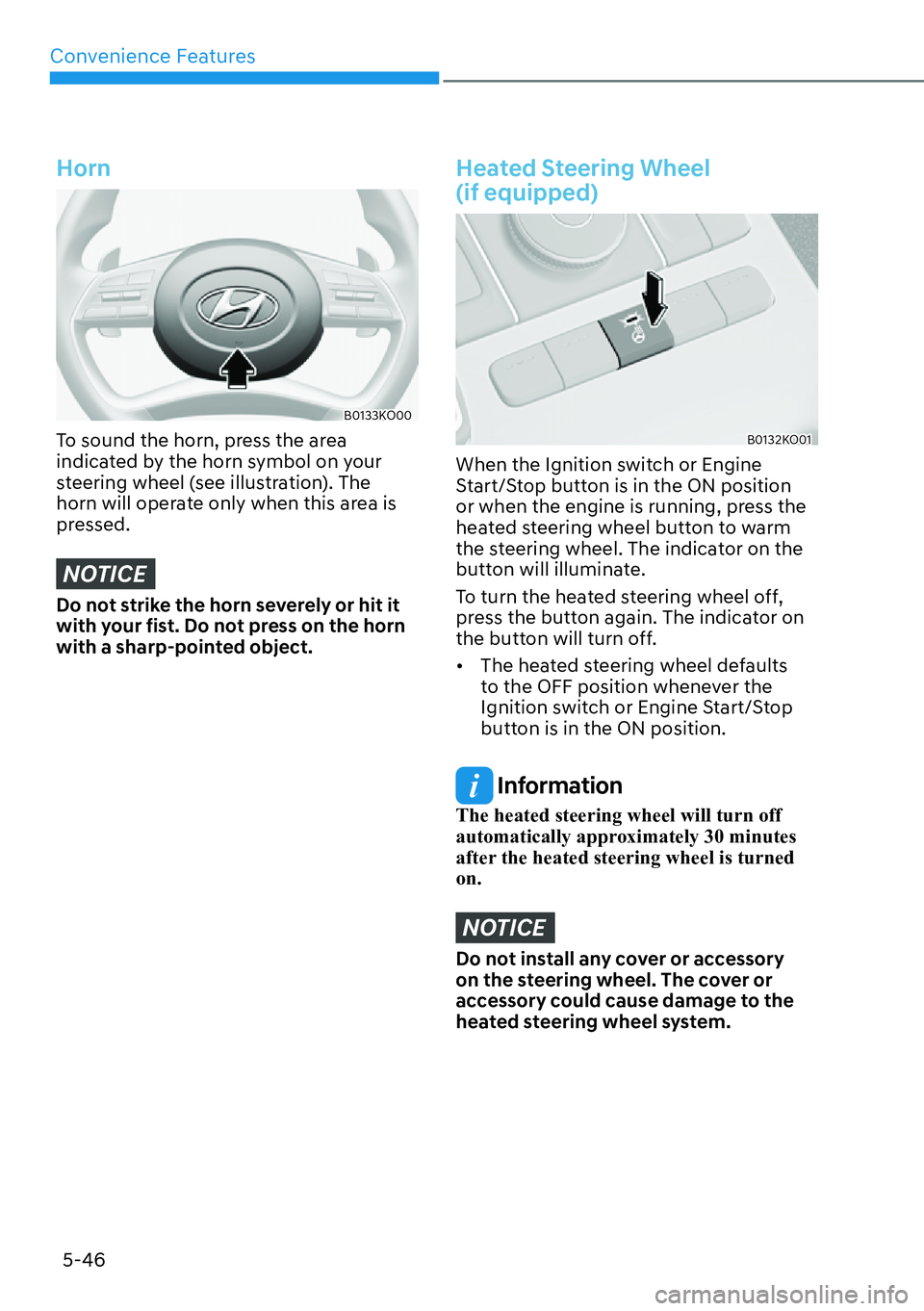

Horn
B0133KO00
To sound the horn, press the area
indicated by the horn symbol on your
steering wheel (see illustration). The
horn will operate only when this area is
pressed.
NOTICE
Do not strike the horn severely or hit it
with your fist. Do not press on the horn
with a sharp-pointed object.
Heated Steering Wheel
(if equipped)
B0132KO01
When the Ignition switch or Engine
Start/Stop button is in the ON position
or when the engine is running, press the
heated steering wheel button to warm
the steering wheel. The indicator on the
button will illuminate.
To turn the heated steering wheel off,
press the button again. The indicator on
the button will turn off.
[ The heated steering wheel defaults
to the OFF position whenever the
Ignition switch or Engine Start/Stop
button is in the ON position.
Information
The heated steering wheel will turn off
automatically approximately 30 minutes
after the heated steering wheel is turned
on.
NOTICE
Do not install any cover or accessory
on the steering wheel. The cover or
accessory could cause damage to the
heated steering wheel system.
Page 196 of 661
05
5-47
MIRRORS
Inside Rearview Mirror
Before driving your vehicle, check to
see that your inside rearview mirror is
properly positioned. Adjust the rearview
mirror so that the view through the rear
window is properly centered.
WARNING
Make sure your line of sight is not
obstructed. Do not place objects in the
rear seat, cargo area, or behind the rear
headrests which could interfere with
your vision through the rear window.
WARNING
To prevent serious injury during an
accident or deployment of the air bag,
do not modify the rearview mirror and
do not install a wide mirror.
WARNING
NEVER adjust the mirror while driving.
This may cause loss of vehicle control
resulting in an accident.
NOTICE
When cleaning the mirror, use a paper
towel or similar material dampened
with glass cleaner. Do not spray glass
cleaner directly on the mirror as this
may cause the liquid cleaner to enter
the mirror housing.
Day/night rearview mirror
(if equipped)
B0135EU02
A: Day, B: Night
Make this adjustment before you start
driving and while the day/night lever is in
the day position.
Pull the day/night lever towards you to
reduce glare from the headlights of the
vehicles behind you during night driving.
Remember that you lose some rearview
clarity in the night position.
Page 197 of 661
Convenience Features5-48
Electrochromic Mirror
(if equipped)
B0135KO01
A: indicator
The electric rearview mirror
automatically controls the glare from the
headlight of the vehicle behind you in
nighttime or low light driving conditions.
When the engine is running, the glare is
automatically controlled by the sensor
mounted in the rearview mirror. The
sensor detects the light level around the
vehicle, and automatically adjusts to
control the headlight glare from vehicles
behind you.
Whenever the the transmission is
shifted to R (Reverse), the mirror will
automatically go to the brightest setting
in order to improve the driver’s view
behind the vehicle.
Electrochromic mirror (ECM) with
HomeLink® system (if equipped)
Your vehicle may be equipped with
a Gentex Automatic-Dimming Mirror
with an Integrated HomeLink® Wireless
Control System.
During nighttime driving, this feature
will automatically detect and reduce
rearview mirror glare. The HomeLink®
Universal Transceiver allows you to
activate your garage door(s), electric
gate, home lighting, etc.
B0135EU03
M HomeLink Channel 1
N HomeLink Channel 2
O HomeLink Channel 3
P Garage Door Opener Status Indicator: Closing or Closed
Q HomeLink Operation Indicator
R Garage Door Opener Status Indicator: Opening or Opened
S HomeLink User Interface Indicator
Page 198 of 661
05
5-49
Automatic-Dimming Night Vision Safety™
(NVS®) Mirror (if equipped)
The NVS® Mirror automatically helps
r
educe glare by monitoring light levels in
the front and the rear of the vehicle. Any
object that obstructs either light sensor
will degrade the automatic dimming
control feature.
) R U P R U H L Q I R U P D W L R Q U H J D U G L Q J 1 9 6 p
mirrors and other applications, please
refer to the Gentex website:
www.gentex.com
Your mirror will automatically dim
upon detecting glare from the vehicles
traveling behind you.
The mirror defaults to the ON position
each time the vehicle is started.
Integrated HomeLink
® Wireless Control
System
The HomeLink® Wireless Control System
pr
ovides a convenient way to replace
up to three hand held radio-frequency
transmitters used to activate compatible
devices such as gate operators, garage
door openers, entry door locks, security
systems, and home lighting.
NOTICE
+ R P H / L Q N p R S H U D W H V Z K L O H W K H L J Q L W L R Q
switch or Engine Start/Stop button is
in the ACC or ON position for safety
reasons. It is to prevent unintentional
security problems from happening
when the vehicle is parked outside the
garage.
WARNING
% H I R U H S U R J U D P P L Q J + R P H / L Q N p W R D
garage door opener or gate operator,
make sure people and objects are out
of the way of the device to prevent
potential harm or damage. Do not
X V H W K H + R P H / L Q N p Z L W K D Q \ J D U D J H
door opener that lacks the safety
stop and reverse features required
by U.S. federal safety standards (this
includes any garage door opener model
manufactured before April 1, 1982).
A garage door that cannot detect an
object - signaling the door to stop and
reverse - does not meet current U.S.
federal safety standards. Using a garage
door opener without these features
increases the risk of serious injury or
death.
) R U P R U H L Q I R U P D W L R Q F R Q W D F W
+ R P H / L Q N p D W Z Z Z K R P H O L Q N F R P R U
call Home-Link customer support at
1-800-355-3515.
It is also recommended that a new
battery be replaced in the handheld
transmitter of the device being trained
W R + R P H / L Q N p I R U T X L F N H U W U D L Q L Q J D Q G
accurate transmission of the radio
frequency.
1. Programming HomeLink
®
The following steps show how to
program HomeLink. If you have any
questions or are having difficulty
programming your HomeLink buttons,
refer to the HomeLink website or call the
HomeLink customer support toll-free
number. Do this, before going back to
the dealer who sold you the car.
Page 199 of 661
Convenience Features5-50

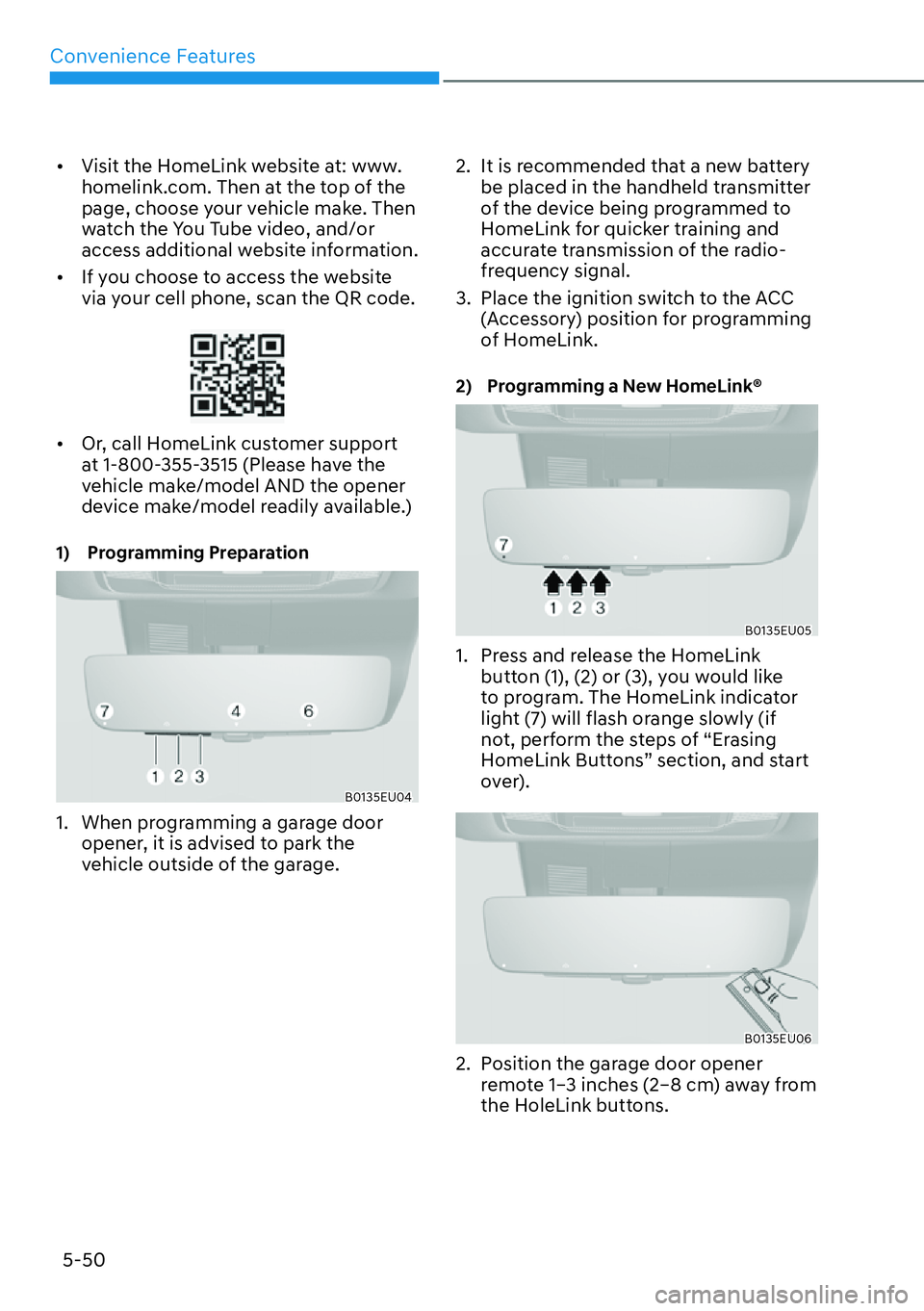

[ Visit the HomeLink website at: www.
homelink.com. Then at the top of the
page, choose your vehicle make. Then
watch the You Tube video, and/or
access additional website information.
[ If you choose to access the website
via your cell phone, scan the QR code.
[ Or, call HomeLink customer support
at 1-800-355-3515 (Please have the
vehicle make/model AND the opener
device make/model readily available.)
1) Programming Preparation
B0135EU04
1. When programming a garage door
opener, it is advised to park the
vehicle outside of the garage. 2. It is recommended that a new battery
be placed in the handheld transmitter
of the device being programmed to
HomeLink for quicker training and
accurate transmission of the radio-
frequency signal.
3. Place the ignition switch to the ACC (Accessory) position for programming
of HomeLink.
3 U R J U D P P L Q J D 1 H Z + R P H / L Q N p
B0135EU05
1. Press and release the HomeLink button (1), (2) or (3), you would like
to program. The HomeLink indicator
light (7) will flash orange slowly (if
not, perform the steps of “Erasing
HomeLink Buttons” section, and start
over).
B0135EU06
2. Position the garage door opener remote 1–3 inches (2–8 cm) away from
the HoleLink buttons.
Page 200 of 661
05
5-51

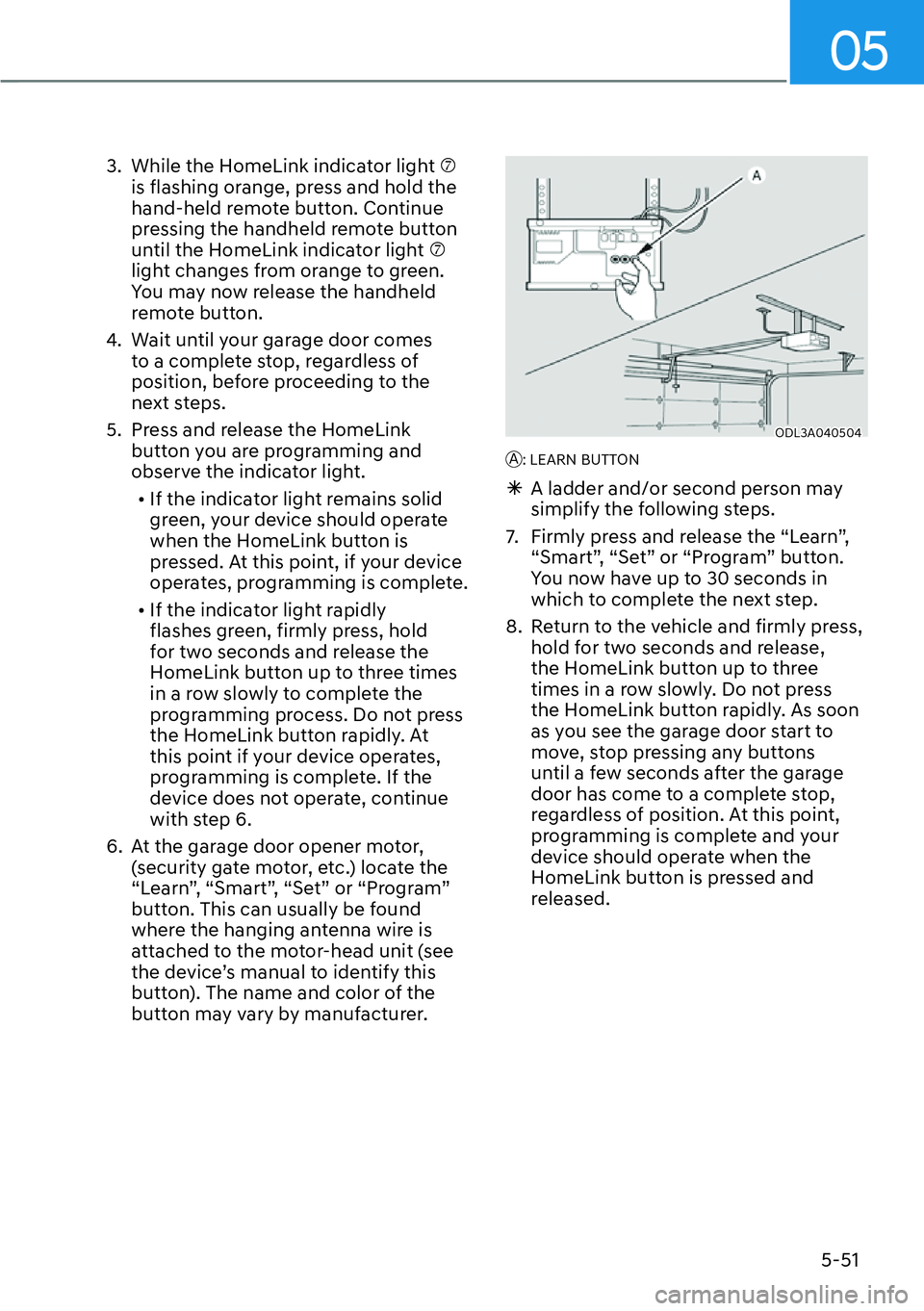

3. While the HomeLink indicator light S is flashing orange, press and hold the
hand-held remote button. Continue
pressing the handheld remote button
until the HomeLink indicator light S
light changes from orange to green.
You may now release the handheld
remote button.
4. Wait until your garage door comes to a complete stop, regardless of
position, before proceeding to the
next steps.
5. Press and release the HomeLink button you are programming and
observe the indicator light.
[ If the indicator light remains solid
green, your device should operate
when the HomeLink button is
pressed. At this point, if your device
operates, programming is complete.
[ If the indicator light rapidly
flashes green, firmly press, hold
for two seconds and release the
HomeLink button up to three times
in a row slowly to complete the
programming process. Do not press
the HomeLink button rapidly. At
this point if your device operates,
programming is complete. If the
device does not operate, continue
with step 6.
6. At the garage door opener motor, (security gate motor, etc.) locate the
“Learn”, “Smart”, “Set” or “Program”
button. This can usually be found
where the hanging antenna wire is
attached to the motor-head unit (see
the device’s manual to identify this
button). The name and color of the
button may vary by manufacturer.
ODL3A040504
A: LEARN BUTTON
à A ladder and/or second person may
simplify the following steps.
7. Firmly press and release the “Learn”, “Smart”, “Set” or “Program” button.
You now have up to 30 seconds in
which to complete the next step.
8. Return to the vehicle and firmly press, hold for two seconds and release,
the HomeLink button up to three
times in a row slowly. Do not press
the HomeLink button rapidly. As soon
as you see the garage door start to
move, stop pressing any buttons
until a few seconds after the garage
door has come to a complete stop,
regardless of position. At this point,
programming is complete and your
device should operate when the
HomeLink button is pressed and
released.
