HYUNDAI PALISADE 2023 Owners Manual

Convenience Features5-52

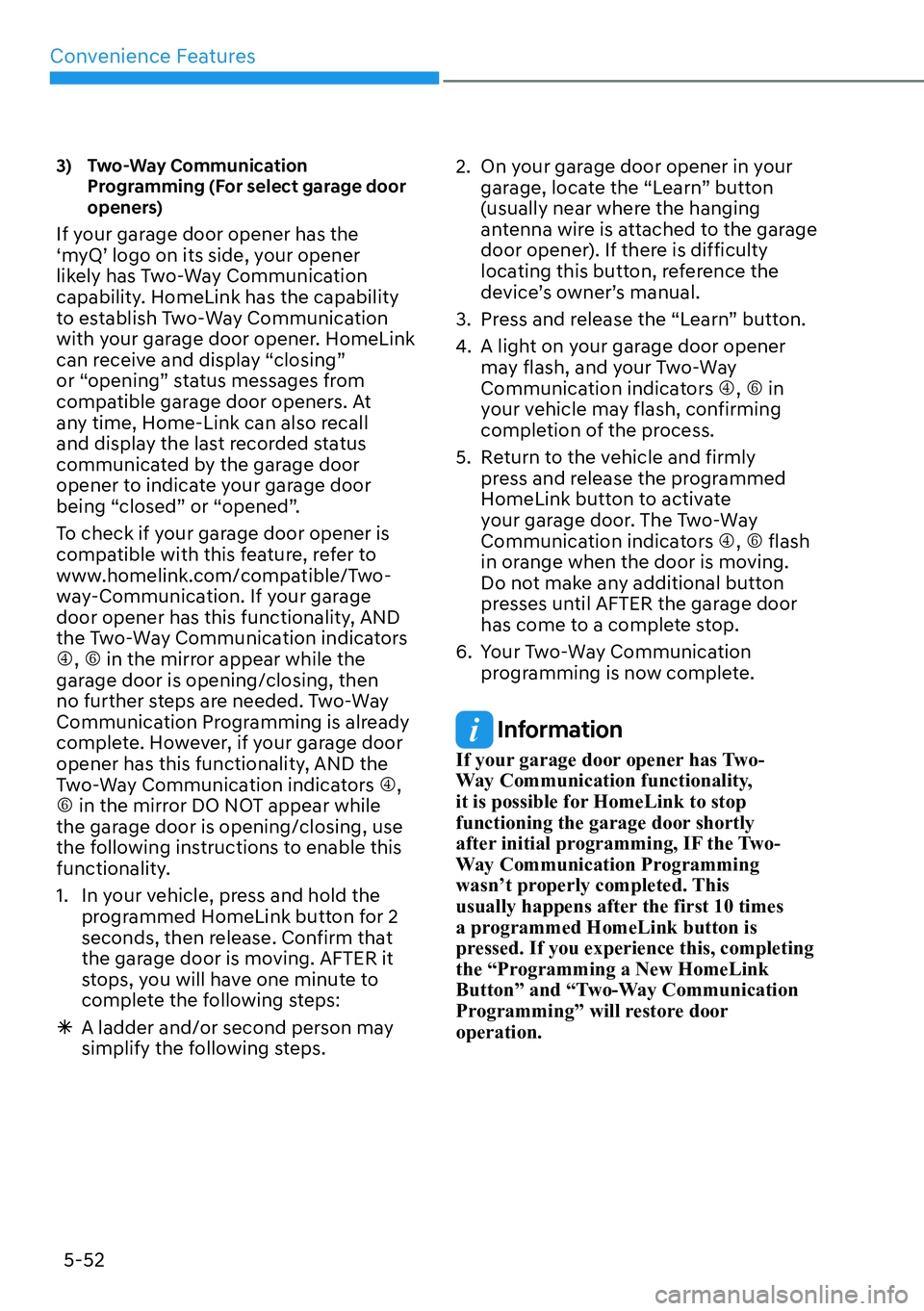

3) Two-Way Communication Programming (For select garage door
openers)
If your garage door opener has the
‘myQ’ logo on its side, your opener
likely has Two-Way Communication
capability. HomeLink has the capability
to establish Two-Way Communication
with your garage door opener. HomeLink
can receive and display “closing”
or “opening” status messages from
compatible garage door openers. At
any time, Home-Link can also recall
and display the last recorded status
communicated by the garage door
opener to indicate your garage door
being “closed” or “opened”.
To check if your garage door opener is
compatible with this feature, refer to
www.homelink.com/compatible/Two-
way-Communication. If your garage
door opener has this functionality, AND
the Two-Way Communication indicators
P, R in the mirror appear while the
garage door is opening/closing, then
no further steps are needed. Two-Way
Communication Programming is already
complete. However, if your garage door
opener has this functionality, AND the
Two-Way Communication indicators P,
R in the mirror DO NOT appear while
the garage door is opening/closing, use
the following instructions to enable this
functionality.
1. In your vehicle, press and hold the programmed HomeLink button for 2
seconds, then release. Confirm that
the garage door is moving. AFTER it
stops, you will have one minute to
complete the following steps:

à A ladder and/or second person may
simplify the following steps. 2. On your garage door opener in your
garage, locate the “Learn” button
(usually near where the hanging
antenna wire is attached to the garage
door opener). If there is difficulty
locating this button, reference the
device’s owner’s manual.
3. Press and release the “Learn” button.
4. A light on your garage door opener may flash, and your Two-Way
Communication indicators P, R in
your vehicle may flash, confirming
completion of the process.
5. Return to the vehicle and firmly press and release the programmed
HomeLink button to activate
your garage door. The Two-Way
Communication indicators P, R flash
in orange when the door is moving.
Do not make any additional button
presses until AFTER the garage door
has come to a complete stop.
6. Your Two-Way Communication programming is now complete.
Information
If your garage door opener has Two-
Way Communication functionality,
it is possible for HomeLink to stop
functioning the garage door shortly
after initial programming, IF the Two-
Way Communication Programming
wasn’t properly completed. This
usually happens after the first 10 times
a programmed HomeLink button is
pressed. If you experience this, completing
the “Programming a New HomeLink
Button” and “Two-Way Communication
Programming” will restore door
operation.

05
5-53

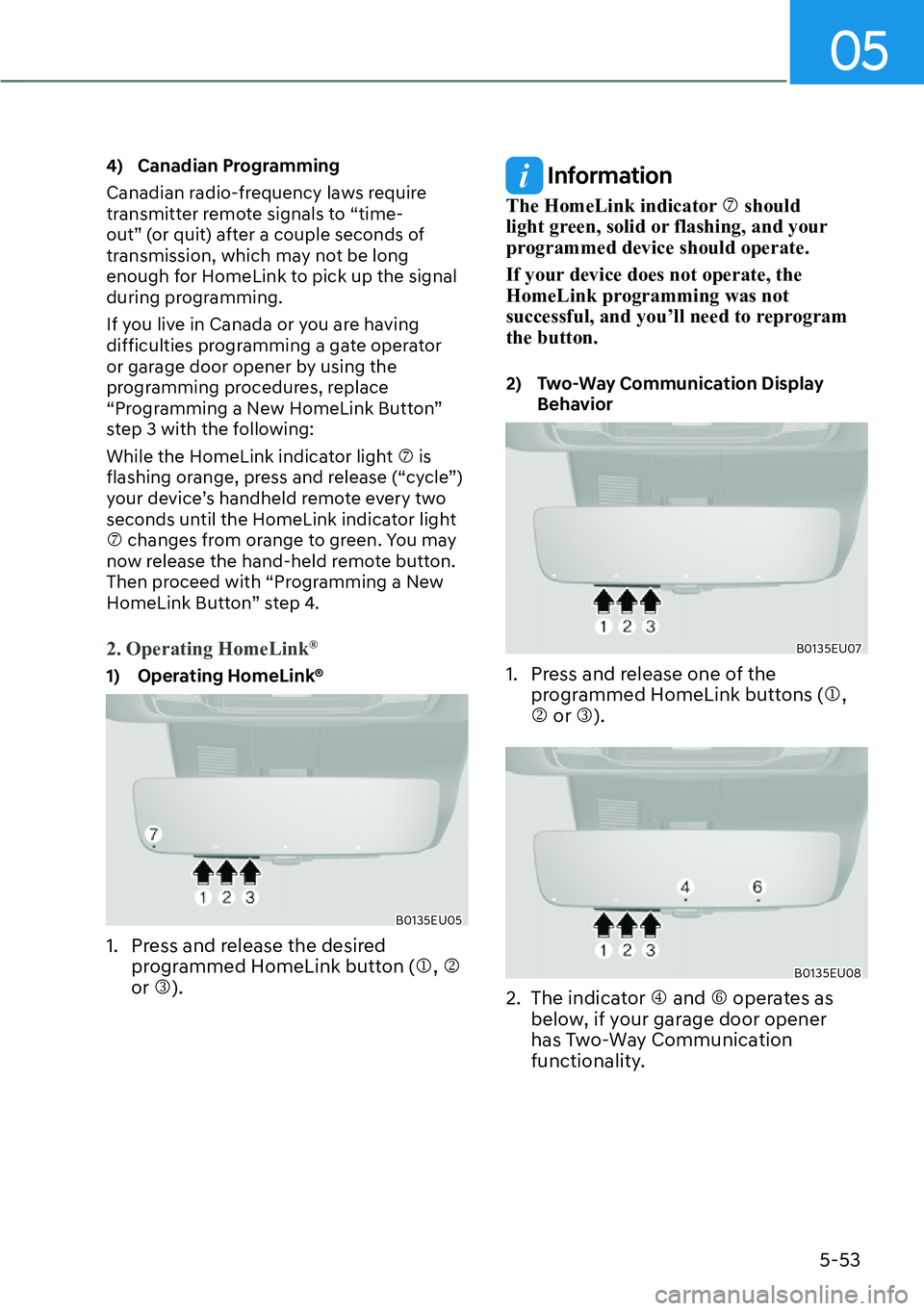

4) Canadian Programming
Canadian radio-frequency laws require
transmitter remote signals to “time-
out” (or quit) after a couple seconds of
transmission, which may not be long
enough for HomeLink to pick up the signal
during programming.
If you live in Canada or you are having
difficulties programming a gate operator
or garage door opener by using the
programming procedures, replace
“Programming a New HomeLink Button”
step 3 with the following:
While the HomeLink indicator light S is
flashing orange, press and release (“cycle”)
your device’s handheld remote every two
seconds until the HomeLink indicator light
S changes from orange to green. You may
now release the hand-held remote button.
Then proceed with “Programming a New
HomeLink Button” step 4.
2. Operating HomeLink®
1) Operating HomeLink®
B0135EU05
1. Press and release the desired programmed HomeLink button (M, N
or O).
Information
The HomeLink indicator S should
light green, solid or flashing, and your
programmed device should operate.
If your device does not operate, the
HomeLink programming was not
successful, and you’ll need to reprogram
the button.
2) Two-Way Communication Display
Behavior
B0135EU07
1. Press and release one of the programmed HomeLink buttons (M,
N or O).
B0135EU08
2. The indicator P and R operates as
below, if your garage door opener
has Two-Way Communication
functionality.

Convenience Features5-54

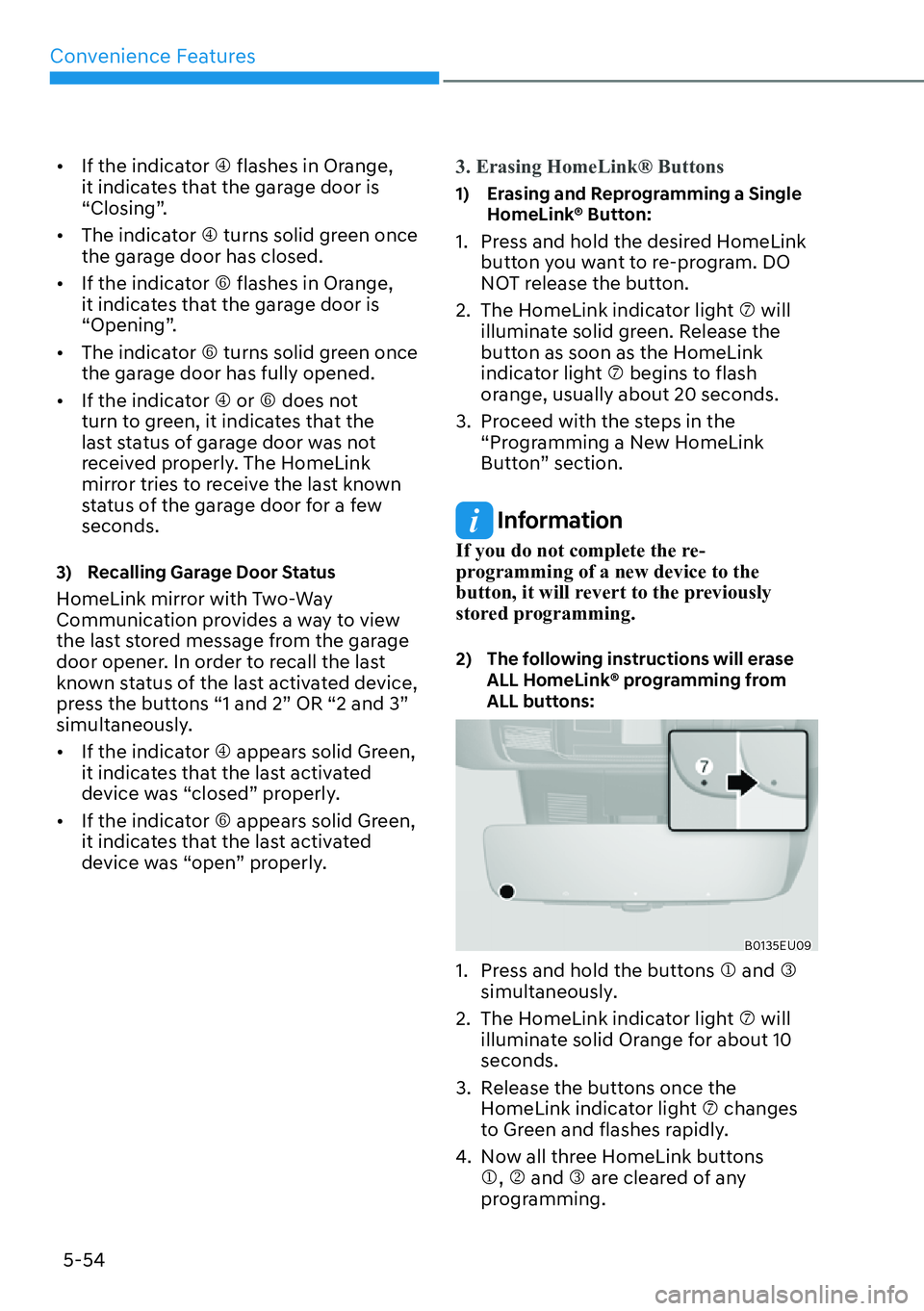

[ If the indicator P flashes in Orange,
it indicates that the garage door is
“Closing”.

[ The indicator P turns solid green once
the garage door has closed.

[ If the indicator R flashes in Orange,
it indicates that the garage door is
“Opening”.

[ The indicator R turns solid green once
the garage door has fully opened.

[ If the indicator P or R does not
turn to green, it indicates that the
last status of garage door was not
received properly. The HomeLink
mirror tries to receive the last known
status of the garage door for a few
seconds.
3) Recalling Garage Door Status
HomeLink mirror with Two-Way
Communication provides a way to view
the last stored message from the garage
door opener. In order to recall the last
known status of the last activated device,
press the buttons “1 and 2” OR “2 and 3”
simultaneously.

[If the indicator P appears solid Green,
it indicates that the last activated
device was “closed” properly.

[ If the indicator R appears solid Green,
it indicates that the last activated
device was “open” properly. 3. Erasing HomeLink® Buttons
1) Erasing and Reprogramming a Single
HomeLink® Button:
1. Press and hold the desired HomeLink button you want to re-program. DO
NOT release the button.
2. The HomeLink indicator light S will illuminate solid green. Release the
button as soon as the HomeLink
indicator light S begins to flash
orange, usually about 20 seconds.
3. Proceed with the steps in the “Programming a New HomeLink
Button” section.
Information
If you do not complete the re-
programming of a new device to the
button, it will revert to the previously
stored programming.
2) The following instructions will erase
$//+RPH/LQNpSURJUDPPLQJIURP
ALL buttons:
B0135EU09
1. Press and hold the buttons M and O simultaneously.
2. The HomeLink indicator light S will illuminate solid Orange for about 10
seconds.
3. Release the buttons once the HomeLink indicator light S changes
to Green and flashes rapidly.
4. Now all three HomeLink buttons M, N and O are cleared of any
programming.

05
5-55

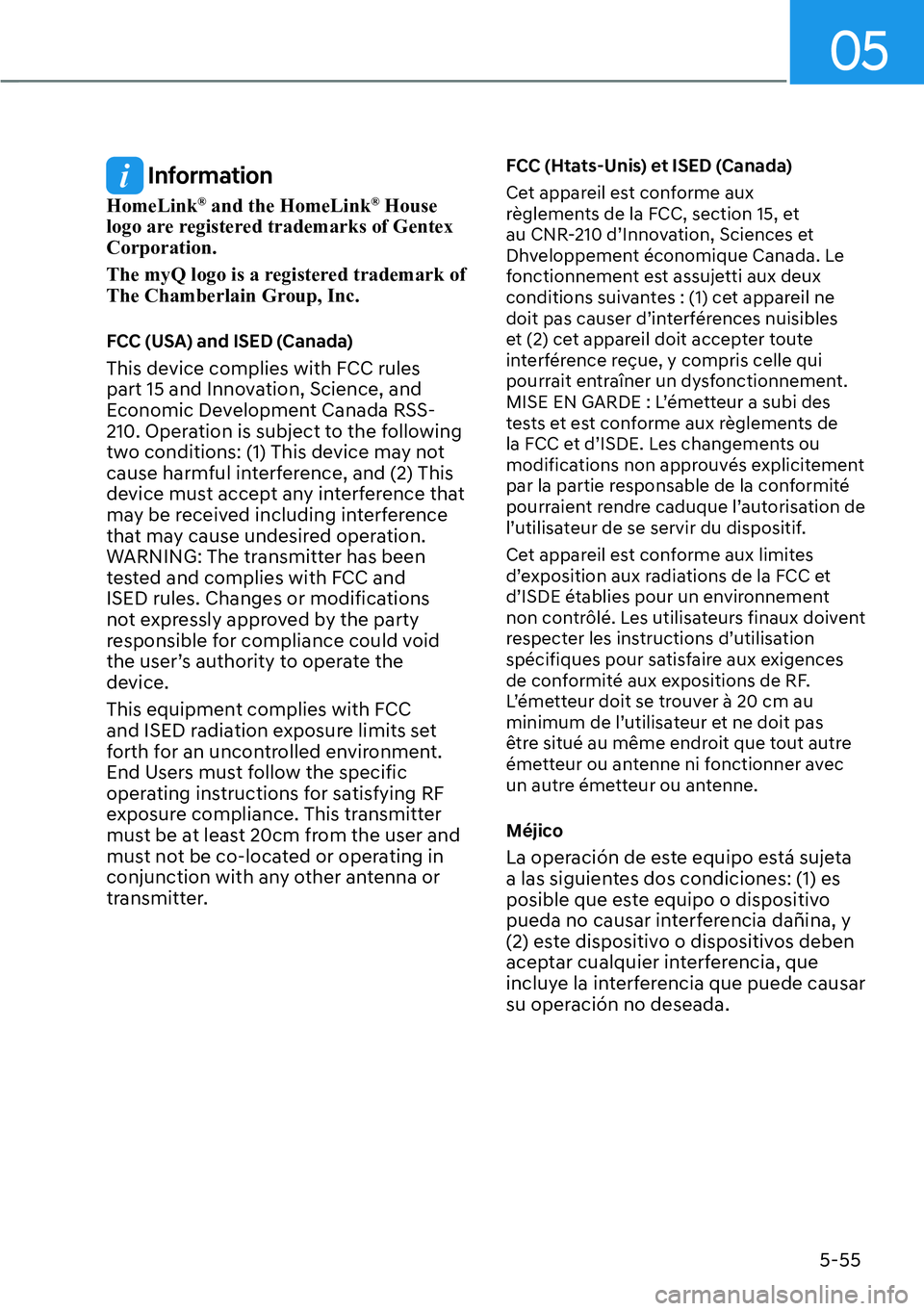

Information
HomeLink® and the HomeLink® House
logo are registered trademarks of Gentex
Corporation.
The myQ logo is a registered trademark of
The Chamberlain Group, Inc.
)&&86$DQG,6('&DQDGD
This device complies with FCC rules
part 15 and Innovation, Science, and
Economic Development Canada RSS-
210. Operation is subject to the following
two conditions: (1) This device may not
cause harmful interference, and (2) This
device must accept any interference that
may be received including interference
that may cause undesired operation.
WARNING: The transmitter has been
tested and complies with FCC and
ISED rules. Changes or modifications
not expressly approved by the party
responsible for compliance could void
the user’s authority to operate the
device.
This equipment complies with FCC
and ISED radiation exposure limits set
forth for an uncontrolled environment.
End Users must follow the specific
operating instructions for satisfying RF
exposure compliance. This transmitter
must be at least 20cm from the user and
must not be co-located or operating in
conjunction with any other antenna or
transmitter.
FCC (Htats-Unis) et ISED (Canada)
Cet appareil est conforme aux
règlements de la FCC, section 15, et
au CNR-210 d’Innovation, Sciences et
Dhveloppement économique Canada. Le
fonctionnement est assujetti aux deux
conditions suivantes : (1) cet appareil ne
doit pas causer d’interférences nuisibles
et (2) cet appareil doit accepter toute
interférence reçue, y compris celle qui
pourrait entraîner un dysfonctionnement.
MISE EN GARDE : L’émetteur a subi des
tests et est conforme aux règlements de
la FCC et d’ISDE. Les changements ou
modifications non approuvés explicitement
par la partie responsable de la conformité
pourraient rendre caduque l’autorisation de
l’utilisateur de se servir du dispositif.
Cet appareil est conforme aux limites
d’exposition aux radiations de la FCC et
d’ISDE établies pour un environnement
non contrôlé. Les utilisateurs finaux doivent
respecter les instructions d’utilisation
spécifiques pour satisfaire aux exigences
de conformité aux expositions de RF.
L’émetteur doit se trouver à 20 cm au
minimum de l’utilisateur et ne doit pas
être situé au même endroit que tout autre
émetteur ou antenne ni fonctionner avec
un autre émetteur ou antenne.
Méjico
La operación de este equipo está sujeta
a las siguientes dos condiciones: (1) es
posible que este equipo o dispositivo
pueda no causar interferencia dañina, y
(2) este dispositivo o dispositivos deben
aceptar cualquier interferencia, que
incluye la interferencia que puede causar
su operación no deseada.

Convenience Features5-56

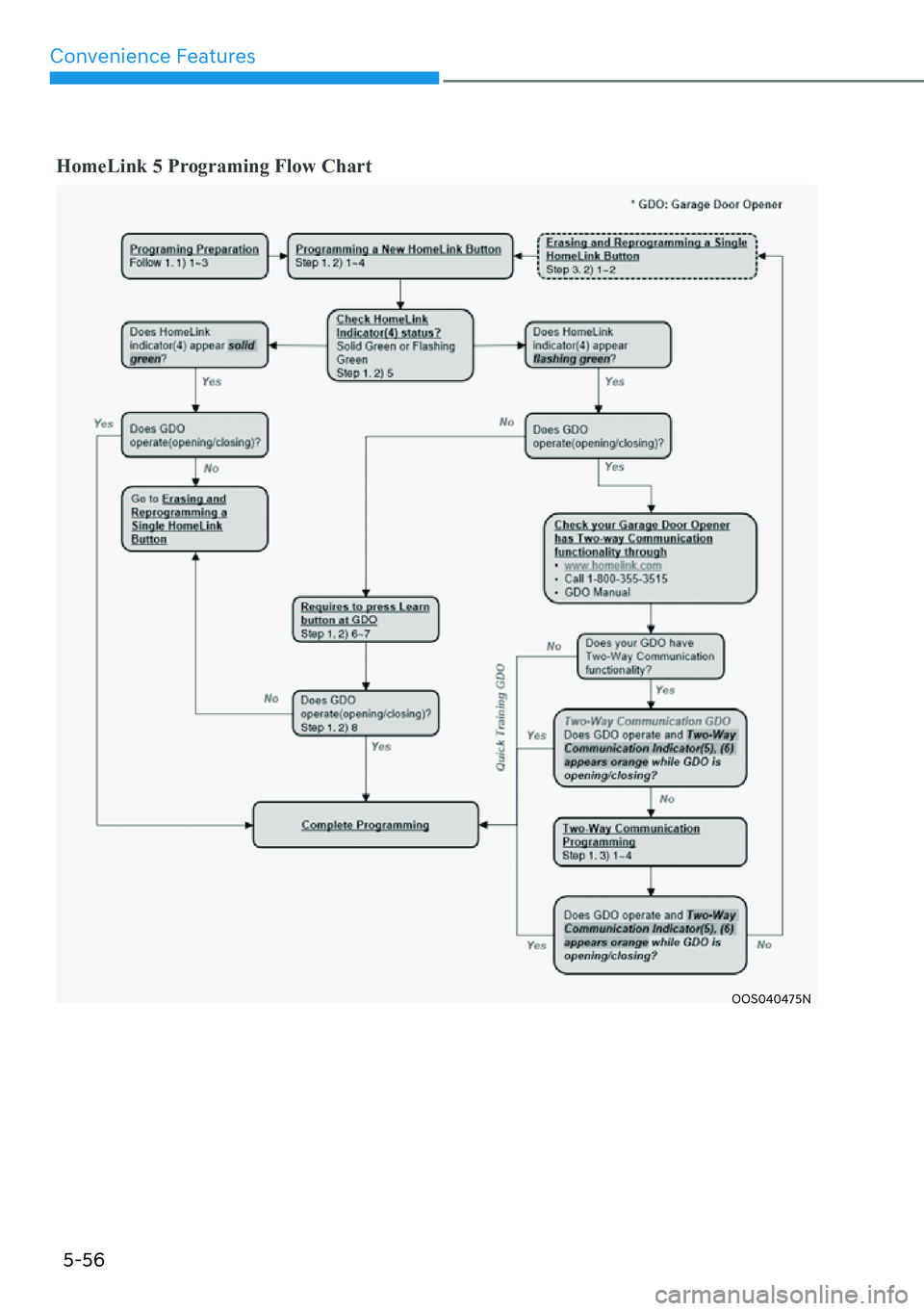

HomeLink 5 Programing Flow Chart
OOS040475N

05
5-57

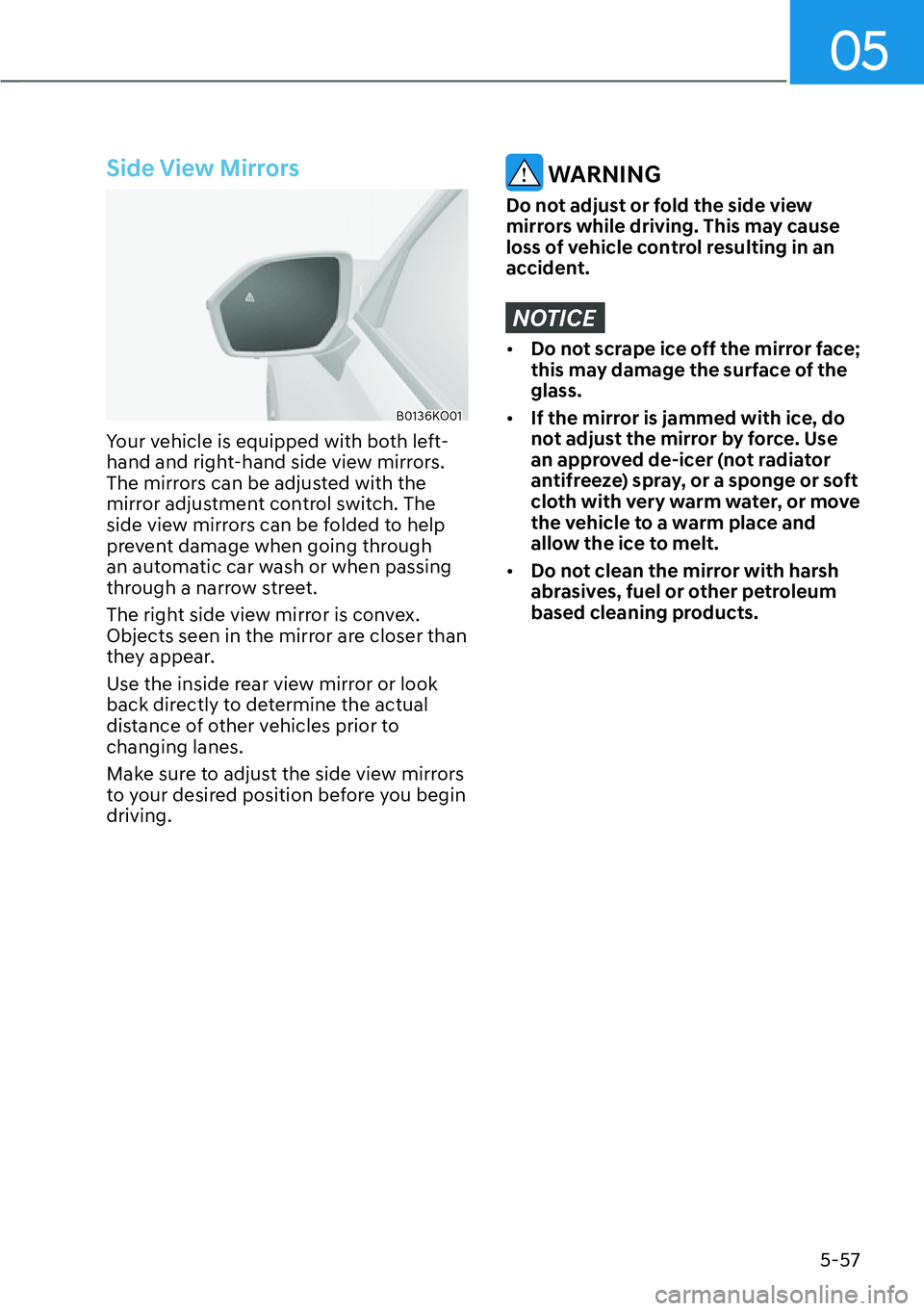

Side View Mirrors
B0136KO01
Your vehicle is equipped with both left-
hand and right-hand side view mirrors.
The mirrors can be adjusted with the
mirror adjustment control switch. The
side view mirrors can be folded to help
prevent damage when going through
an automatic car wash or when passing
through a narrow street.
The right side view mirror is convex.
Objects seen in the mirror are closer than
they appear.
Use the inside rear view mirror or look
back directly to determine the actual
distance of other vehicles prior to
changing lanes.
Make sure to adjust the side view mirrors
to your desired position before you begin
driving.
WARNING
Do not adjust or fold the side view
mirrors while driving. This may cause
loss of vehicle control resulting in an
accident.
NOTICE

[Do not scrape ice off the mirror face;
this may damage the surface of the
glass.

[ If the mirror is jammed with ice, do
not adjust the mirror by force. Use
an approved de-icer (not radiator
antifreeze) spray, or a sponge or soft
cloth with very warm water, or move
the vehicle to a warm place and
allow the ice to melt.

[ Do not clean the mirror with harsh
abrasives, fuel or other petroleum
based cleaning products.

Convenience Features5-58

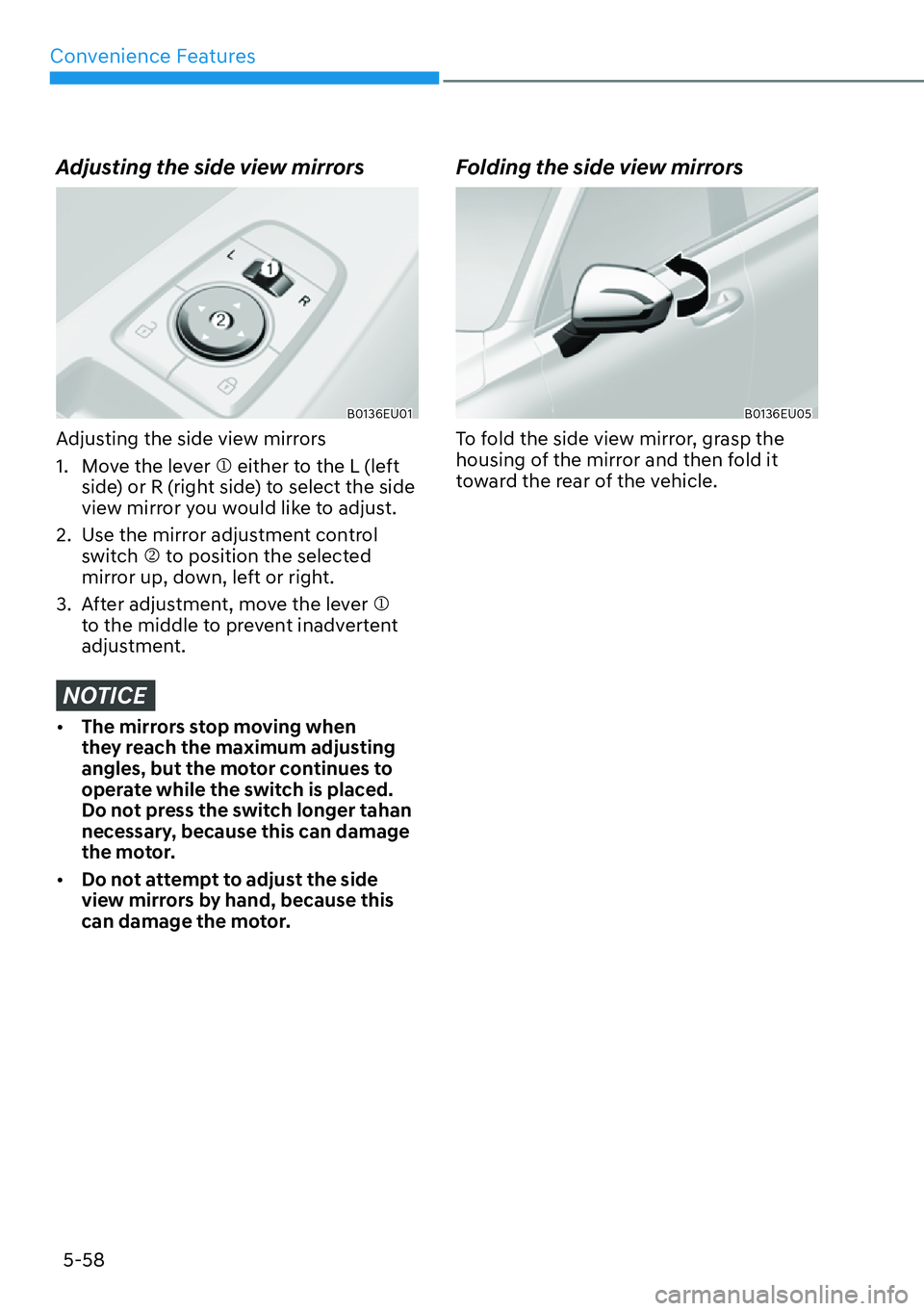

Adjusting the side view mirrors
B0136EU01
Adjusting the side view mirrors
1. Move the lever M either to the L (left side) or R (right side) to select the side
view mirror you would like to adjust.
2. Use the mirror adjustment control switch N to position the selected
mirror up, down, left or right.
3. After adjustment, move the lever M to the middle to prevent inadvertent
adjustment.
NOTICE

[The mirrors stop moving when
they reach the maximum adjusting
angles, but the motor continues to
operate while the switch is placed.
Do not press the switch longer tahan
necessary, because this can damage
the motor.

[ Do not attempt to adjust the side
view mirrors by hand, because this
can damage the motor.
Folding the side view mirrors
B0136EU05
To fold the side view mirror, grasp the
housing of the mirror and then fold it
toward the rear of the vehicle.

05
5-59

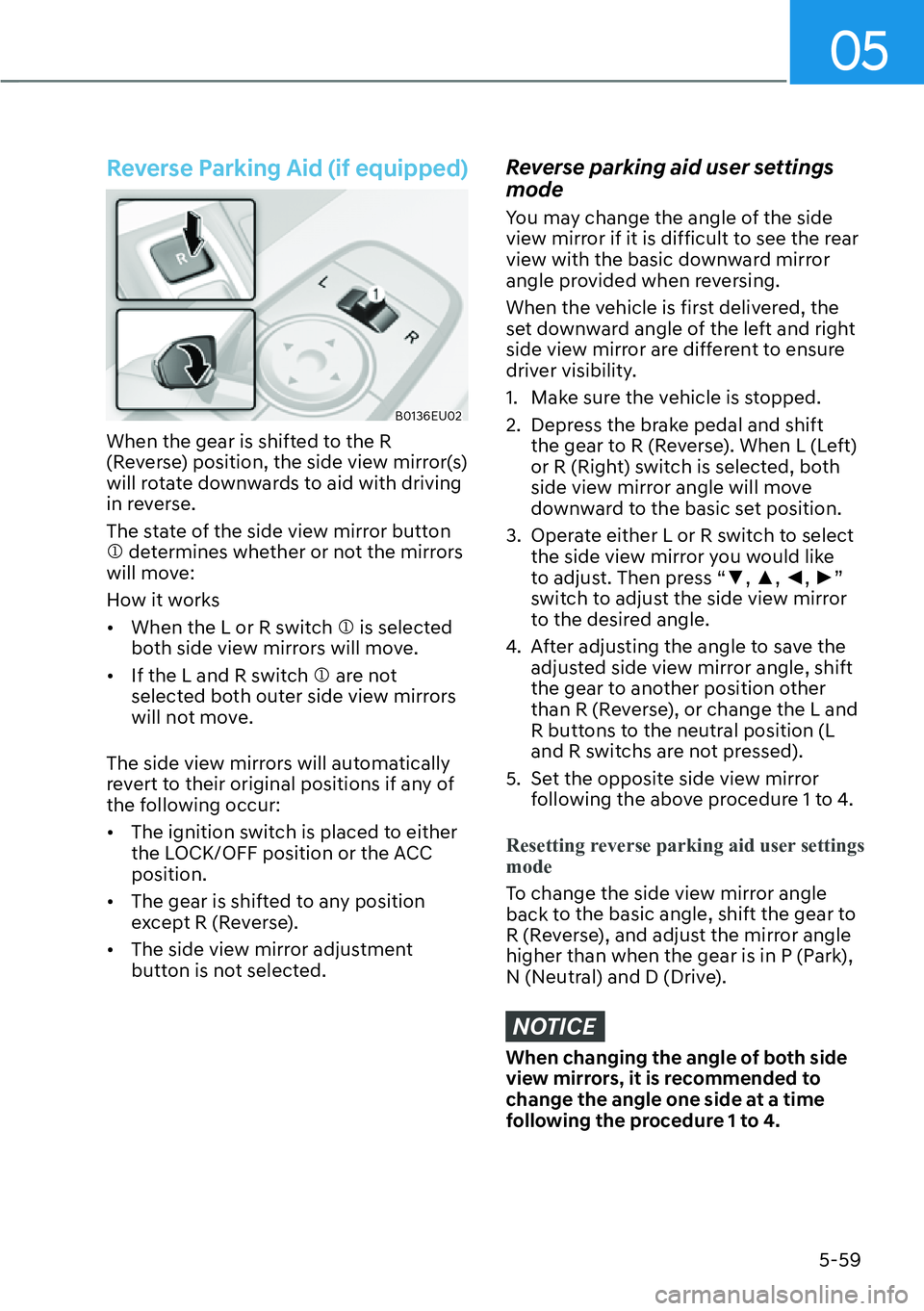

Reverse Parking Aid (if equipped)
B0136EU02
When the gear is shifted to the R
(Reverse) position, the side view mirror(s)
will rotate downwards to aid with driving
in reverse.
The state of the side view mirror button
M determines whether or not the mirrors
will move:
How it works

[When the L or R switch M is selected
both side view mirrors will move.

[ If the L and R switch M are not
selected both outer side view mirrors
will not move.
The side view mirrors will automatically
revert to their original positions if any of
the following occur:

[ The ignition switch is placed to either
the LOCK/OFF position or the ACC
position.

[ The gear is shifted to any position
except R (Reverse).

[ The side view mirror adjustment
button is not selected.
Reverse parking aid user settings
mode
You may change the angle of the side
view mirror if it is difficult to see the rear
view with the basic downward mirror
angle provided when reversing.
When the vehicle is first delivered, the
set downward angle of the left and right
side view mirror are different to ensure
driver visibility.
1. Make sure the vehicle is stopped.
2. Depress the brake pedal and shift
the gear to R (Reverse). When L (Left)
or R (Right) switch is selected, both
side view mirror angle will move
downward to the basic set position.
3. Operate either L or R switch to select the side view mirror you would like
to adjust. Then press “
z,
x,
{,
y”
switch to adjust the side view mirror
to the desired angle.
4. After adjusting the angle to save the adjusted side view mirror angle, shift
the gear to another position other
than R (Reverse), or change the L and
R buttons to the neutral position (L
and R switchs are not pressed).
5. Set the opposite side view mirror following the above procedure 1 to 4.
Resetting reverse parking aid user settings
mode
To change the side view mirror angle
back t
o the basic angle, shift the gear to
R (Reverse), and adjust the mirror angle
higher than when the gear is in P (Park),
N (Neutral) and D (Drive).
NOTICE
When changing the angle of both side
view mirrors, it is recommended to
change the angle one side at a time
following the procedure 1 to 4.

Convenience Features5-60
The Digital Center Mirror is a system
that uses the camera on the rear of the
vehicle and displays its image on the
screen of the Digital Center Mirror. The
Digital Center Mirror allows the driver to
see the rear view despite obstructions,
such as the headrest or luggage,
ensuring rear visibility.
WARNING

[ )DLOXUHWRIROORZWKHZDUQLQJVDQG
instructions for proper use of the
Digital Center Mirror could result in
serious accident.

- The Digital Center Mirror is a
convenience feature but it is not
a substitute for proper vehicle
operation. The system has areas
where objects cannot be viewed.
Check the blind spot of the Digital
Center Mirror before vehicle
operation. The driver is always
responsible for safe driving.

- Do not operate the Digital Center
Mirror while driving. Doing so
cannot be a distraction and it could
lose control of your vehicle and
cause an accident or serious injury.

- Do not disassemble or modify the
Digitaal Center Mirror, the camera
unit or wirings. If you do, it may
result in accidents or fire. In case
you notice smoke or smell coming
from the Digital Center Mirror, stop
using the system immediately.
Have you see an authorized
HYUNDAI dealer for servicing.
[
Be sure to adjust the Digital Center
Mirror before driving.

- Switch the system to the
conventional rearview mirror
mode and be properly seated on
the driver’s seat. Then adjust the
mirror so as to see the rear window
properly.

- Push the lever all the way to change
to digital mirror mode and adjust
the display settings. Driving without
adjusting the mirror may cause
difficulty in watching the display
at the Digital Mirror mode (camera
view mode) due to the reflection
from the surface of the mirror.

- As the range of the image display
by the Digital Center Mirror is
different from that of the optical
mirror, make sure to check this
difference before driving.

[ If the Digital Center Mirror
malfunction, immediately switch the
system to the conventional rearview
mirror mode.

[ When strong light (for example,
sunlight or high beams from
following vehicles) enters the
camera, a light beam or a glaring
light may appear on the monitor
screen of the Digital Center Mirror.
In that case, switch the system to the
conventional rearview mirror mode
appropriately.

[
B0362KO01
If the camera lens M is dirty, the
displayed image may not be clear.
In this case, clean it with a soft cloth
dampened with water or a swab.
',*,7$/&(17(50,5525

05
5-61

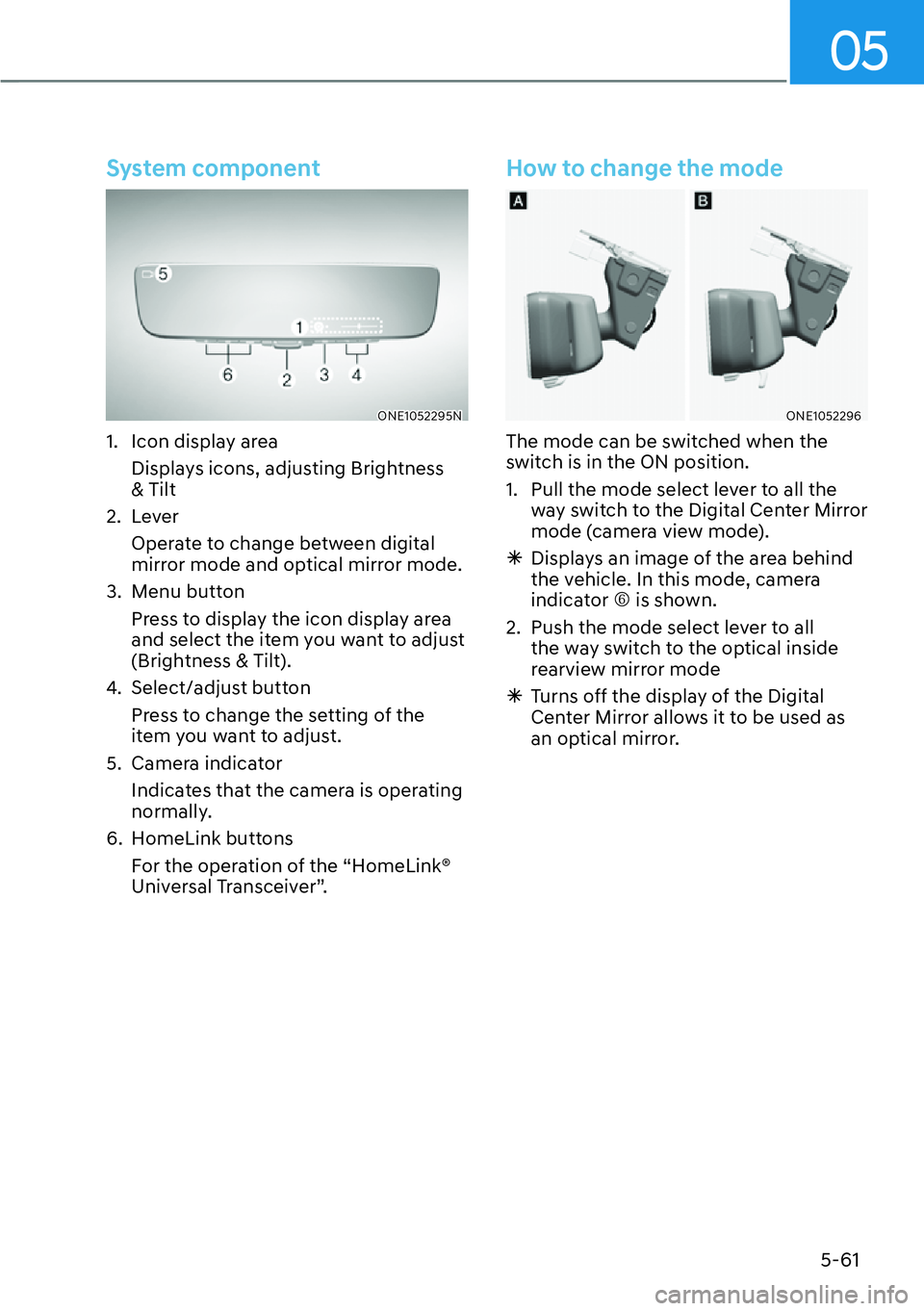

System component
ONE1052295N
1. Icon display areaDisplays icons, adjusting Brightness
& Tilt
2. Lever Operate to change between digital
mirror mode and optical mirror mode.
3. Menu button Press to display the icon display area
and select the item you want to adjust
(Brightness & Tilt).
4. Select/adjust button
Press to change the setting of the
item you want to adjust.
5. Camera indicator Indicates that the camera is operating
normally.
6. HomeLink buttons For the operation of the “HomeLink®
Universal Transceiver”.
How to change the mode
ONE1052296
The mode can be switched when the
switch is in the ON position.
1. Pull the mode select lever to all the way switch to the Digital Center Mirror
mode (camera view mode).

à Displays an image of the area behind
the vehicle. In this mode, camera
indicator R is shown.
2. Push the mode select lever to all the way switch to the optical inside
rearview mirror mode

à Turns off the display of the Digital
Center Mirror allows it to be used as
an optical mirror.
