Hyundai Santa Fe 2019 Owner's Manual - RHD (UK, Australia)

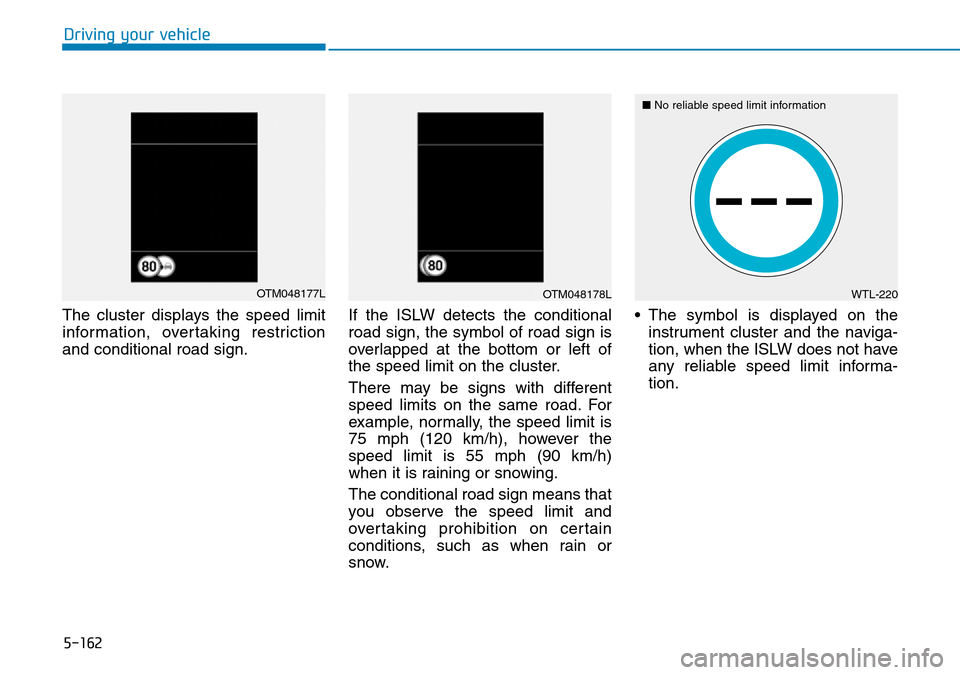

5-162
The cluster displays the speed limit
information, overtaking restriction
and conditional road sign.If the ISLW detects the conditional
road sign, the symbol of road sign is
overlapped at the bottom or left of
the speed limit on the cluster.
There may be signs with different
speed limits on the same road. For
example, normally, the speed limit is
75 mph (120 km/h), however the
speed limit is 55 mph (90 km/h)
when it is raining or snowing.
The conditional road sign means that
you observe the speed limit and
overtaking prohibition on certain
conditions, such as when rain or
snow.• The symbol is displayed on the
instrument cluster and the naviga-
tion, when the ISLW does not have
any reliable speed limit informa-
tion.
Driving your vehicle

WTL-220 ■ No reliable speed limit informationOTM048177LOTM048178L

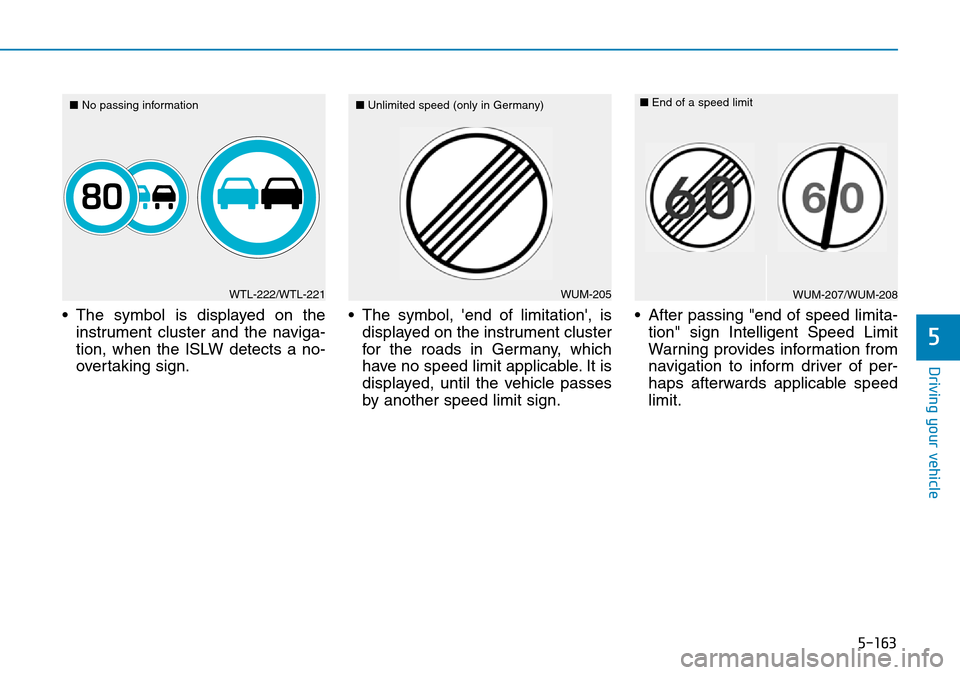

5-163
Driving your vehicle
• The symbol is displayed on the
instrument cluster and the naviga-
tion, when the ISLW detects a no-
overtaking sign.• The symbol, 'end of limitation', is
displayed on the instrument cluster
for the roads in Germany, which
have no speed limit applicable. It is
displayed, until the vehicle passes
by another speed limit sign.• After passing "end of speed limita-
tion" sign Intelligent Speed Limit
Warning provides information from
navigation to inform driver of per-
haps afterwards applicable speed
limit.
5
WTL-222/WTL-221 ■ No passing informationWUM-205 ■ Unlimited speed (only in Germany)WUM-207/WUM-208 ■ End of a speed limit

5-164
Driving your vehicle

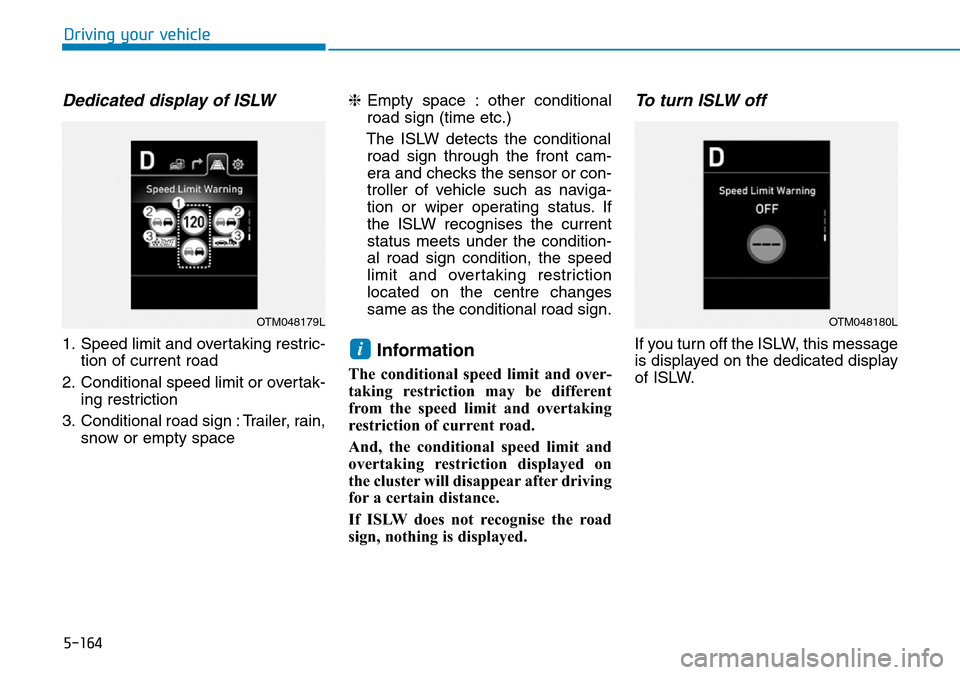

Dedicated display of ISLW
1. Speed limit and overtaking restric-
tion of current road
2. Conditional speed limit or overtak-
ing restriction
3. Conditional road sign : Trailer, rain,
snow or empty space❈Empty space : other conditional
road sign (time etc.)
The ISLW detects the conditional
road sign through the front cam-
era and checks the sensor or con-
troller of vehicle such as naviga-
tion or wiper operating status. If
the ISLW recognises the current
status meets under the condition-
al road sign condition, the speed
limit and overtaking restriction
located on the centre changes
same as the conditional road sign.Information
The conditional speed limit and over-
taking restriction may be different
from the speed limit and overtaking
restriction of current road.
And, the conditional speed limit and
overtaking restriction displayed on
the cluster will disappear after driving
for a certain distance.
If ISLW does not recognise the road
sign, nothing is displayed.
To turn ISLW off
If you turn off the ISLW, this message
is displayed on the dedicated display
of ISLW.i
OTM048179LOTM048180L

5-165
Driving your vehicle
5

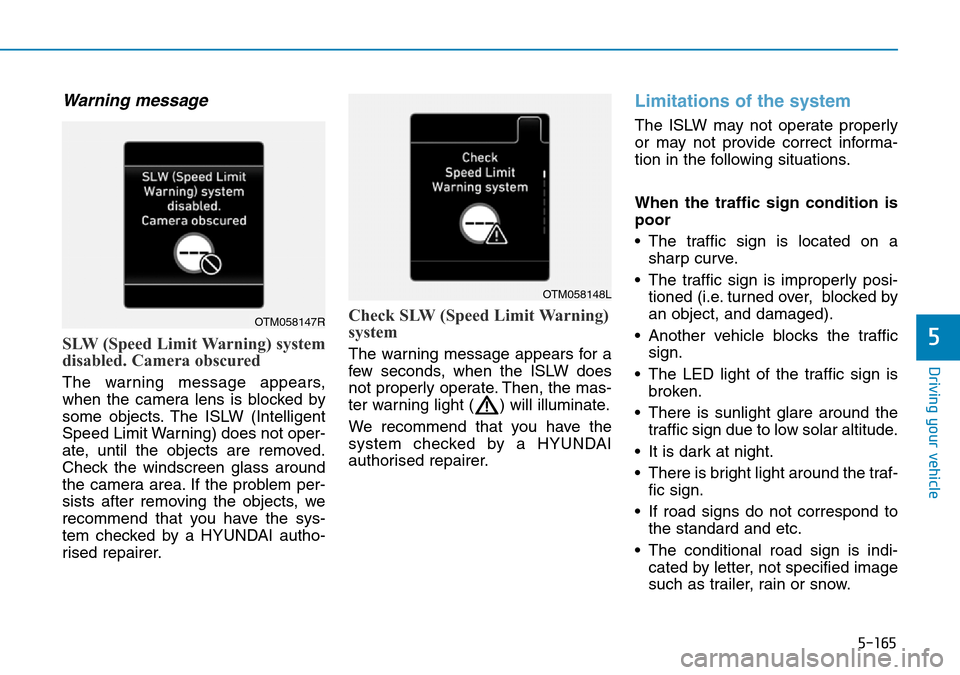

Warning message
SLW (Speed Limit Warning) system
disabled. Camera obscured
The warning message appears,
when the camera lens is blocked by
some objects. The ISLW (Intelligent
Speed Limit Warning) does not oper-
ate, until the objects are removed.
Check the windscreen glass around
the camera area. If the problem per-
sists after removing the objects, we
recommend that you have the sys-
tem checked by a HYUNDAI autho-
rised repairer.
Check SLW (Speed Limit Warning)
system
The warning message appears for a
few seconds, when the ISLW does
not properly operate. Then, the mas-
ter warning light ( ) will illuminate.
We recommend that you have the
system checked by a HYUNDAI
authorised repairer.
Limitations of the system
The ISLW may not operate properly
or may not provide correct informa-
tion in the following situations.
When the traffic sign condition is
poor
• The traffic sign is located on a
sharp curve.
• The traffic sign is improperly posi-
tioned (i.e. turned over, blocked by
an object, and damaged).
• Another vehicle blocks the traffic
sign.
• The LED light of the traffic sign is
broken.
• There is sunlight glare around the
traffic sign due to low solar altitude.
• It is dark at night.
• There is bright light around the traf-
fic sign.
• If road signs do not correspond to
the standard and etc.
• The conditional road sign is indi-
cated by letter, not specified image
such as trailer, rain or snow.
OTM058148L
OTM058147R

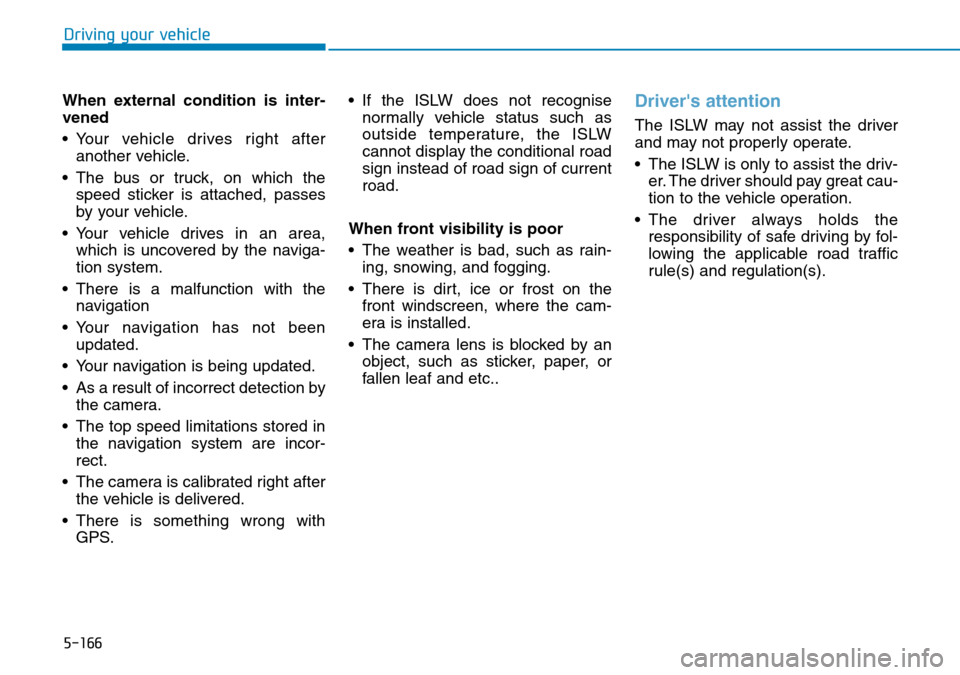

5-166
Driving your vehicle
When external condition is inter-
vened
• Your vehicle drives right after
another vehicle.
• The bus or truck, on which the
speed sticker is attached, passes
by your vehicle.
• Your vehicle drives in an area,
which is uncovered by the naviga-
tion system.
• There is a malfunction with the
navigation
• Your navigation has not been
updated.
• Your navigation is being updated.
• As a result of incorrect detection by
the camera.
• The top speed limitations stored in
the navigation system are incor-
rect.
• The camera is calibrated right after
the vehicle is delivered.
• There is something wrong with
GPS.• If the ISLW does not recognise
normally vehicle status such as
outside temperature, the ISLW
cannot display the conditional road
sign instead of road sign of current
road.
When front visibility is poor
• The weather is bad, such as rain-
ing, snowing, and fogging.
• There is dirt, ice or frost on the
front windscreen, where the cam-
era is installed.
• The camera lens is blocked by an
object, such as sticker, paper, or
fallen leaf and etc..
Driver's attention
The ISLW may not assist the driver
and may not properly operate.
• The ISLW is only to assist the driv-
er. The driver should pay great cau-
tion to the vehicle operation.
• The driver always holds the
responsibility of safe driving by fol-
lowing the applicable road traffic
rule(s) and regulation(s).

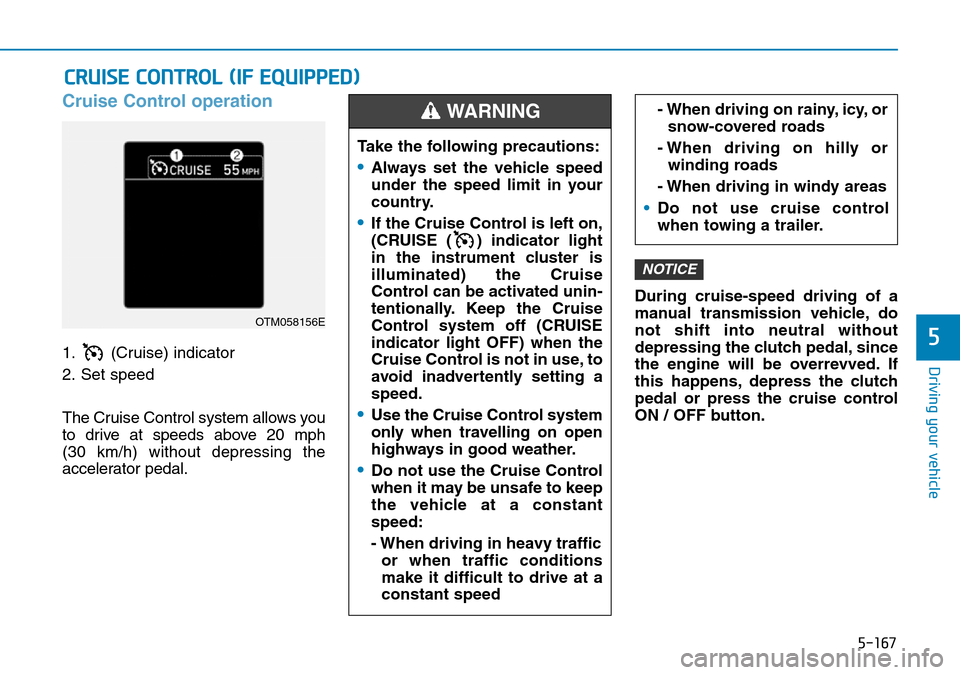

5-167
Driving your vehicle
5
Cruise Control operation
1. (Cruise) indicator
2. Set speed
The Cruise Control system allows you
to drive at speeds above 20 mph
(30 km/h) without depressing the
accelerator pedal.During cruise-speed driving of a
manual transmission vehicle, do
not shift into neutral without
depressing the clutch pedal, since
the engine will be overrevved. If
this happens, depress the clutch
pedal or press the cruise control
ON / OFF button.
NOTICE
CRUISE CONTROL (IF EQUIPPED)
Take the following precautions:

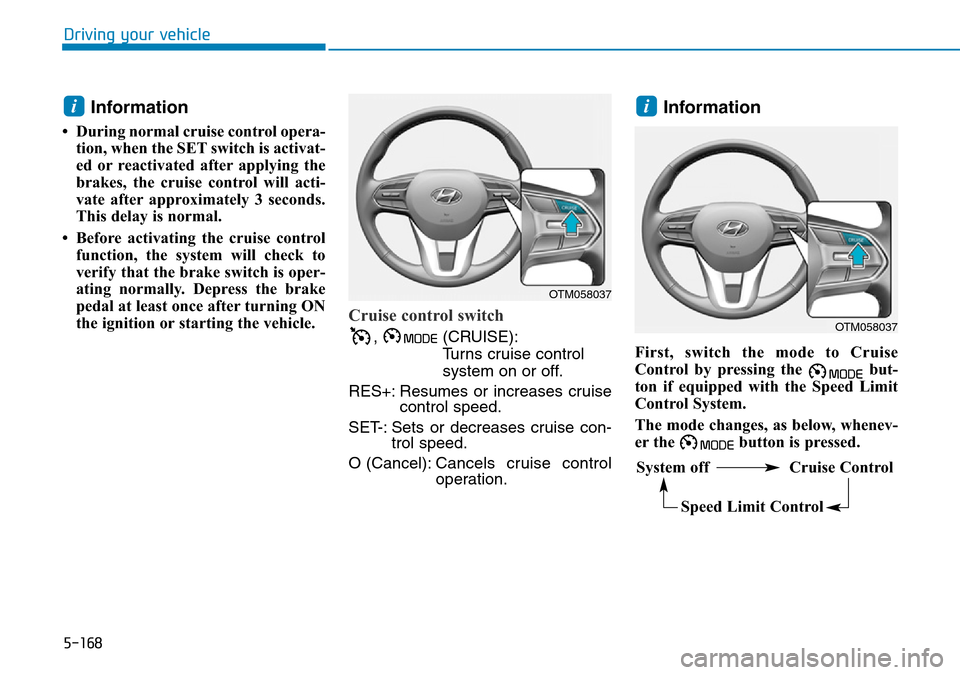

5-168
Driving your vehicle
Information
• During normal cruise control opera-
tion, when the SET switch is activat-
ed or reactivated after applying the
brakes, the cruise control will acti-
vate after approximately 3 seconds.
This delay is normal.
• Before activating the cruise control
function, the system will check to
verify that the brake switch is oper-
ating normally. Depress the brake
pedal at least once after turning ON
the ignition or starting the vehicle.
Cruise control switch
, (CRUISE):
Turns cruise control
system on or off.
RES+: Resumes or increases cruise
control speed.
SET-: Sets or decreases cruise con-
trol speed.
O (Cancel):Cancels cruise control
operation.
Information
First, switch the mode to Cruise
Control by pressing the but-
ton if equipped with the Speed Limit
Control System.
The mode changes, as below, whenev-
er the button is pressed.
ii
OTM058037
System off Cruise Control
Speed Limit Control
OTM058037

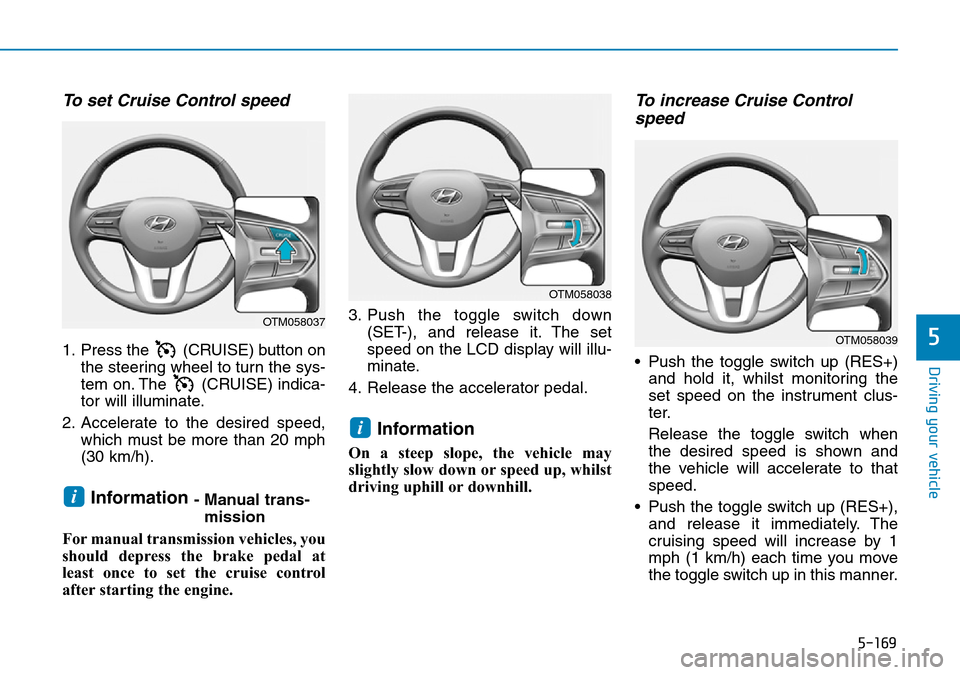

5-169
Driving your vehicle
5
To set Cruise Control speed
1. Press the (CRUISE) button on
the steering wheel to turn the sys-
tem on. The (CRUISE) indica-
tor will illuminate.
2. Accelerate to the desired speed,
which must be more than 20 mph
(30 km/h).
Information - Manual trans-
mission
For manual transmission vehicles, you
should depress the brake pedal at
least once to set the cruise control
after starting the engine.3. Push the toggle switch down
(SET-), and release it. The set
speed on the LCD display will illu-
minate.
4. Release the accelerator pedal.
Information
On a steep slope, the vehicle may
slightly slow down or speed up, whilst
driving uphill or downhill.
To increase Cruise Control
speed
• Push the toggle switch up (RES+)
and hold it, whilst monitoring the
set speed on the instrument clus-
ter.
Release the toggle switch when
the desired speed is shown and
the vehicle will accelerate to that
speed.
• Push the toggle switch up (RES+),
and release it immediately. The
cruising speed will increase by 1
mph (1 km/h) each time you move
the toggle switch up in this manner.
i
i
OTM058037
OTM058038
OTM058039

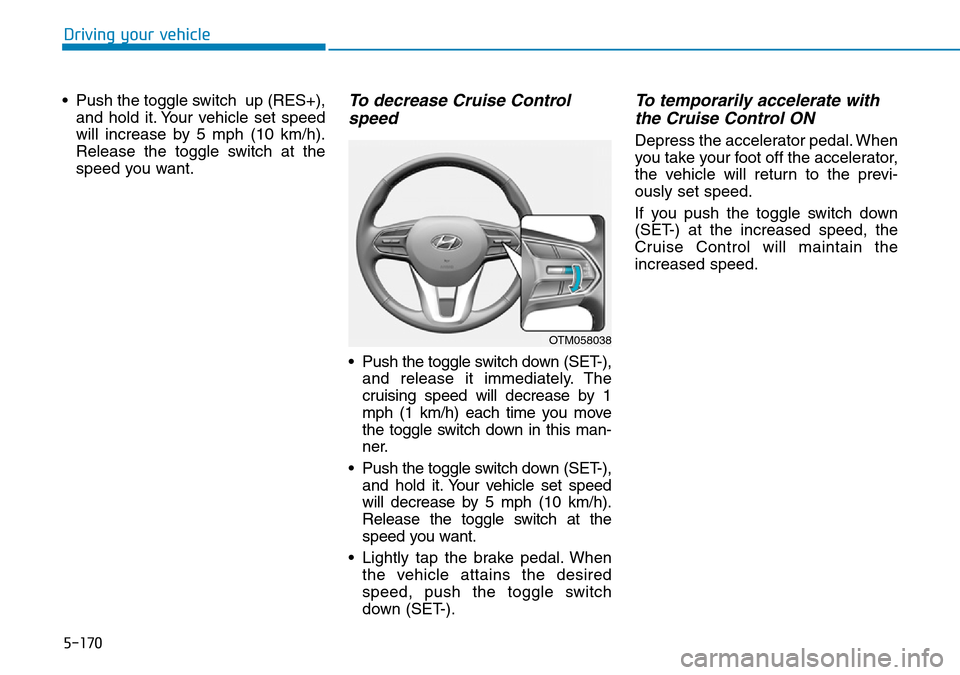

5-170
Driving your vehicle
• Push the toggle switch up (RES+),
and hold it. Your vehicle set speed
will increase by 5 mph (10 km/h).
Release the toggle switch at the
speed you want.
To decrease Cruise Control
speed
• Push the toggle switch down (SET-),
and release it immediately. The
cruising speed will decrease by 1
mph (1 km/h) each time you move
the toggle switch down in this man-
ner.
• Push the toggle switch down (SET-),
and hold it. Your vehicle set speed
will decrease by 5 mph (10 km/h).
Release the toggle switch at the
speed you want.
• Lightly tap the brake pedal. When
the vehicle attains the desired
speed, push the toggle switch
down (SET-).
To temporarily accelerate with
the Cruise Control ON
Depress the accelerator pedal. When
you take your foot off the accelerator,
the vehicle will return to the previ-
ously set speed.
If you push the toggle switch down
(SET-) at the increased speed, the
Cruise Control will maintain the
increased speed.
OTM058038

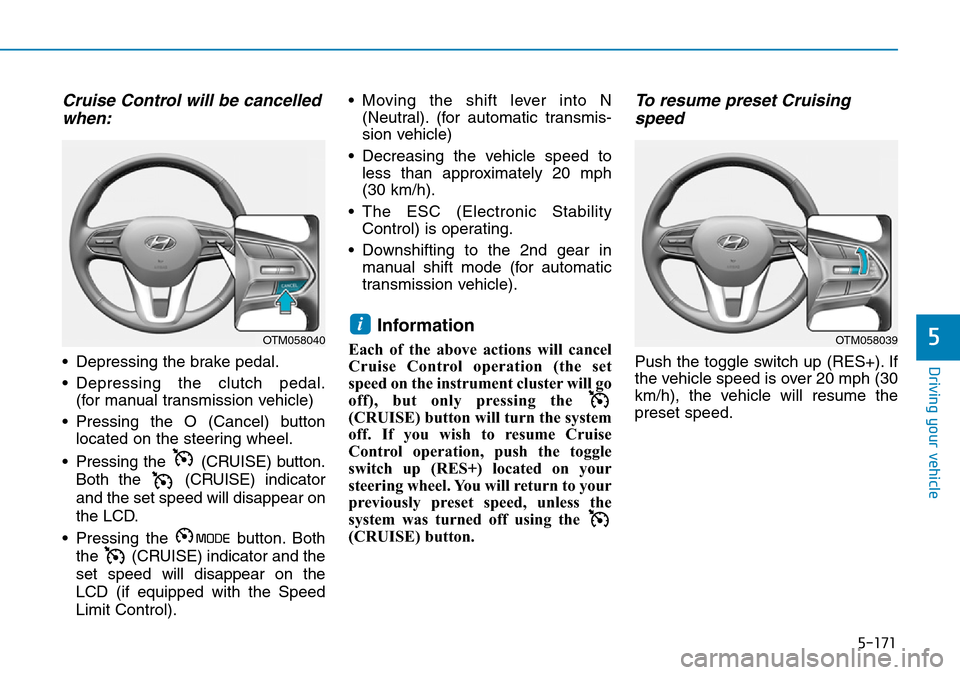

5-171
Driving your vehicle
5
Cruise Control will be cancelled
when:
• Depressing the brake pedal.
• Depressing the clutch pedal.
(for manual transmission vehicle)
• Pressing the O (Cancel) button
located on the steering wheel.
• Pressing the (CRUISE) button.
Both the (CRUISE) indicator
and the set speed will disappear on
the LCD.
• Pressing the button. Both
the (CRUISE) indicator and the
set speed will disappear on the
LCD (if equipped with the Speed
Limit Control).• Moving the shift lever into N
(Neutral). (for automatic transmis-
sion vehicle)
• Decreasing the vehicle speed to
less than approximately 20 mph
(30 km/h).
• The ESC (Electronic Stability
Control) is operating.
• Downshifting to the 2nd gear in
manual shift mode (for automatic
transmission vehicle).
Information
Each of the above actions will cancel
Cruise Control operation (the set
speed on the instrument cluster will go
off), but only pressing the
(CRUISE) button will turn the system
off. If you wish to resume Cruise
Control operation, push the toggle
switch up (RES+) located on your
steering wheel. You will return to your
previously preset speed, unless the
system was turned off using the
(CRUISE) button.
To resume preset Cruising
speed
Push the toggle switch up (RES+). If
the vehicle speed is over 20 mph (30
km/h), the vehicle will resume the
preset speed.
iOTM058039OTM058040
