HYUNDAI SANTA FE HYBRID 2022 Owners Manual
Manufacturer: HYUNDAI, Model Year: 2022, Model line: SANTA FE HYBRID, Model: HYUNDAI SANTA FE HYBRID 2022Pages: 638, PDF Size: 21.77 MB
Page 191 of 638
Instrument Cluster
4-46

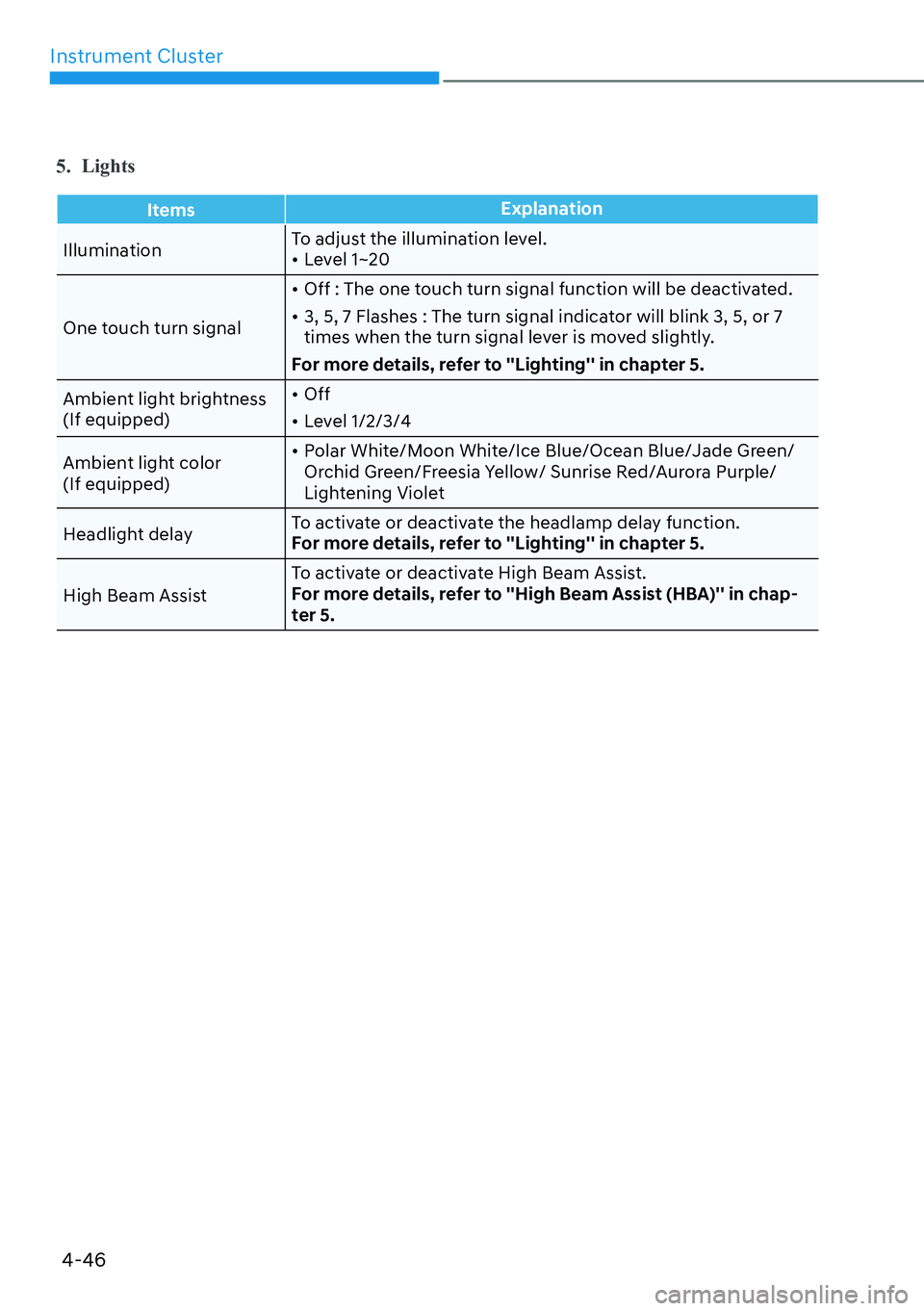

5. Lights
ItemsExplanation
IlluminationTo adjust the illumination level. [
Level 1~20
One touch turn signal [
Off : The one touch turn signal function will be deactivated.
[ 3, 5, 7 Flashes : The turn signal indicator will blink 3, 5, or 7
times when the turn signal lever is moved slightly.
For more details, refer to ''Lighting'' in chapter 5.
Ambient light brightness(If equipped) [
Off
[ Level 1/2/3/4
Ambient light color(If equipped) [
Polar White/Moon White/Ice Blue/Ocean Blue/Jade Green/
Orchid Green/Freesia Yellow/ Sunrise Red/Aurora Purple/
Lightening Violet
Headlight delay To activate or deactivate the headlamp delay function.
For more details, refer to ''Lighting'' in chapter 5.
High Beam Assist To activate or deactivate High Beam Assist.
For more details, refer to ''High Beam Assist (HBA)'' in chap-
ter 5.
Page 192 of 638
04
4-47

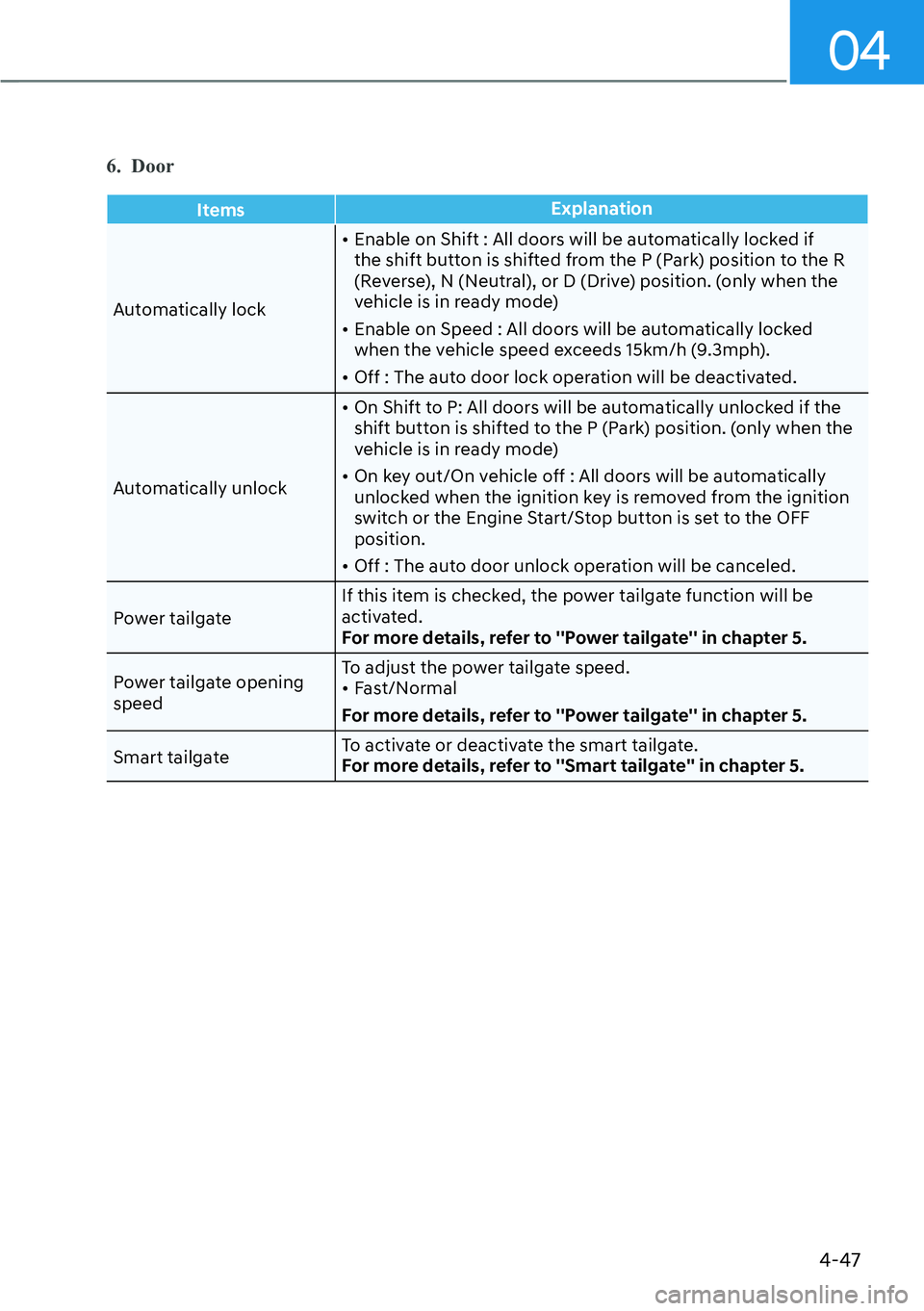

6. Door
ItemsExplanation
Automatically lock[
Enable on Shift : All doors will be automatically locked if
the shift button is shifted from the P (Park) position to the R
(Reverse), N (Neutral), or D (Drive) position. (only when the
vehicle is in ready mode)
[ Enable on Speed : All doors will be automatically locked
when the vehicle speed exceeds 15km/h (9.3mph).
[ Off : The auto door lock operation will be deactivated.
Automatically unlock [
On Shift to P: All doors will be automatically unlocked if the
shift button is shifted to the P (Park) position. (only when the
vehicle is in ready mode)
[ On key out/On vehicle off : All doors will be automatically
unlocked when the ignition key is removed from the ignition
switch or the Engine Start/Stop button is set to the OFF position.
[ Off : The auto door unlock operation will be canceled.
Power tailgate If this item is checked, the power tailgate function will be
activated.
For more details, refer to ''Power tailgate'' in chapter 5.
Power tailgate opening speed To adjust the power tailgate speed.[
Fast/Normal
For more details, refer to ''Power tailgate'' in chapter 5.
Smart tailgate To activate or deactivate the smart tailgate.
For more details, refer to ''Smart tailgate'' in chapter 5.
Page 193 of 638
Instrument Cluster
4-48

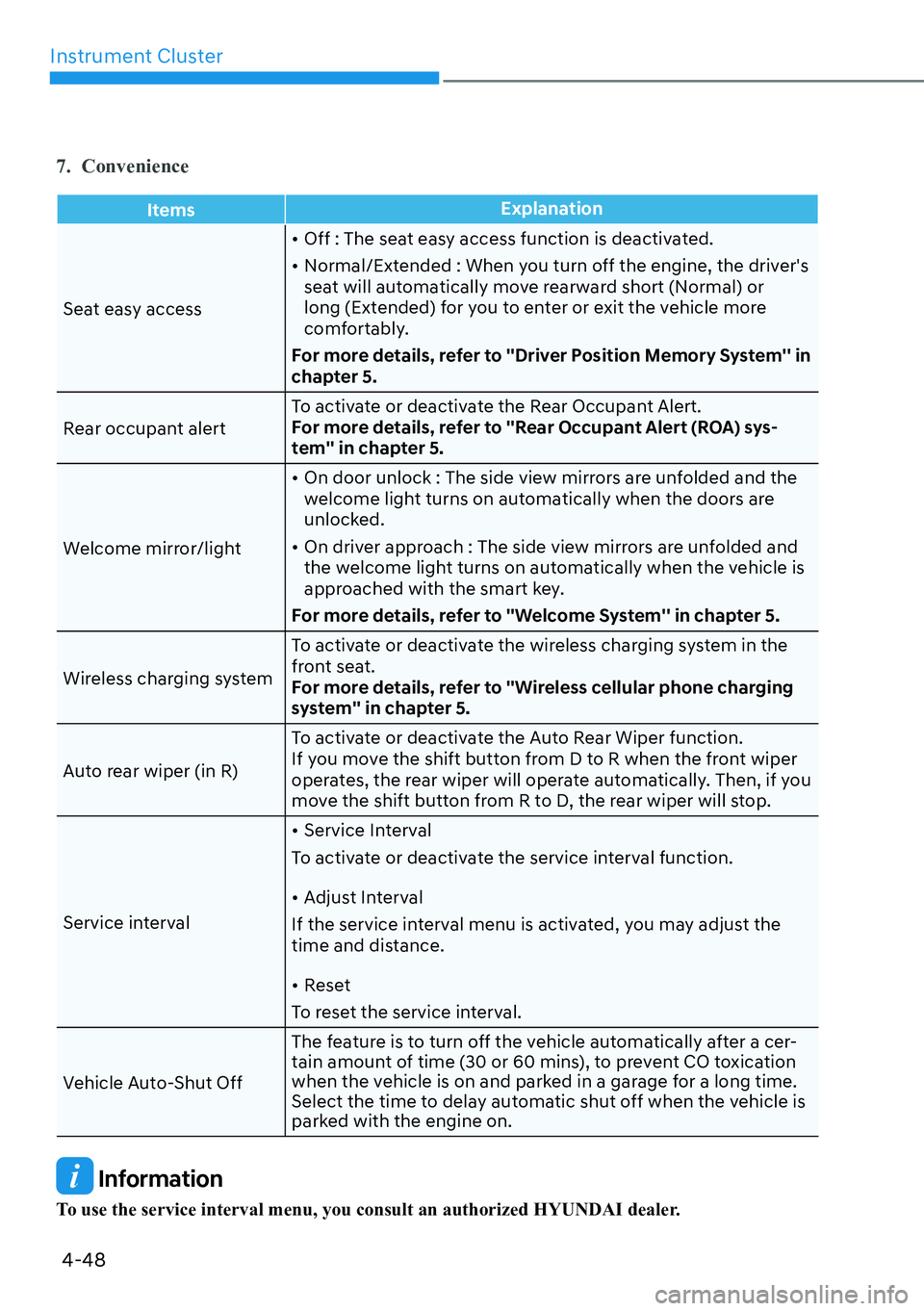

7. Convenience
ItemsExplanation
Seat easy access[
Off : The seat easy access function is deactivated.
[ Normal/Extended : When you turn off the engine, the driver's
seat will automatically move rearward short (Normal) or
long (Extended) for you to enter or exit the vehicle more
comfortably.
For more details, refer to ''Driver Position Memory System'' in
chapter 5.
Rear occupant alert To activate or deactivate the Rear Occupant Alert.
For more details, refer to ''Rear Occupant Alert (ROA) sys-
tem'' in chapter 5.
Welcome mirror/light [
On door unlock : The side view mirrors are unfolded and the
welcome light turns on automatically when the doors are
unlocked.
[ On driver approach : The side view mirrors are unfolded and
the welcome light turns on automatically when the vehicle is
approached with the smart key.
For more details, refer to ''Welcome System'' in chapter 5.
Wireless charging system To activate or deactivate the wireless charging system in the
front seat.
For more details, refer to ''Wireless cellular phone charging
system'' in chapter 5.
Auto rear wiper (in R) To activate or deactivate the Auto Rear Wiper function.
If you move the shift button from D to R when the front wiper
operates, the rear wiper will operate automatically. Then, if you
move the shift button from R to D, the rear wiper will stop.
Service interval [
Service Interval
To activate or deactivate the service interval function. [ Adjust Interval
If the service interval menu is activated, you may adjust the
time and distance. [ Reset
To reset the service interval.
Vehicle Auto-Shut Off The feature is to turn off the vehicle automatically after a cer-
tain amount of time (30 or 60 mins), to prevent CO toxication
when the vehicle is on and parked in a garage for a long time.
Select the time to delay automatic shut off when the vehicle is
parked with the engine on.
Information
To use the service interval menu, you consult an authorized HYUNDAI dealer.
Page 194 of 638
04
4-49

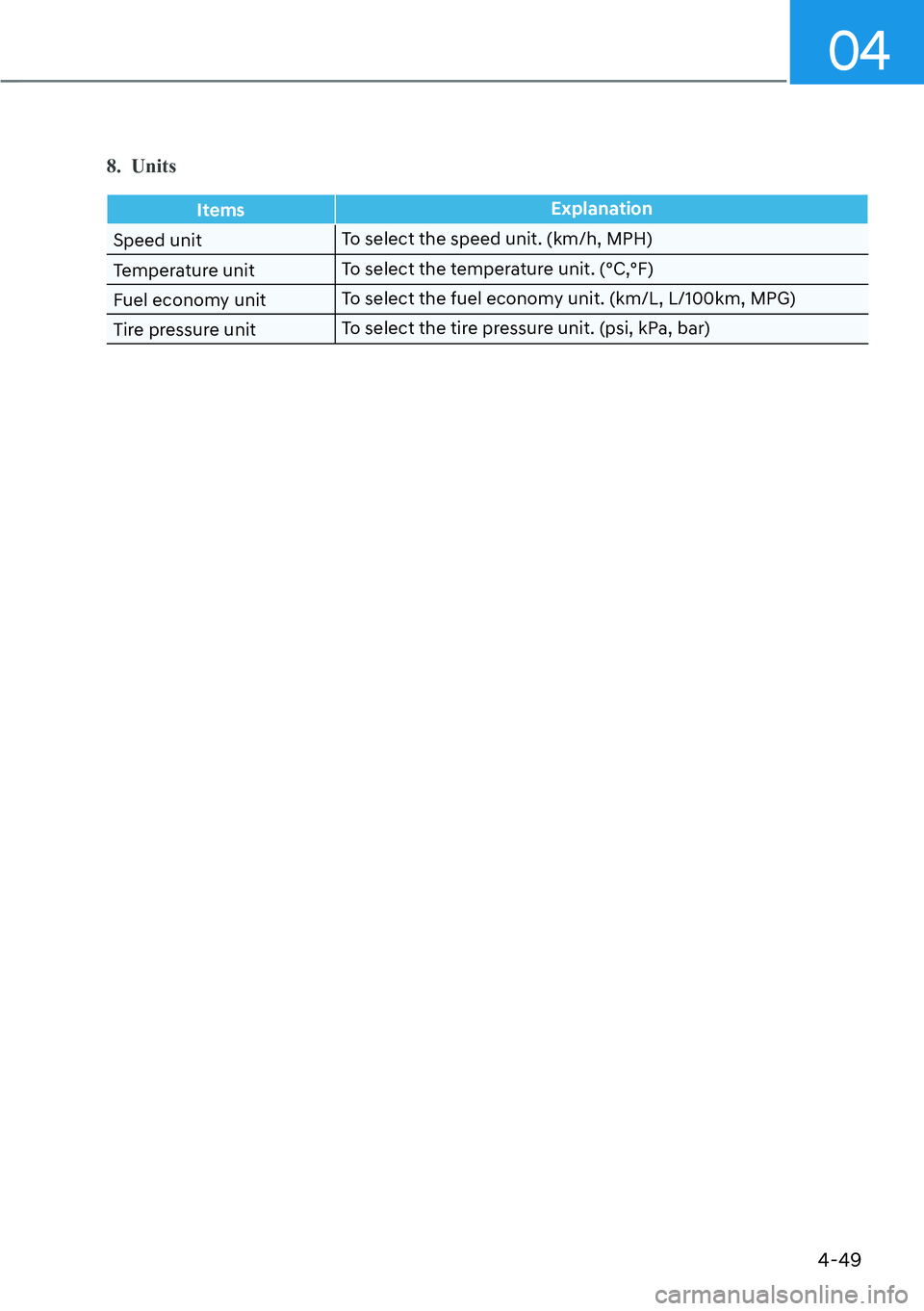

8. Units
ItemsExplanation
Speed unitTo select the speed unit. (km/h, MPH)
Temperature unit To select the temperature unit. (°C,°F)
Fuel economy unit To select the fuel economy unit. (km/L, L/100km, MPG)
Tire pressure unit To select the tire pressure unit. (psi, kPa, bar)
Page 195 of 638
Instrument Cluster
4-50

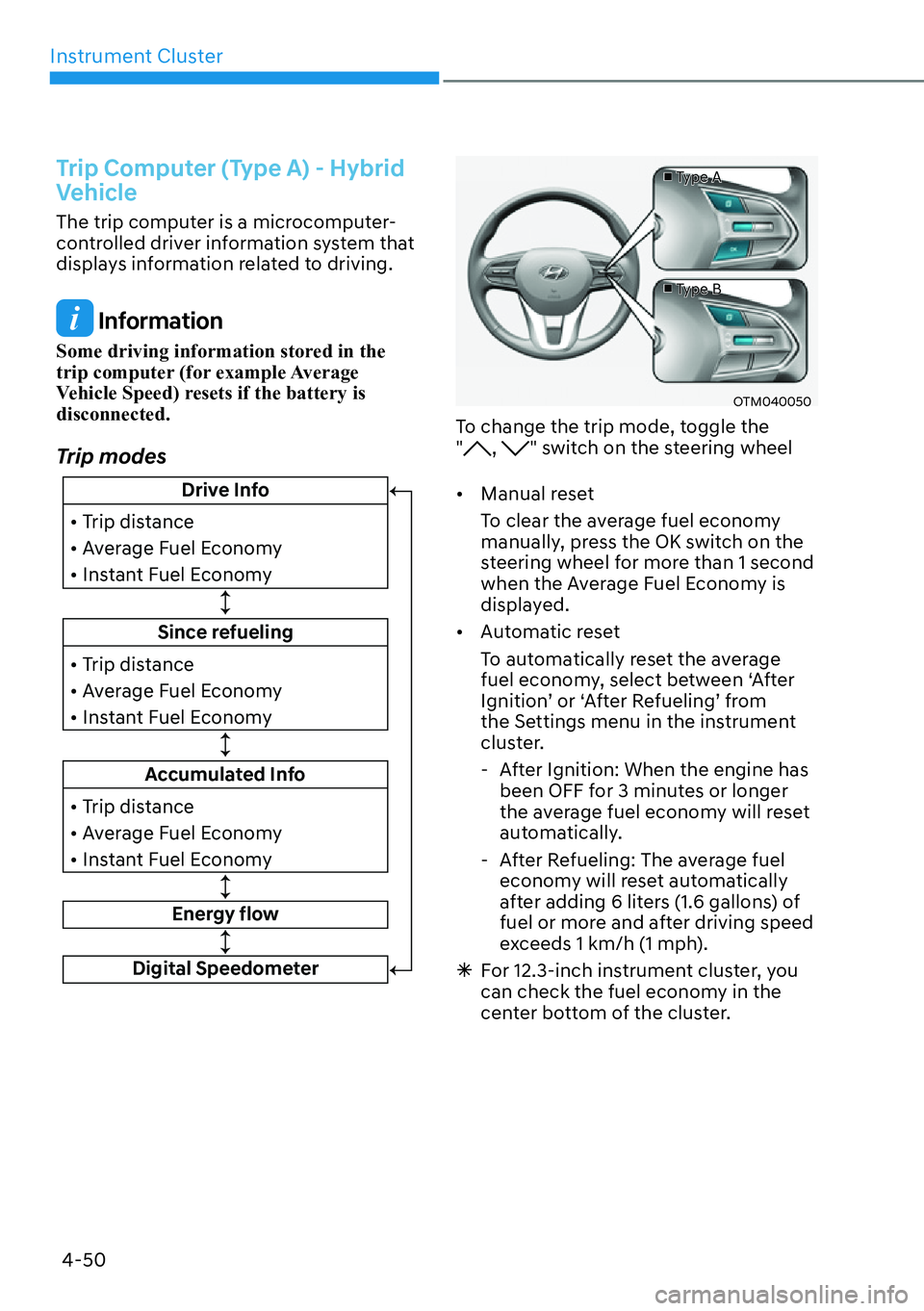

Trip Computer (Type A) - Hybrid
Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is disconnected.
Trip modes
Since refueling
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Accumulated Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Energy flow
Digital Speedometer
v Type A
v Type B
OTM040050
To change the trip mode, toggle the "
, " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
Page 196 of 638
04
4-51
„Type A „Type B
OTM040063LOTM040064L
Drive info
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OTM040065LOTM040066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and instant fuel economy (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
„Type A „Type B
OTM040067LOTM040068L
Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and instant fuel
economy (3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
Page 197 of 638
Instrument Cluster
4-52

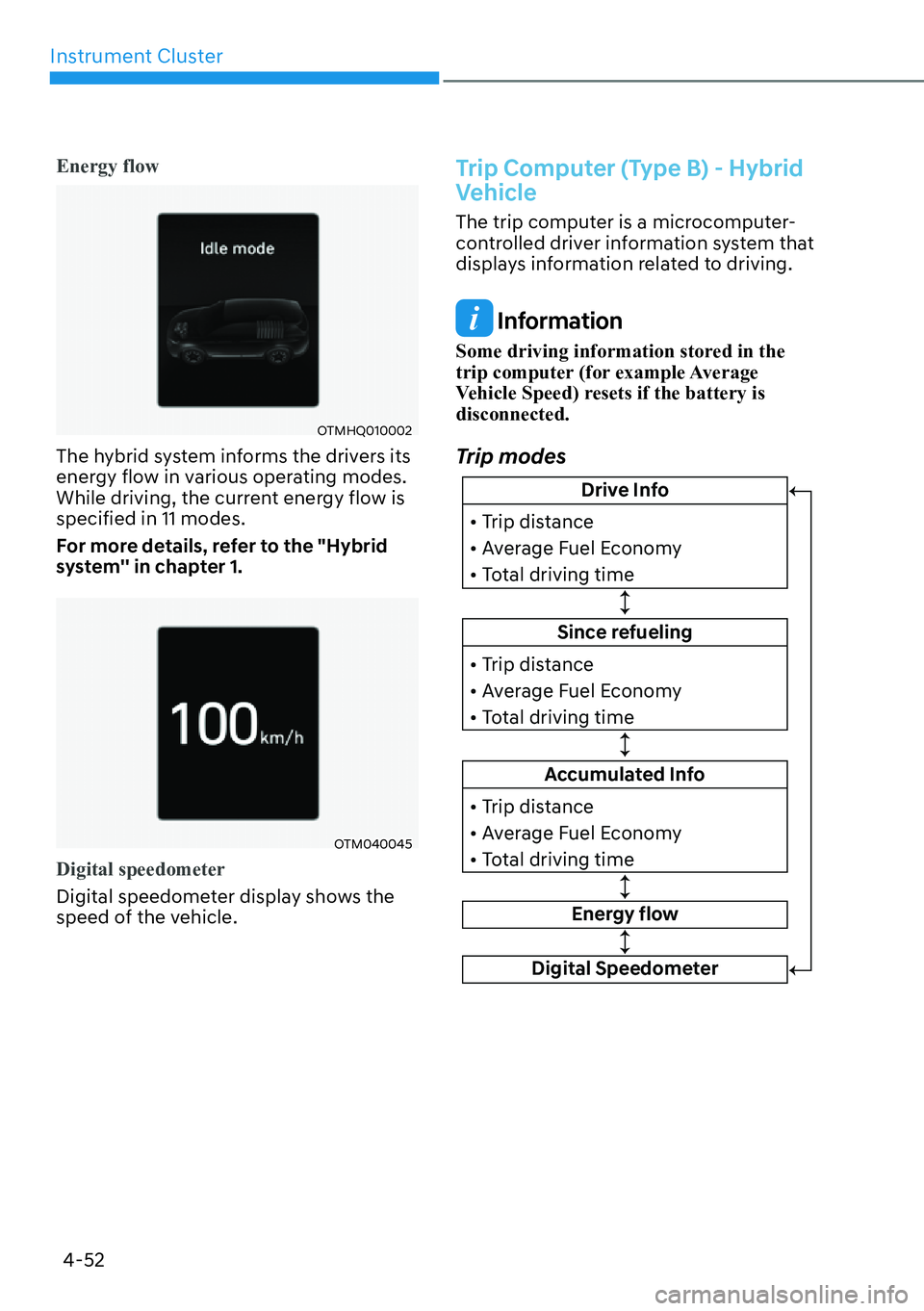

Energy flow
OTMHQ010002
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040045
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.
Trip Computer (Type B) - Hybrid
Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is disconnected.
Trip modes
Since refueling
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Accumulated Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ 7 R W D O G U L Y L Q J W L P H
Energy flow
Digital Speedometer
Page 198 of 638
04
4-53
v Type A
v Type B
OTM040050
To change the trip mode, toggle the "
, " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
„Type A „Type B
OJX1049011LOTM040061L
Drive info
Trip distance (1), average fuel economy
(2), and total driving time (3) are
displayed.
The information is combined for each
ignition cycle. However, when the engine
has been OFF for 3 minutes or longer the
Drive Info screen will reset.
To reset manually, press the OK switch
on the steering wheel for more than 1
second when ‘Drive Info’ is displayed.
„Type A „Type B
OJX1049013LOJX1049066L
Since refuel(l)ing
Trip distance (1), average fuel economy
(2), and total driving time (3) after the
vehicle has been refueled are displayed.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Since Refueling’ is
displayed.
Page 199 of 638
Instrument Cluster
4-54
„Type A „Type B
OTM040067LOTM040068L

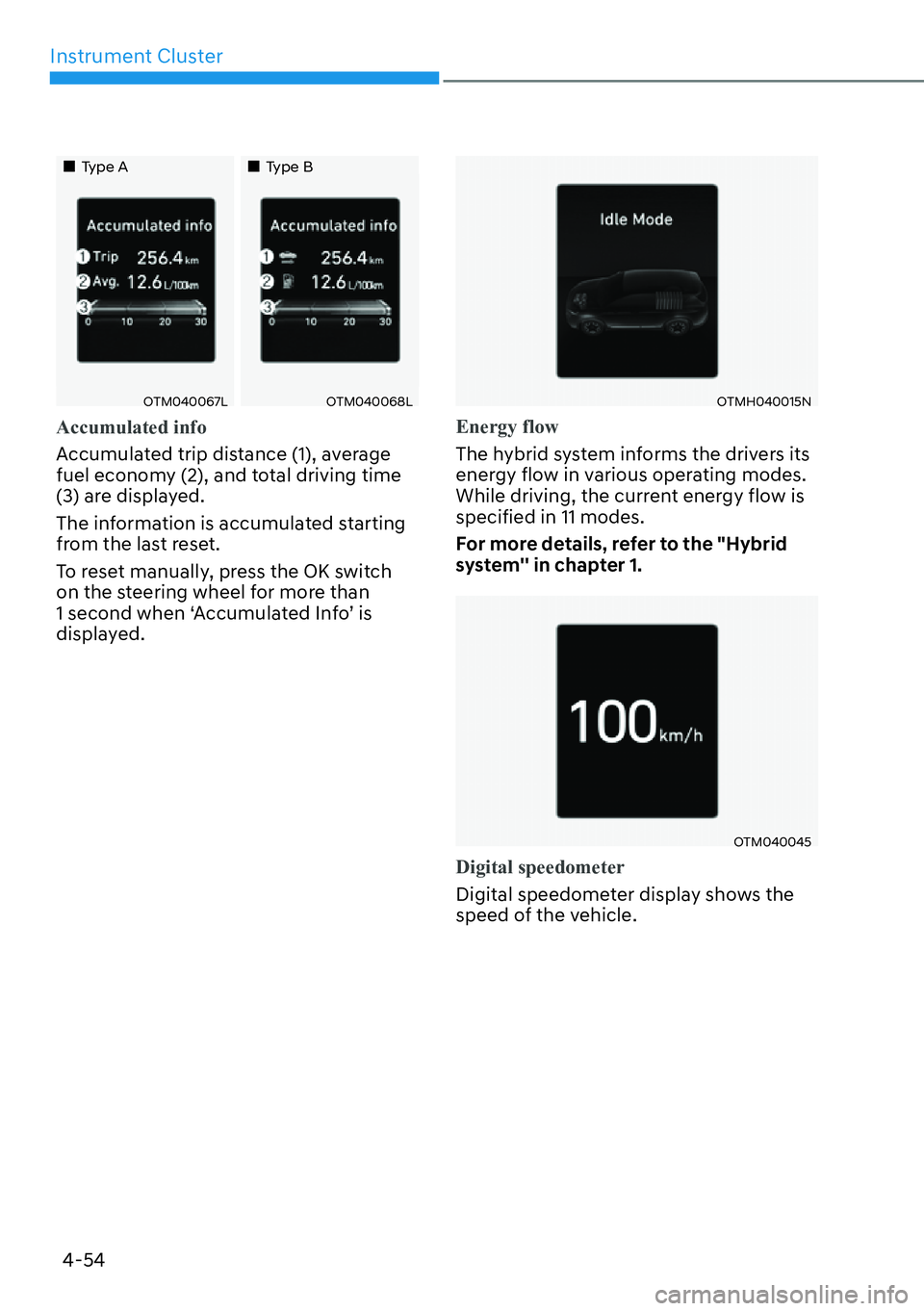

Accumulated info
Accumulated trip distance (1), average
fuel economy (2), and total driving time
(3) are displayed.
The information is accumulated starting
from the last reset.
To reset manually, press the OK switch
on the steering wheel for more than
1 second when ‘Accumulated Info’ is
displayed.
OTMH040015N
Energy flow
The hybrid system informs the drivers its
energy flow in various operating modes.
While driving, the current energy flow is specified in 11 modes.
For more details, refer to the "Hybrid
system'' in chapter 1.
OTM040045
Digital speedometer
Digital speedometer display shows the
speed of the vehicle.
Page 200 of 638
04
4-55

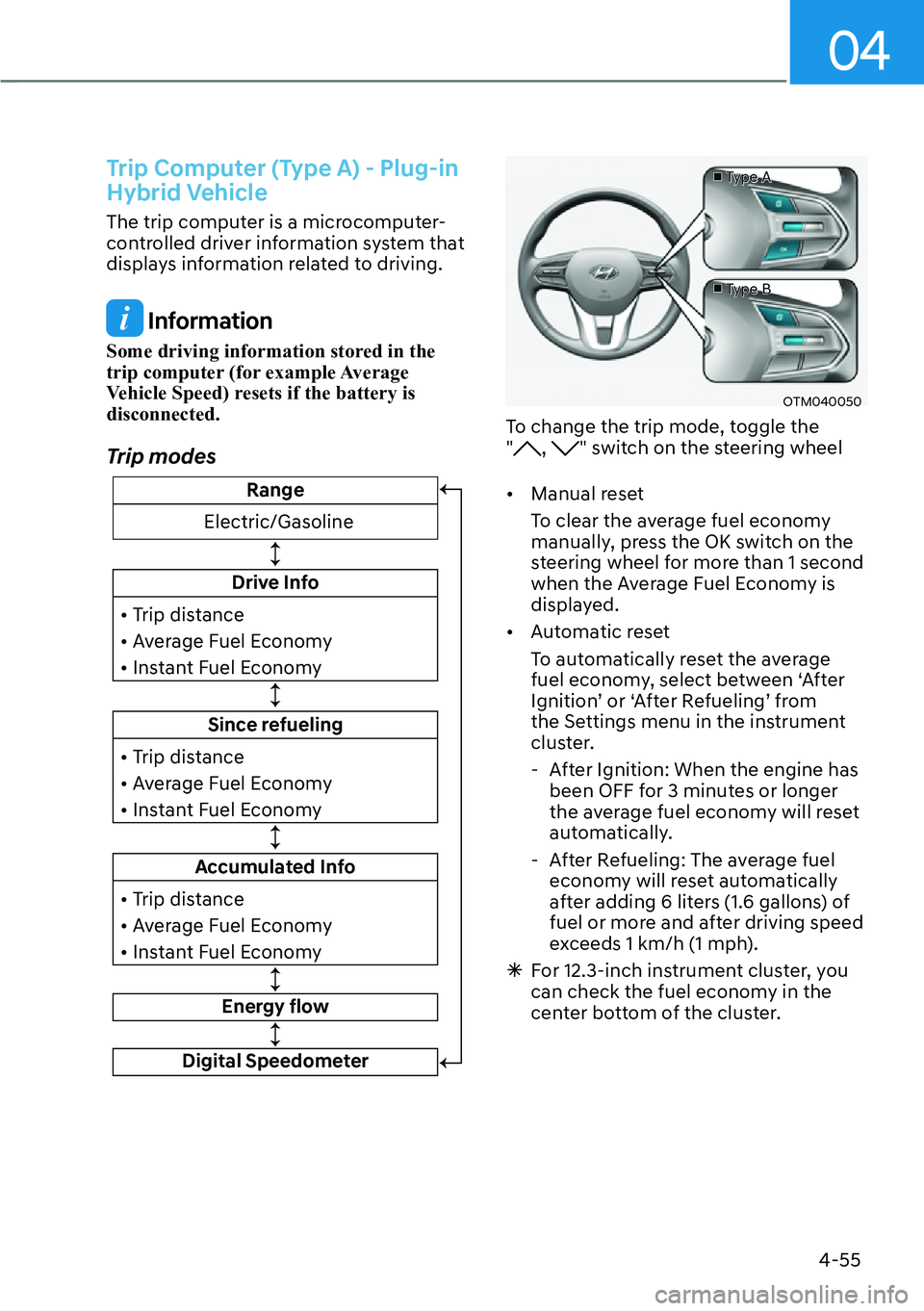

Trip Computer (Type A) - Plug-in
Hybrid Vehicle
The trip computer is a microcomputer-
controlled driver information system that
displays information related to driving.
Information
Some driving information stored in the
trip computer (for example Average
Vehicle Speed) resets if the battery is disconnected.
Trip modes
Since refueling
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Drive Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Range
( O H F W U L F * D V R O L Q H
Accumulated Info
[ 7 U L S G L V W D Q F H
[ $ Y H U D J H ) X H O ( F R Q R P \
[ , Q V W D Q W ) X H O ( F R Q R P \
Energy flow
Digital Speedometer
v Type A
v Type B
OTM040050
To change the trip mode, toggle the "
, " switch on the steering wheel
[ Manual reset
To clear the average fuel economy
manually, press the OK switch on the
steering wheel for more than 1 second
when the Average Fuel Economy is
displayed.
[ Automatic reset
To automatically reset the average
fuel economy, select between ‘After
Ignition’ or ‘After Refueling’ from
the Settings menu in the instrument
cluster.
- After Ignition: When the engine has
been OFF for 3 minutes or longer
the average fuel economy will reset
automatically.
- After Refueling: The average fuel economy will reset automatically
after adding 6 liters (1.6 gallons) of
fuel or more and after driving speed
exceeds 1 km/h (1 mph).
à For 12.3-inch instrument cluster, you
can check the fuel economy in the
center bottom of the cluster.
